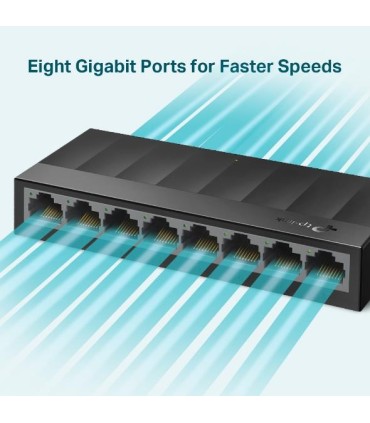

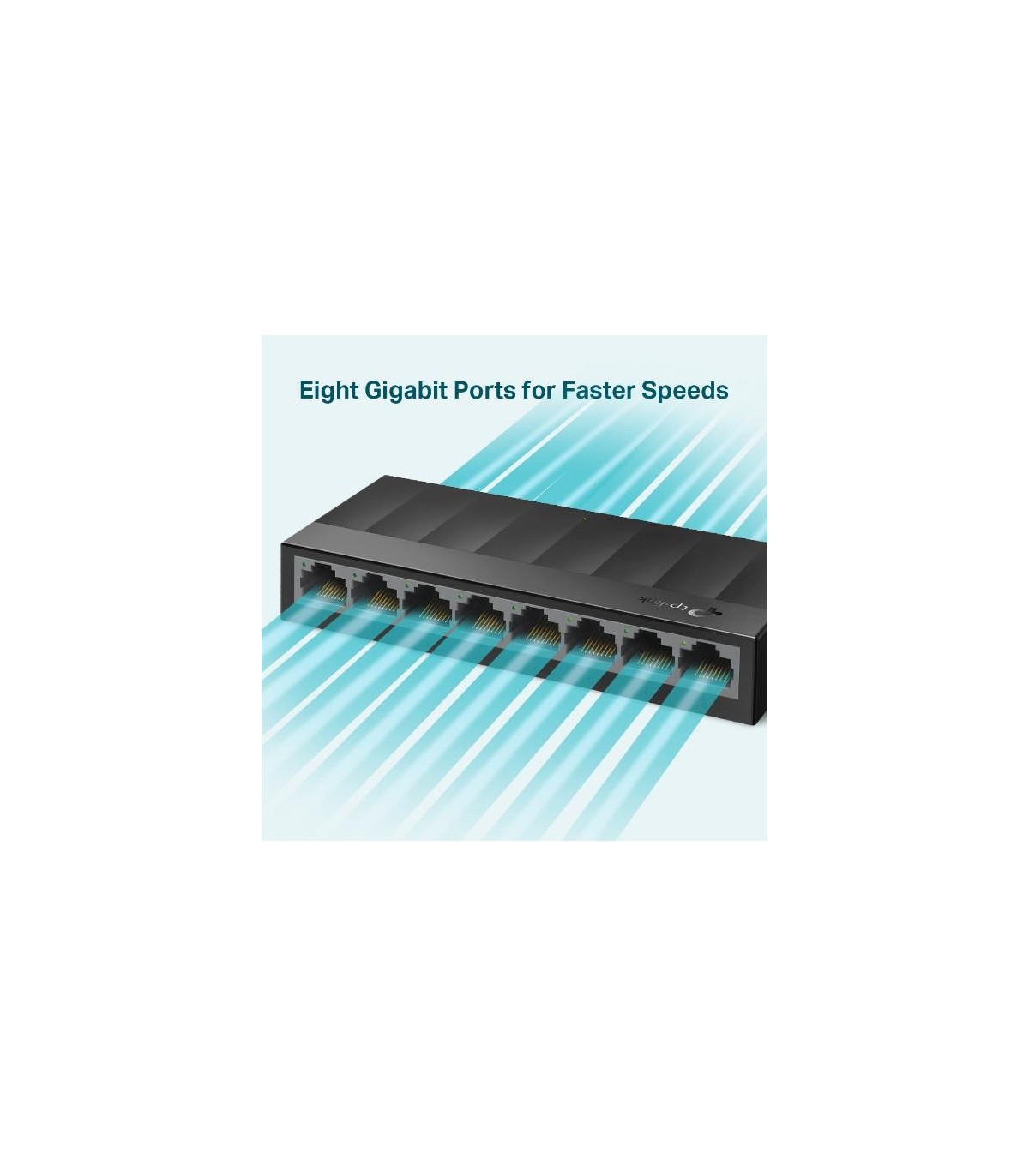

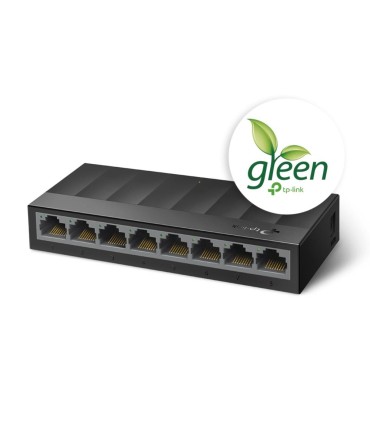

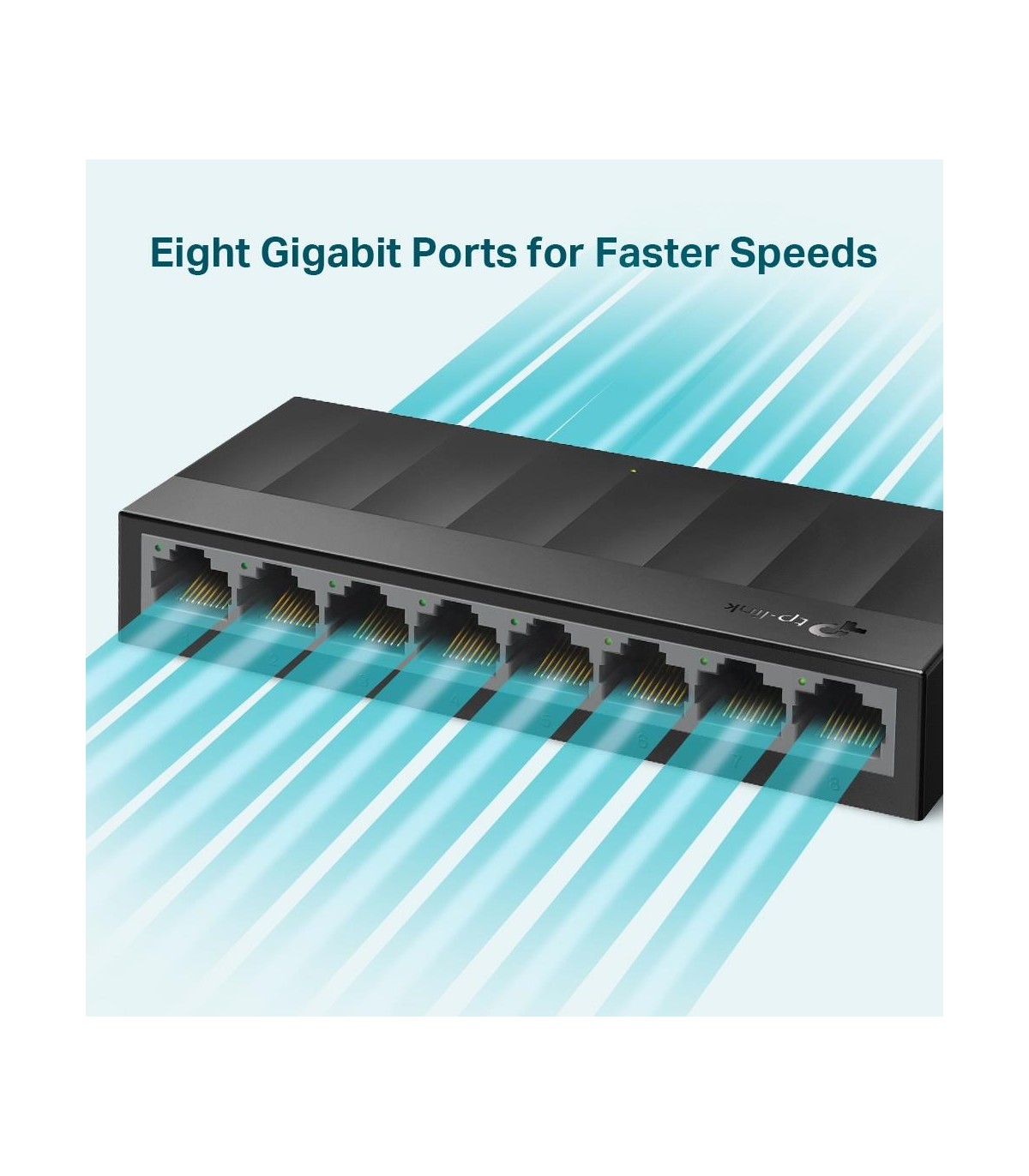

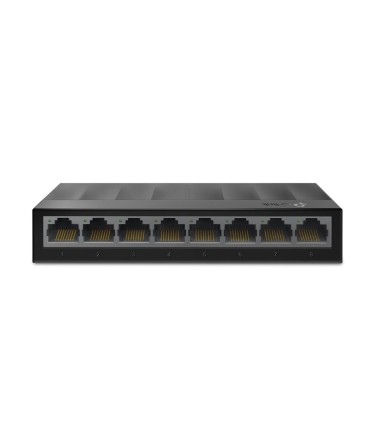

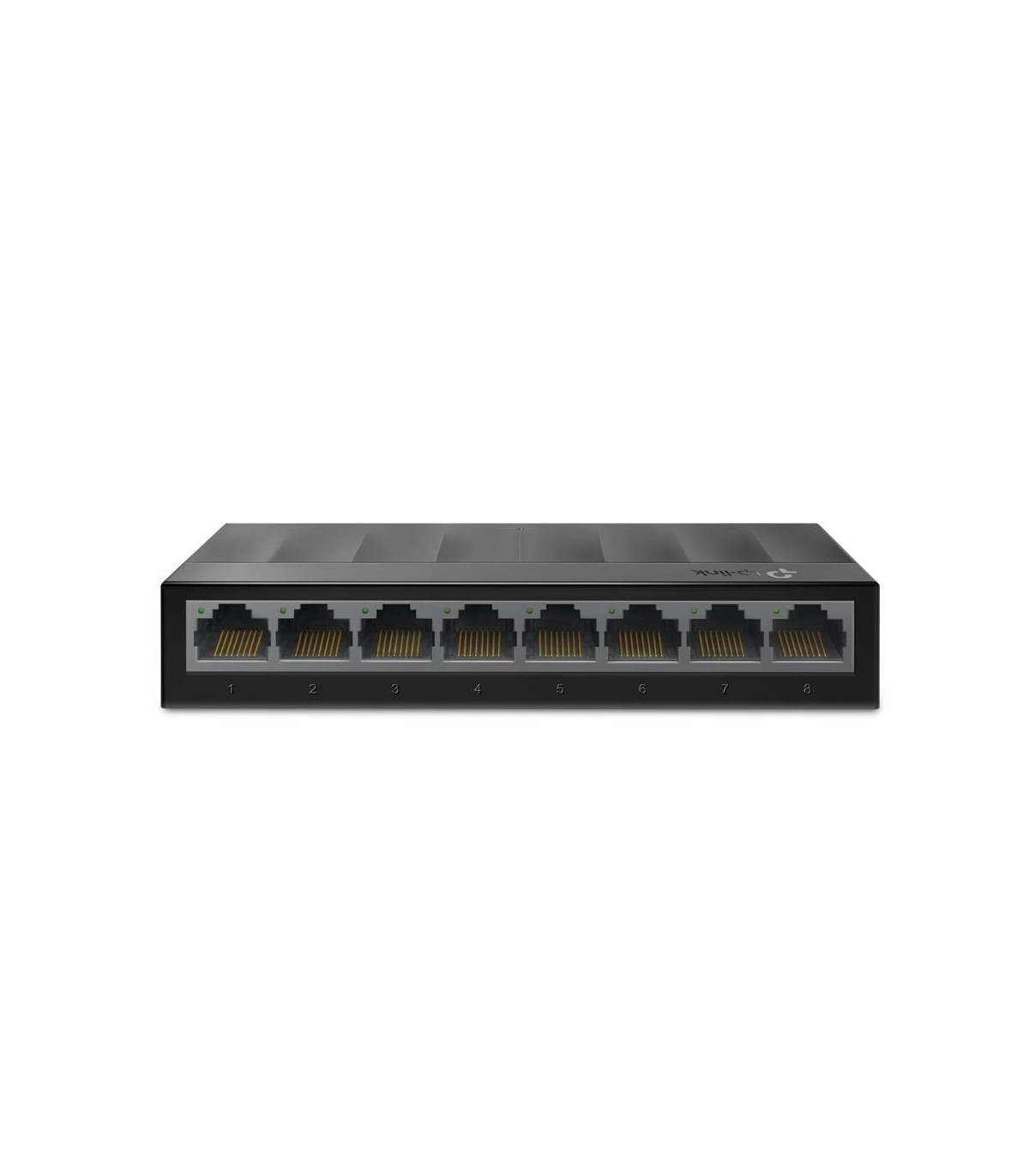

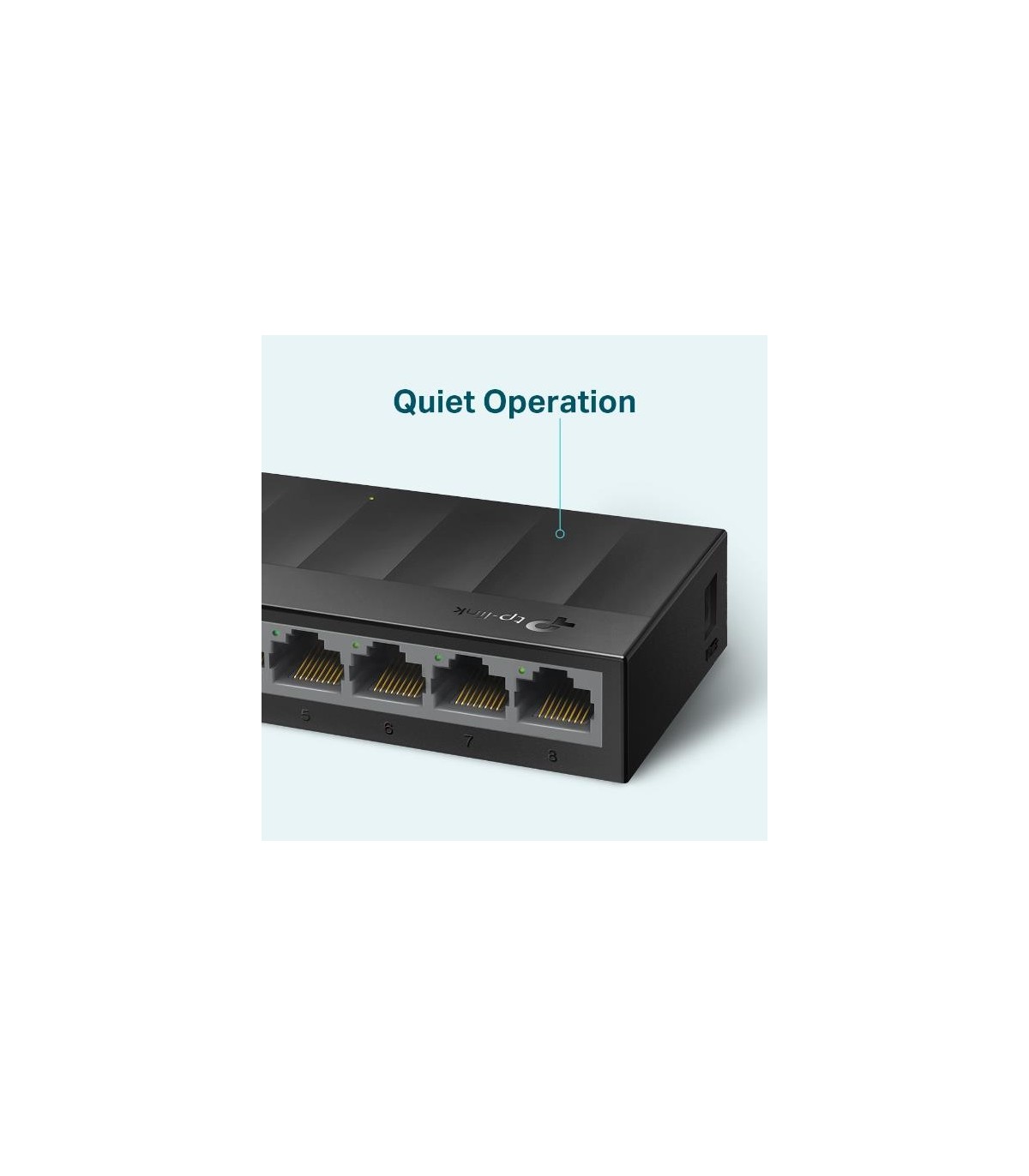

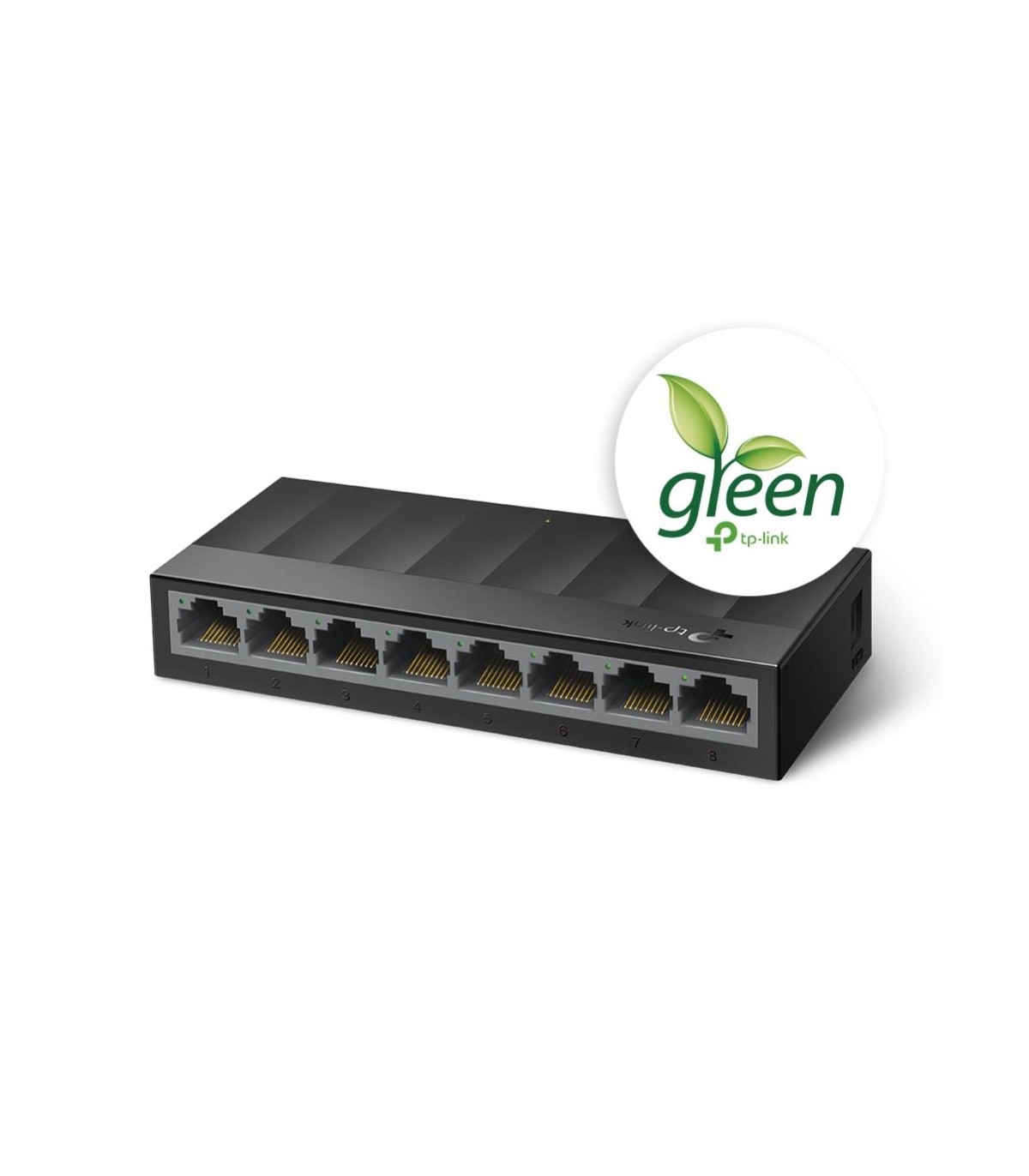

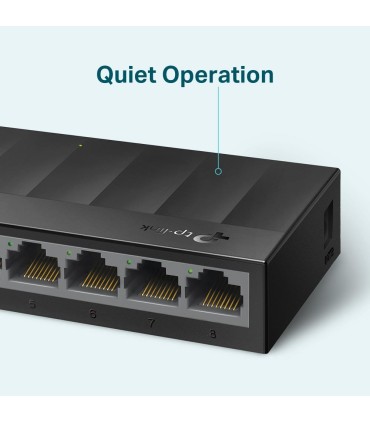

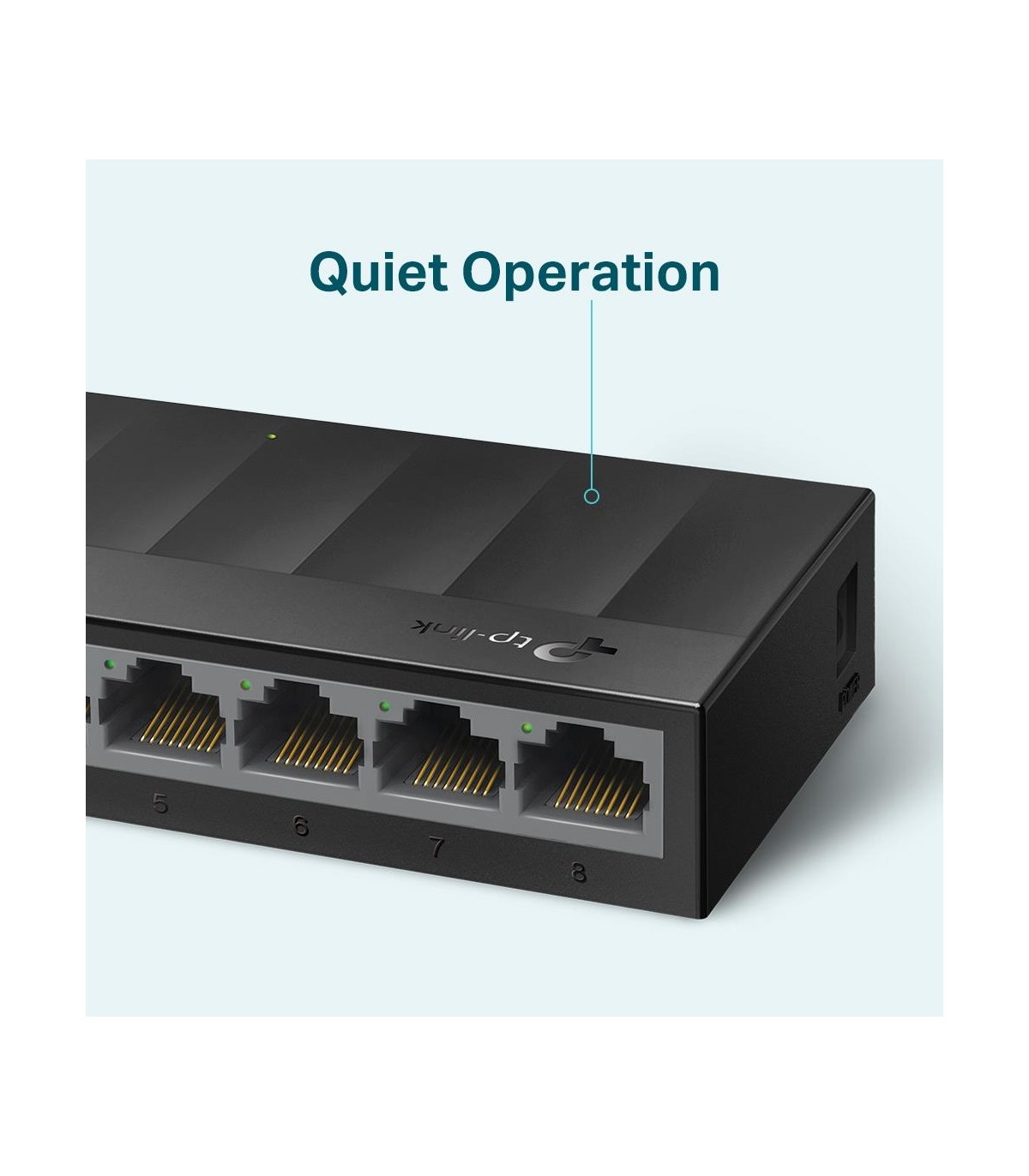

TP-LINK Switch LS1008G LS1008G

Технические характеристики

Материал корпуса

Plastic

Другие свойства

Depth

66.5 mm

Height

23 mm

Width

127 mm

Unit Box Width

0.09

Unit Box Length

0.13

Unit Box Height

0.085

Category Code

SWI

Model name

LS1008G

Switch type

Unmanaged

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

Auto-negotiation

Yes

Power source

DC

Unit Calculated Volume

0.0009945 cubm

Unit Calculated Weight

0.23 kg

Units per Shipping Box

1

Summary

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity

Product colour

Black

Package depth

131 mm

Package height

84 mm

Package type

Box

Package weight

220 g

Package width

90 mm

Input current

0.6 A

Certification

CE, FCC, RoHS

Power consumption (max)

3.9 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Quick start guide

Yes

Wall mountable

Yes

Storage temperature (T-T)

-40 - 60 °C

Harmonized System (HS) code

85176990

LED indicators

Activity/Link/Power

Heat dissipation

13.299 BTU/h

Power supply included

Yes

Jumbo frames support

Yes

Networking standards

IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Power connector

DC-in jack

Auto MDI/MDI-X

Yes

Input voltage

5 V

10G support

No

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

No

Gigabit Ethernet (copper) ports quantity

8

MAC address table

4000 entries

Store-and-forward

Yes

Jumbo frames

16000

Flow control support

Yes

Packet buffer memory

1.5 MB
