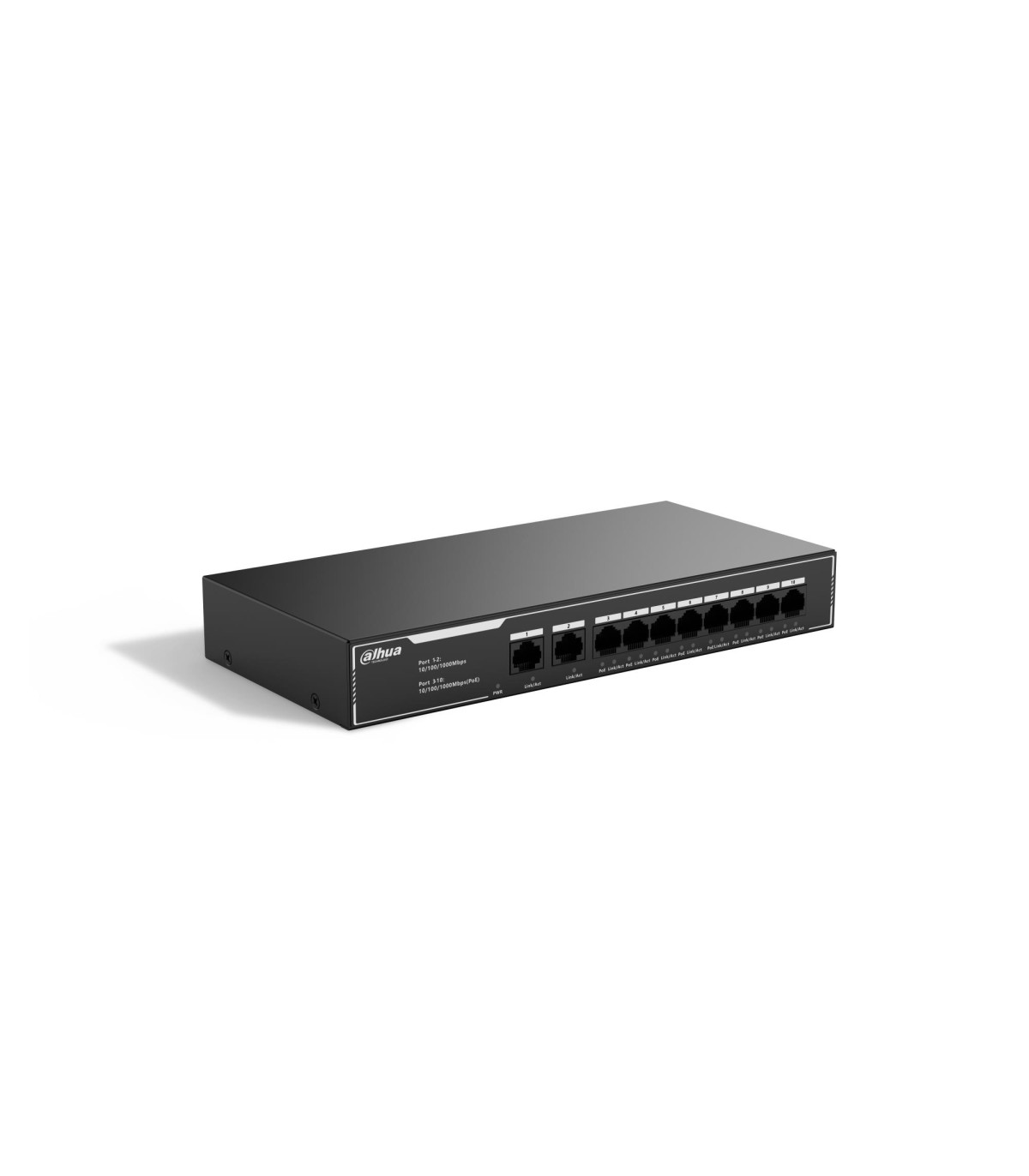

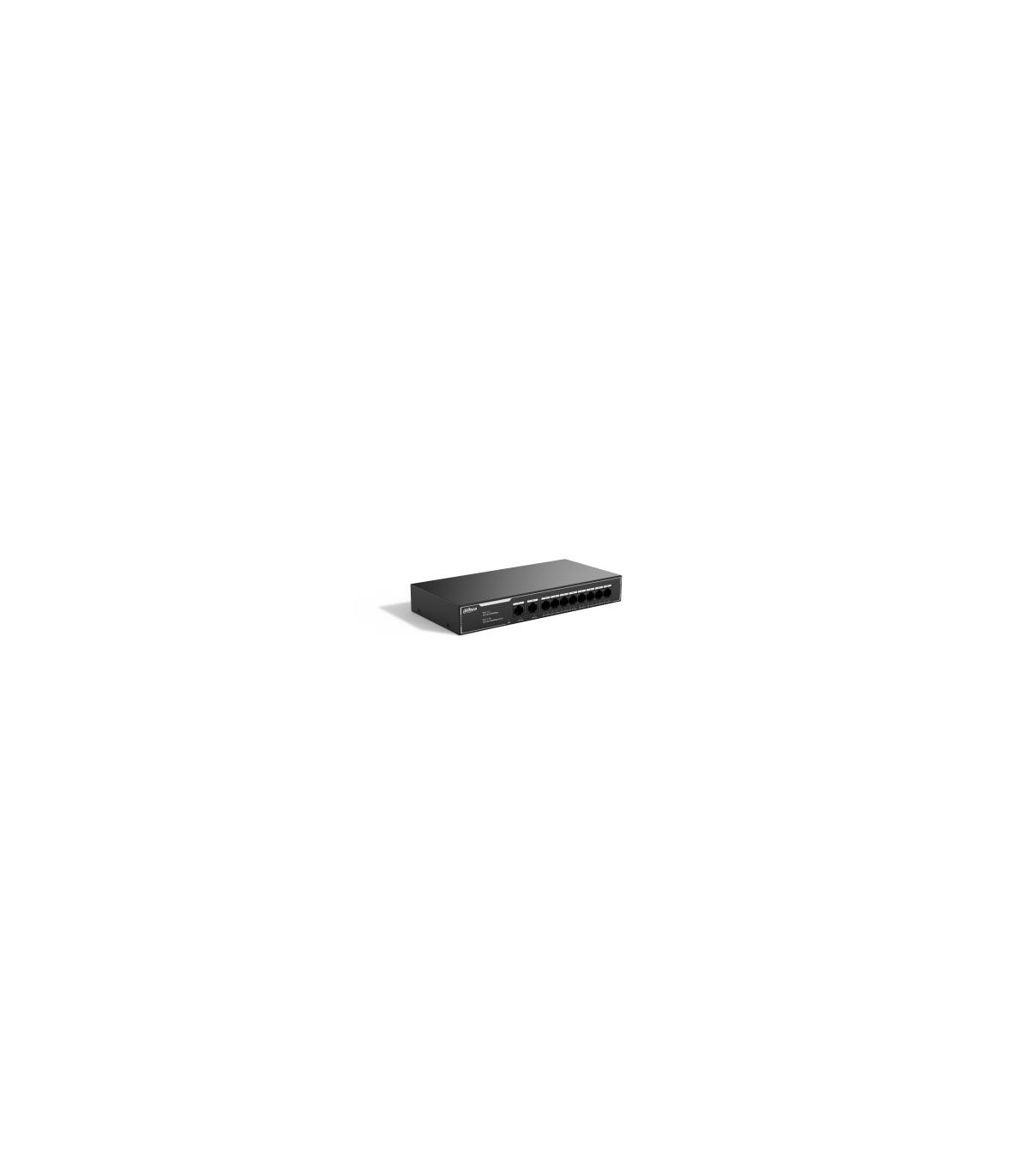

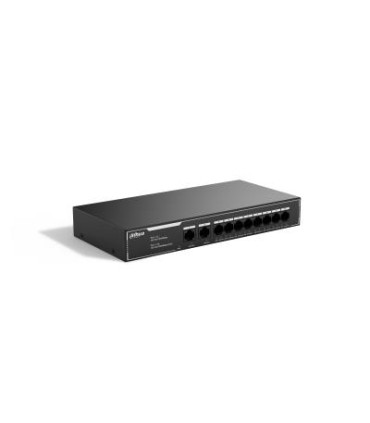

DAHUA Switch 10-Port Economical Gigabit PoE Switch with 8-Port PoE Type L2 SG1010LP

Технические характеристики

Материал корпуса

Iron

Другие свойства

Depth

243 mm

Height

35 mm

Width

118 mm

Unit Box Width

0.07

Unit Box Length

0.3

Unit Box Height

0.26

Category Code

SWI

Model name

10-Port Economical Gigabit PoE Switch with 8-Port PoE

Model

SG1010LP

Switch type

Unmanaged

Switching capacity

20 Gbit/s

Forwarding rate

14.88 Mpps

Power source

DC/PoE

Unit Calculated Volume

0.006506 cubm

Unit Calculated Weight

1.35 kg

Units per Shipping Box

10

Summary

Dahua Technology PoE SG1010LP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 2000 entries, Switching capacity: 20

Product colour

Black

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Package depth

300 mm

Package height

70 mm

Package weight

1800 g

Package width

260 mm

Plug and Play

Yes

Input current

1.5 A

Sustainability compliance

Yes

Power consumption (max)

65 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-10 - 55 °C

Compliance certificates

CE

Weight

800 g

Jumbo frames support

Yes

Networking standards

IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x

Rack mounting

No

10G support

No

Basic switching RJ-45 Ethernet ports quantity

10

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

Gigabit Ethernet (copper) ports quantity

10

MAC address table

2000 entries

Jumbo frames

9216

Packet buffer memory

2 MB

Uplink ports quantity

2

Power over Ethernet (PoE) ports quantity

8

Total Power over Ethernet (PoE) budget

65 W

Switch layer

L2
