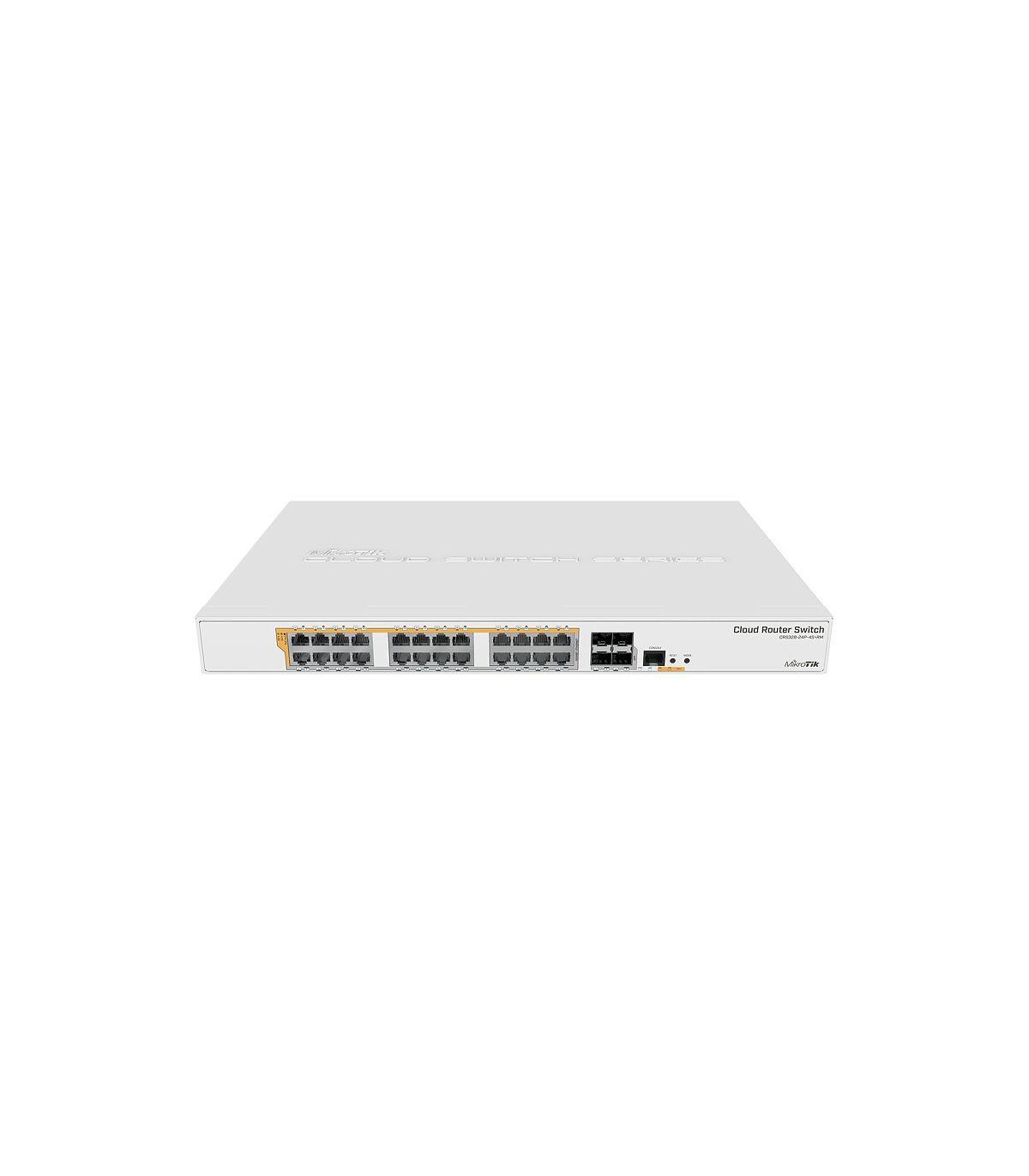

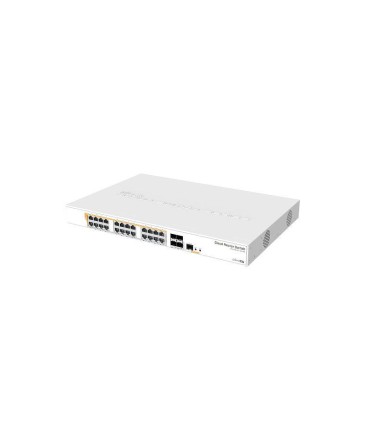

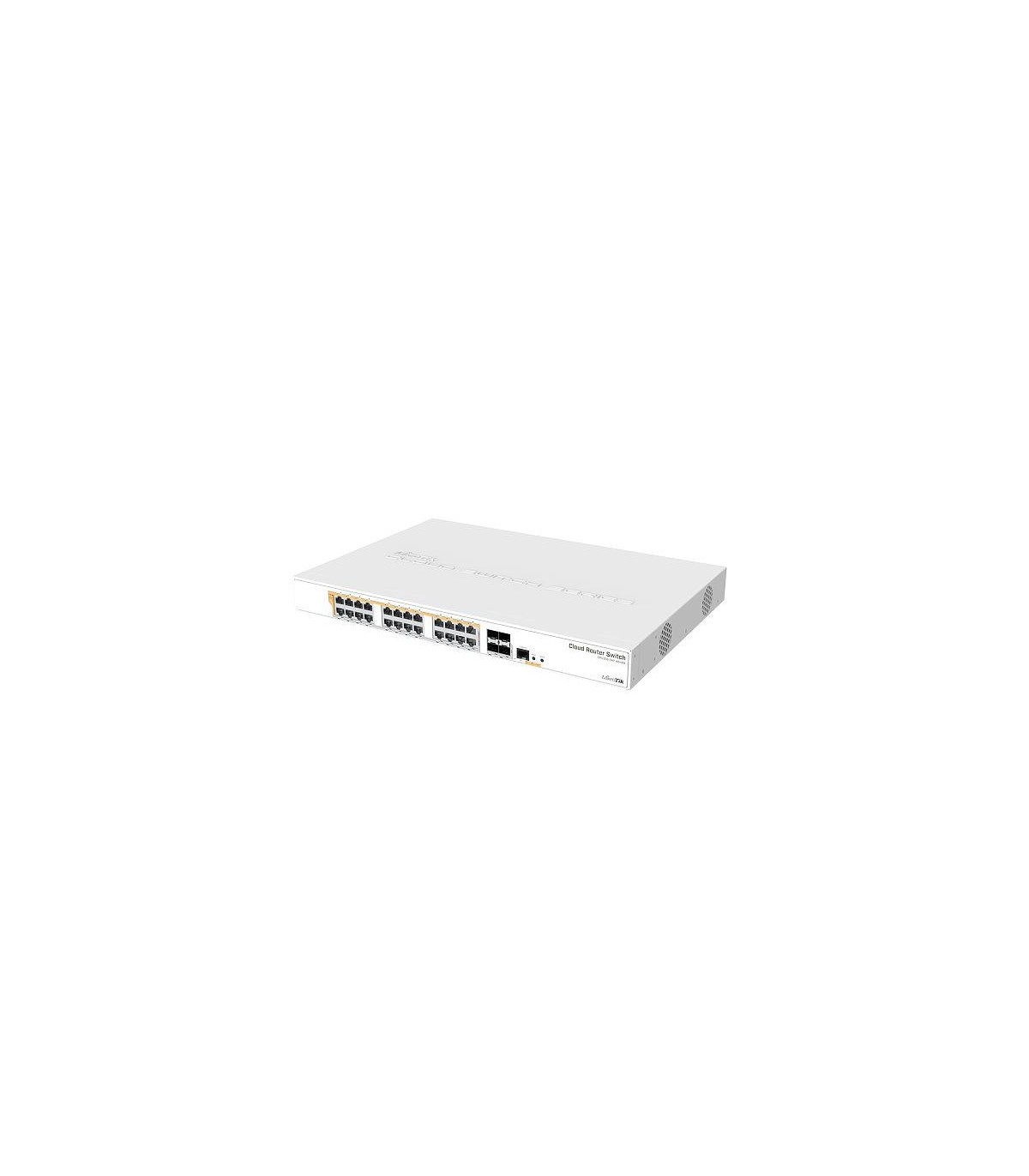

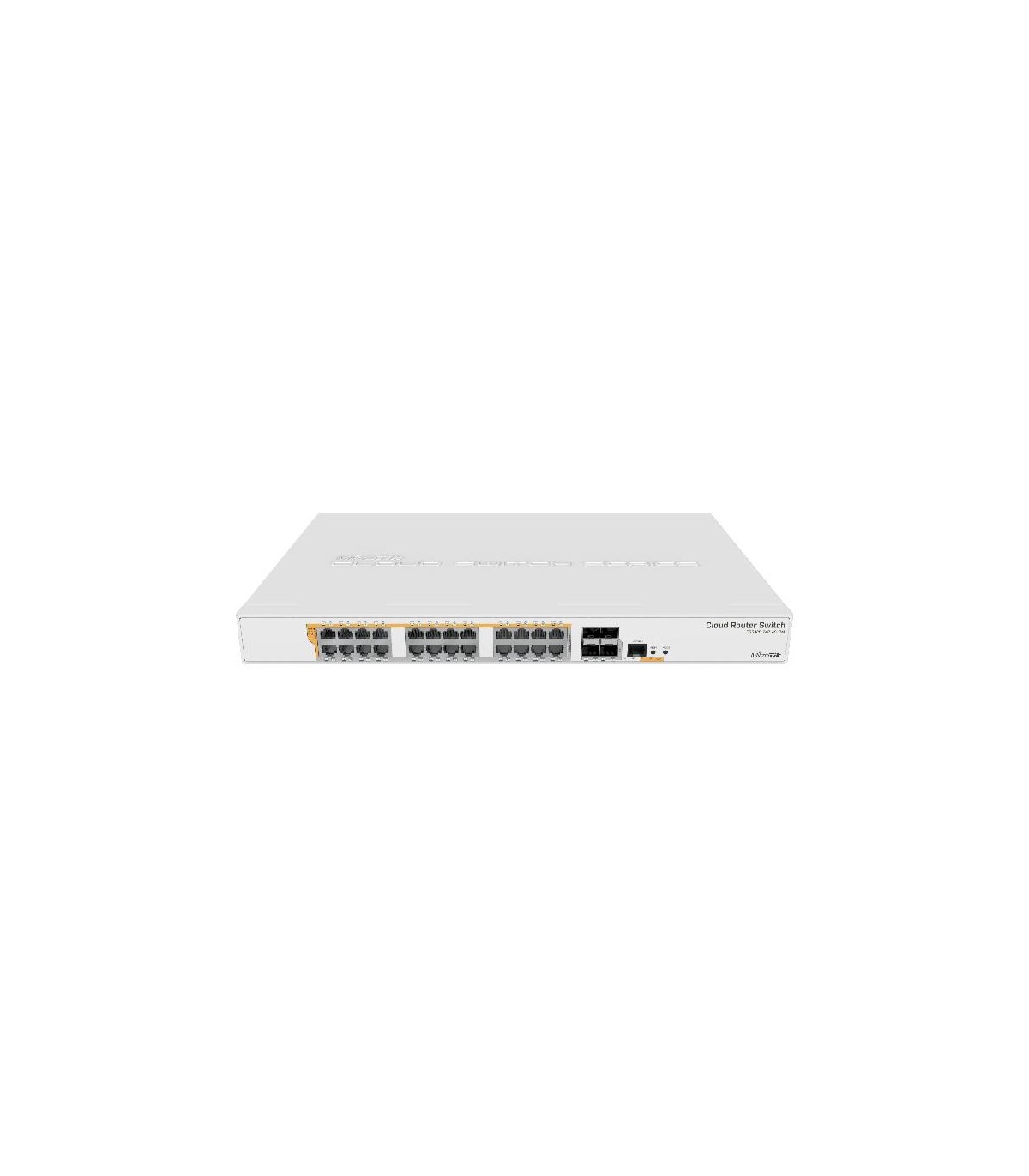

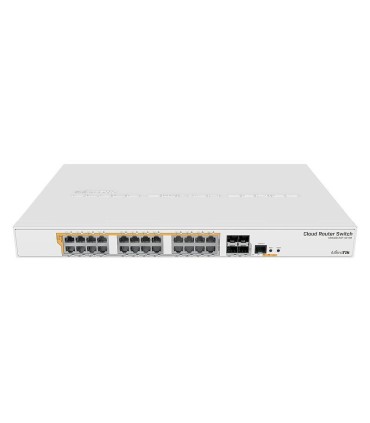

MIKROTIK Switch Type L3 Rack 24x10Base-T / 100Base-TX / 1000Base-T 4xSFP+ 1xRJ45 CRS328-24P-4S+RM

Другие свойства

Depth

300 mm

Height

44 mm

Width

443 mm

Unit Box Width

0.39

Unit Box Length

0.59

Unit Box Height

0.125

Category Code

SWI

Form Factor

1U

Switch type

Managed

Switching capacity

128 Gbit/s

Forwarding rate

95.2 Mpps

Number of fans

2 fan(s)

Power source

AC

Unit Calculated Volume

0.03088 cubm

Unit Calculated Weight

5.28 kg

Units per Shipping Box

2

Units per Pallet

88

Summary

Mikrotik CRS328-24P-4S+RM. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Swit

Product colour

White

AC input voltage

100 - 240 V

Cables included

AC

Power consumption (max)

44 W

Operating temperature (T-T)

-20 - 60 °C

Harmonized System (HS) code

85176990

Mean time between failures (MTBF)

200000 h

LED indicators

Yes

Processor frequency

800 MHz

Power supply included

Yes

Processor manufacturer

ARM

Internal memory

512 MB

Number of power supply units

2

Built-in processor

Yes

Management protocols

SNMP

Jumbo frames support

Yes

Networking standards

IEEE 802.1Q/IEEE 802.3ad

Flash memory

16 MB

Rack mounting

Yes

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE)

Yes

MAC address table

16000 entries

Jumbo frames

10218

Power over Ethernet (PoE) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

450 W

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Port mirroring

Yes

IGMP snooping

Yes

Broadcast storm control

Yes

Link aggregation

Yes

VLAN support

Yes

Number of VLANs

4000

Rack mount kit

Yes

Throughput

64000 Mpps

Auto-sensing

Yes

Console port

RJ-45

Access Control List (ACL)

Yes

System event log

Yes

SFP+ module slots quantity

4

Power over Ethernet (PoE) type supported

Passive PoE/PoE+

Power over Ethernet (PoE) voltage

26 V
