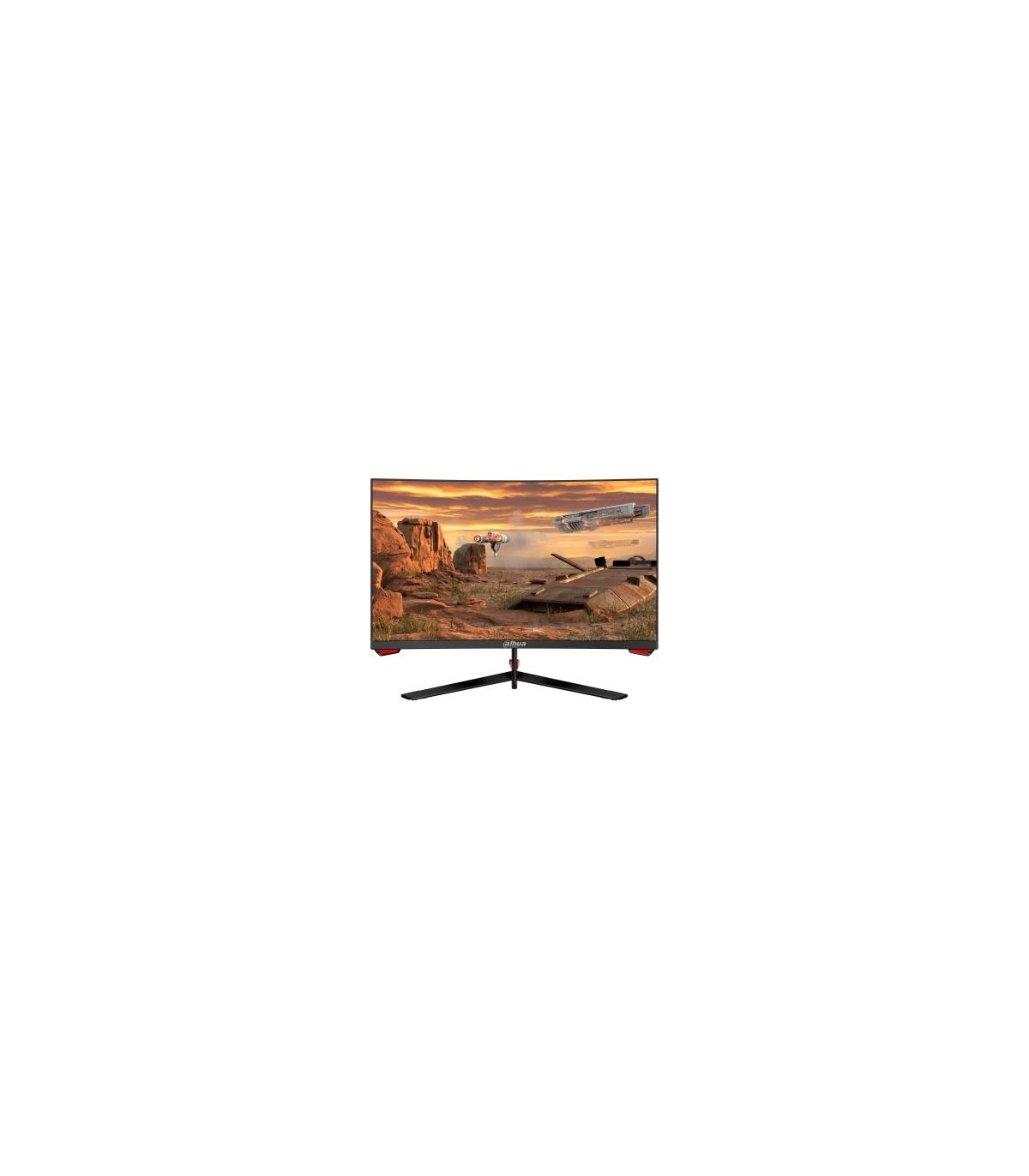

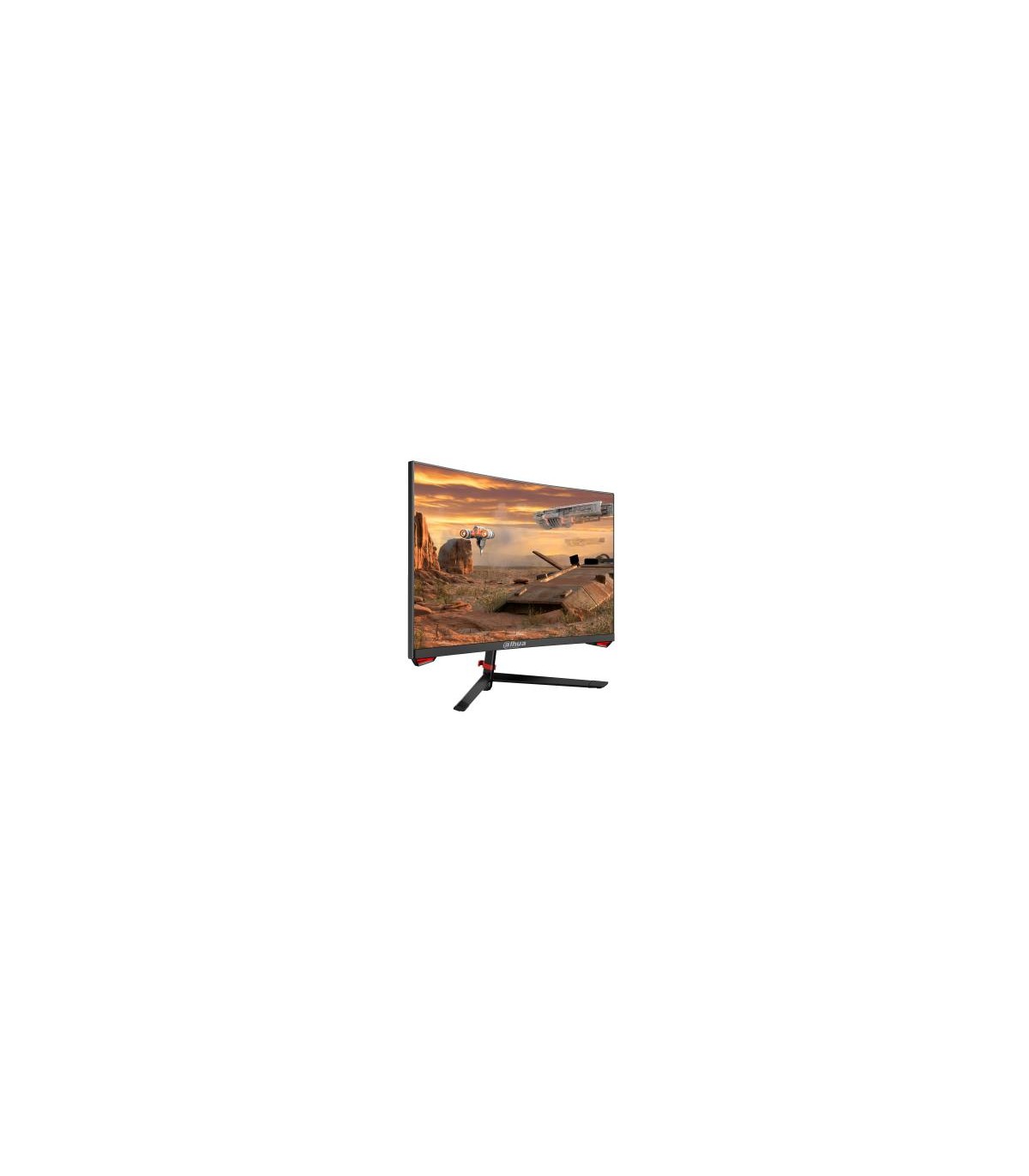

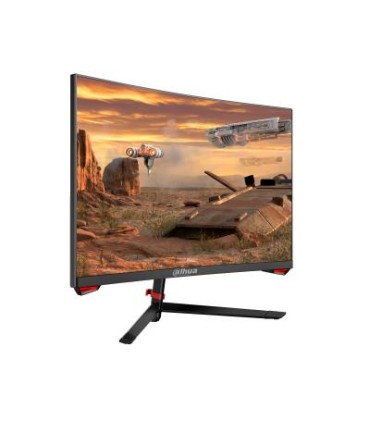

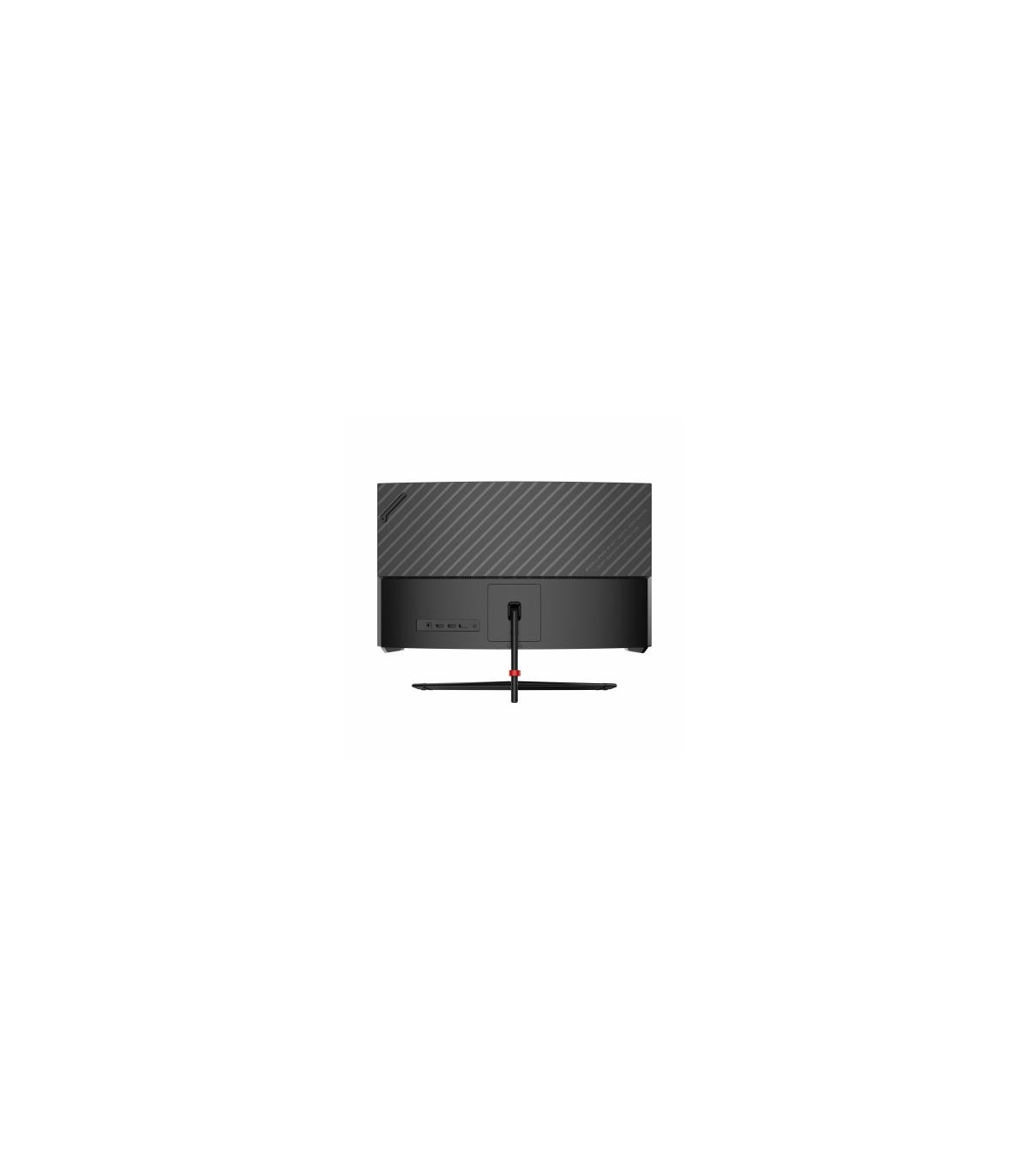

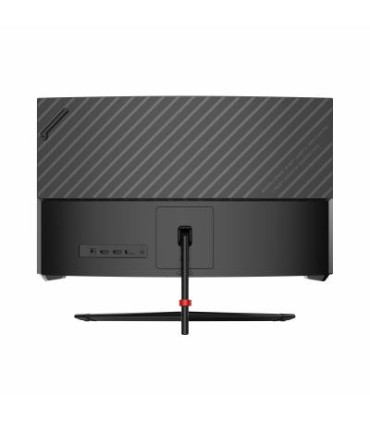

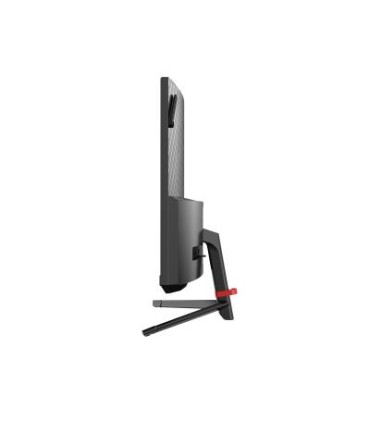

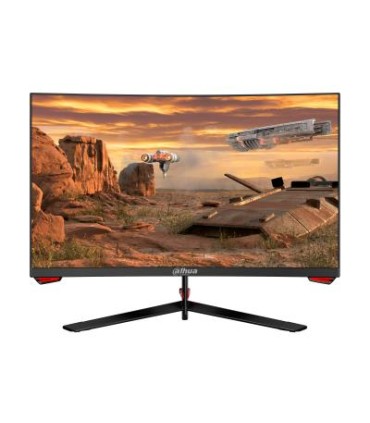

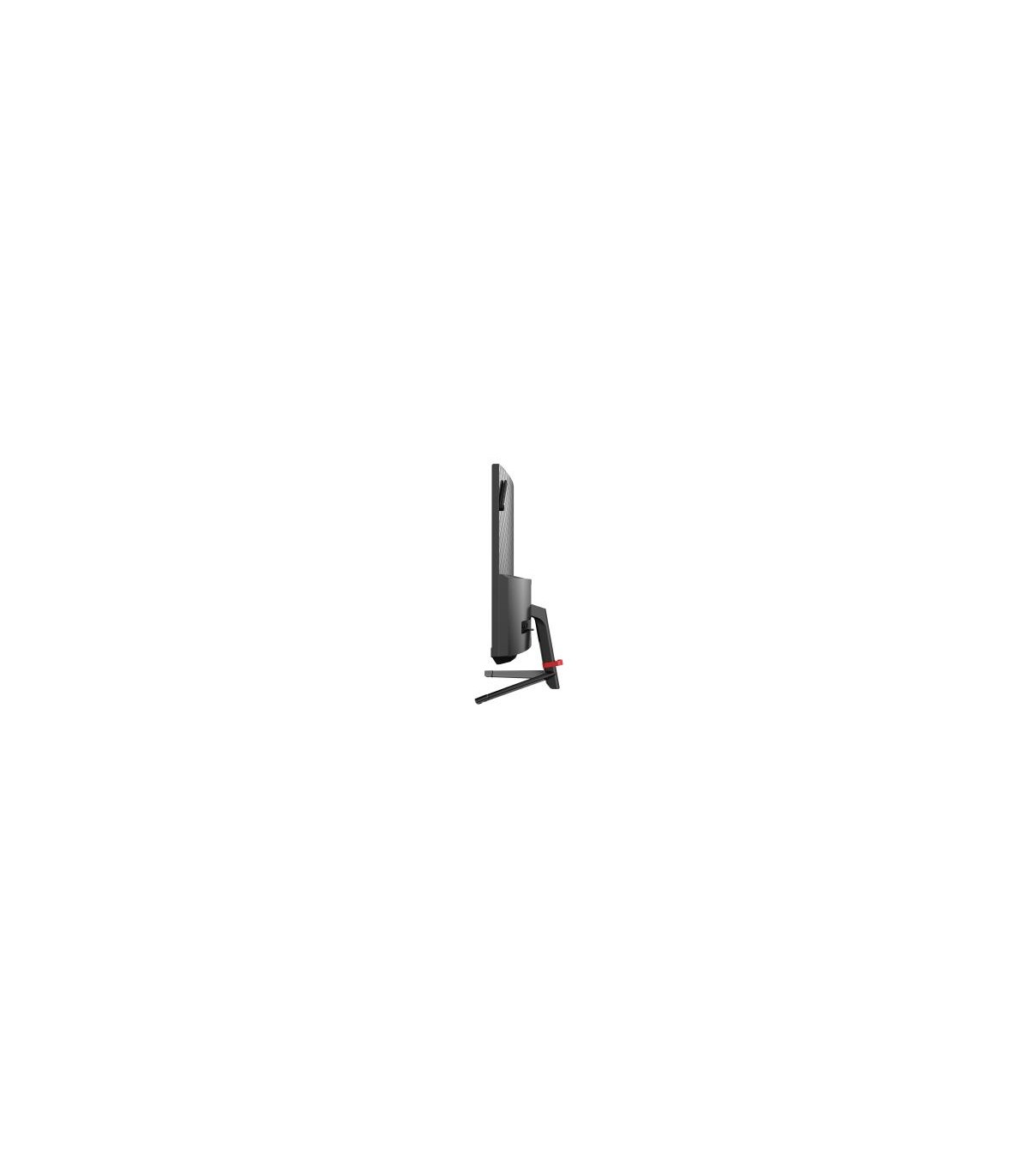

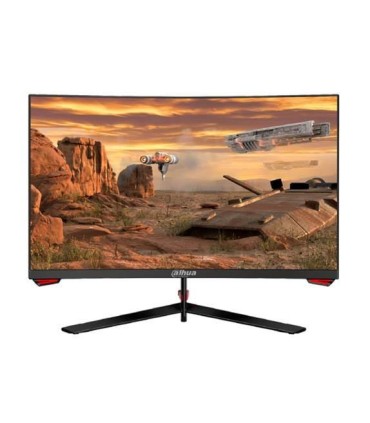

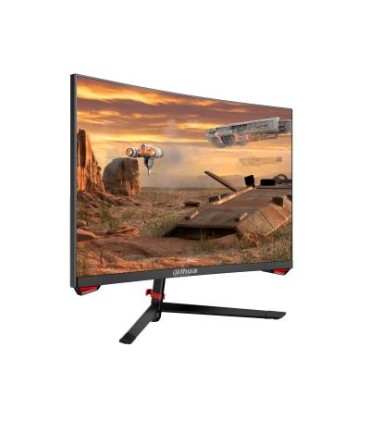

DAHUA LCD Monitor LM24-E230C 23.6" Gaming/Curved Panel VA 1920x1080 16:9 165Hz 1 ms Tilt LM24-E230C

Технические характеристики

Регулировка высоты

No

Энергия

EPREL Registration Number

1536828

Интерфейсы

HDMI

Yes

Другие свойства

Unit Box Width

0.15

Unit Box Length

0.63

Unit Box Height

0.42

Category Code

LC3

Model name

LM24-E230C

Touchscreen

No

Model

DHI-LM24-E230C

Panel type

VA

Response time

1 ms

Energy efficiency class

E

EPREL Version Number

1

Data Sheet (Link)

https://eprel.ec.europa.eu/api/product/1536828/fiches?language=EN

Pivot

No

Display technology

LED

Power adapter included

Yes

Unit Calculated Volume

0.03969 cubm

Product Net Weight

3.2 kg

Unit Calculated Weight

4.7 kg

Summary

Dahua Technology DHI-LM24-E230C. Display diagonal: 59.9 cm (23.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 1 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertica

Contrast ratio (typical)

3000:1

Display brightness (typical)

250 cd/m²

Display diagonal

23.6 "

Display resolution

1920 x 1080 pixels

HD type

Full HD

Maximum refresh rate

165 Hz

Native aspect ratio

16:9

Screen shape

Curved

Viewing angle, horizontal

178 °

Viewing angle, vertical

178 °

Built-in camera

No

Built-in speaker(s)

No

Detachable stand

Yes

Market positioning

Gaming

Product colour

Black

Built-in USB hub

No

DisplayPort version

1.2

DisplayPorts quantity

1

HDMI ports quantity

2

HDMI version

1.4

Headphone out

Yes

Panel mounting interface

75 x 75 mm

Swivelling

No

Tilt adjustment

Yes

Tilt angle range

-5 - 15 °

VESA mounting

Yes

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Energy consumption (SDR) per 1000 hours

17 kWh

Energy efficiency class (HDR)

Not available

Energy efficiency class (SDR)

E

Power consumption (off)

0.3 W

Power consumption (standby)

0.5 W

Power consumption (typical)

24 W

Power supply type

External

Depth (without stand)

73.96 mm

Height (without stand)

333.54 mm

Weight (with stand)

3200 g

Width (without stand)

537.86 mm

Package depth

149 mm

Package height

407 mm

Package weight

4900 g

Package width

630 mm

Cables included

DisplayPort

Stand included

Yes

sRGB coverage (typical)

99 %

DC-in jack

Yes

AC adapter output voltage

12 V

Energy efficiency scale

A to G

European Product Registry for Energy Labelling (EPREL) code

1536828

Power consumption (max)

35 W

Operating relative humidity (H-H)

10 - 85 %

Operating temperature (T-T)

0 - 40 °C

Backlight type

Edge LED

Headphone outputs

1

Wall mountable

Yes

Frameless design

Yes

NTSC coverage (typical)

83 %

Adobe RGB coverage

80 %

Screen curvature rating

1500R
