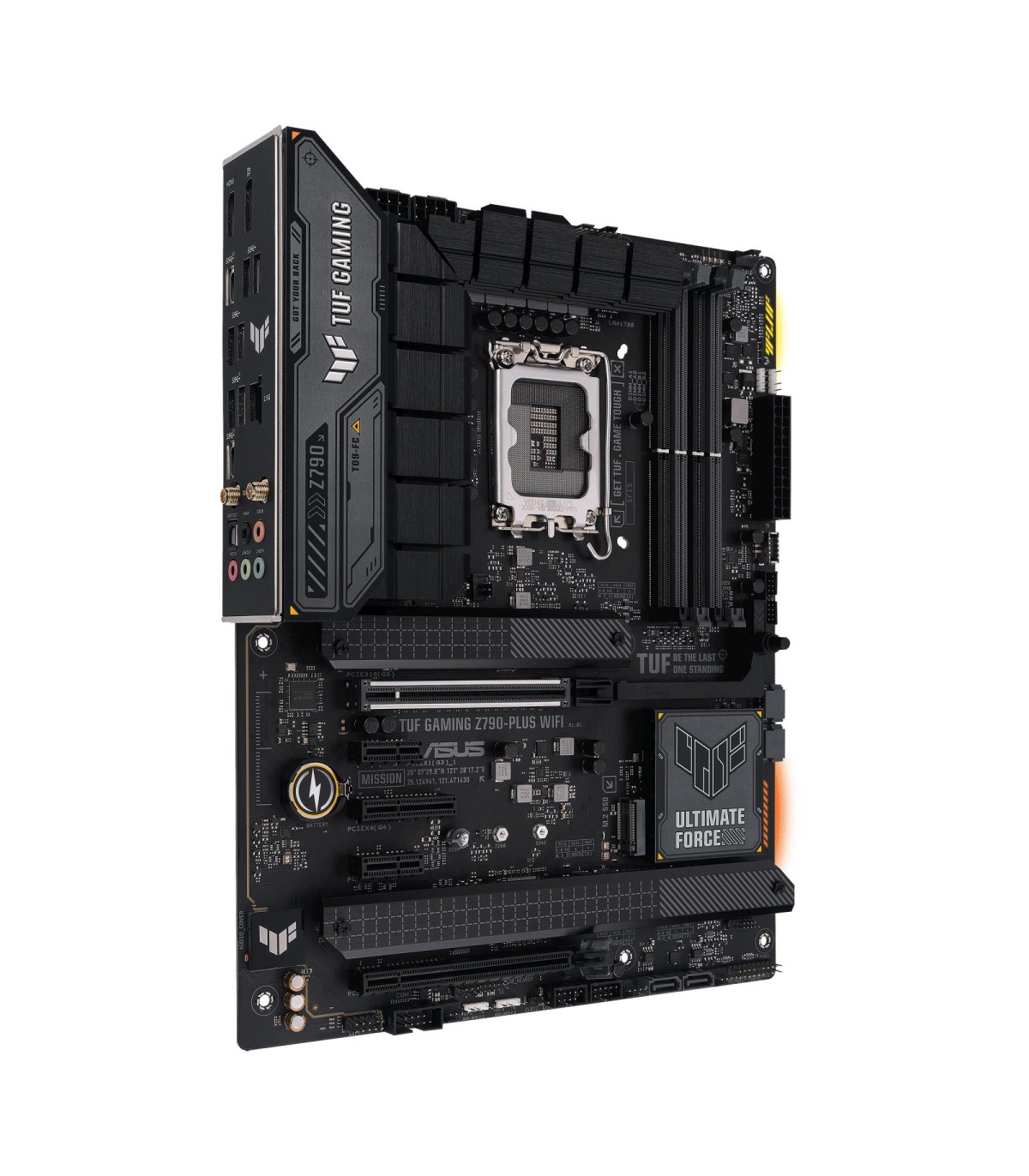

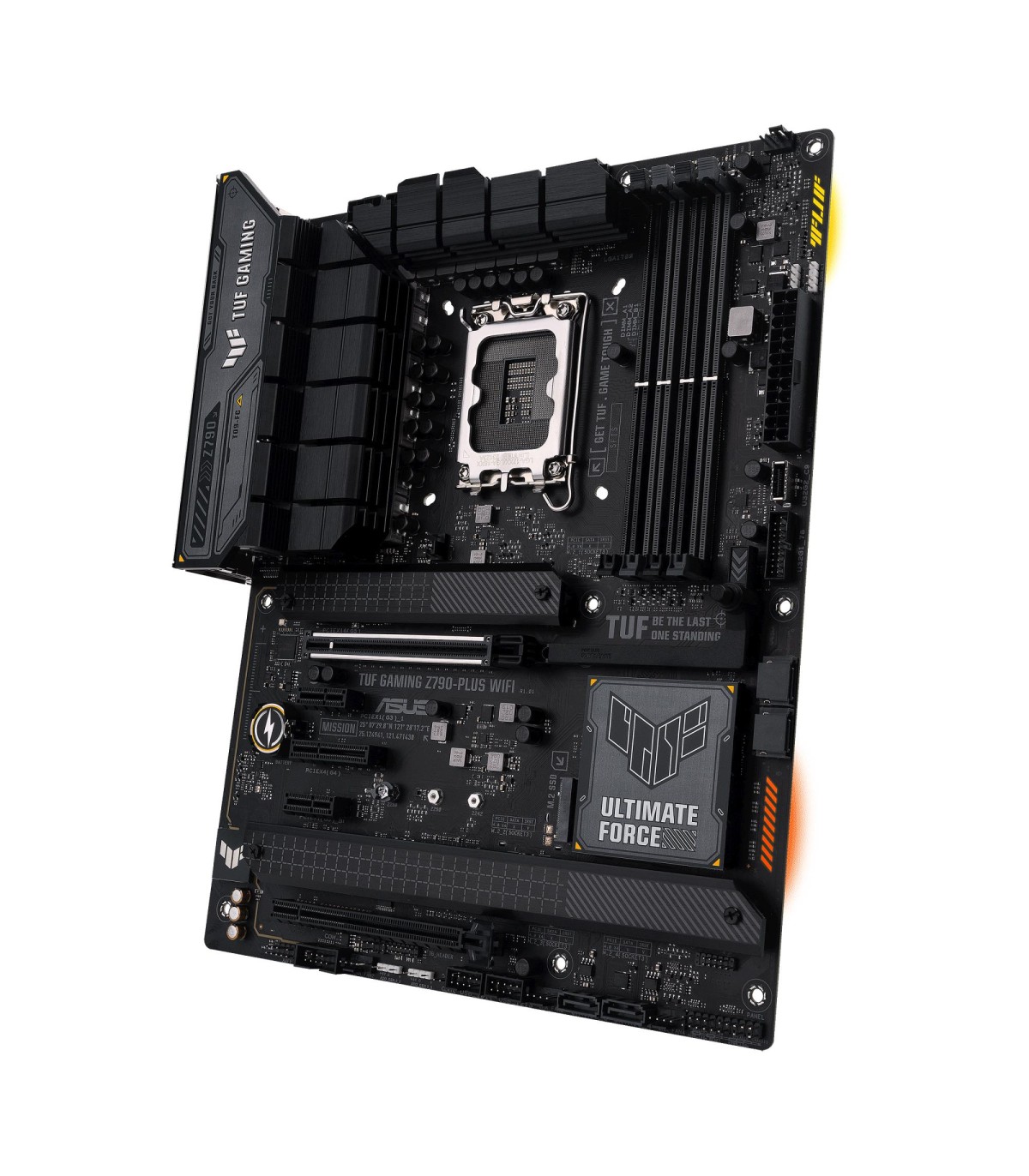

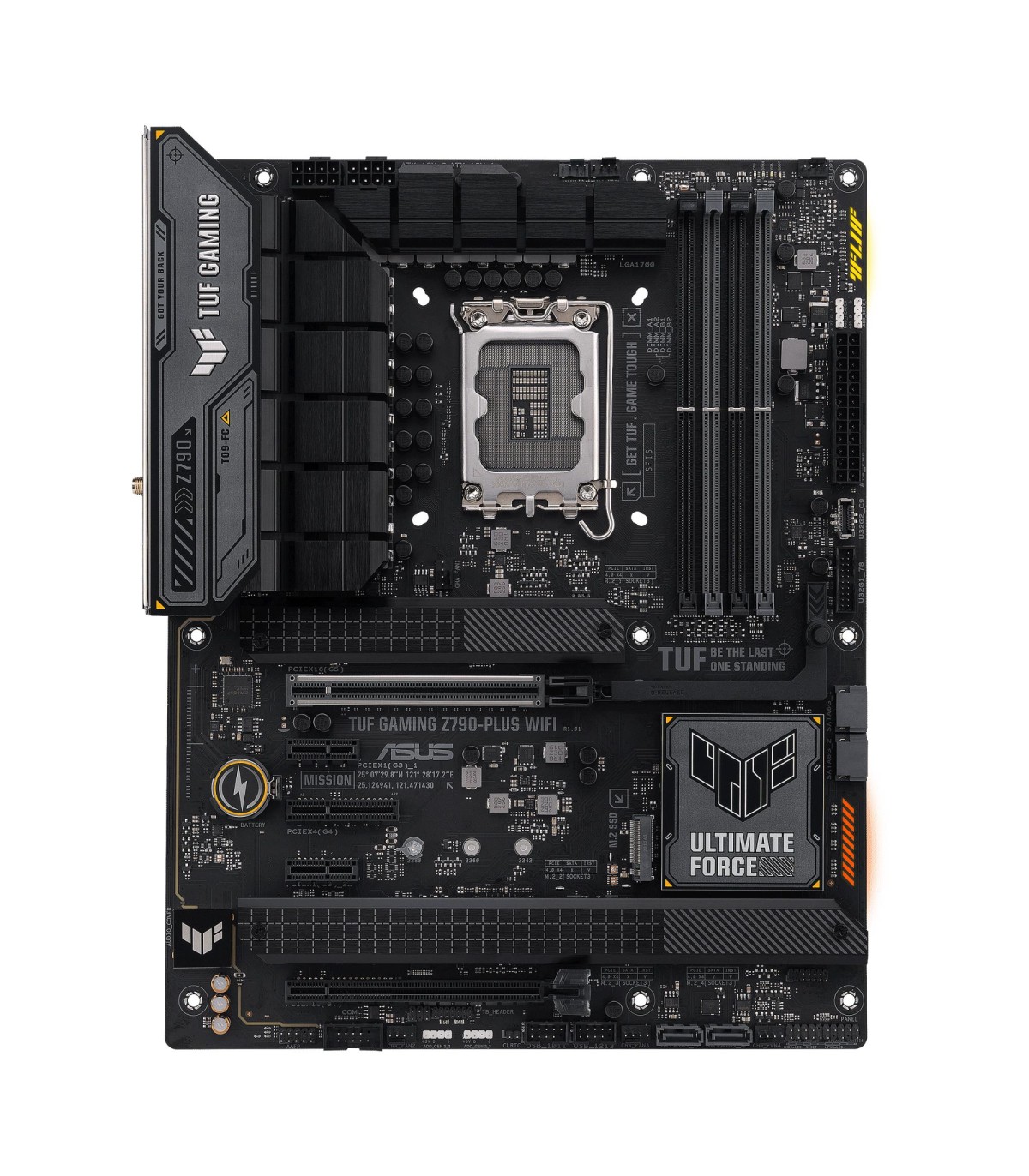

ASUS Mainboard Intel Z790 LGA1700 ATX Memory DDR5 Memory slots 4 2xPCI-Express 3.0 1x 1xPCI-Express 4.0 4x 1xPCI-Express 4.0 1

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Width

305 mm

Unit Box Width

0.275

Unit Box Length

0.36

Unit Box Height

0.07

Category Code

MBI

Model

TUF GAMING Z790-PLUS WIFI

Bluetooth version

5.3

Unit Calculated Volume

0.008693 cubm

Unit Calculated Weight

2.17 kg

Units per Shipping Box

4

Summary

ASUS TUF GAMING Z790-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDR

Product colour

Black

DisplayPort version

1.4

DisplayPorts quantity

1

HDMI ports quantity

1

HDMI version

2.1

Cables included

SATA

Headphone outputs

1

Wi-Fi

Yes

Windows operating systems supported

Windows 10/Windows 11

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Parallel processing technology support

Not supported

User guide

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

128 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Audio chip

Realtek S1220A

Motherboard chipset

Intel Z790

Number of SATA III connectors

4

Line-in

Yes

S/PDIF out port

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

PCI Express x4 (Gen 4.x) slots

1

PCI Express x1 (Gen 3.x) slots

2

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

Motherboard form factor

ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

7200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

4

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

Power source type

ATX

Number of M.2 (M) slots

4

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

192 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Number of COM connectors

1

Thunderbolt headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

ECC сompatibility

Non-ECC
