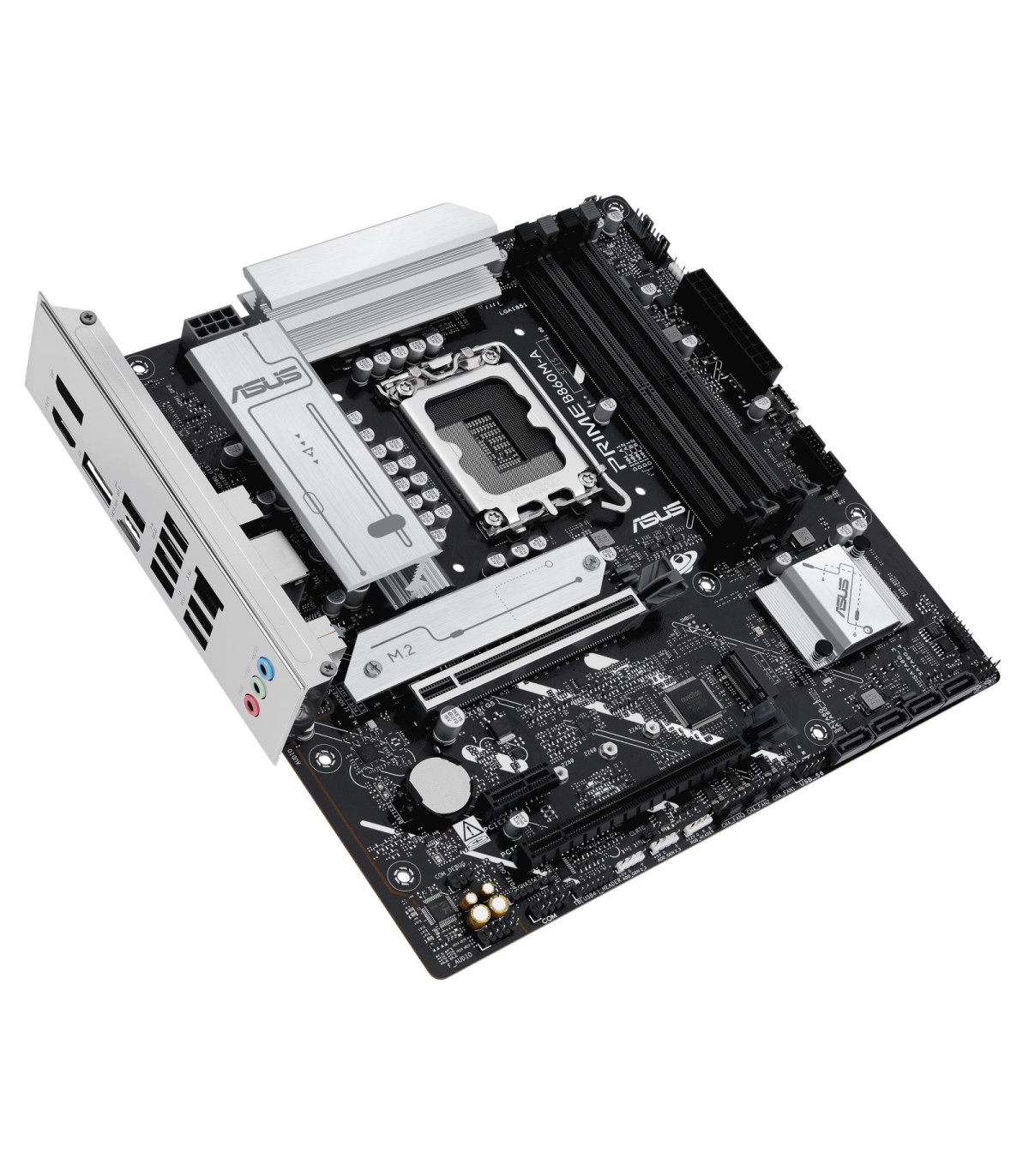

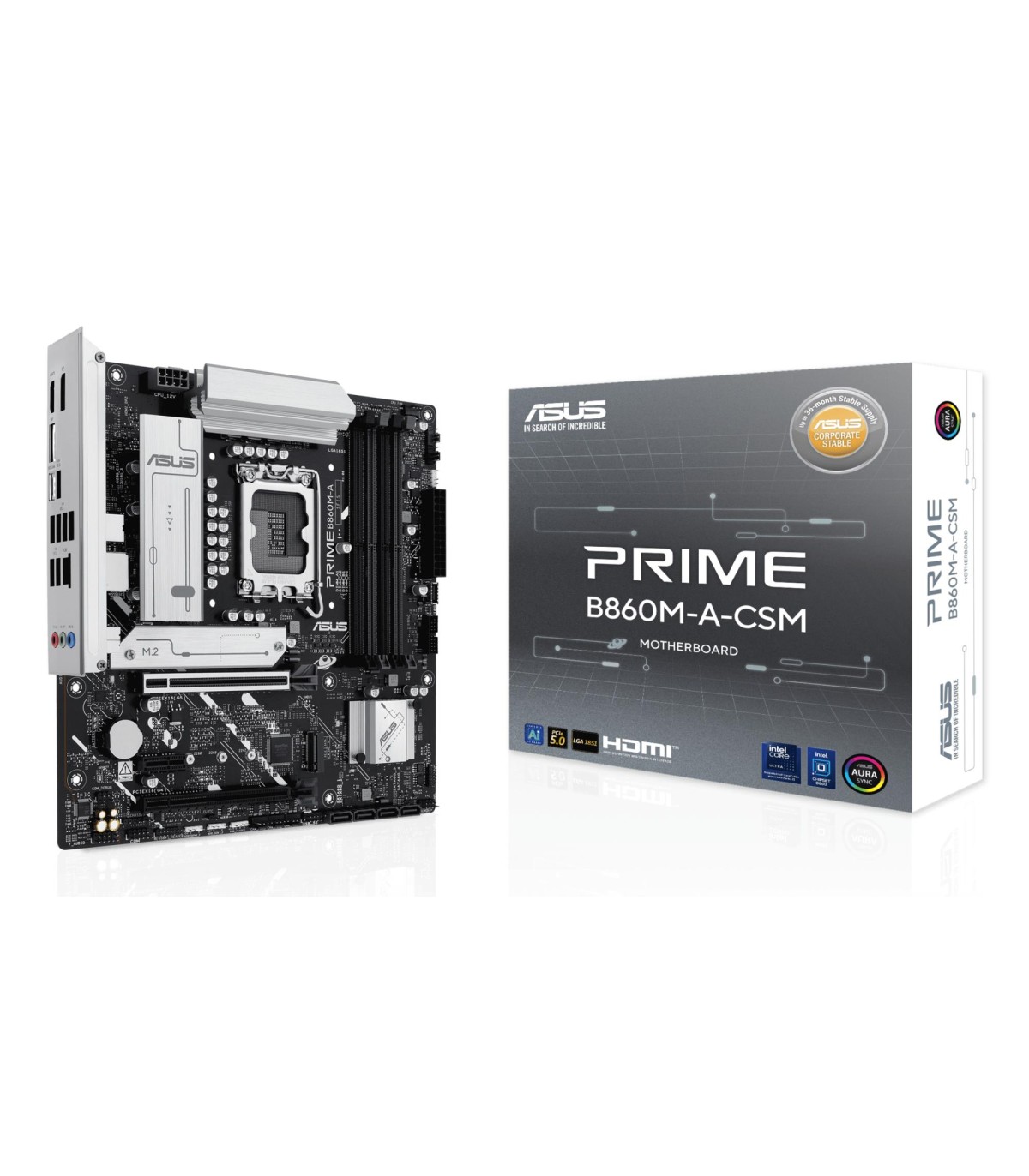

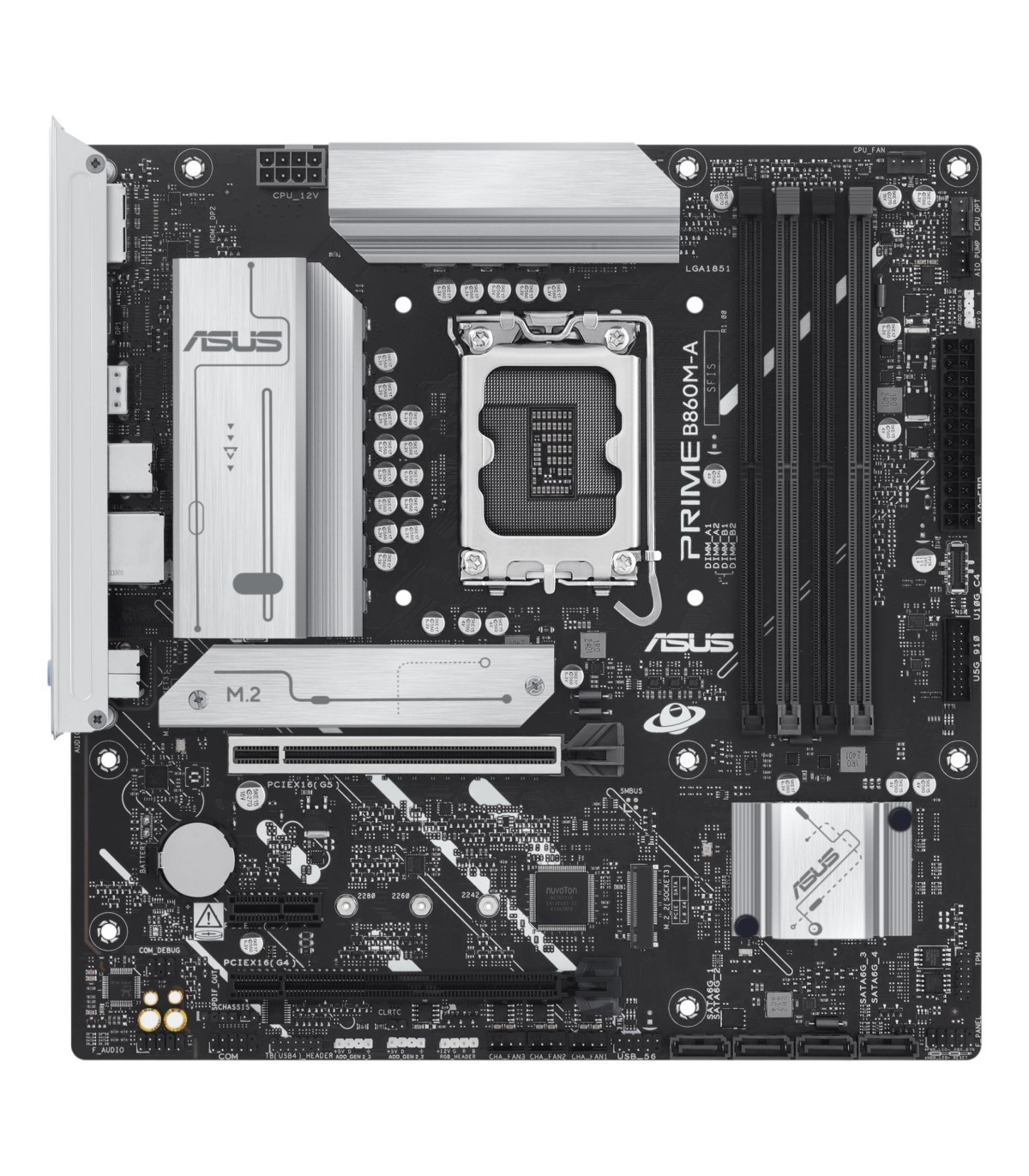

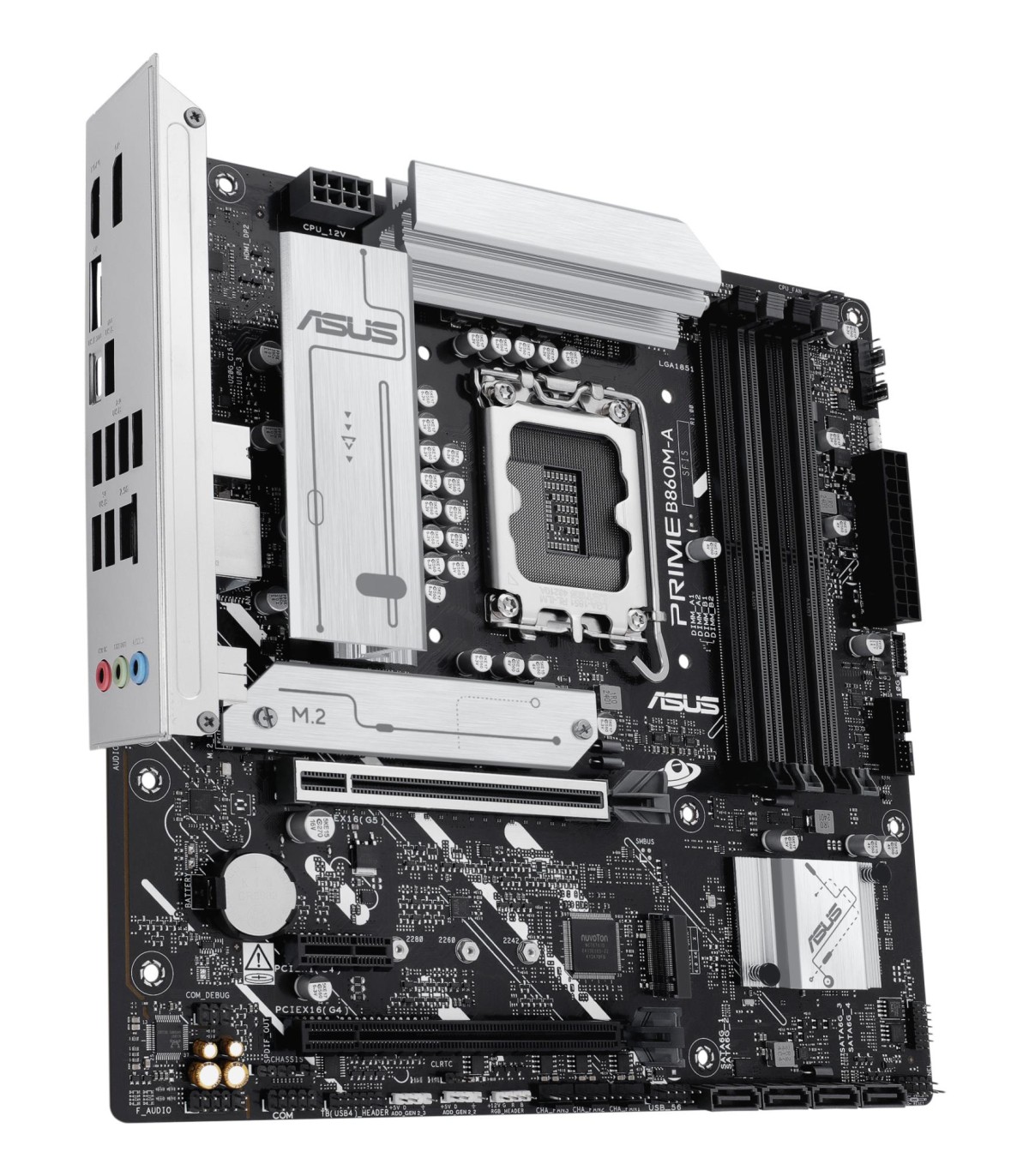

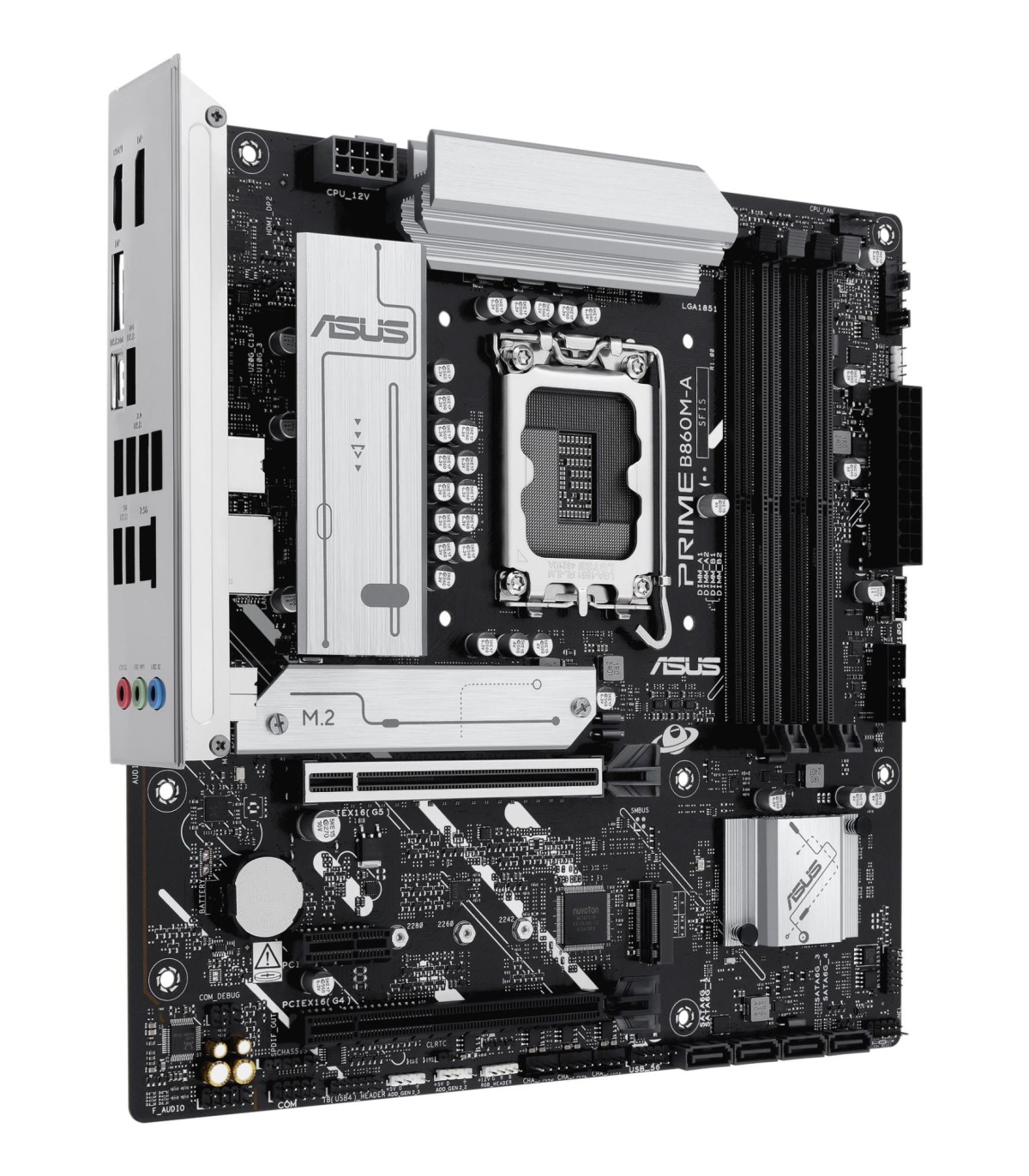

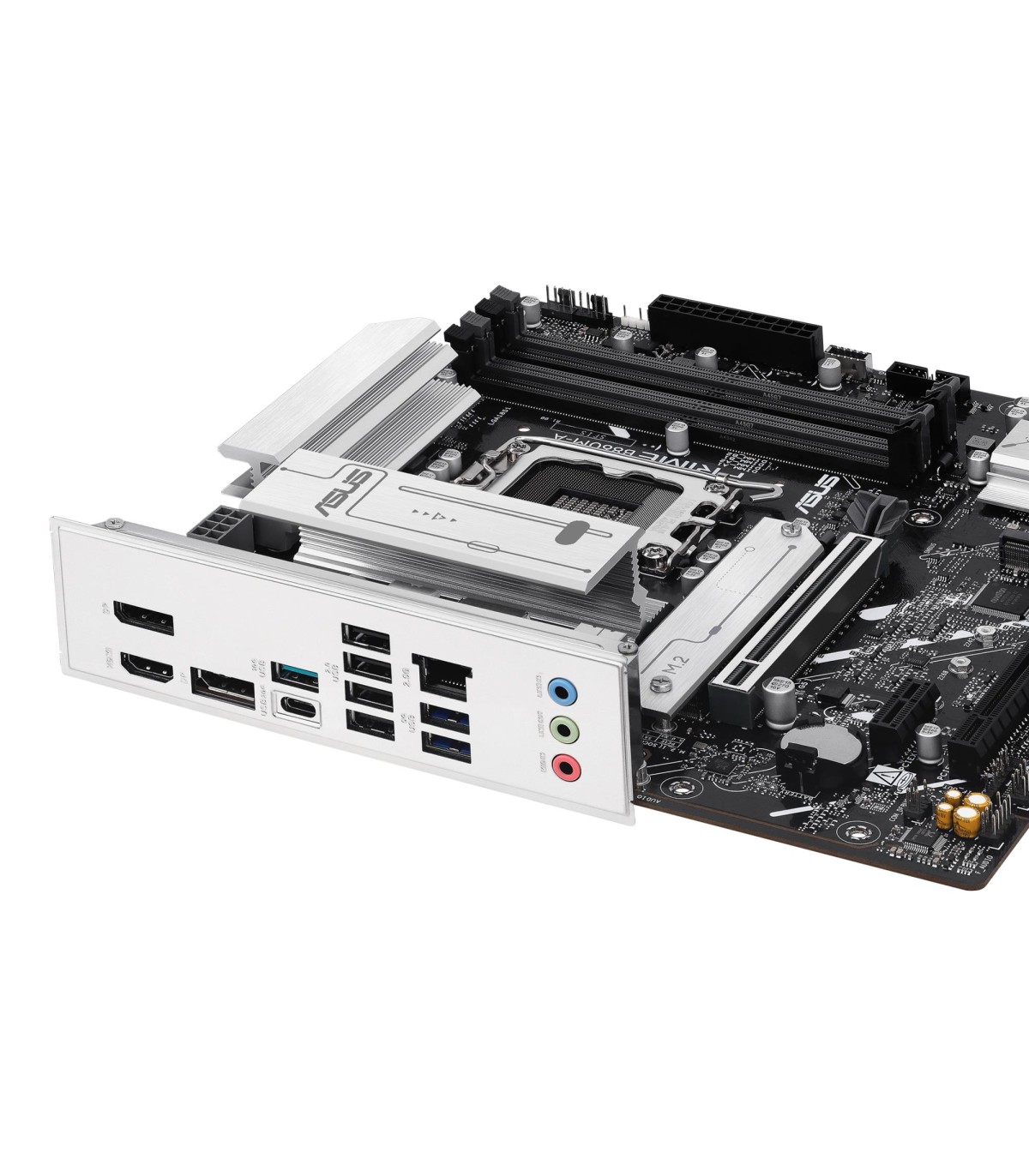

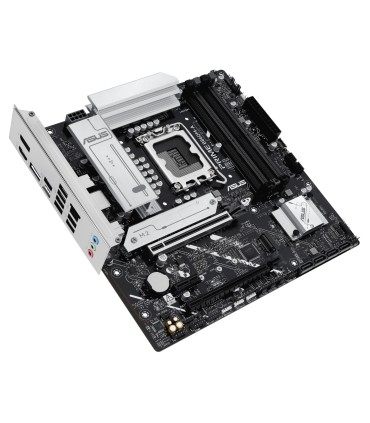

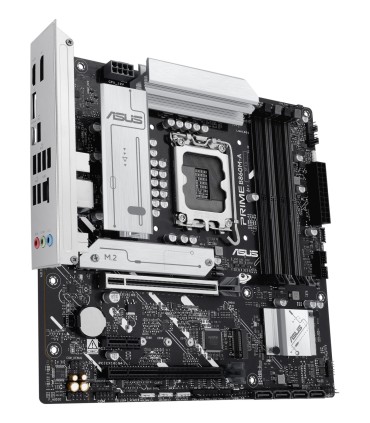

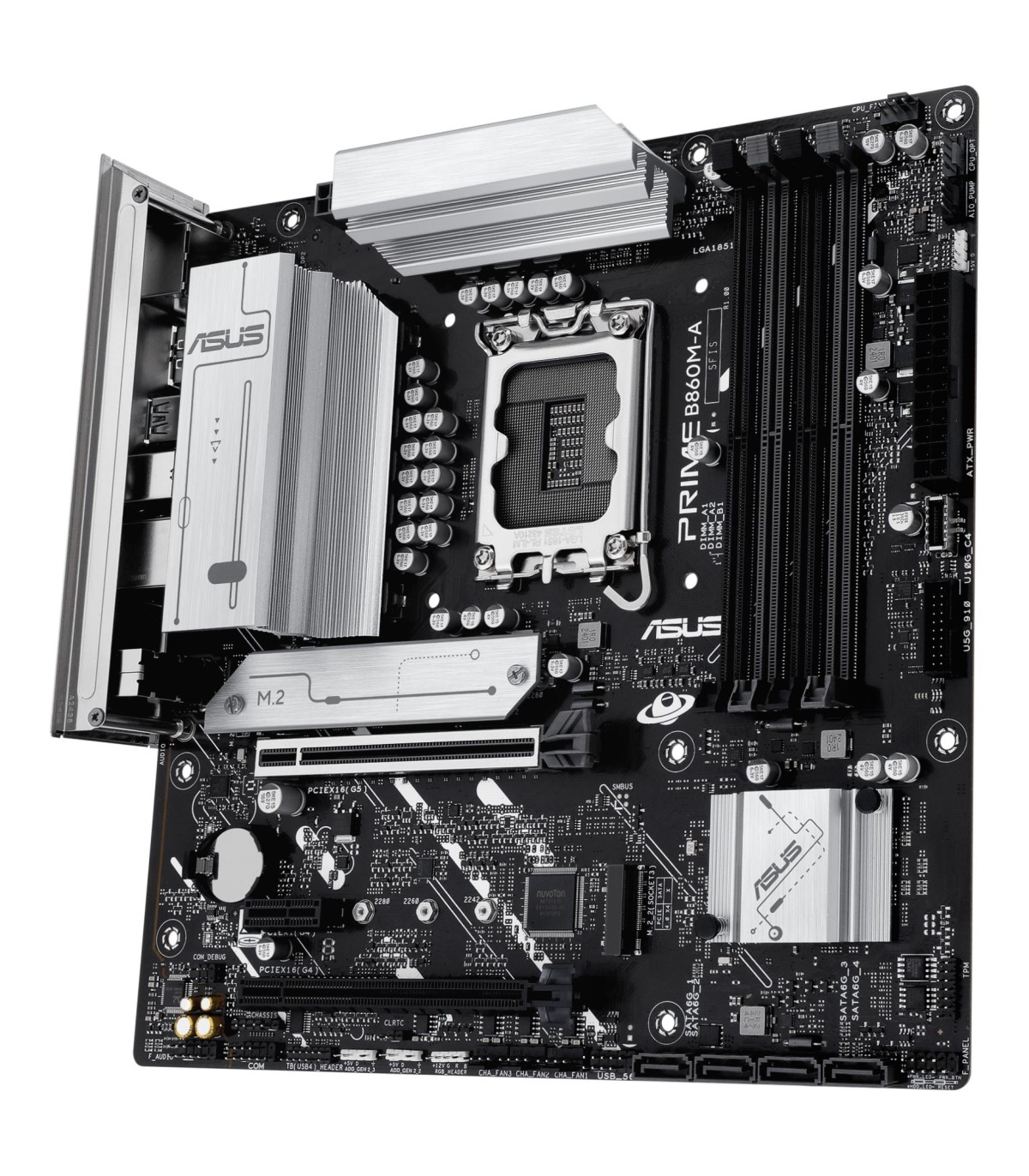

ASUS Mainboard Intel B860 Express LGA1851 Micro-ATX Memory DDR5 Memory slots 4 PRIMEB860M-A-CSM

Другие свойства

Depth

244 mm

Height

50 mm

Width

244 mm

Model

PRIME B860M-A-CSM

Unit Calculated Volume

0.006102 cubm

Unit Calculated Weight

1.42 kg

Units per Shipping Box

10

Product colour

Multicolour

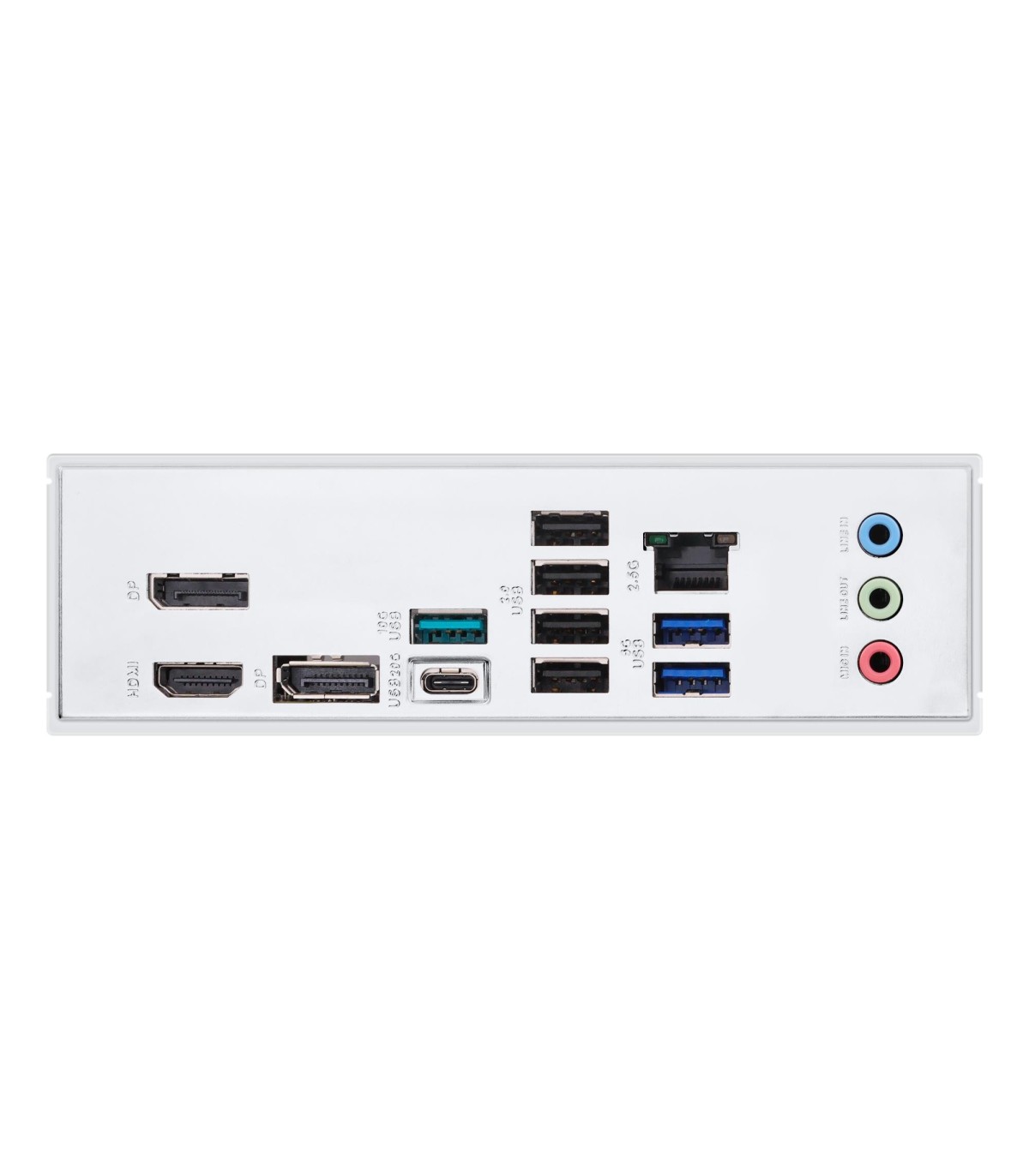

DisplayPorts quantity

2

HDMI ports quantity

1

Package depth

275 mm

Package height

67.5 mm

Package weight

1360 g

Package width

275 mm

Weight

815 g

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Parallel processing technology support

Not supported

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

256 GB

Memory channels

Dual-channel

Motherboard chipset

Intel B860

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

Supported memory clock speed (max)

8666 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

3

Number of CPU fan connectors

1

TPM connector

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Chassis intrusion connector

Yes

Number of COM connectors

1

S/PDIF out connector

Yes

Thunderbolt headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

1

ECC сompatibility

Non-ECC

Long Description

ASUS PRIME B860M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supporte
