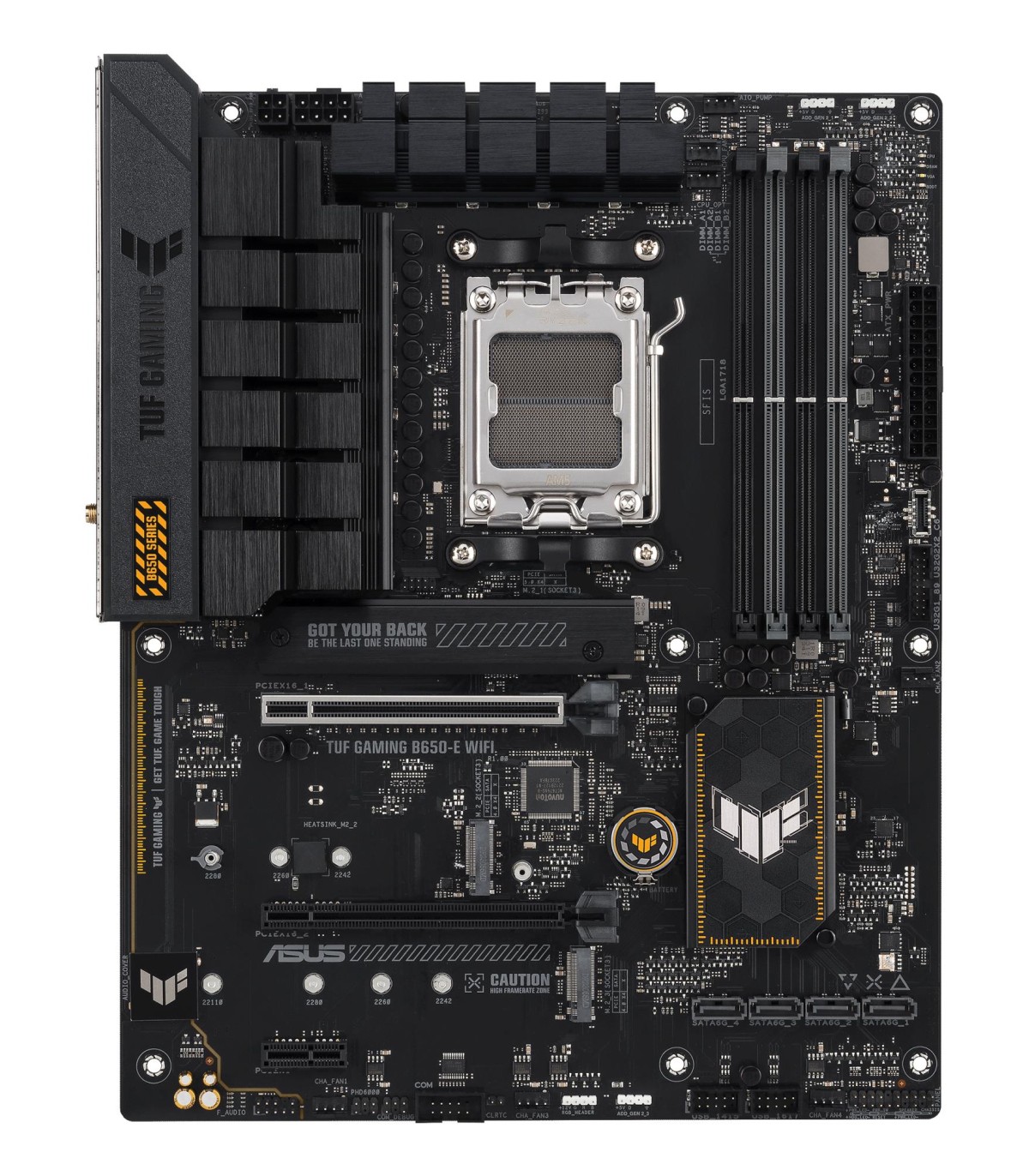

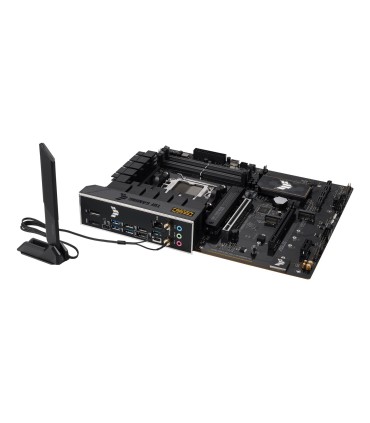

ASUS Mainboard AMD B650 SAM5 ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 1x 2xPCI-Express 3.0 16x 1xPCI-Express 4.0 16x 3x

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Width

305 mm

Unit Box Width

0.275

Unit Box Length

0.355

Unit Box Height

0.07

Category Code

MBA

Model

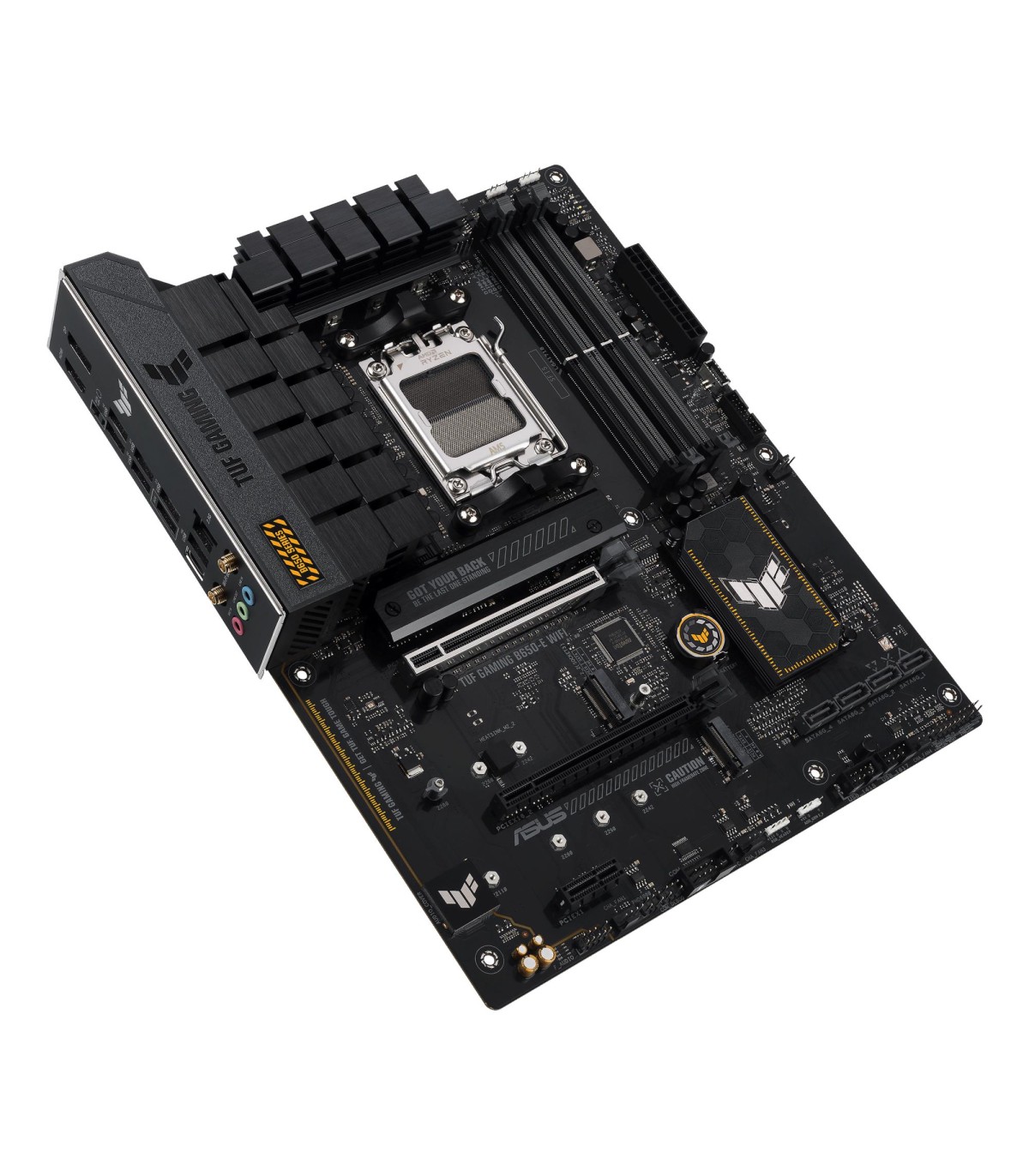

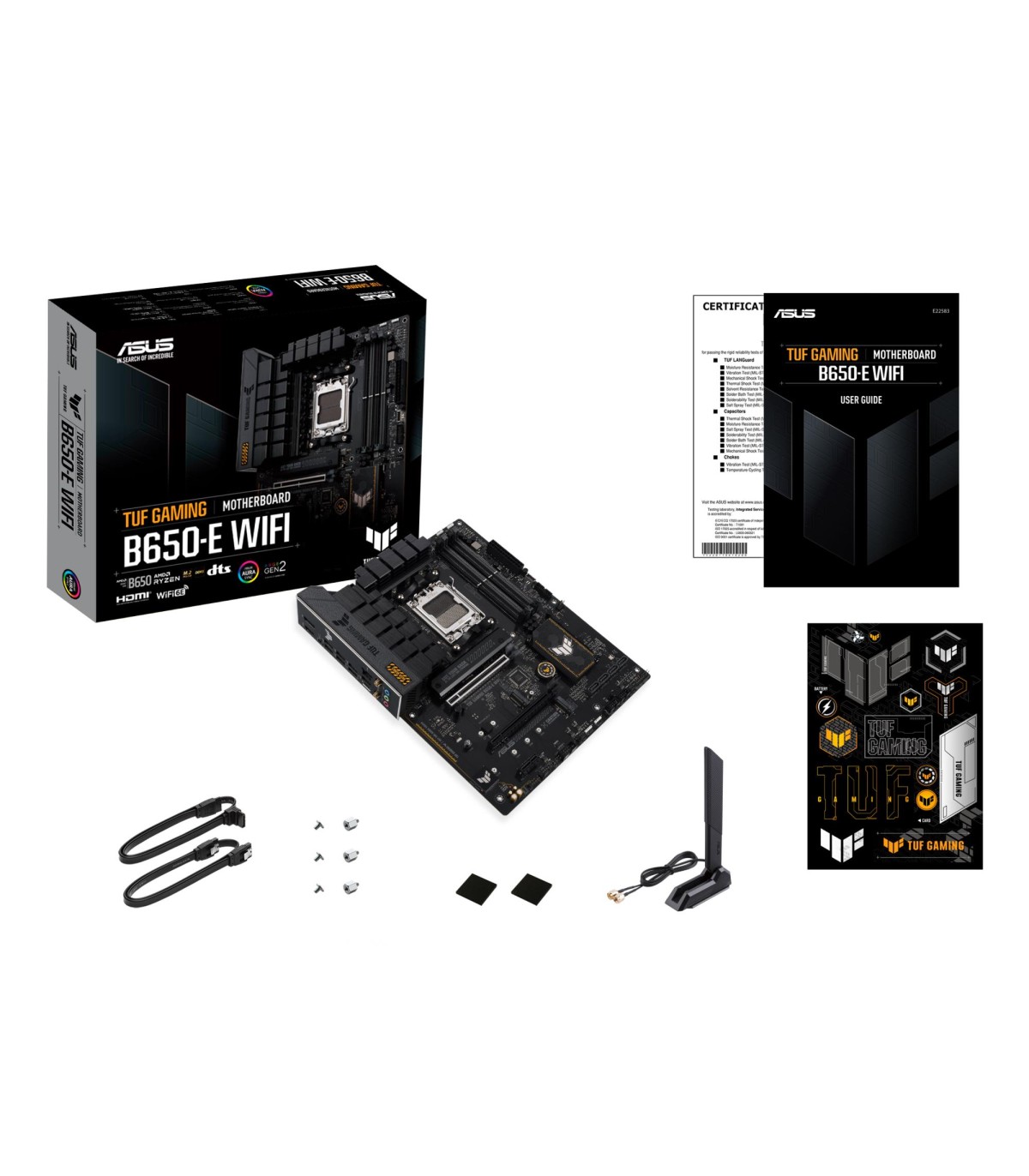

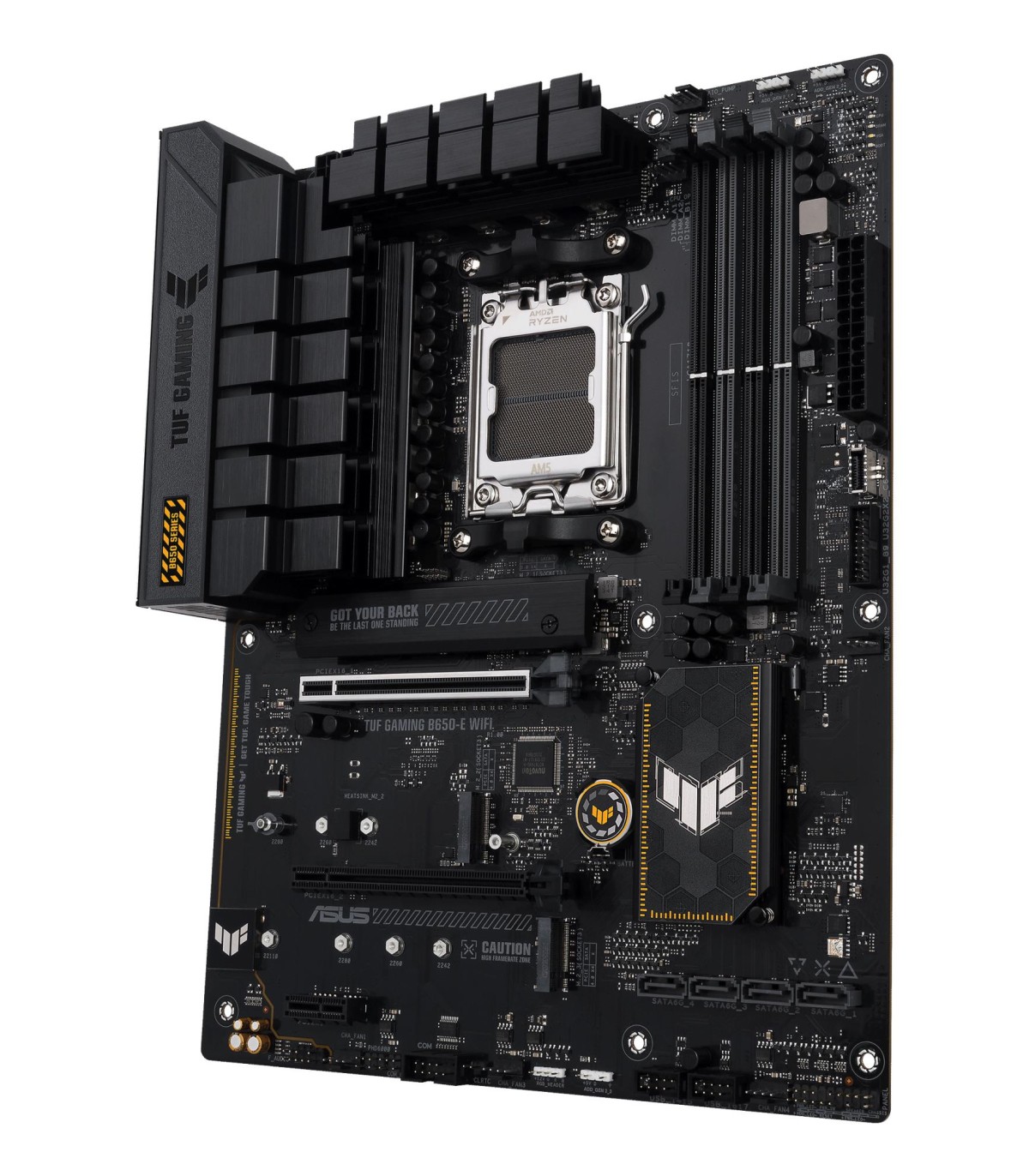

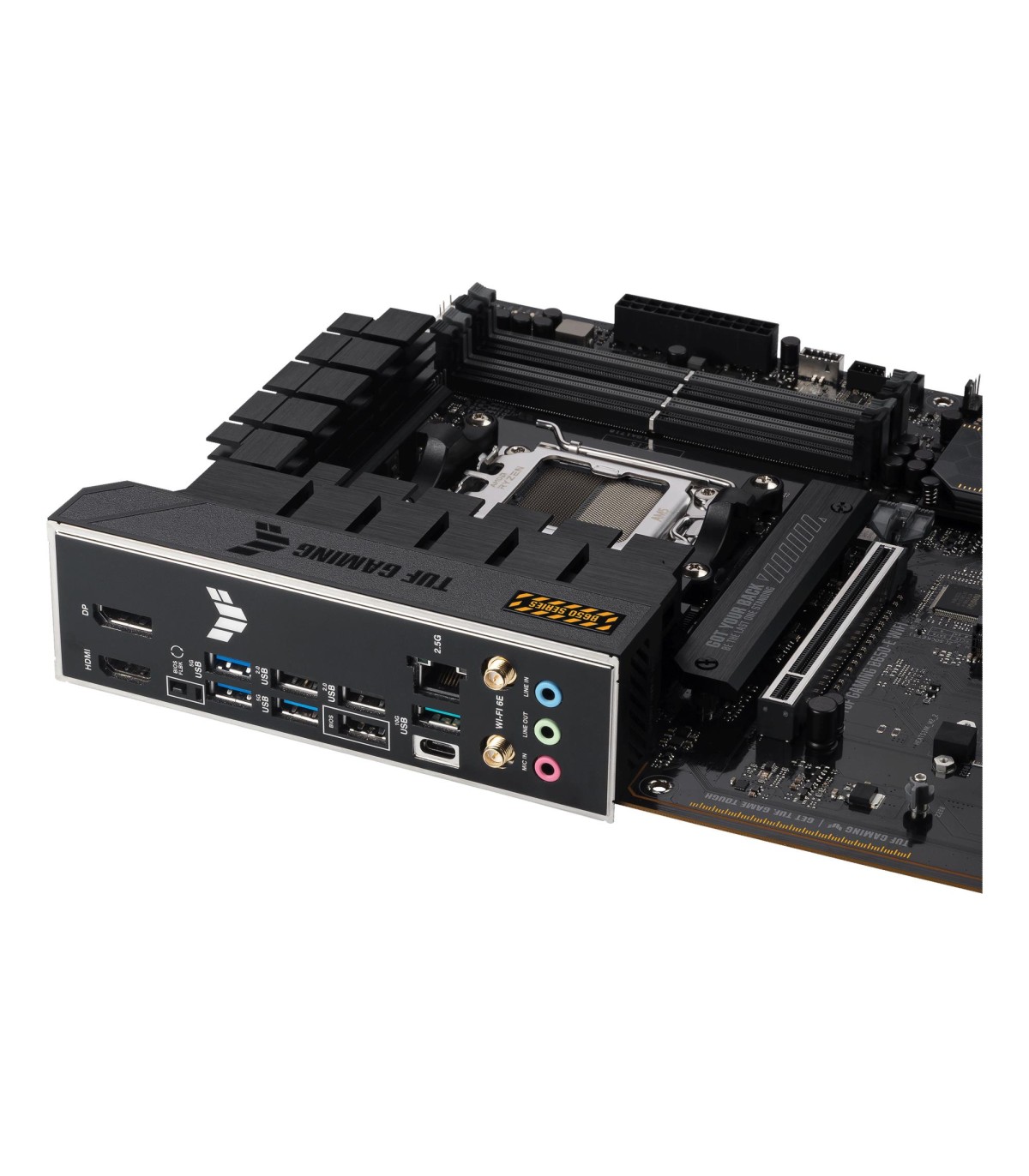

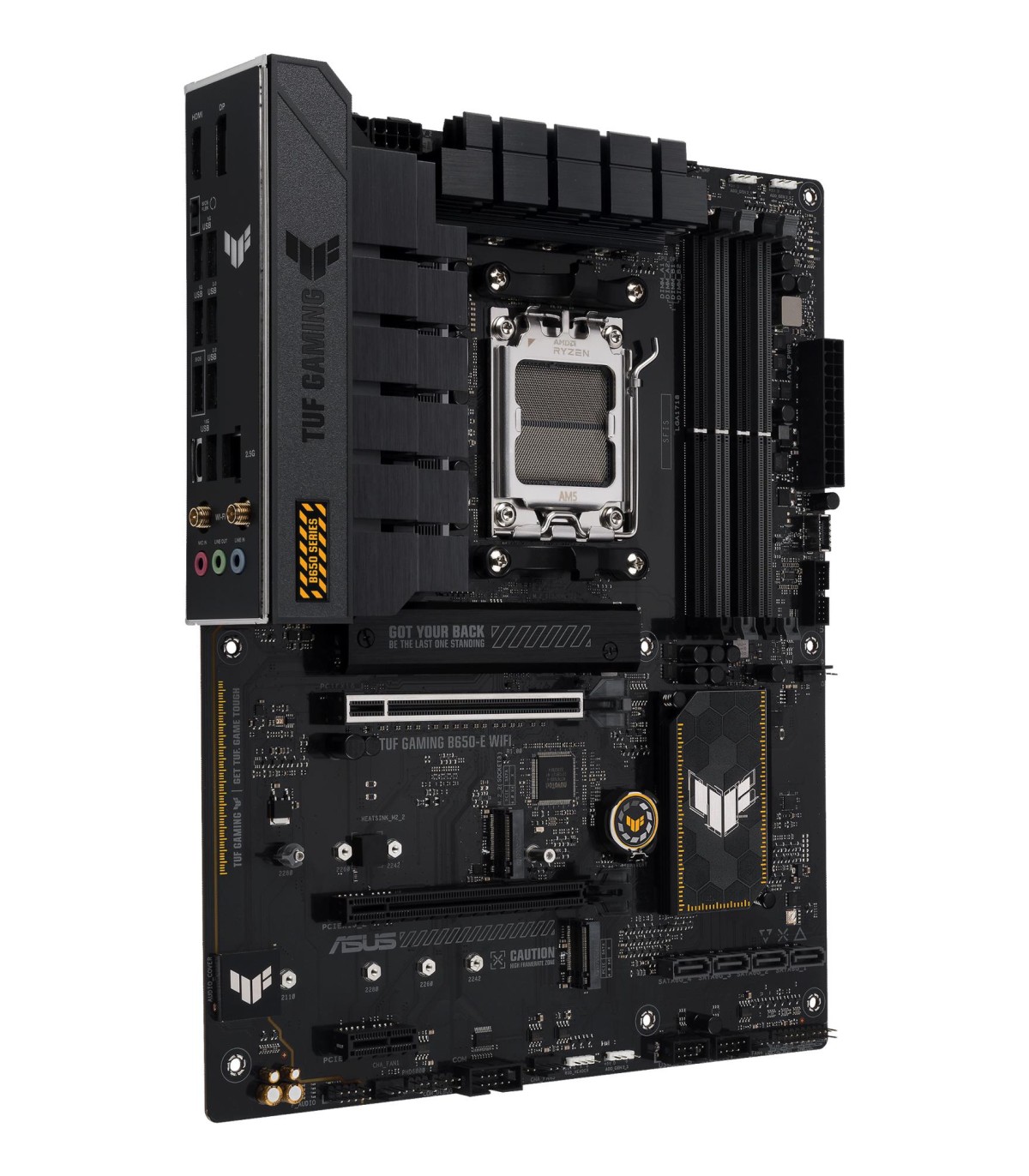

TUF GAMING B650-E WIFI

Bluetooth version

5.3

Unit Calculated Volume

0.008103 cubm

Unit Calculated Weight

1.94 kg

Units per Shipping Box

5

Summary

ASUS TUF GAMING B650-E WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfac

Product colour

Black

DisplayPorts quantity

1

HDMI ports quantity

1

Package depth

273 mm

Package height

68 mm

Package weight

1362 g

Package width

338 mm

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Parallel processing technology support

Not supported

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Number of storage drives supported

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Number of HDDs supported

4

Peripheral (Molex) power connectors (4-pin)

1

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

192 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Motherboard chipset

AMD B650

Number of SATA III connectors

4

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz

Motherboard form factor

ATX

Component for

PC

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8000 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

4

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

1

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

3

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Number of COM connectors

1

USB 3.2 Gen 2x2 connectors

1

PCI Express x1 (Gen 4.x) slots

1

ECC сompatibility

ECC & Non-ECC
