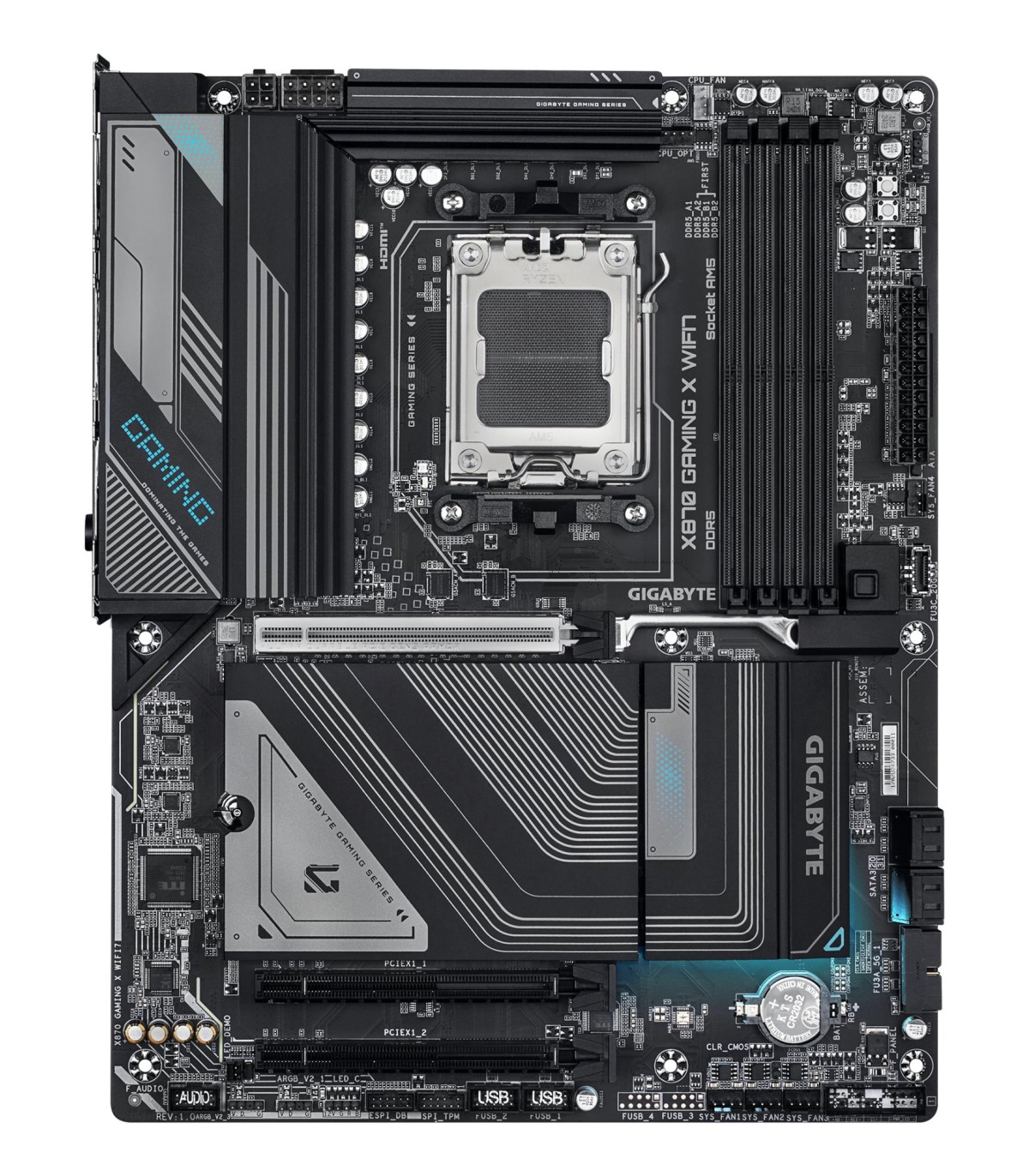

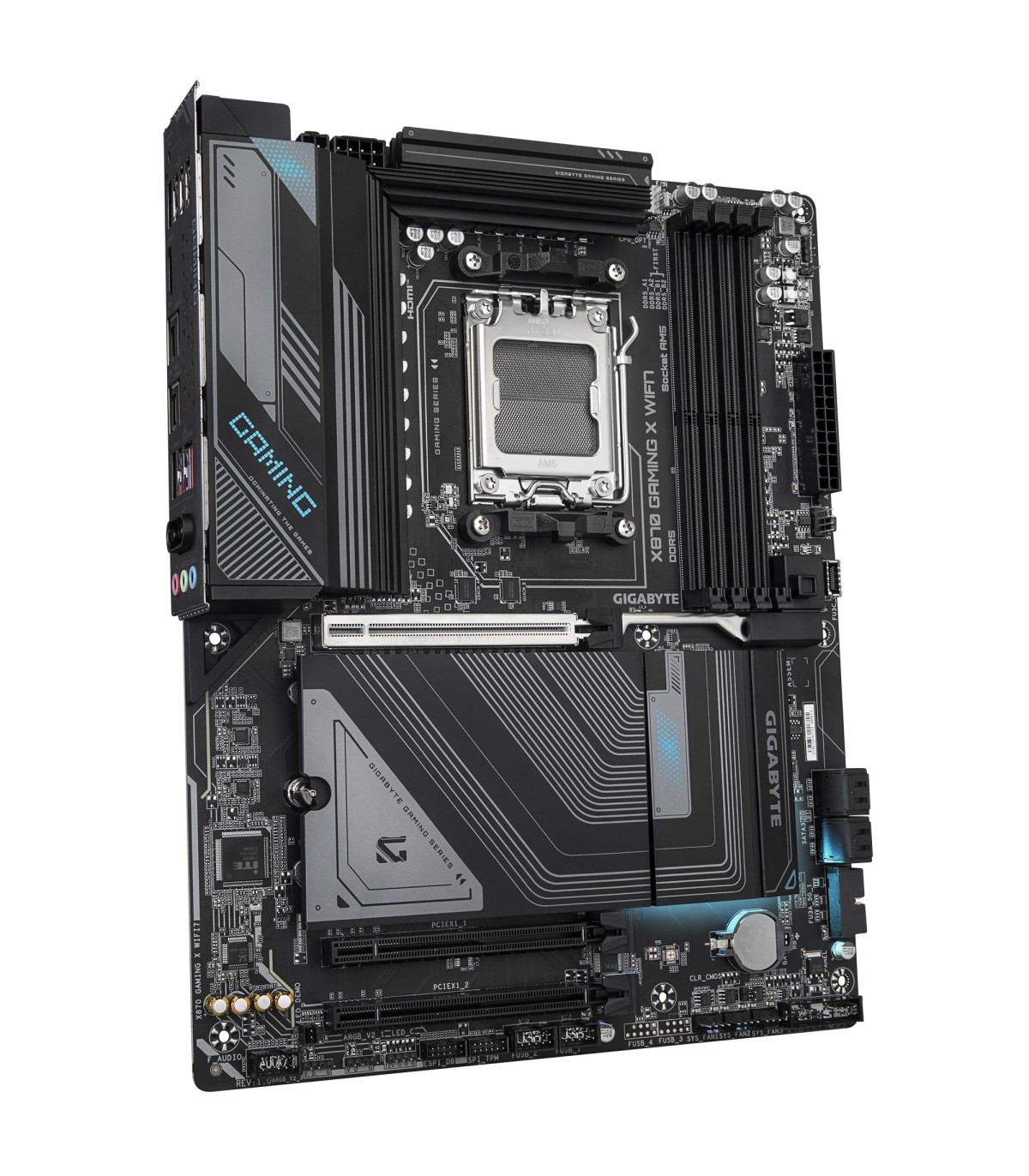

GIGABYTE Mainboard AMD X870 SAM5 ATX Memory DDR5 Memory slots 4 2xPCI-Express 3.0 1x 1xPCI-Express 5.0 16x 3xM.2 1xHDMI 4xUSB 2

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Height

35 mm

Width

305 mm

Unit Box Width

0.27

Unit Box Length

0.34

Unit Box Height

0.08

Category Code

MBA

Model

X870 GAMING X WIFI7 1.1

Bluetooth version

5.4

Battery weight

3 g

Unit Calculated Volume

0.007344 cubm

Unit Calculated Weight

2.1 kg

Units per Shipping Box

1

Summary

GIGABYTE X870 GAMING X WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor serie

Product colour

Black

DisplayPort version

1.4

HDMI ports quantity

1

HDMI version

2.1

Package depth

270 mm

Package height

80 mm

Package weight

2530 g

Package width

335 mm

Screws included

Yes

Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Country of origin

China

Weight

2230 g

Headphone outputs

1

Wi-Fi

Yes

Windows operating systems supported

Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Parallel processing technology support

Not supported

DirectX version

12.0

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Number of HDDs supported

7

Peripheral (Molex) power connectors (4-pin)

1

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

256 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

MediaTek MT7925

Audio chip

Realtek ALC897

Motherboard chipset

AMD X870

LAN controller

Realtek RTL8125

Number of SATA III connectors

4

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

PCI Express x16 (Gen 3.x) slots

2

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz

USB4 Gen 2x2 ports quantity

2

Motherboard form factor

ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

8200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

4

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

FAN/Temperature/Voltage

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

25110

Number of M.2 (M) slots

3

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Antenna included

Yes

Number of water pump connectors

1

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

25110

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

25110

Clear CMOS button

Yes

Maximum internal memory supported by processor

256 GB

Supported memory module capacities

16GB/1GB/24GB/2GB/32GB/40GB/48GB/4GB/64GB/8GB

USB 3.2 Gen 2x2 connectors

1

PCI Express x4 slots

2

ECC сompatibility

Non-ECC
