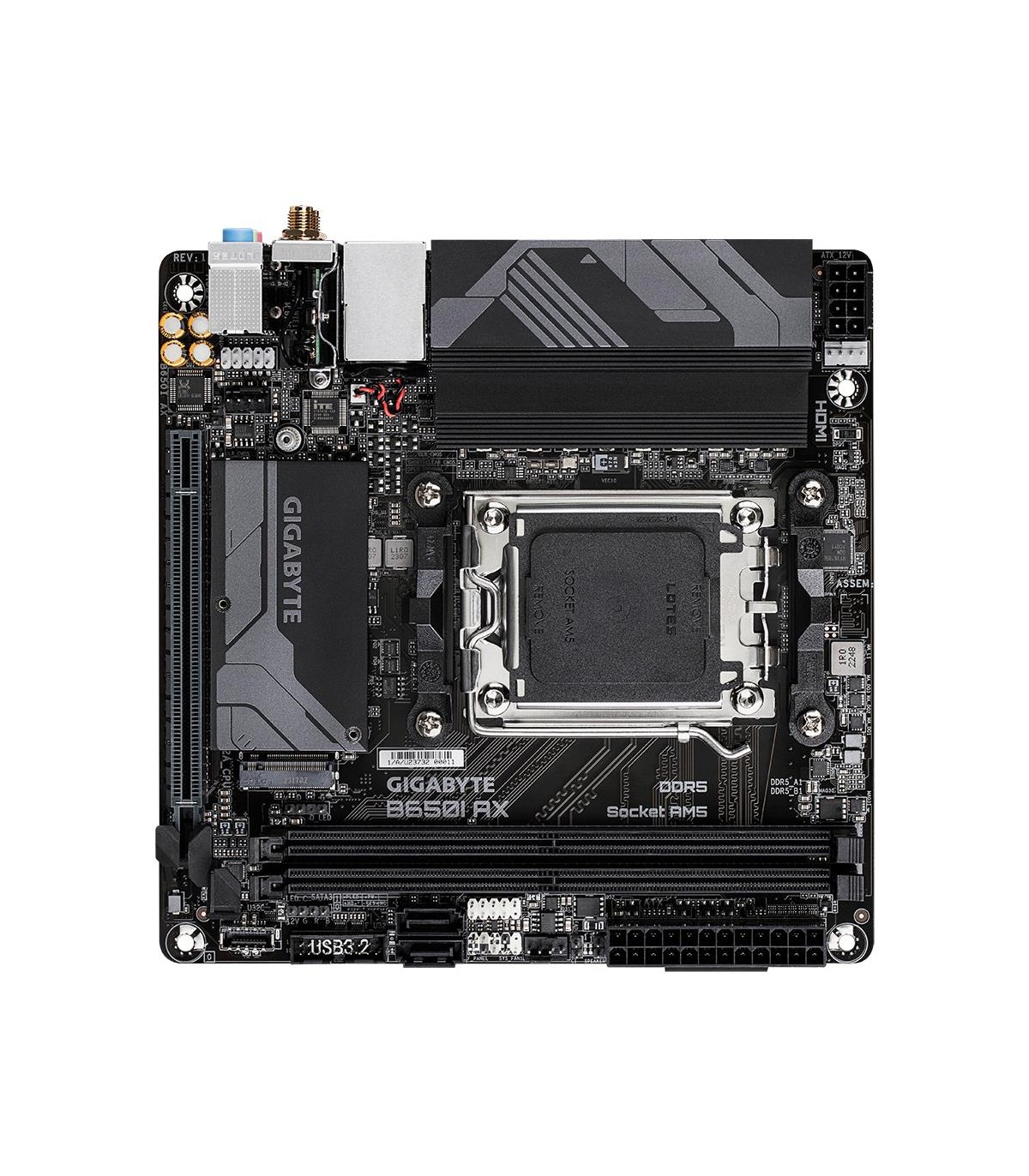

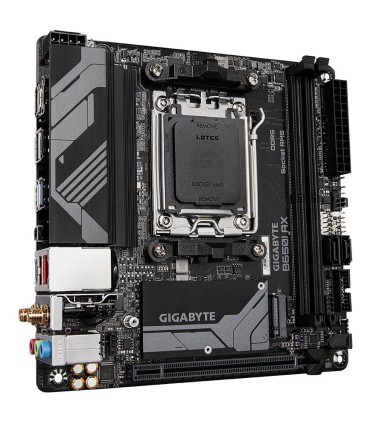

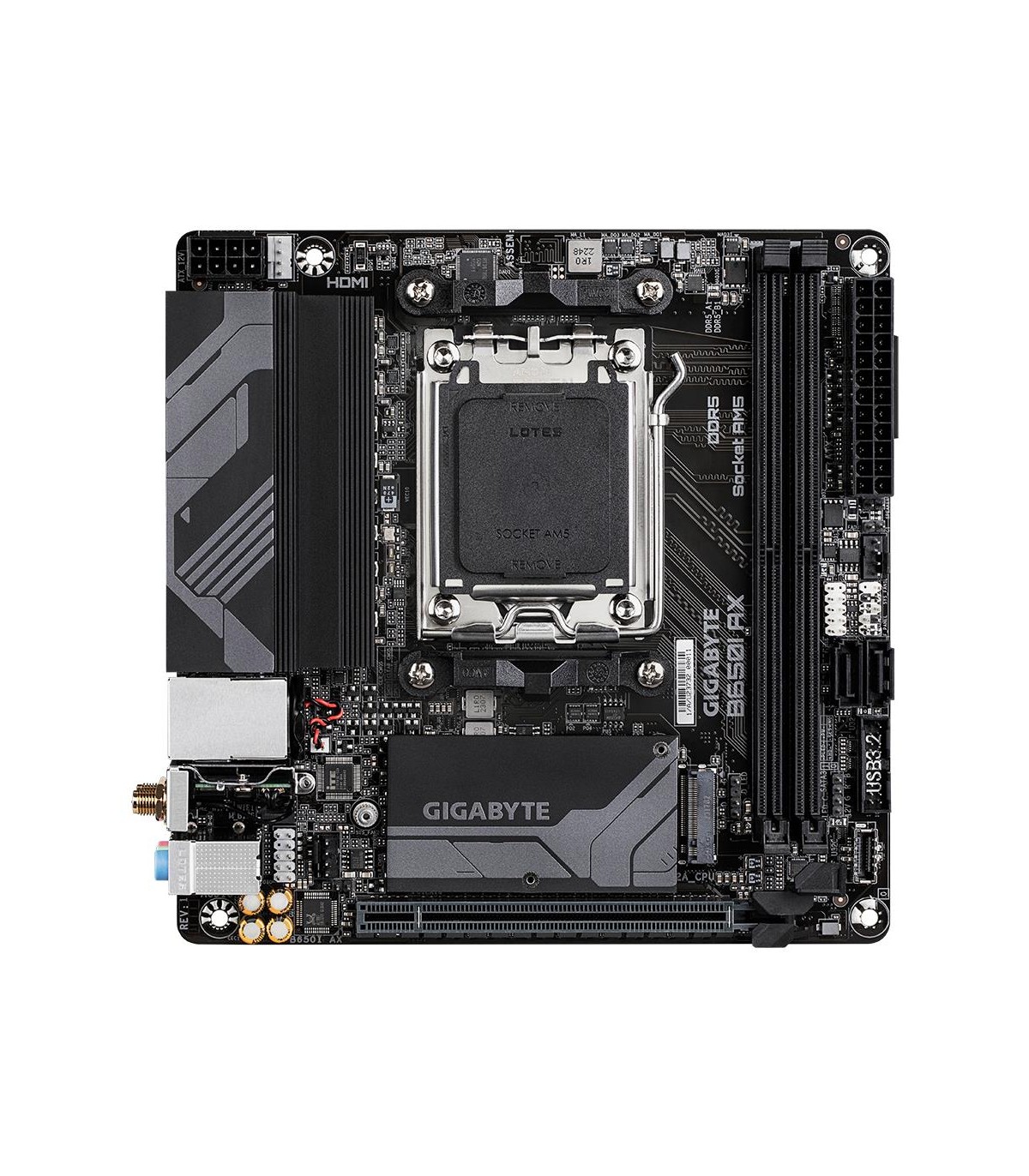

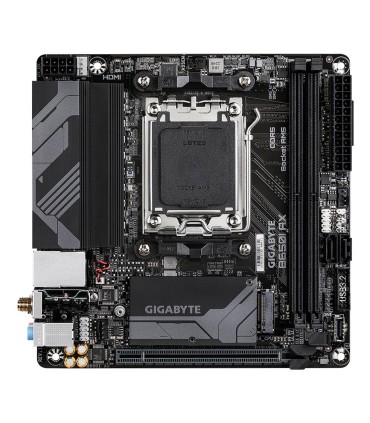

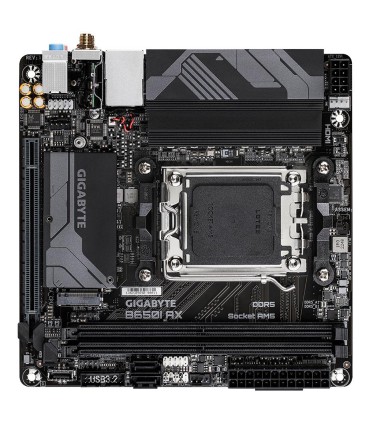

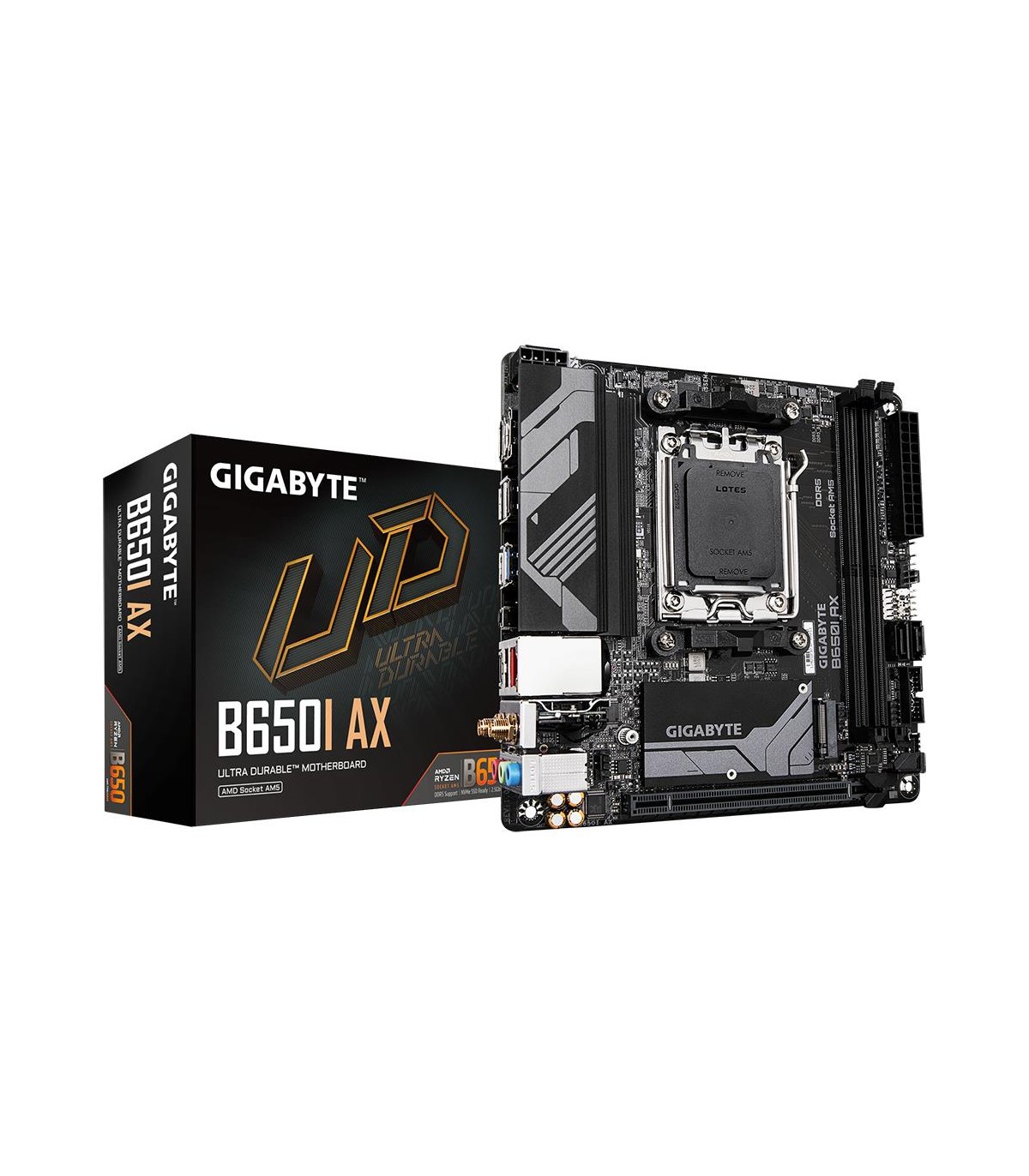

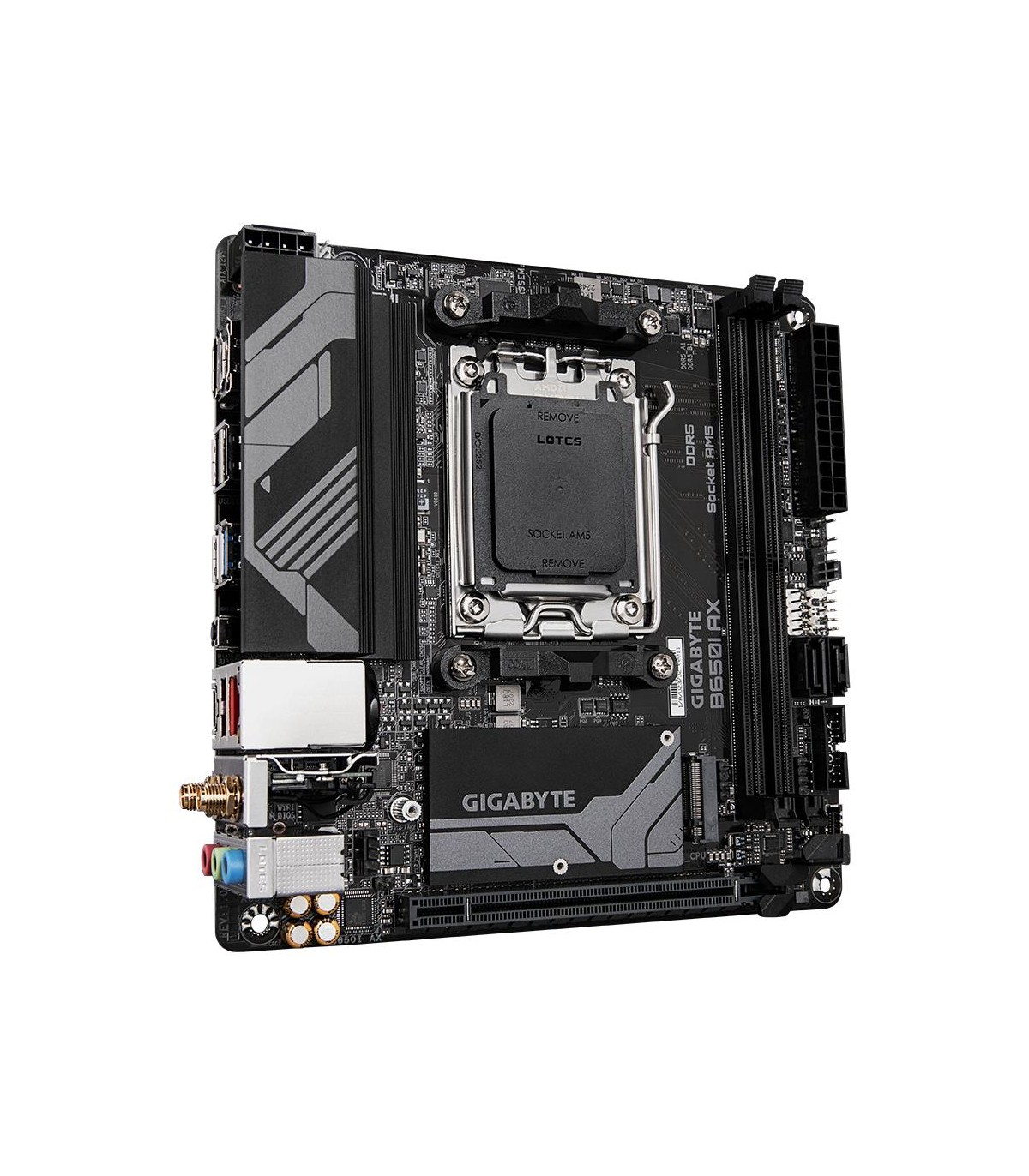

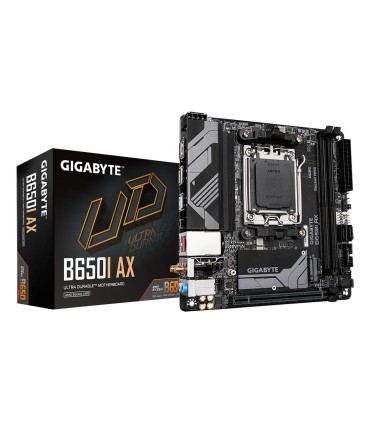

GIGABYTE Mainboard AMD B650 Socket AM5 mini ITX RAM DDR5-SDRAM 2xSlots Wi-Fi Yes Bluetooth Yes 1xNumber of M.2 (M) slots B650IA

Сеть

Bluetooth

Yes

Другие свойства

Depth

170 mm

Height

35 mm

Width

170 mm

Unit Box Width

0.225

Unit Box Length

0.18

Unit Box Height

0.065

Category Code

MBA

Bluetooth version

5.3

Battery weight

3 g

Unit Calculated Volume

0.002632 cubm

Unit Calculated Weight

0.77 kg

Units per Shipping Box

1

Summary

GIGABYTE B650I AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+1 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 70

Product colour

Brown

DisplayPort version

1.4

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Package depth

180 mm

Package height

65 mm

Package weight

879 g

Package width

222 mm

Screws included

Yes

Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Country of origin

China

Headphone outputs

1

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Number of storage drives supported

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Number of HDDs supported

2

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

128 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Realtek RTL8852CE

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Audio chip

Realtek ALC897

Motherboard chipset

AMD B650

LAN controller

Realtek RTL8125

Number of SATA III connectors

2

Line-in

Yes

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400 MHz

Motherboard form factor

Mini ITX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

6400 MHz

Unbuffered memory

Yes

RAID levels

0/1

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

Number of CPU fan connectors

1

Number of RGB LED pin headers

2

RGB LED pin header

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

FAN/Temperature/Voltage

Power source type

ATX

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Antenna included

Yes

12V power connector

Yes

Chassis intrusion connector

Yes

Discrete graphics support

Yes

Number of EATX power connectors

1

ECC сompatibility

Non-ECC
