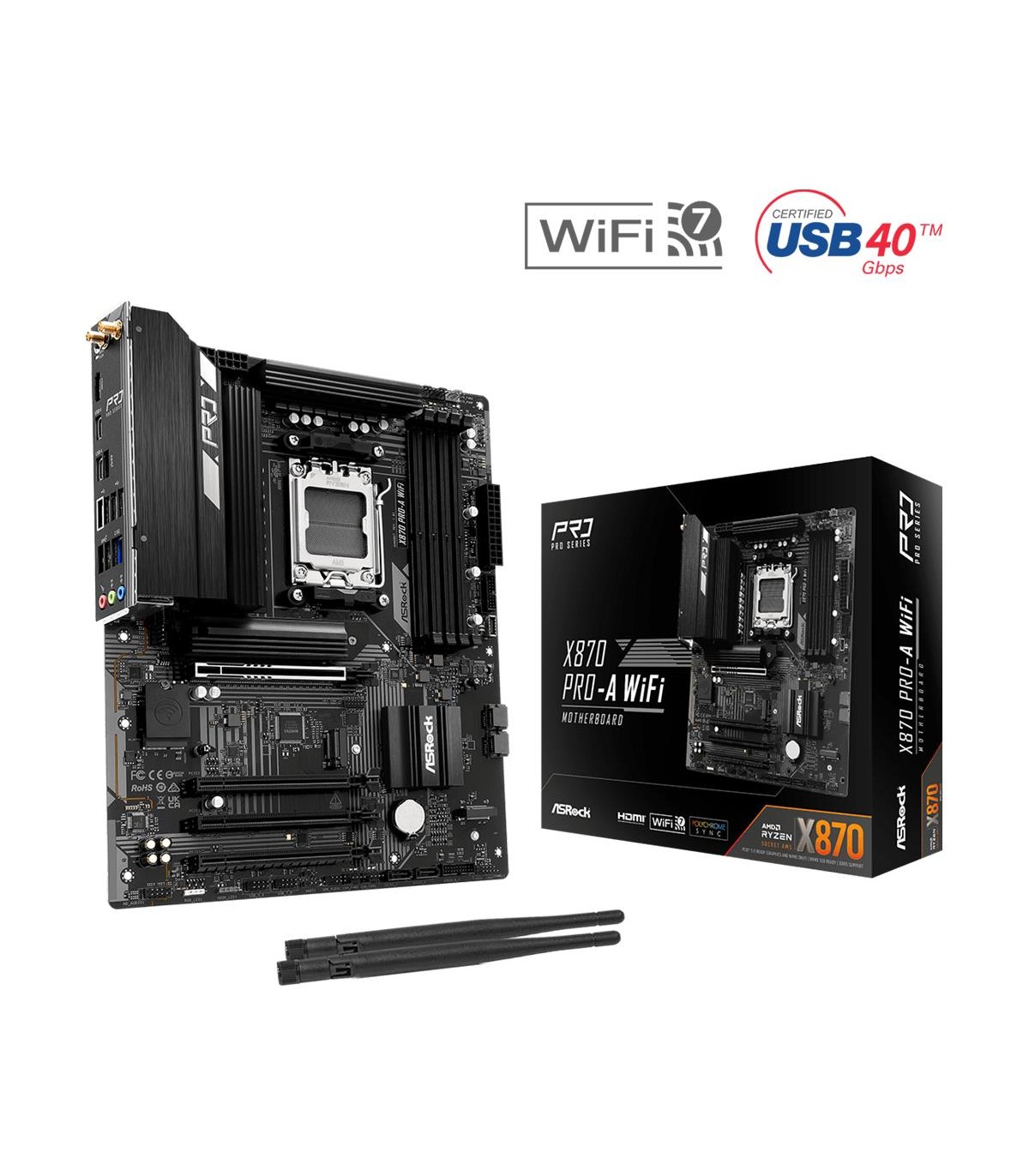

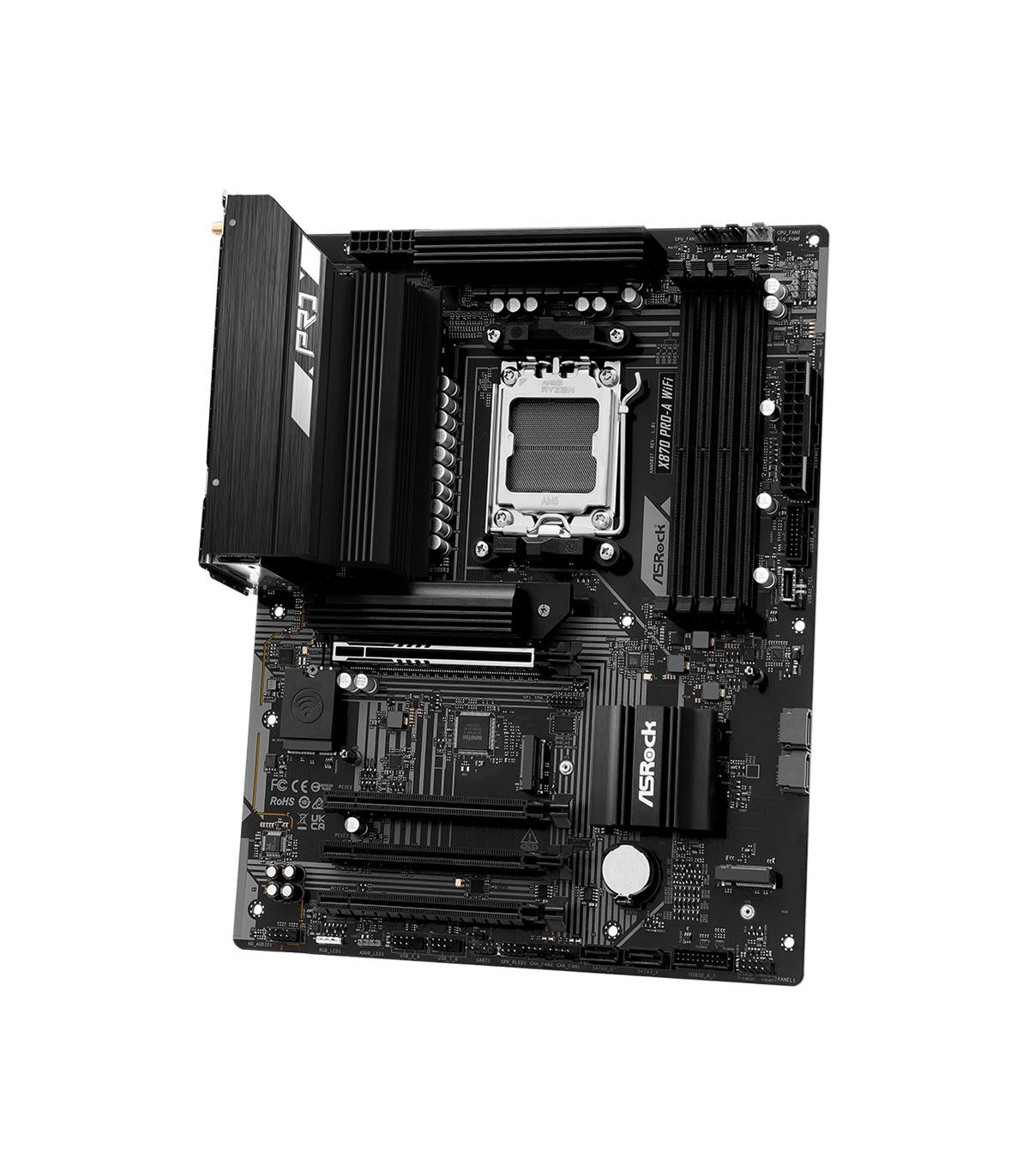

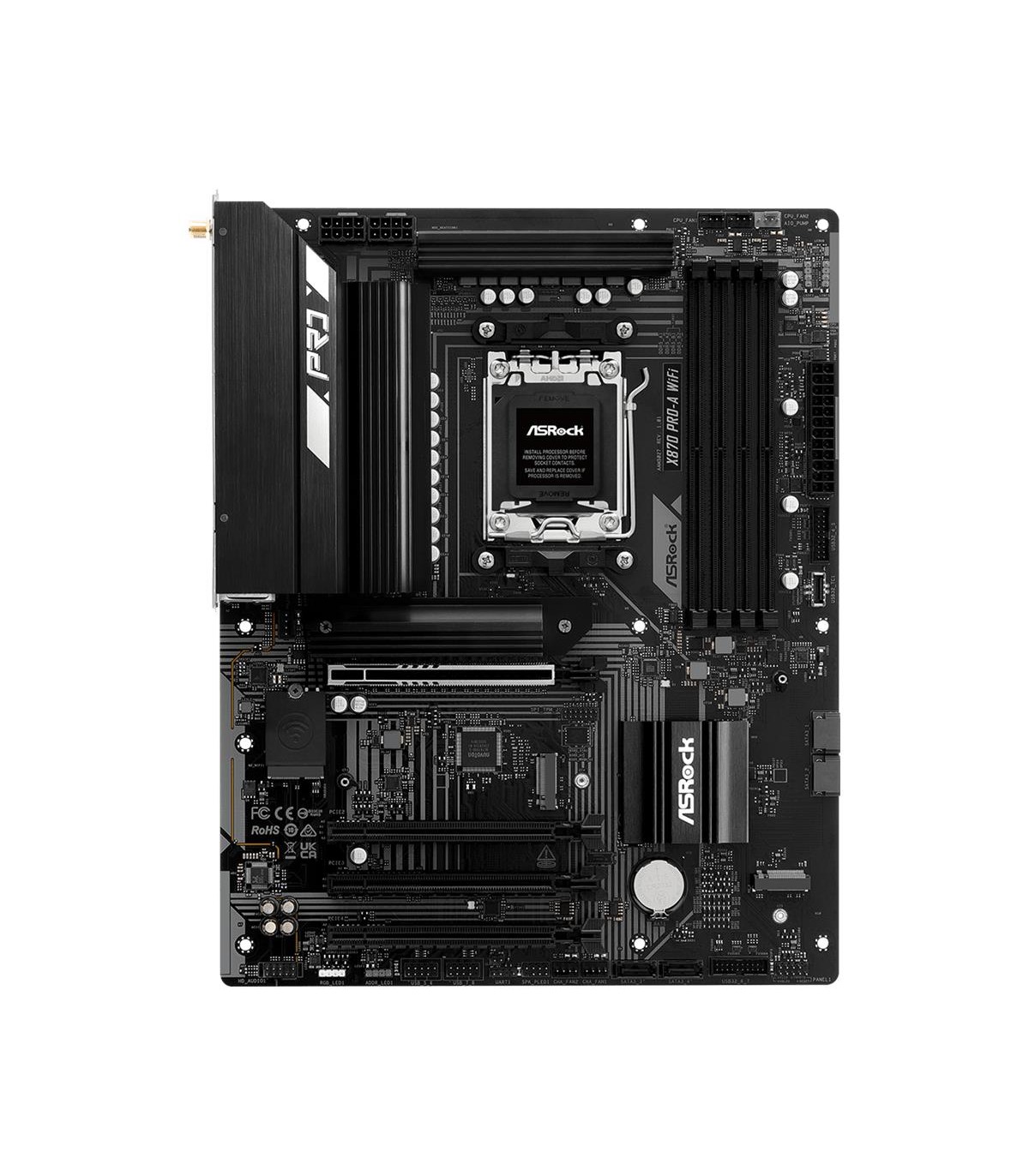

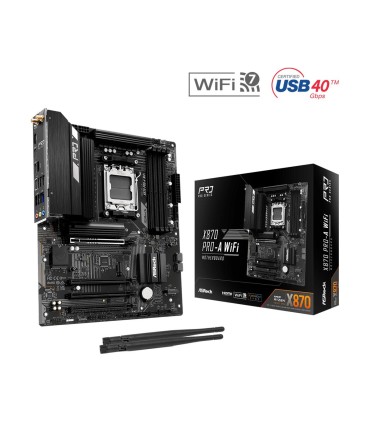

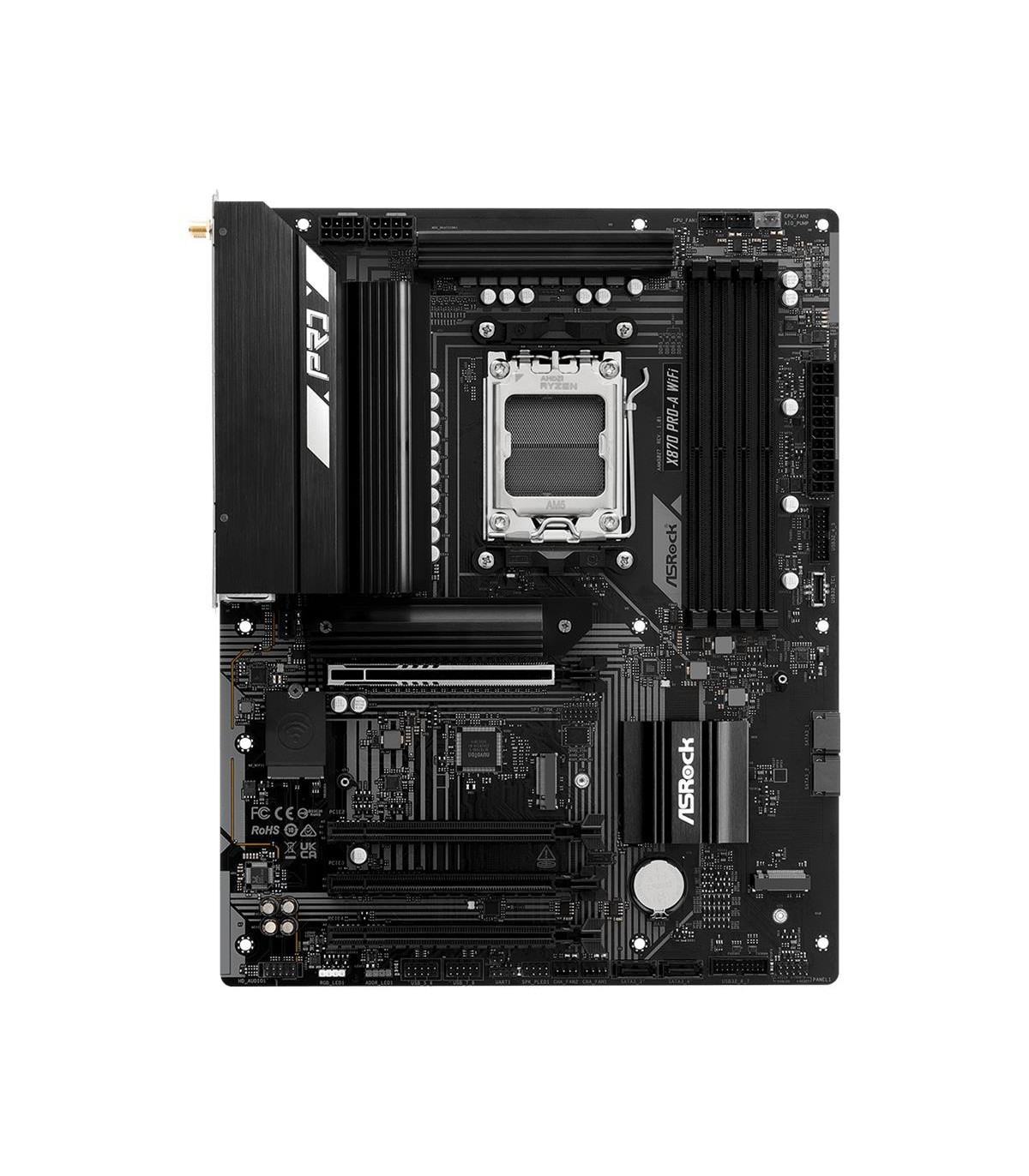

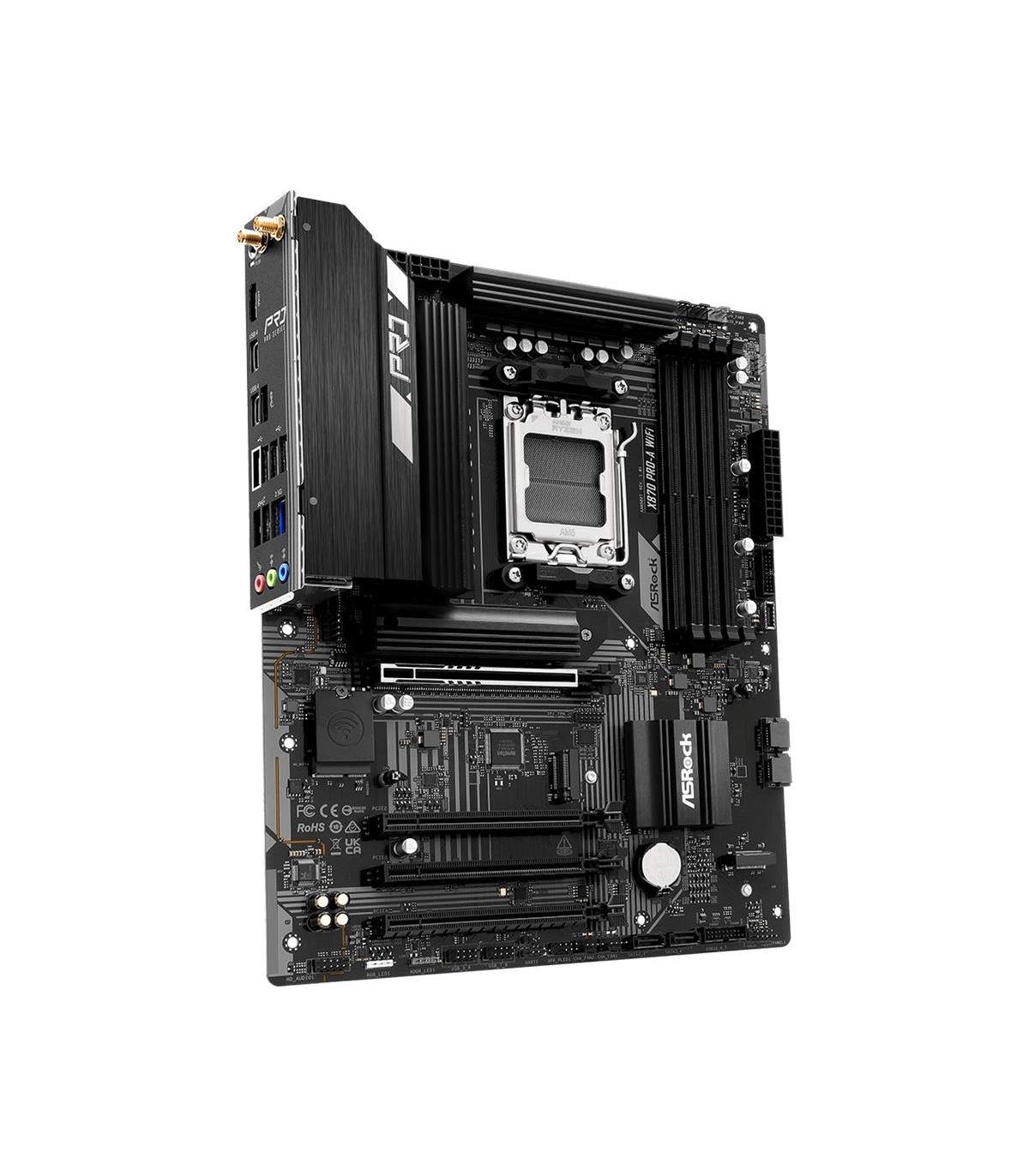

ASROCK Mainboard AMD X870 SAM5 ATX Memory DDR5 Memory slots 4 X870PRO-AWIFI

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Width

305 mm

Unit Box Width

0.28

Unit Box Length

0.35

Unit Box Height

0.075

Category Code

MBA

Model

X870 PRO-A WIFI

Bluetooth version

5.4

Unit Calculated Volume

0.00888 cubm

Unit Calculated Weight

2.13 kg

Units per Shipping Box

5

Summary

Asrock X870 Pro-A WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 6000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD.... Supported memory types: DDR5-SDRAM, Maximum

HDMI ports quantity

1

Cables included

SATA

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be)

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

2

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

256 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Audio chip

Realtek ALC897

Motherboard chipset

AMD X870

LAN controller

Dragon RTL8125BG

Number of SATA III connectors

4

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Motherboard form factor

ATX

Component for

PC

Compatible processor series

AMD Ryzen 6000 Series/AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series/AMD Ryzen PRO 7000 Series/AMD Ryzen PRO 8000 Series/AMD Ryzen Threadripper 7000 Series/AMD Ryzen Threadripper PRO 7000 WX-Series

Processor socket

Socket AM5

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

3

BIOS memory size

512 Mbit

BIOS type

EFI AMI

ECC сompatibility

ECC & Non-ECC
