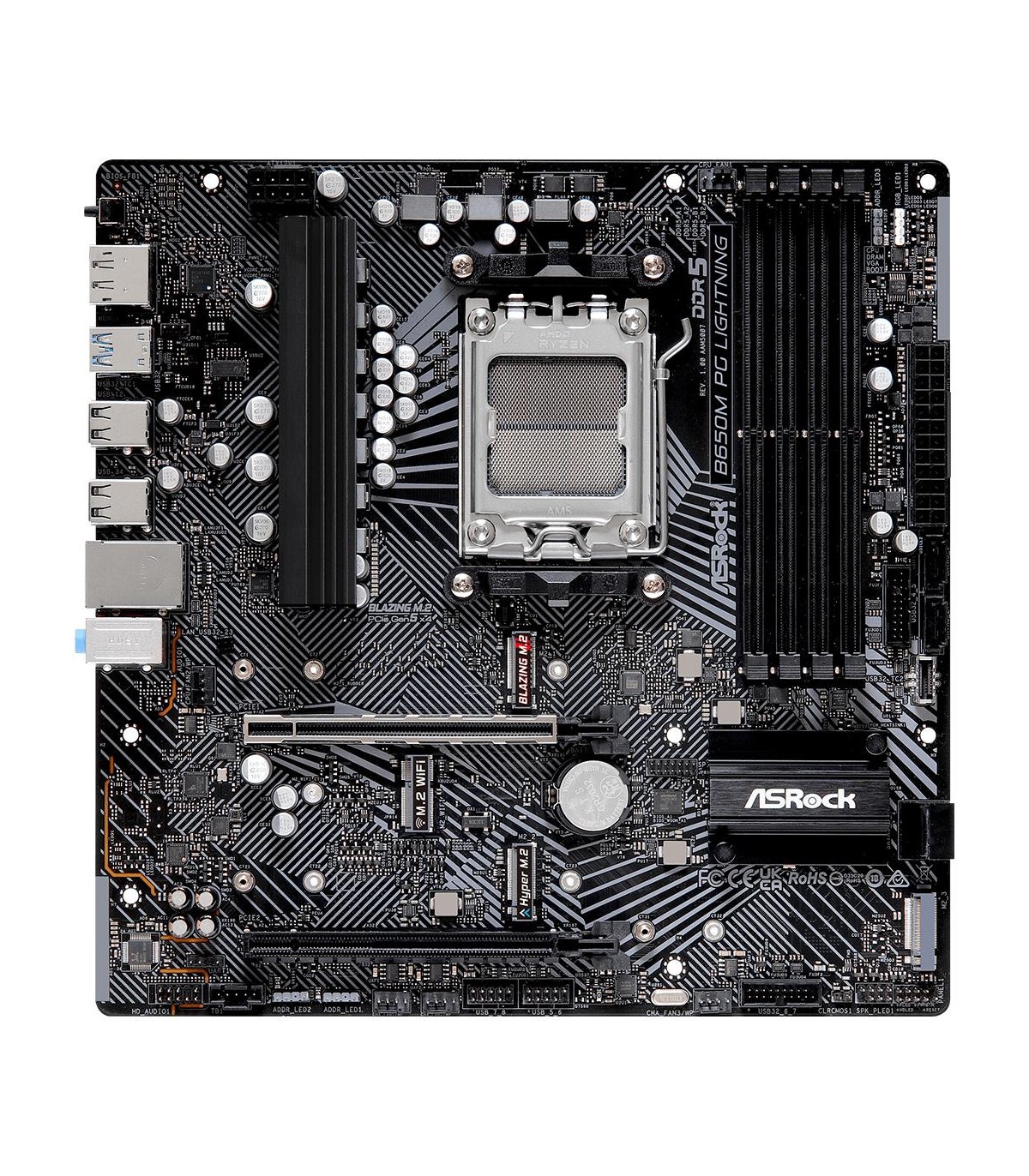

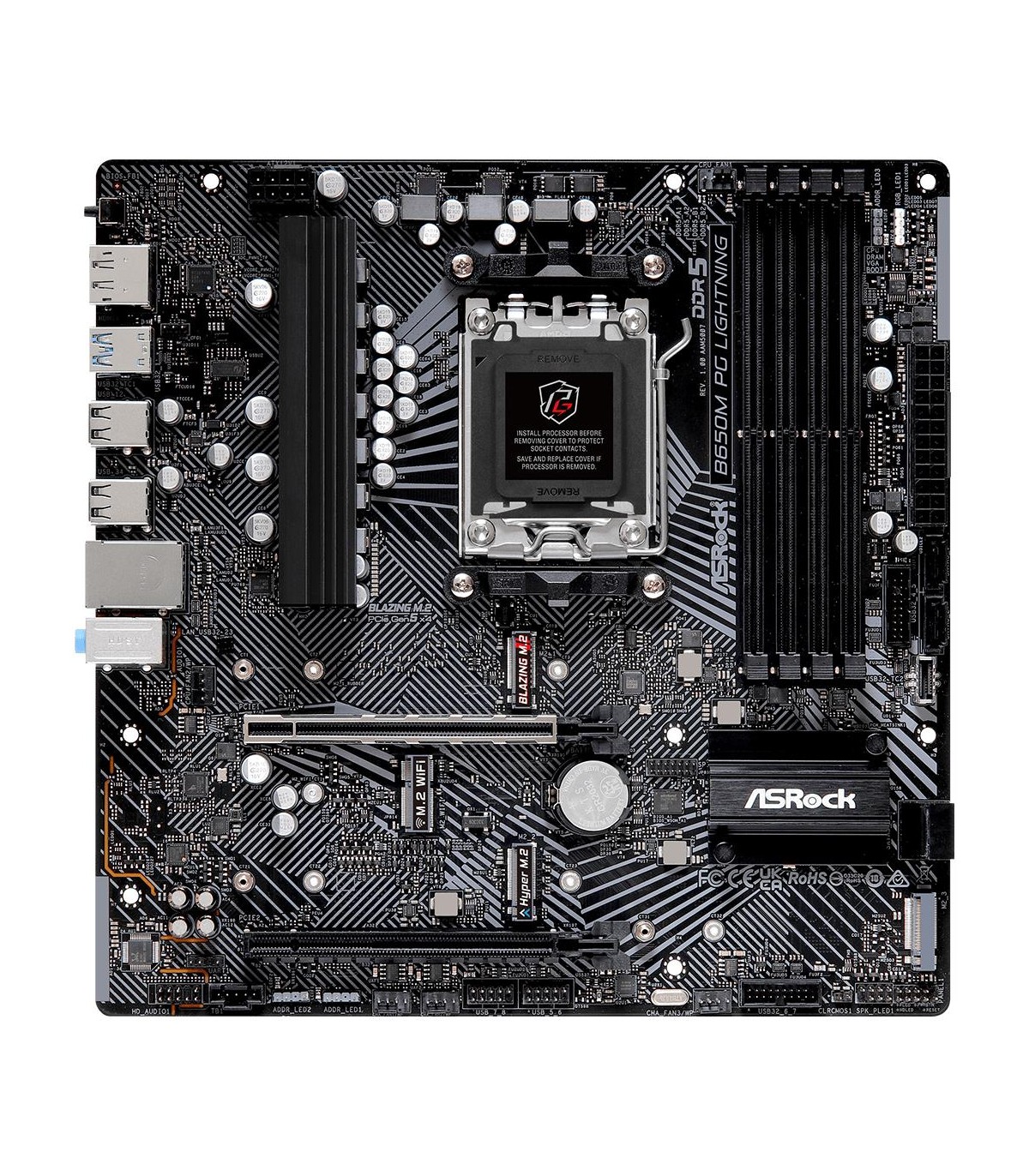

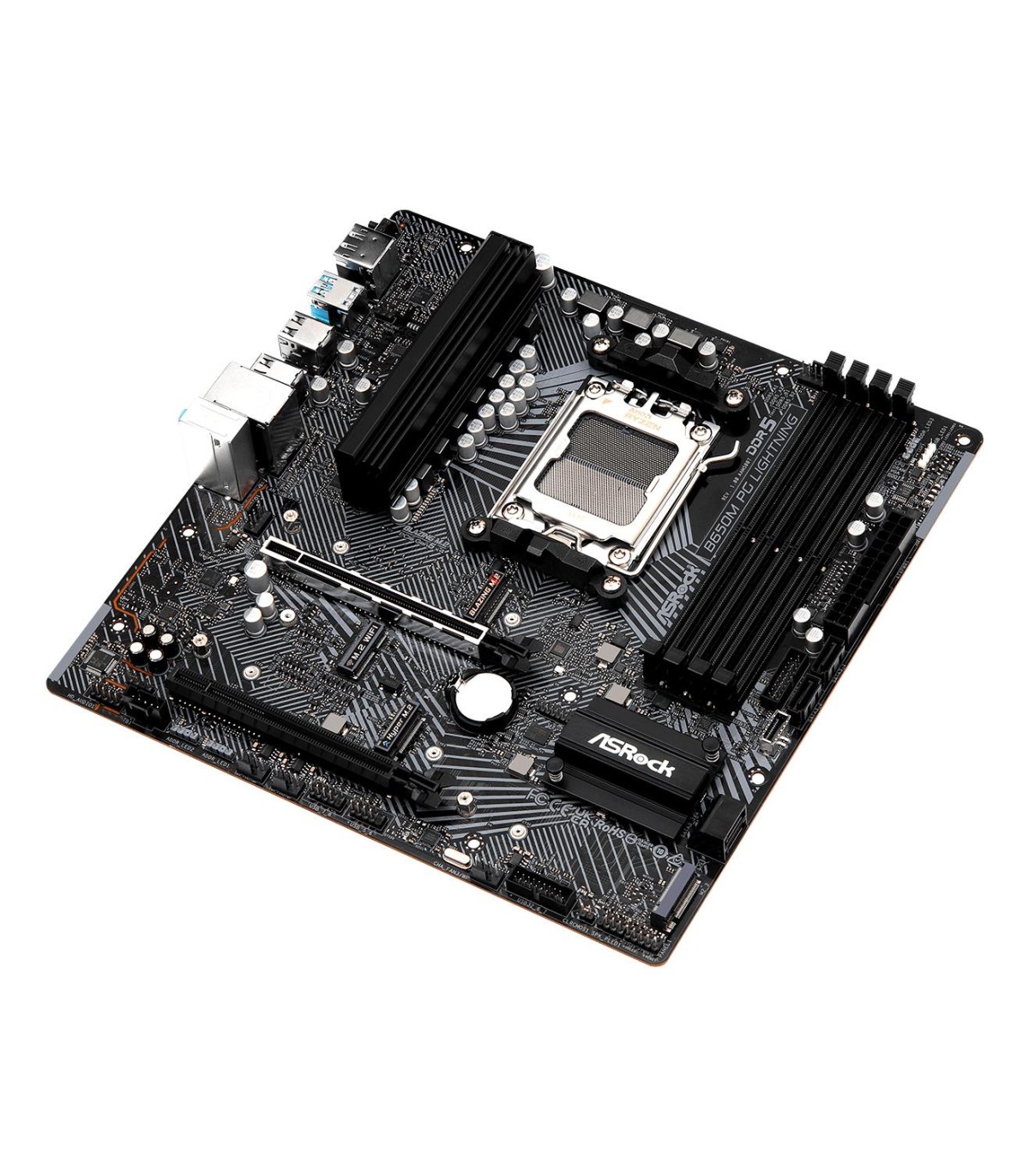

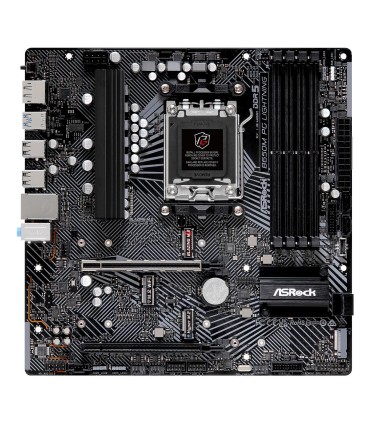

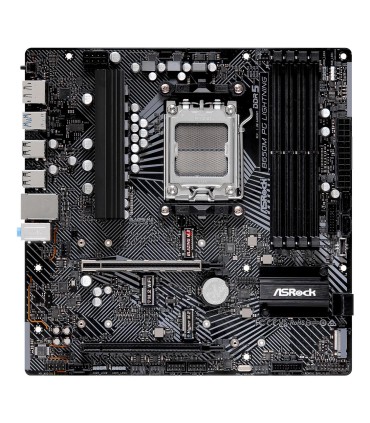

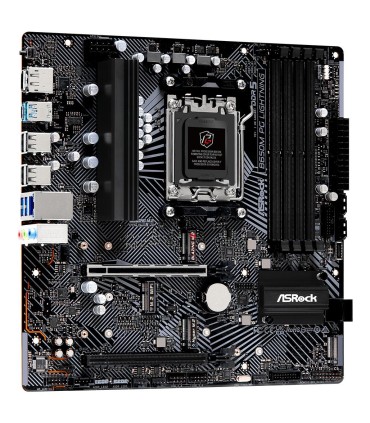

ASROCK Mainboard AMD B650 SAM5 Micro-ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 16x 1xPCI-Express 4.0 16x 3xM.2 1xHDMI 1x

Другие свойства

Depth

244 mm

Width

244 mm

Unit Box Width

0.262

Unit Box Length

0.28

Unit Box Height

0.061

Category Code

MBA

Model

B650M PG Lightning

Unit Calculated Volume

0.005541 cubm

Unit Calculated Weight

1.22 kg

Units per Shipping Box

10

Summary

Asrock B650M PG Lightning. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive

Product colour

Black

DisplayPort version

1.4

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Cables included

SATA

Screws included

Yes

Certification

FCC, CE, ErP/EuP

Headphone outputs

3

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Maximum resolution

3840 x 2160 pixels

Parallel processing technology support

CrossFire

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Number of storage drives supported

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

192 GB

Audio chip

Realtek ALC897

Motherboard chipset

AMD B650

LAN controller

Dragon RTL8125BG

Number of SATA III connectors

4

Audio output channels

7.1 channels

USB connector type

USB Type-A/USB Type-C

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

7200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,PCI Express 4.0,PCI Express 5.0,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

3

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Chassis intrusion connector

Yes

Thunderbolt headers

1

ECC сompatibility

ECC & Non-ECC
