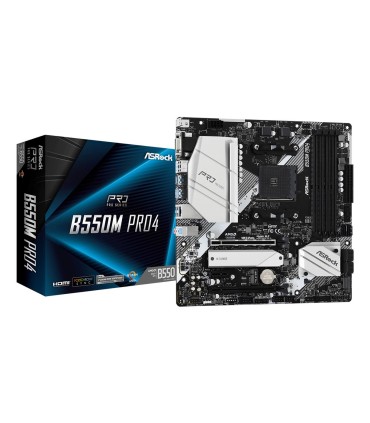

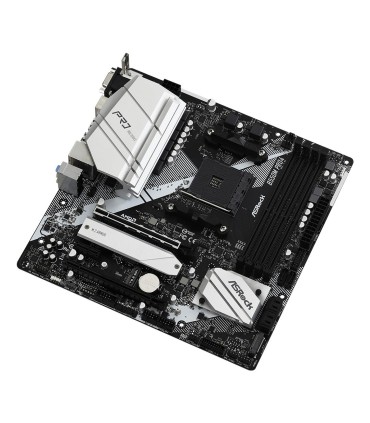

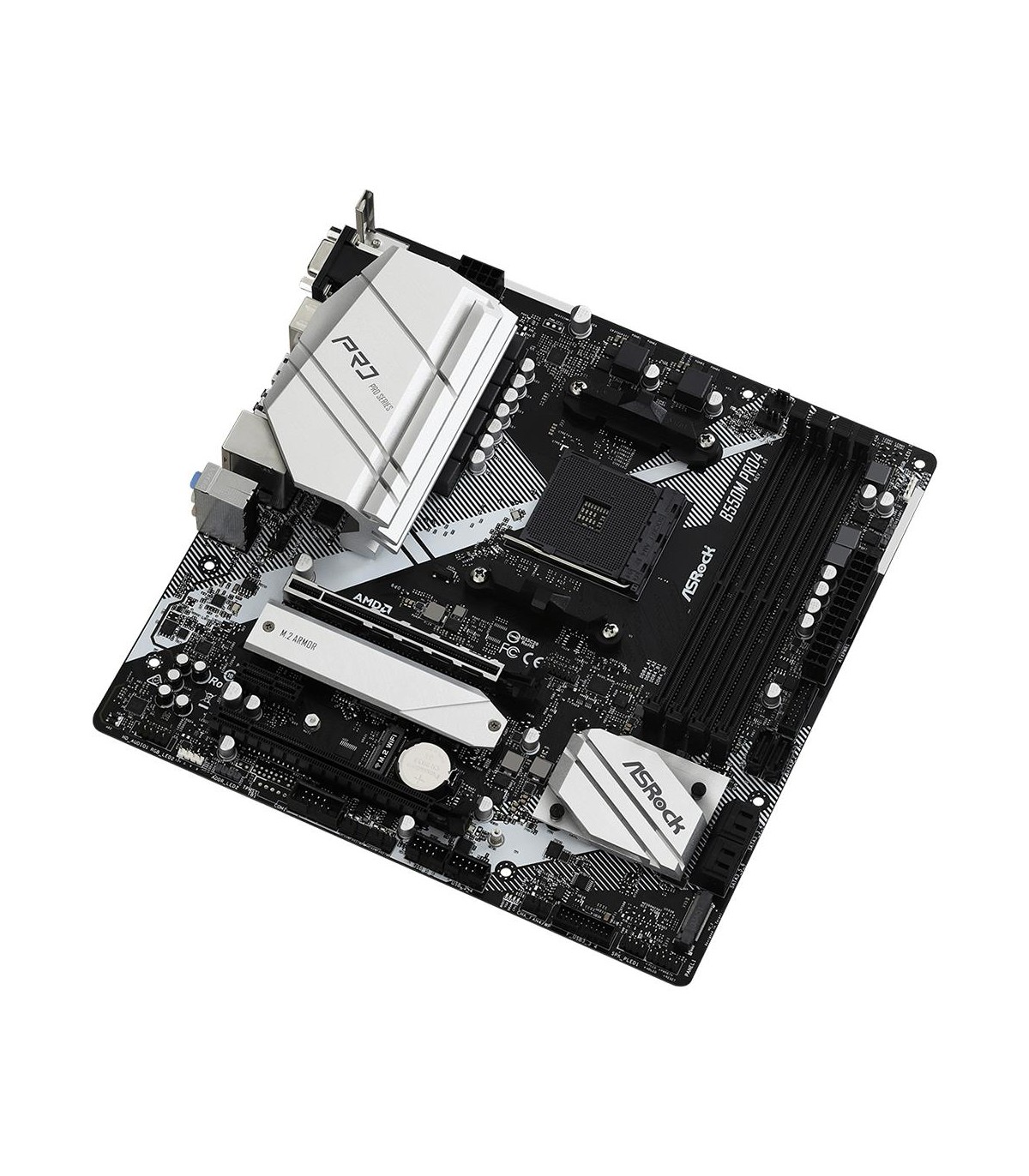

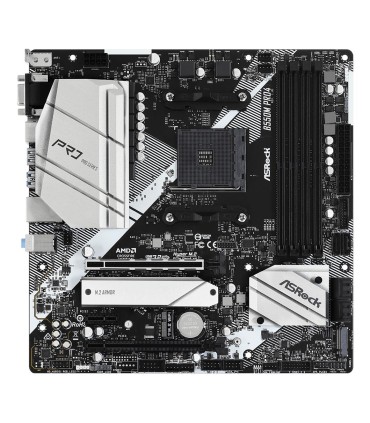

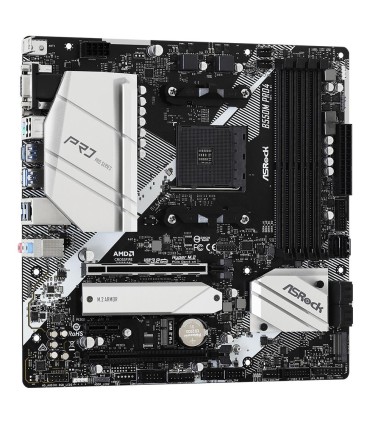

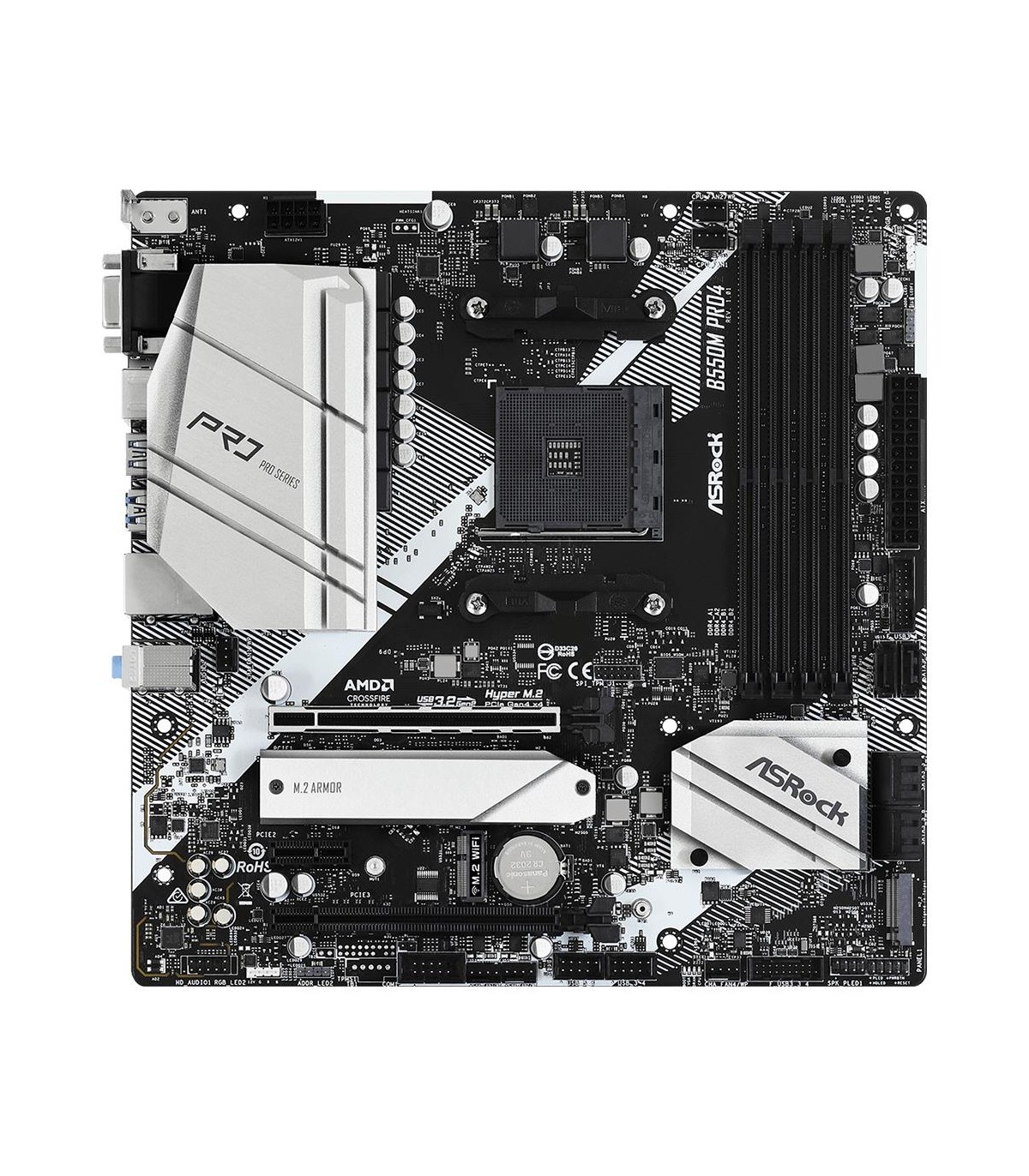

ASROCK Mainboard AMD B550 SAM4 MicroATX 1xPCI-Express 3.0 1x 1xPCI-Express 3.0 16x 1xM.2 1xPCI-Express 4.0 16x Memory DDR4 Memo

Другие свойства

Depth

244 mm

Height

70 mm

Width

244 mm

Unit Box Width

0.28

Unit Box Length

0.06

Unit Box Height

0.26

Category Code

MBA

Unit Calculated Volume

0.005011 cubm

Unit Calculated Weight

1.39 kg

Units per Shipping Box

20

Summary

Asrock B550M Pro4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfa

DisplayPort version

1.4

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Cables included

SATA

VGA (D-Sub) ports quantity

1

Certification

FCC, CEErP/EuP ready (ErP/EuP ready power supply is required)

Weight

465 g

Wi-Fi

No

Harmonized System (HS) code

84733020

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Maximum resolution

5120 x 2880 pixels

Parallel processing technology support

CrossFireX/Quad-GPU CrossFireX

DirectX version

12.0

Drivers included

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

128 GB

Memory channels

Dual-channel

Audio chip

Realtek ALC1200

Motherboard chipset

AMD B550

LAN controller

Realtek RTL8111H

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 3000 Series

Processor socket

Socket AM4

Supported processor sockets

Socket AM4

Supported memory clock speed (max)

4733 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

4

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

CPU/FAN/Temperature/Voltage

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

1

ACPI version

5.1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

System Management BIOS (SMBIOS) version

2.3

12V power connector

Yes

Maximum number of SMP processors

1

Number of COM connectors

1

Supported memory module capacities

16GB/32GB/4GB/8GB

Number of displays supported

3

Wake-on-LAN ready

Yes

ECC сompatibility

ECC & Non-ECC

Number of SATA II connectors

6
