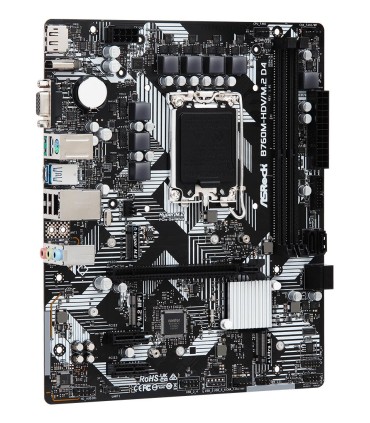

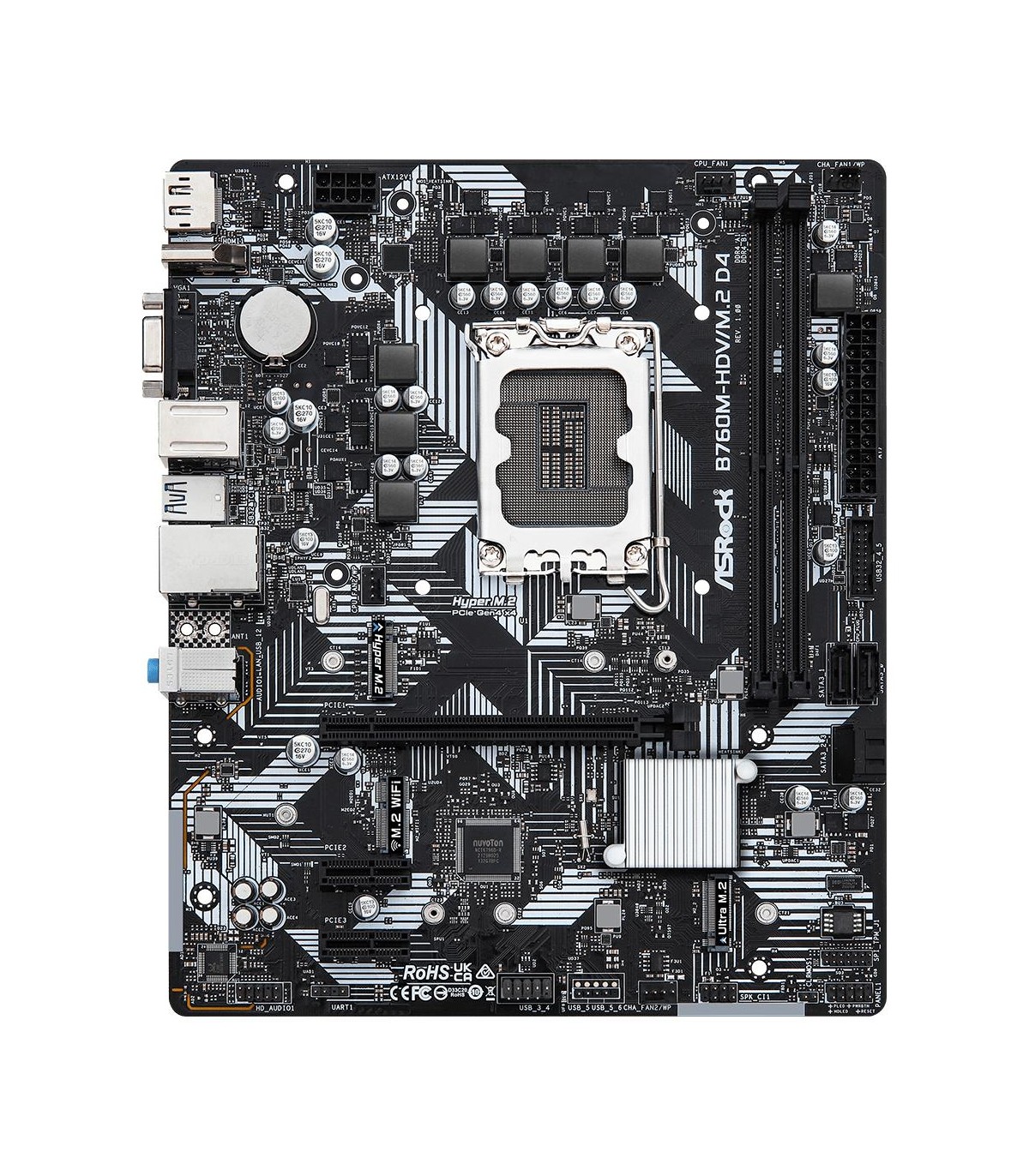

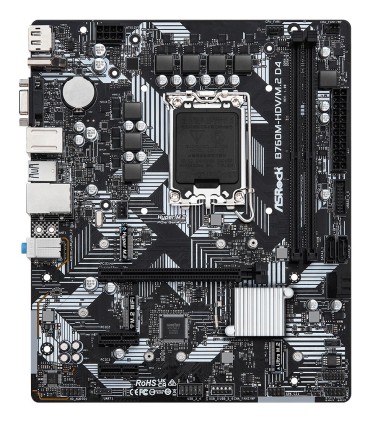

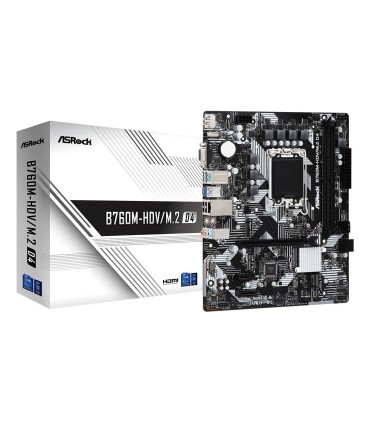

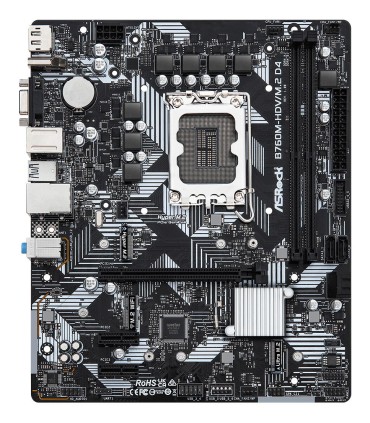

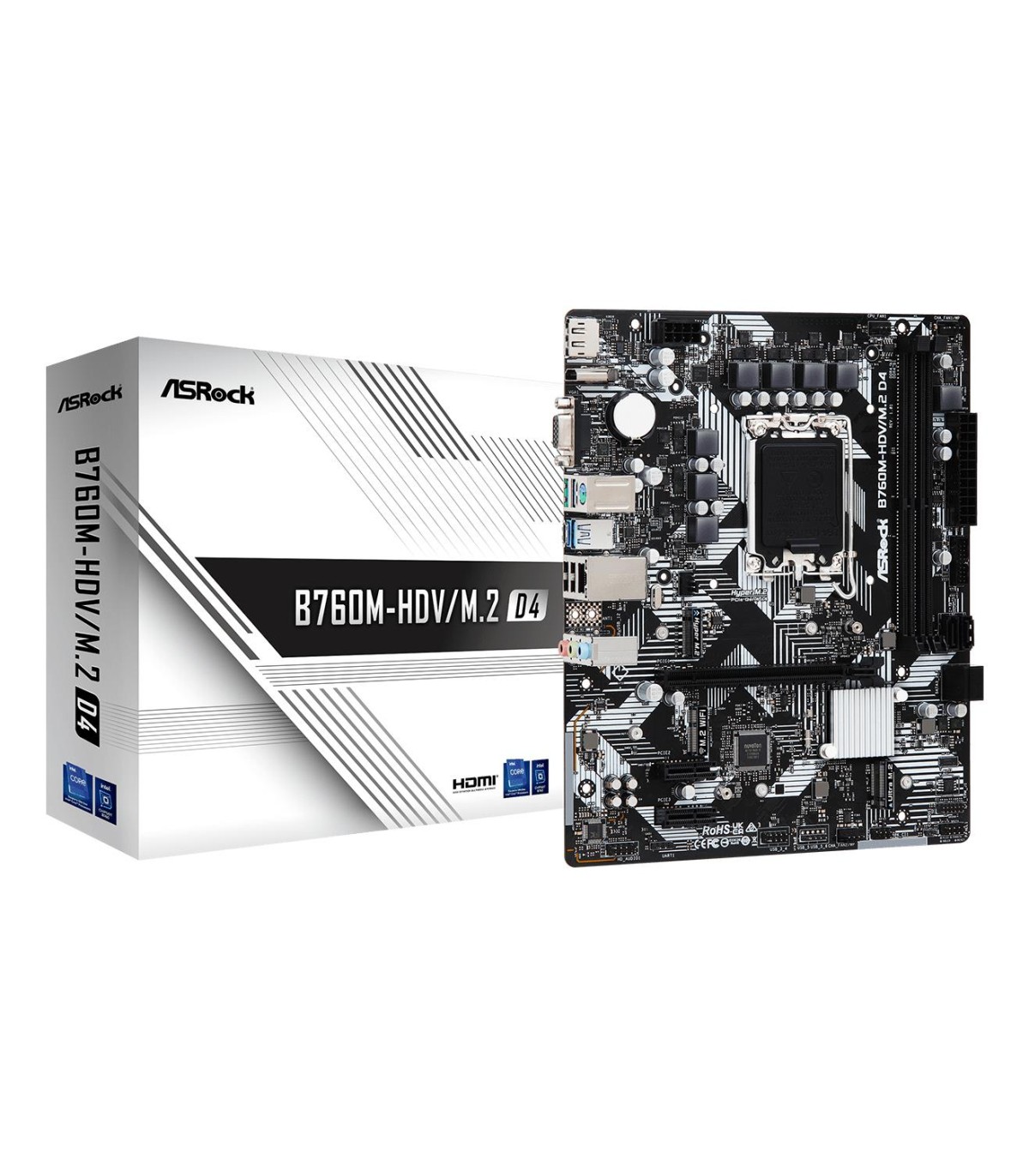

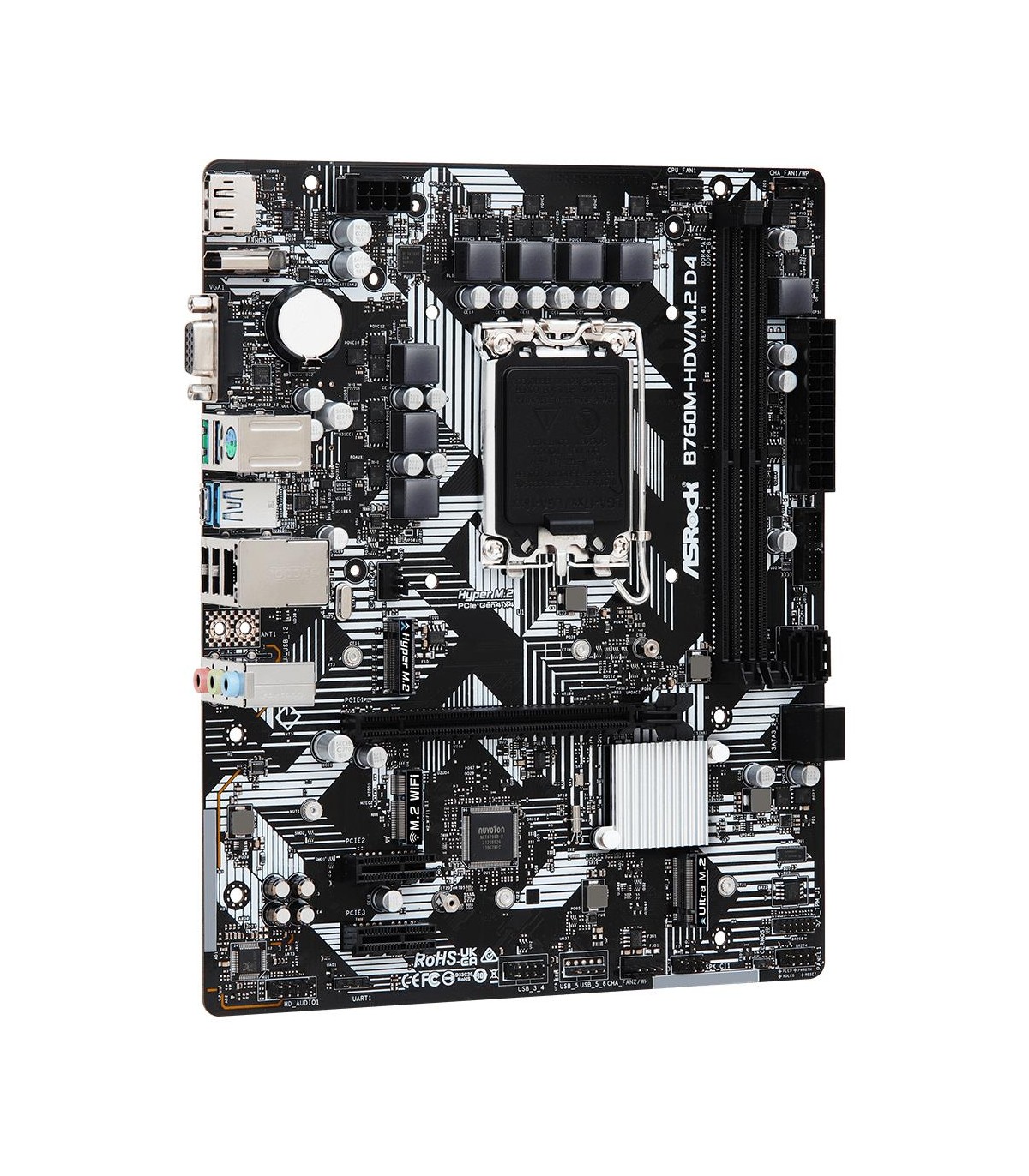

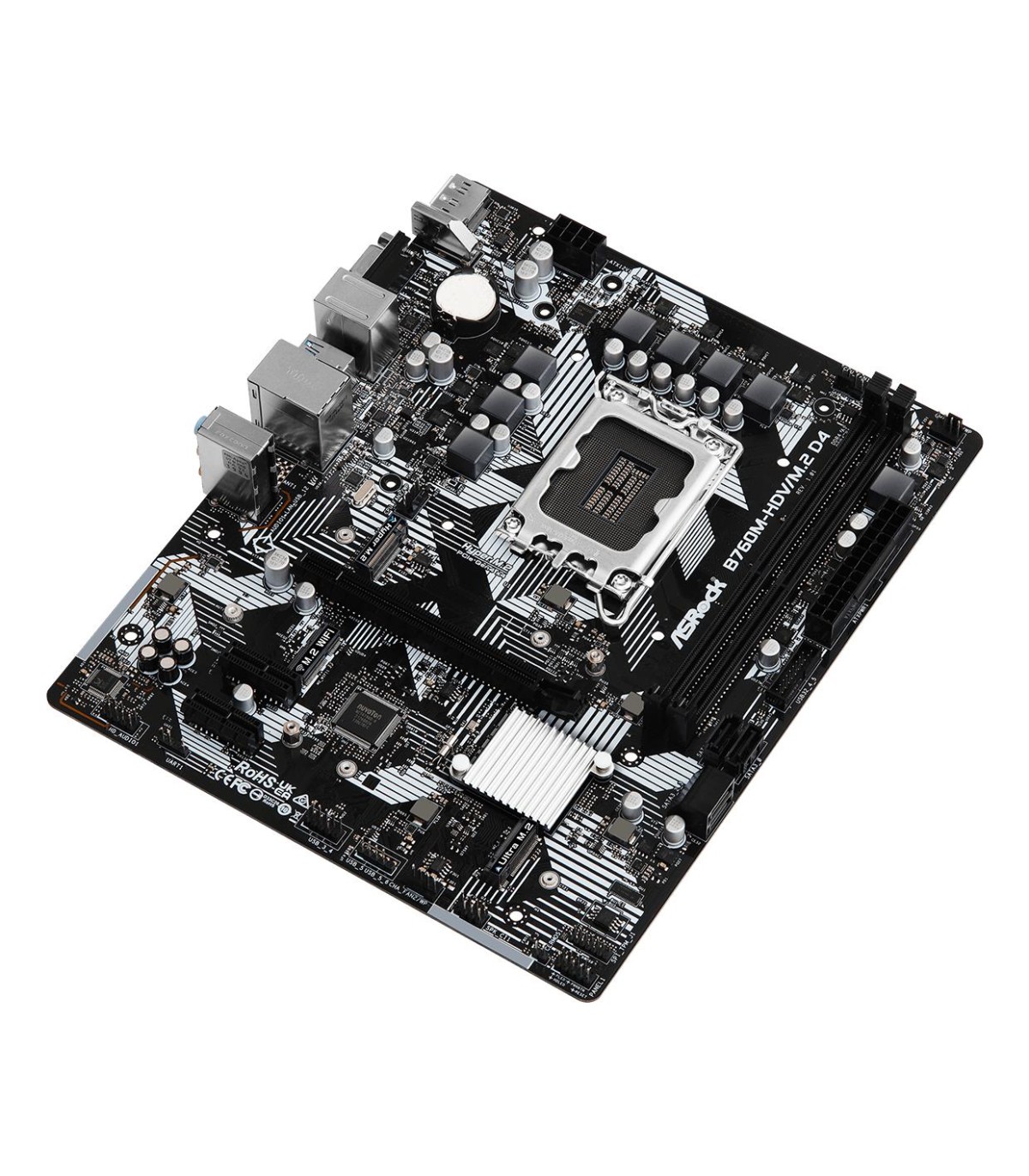

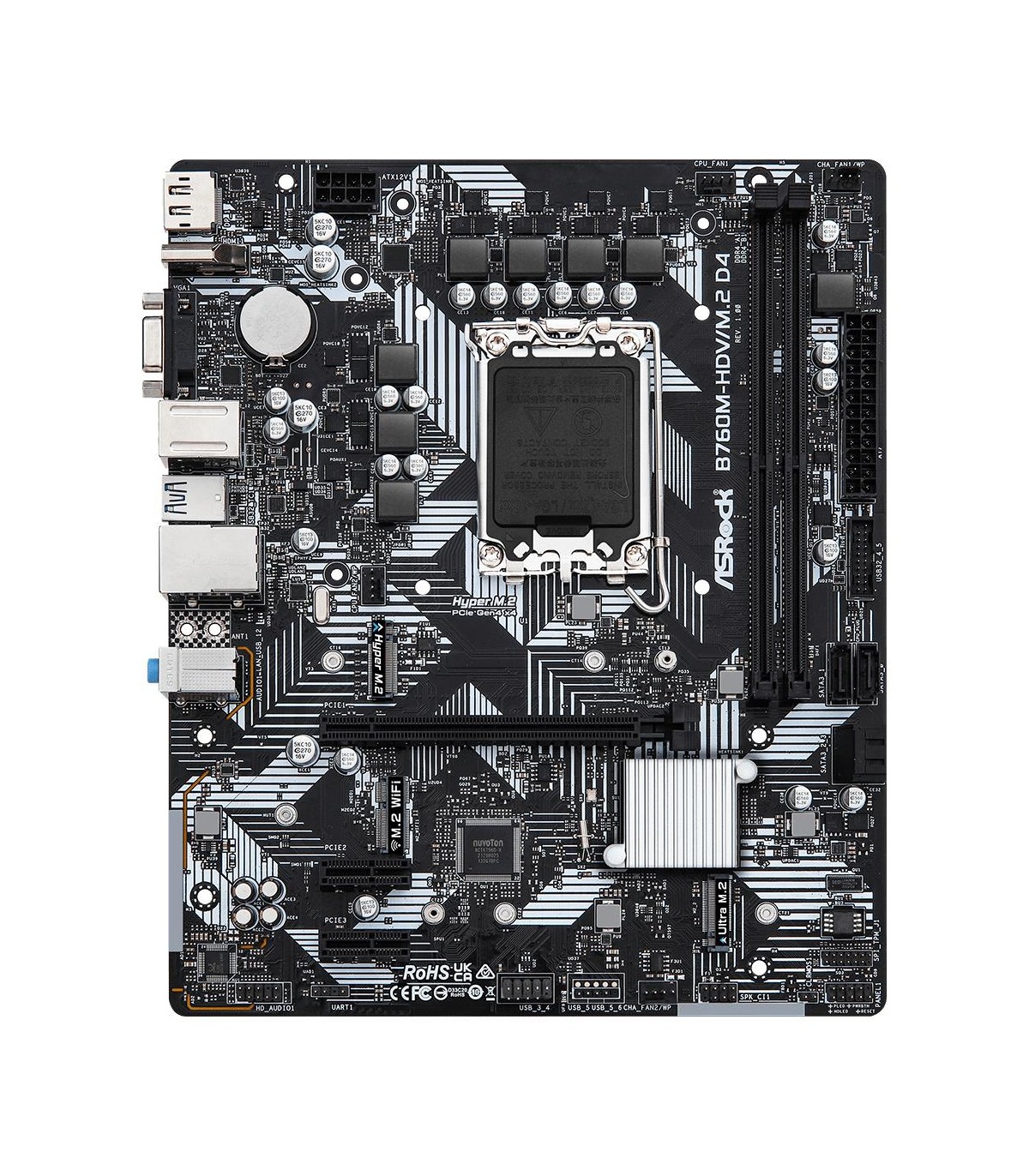

ASROCK Mainboard Intel B760 Express LGA1700 Micro-ATX Memory DDR4 Memory slots 2 2xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 2xM

Другие свойства

Depth

201 mm

Width

244 mm

Unit Box Width

0.242

Unit Box Length

0.28

Unit Box Height

0.06

Category Code

MBI

Model

B760M-HDV/M.2 D4

Unit Calculated Volume

0.004066 cubm

Unit Calculated Weight

0.76 kg

Units per Shipping Box

1

Summary

Asrock B760M-HDV/M.2 D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 6

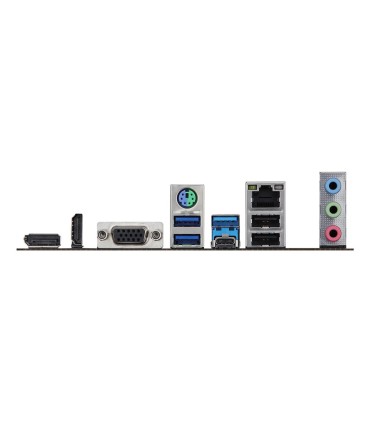

DisplayPort version

1.4

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

Cables included

SATA

VGA (D-Sub) ports quantity

1

Certification

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Wi-Fi

No

Windows operating systems supported

Windows 10 Education x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Parallel processing technology support

Not supported

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

64 GB

Memory channels

Dual-channel

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Audio chip

Realtek ALC897

Motherboard chipset

Intel B760

LAN controller

Realtek RTL8111H

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

2

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported memory clock speeds

3200/4400/5333 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9

Processor socket

LGA 1700

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel connector

Yes

TPM connector

Yes

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

Intel

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Maximum number of SMP processors

1

Chassis intrusion connector

Yes

ECC сompatibility

Non-ECC
