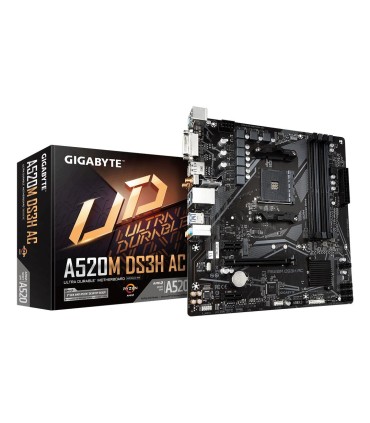

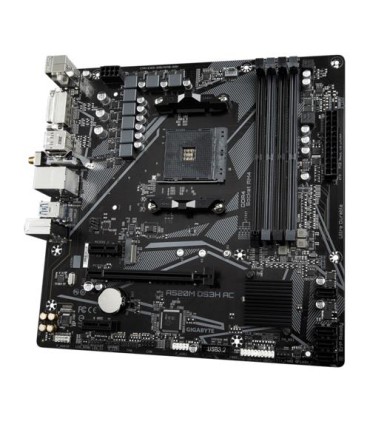

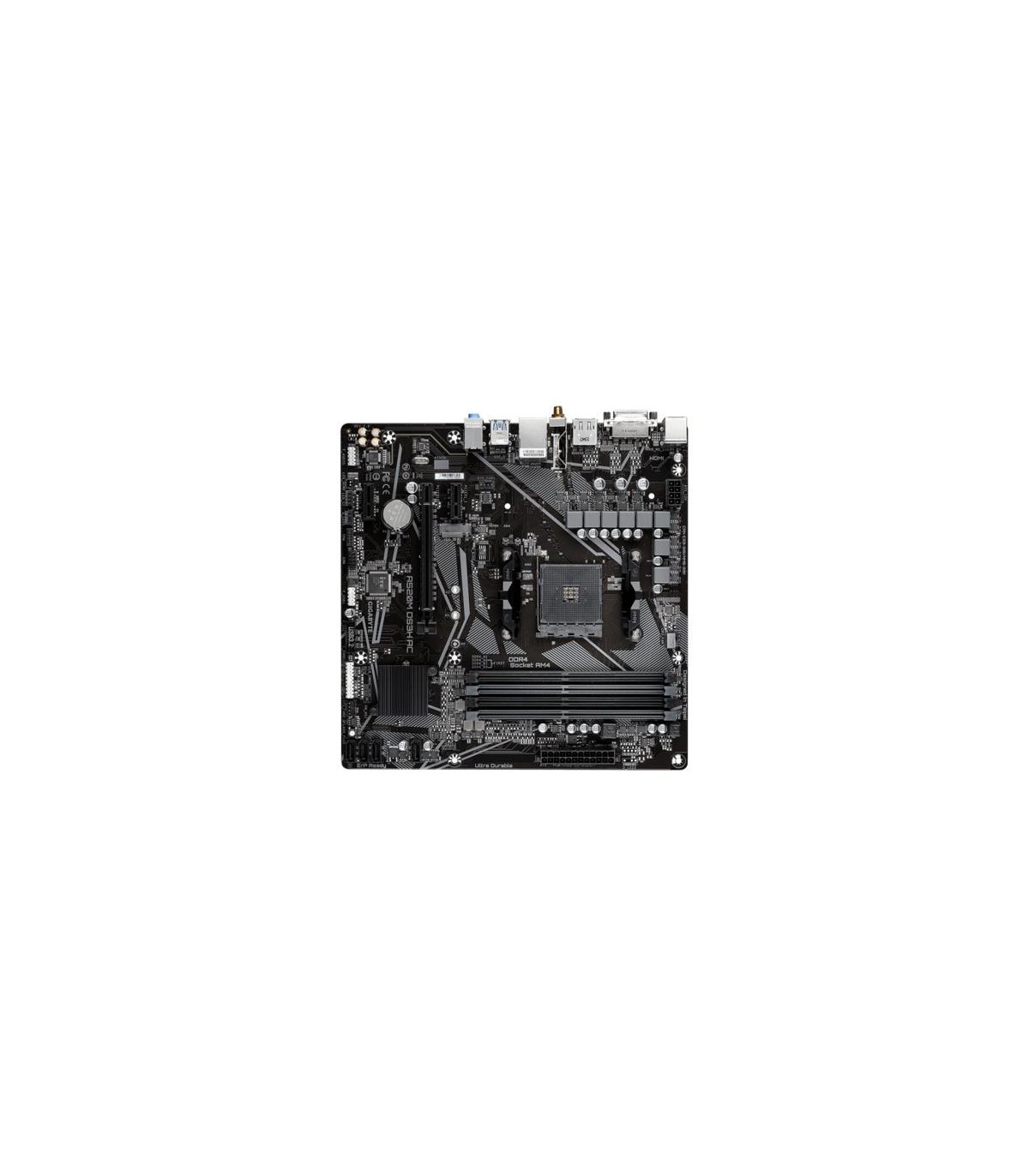

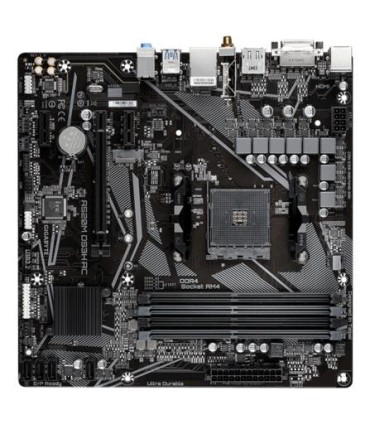

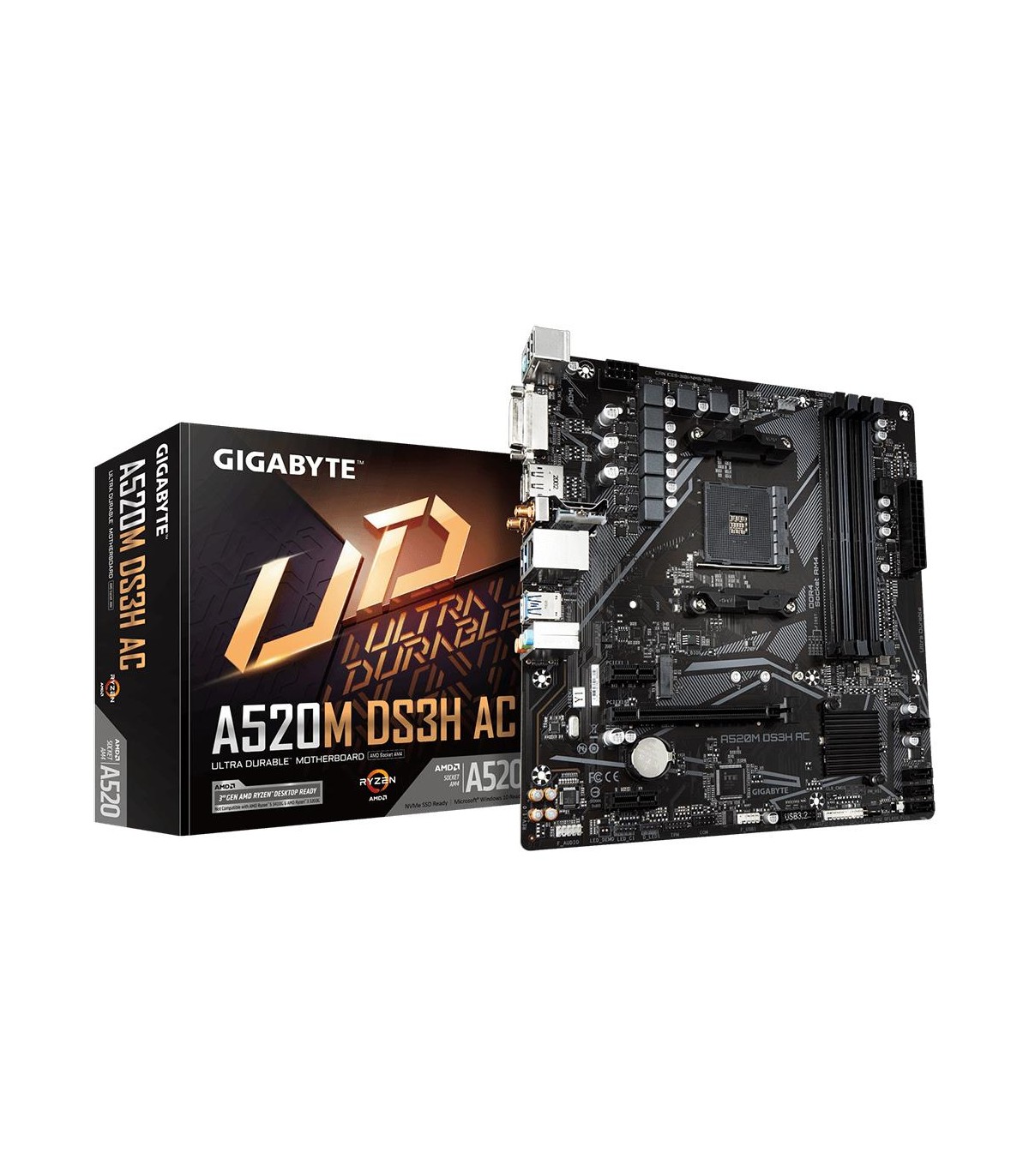

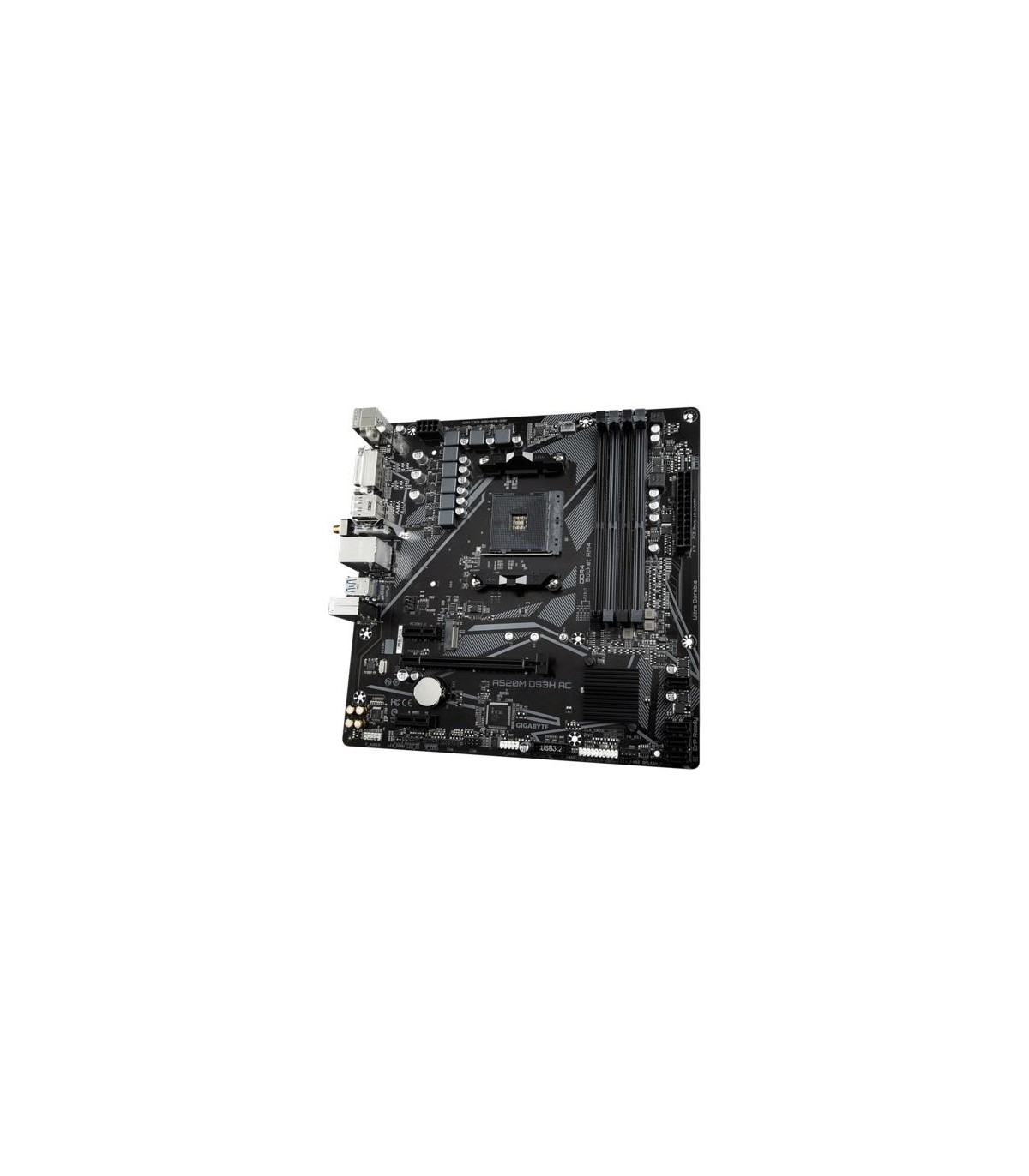

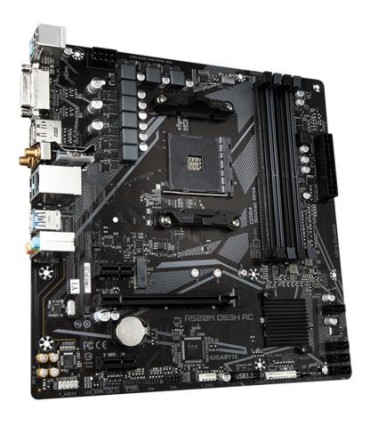

GIGABYTE Mainboard AMD A520 SAM4 Micro-ATX Memory DDR4 Memory slots 4 A520MDS3HAC1.4

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Height

35 mm

Width

244 mm

Unit Box Width

0.27

Unit Box Length

0.27

Unit Box Height

0.07

Category Code

MBA

Model

A520M DS3H AC 1.4

Bluetooth version

4.2

Battery weight

3 g

Unit Calculated Volume

0.0060088 cubm

Unit Calculated Weight

1.03 kg

Units per Shipping Box

10

Summary

GIGABYTE A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 300

DisplayPort version

1.4

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Package depth

268 mm

Package height

68 mm

Package weight

1210 g

Package width

270 mm

Screws included

Yes

Weight

720 g

Headphone outputs

1

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)

Maximum resolution

5120 x 2880 pixels

Parallel processing technology support

Not supported

DVI-D ports quantity

1

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of storage drives supported

5

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

128 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

WLAN controller model

Intel Dual Band Wireless-AC 3168

Motherboard chipset

AMD A520

Number of SATA III connectors

4

Line-in

Yes

Total number of SATA connectors

4

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

2133/2400/2667/2933/3200/3300/3333/3400/3466/3600/3733/3800/3866/4000/4400/4733 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series

Processor socket

Socket AM4

Supported processor sockets

Socket AM4

Maximum internal memory per slot

32 GB

Supported memory clock speed (max)

4733 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

2

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

2

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

FAN/Temperature/Voltage

Power source type

ATX

1st M.2 highest PCI Express generation

3.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

1

ACPI version

5.0

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Antenna included

Yes

12V power connector

Yes

Serial port headers

1

Maximum number of SMP processors

1

Discrete graphics support

Yes

Number of displays supported

3

ECC сompatibility

ECC & Non-ECC
