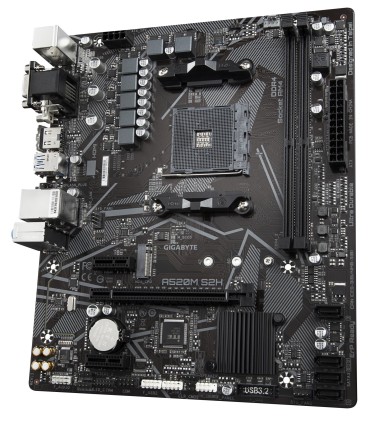

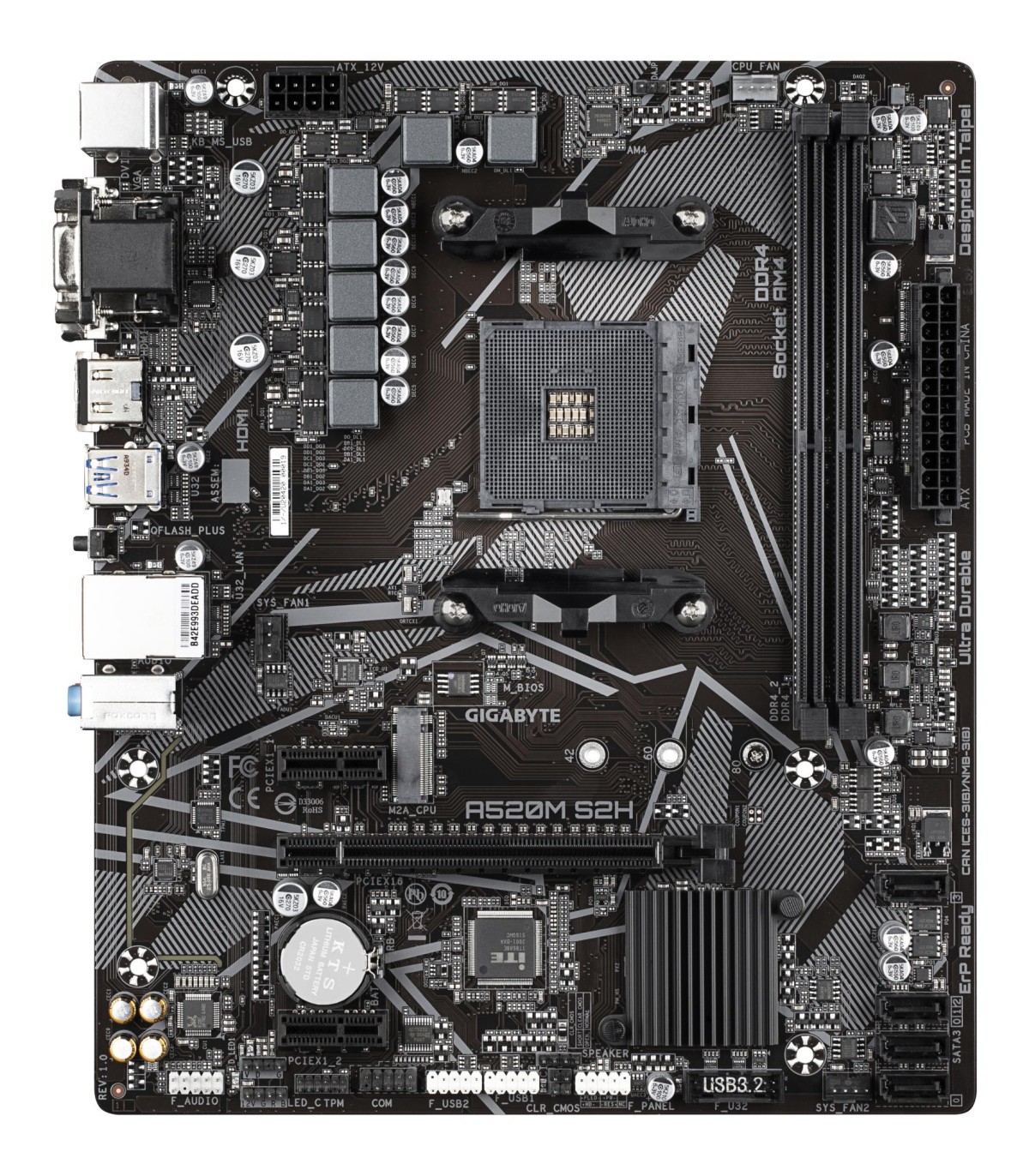

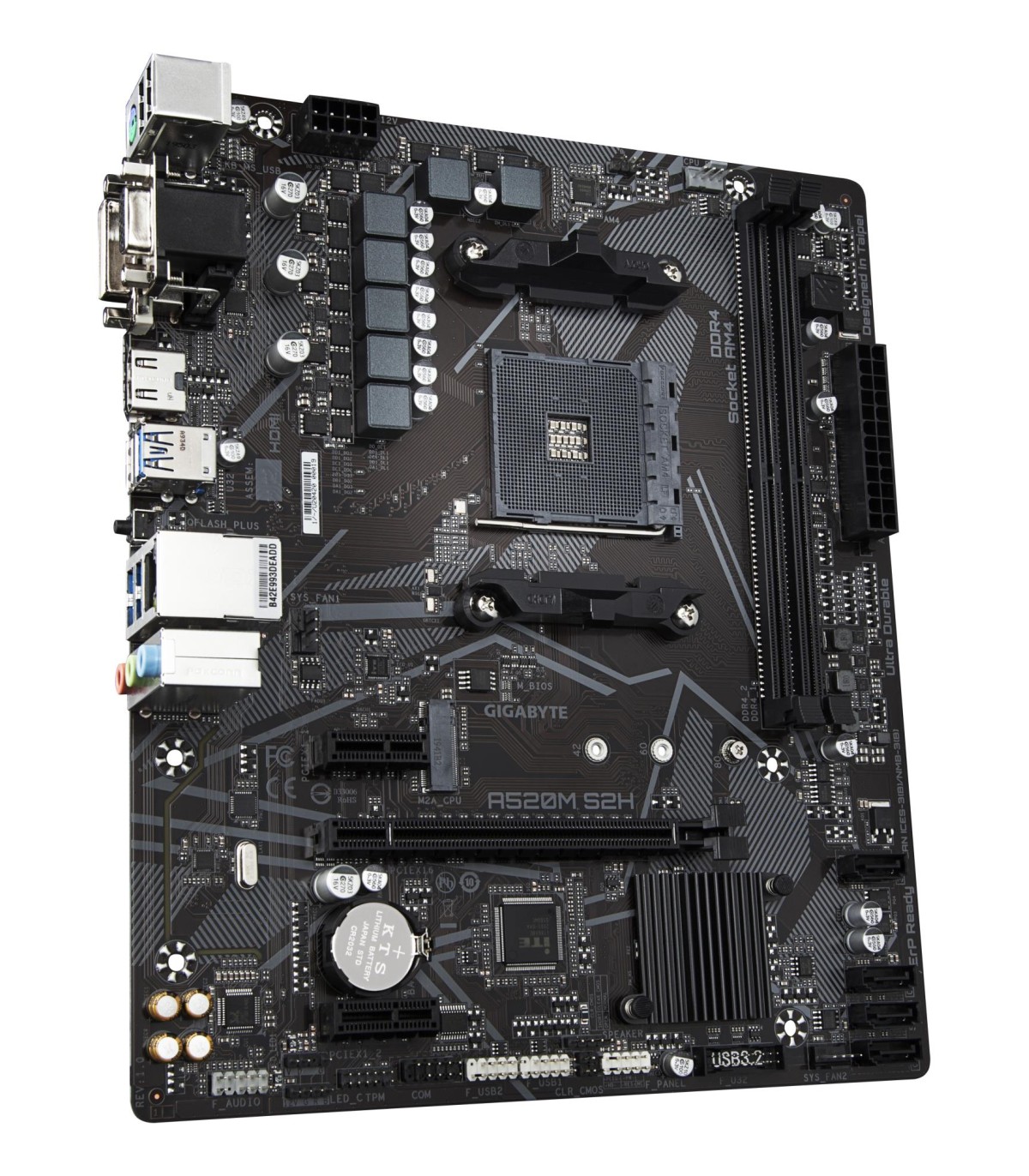

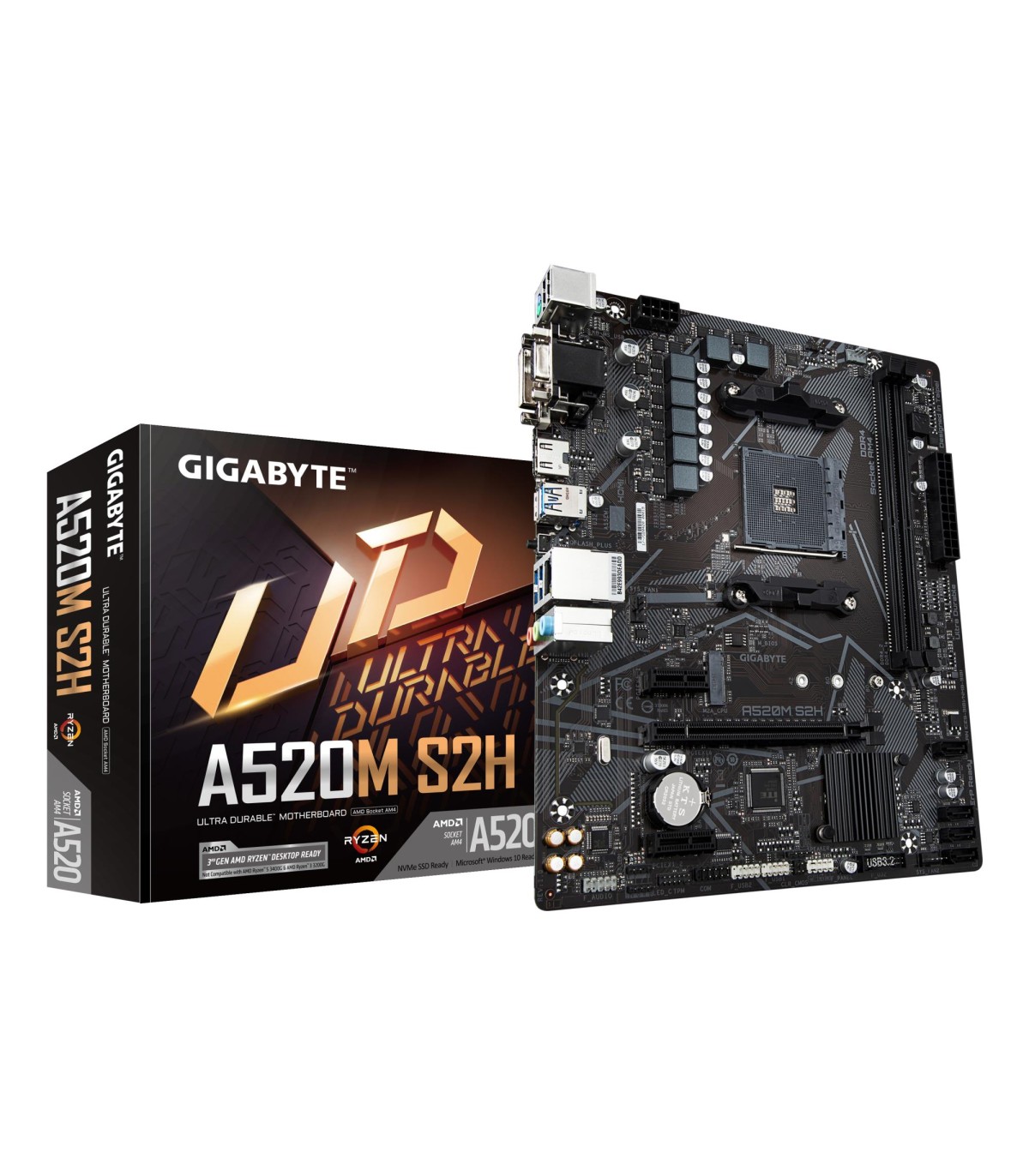

GIGABYTE Mainboard AMD A520 SAM4 Micro-ATX Memory DDR4 Memory slots 2 2xPCI-Express 3.0 1x 1xPCI-Express 3.0 16x 1xM.2 1x15pin

Другие свойства

Depth

205 mm

Height

35 mm

Width

244 mm

Unit Box Width

0.05

Unit Box Length

0.265

Unit Box Height

0.235

Category Code

MBA

Model

A520M S2H 1.3

Battery weight

3 g

Unit Calculated Volume

0.00426 cubm

Unit Calculated Weight

0.794 kg

Units per Shipping Box

10

Summary

GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series

Product colour

Black

HDCP

Yes

HDMI ports quantity

1

Package depth

235 mm

Package height

52 mm

Package weight

740 g

Package width

265 mm

VGA (D-Sub) ports quantity

1

Country of origin

China

Wi-Fi

No

Harmonized System (HS) code

84733020

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

DVI-D ports quantity

1

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

ATX Power connector (24-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

64 GB

Memory channels

Dual-channel

On-board graphics card

No

Motherboard chipset

AMD A520

Number of SATA III connectors

4

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported memory clock speeds

2133/2400/2667/2933/3200/3333/3600/4000/4400/4600/4866/5000 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 3000 Series

Processor socket

Socket AM4

Supported processor sockets

Socket AM4

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,PCI Express 3.0,SATA

CPU fan connector

Yes

Number of chassis fan connectors

2

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

1

ACPI version

5.0

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Clear CMOS button

Yes

Maximum number of SMP processors

1

Maximum internal memory supported by processor

64 GB

ECC сompatibility

ECC & Non-ECC

Power fan connector

Yes
