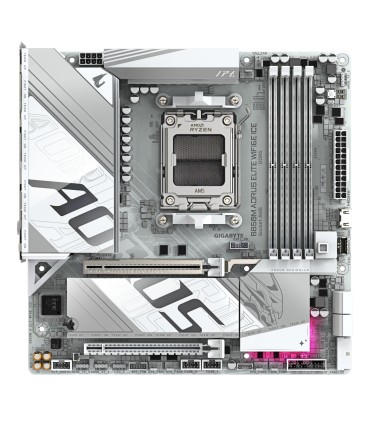

GIGABYTE Mainboard AMD B850 SAM5 Micro-ATX Memory DDR5 Memory slots 4 B850MAELTWF6EICE1.1

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Height

35 mm

Width

244 mm

Model

B850M A ELT WF6E ICE

Bluetooth version

5.3

Battery weight

3 g

Unit Calculated Volume

0.007068 cubm

Unit Calculated Weight

1.98 kg

Units per Shipping Box

8

Product colour

White

DisplayPort version

1.4

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

1.4

Package depth

268 mm

Package height

68 mm

Package weight

1972 g

Package width

270 mm

Screws included

Yes

Bundled software

Norton Internet Security (OEM version)LAN bandwidth management software

Country of origin

China

Weight

1770 g

Headphone outputs

1

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Number of storage drives supported

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Number of HDDs supported

4

Peripheral (Molex) power connectors (4-pin)

1

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

256 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Realtek RTL8852CE

Audio chip

Realtek ALC897

Motherboard chipset

AMD B850

Number of SATA III connectors

4

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

8200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

3

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

FAN/Temperature/Voltage/Water cooling

Power source type

ATX

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

25110

Number of M.2 (M) slots

2

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Antenna included

Yes

12V power connector

Yes

Number of water pump connectors

2

Serial port headers

1

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

Clear CMOS button

Yes

USB 3.2 Gen 2x2 connectors

1

ECC сompatibility

Non-ECC

Long Description

GIGABYTE B850M AORUS ELITE WIFI6E ICE Motherboard- AMD Ryzen 9000 Series CPUs, 12+2+1 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 7, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compa

Bullet Points

Twin 12+2+1 Phases Digital VRM with DrMOSDual Channel DDR5：4*DIMMsPCIe Gen5 x16 with PCIe UD Slot & EZ-Latch PlusM.2 Gen5 with EZ-Latch Plus, Fully Covered MOSFET HeatsinksWi-Fi 6E with WIFI EZ-Plug & Directio
