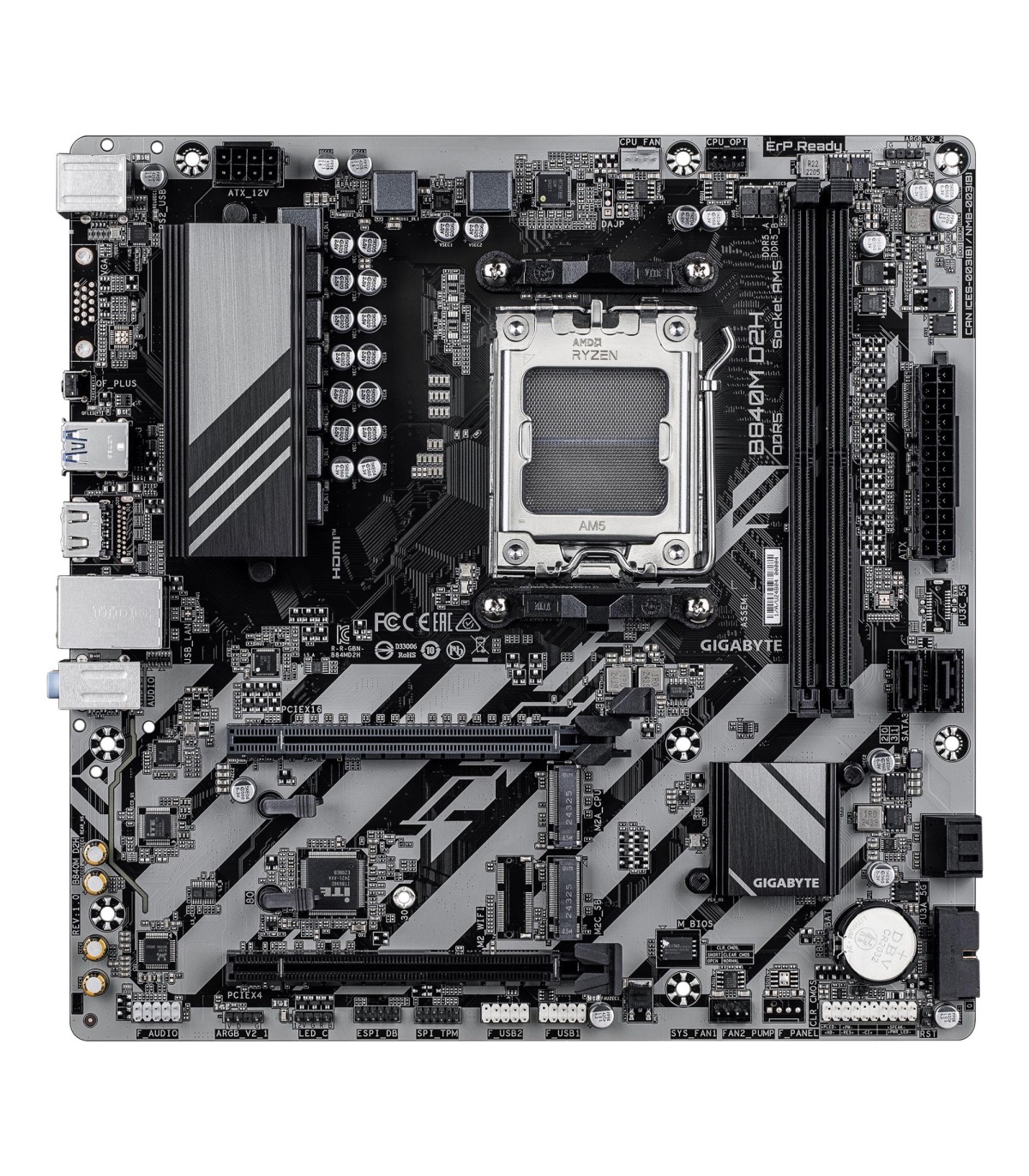

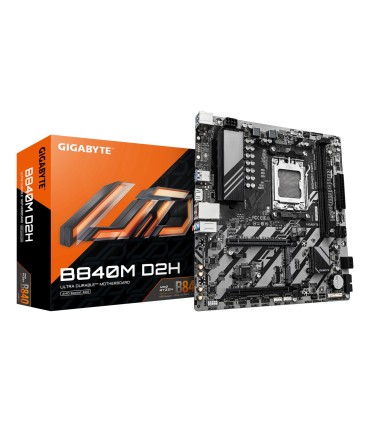

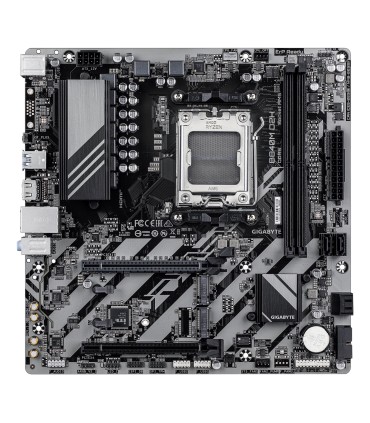

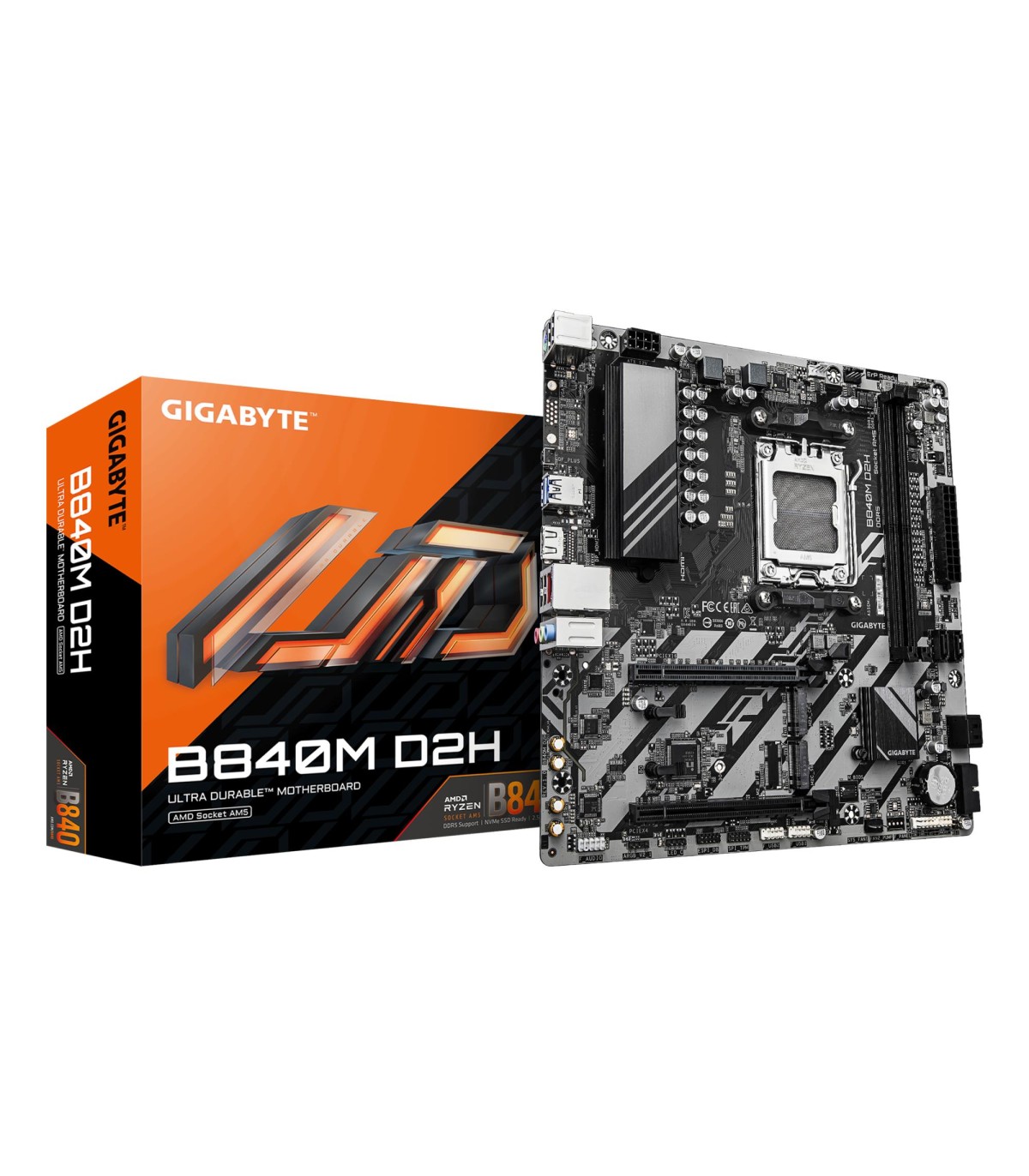

GIGABYTE Mainboard AMD B840 Socket AM5 micro ATX RAM DDR5-SDRAM 2xSlots 2xNumber of M.2 (M) slots B840MD2H1.2

Другие свойства

Depth

244 mm

Height

35 mm

Width

244 mm

Unit Box Width

0.27

Unit Box Length

0.26

Unit Box Height

0.06

Category Code

MBA

Battery weight

3 g

Unit Calculated Volume

0.004669 cubm

Unit Calculated Weight

1.04 kg

Units per Shipping Box

10

Summary

GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Seri

Product colour

Dark brown

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Package depth

265 mm

Package height

54 mm

Package weight

1026.4 g

Package width

265 mm

Screws included

Yes

Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Weight

940 g

Headphone outputs

1

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

Cooling type

Passive

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

6

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

128 GB

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Motherboard chipset

AMD B840

LAN controller

Realtek RTL8125

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

7600 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,PCI Express 4.0,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

1

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

FAN/Temperature/Voltage/Water cooling

Power source type

ATX

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Number of water pump connectors

1

2nd M.2 highest PCI Express generation

3.0

2nd M.2 largest key size

2280

ECC сompatibility

Non-ECC
