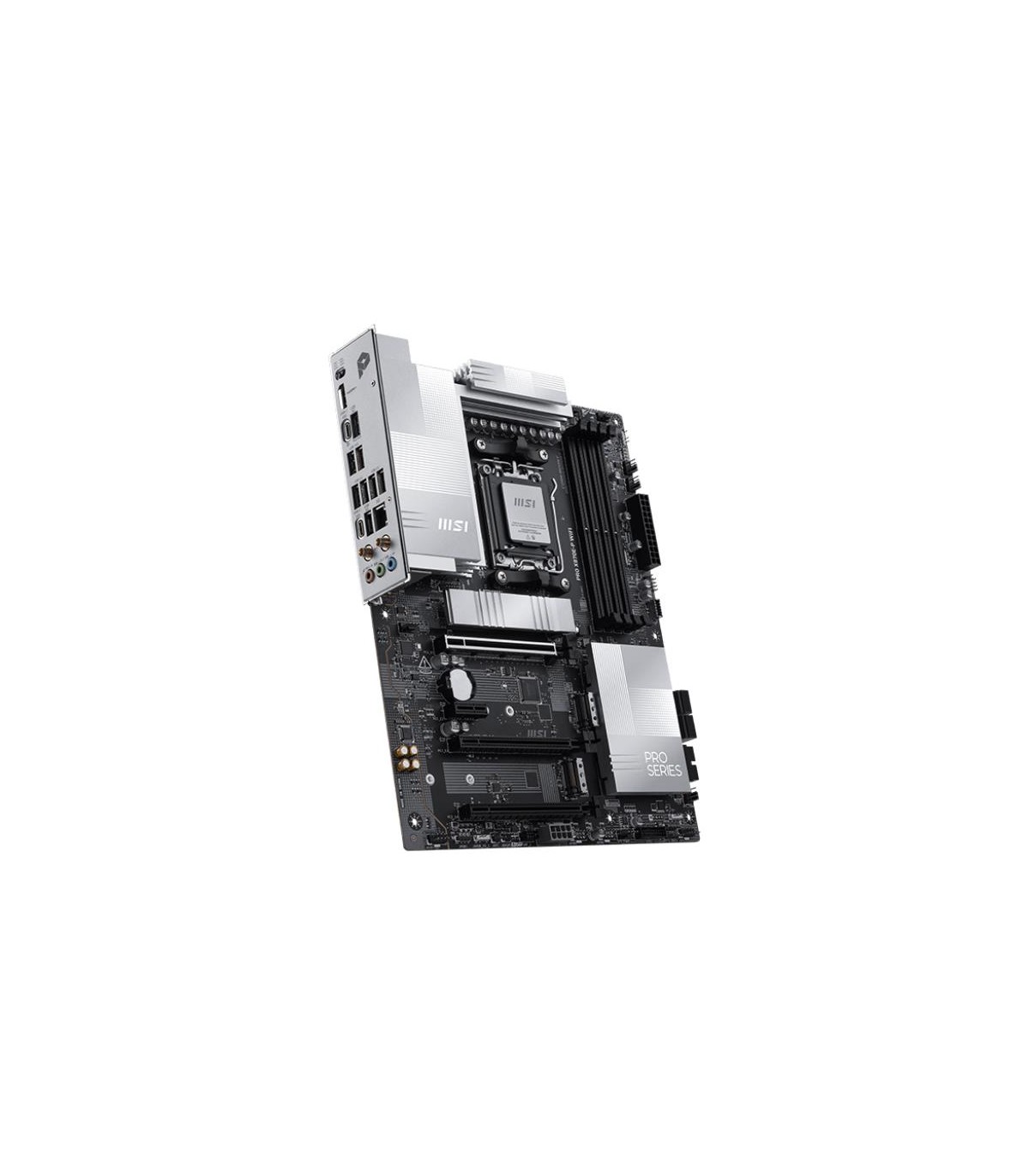

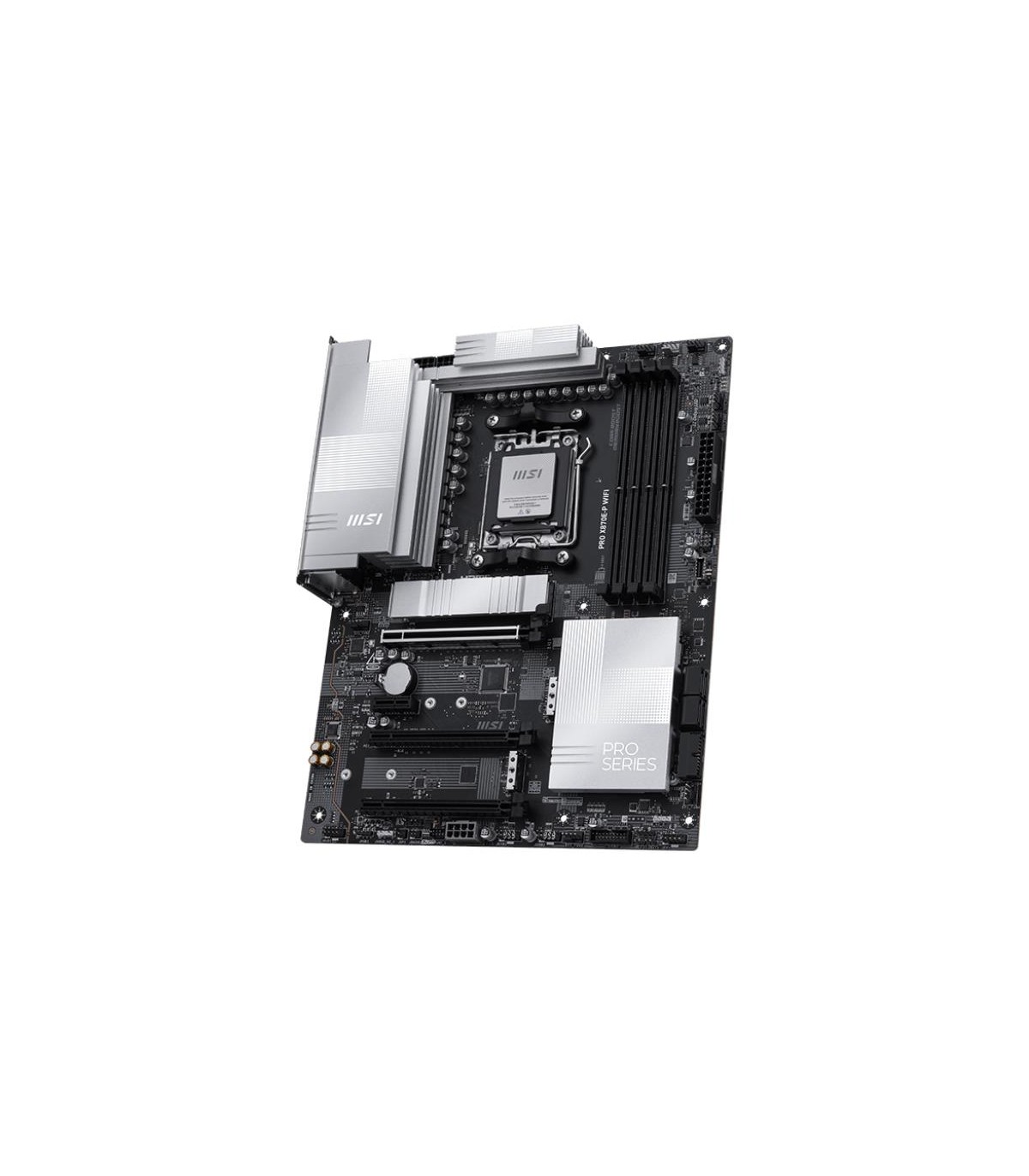

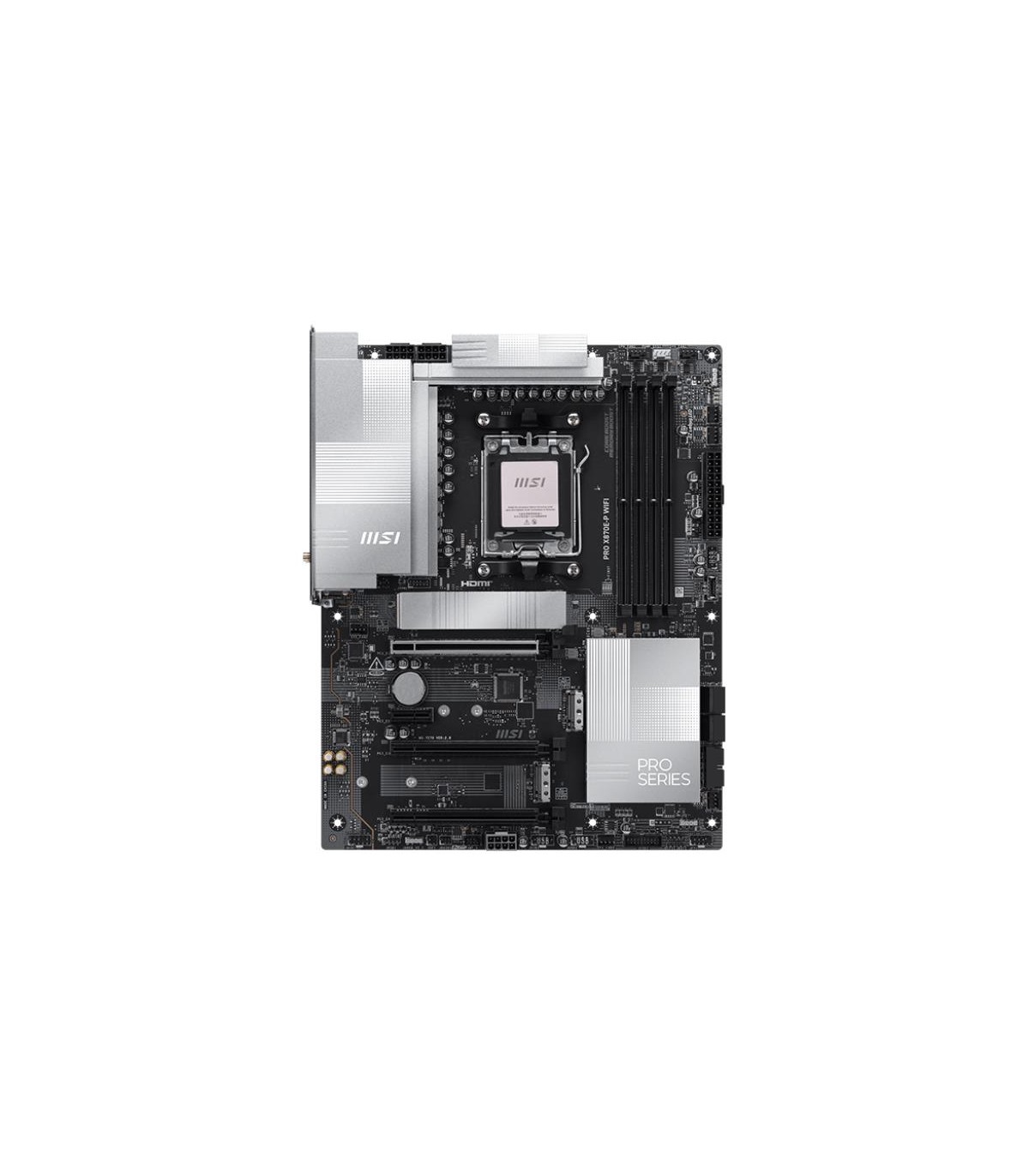

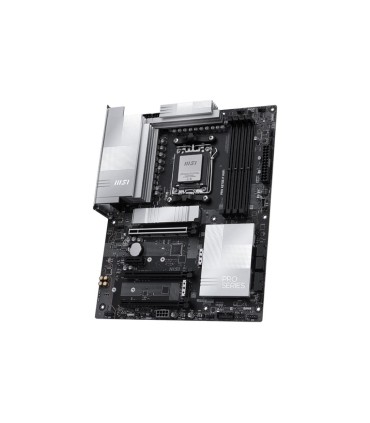

MSI Mainboard AMD X870E SAM5 ATX Memory DDR5 Memory slots 4 PROX870E-PWIFI

Сеть

Bluetooth

Yes

Другие свойства

Depth

304.8 mm

Width

243.84 mm

Unit Box Width

0.075

Unit Box Length

0.345

Unit Box Height

0.275

Category Code

MBA

Model

PRO X870E-P WIFI

Bluetooth version

5.4

Unit Calculated Volume

0.007909 cubm

Unit Calculated Weight

2.15 kg

Units per Shipping Box

5

Summary

MSI PRO X870E-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory

Product colour

Black

DisplayPort version

1.4

DisplayPorts quantity

2

HDMI ports quantity

1

HDMI version

2.1

Wi-Fi

Yes

Windows operating systems supported

Windows 11 x64

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Number of HDDs supported

7

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

256 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset

AMD X870E

Number of SATA III connectors

4

PCI Express x1 slots

1

PCI Express x16 slots

3

Total number of SATA connectors

4

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5600/8200 MHz

USB4 Gen 2x2 ports quantity

1

Motherboard form factor

ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8200 MHz

RAID levels

0/1

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

6

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Ethernet interface type

5 Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

CPU/FAN/Temperature/Voltage

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

3

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2580

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB4 Gen 3x2 ports quantity

1

ECC сompatibility

Non-ECC
