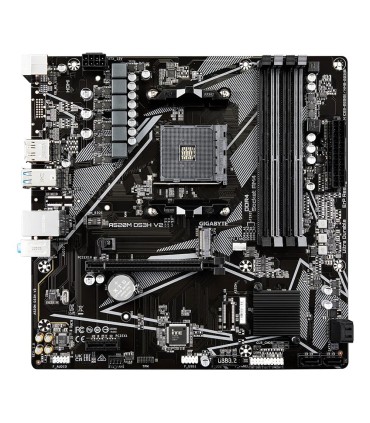

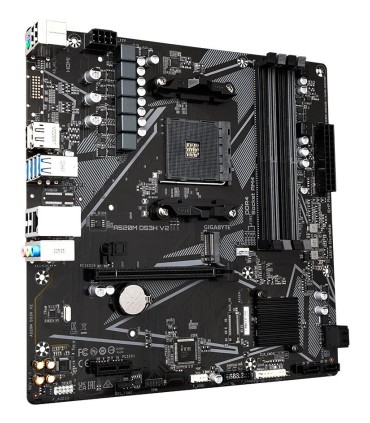

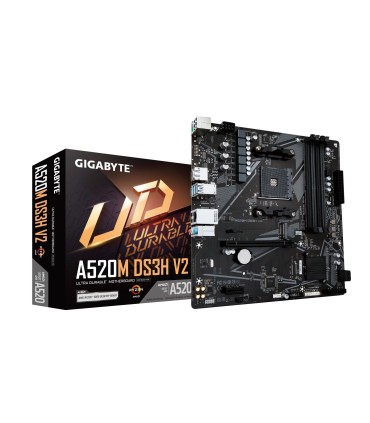

GIGABYTE Mainboard AMD A520 SAM4 Micro-ATX Memory DDR4 Memory slots 4 A520MDS3HV2

Другие свойства

Depth

244 mm

Height

35 mm

Width

244 mm

Unit Box Width

0.265

Unit Box Length

0.27

Unit Box Height

0.055

Category Code

MBA

Model

A520M DS3H V2

Battery weight

3 g

Unit Calculated Volume

0.004711 cubm

Unit Calculated Weight

0.89 kg

Units per Shipping Box

10

Summary

GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD

Product colour

Black

DisplayPort version

2.0

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Package depth

265 mm

Package height

54 mm

Package weight

810 g

Package width

265 mm

Cables included

SATA

Bundled software

Norton Internet Security (OEM version)Realtek 8118 Gaming LAN Bandwidth Control Utility

Country of origin

China

Headphone outputs

1

Wi-Fi

No

Windows operating systems supported

Windows 10 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Maximum resolution

5120 x 2880 pixels

DVI-D ports quantity

1

Cooling type

Active

Drivers included

Yes

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of storage drives supported

5

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

128 GB

Memory channels

Dual-channel

Audio chip

Realtek ALC887

Number of SATA III connectors

4

Total number of SATA connectors

4

Audio output channels

7.1 channels

PS/2 ports quantity

1

USB connector type

USB Type-A

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

2133/2400/2667/2933/3200/3333/3600/4000/4400/4733 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series

Processor socket

Socket AM4

Supported processor sockets

Socket AM4

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

TPM connector

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

CPU/LED/Power supply/Temperature/Voltage

Power source type

ATX

Number of M.2 (M) slots

1

ACPI version

5.0

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

12V power connector

Yes

Serial port headers

1

Clear CMOS button

Yes

Maximum number of SMP processors

1

Discrete graphics support

Yes

Maximum internal memory supported by processor

128 GB

Supported memory module capacities

16GB/1GB/2GB/32GB/4GB/8GB

Number of displays supported

3

Digital audio optical out

1

Number of EATX power connectors

1

ECC сompatibility

ECC & Non-ECC

Power fan connector

Yes
