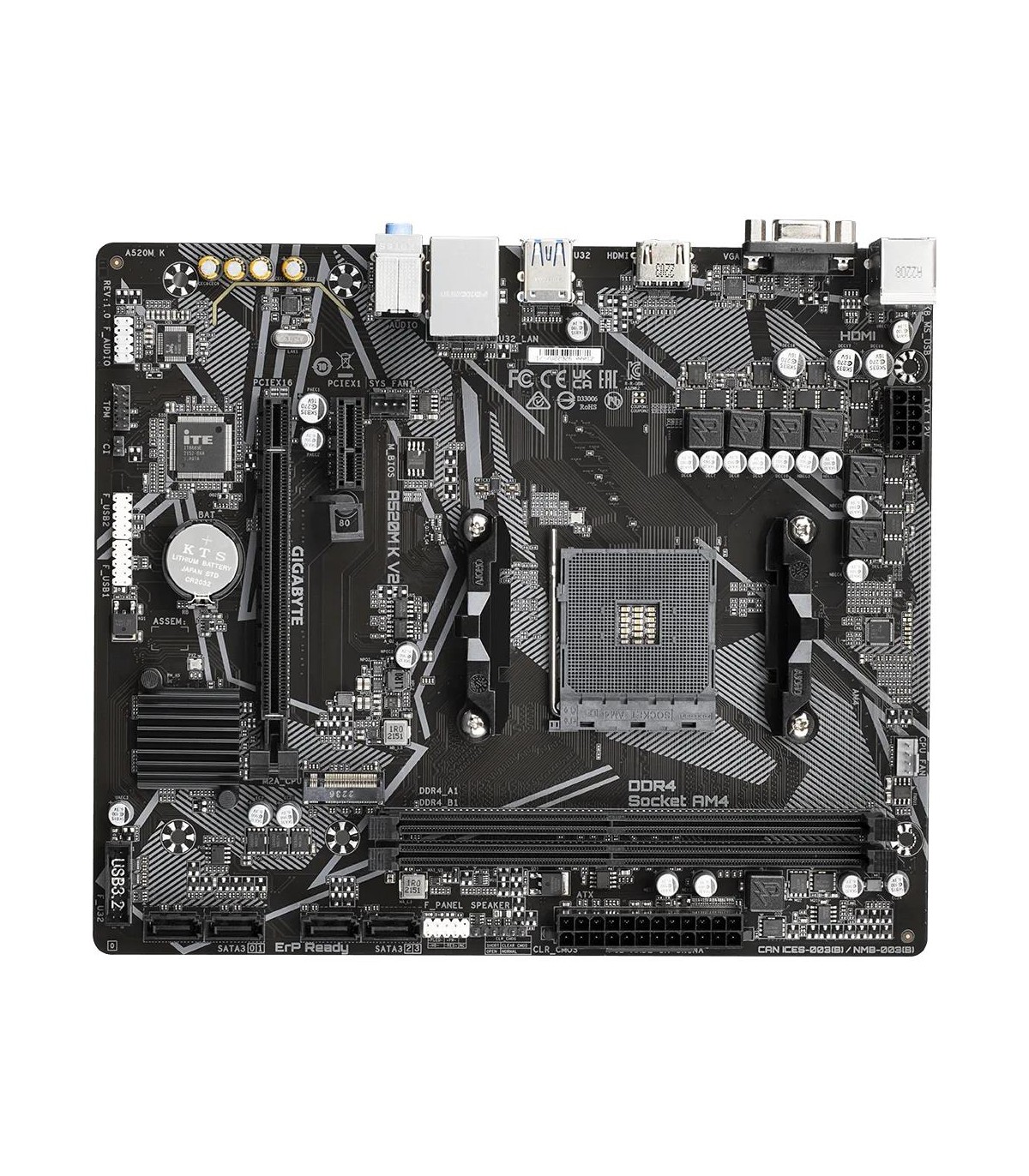

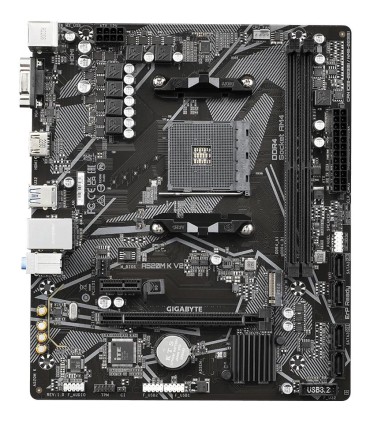

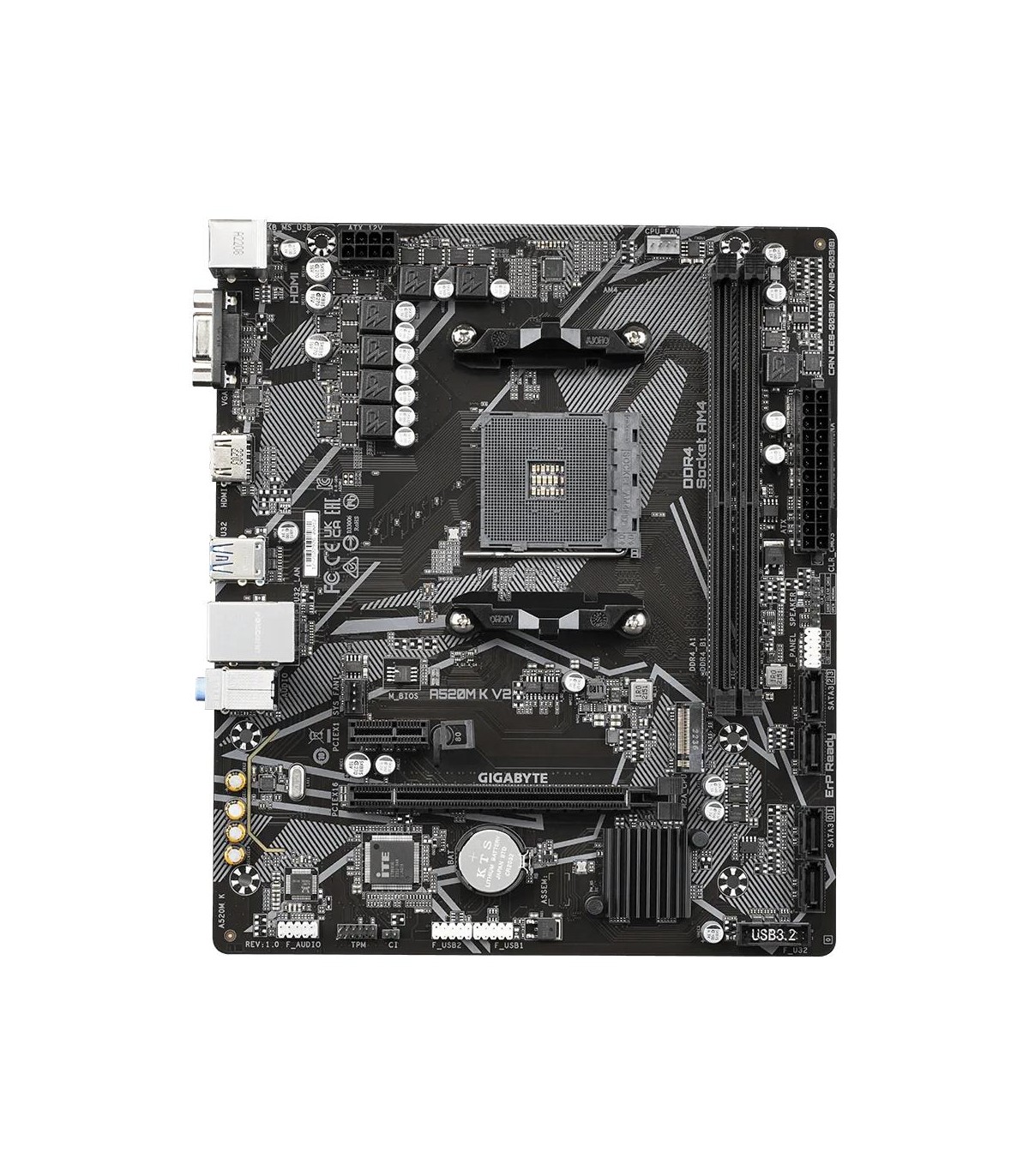

GIGABYTE Mainboard AMD A520 SAM4 Micro-ATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 3.0 16x 1xM.2 1x15pin

Другие свойства

Depth

198 mm

Height

35 mm

Width

233 mm

Unit Box Width

0.23

Unit Box Length

0.27

Unit Box Height

0.05

Category Code

MBA

Model

A520M K V2 (rev. 1.1)

Battery weight

3 g

Unit Calculated Volume

0.004267 cubm

Unit Calculated Weight

0.75 kg

Units per Shipping Box

10

Summary

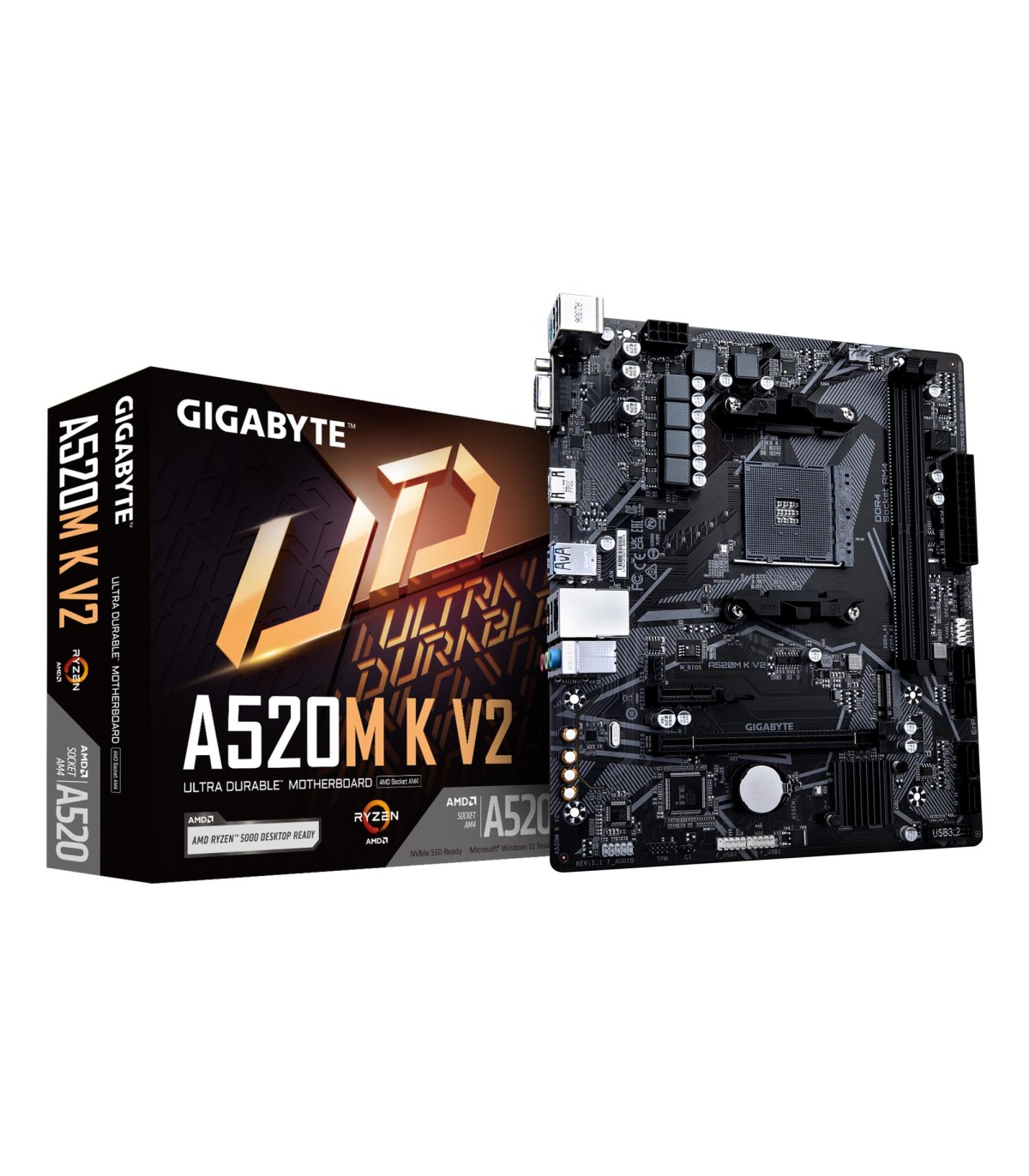

GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AM

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Package depth

235 mm

Package height

52 mm

Package weight

675 g

Package width

265 mm

Cables included

SATA

VGA (D-Sub) ports quantity

1

Bundled software

Norton Internet Security

Country of origin

China

Headphone outputs

3

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of storage drives supported

5

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

64 GB

Memory channels

Dual-channel

Motherboard chipset

AMD A520

Number of SATA III connectors

4

PCI Express x1 slots

1

PCI Express x16 slots

1

Audio output channels

7.1 channels

PS/2 ports quantity

1

USB connector type

USB Type-A

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 3000 Series/AMD Ryzen 5000 Series

Processor socket

Socket AM4

Supported processor sockets

Socket AM4

Supported memory clock speed (max)

5100 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

FAN/Temperature/Voltage

Number of M.2 (M) slots

1

ACPI version

5.0

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

12V power connector

Yes

Chassis intrusion connector

Yes

ECC сompatibility

ECC & Non-ECC
