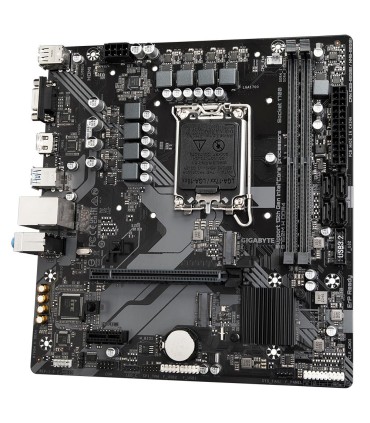

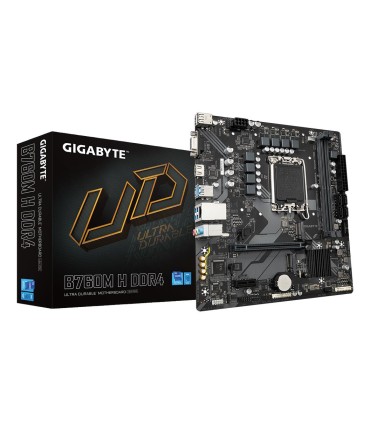

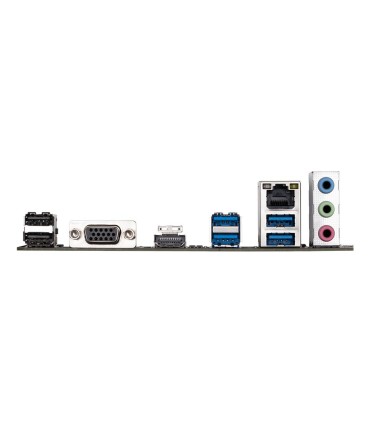

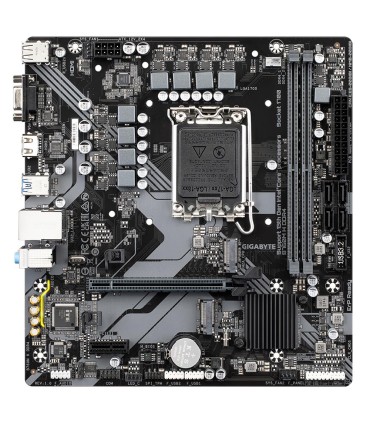

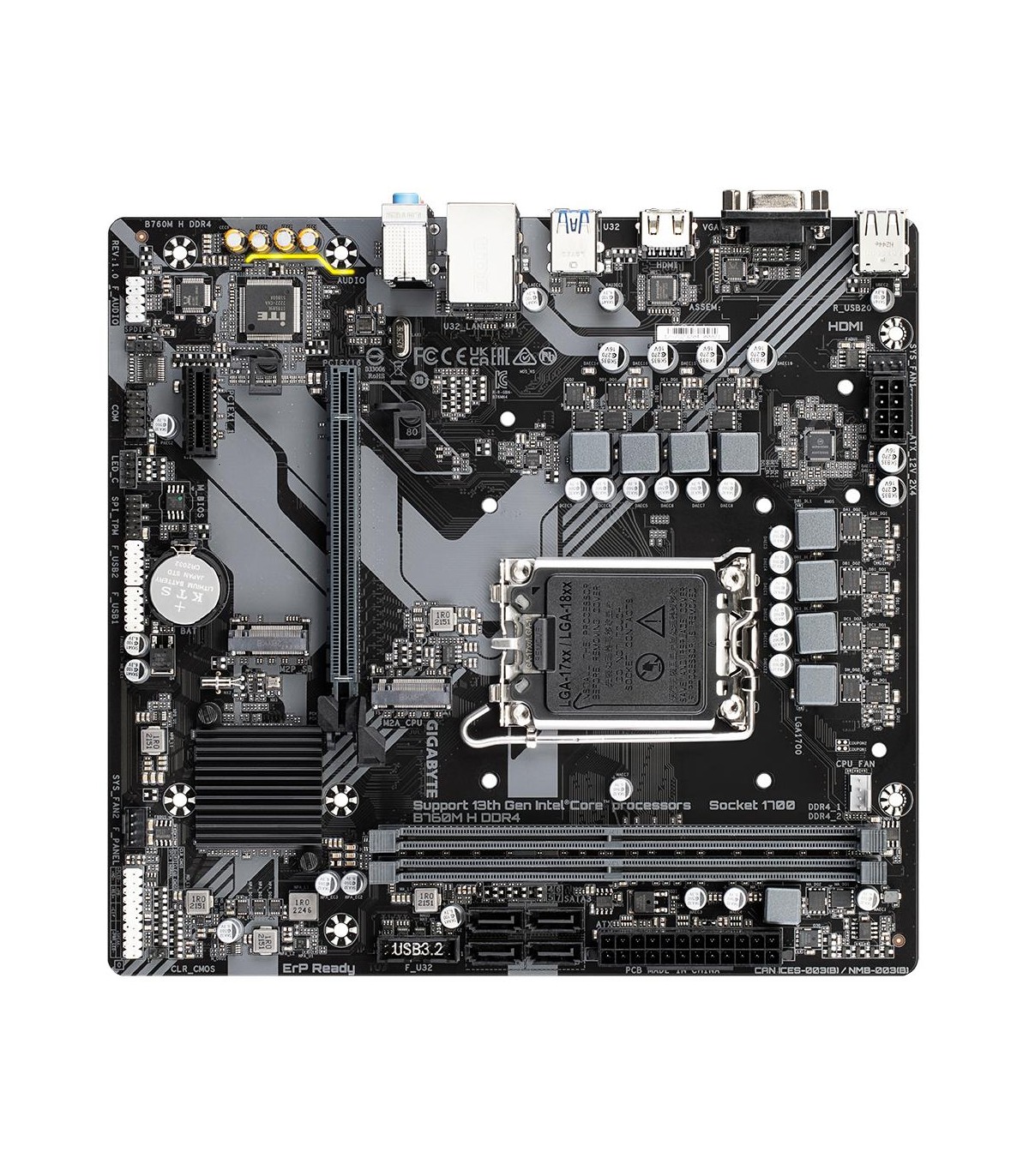

GIGABYTE Mainboard Intel B760 Express LGA1700 Micro-ATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 2

Другие свойства

Depth

215 mm

Height

35 mm

Width

230 mm

Unit Box Width

0.265

Unit Box Length

0.27

Unit Box Height

0.055

Category Code

MBI

Model

B760M H DDR4 (rev. 1.0)

Battery weight

3 g

Unit Calculated Volume

0.003935 cubm

Unit Calculated Weight

0.752 kg

Units per Shipping Box

1

Summary

GIGABYTE B760M H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+1+1 Phases Digital VRM, up to 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel?

Product colour

Brown

DisplayPort version

1.4

DisplayPorts quantity

1

HDMI ports quantity

1

HDMI version

1.4

Package depth

265 mm

Package height

54 mm

Package weight

825 g

Package width

265 mm

VGA (D-Sub) ports quantity

1

Country of origin

China

Wi-Fi

No

Windows operating systems supported

Windows 10/Windows 11

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Parallel processing technology support

Not supported

DirectX version

12.1

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of storage drives supported

6

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

64 GB

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Motherboard chipset

Intel B760 Express

Number of SATA III connectors

4

Total number of SATA connectors

4

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported memory clock speeds

2133/2400/2666/2933/3000/3200 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

3200 MHz

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

Intel

Power source type

ATX

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

ACPI version

5.0

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Serial port headers

1

Maximum number of SMP processors

1

Maximum internal memory supported by processor

64 GB

Supported memory module capacities

12GB/16GB/1GB/2GB/32GB/4GB/8GB

ECC сompatibility

Non-ECC
