GIGABYTE Mainboard AMD A620 Socket AM5 micro ATX RAM DDR5-SDRAM 2xSlots 1xPCI Express x1 slots 1xPCI Express x16 slots 1xNumber

Другие свойства

Depth

225 mm

Height

35 mm

Width

230 mm

Unit Box Width

0.27

Unit Box Length

0.27

Unit Box Height

0.055

Category Code

MBA

Battery weight

3 g

Unit Calculated Volume

0.005034 cubm

Unit Calculated Weight

0.95 kg

Units per Shipping Box

10

Summary

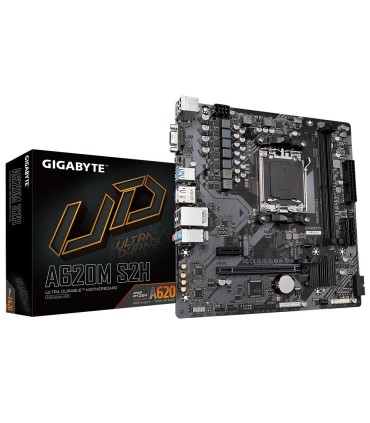

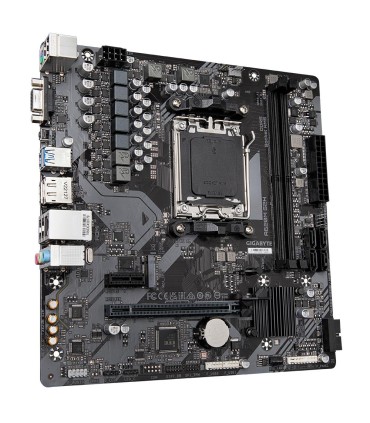

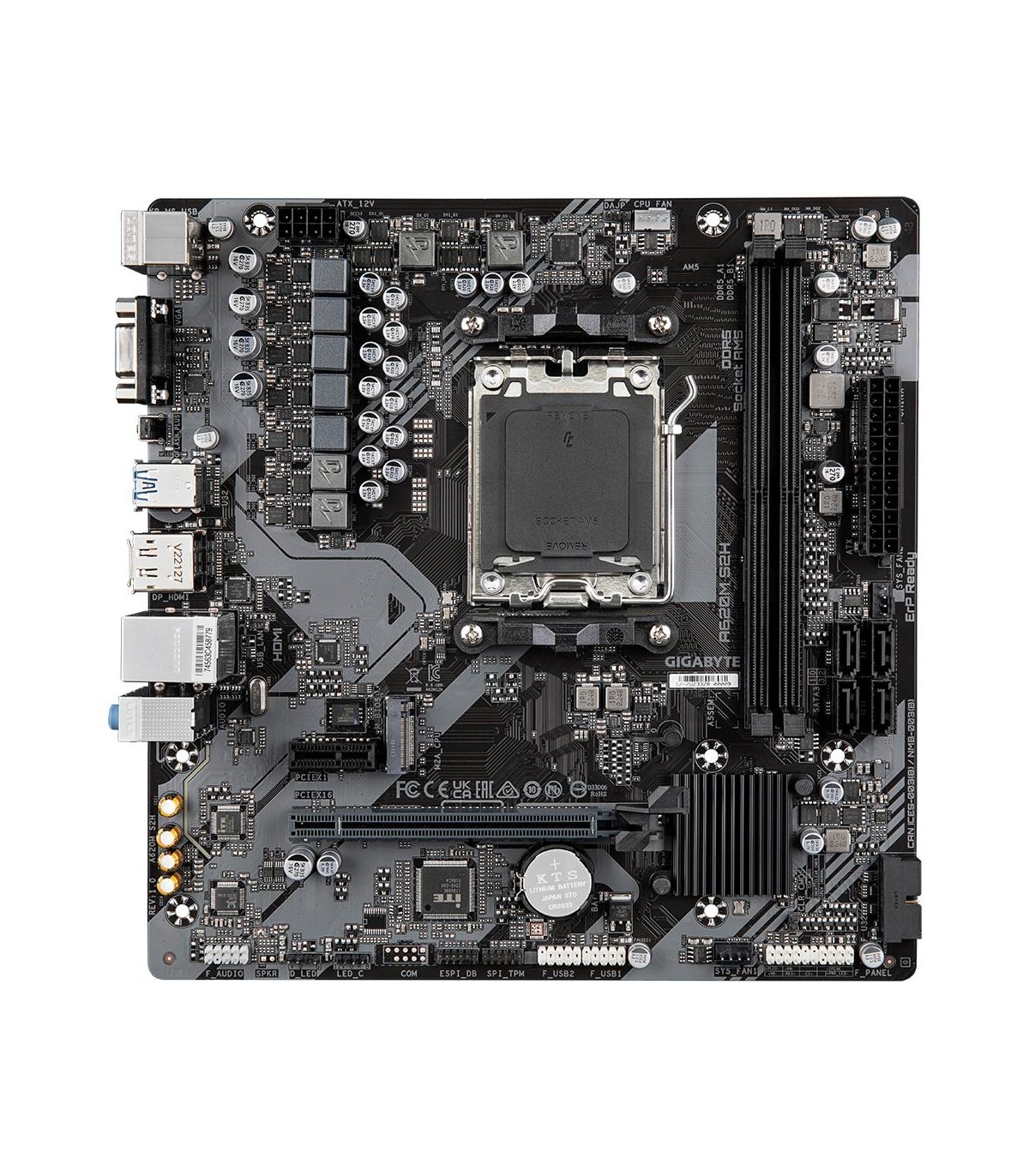

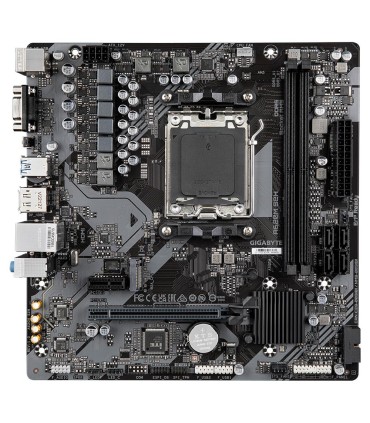

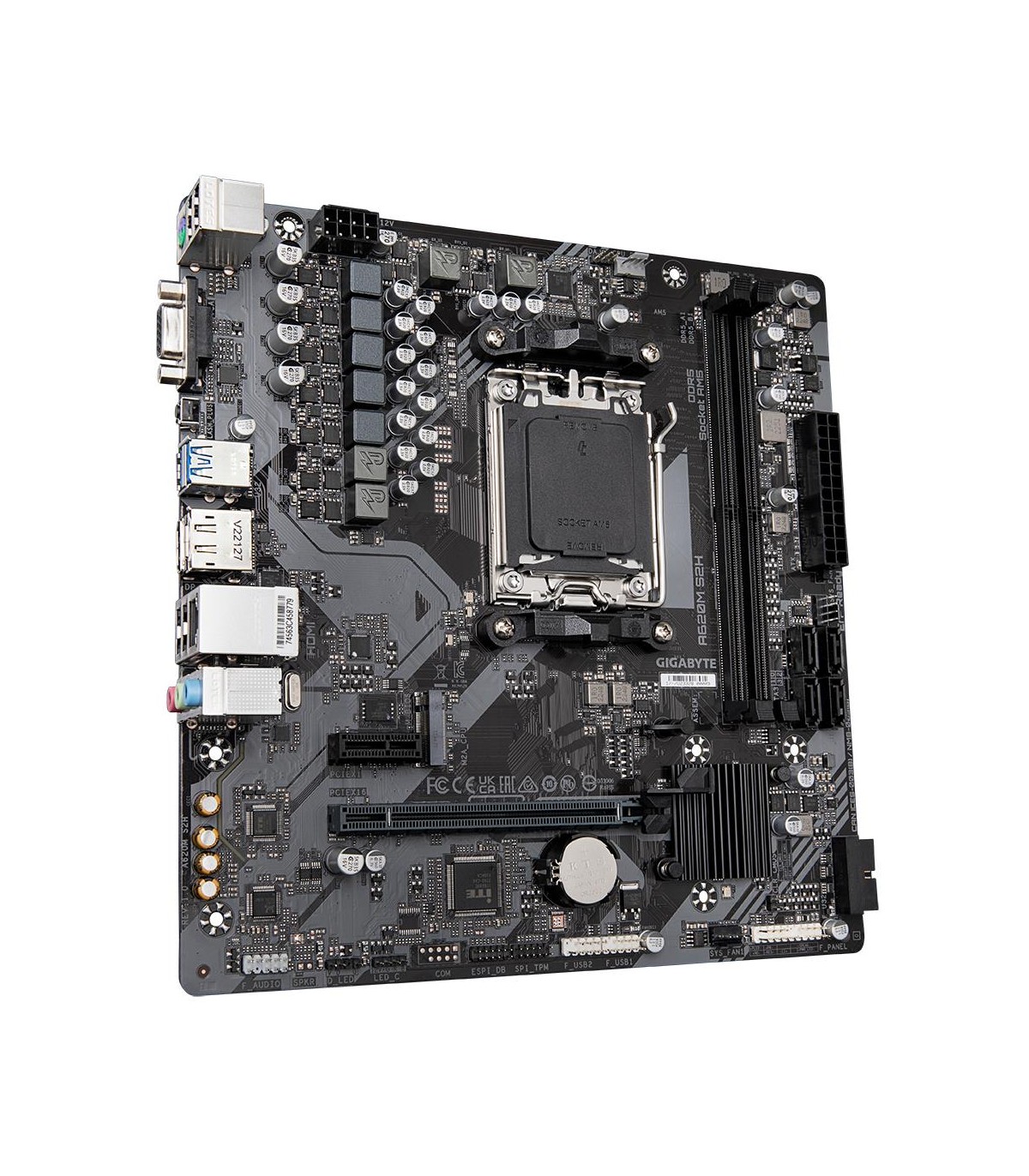

GIGABYTE A620M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 700

Product colour

Brown

DisplayPort version

1.4

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Package depth

265 mm

Package height

54 mm

Package weight

907 g

Package width

265 mm

Cables included

SATA

VGA (D-Sub) ports quantity

1

Bundled software

Norton Internet SecurityLAN bandwidth management software

Country of origin

China

Headphone outputs

3

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

5

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

96 GB

Memory channels

Dual-channel

Motherboard chipset

AMD A620

Number of SATA III connectors

4

PCI Express x1 slots

1

PCI Express x16 slots

1

Total number of SATA connectors

4

Audio output channels

7.1 channels

PS/2 ports quantity

1

USB connector type

USB Type-A/USB Type-C

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4400/4800/5200/5600/6000/6200/6400/6600/6800/7200 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

7200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

FAN/Temperature/Voltage/Water cooling

Number of M.2 (M) slots

1

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

12V power connector

Yes

Maximum internal memory supported by processor

96 GB

Supported memory module capacities

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

ECC сompatibility

Non-ECC
