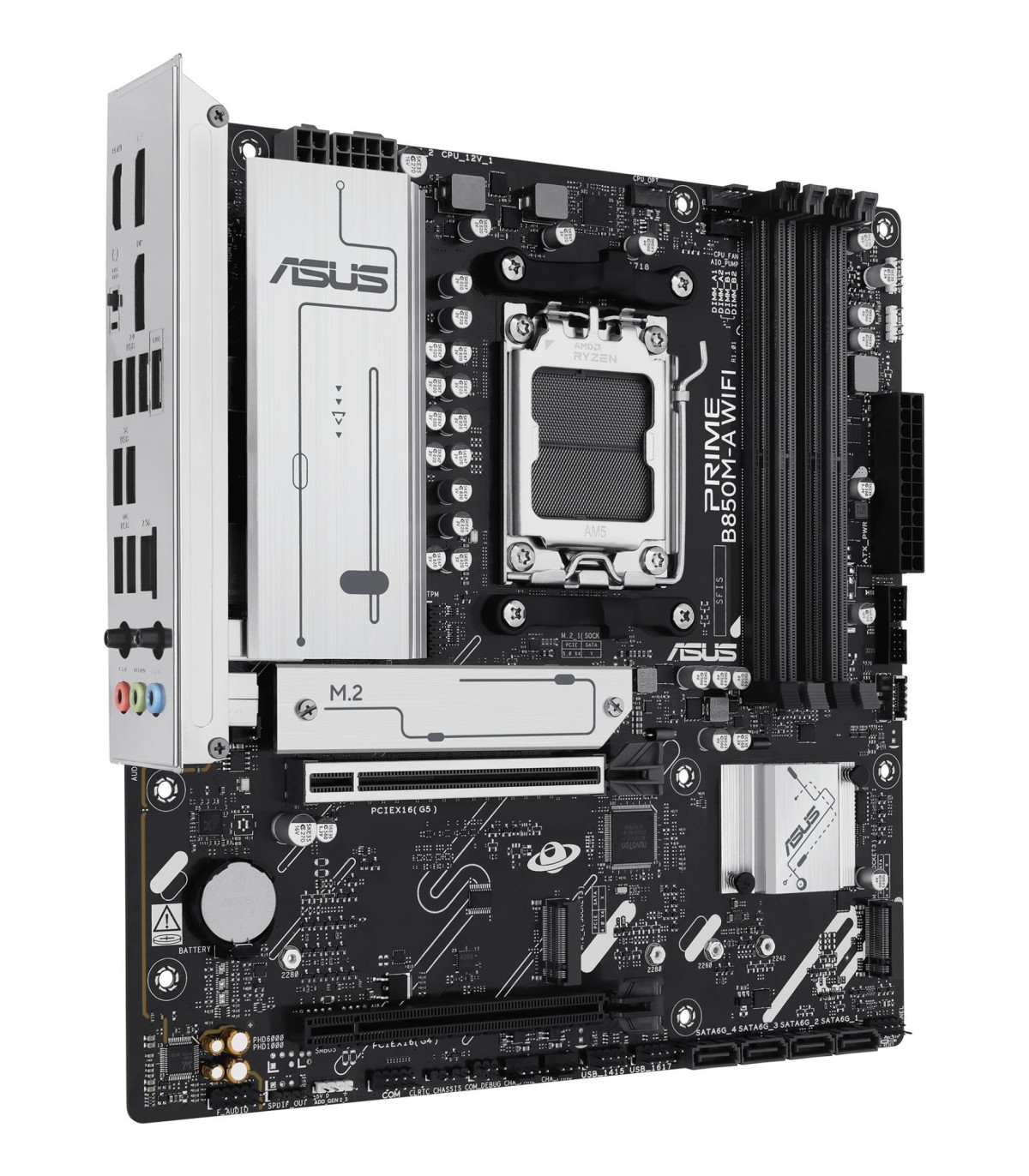

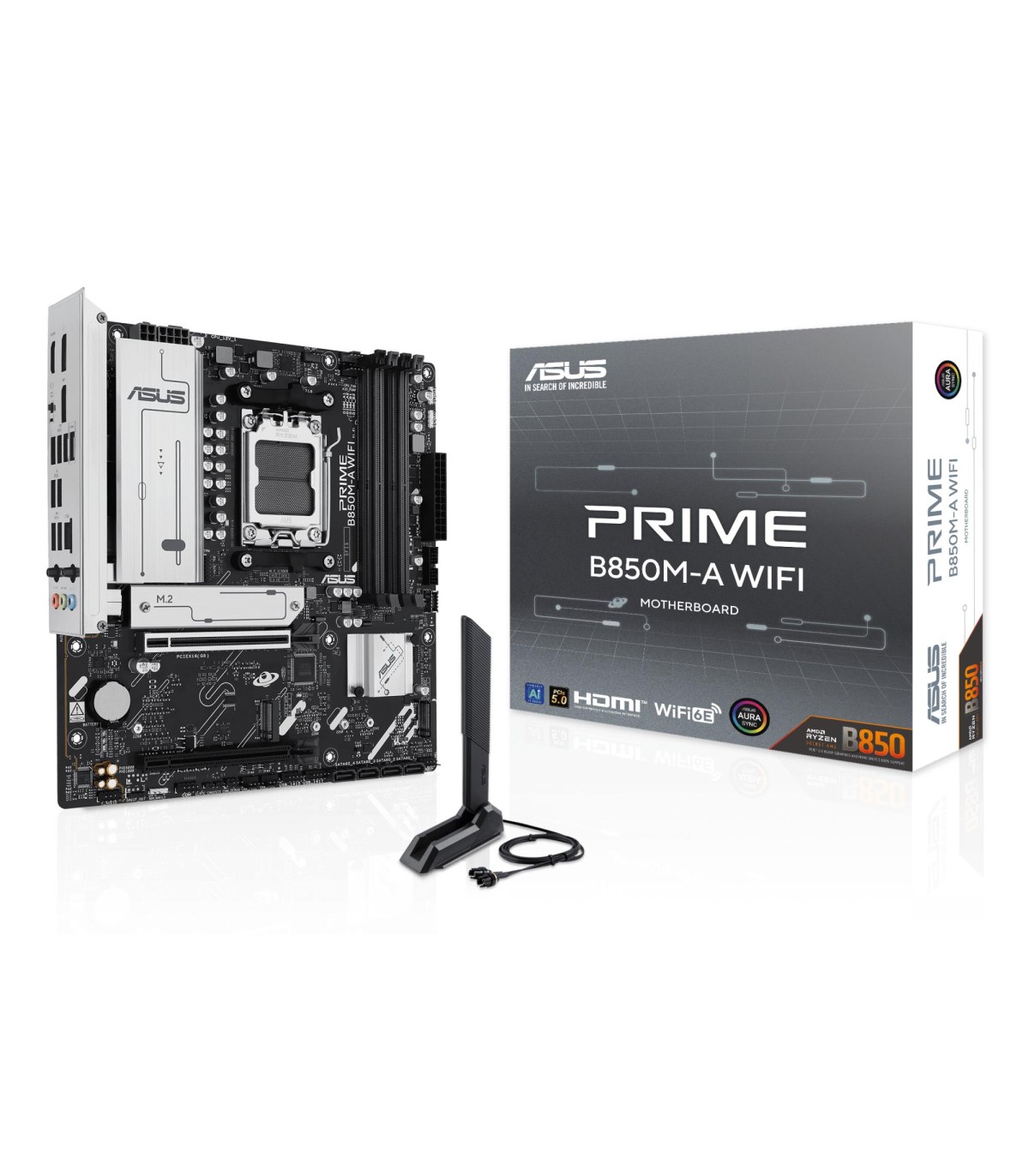

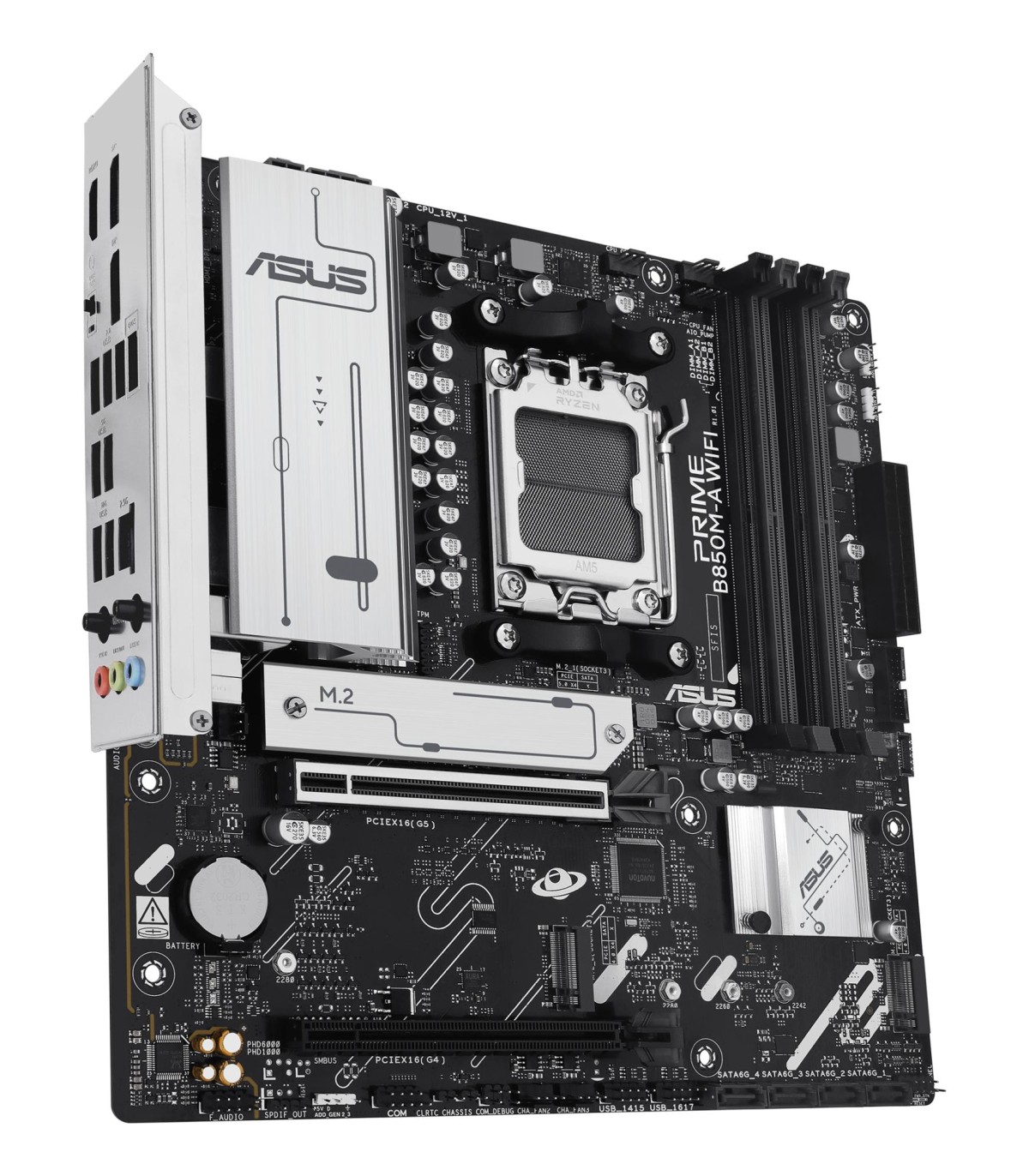

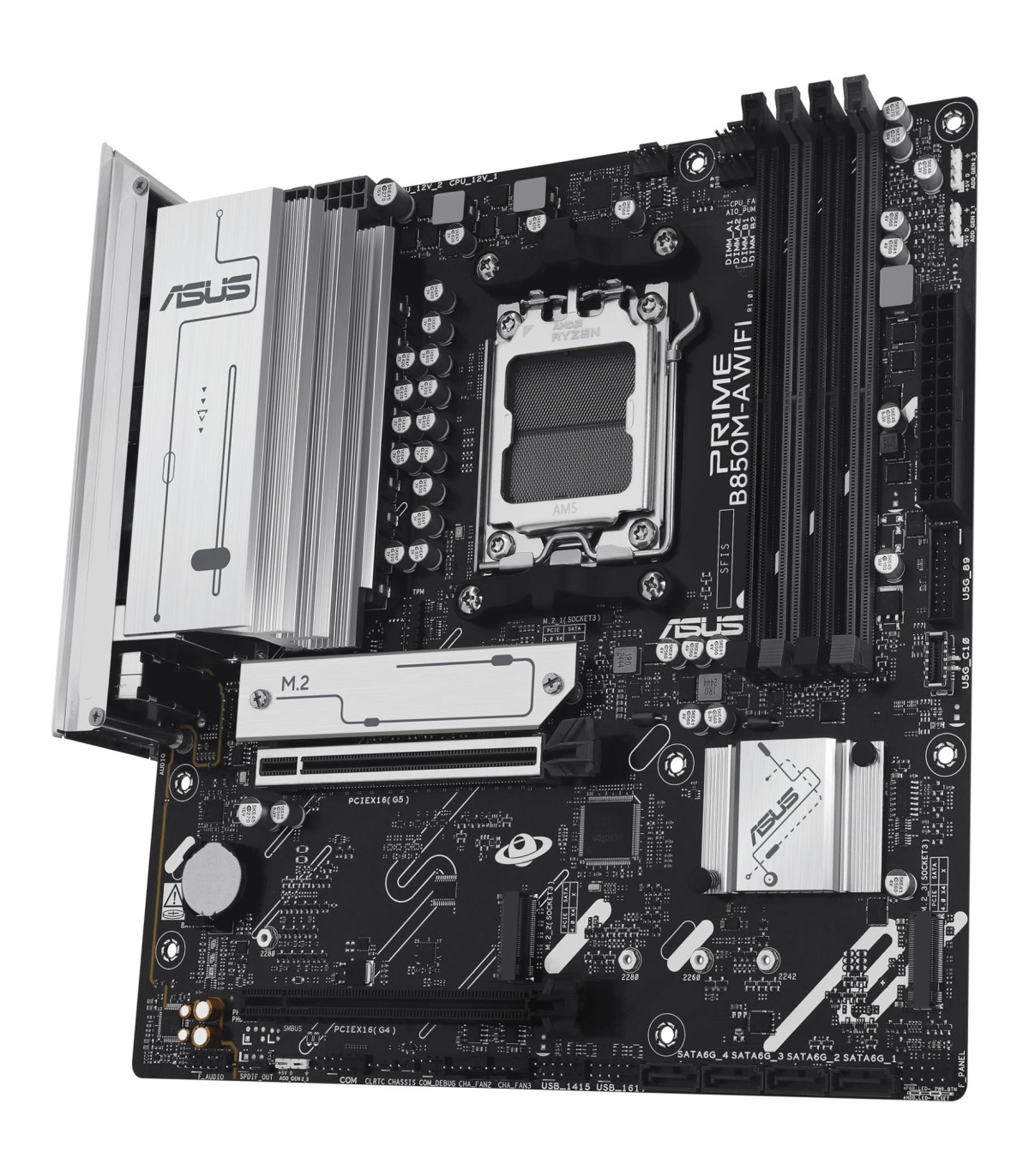

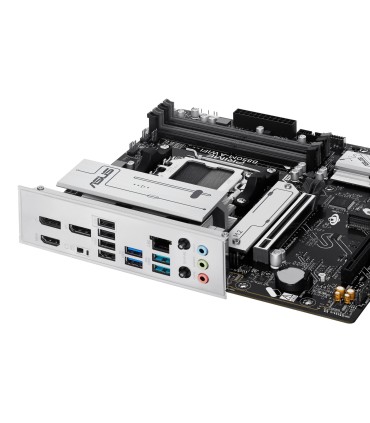

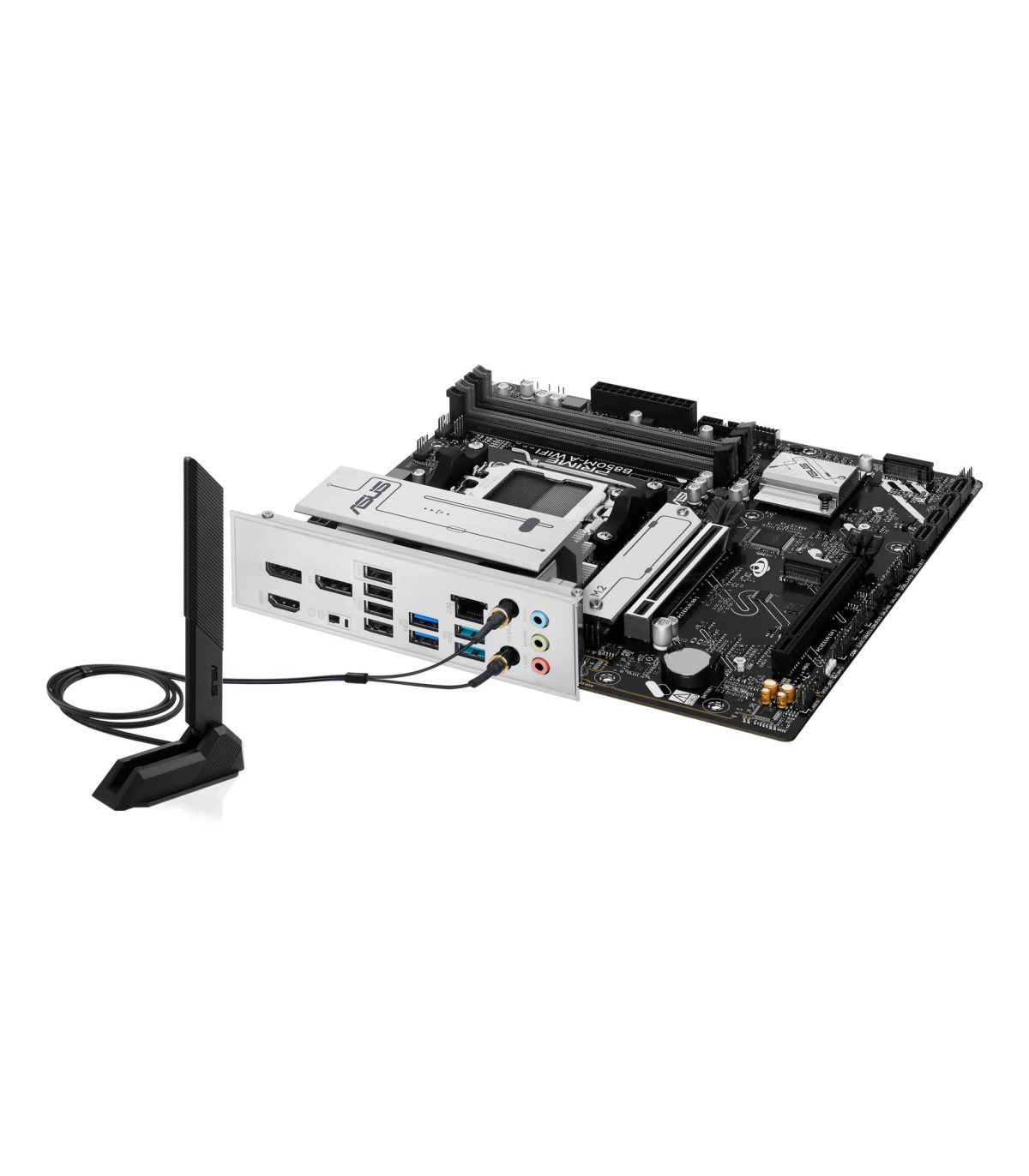

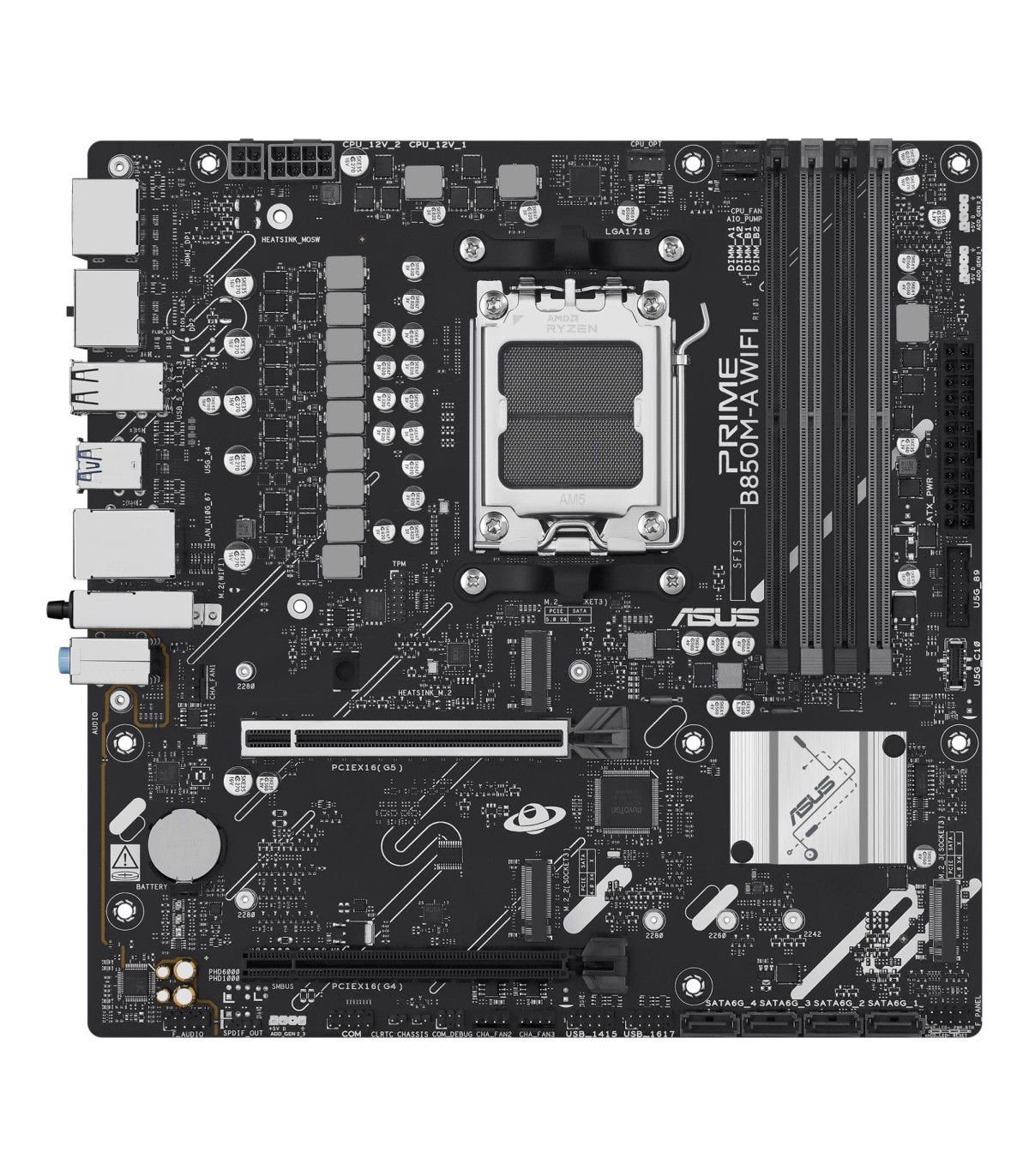

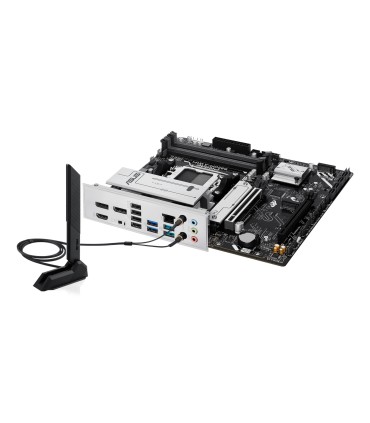

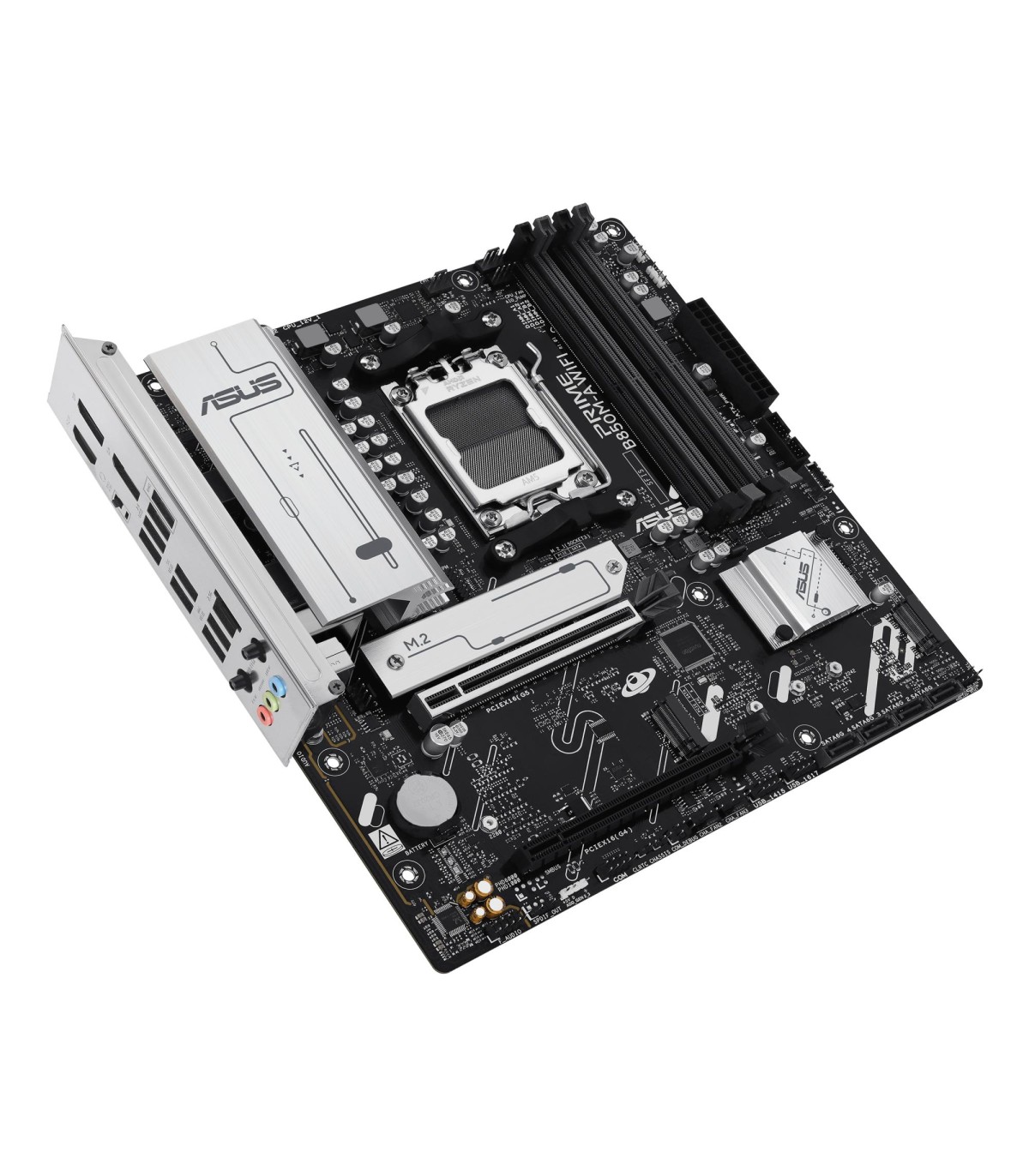

ASUS Mainboard AMD B850 SAM5 Micro-ATX Memory DDR5 Memory slots 4 1xPCI-Express 4.0 16x 1xPCI-Express 5.0 16x 3xM.2 1xHDMI 2xDi

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Height

50 mm

Width

244 mm

Unit Box Width

0.065

Unit Box Length

0.28

Unit Box Height

0.275

Category Code

MBA

Model

PRIME B850M-A WIFI

Bluetooth version

5.3

Unit Calculated Volume

0.006412 cubm

Unit Calculated Weight

1.52 kg

Units per Shipping Box

10

Summary

ASUS PRIME B850M-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memo

Product colour

Multicolour

DisplayPorts quantity

2

HDMI ports quantity

1

Package depth

275 mm

Package height

67.5 mm

Package weight

1520 g

Package width

275 mm

Weight

930 g

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Parallel processing technology support

Not supported

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

256 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Motherboard chipset

AMD B850

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported memory clock speed (max)

8000 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

3

Number of CPU fan connectors

1

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

Motherboard chipset family

AMD

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Antenna included

Yes

12V power connector

Yes

Chassis intrusion connector

Yes

Number of COM connectors

1

S/PDIF out connector

Yes

ECC сompatibility

ECC & Non-ECC
