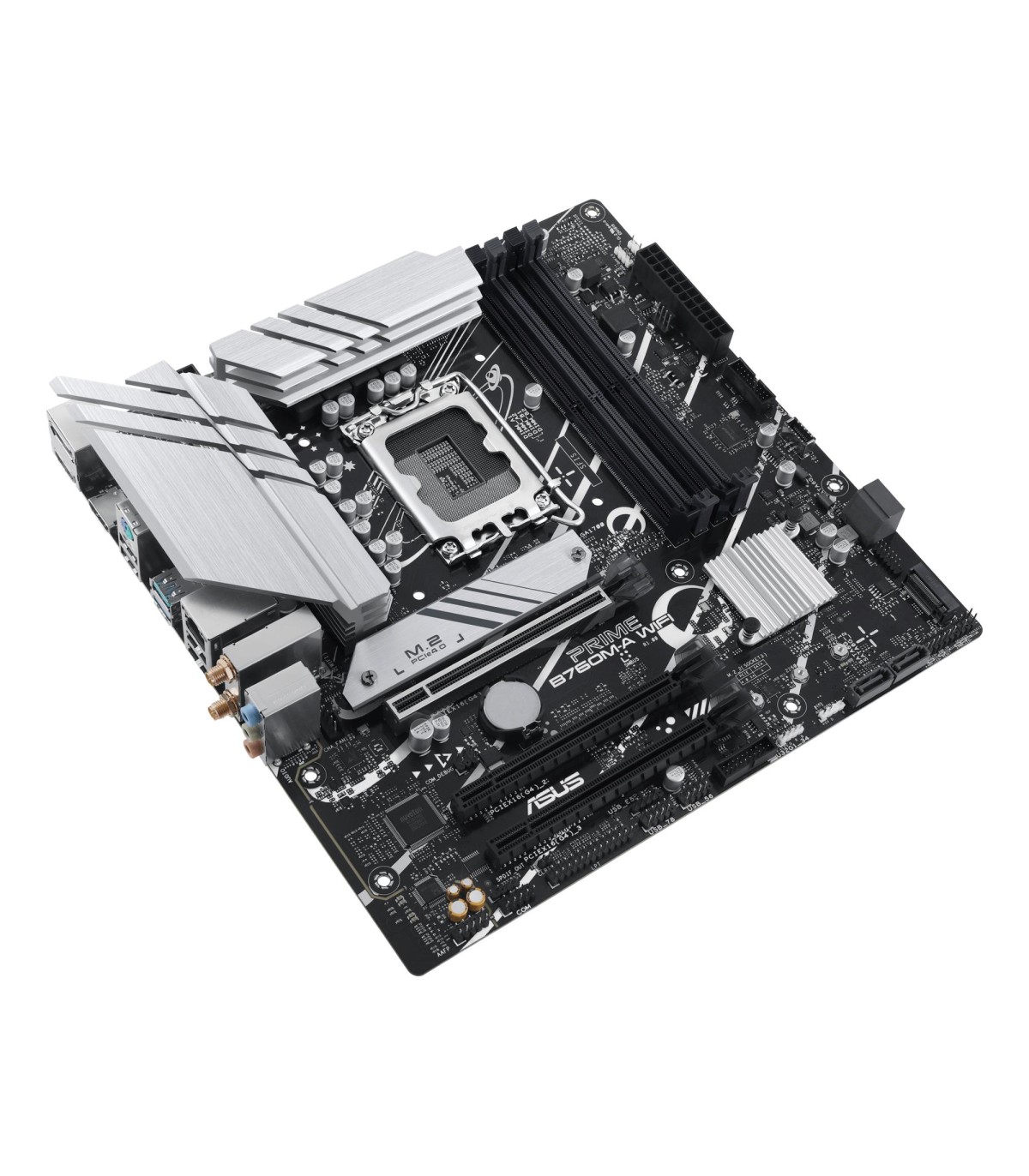

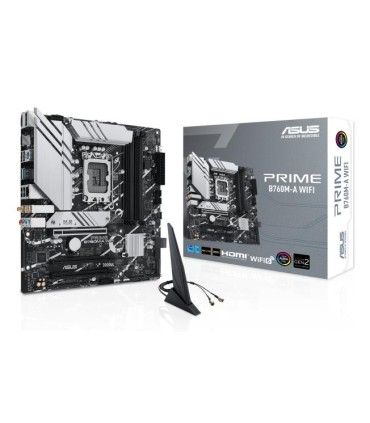

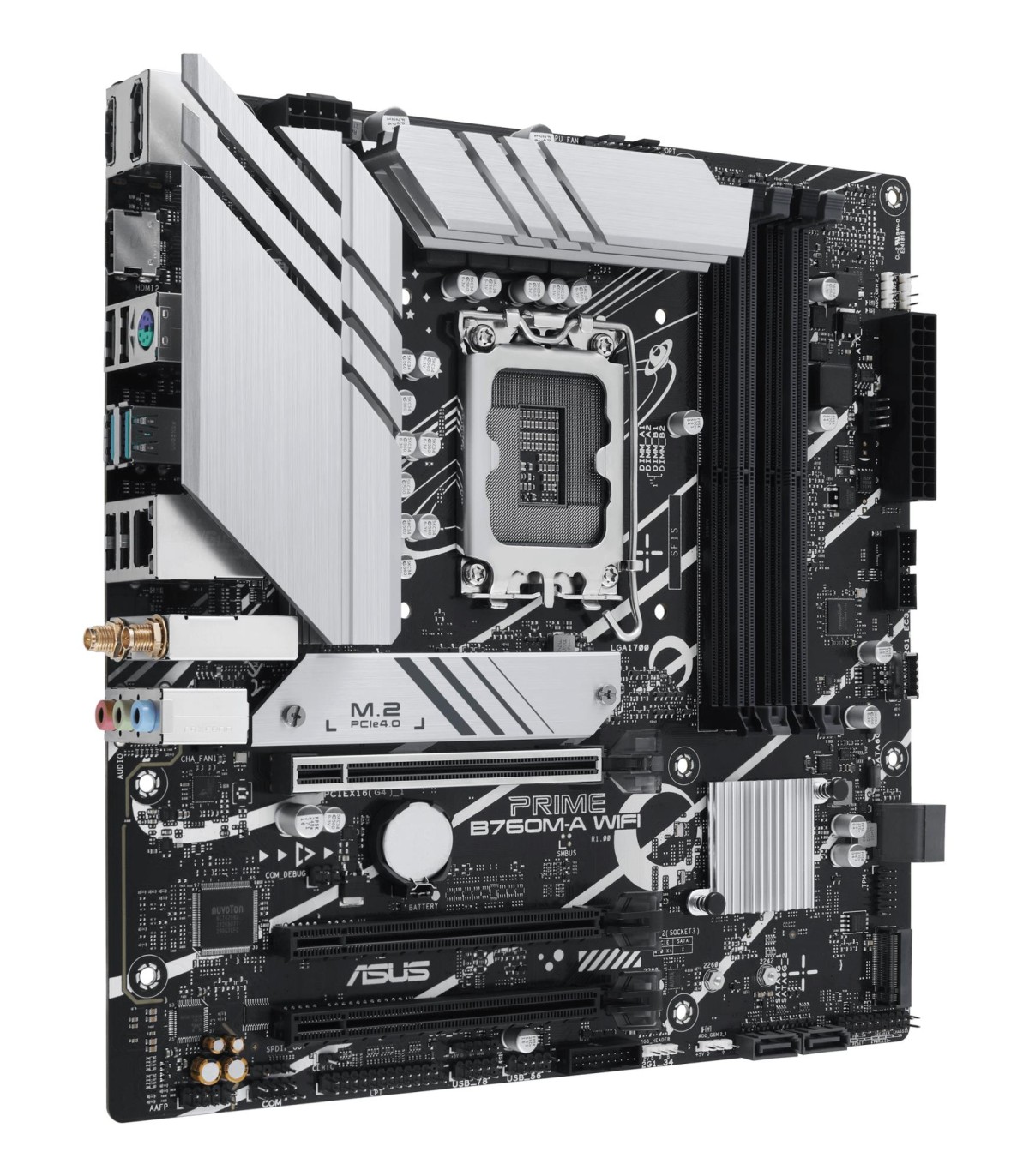

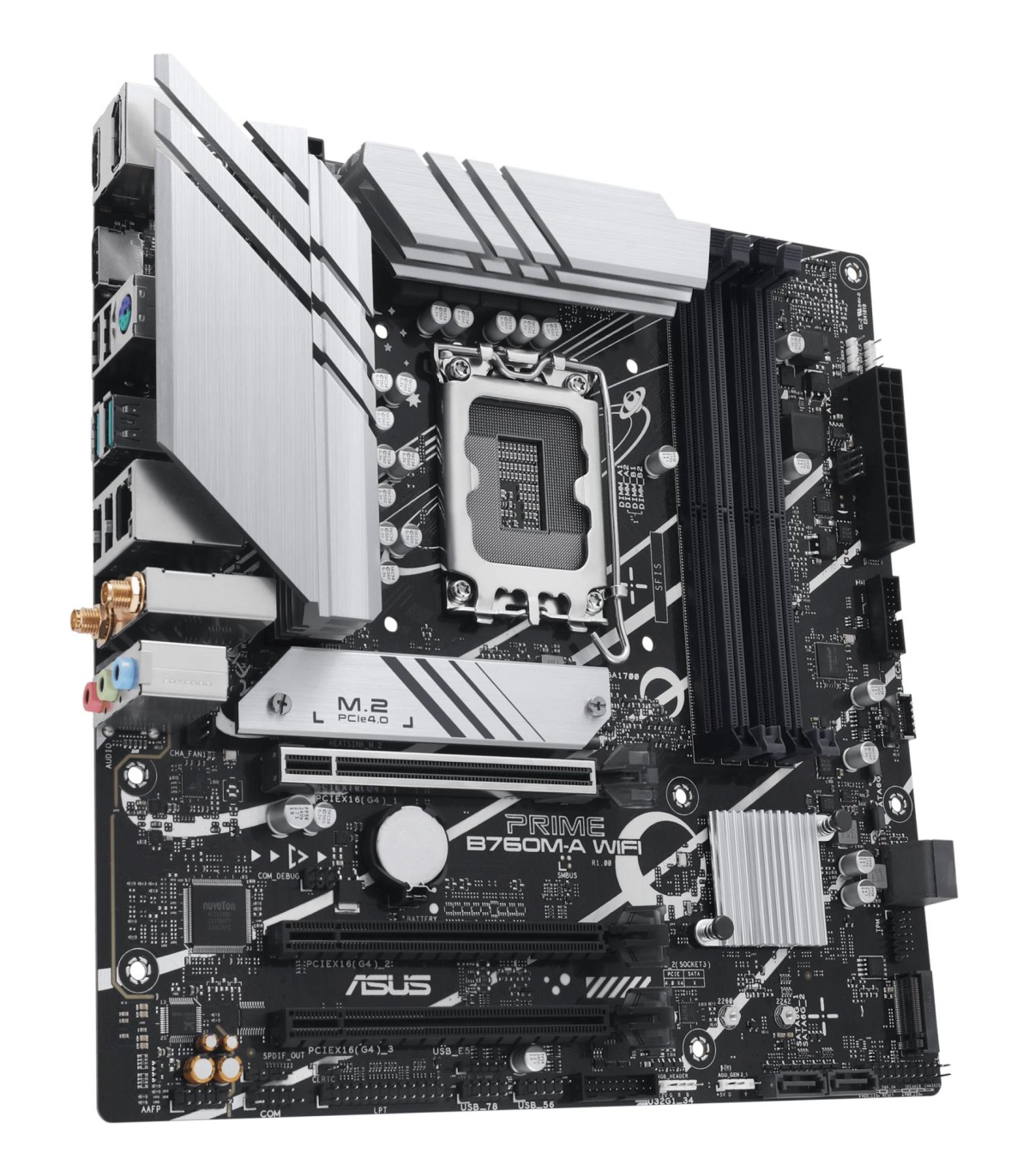

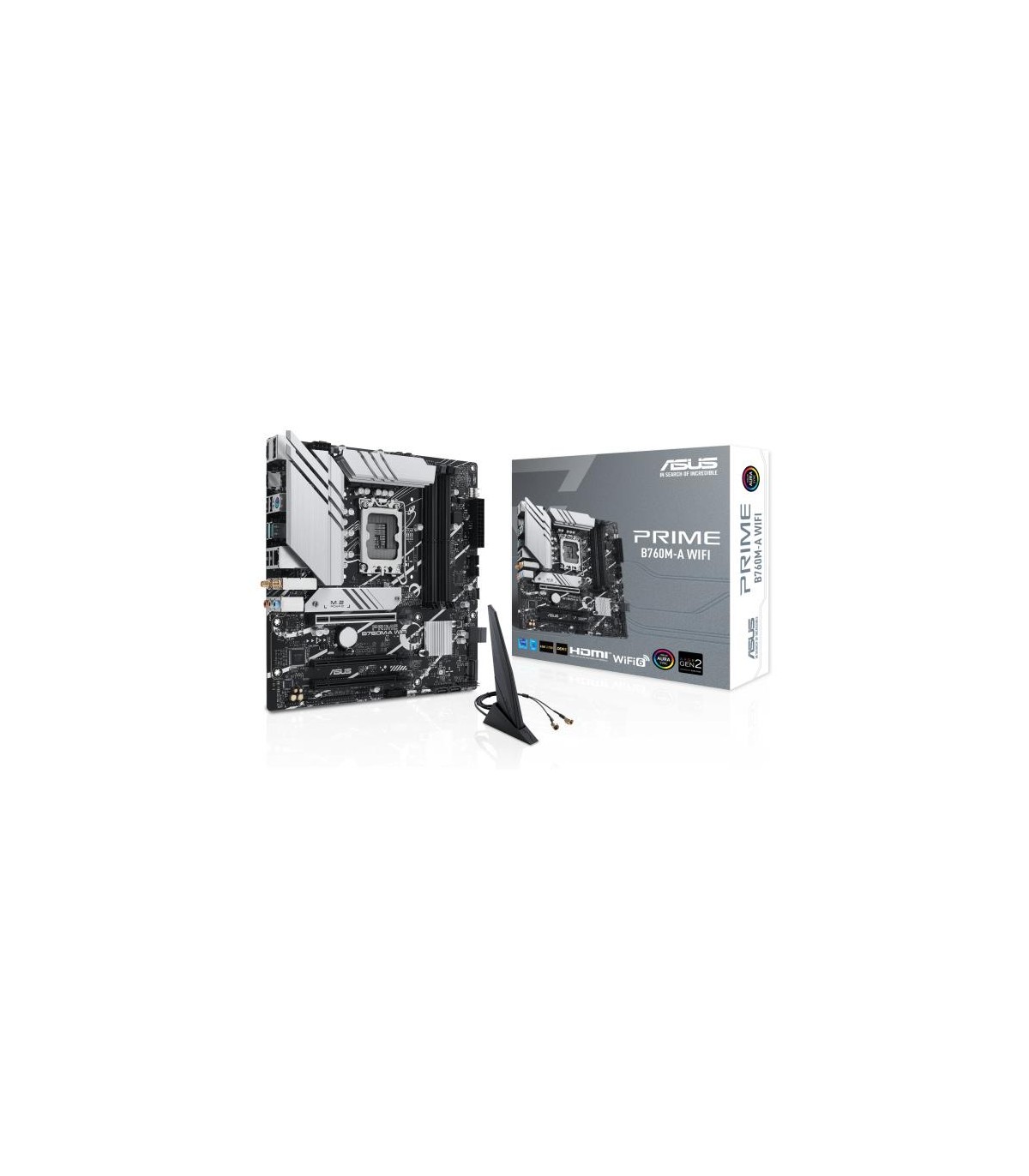

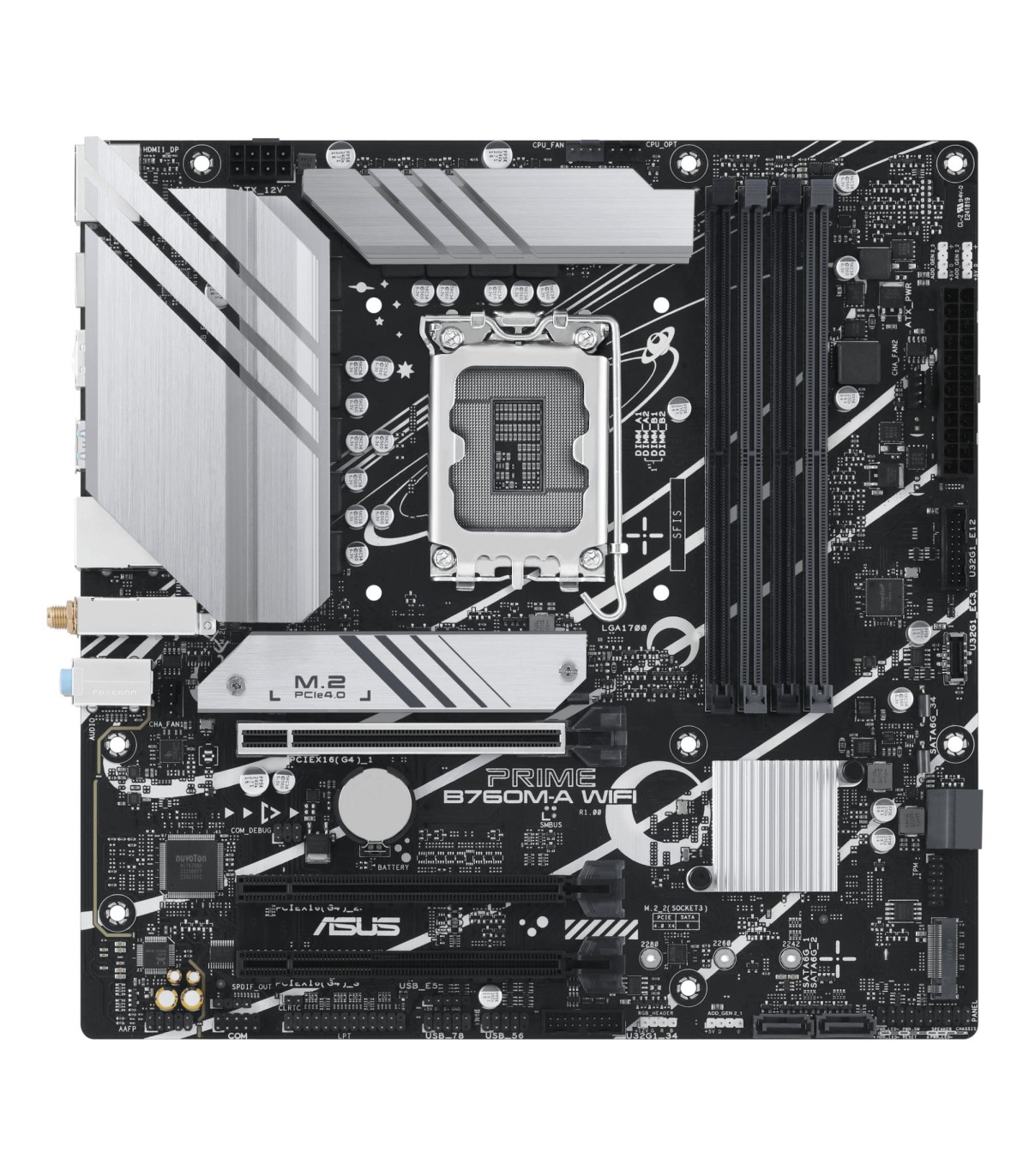

ASUS Mainboard Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 4 3xPCI-Express 4.0 16x 2xM.2 2xHDMI 1xDisplayPort

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Height

50 mm

Width

244 mm

Unit Box Width

0.275

Unit Box Length

0.28

Unit Box Height

0.07

Category Code

MBI

Model

PRIME B760M-A WIFI

Bluetooth version

5.2

Unit Calculated Volume

0.006489 cubm

Unit Calculated Weight

1.59 kg

Units per Shipping Box

10

Summary

ASUS PRIME B760M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Max

DisplayPort version

1.4

DisplayPorts quantity

1

HDMI ports quantity

2

HDMI version

2.1

Package depth

275 mm

Package height

67.5 mm

Package weight

1402 g

Package width

275 mm

Cables included

SATA

Weight

886 g

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Parallel processing technology support

Not supported

Cooling type

Passive

User guide

Yes

USB 2.0 ports quantity

4

Number of storage drives supported

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

128 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Motherboard chipset

Intel B760

Number of SATA III connectors

4

Audio output channels

7.1 channels

PS/2 ports quantity

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

7200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

Motherboard chipset family

Intel

Power source type

ATX

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

2

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Number of COM connectors

1

S/PDIF out connector

Yes

ECC сompatibility

Non-ECC
