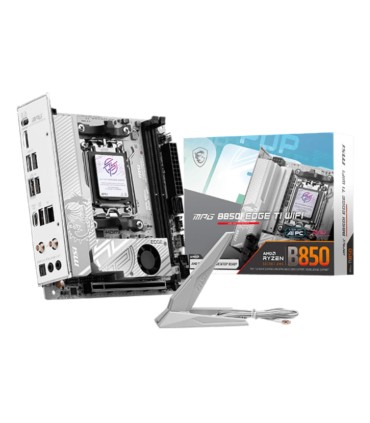

MSI Mainboard AMD B850 SAM5 Mini-ITX Memory DDR5 Memory slots 2 MPGB850IEDGETIWIFI

Сеть

Bluetooth

Yes

Другие свойства

Depth

170 mm

Width

170 mm

Unit Box Width

0.275

Unit Box Length

0.225

Unit Box Height

0.06

Category Code

MBA

Model

MPG B850I EDGE TI WIFI

Bluetooth version

5.4

Unit Calculated Volume

0.004394 cubm

Unit Calculated Weight

1.28 kg

Units per Shipping Box

10

Summary

MSI B850I EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memor

Product colour

Grey

HDMI ports quantity

1

HDMI version

2.1

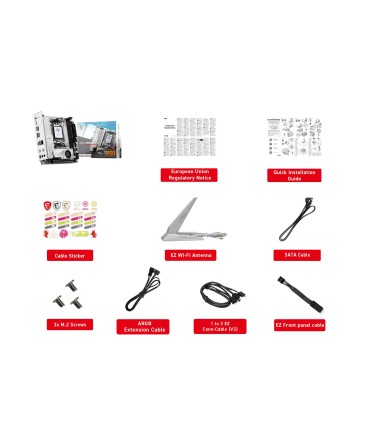

Cables included

SATA

Screws included

Yes

Wi-Fi

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Quick installation guide

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2x2 Type-C ports quantity

1

ATX Power connector (24-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

128 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Motherboard chipset

AMD B850

LAN controller

Realtek RTL8126

Number of SATA III connectors

2

S/PDIF out port

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

USB connector type

USB Type-A/USB Type-C

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Motherboard form factor

Mini ITX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8200 MHz

Unbuffered memory

Yes

RAID levels

0/1

RAID support

Yes

Supported storage drive interfaces

M.2,NVMe,SATA III

CPU fan connector

Yes

Number of chassis fan connectors

6

Number of CPU fan connectors

1

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Ethernet interface type

5 Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

2

Antenna included

Yes

Chassis intrusion connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

ECC сompatibility

Non-ECC
