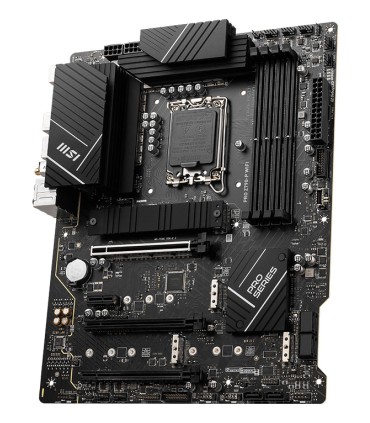

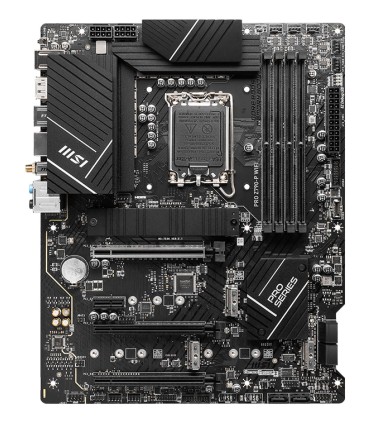

MSI Mainboard Intel Z790 LGA1700 ATX Memory DDR5 Memory slots 4 1xPCI-Express 1x 3xPCI-Express 16x 4xM.2 1xHDMI 1xDisplayPort 4

Сеть

Bluetooth

Yes

Другие свойства

Depth

243.84 mm

Width

304.8 mm

Unit Box Width

0.27

Unit Box Length

0.347

Unit Box Height

0.068

Category Code

MBI

Model

PRO Z790-P WIFI

Bluetooth version

5.3

Unit Calculated Volume

0.006371 cubm

Unit Calculated Weight

1.56 kg

Units per Shipping Box

1

Summary

MSI PRO Z790-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, ECC сompatibility: Non-ECC. Suppo

Product colour

Black

DisplayPort version

1.4

DisplayPorts quantity

1

HDMI ports quantity

1

HDMI version

2.1

Cables included

SATA

Bundled software

DriversMSI CenterIntel Extreme Tuning UtilityCPU-Z MSI GAMINGNorton 360 DeluxeAIDA64 Extreme - MSI Edition

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)

Parallel processing technology support

Not supported

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Processor manufacturer

Intel

Maximum internal memory

128 GB

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Audio chip

Realtek ALC897

Motherboard chipset

Intel Z790

Number of SATA III connectors

6

S/PDIF out port

Yes

Audio output channels

7.1 channels

Internal storage capacity

10 GB

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5000/5200/5400/5800/6000/6400/6600/6800/7000 MHz

Motherboard form factor

ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

7000 MHz

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,PCI Express

Front panel audio connector

Yes

Front panel connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

Number of M.2 (M) slots

4

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

System Management BIOS (SMBIOS) version

3.5

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

ECC сompatibility

Non-ECC
