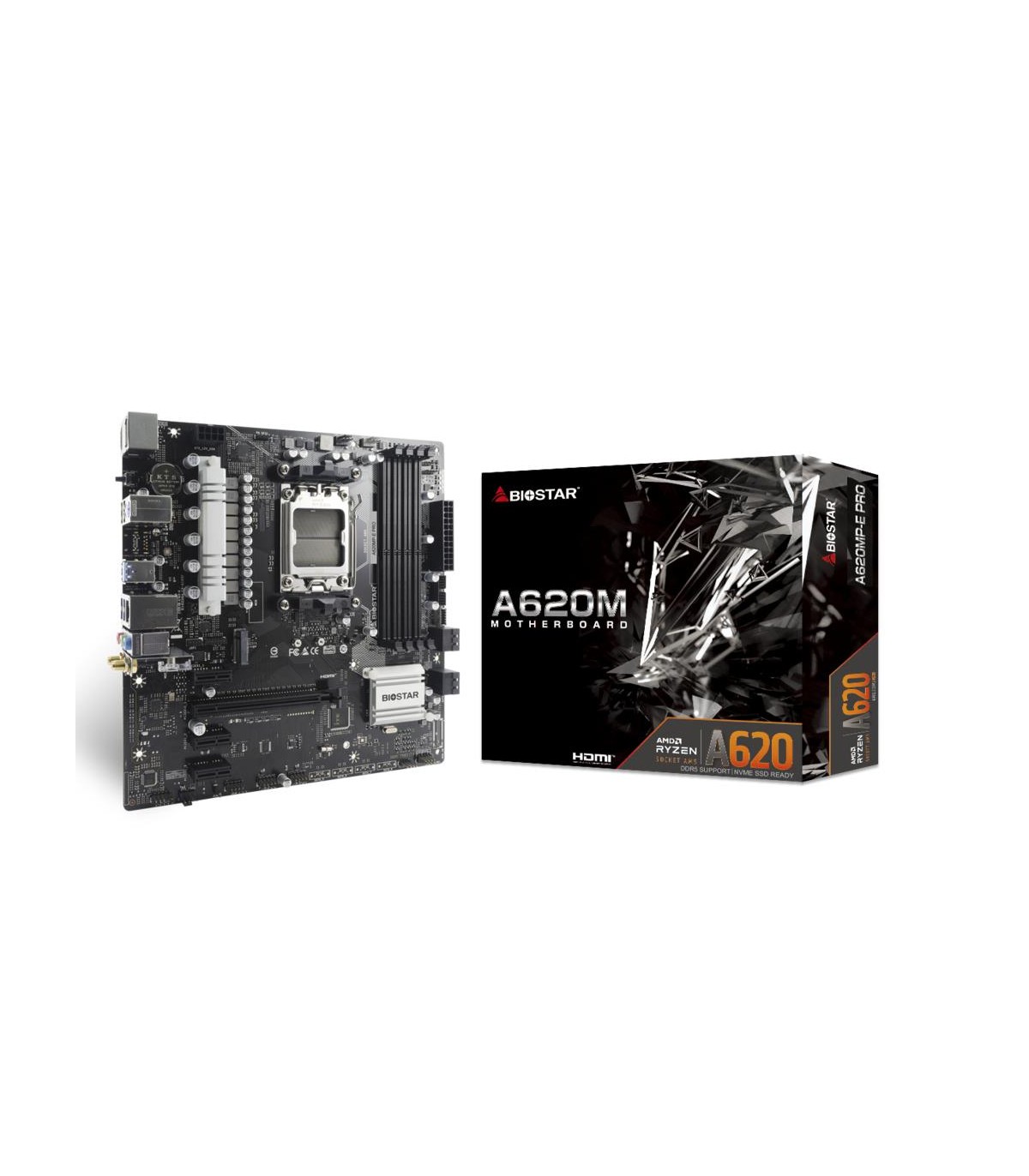

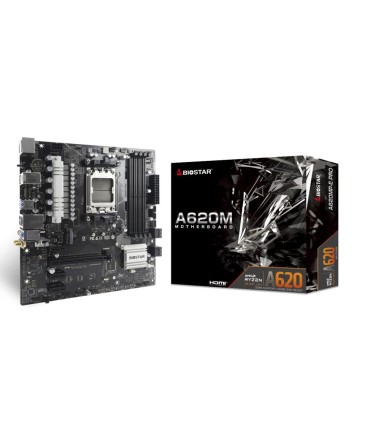

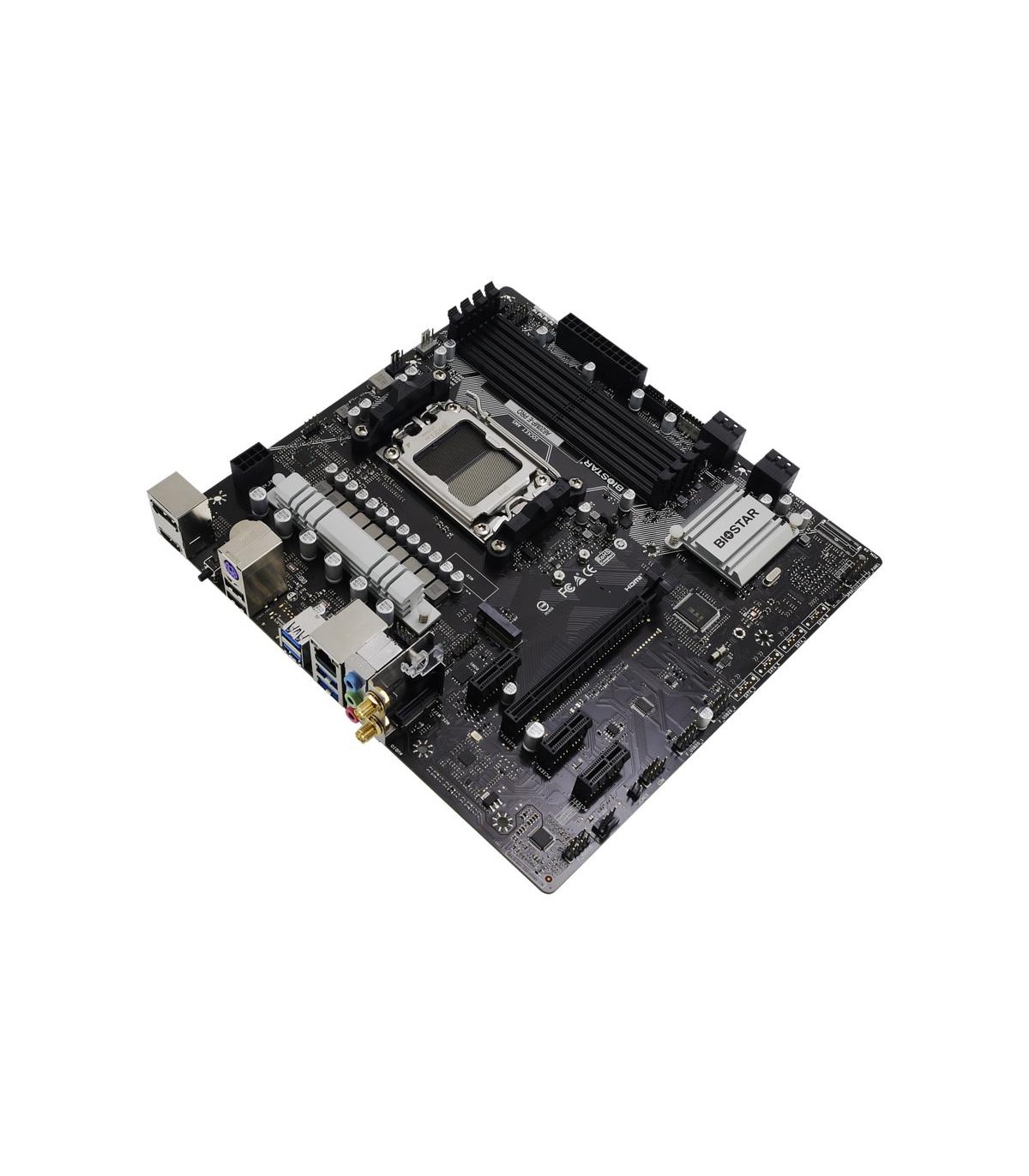

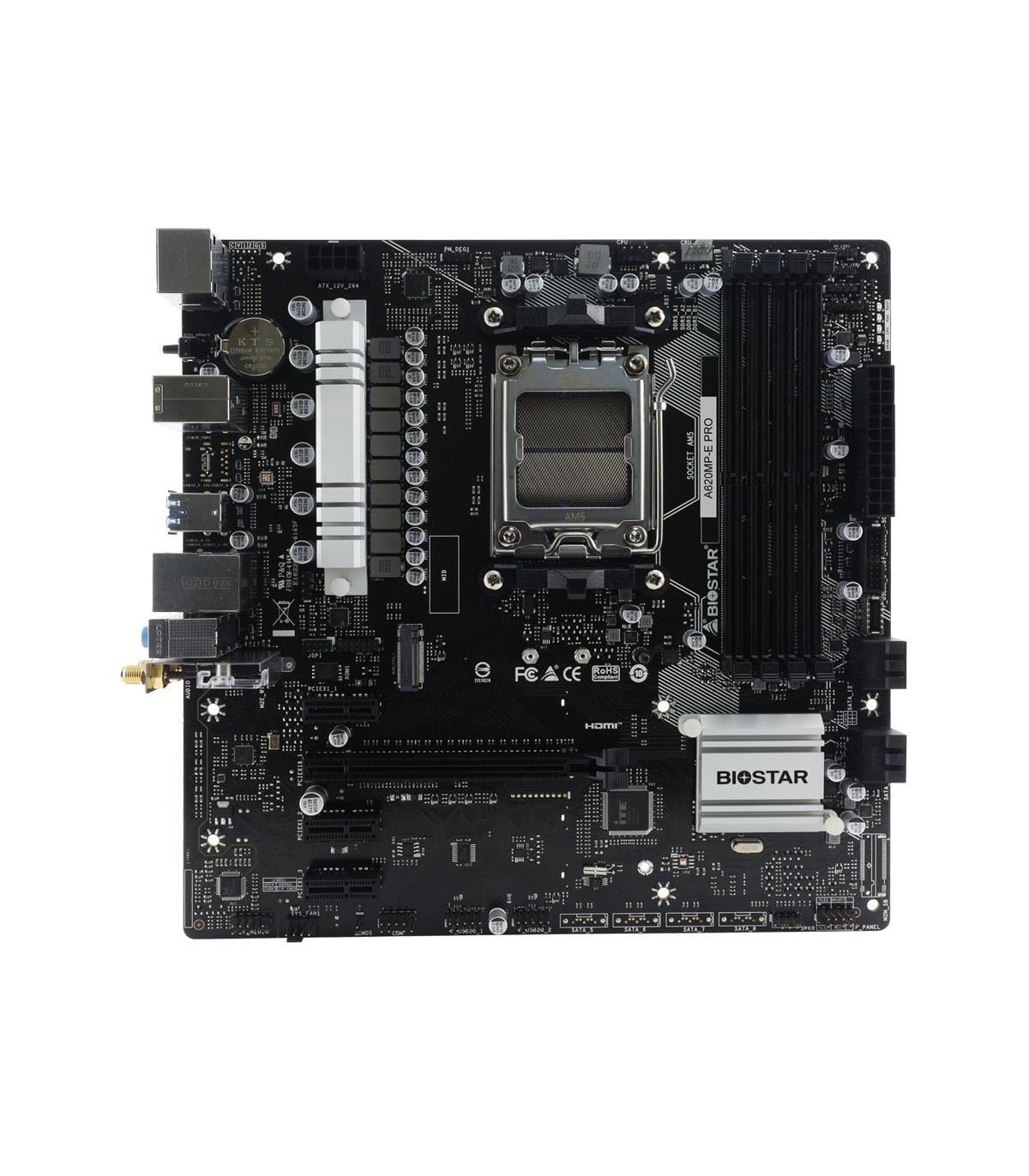

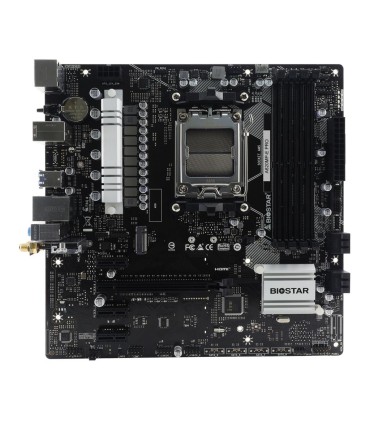

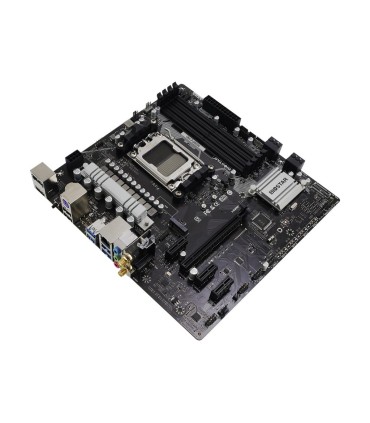

BIOSTAR Mainboard AMD A620 SAM5 Micro-ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 1x 2xPCI-Express 4.0 1x 1xPCI-Express 4.

Другие свойства

Depth

244 mm

Width

244 mm

Unit Box Width

0.26

Unit Box Length

0.28

Unit Box Height

0.06

Category Code

MBA

Model

A620MP-E PRO

Unit Calculated Volume

0.005286 cubm

Unit Calculated Weight

1.08 kg

Units per Shipping Box

10

Summary

Biostar A620MP-E PRO. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive inte

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

Cables included

SATA

Wi-Fi

No

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

DirectX version

12.0

Drivers included

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

128 GB

Audio chip

Realtek ALC897

Motherboard chipset

AMD A620

LAN controller

Realtek RTL8125B

Number of SATA III connectors

4

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported memory clock speeds

4800/5200/5400/5600/6000 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series

Processor socket

Socket AM5

Supported storage drive interfaces

SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

PCI Express x16 (Gen 4.x) slots

1

Number of COM connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

2

Audio connector

Yes
