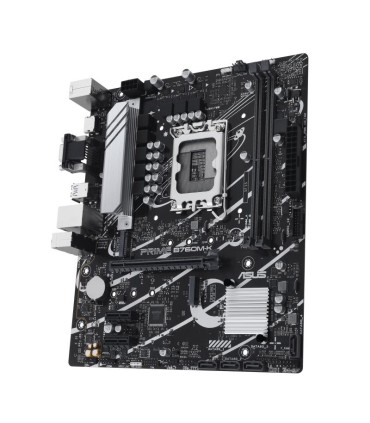

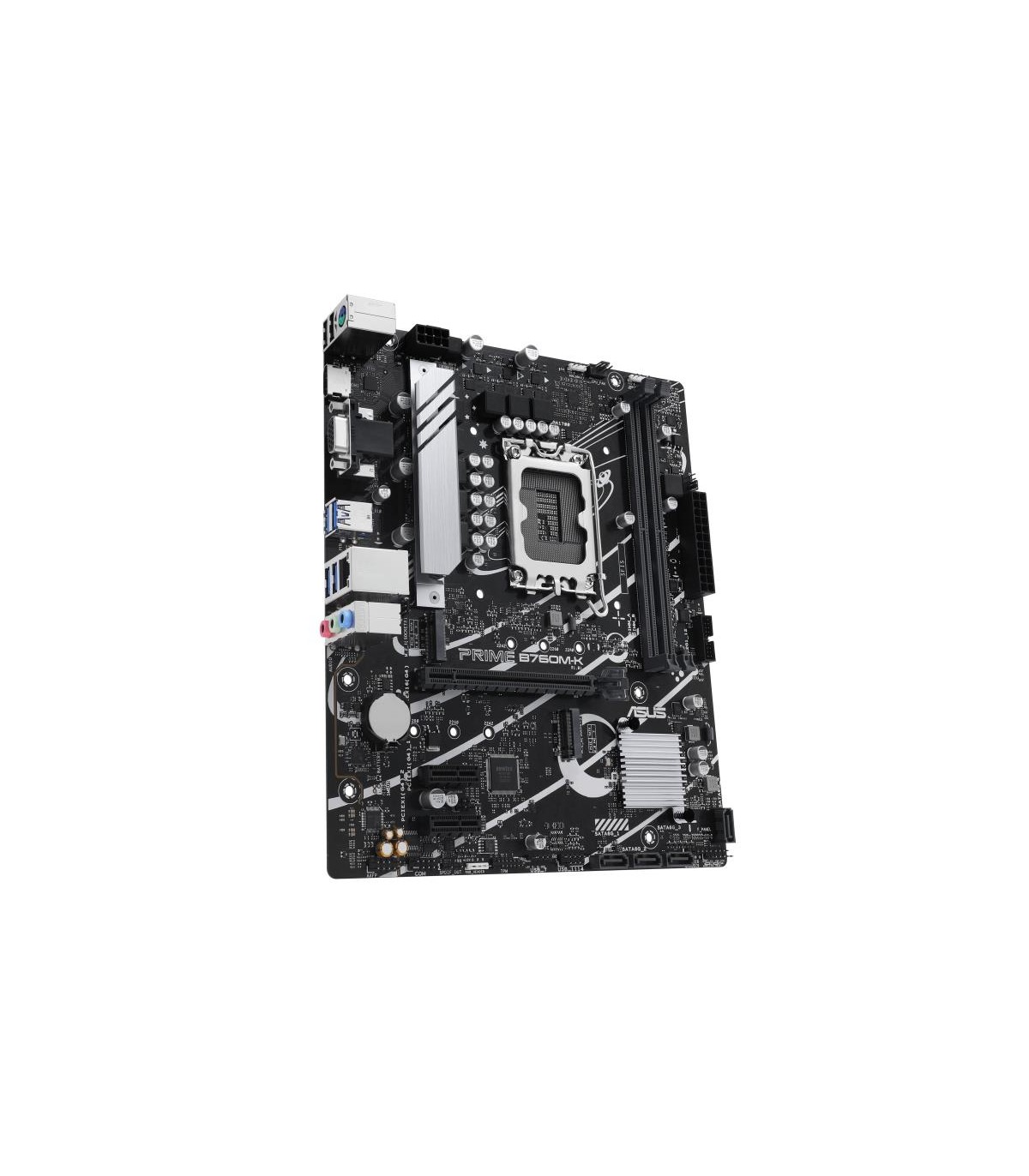

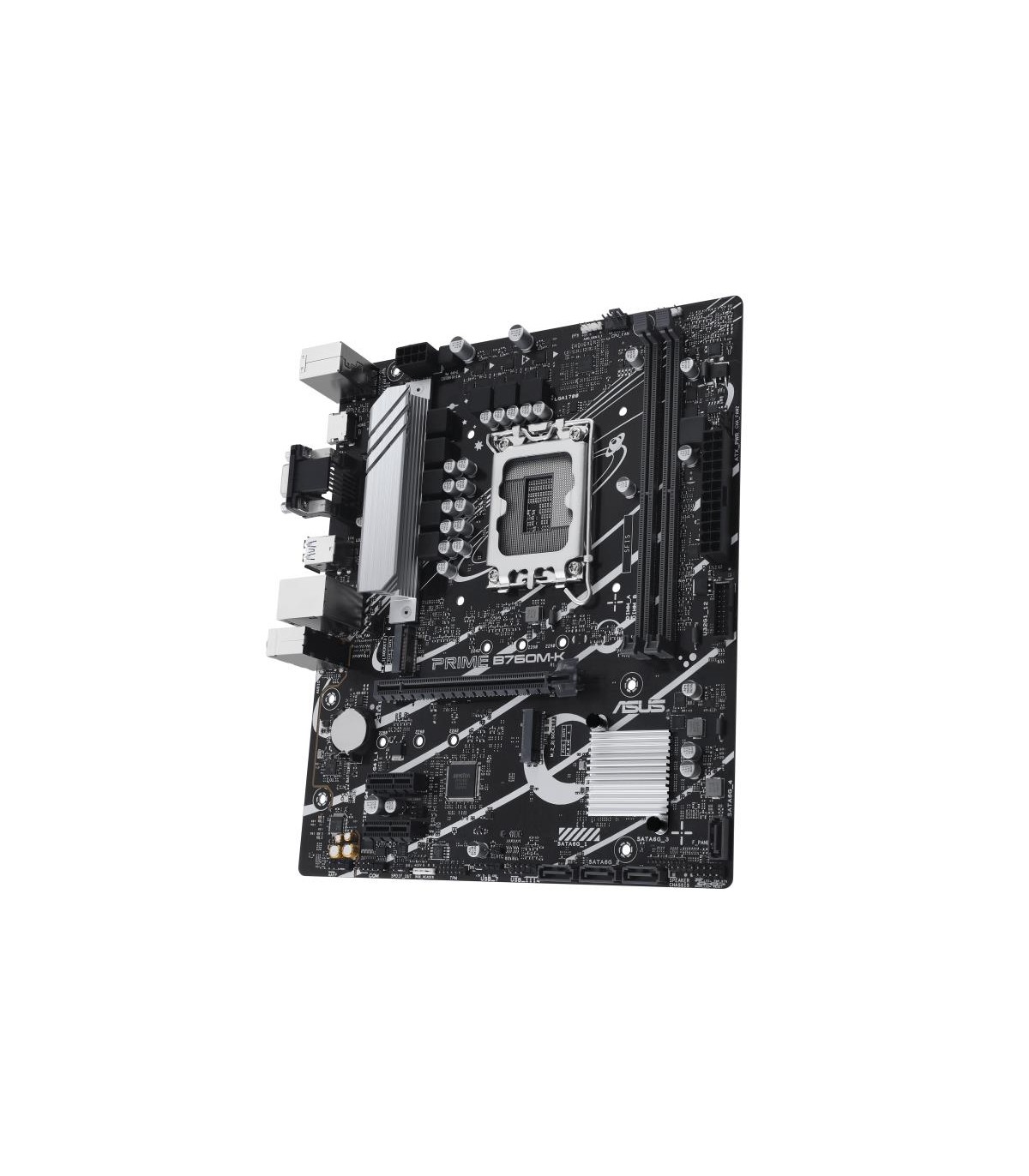

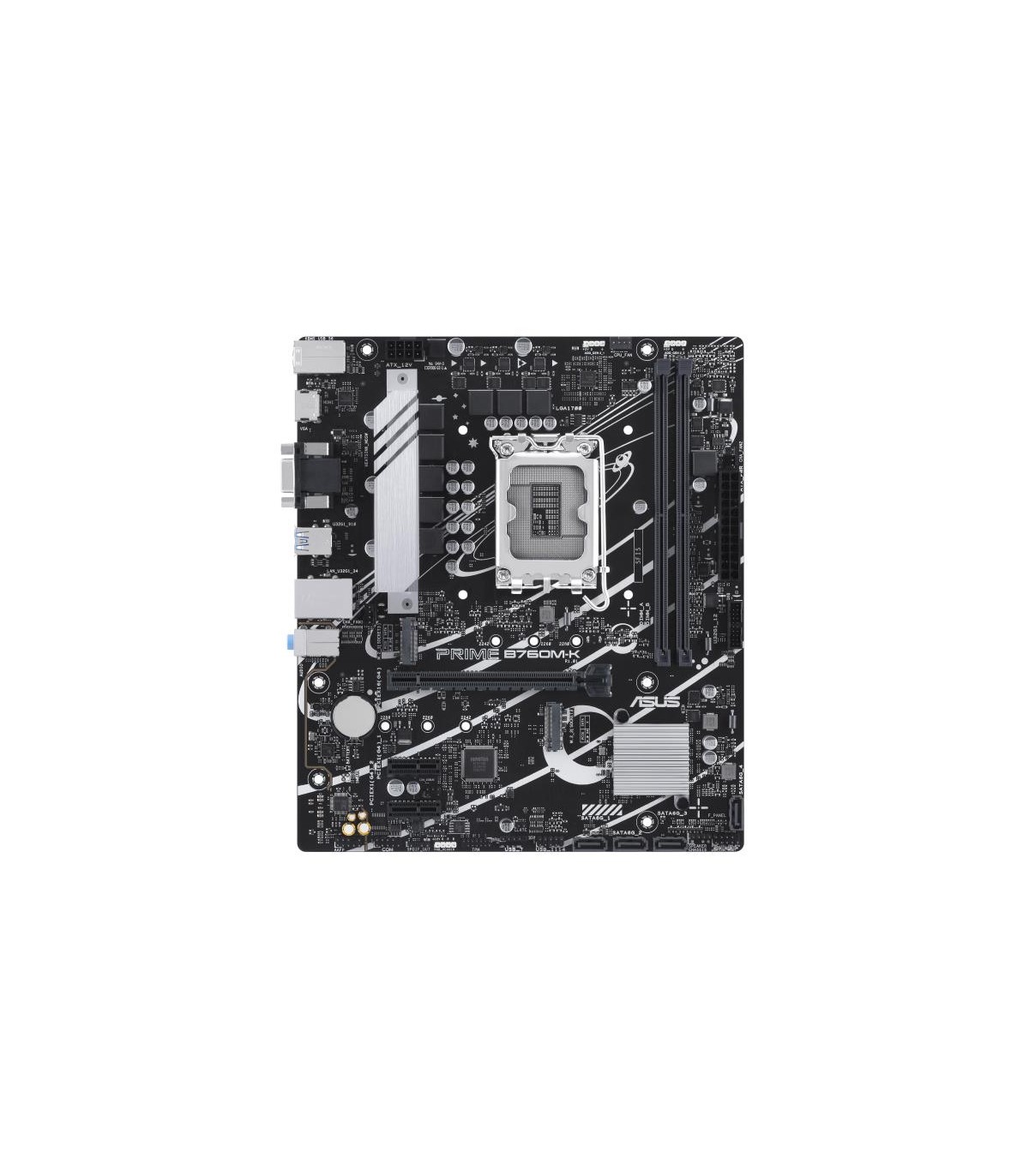

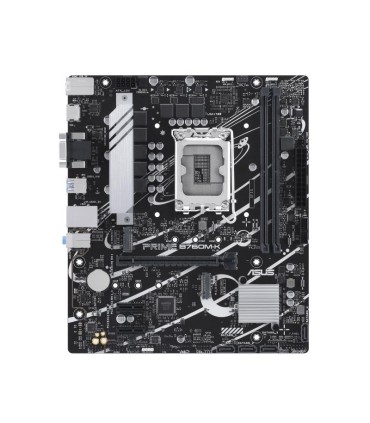

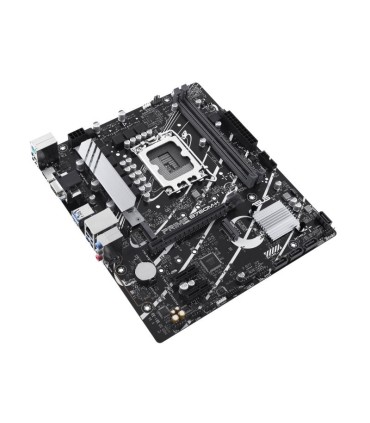

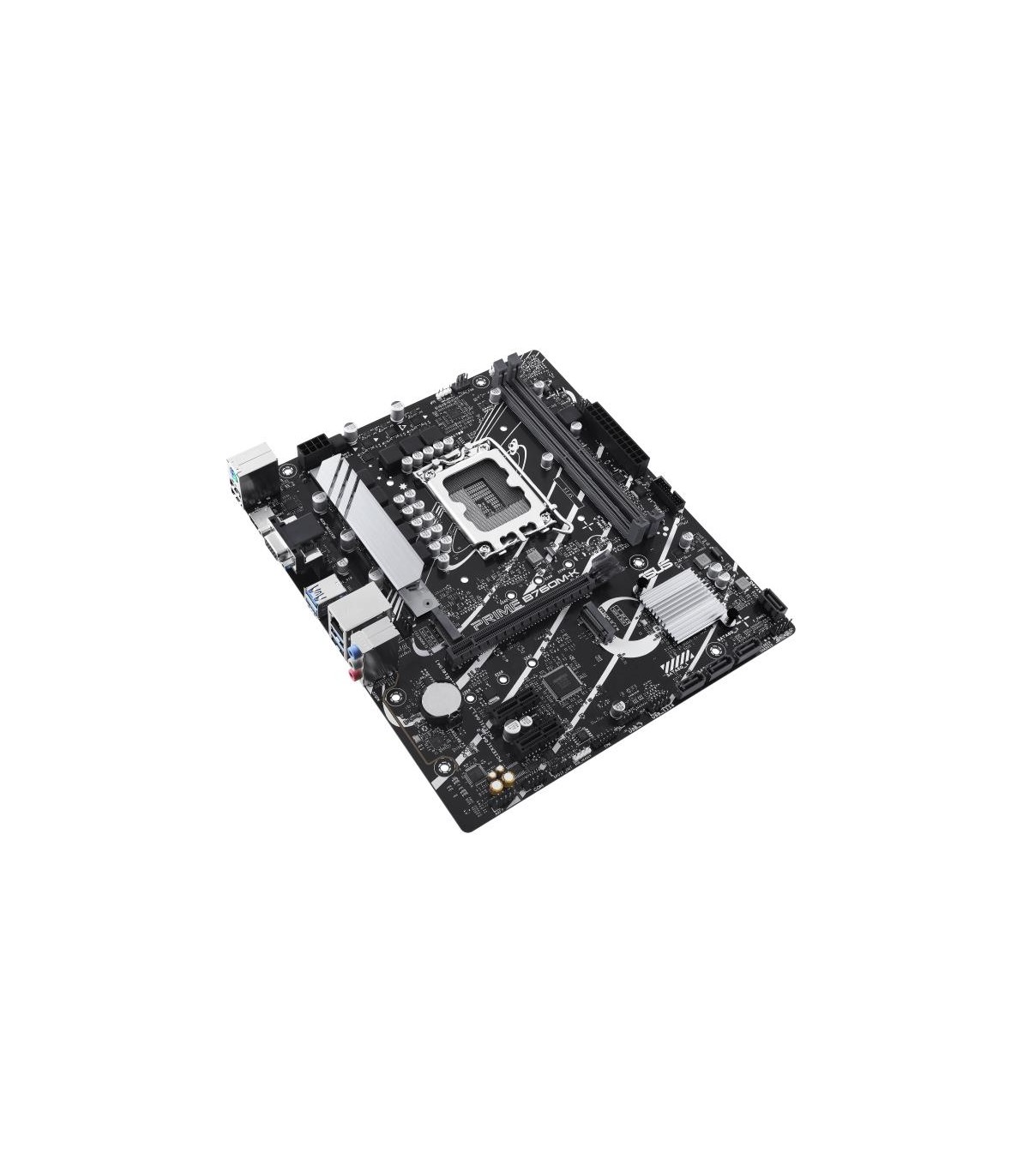

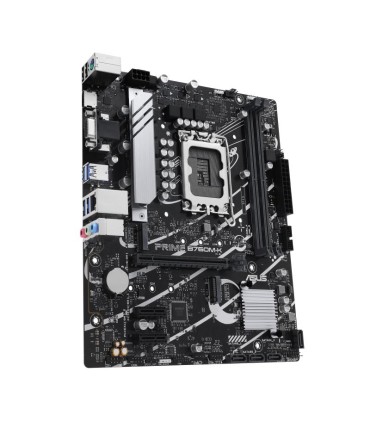

ASUS Mainboard Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 2 2xPCI-Express 4.0 1x 1xPCI-Express 4.0 16x 2xM.2

Другие свойства

Depth

211 mm

Width

244 mm

Model

PRIME B760M-K

Unit Calculated Volume

0.004834 cubm

Unit Calculated Weight

1.02 kg

Units per Shipping Box

10

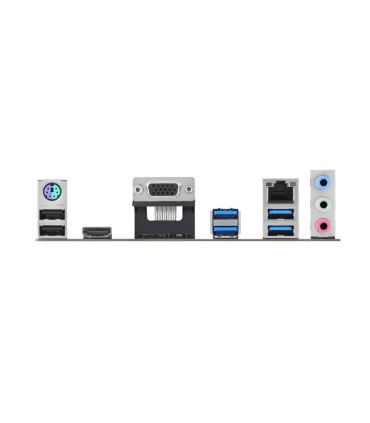

HDMI ports quantity

1

Package depth

263 mm

Package height

51.5 mm

Package weight

1015 g

Package width

270 mm

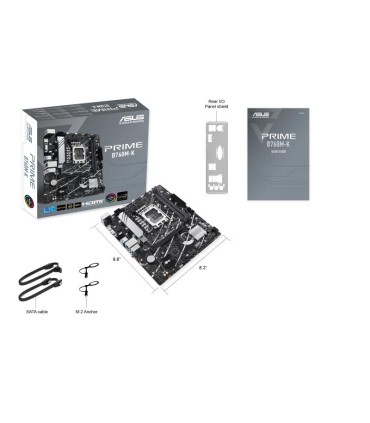

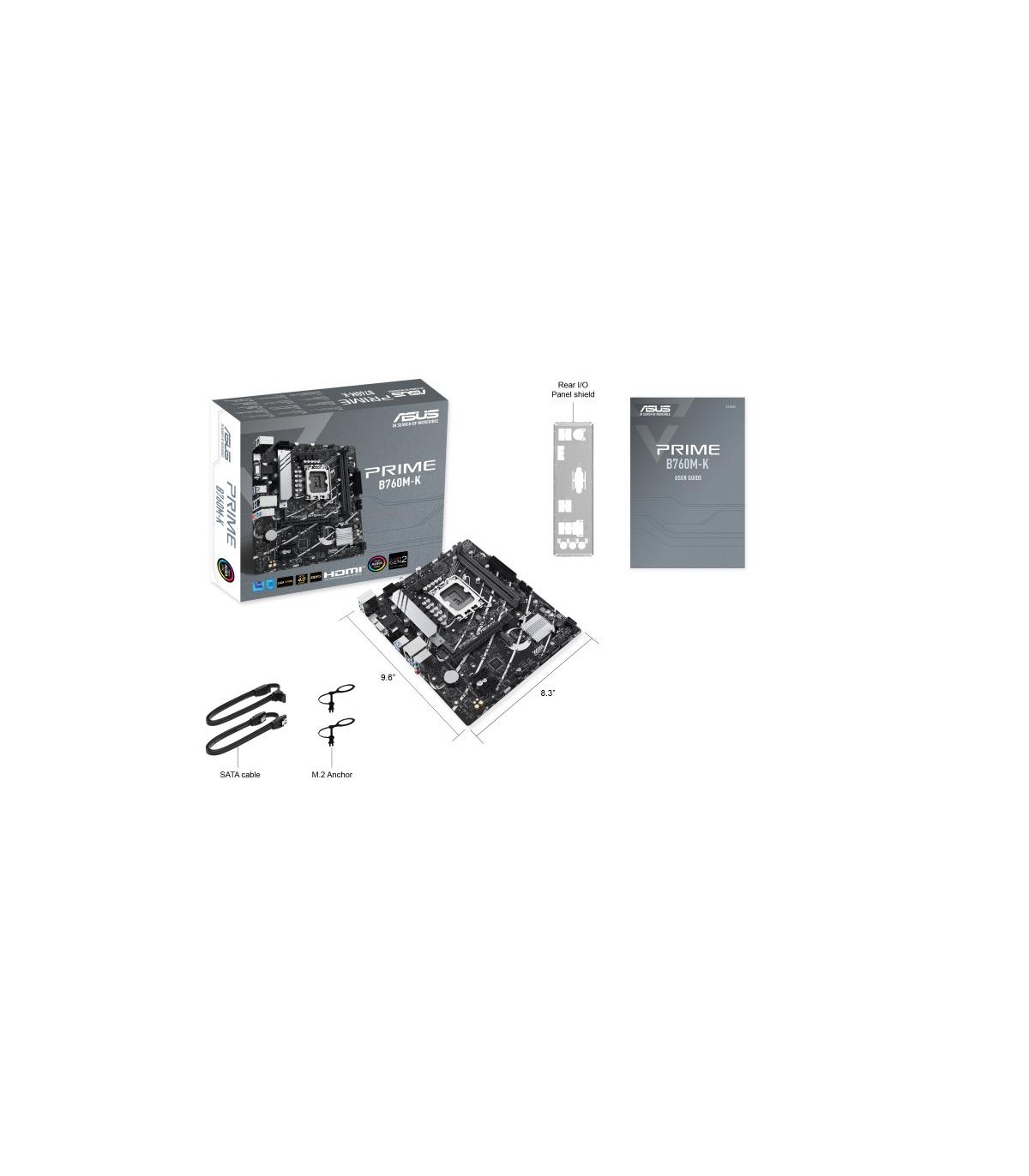

Cables included

SATA

VGA (D-Sub) ports quantity

1

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Parallel processing technology support

Not supported

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of storage drives supported

6

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

96 GB

Memory channels

Dual-channel

Motherboard chipset

Intel B760

Number of SATA III connectors

4

S/PDIF out port

Yes

Audio output channels

7.1 channels

PS/2 ports quantity

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

8000 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

1

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Maximum number of SMP processors

1

Number of COM connectors

1

S/PDIF out connector

Yes

PCI Express x1 (Gen 4.x) slots

2

ECC сompatibility

Non-ECC

Long Description

ASUS PRIME B760M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum

Bullet Points

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processorsUltrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 supportComprehensive Cooling: VRM heatsink, PCH heats
