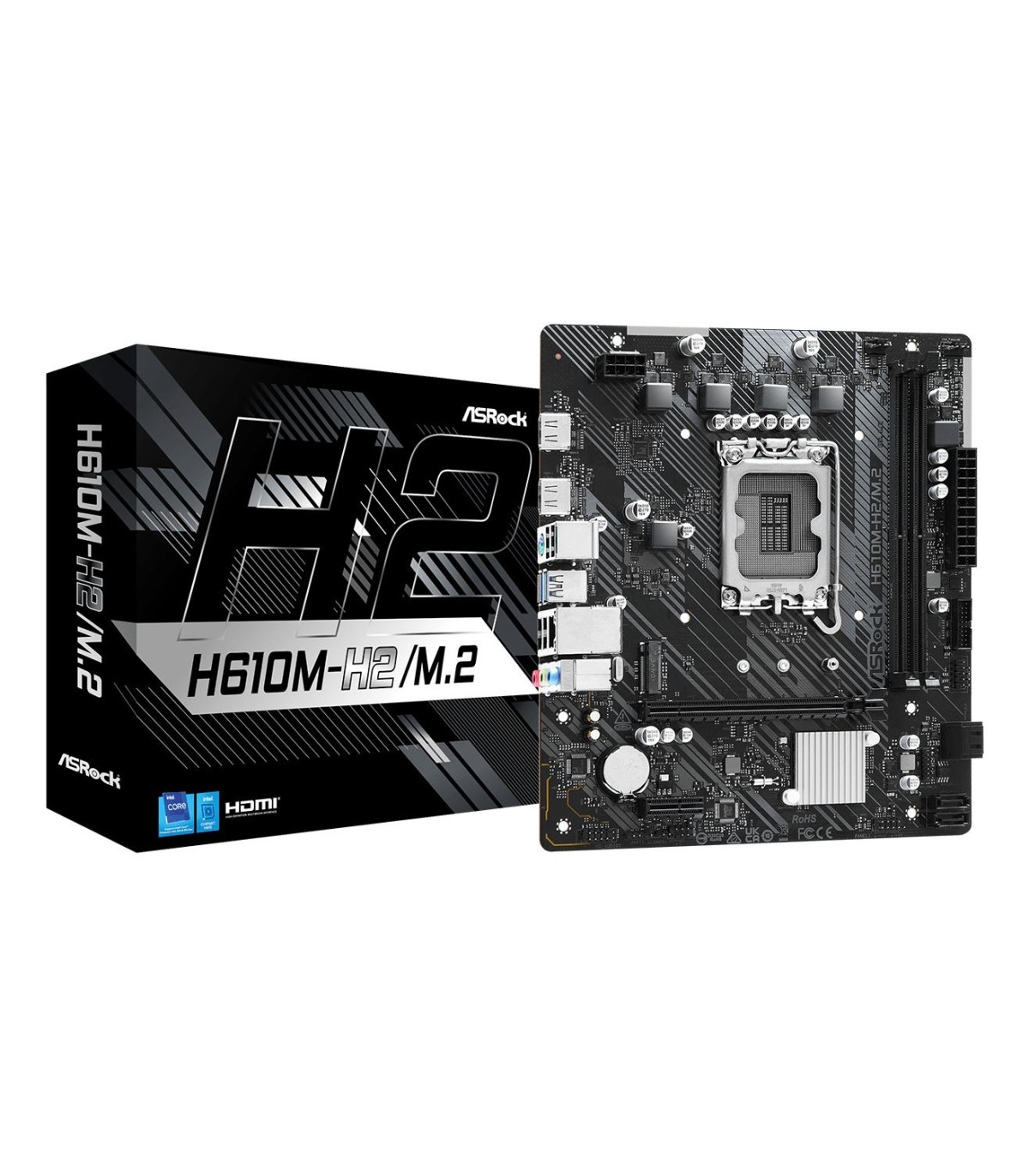

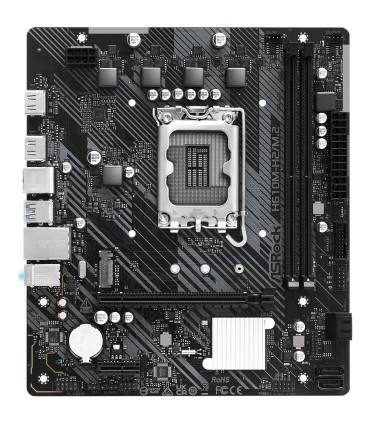

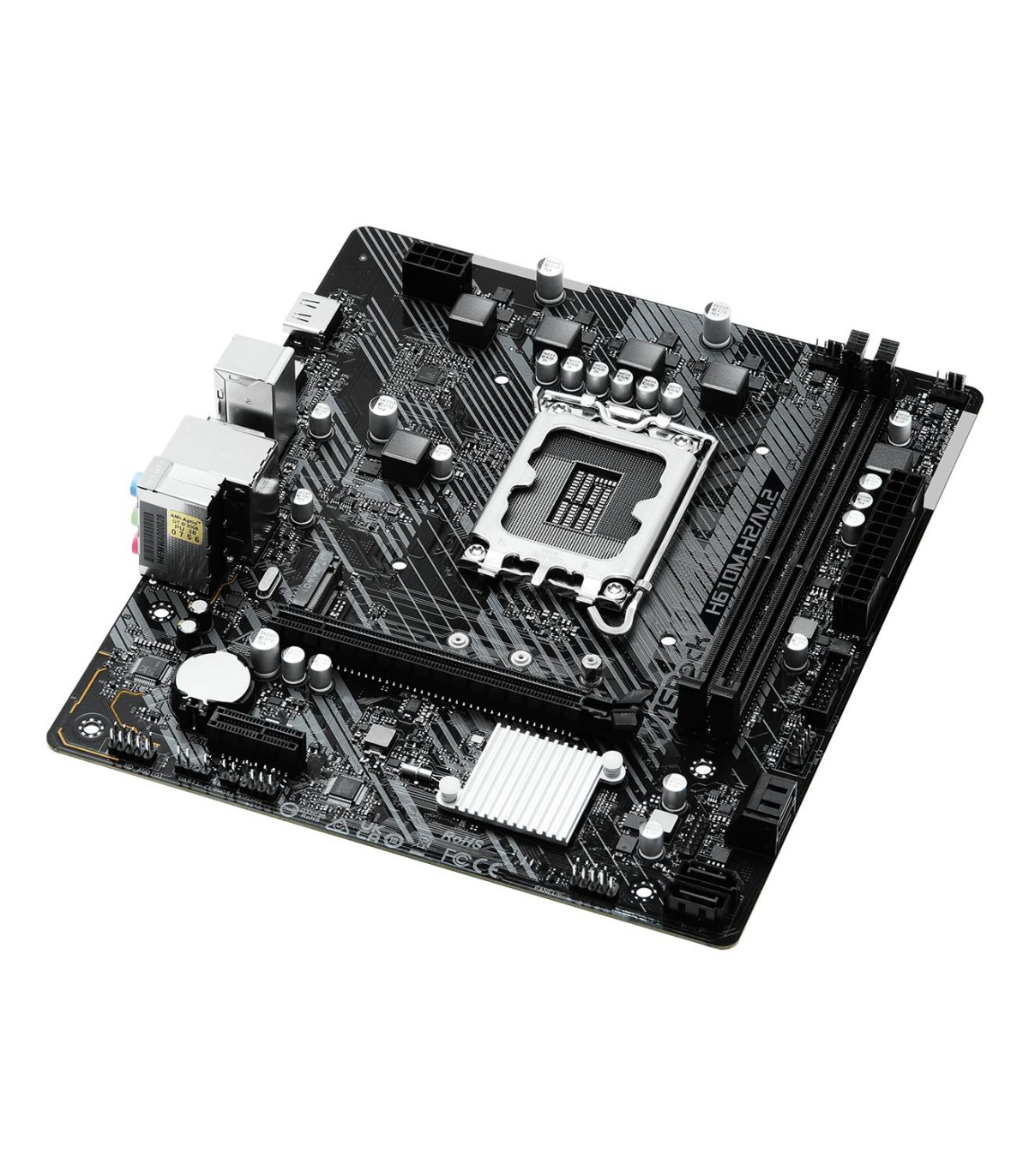

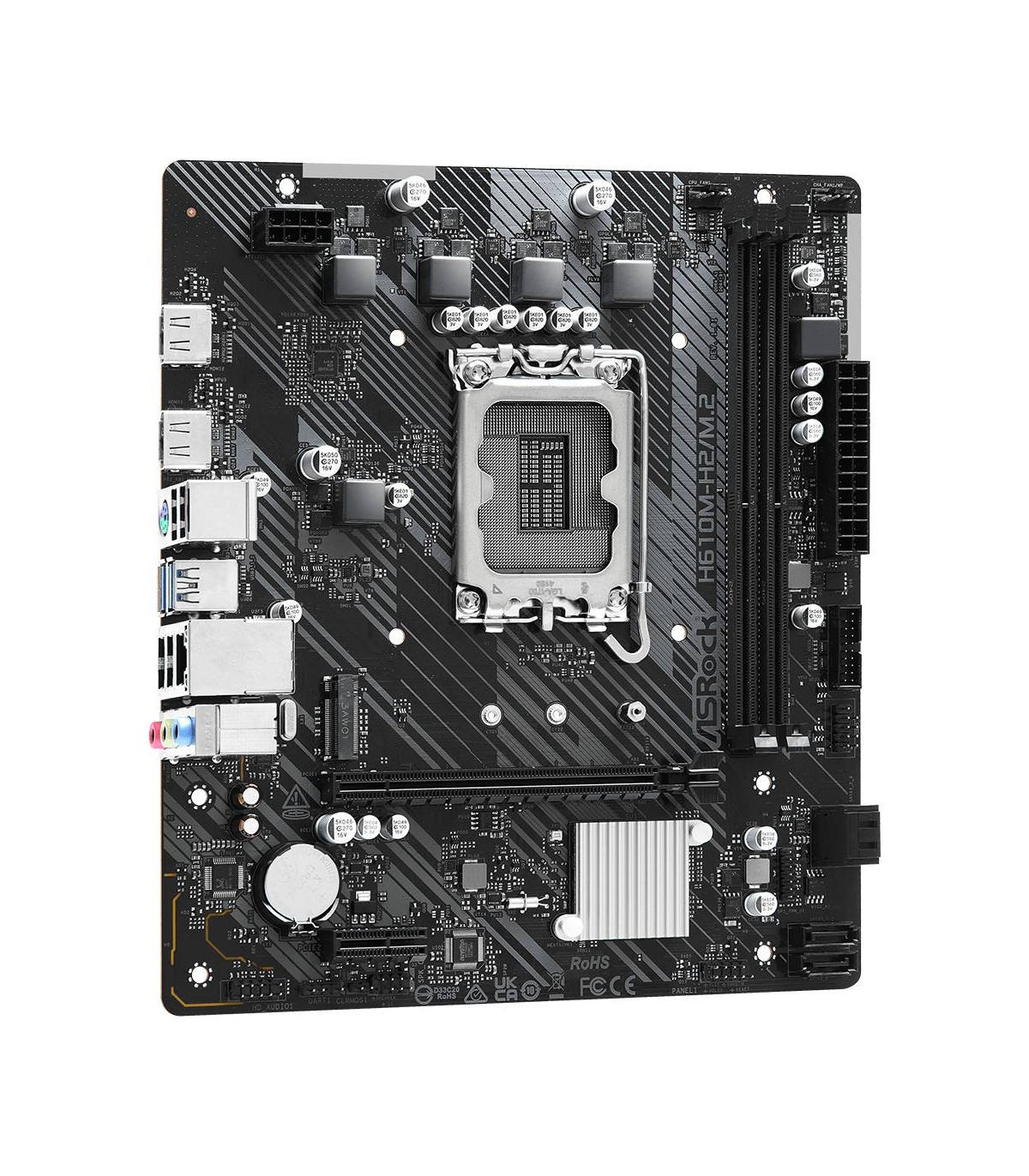

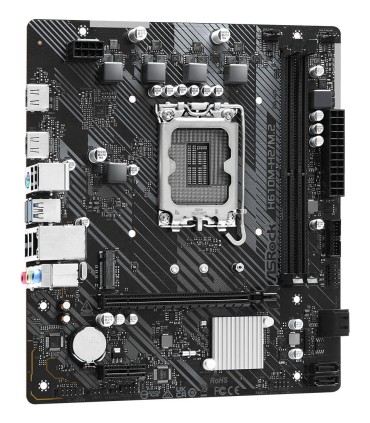

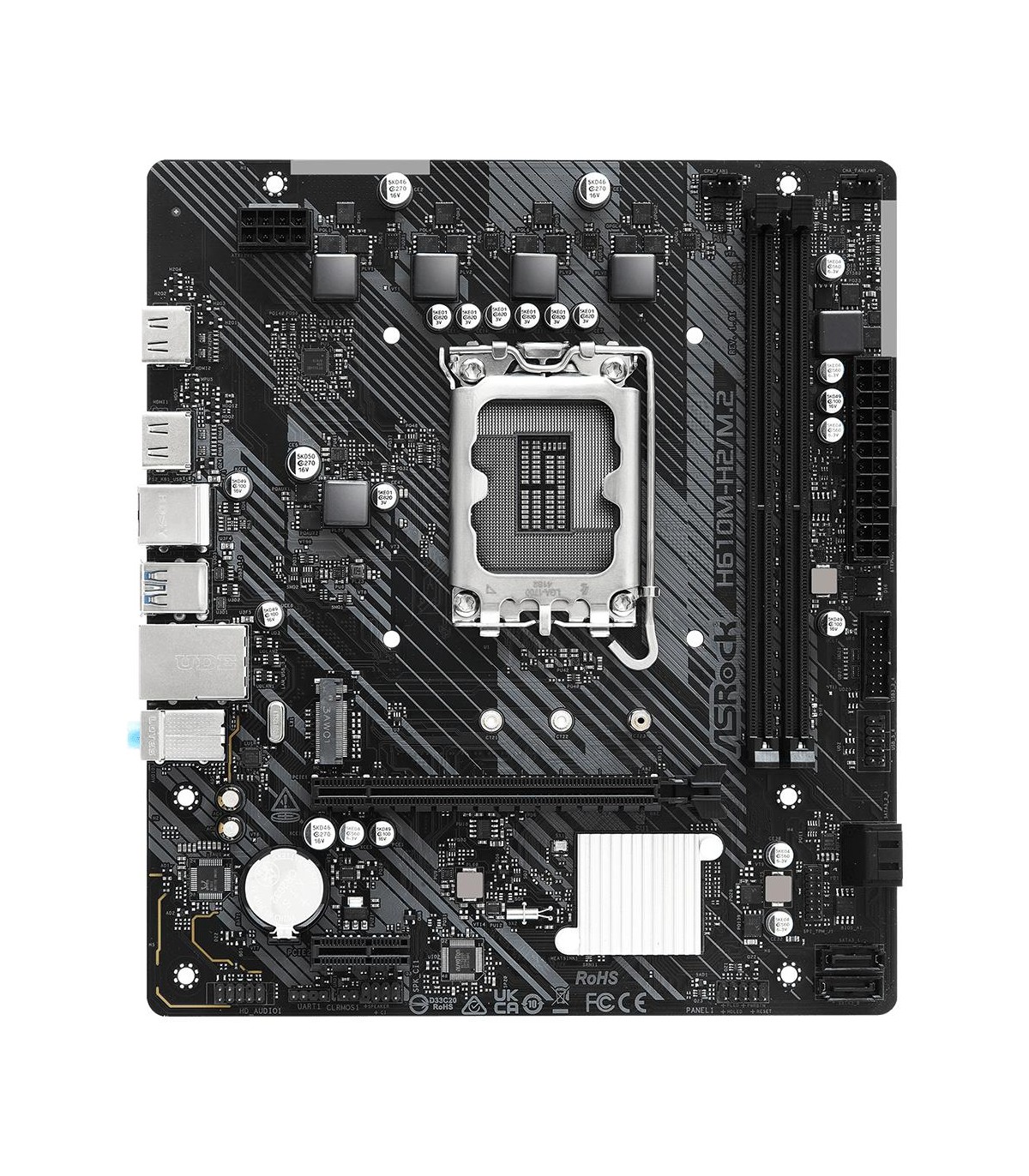

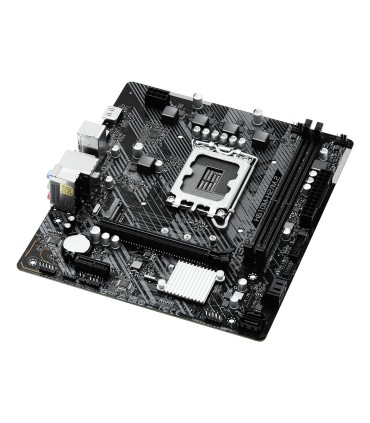

ASROCK Mainboard Intel H610 LGA1700 Micro-ATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 1xM.2 2xHDM

Другие свойства

Depth

193 mm

Width

220 mm

Unit Box Width

0.24

Unit Box Length

0.28

Unit Box Height

0.06

Category Code

MBI

Model

H610M-H2/M.2

Unit Calculated Volume

0.004511 cubm

Unit Calculated Weight

0.758 kg

Units per Shipping Box

20

Summary

Asrock H610M-H2/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen,.... Supported memory types: DDR4-SDRAM, Maximum in

Product colour

Multicolour

HDCP

Yes

HDMI ports quantity

2

Certification

- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

64 GB

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Motherboard chipset

Intel H610

LAN controller

Realtek RTL8111H

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Supported storage drive types

HDD & SSD

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

In/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core i9 13th Gen

Processor socket

LGA 1700

Supported memory clock speed (max)

3200 MHz

Unbuffered memory

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

1

Number of CPU fan connectors

1

TPM connector

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Fast Ethernet/Gigabit Ethernet

Motherboard chipset family

Intel

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Chassis intrusion connector

Yes

ECC сompatibility

ECC & Non-ECC
