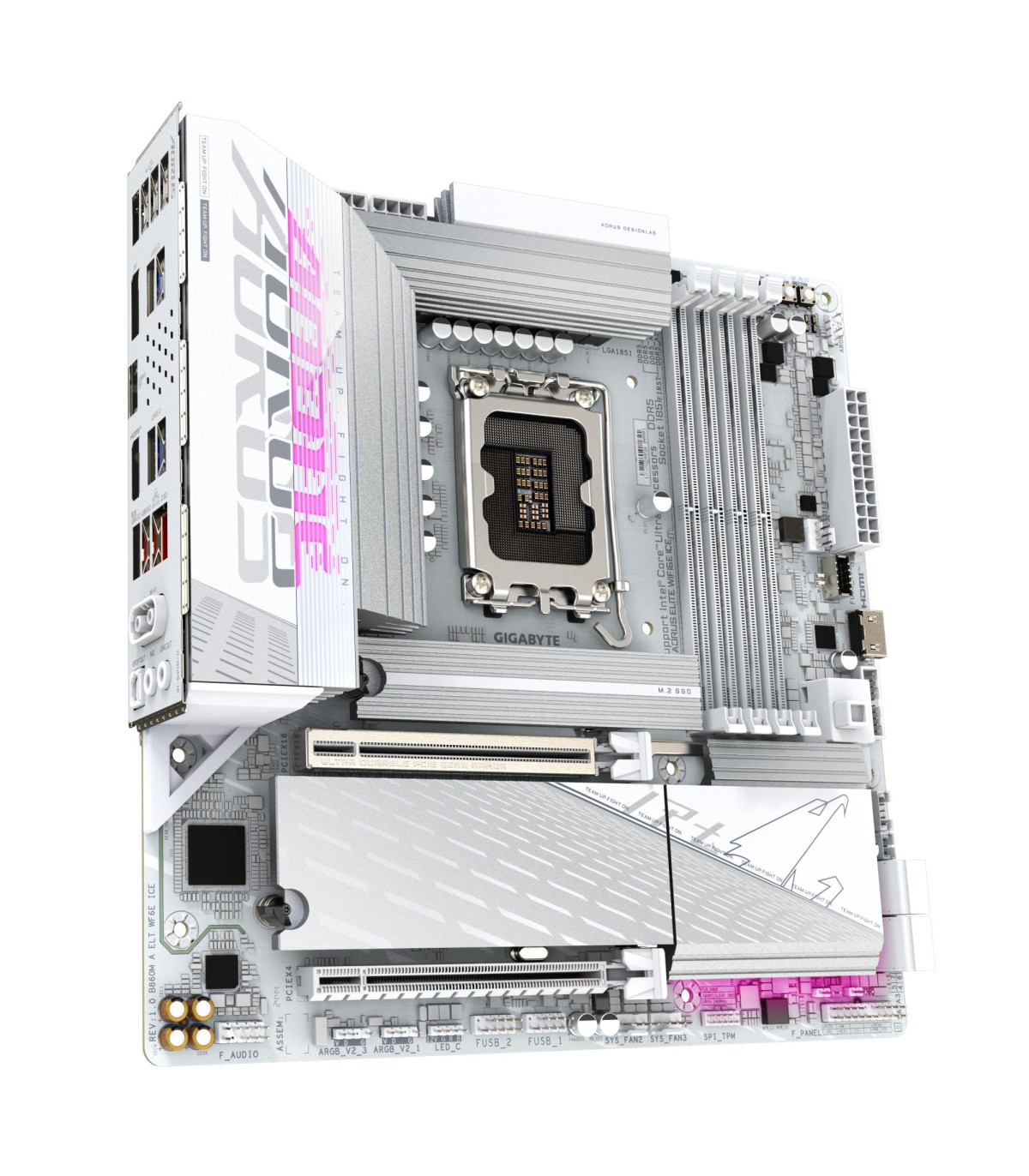

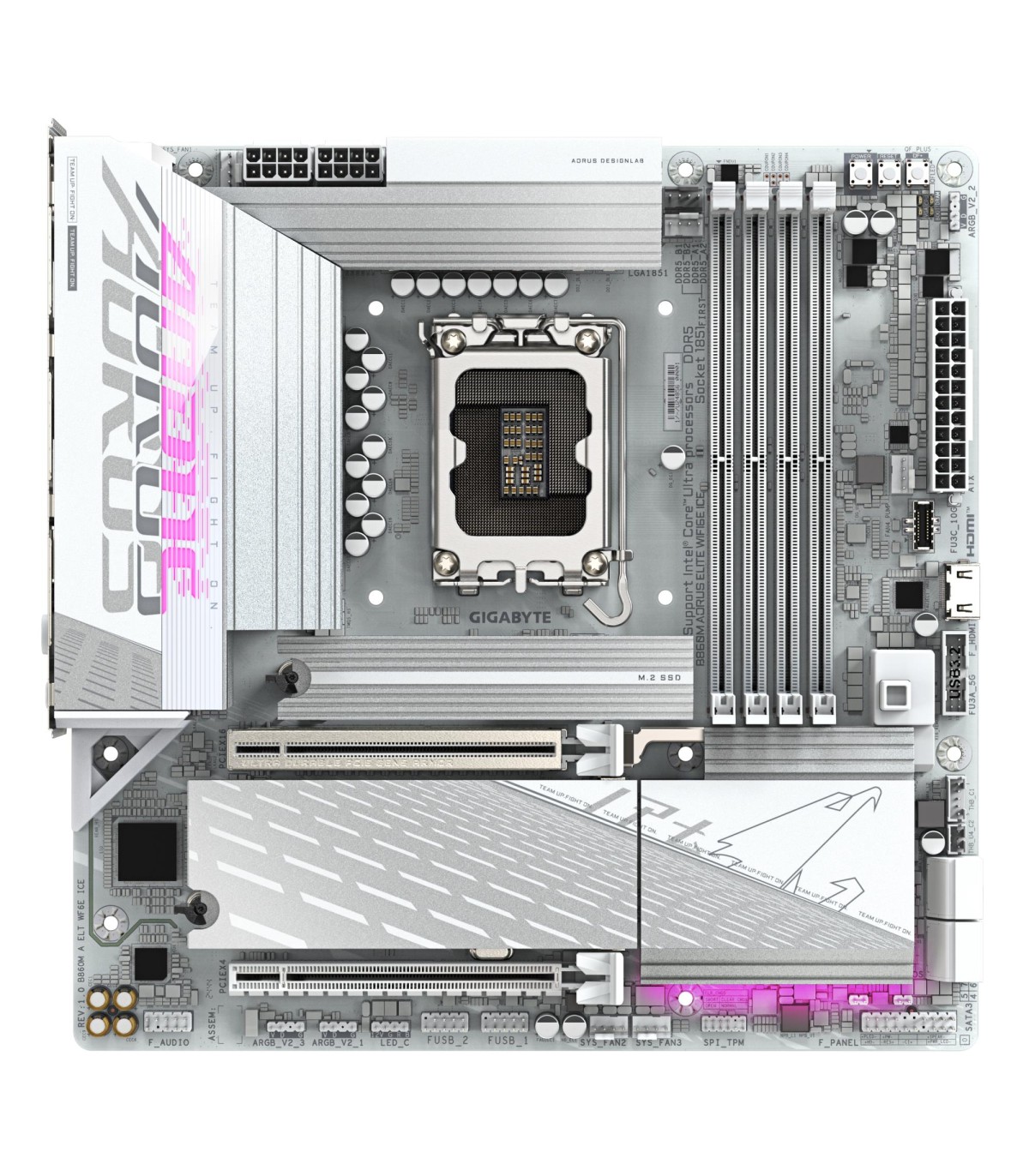

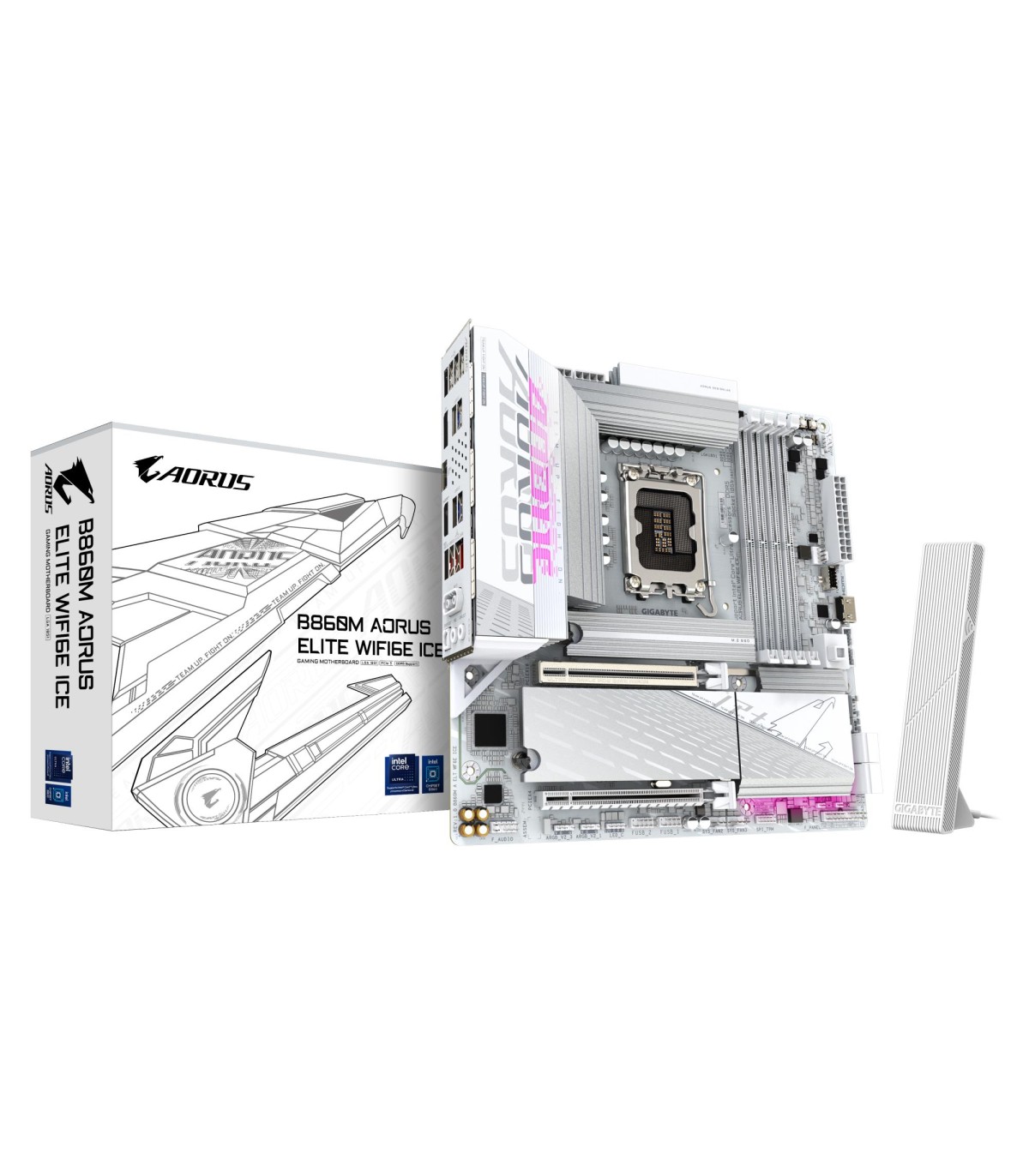

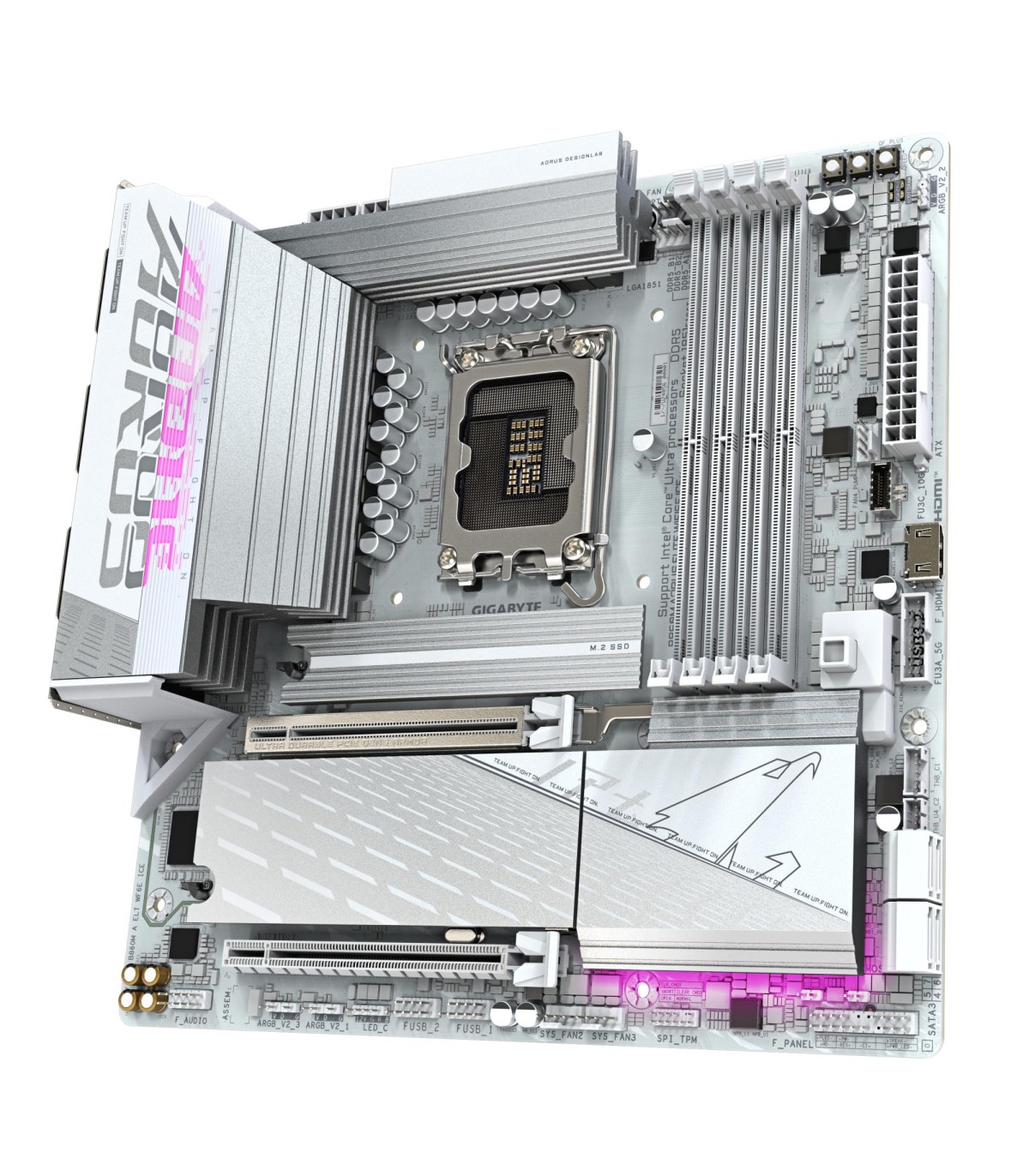

GIGABYTE Mainboard Intel B860 Express LGA1851 Micro-ATX Memory DDR5 1xPCI-Express 16x 3xM.2 1xHDMI 1xDisplayPort 4xUSB 2.0 6xUS

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Height

35 mm

Width

244 mm

Unit Box Width

0.07

Unit Box Length

0.275

Unit Box Height

0.27

Category Code

MBI

Model

B860M AORUS ELITE WIFI6E ICE

Bluetooth version

5.3

Battery weight

3 g

Unit Calculated Volume

0.004032 cubm

Unit Calculated Weight

1.9 kg

Units per Shipping Box

8

Summary

GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compat

Product colour

White

DisplayPort version

2.1

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Package depth

268 mm

Package height

68 mm

Package weight

1902.5 g

Package width

270 mm

Screws included

Yes

Bundled software

Norton Internet Security (OEM version)LAN bandwidth management software

Country of origin

China

Weight

1700 g

Headphone outputs

1

Wi-Fi

Yes

Windows operating systems supported

Windows 11 x64

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

Cooling type

Passive

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of storage drives supported

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

256 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

Audio chip

Realtek ALC897

Motherboard chipset

Intel B860

LAN controller

Realtek RTL8125

Number of SATA III connectors

4

Line-in

Yes

S/PDIF out port

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

5600/6400/9200 MHz

USB4 Gen 2x2 ports quantity

1

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

9200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

4

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

Number of RGB LED pin headers

4

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

PC health monitoring

FAN/Temperature/Voltage/Water cooling

Power source type

ATX

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

1

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Antenna included

Yes

Number of water pump connectors

2

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2580

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

25110

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Digital audio optical out

1

ECC сompatibility

ECC & Non-ECC
