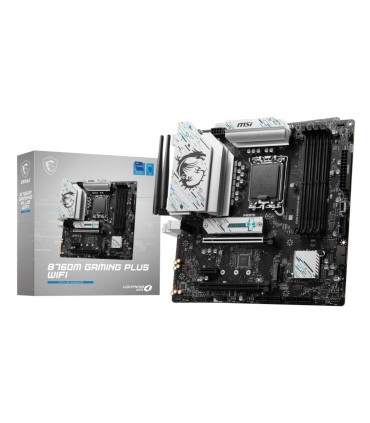

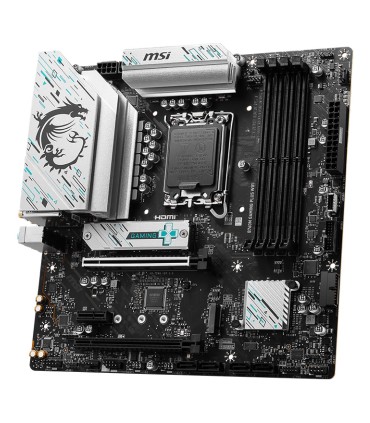

MSI Mainboard Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 4 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 4x 1xPCI-

Сеть

Bluetooth

Yes

Другие свойства

Depth

243.84 mm

Width

243.84 mm

Unit Box Width

0.0275

Unit Box Length

0.3

Unit Box Height

0.055

Category Code

MBI

Model

B760M GAMING PLUS WIFI

Bluetooth version

5.3

Unit Calculated Volume

0.005495 cubm

Unit Calculated Weight

1.34 kg

Units per Shipping Box

10

Summary

MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Su

DisplayPort version

1.4

DisplayPorts quantity

2

HDMI ports quantity

2

HDMI version

2.1

Wi-Fi

Yes

Windows operating systems supported

Windows 10/Windows 11

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

ATX Power connector (24-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

192 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Audio chip

Realtek ALC897

Motherboard chipset

Intel B760

Number of SATA III connectors

4

Audio output channels

7.1 channels

PCI Express x1 (Gen 3.x) slots

2

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

6800 MHz

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

Power source type

ATX

ACPI version

6.4

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

System Management BIOS (SMBIOS) version

3.5

Maximum number of SMP processors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

ECC сompatibility

Non-ECC
