MSI Mainboard AMD B850 SAM5 ATX Memory DDR5 Memory slots 4 3xPCI-Express 16x 4xM.2 1xHDMI 1xAudio-In 1xAudio-Out 4xUSB 2.0 1xUS

Сеть

Bluetooth

Yes

Другие свойства

Depth

304.8 mm

Width

243.84 mm

Unit Box Width

0.07

Unit Box Length

0.345

Unit Box Height

0.275

Category Code

MBA

Model

MAG B850 TOMAHAWK MAX WIFI

Bluetooth version

5.4

Unit Calculated Volume

0.006641 cubm

Unit Calculated Weight

2.05 kg

Units per Shipping Box

1

Summary

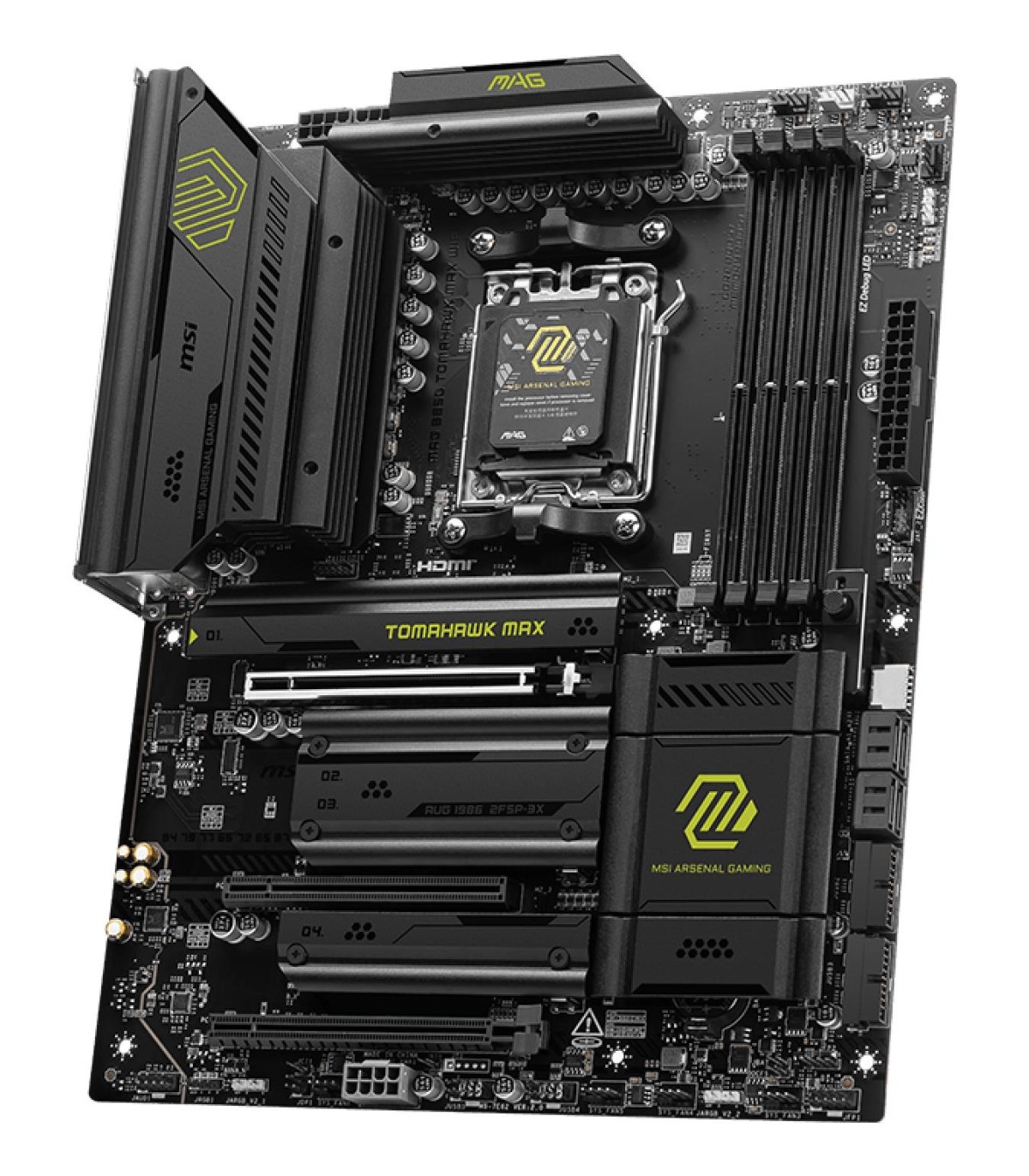

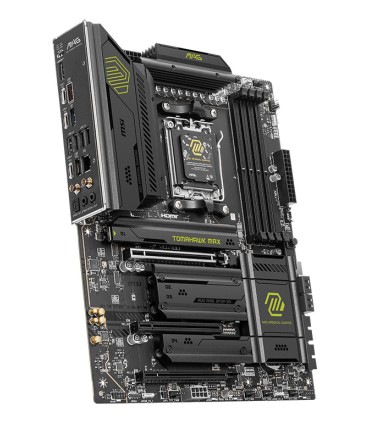

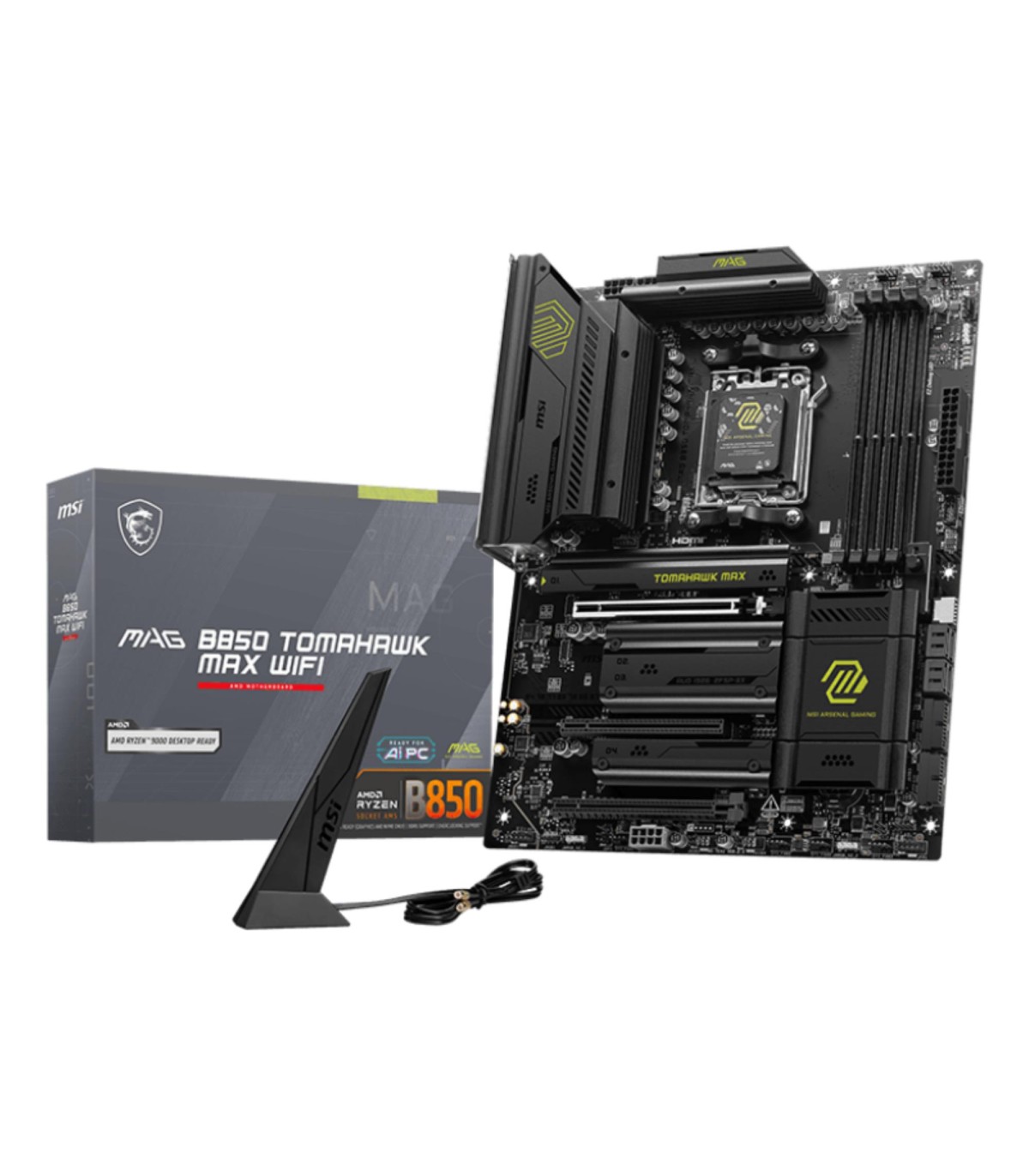

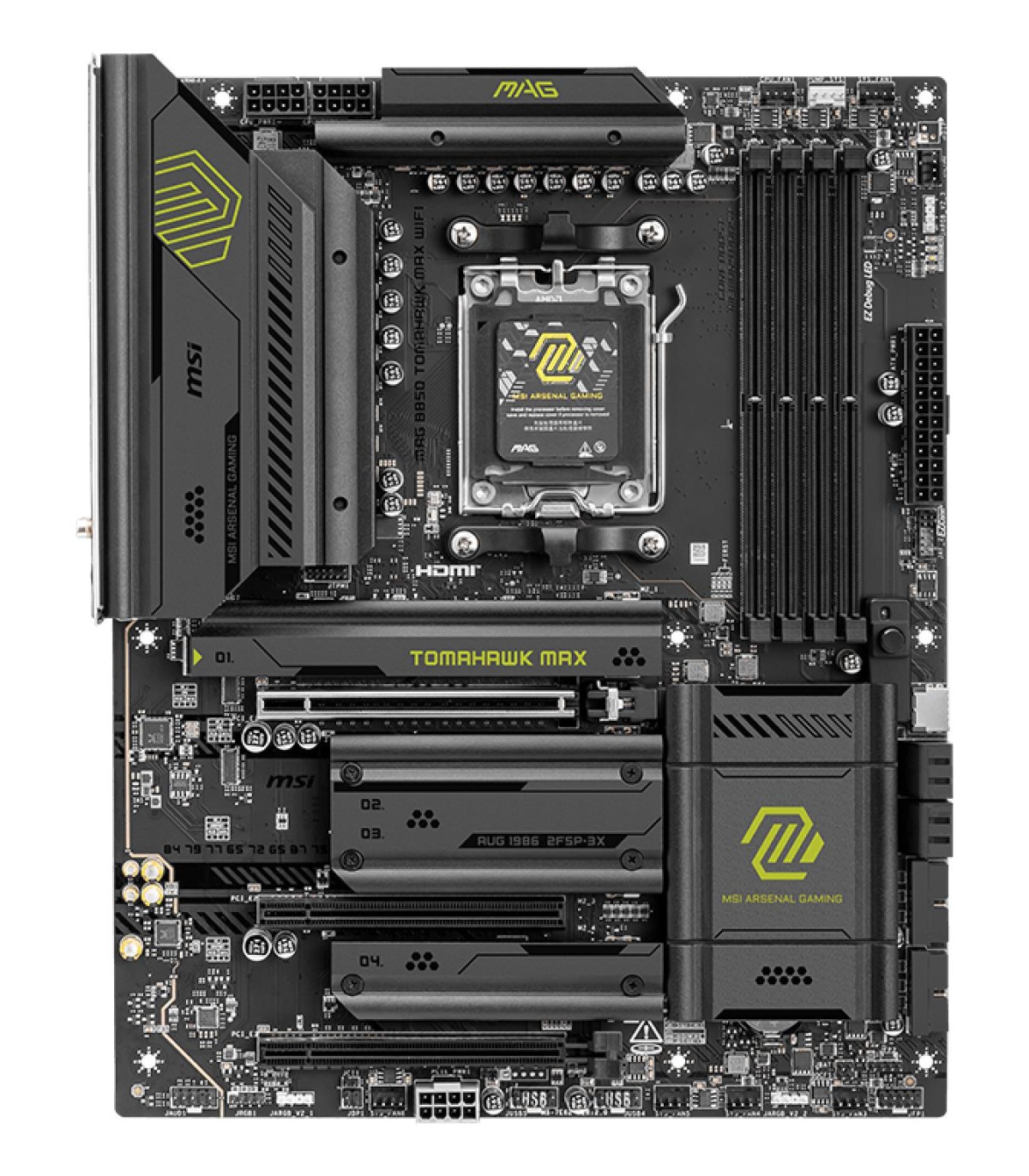

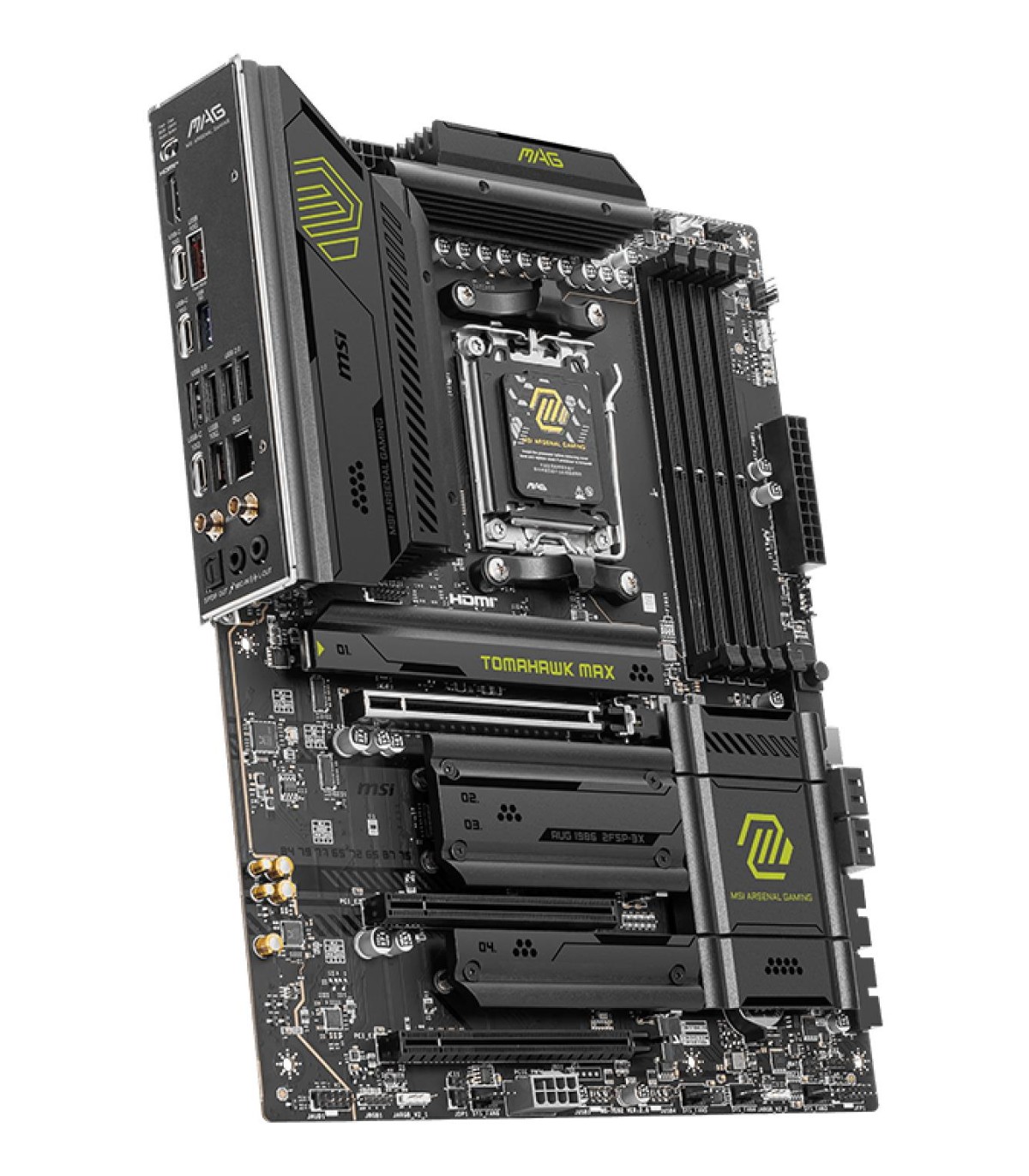

MSI MAG B850 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 G

Product colour

White

HDMI ports quantity

1

HDMI version

2.1

Wi-Fi

Yes

Windows operating systems supported

Windows 11 x64

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

3

Number of storage drives supported

8

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Number of HDDs supported

4

Processor manufacturer

AMD

Maximum internal memory

256 GB

Memory channels

Dual-channel

On-board graphics card

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Audio chip

Realtek ALC4080

Motherboard chipset

AMD B850

Number of SATA III connectors

4

Total number of SATA connectors

4

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

PCI Express x16 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5600/8400 MHz

Motherboard form factor

ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Supported memory clock speed (max)

8400 MHz

RAID levels

0/1/10

RAID support

Yes

Supported storage drive interfaces

M.2,Micro SATA III

CPU fan connector

Yes

Number of CPU fan connectors

6

Number of RGB LED pin headers

3

RGB LED pin header

Yes

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Ethernet interface type

5 Gigabit Ethernet

Motherboard chipset family

AMD

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

22110

Number of M.2 (M) slots

4

PCI Express x16 (Gen 4.x) slots

1

Number of water pump connectors

1

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Maximum internal memory supported by processor

256 GB

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

2280

ECC сompatibility

Non-ECC
