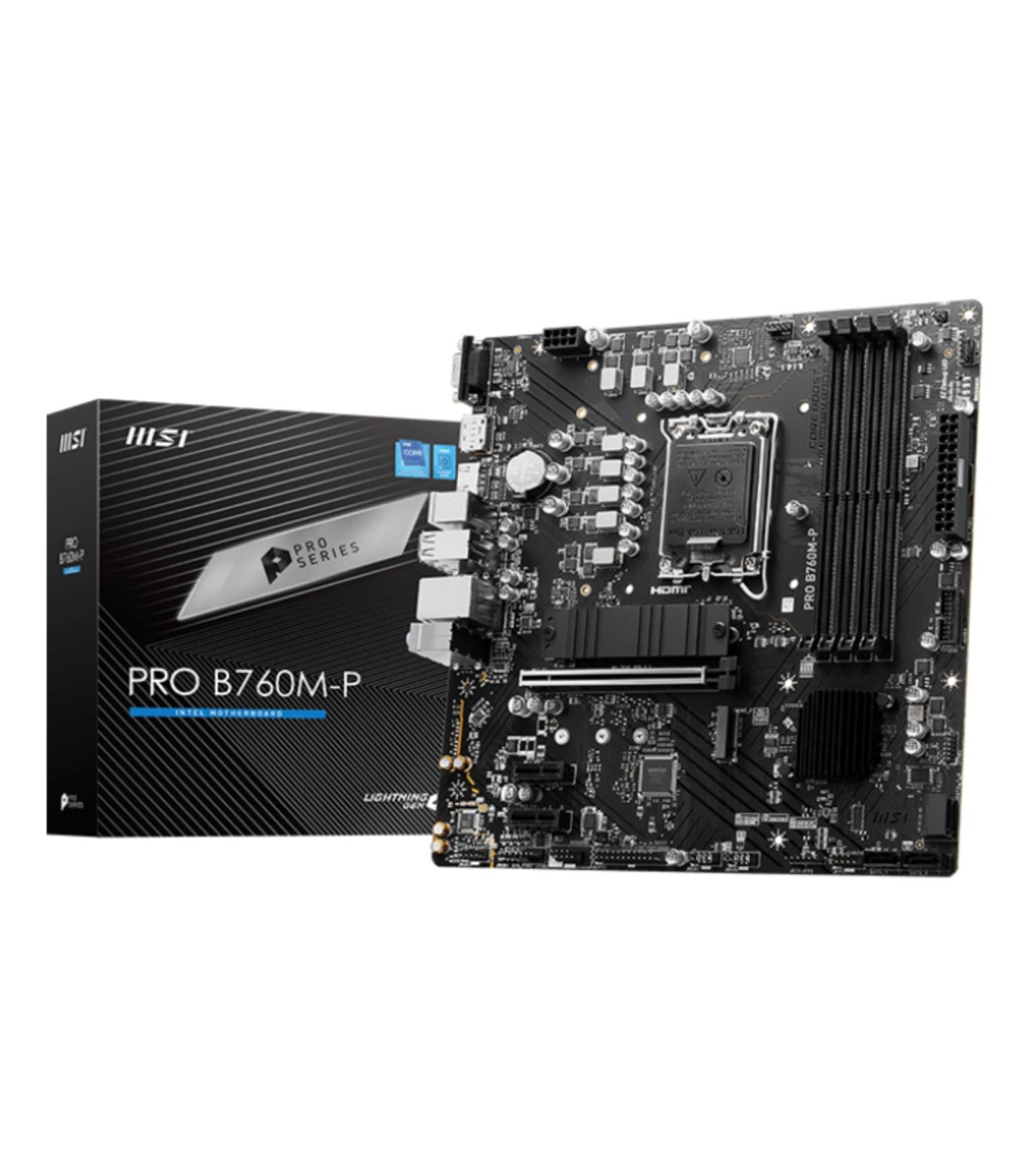

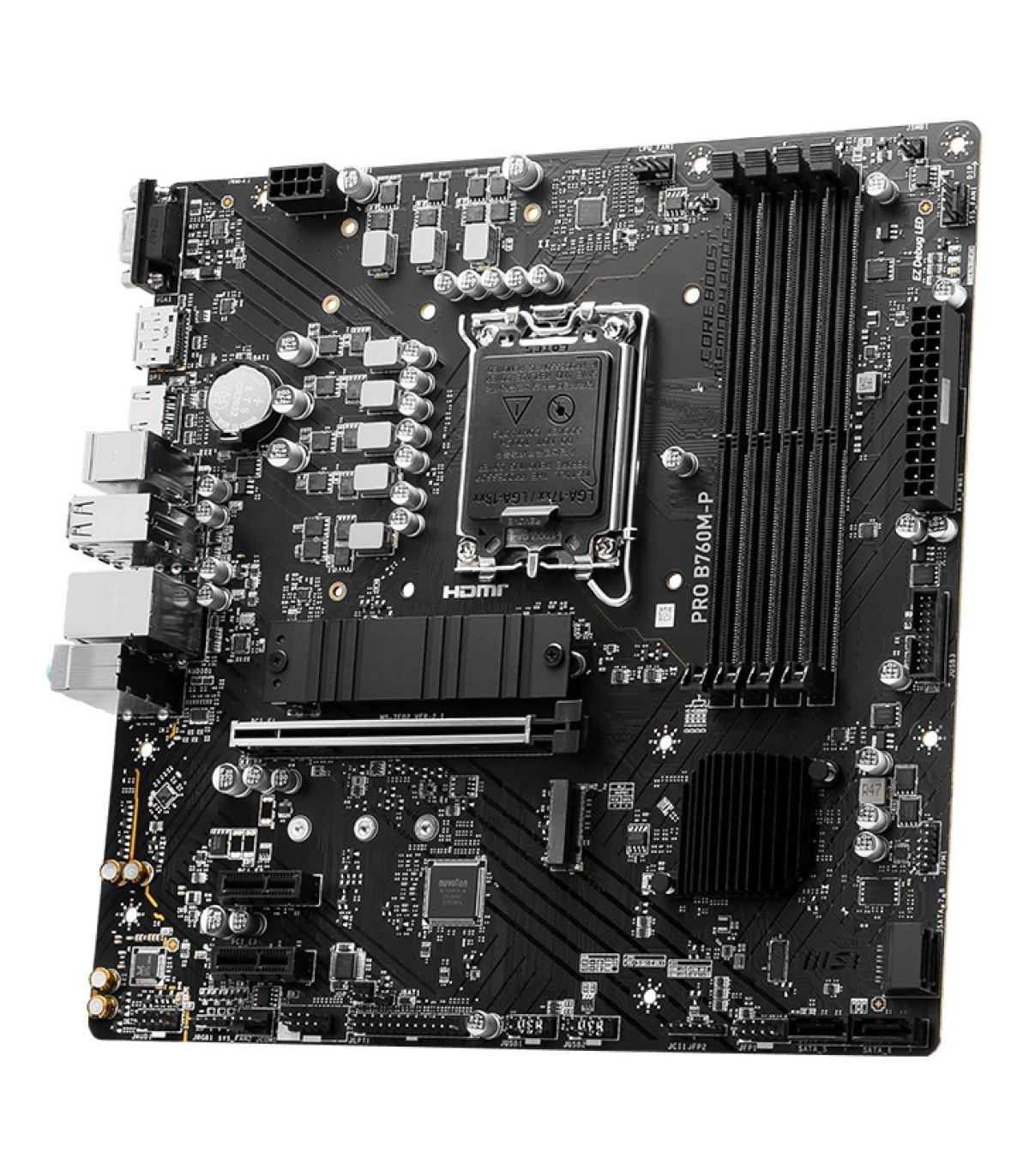

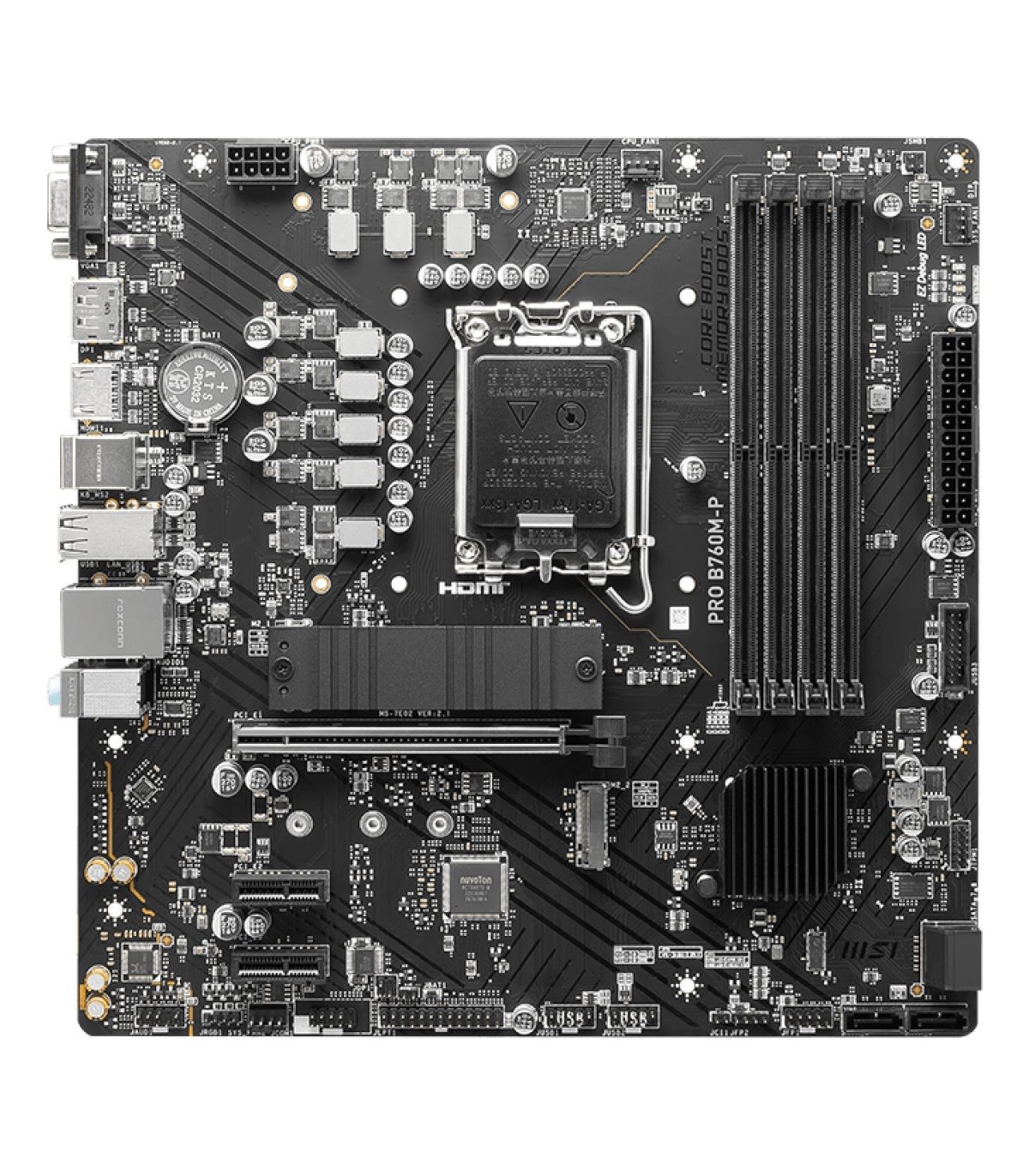

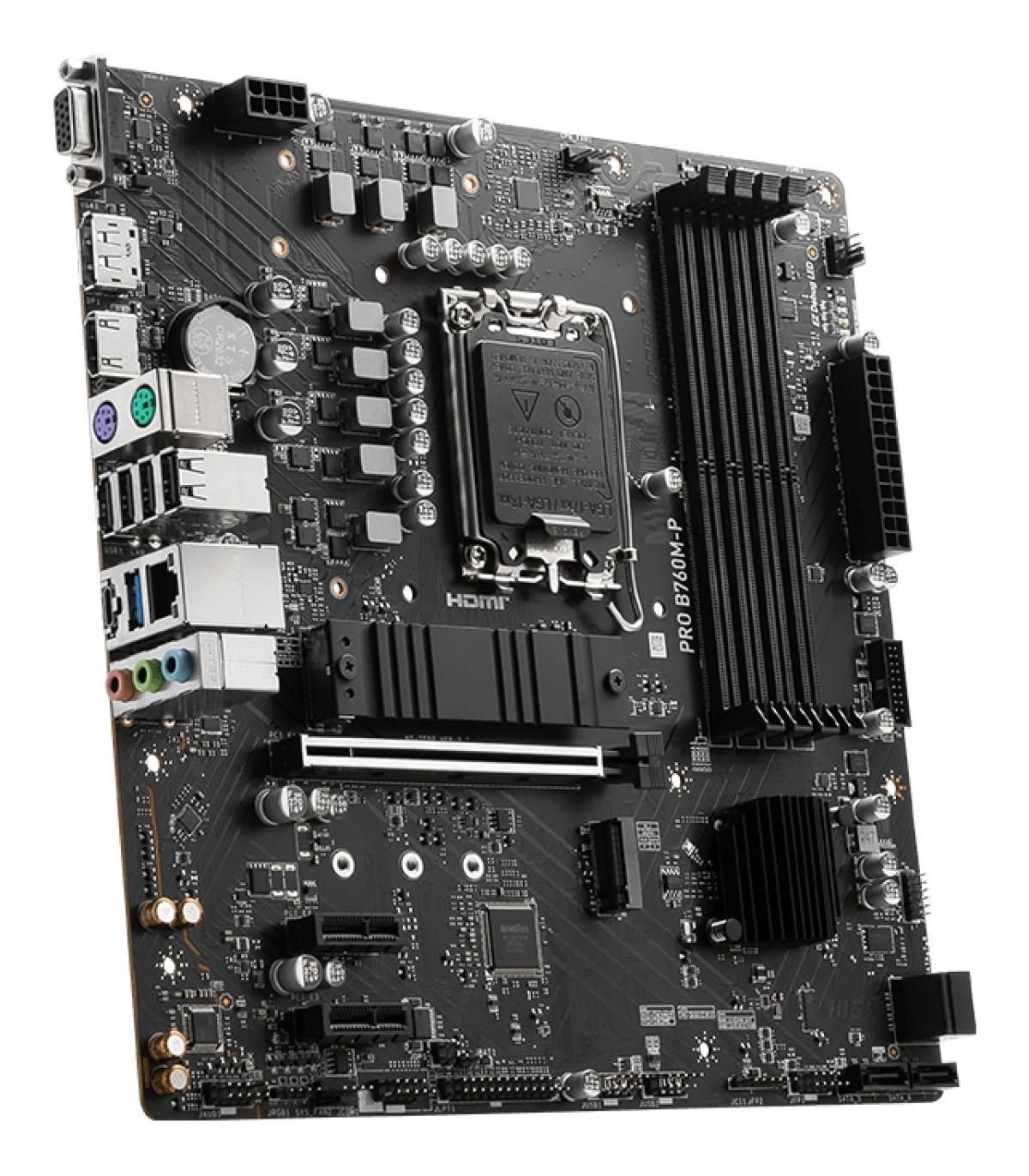

MSI Mainboard Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 4 2xPCI-Express 1x 1xPCI-Express 16x 2xM.2 1x15pin

Другие свойства

Depth

243.84 mm

Width

243.84 mm

Unit Box Width

0.275

Unit Box Length

0.3

Unit Box Height

0.056

Category Code

MBI

Model

PRO B760M-P

Unit Calculated Volume

0.00462 cubm

Unit Calculated Weight

0.9 kg

Units per Shipping Box

1

Summary

MSI PRO B760M-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported

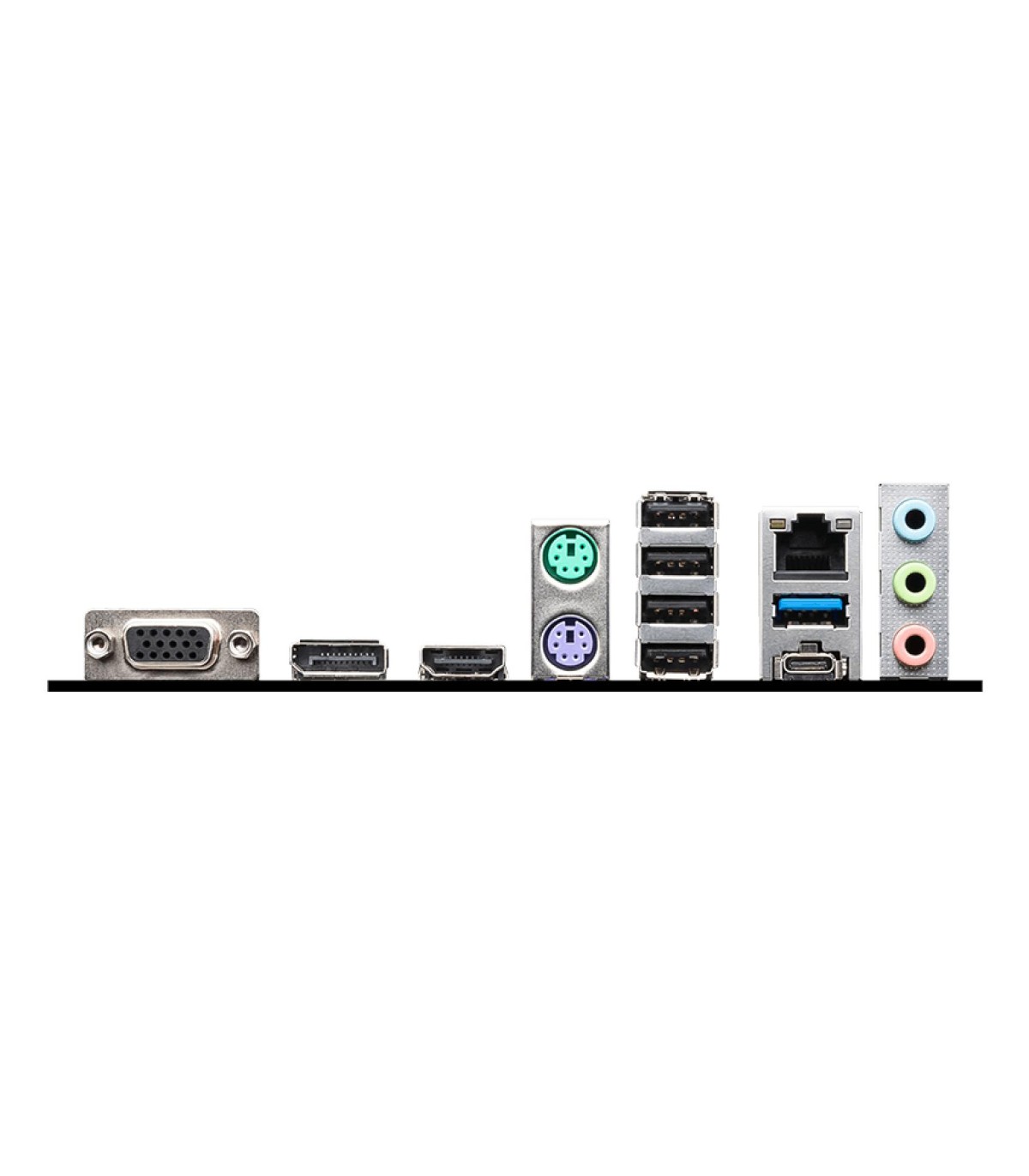

DisplayPort version

1.4

DisplayPorts quantity

1

HDMI ports quantity

1

HDMI version

1.4

Cables included

SATA

VGA (D-Sub) ports quantity

1

Headphone outputs

1

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Number of storage drives supported

6

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

192 GB

Audio chip

Realtek ALC897

Motherboard chipset

Intel B760

LAN controller

Realtek RTL8111H

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

PS/2 ports quantity

2

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

Intel

Power source type

ATX

PCI Express x16 (Gen 4.x) slots

1

ACPI version

6.4

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

System Management BIOS (SMBIOS) version

3.5

Chassis intrusion connector

Yes

Number of COM connectors

1

PCI Express x1 (Gen 4.x) slots

2

Parallel connector

Yes

ECC сompatibility

Non-ECC
