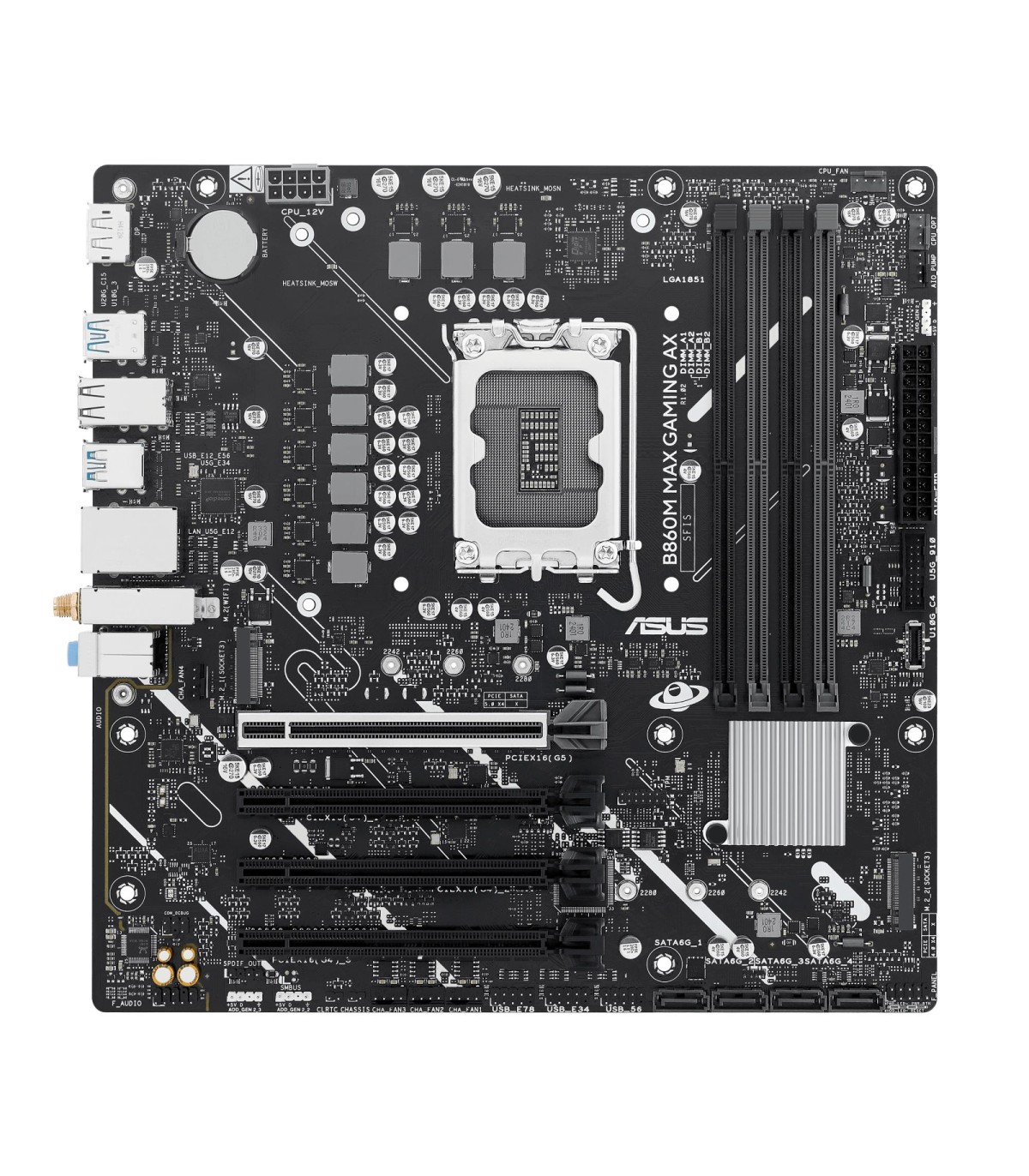

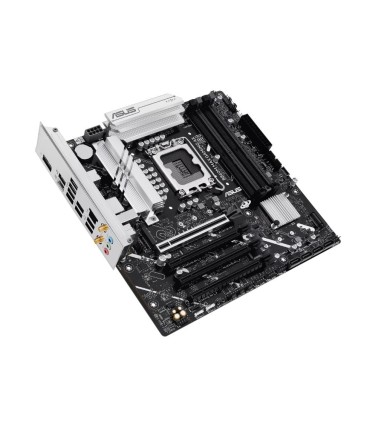

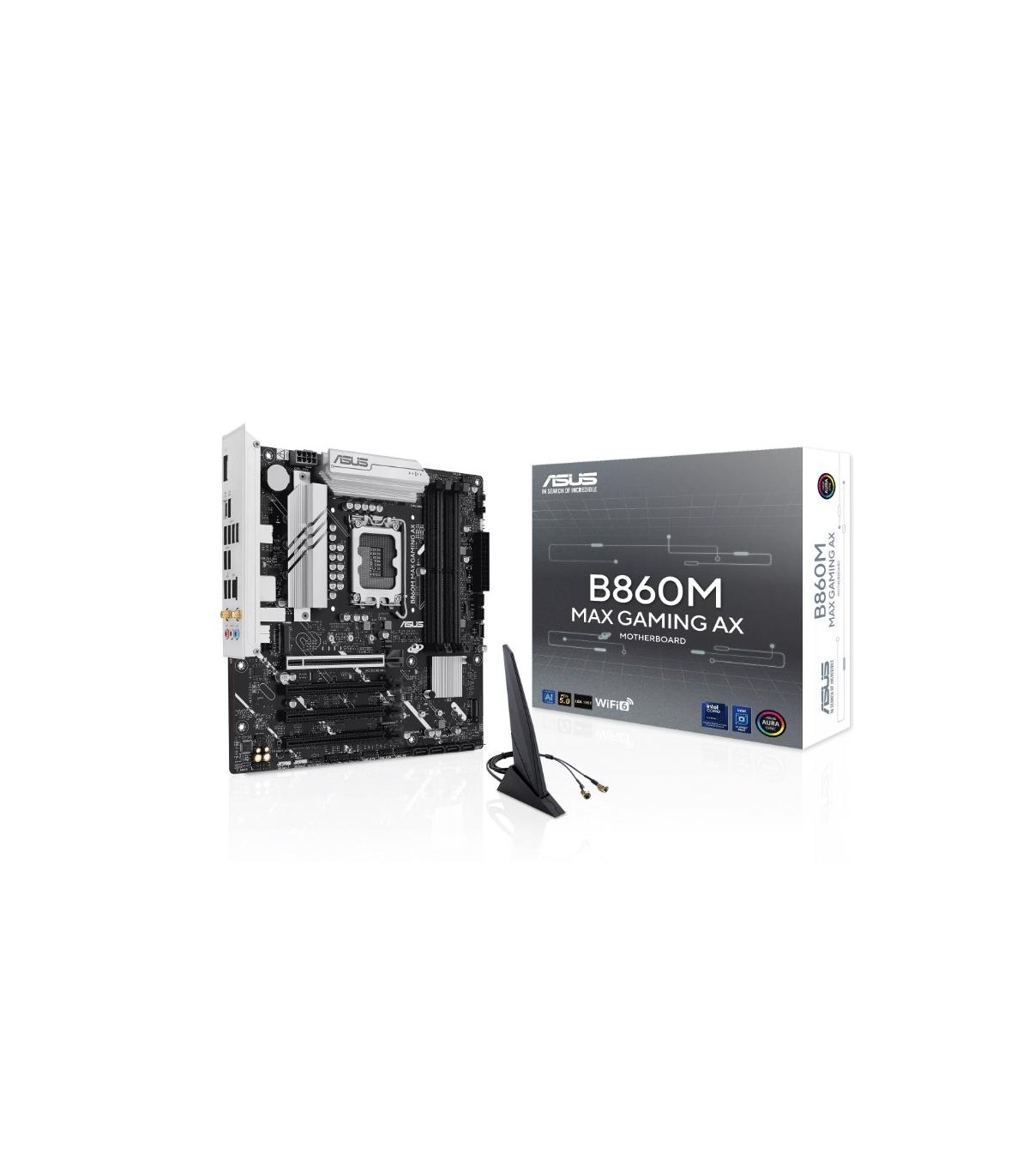

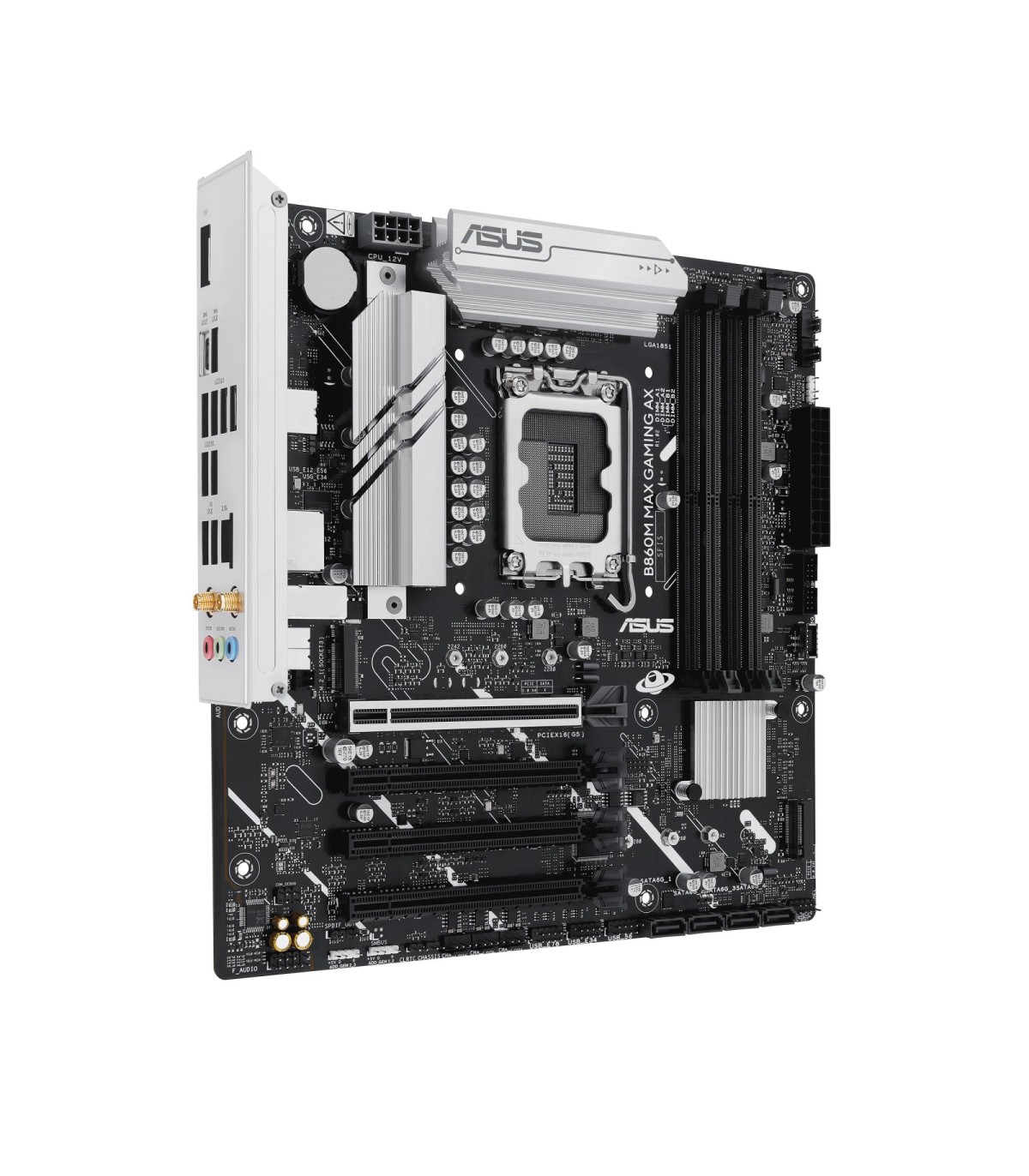

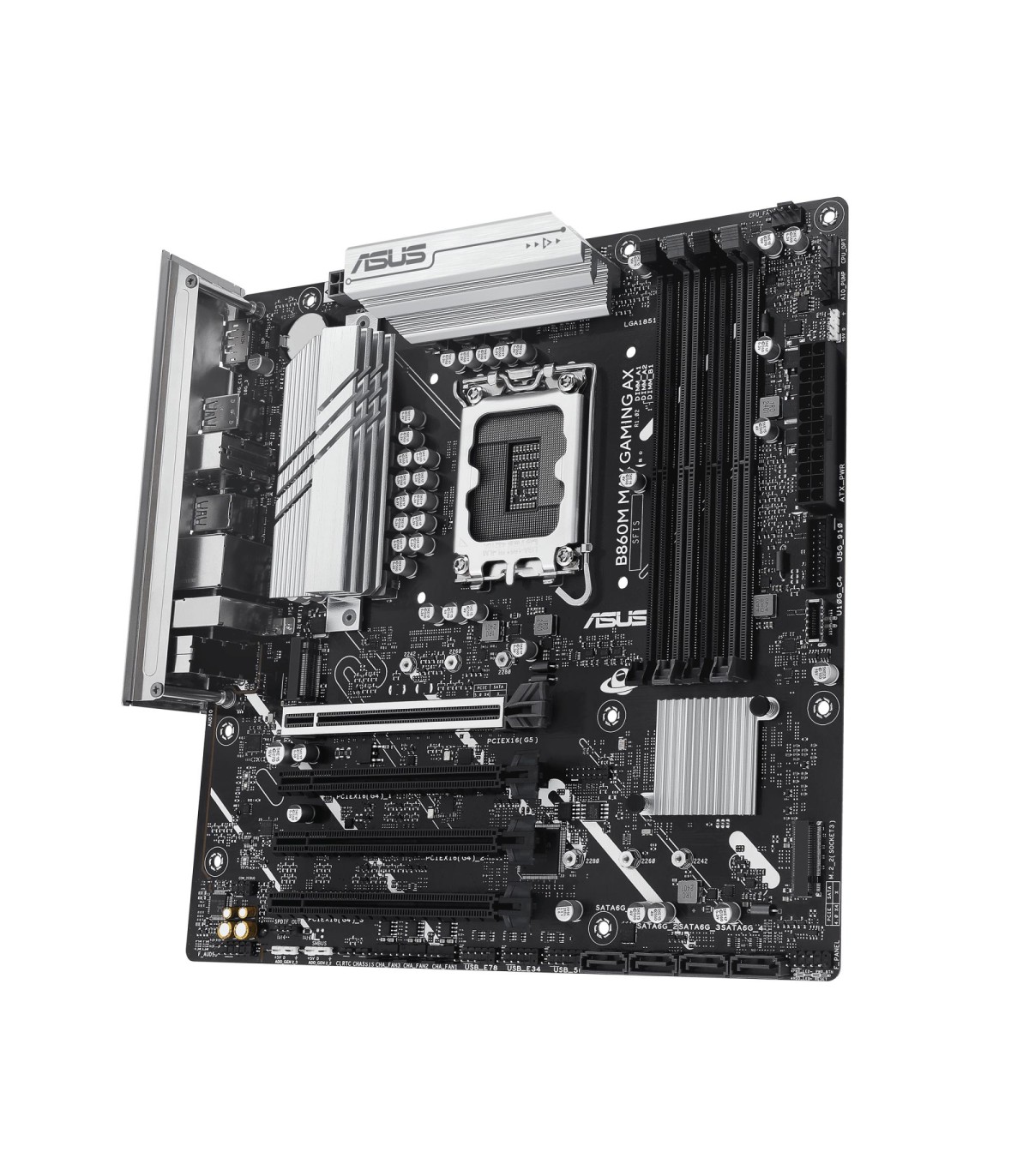

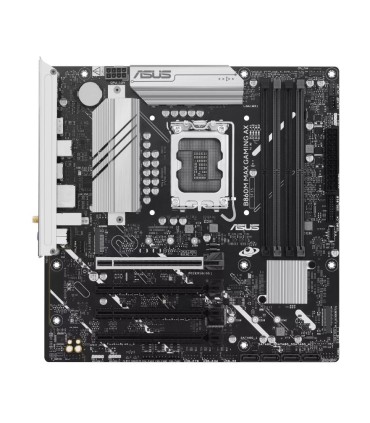

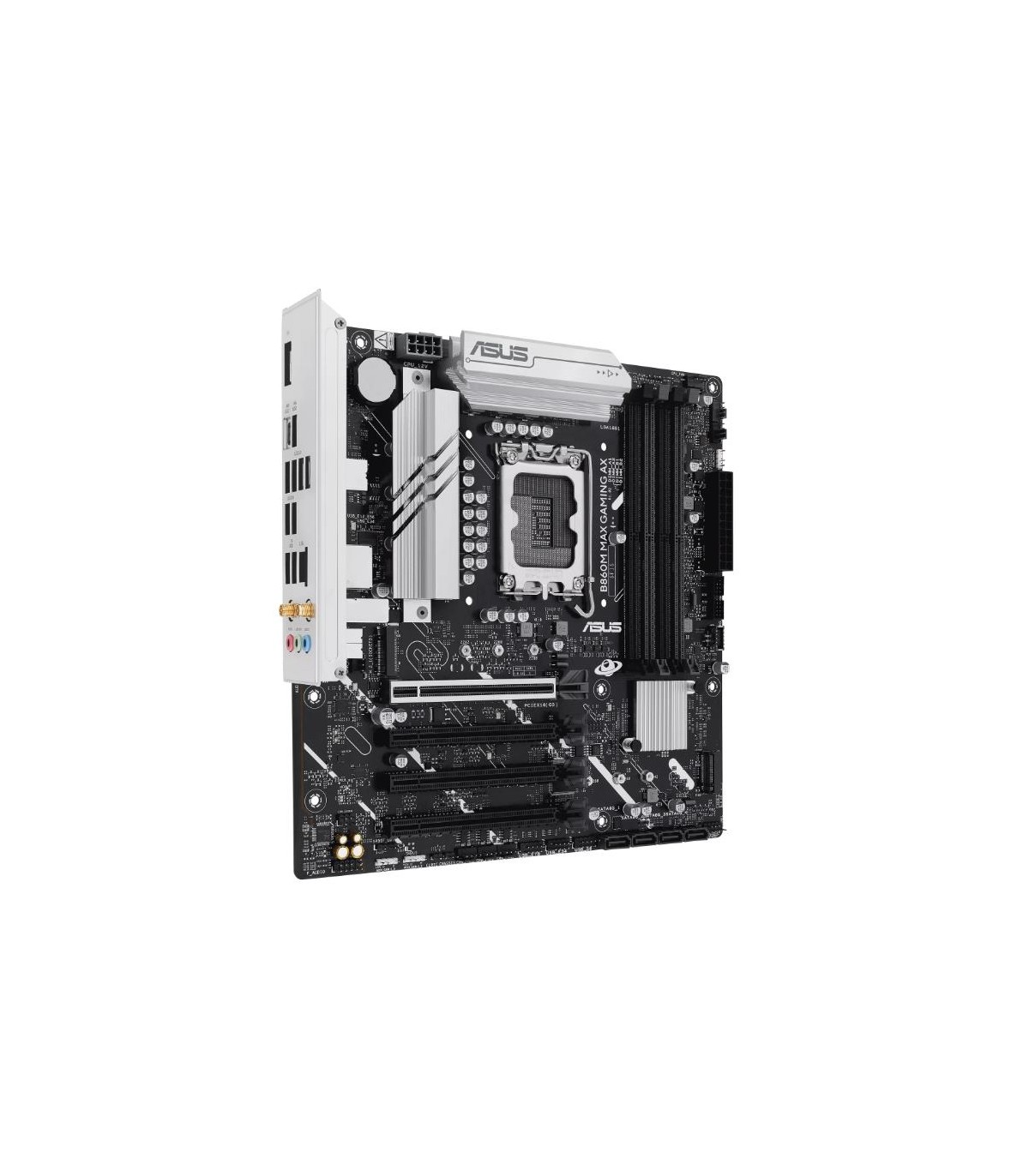

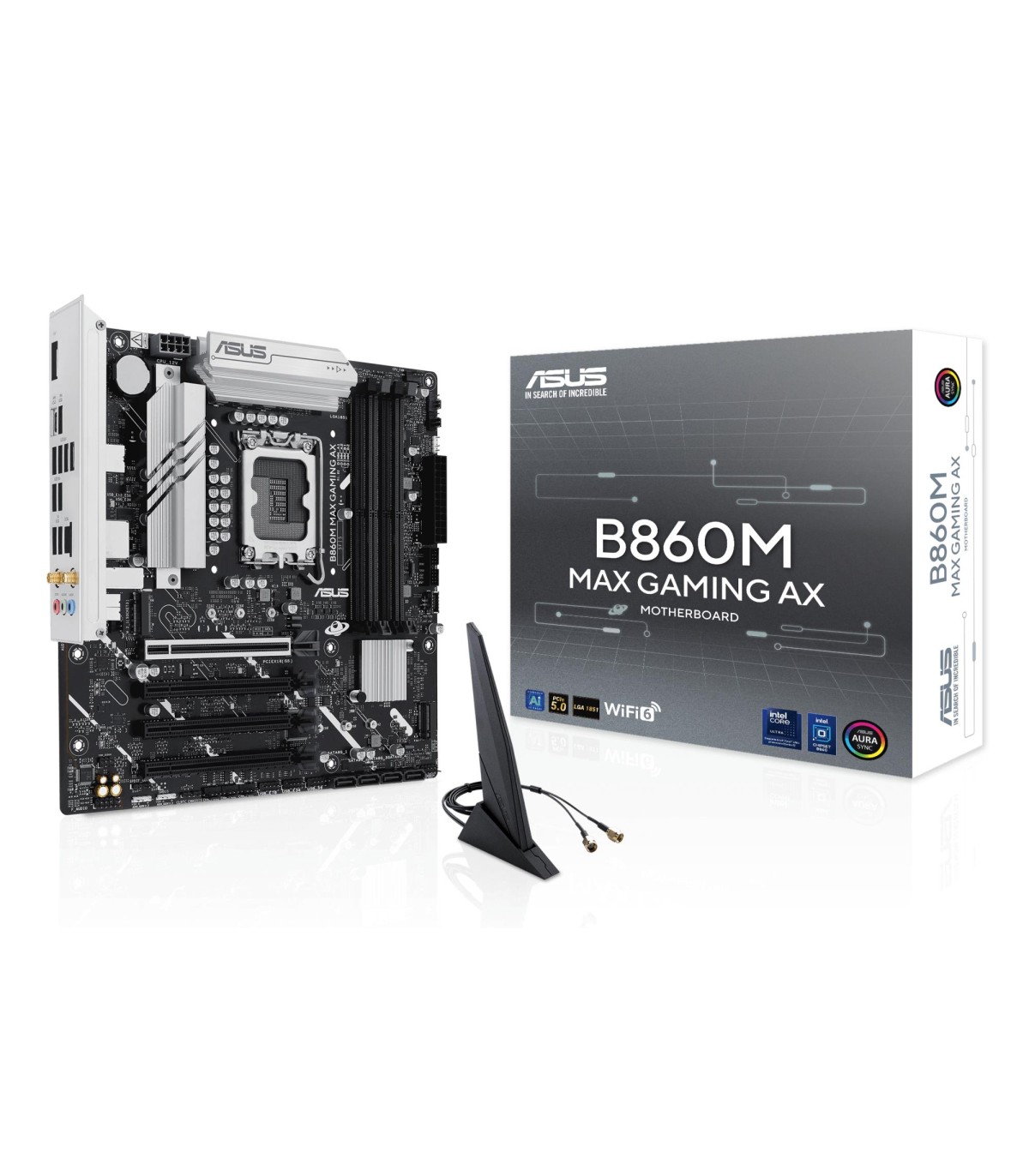

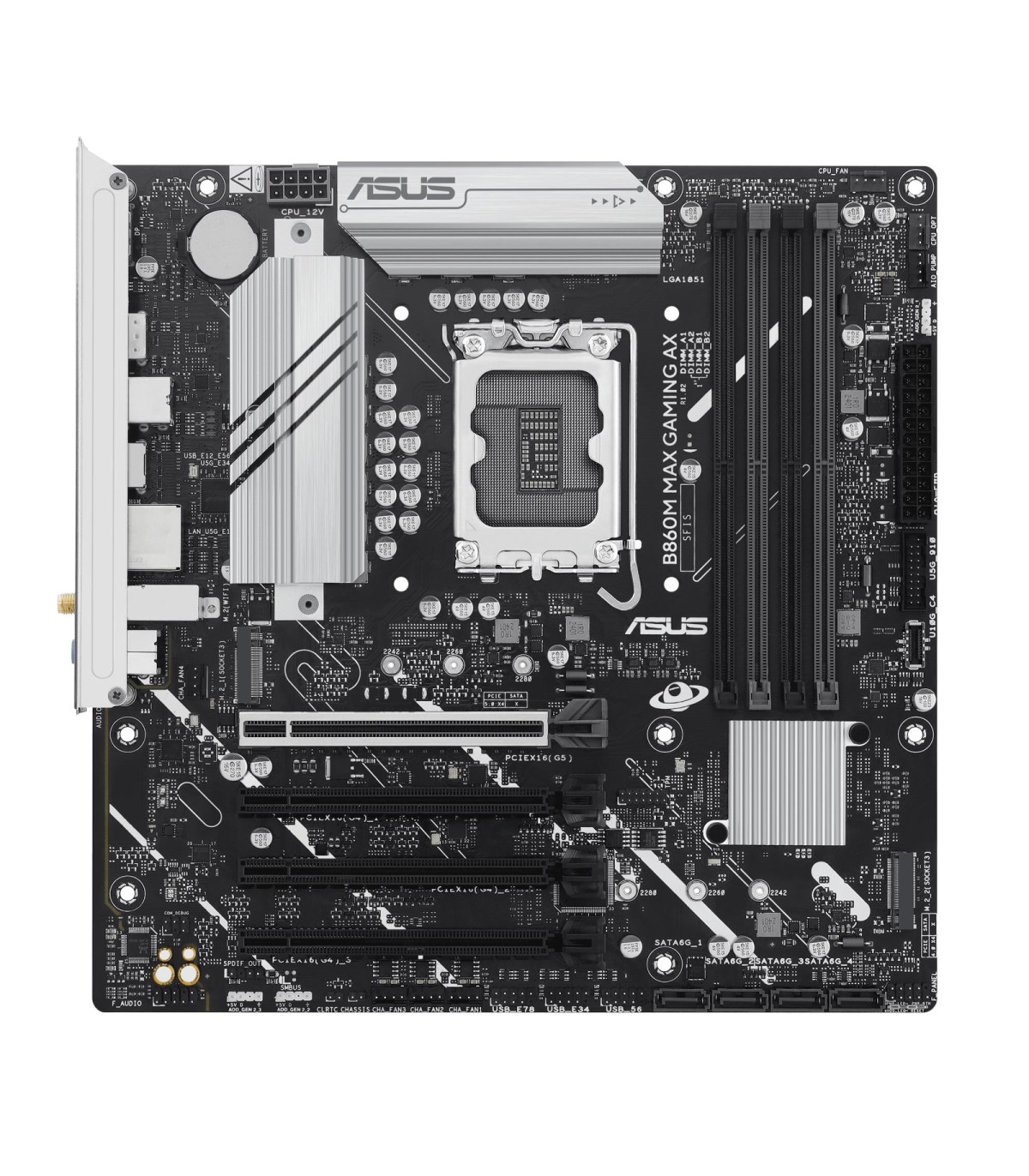

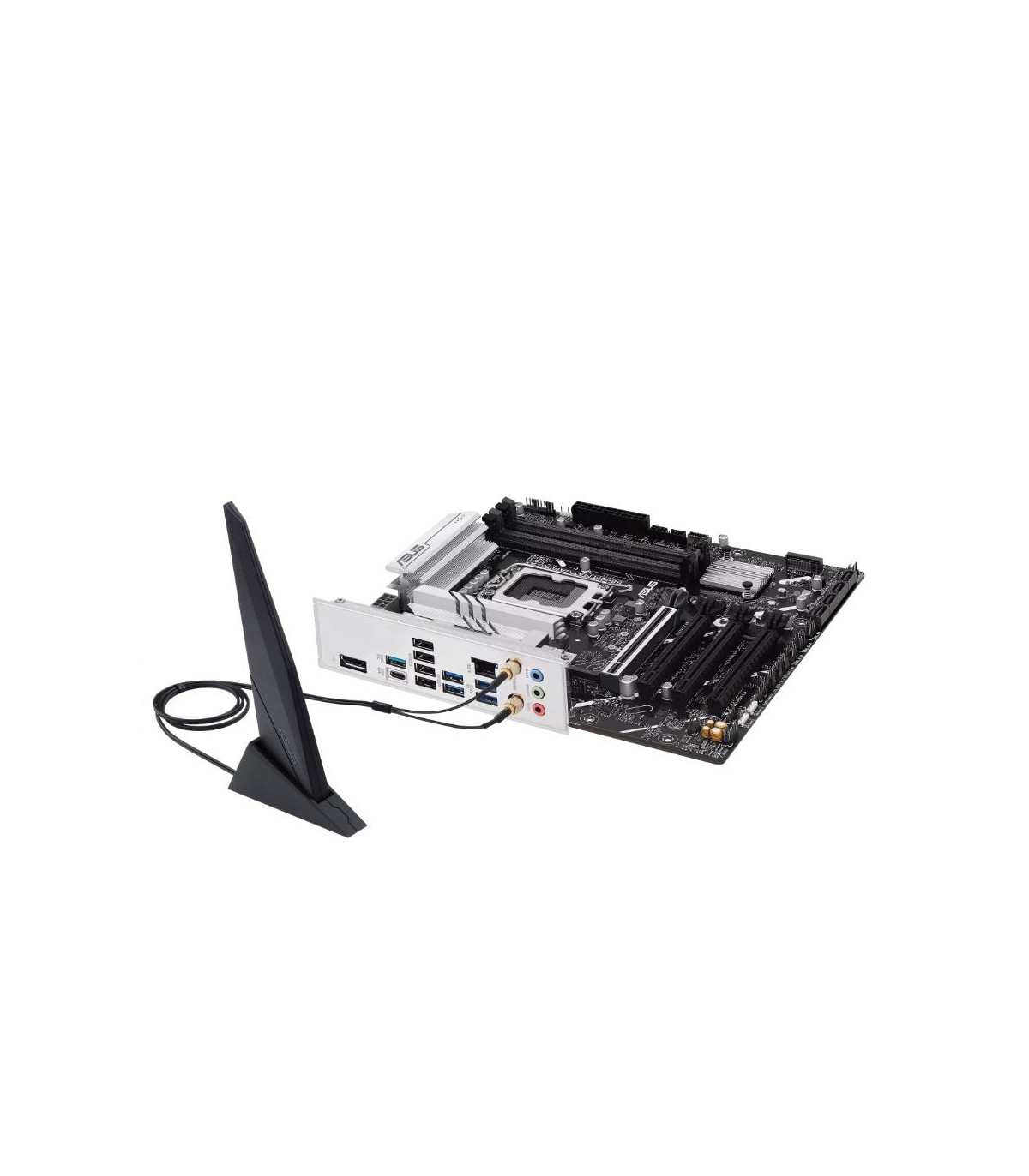

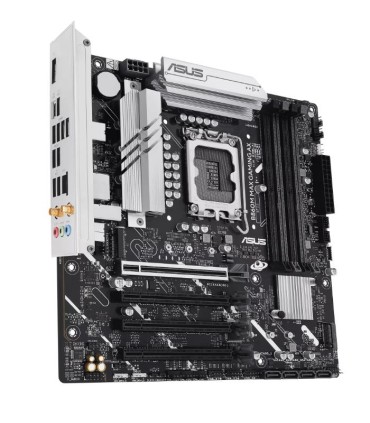

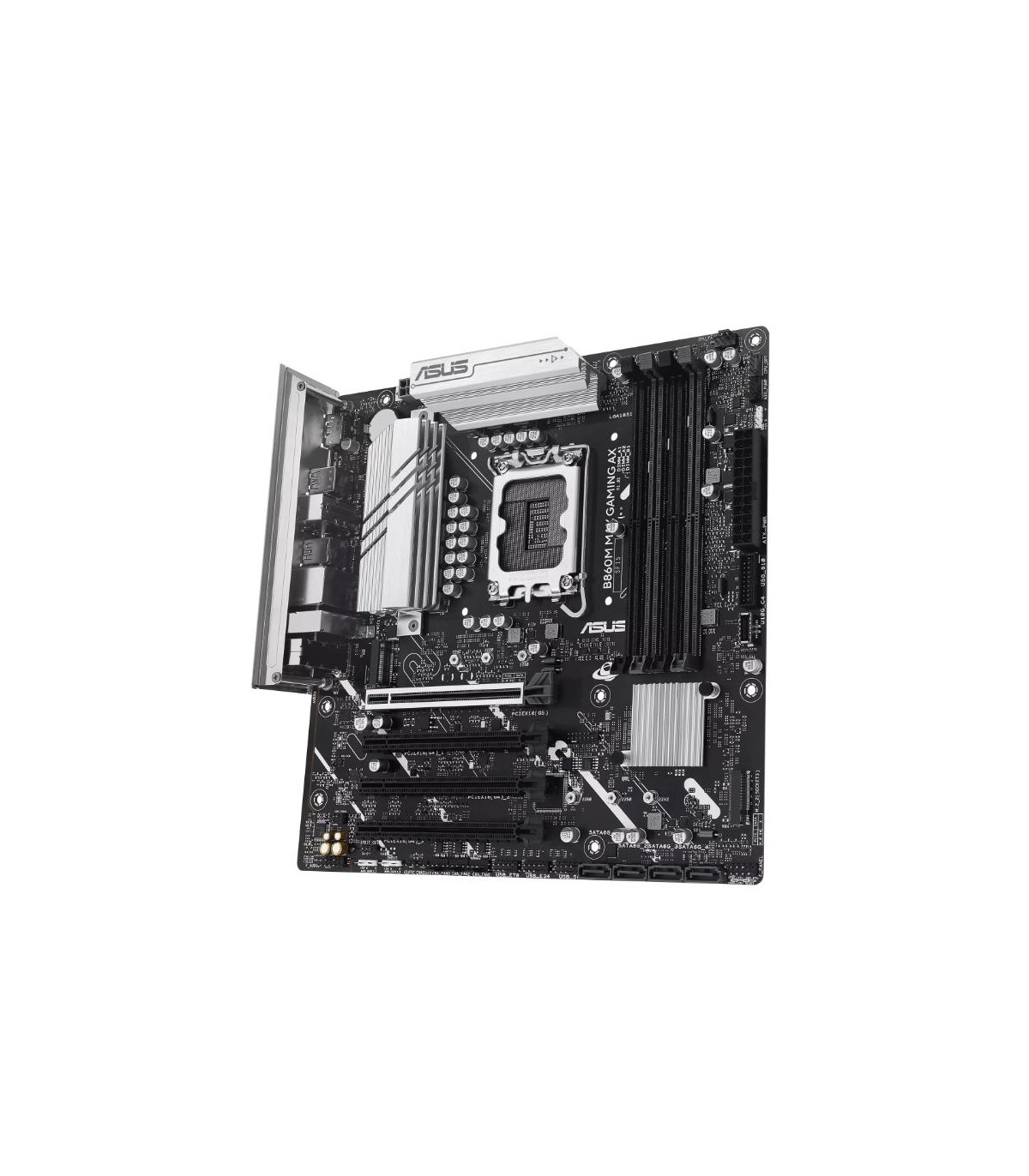

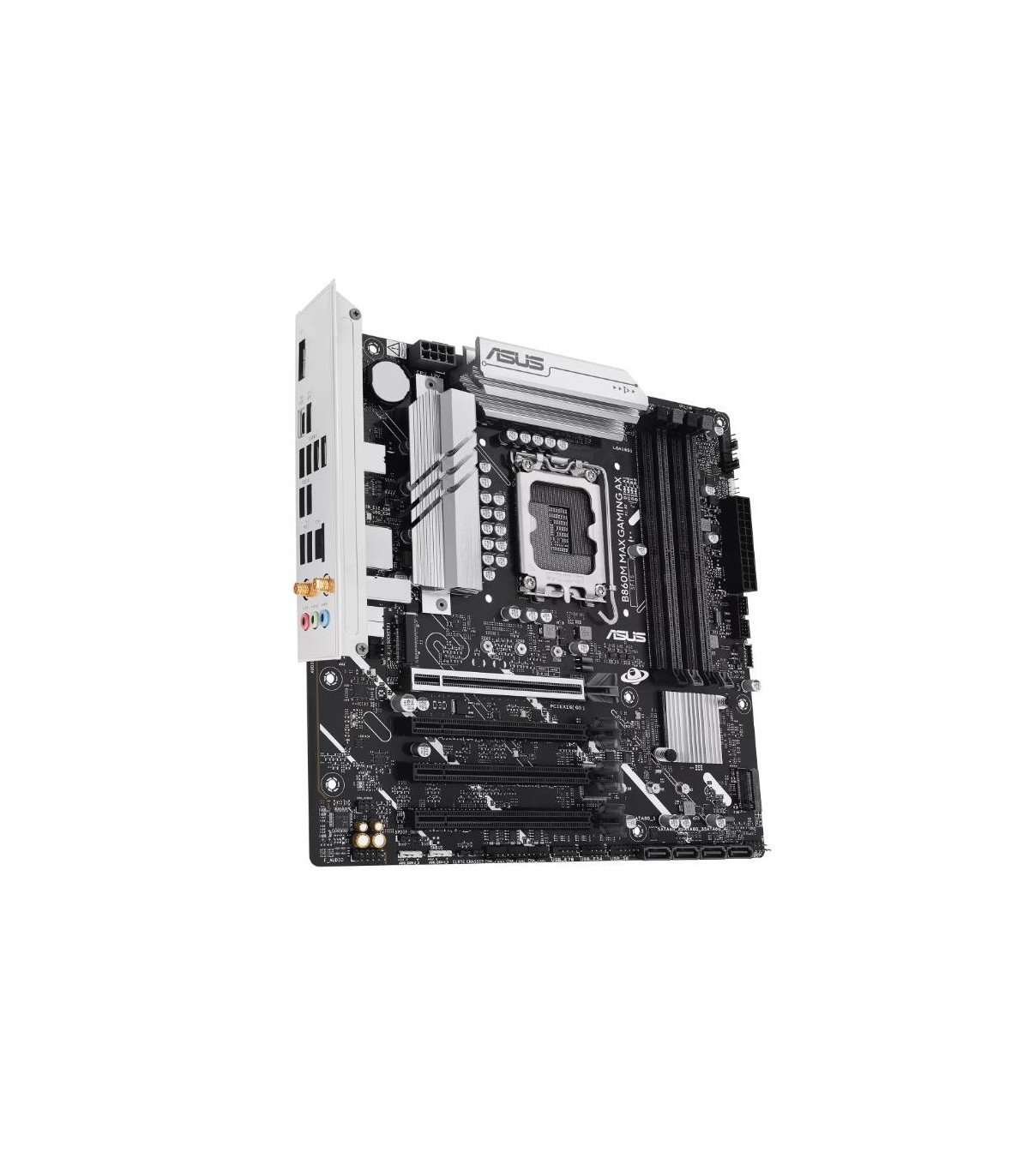

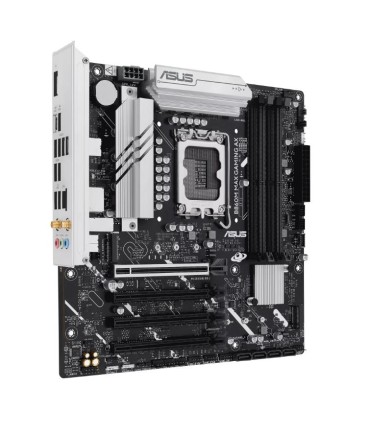

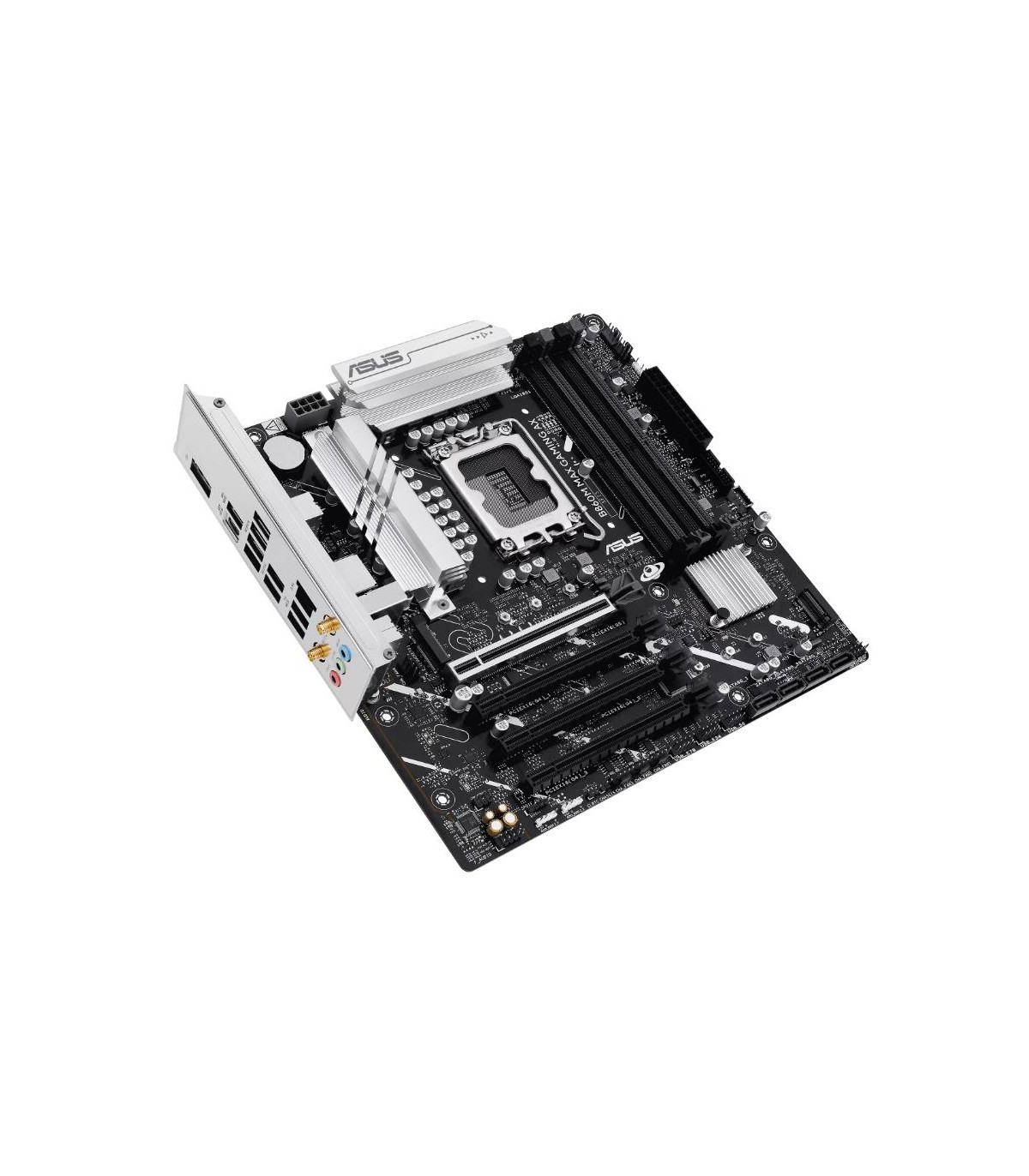

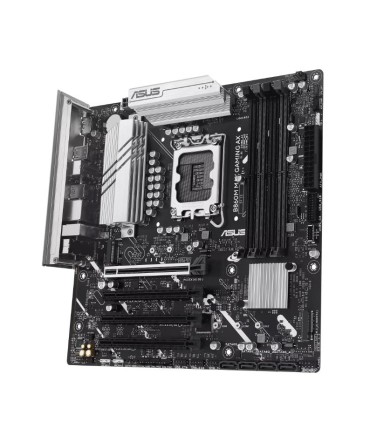

ASUS Mainboard Intel B860 Express LGA1851 Micro-ATX Memory DDR5 Memory slots 4 B860MMAXGAMINGAX

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Width

244 mm

Model

B860M MAX GAMING AX

Bluetooth version

5.3

Unit Calculated Volume

0.0061551 cubm

Unit Calculated Weight

1.435 kg

Units per Shipping Box

10

Product colour

Grey

DisplayPort version

1.4

DisplayPorts quantity

1

Cables included

SATA

Screws included

Yes

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Maximum resolution

3840 x 2160 pixels

Disclaimer

On the back of the motherboard. Availability of ASUS AI Advisor may vary by region.AI Advisor functions may vary by platform. Results may vary according to individual system specifications. Results are based on a test with an Intel Core Ultra

Parallel processing technology support

Not supported

Cooling type

Passive

Quick installation guide

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of storage drives supported

7

USB 3.2 Gen 2x2 Type-C ports quantity

1

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

256 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Motherboard chipset

Intel B860

Number of SATA III connectors

4

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel Core Ultra (Series 2)

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

8666 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

PCI Express 4.0,PCI Express 5.0

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

4

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

Intel

Power source type

ATX

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

3

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

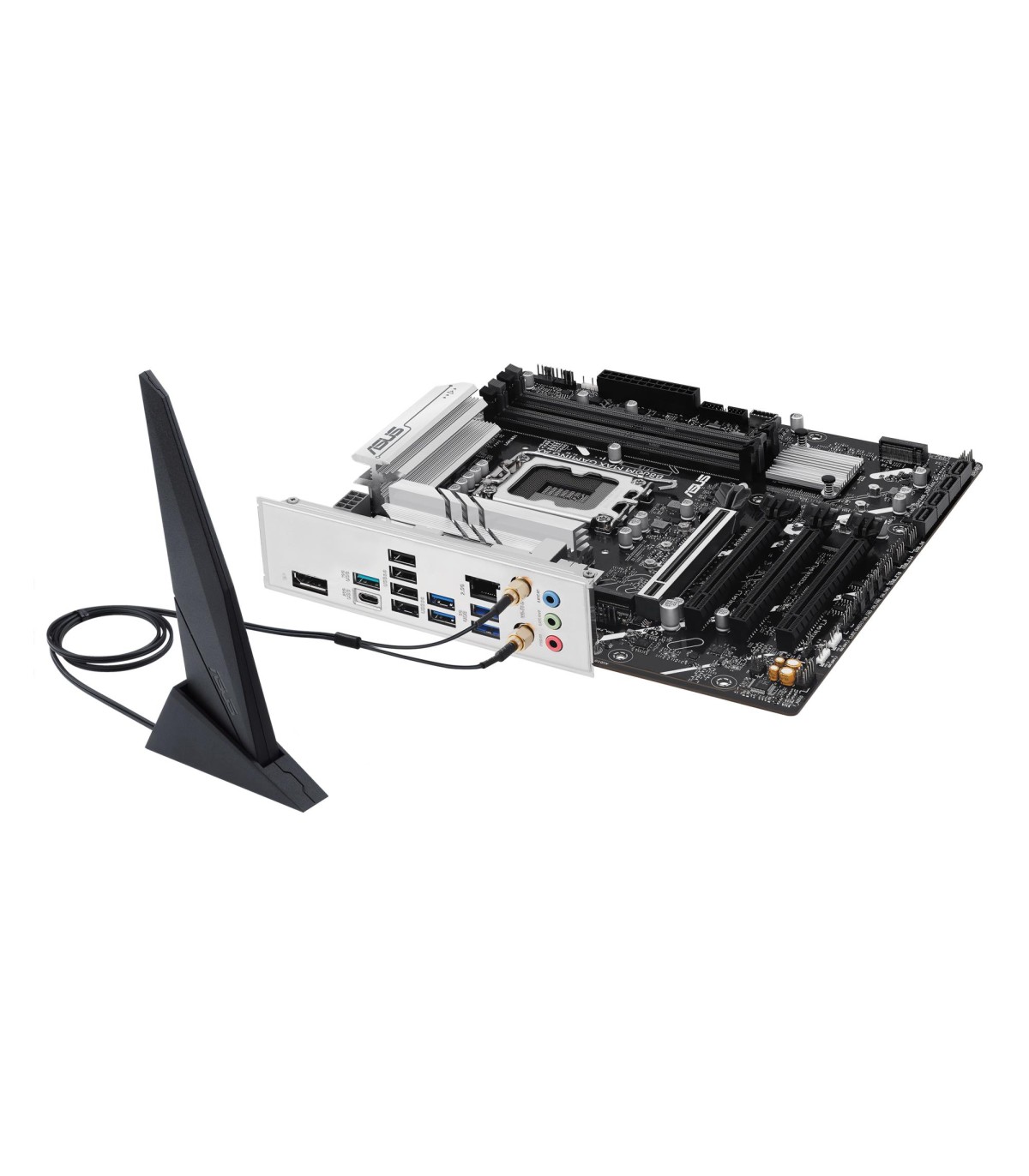

Antenna included

Yes

12V power connector

Yes

Number of water pump connectors

1

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Chassis intrusion connector

Yes

S/PDIF out connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

ECC сompatibility

ECC & Non-ECC

Long Description

ASUS B860M MAX GAMING AX. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Suppor
