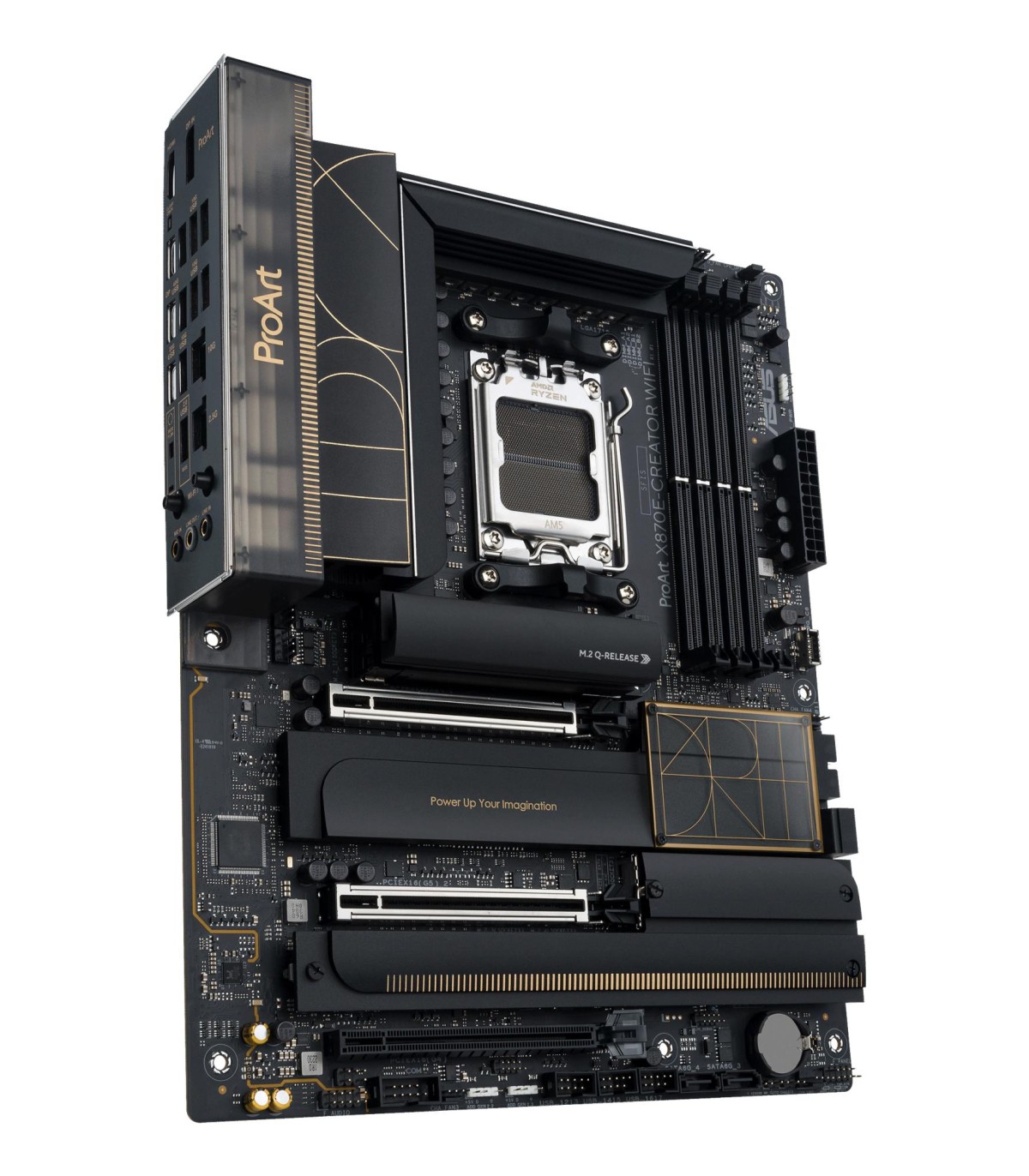

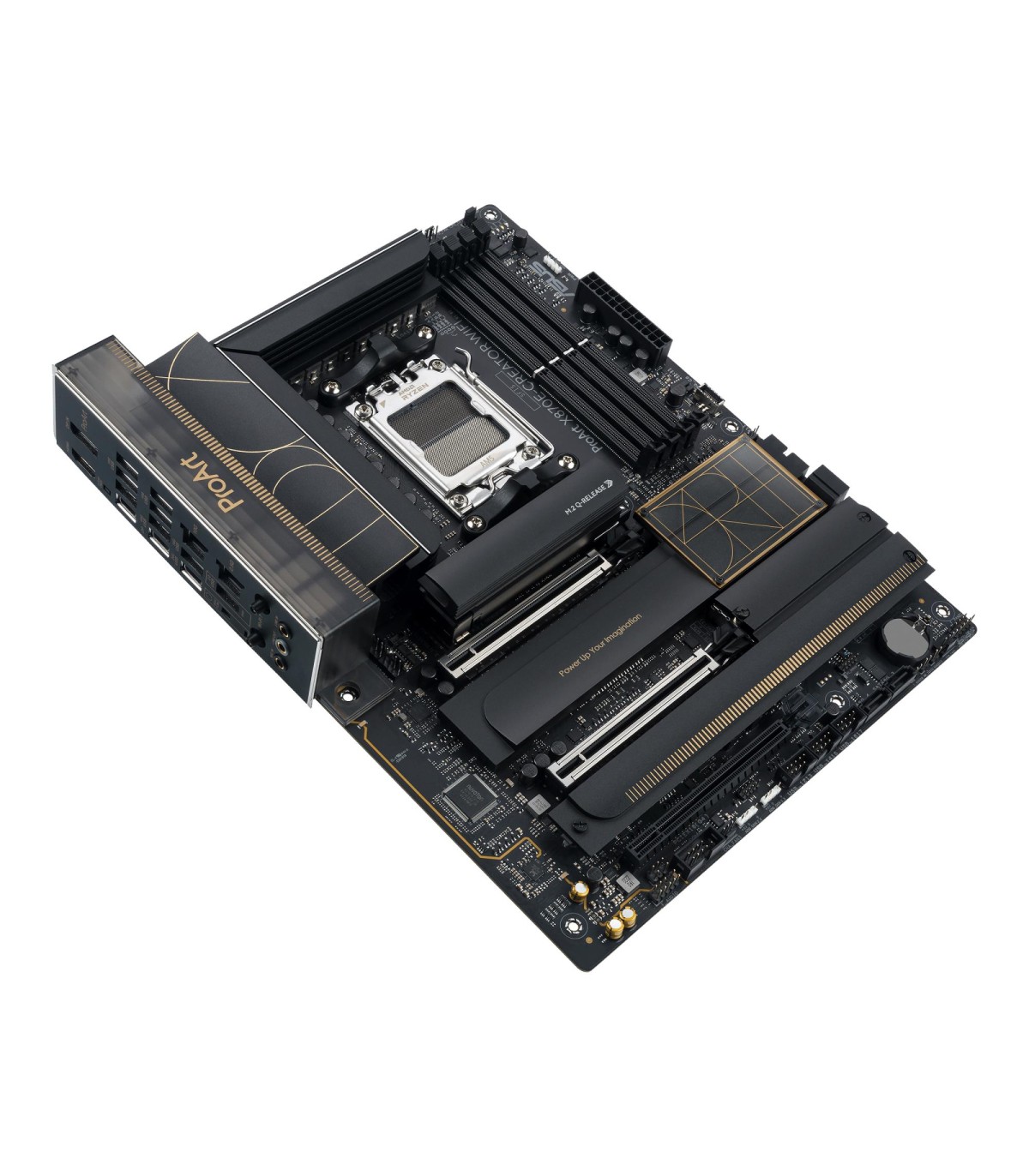

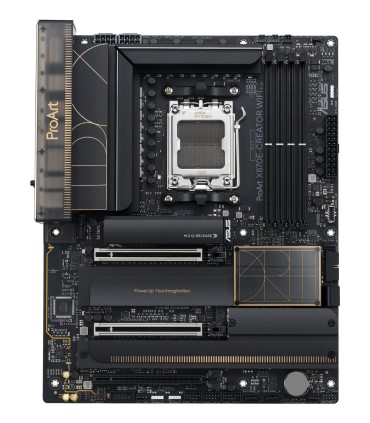

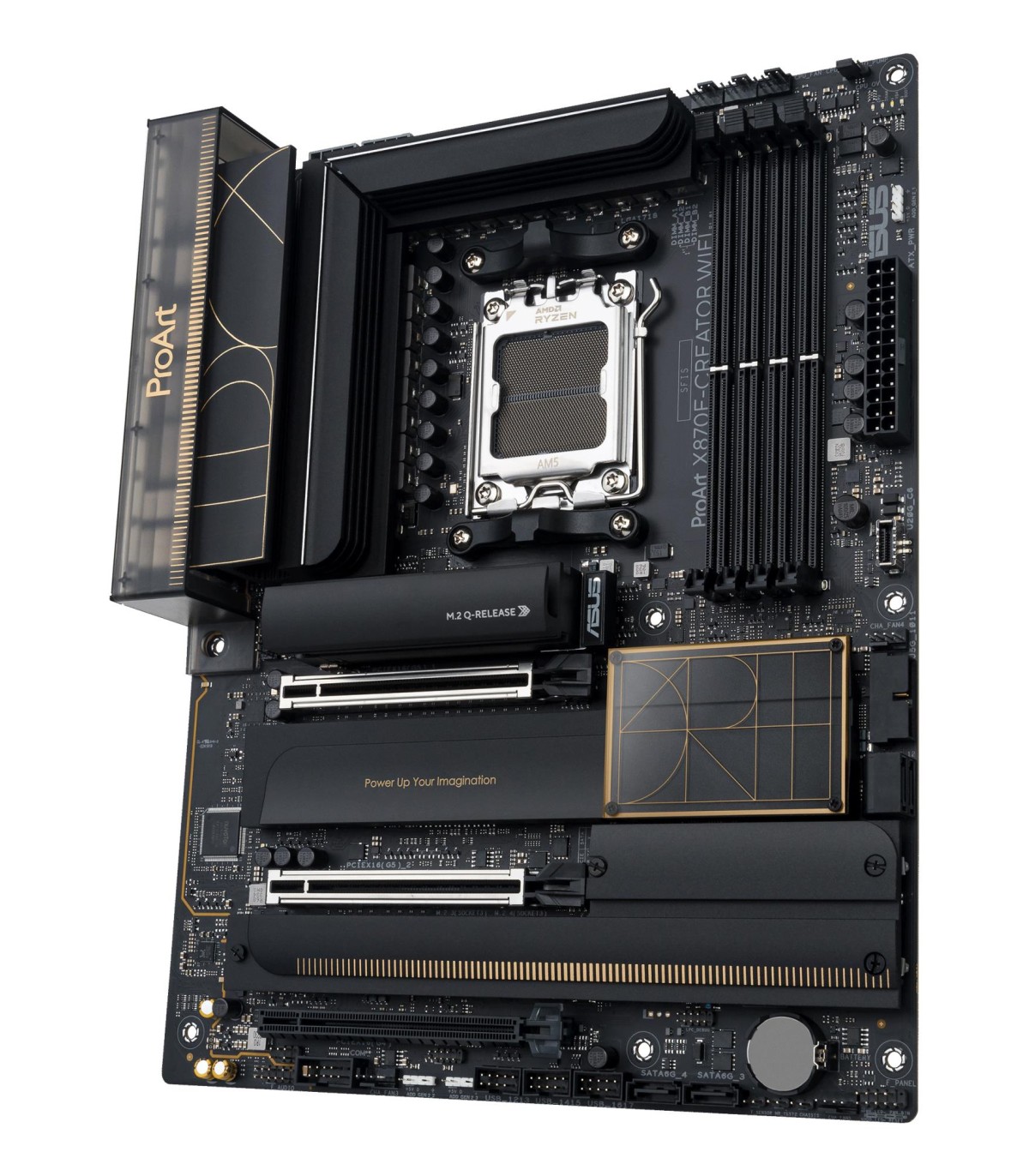

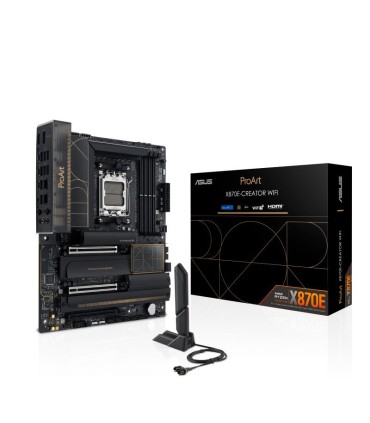

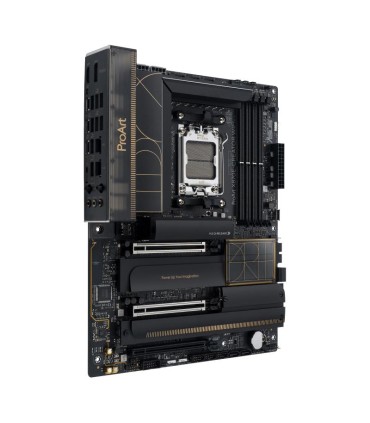

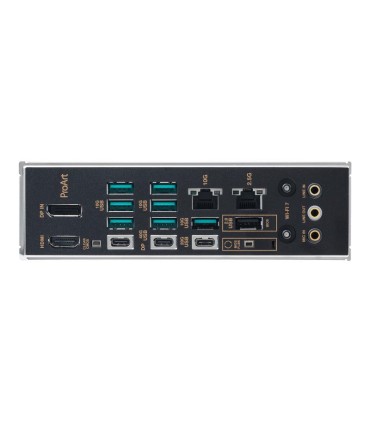

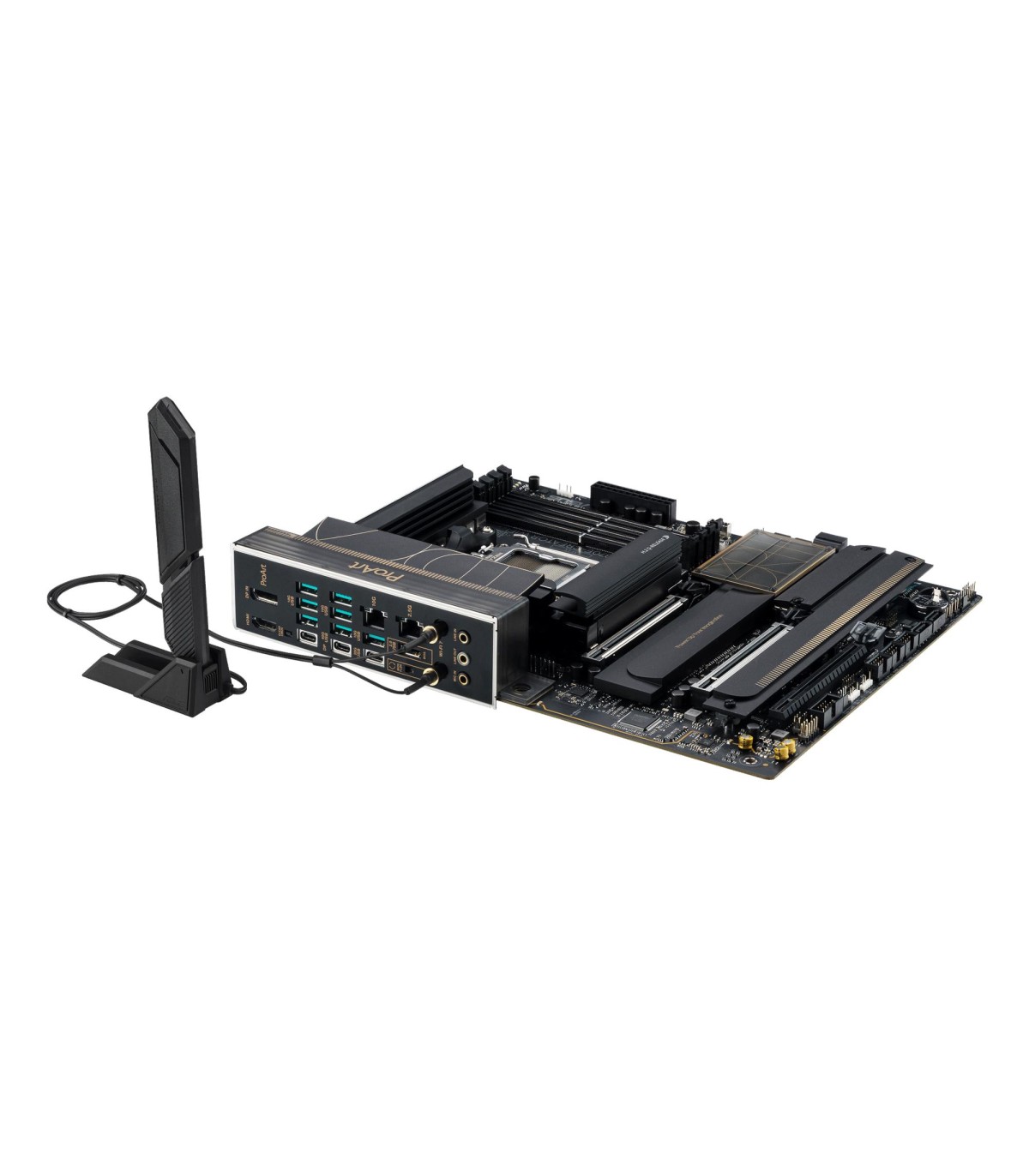

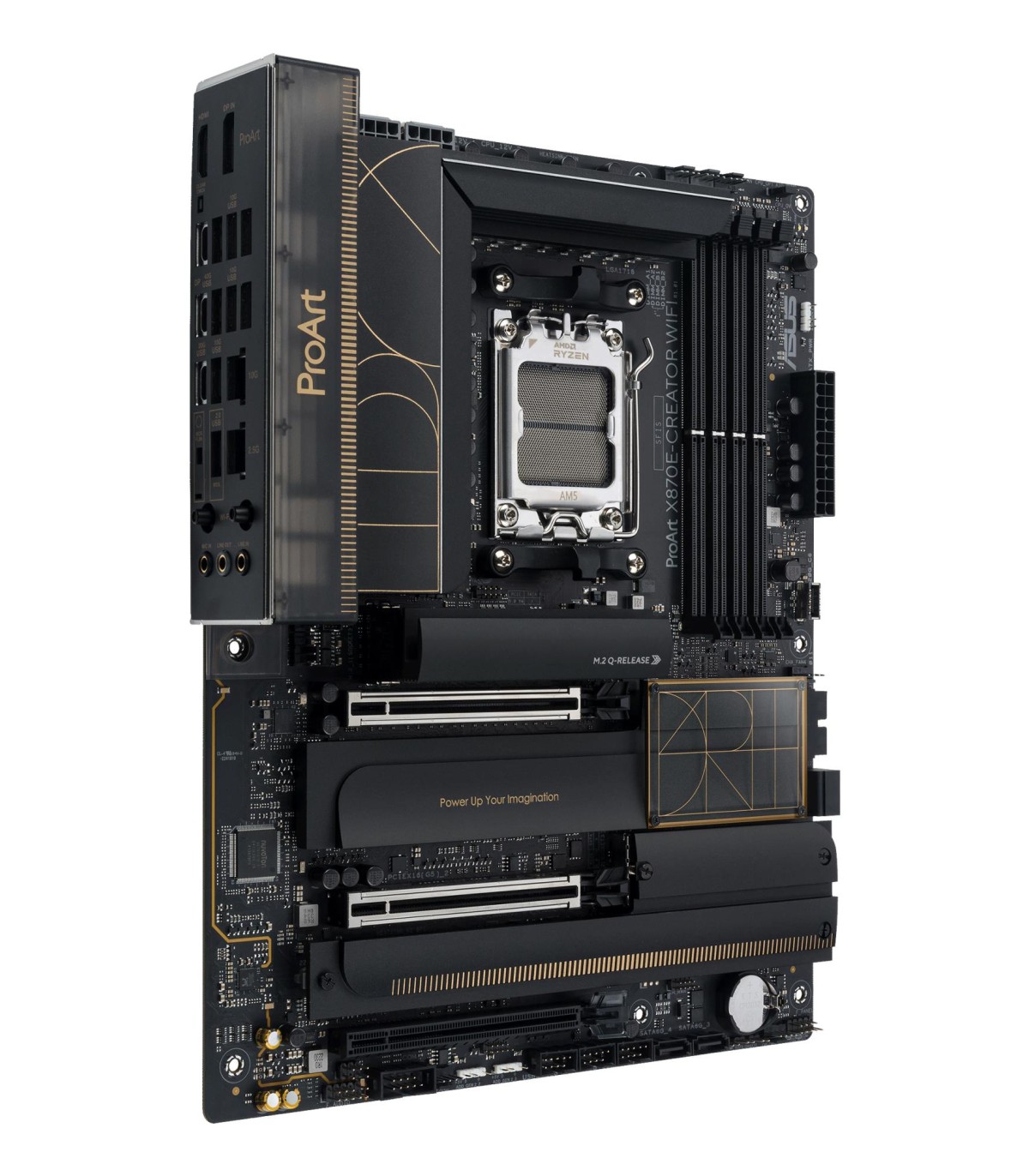

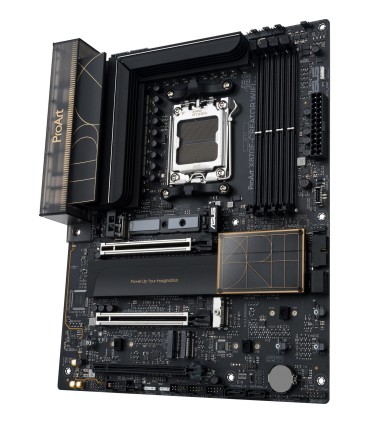

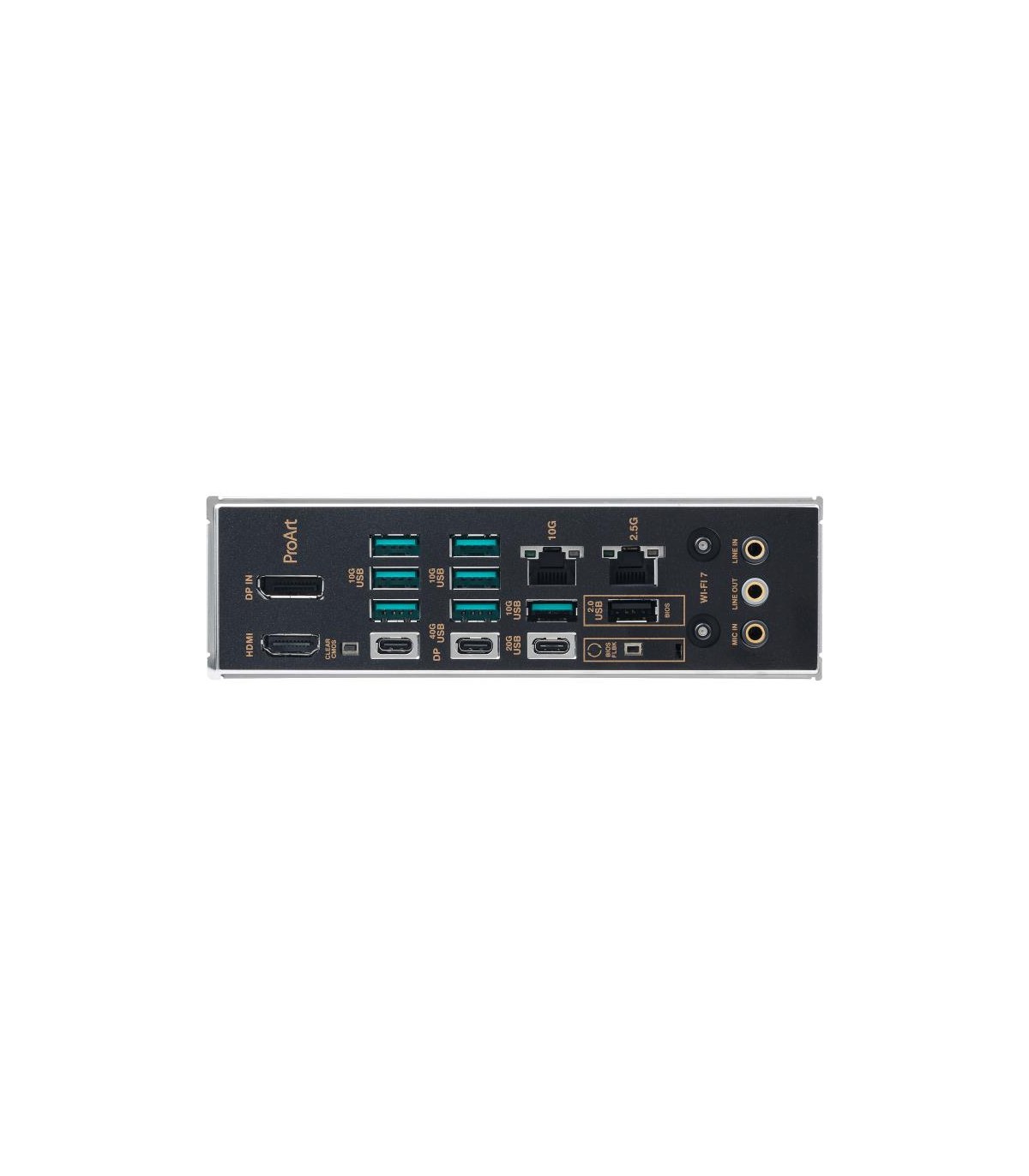

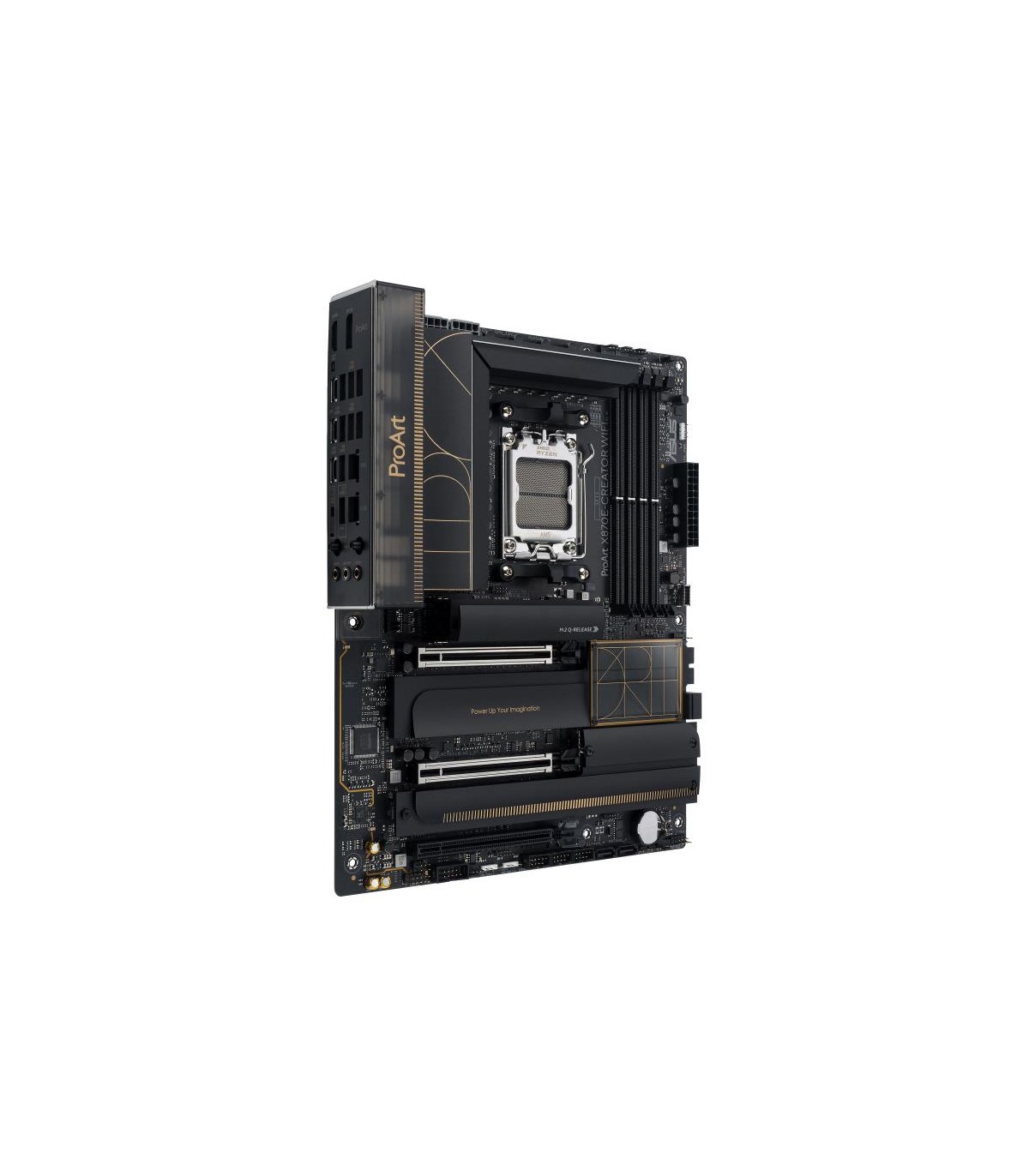

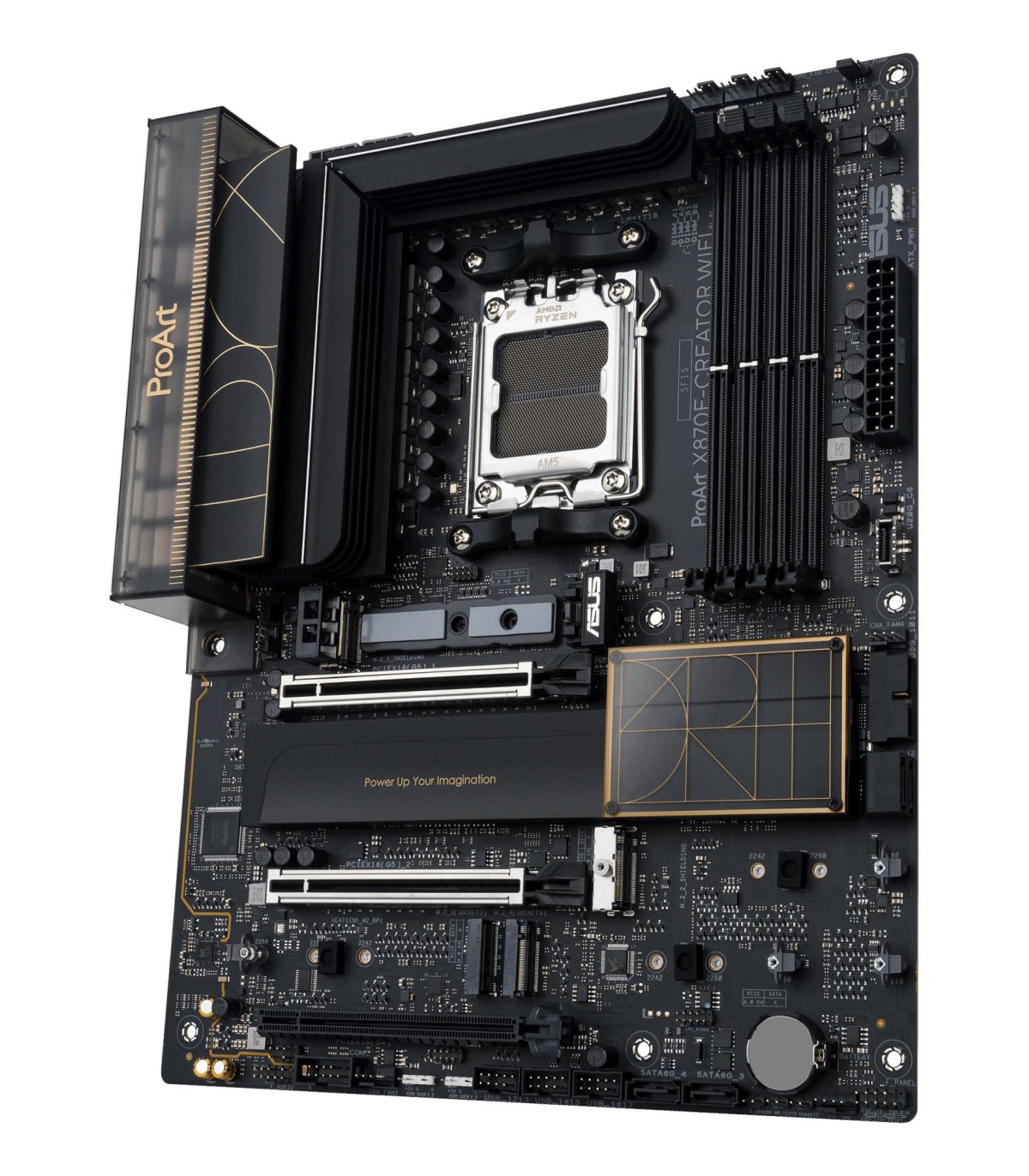

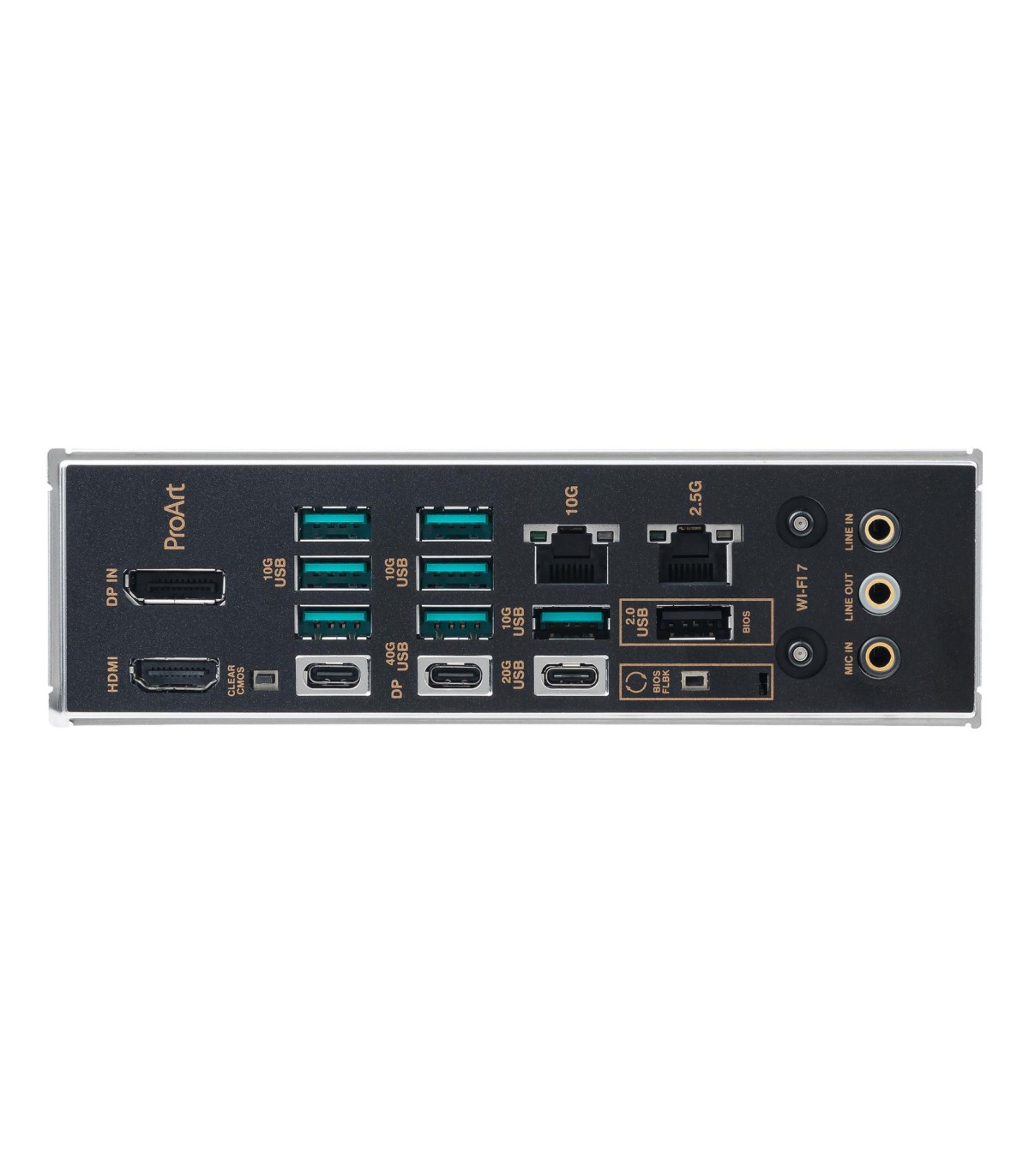

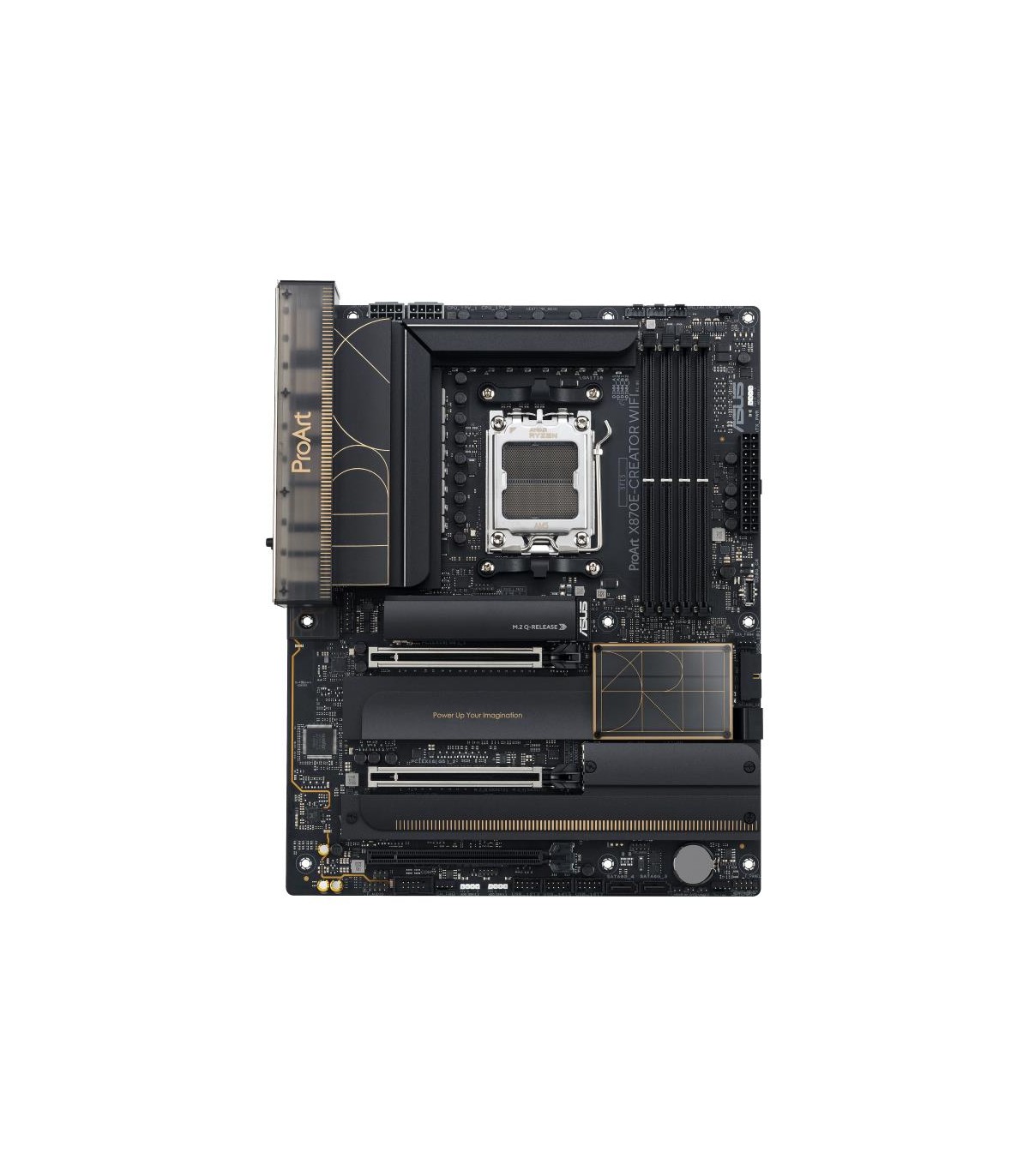

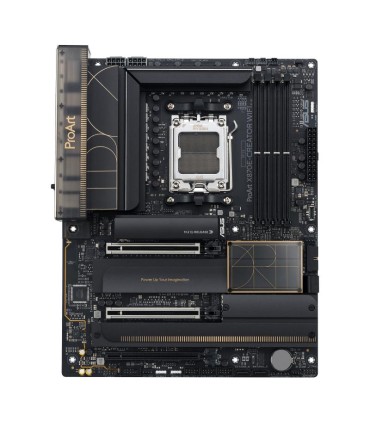

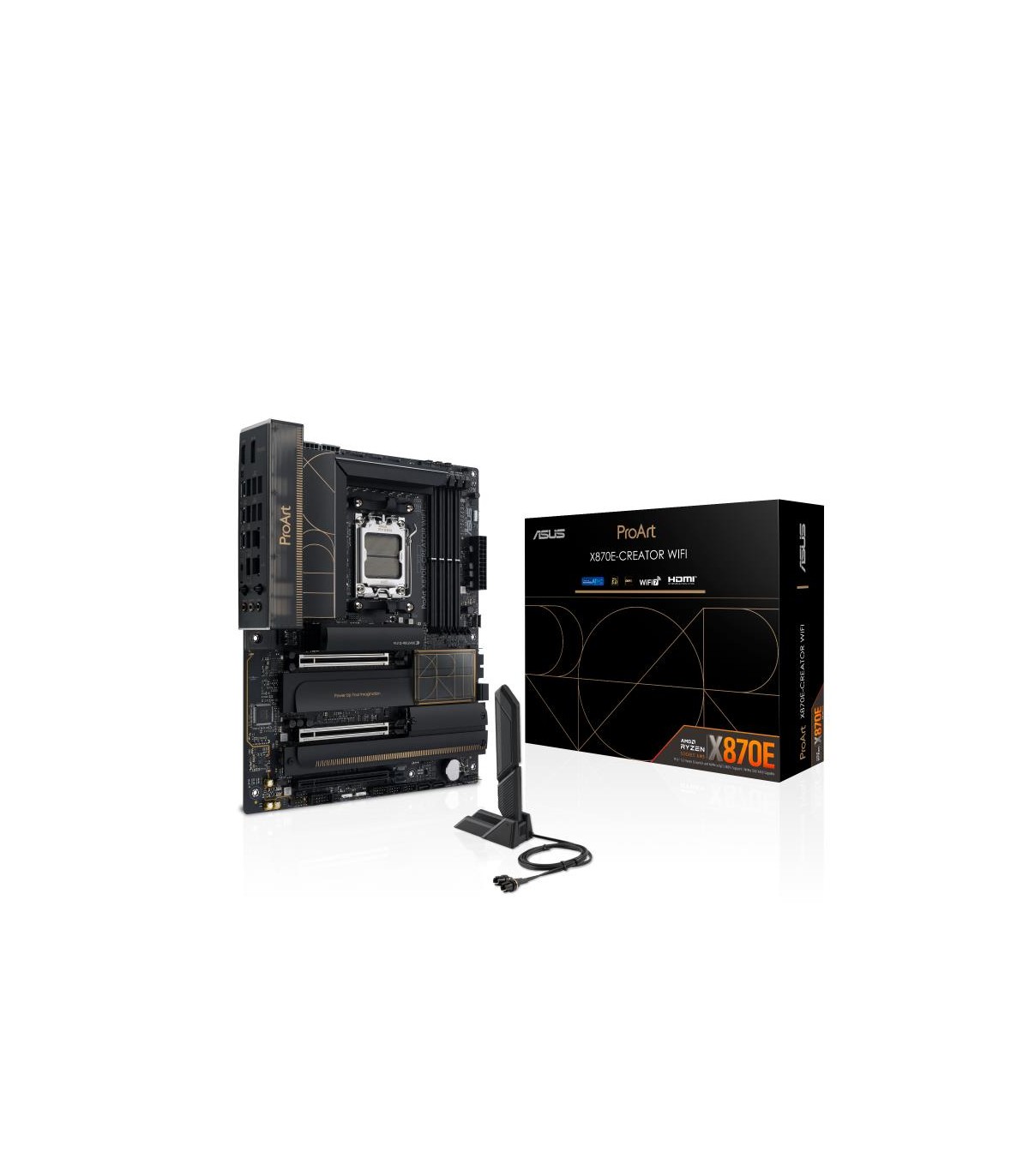

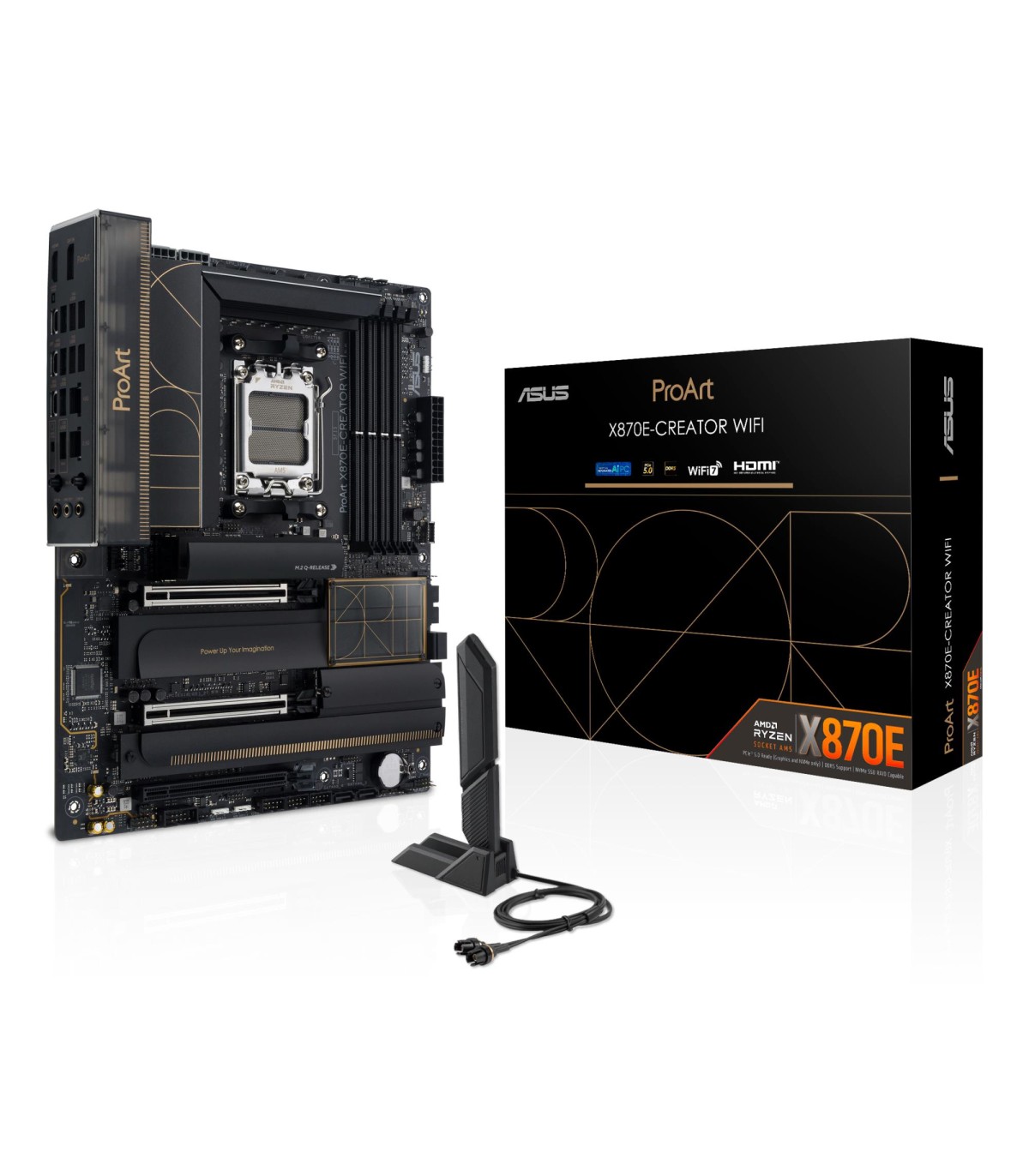

ASUS Mainboard AMD X870E SAM5 ATX Memory DDR5 Memory slots 4 3xPCI-Express 4.0 16x 2xPCI-Express 5.0 16x 4xM.2 1xHDMI 1xDisplay

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Width

305 mm

Unit Box Width

0.285

Unit Box Length

0.36

Unit Box Height

0.09

Category Code

MBA

Model

PROART X870E-CREATOR WIFI

Bluetooth version

5.4

Unit Calculated Volume

0.01093 cubm

Unit Calculated Weight

2.82 kg

Units per Shipping Box

5

Summary

ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive inter

DisplayPorts quantity

1

HDMI ports quantity

1

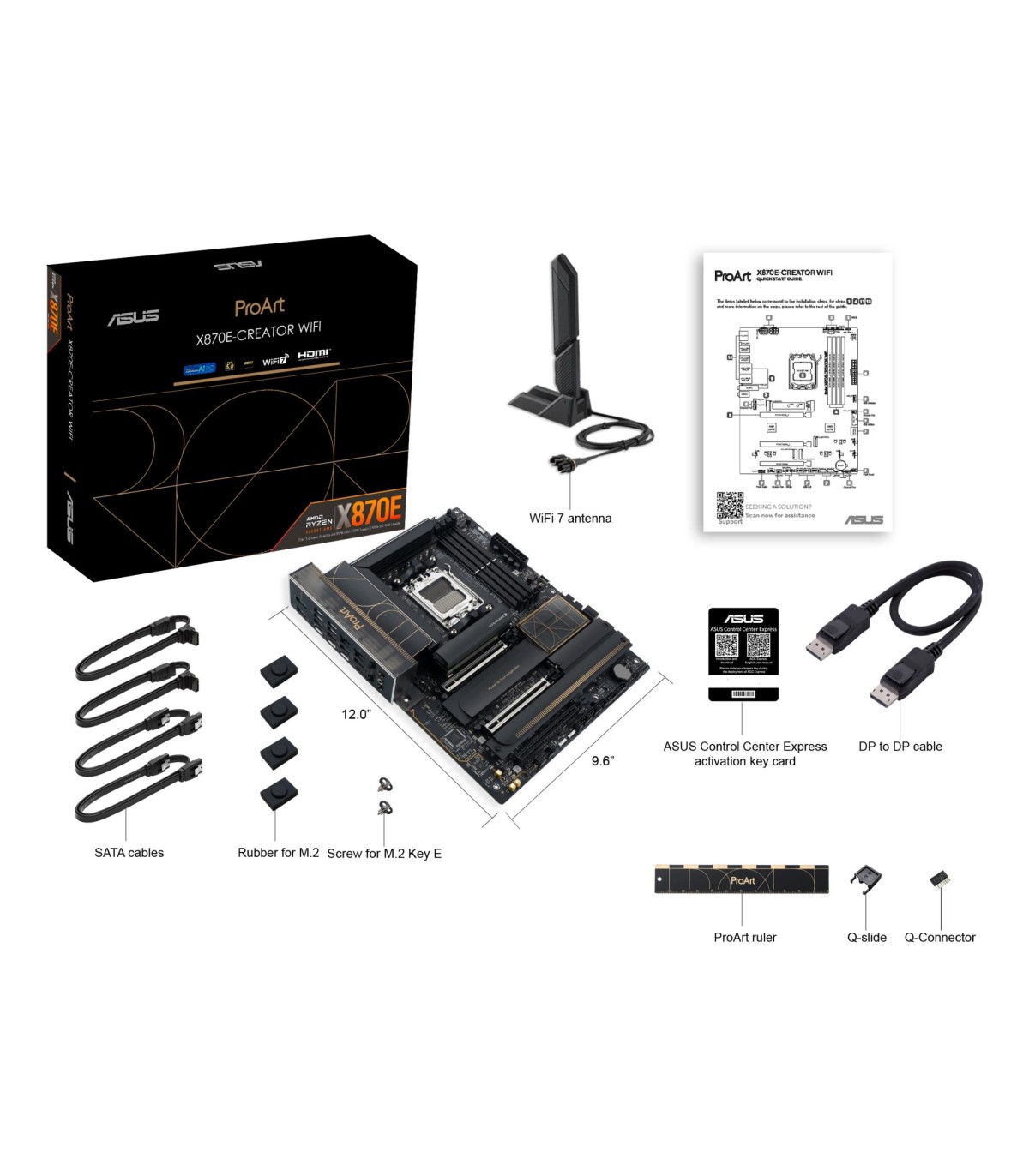

Cables included

DisplayPort,SATA

Wi-Fi

Yes

Windows operating systems supported

Windows 11

Microphone in

Yes

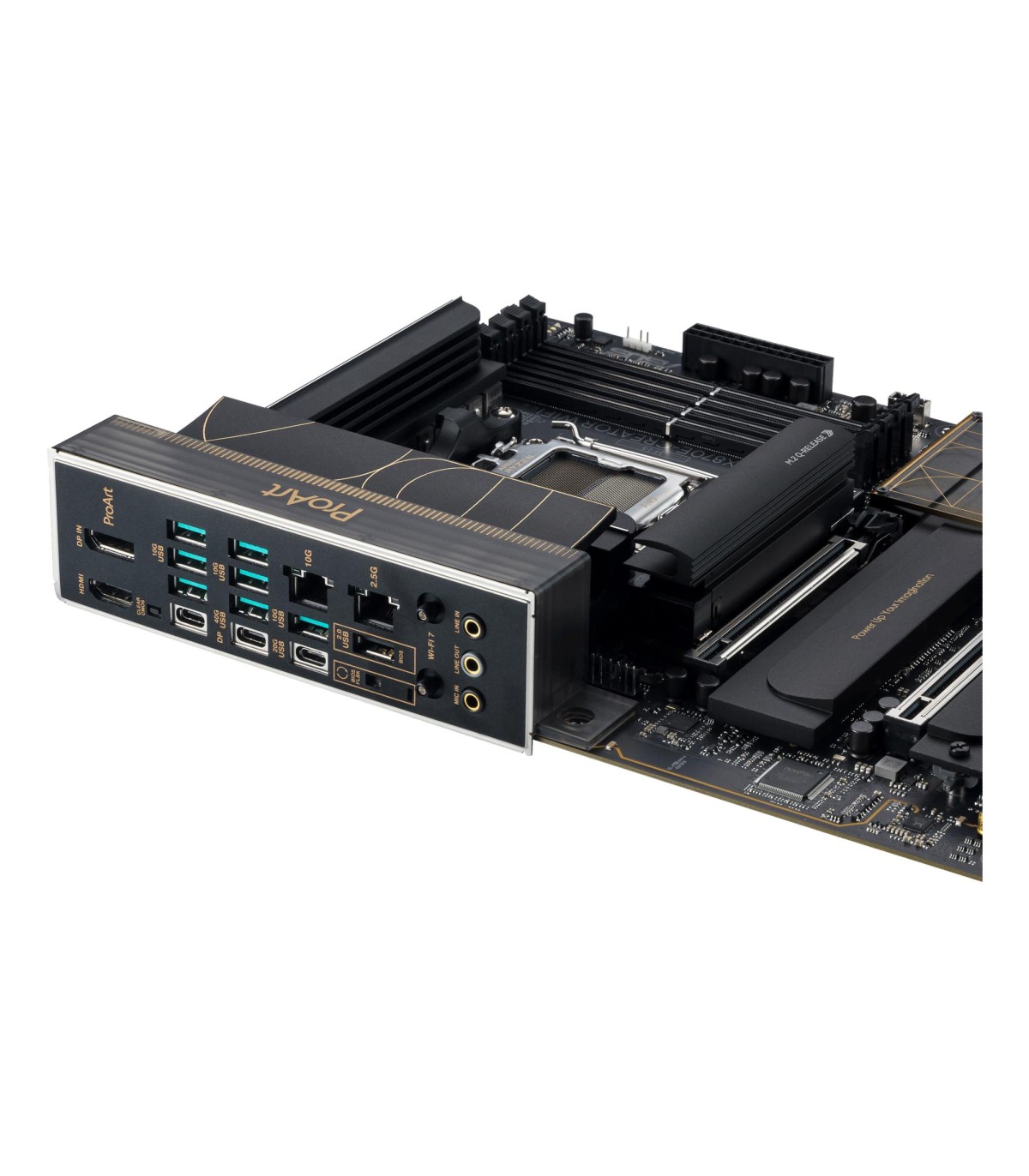

Ethernet LAN (RJ-45) ports

2

Ethernet LAN

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Parallel processing technology support

Not supported

USB 2.0 ports quantity

1

Number of storage drives supported

8

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

7

USB 3.2 Gen 2x2 Type-C ports quantity

1

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

192 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Audio chip

Realtek S1220A

Motherboard chipset

AMD X870E

Number of SATA III connectors

4

PCI Express x16 (Gen 5.x) slots

2

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

USB4 Gen 2x2 ports quantity

2

Motherboard form factor

ATX

Component for

PC

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

5

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

WiFi-AP antenna jack

1

Ethernet interface type

10 Gigabit Ethernet/2.5 Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

4

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

12V power connector

Yes

Clear CMOS button

Yes

Chassis intrusion connector

Yes

Number of COM connectors

1

USB 3.2 Gen 2x2 connectors

1

ECC сompatibility

ECC & Non-ECC
