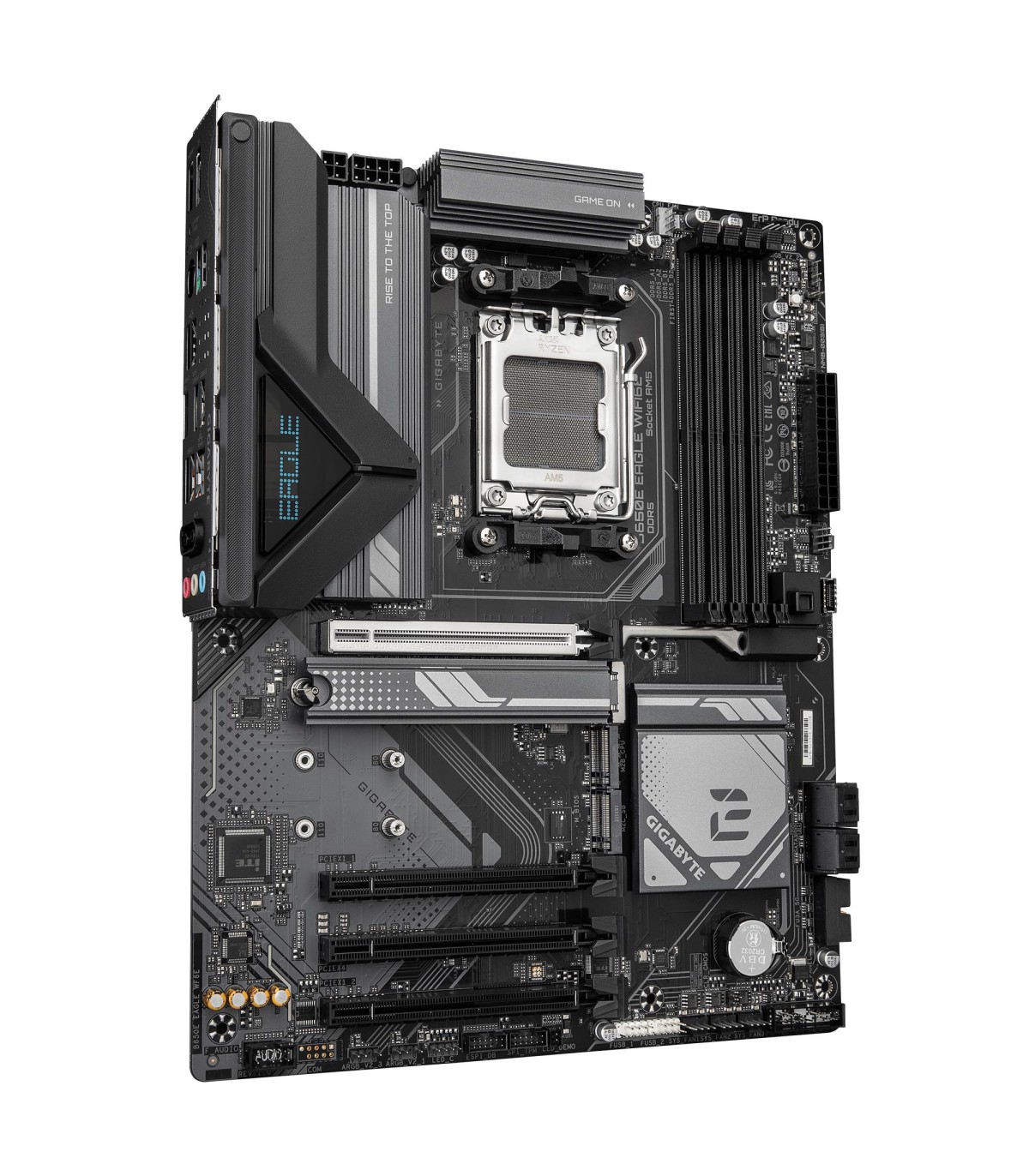

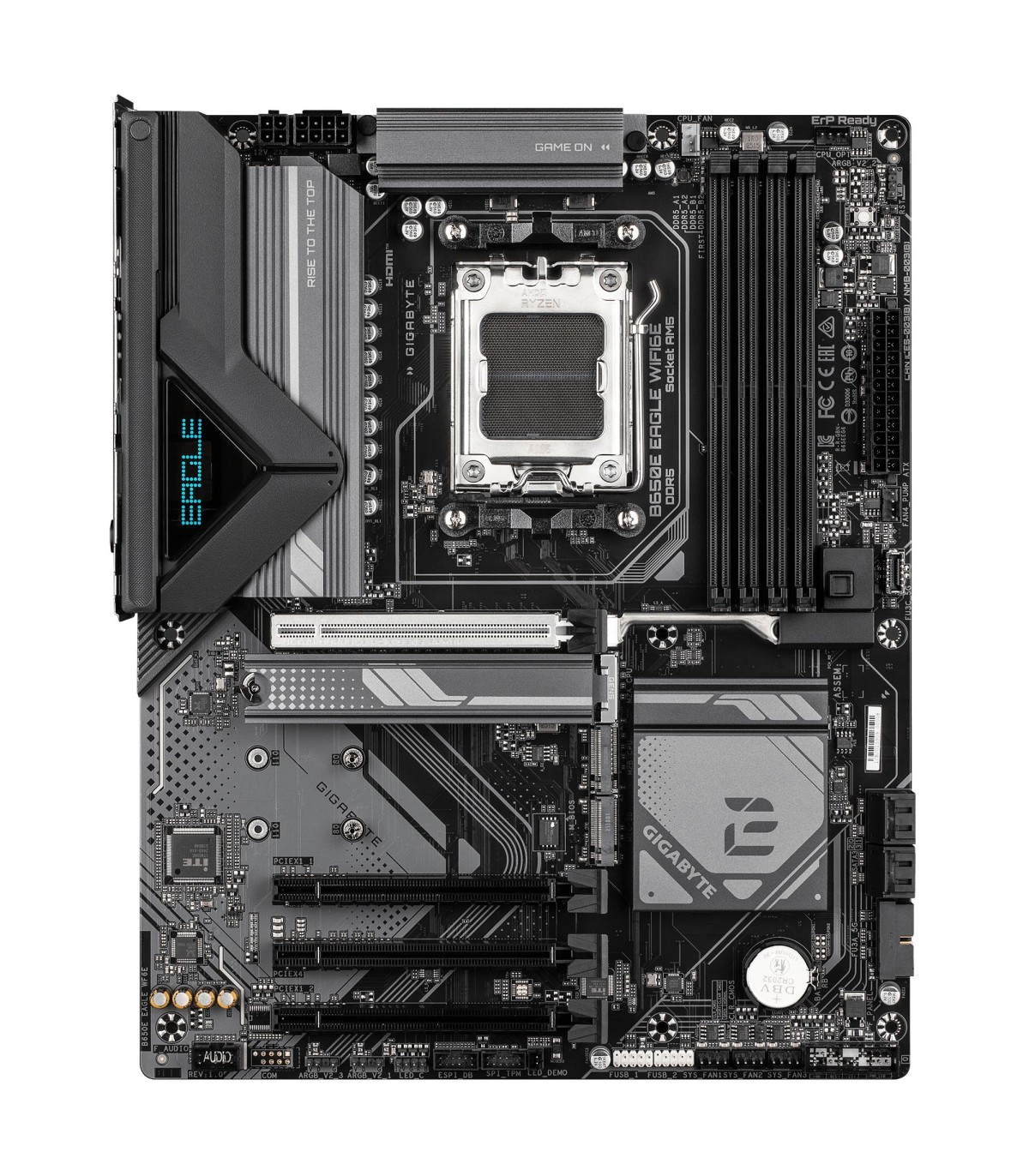

GIGABYTE Mainboard SAM5 ATX Memory DDR5 Memory slots 4 B650EEAGLEWF6E1.0

Сеть

Bluetooth

Yes

Другие свойства

Depth

244 mm

Height

35 mm

Width

305 mm

Unit Box Width

0.34

Unit Box Length

0.27

Unit Box Height

0.08

Category Code

MBA

Model

B650E EAGLE WIFI6E

Bluetooth version

5.3

Battery weight

3 g

Unit Calculated Volume

0.007344 cubm

Unit Calculated Weight

1.66 kg

Units per Shipping Box

1

Summary

GIGABYTE B650E EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible process

Product colour

Dark brown

DisplayPort version

1.4

HDCP

Yes

HDCP version

2.3

HDMI ports quantity

1

HDMI version

2.1

Package depth

270 mm

Package height

80 mm

Package weight

1890 g

Package width

335 mm

Screws included

Yes

Bundled software

Norton® Internet Security (OEM version)

Country of origin

China

Weight

1680 g

Headphone outputs

1

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

Cooling type

Passive

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

7

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Number of HDDs supported

4

Peripheral (Molex) power connectors (4-pin)

1

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

256 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

WLAN controller model

MediaTek MT7902

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Audio chip

Realtek ALC897

Motherboard chipset

AMD B650

LAN controller

Realtek RTL8125

Number of SATA III connectors

4

Line-in

Yes

PCI Express x16 (Gen 5.x) slots

1

Audio output channels

7.1 channels

PS/2 ports quantity

1

PCI Express x16 (Gen 3.x) slots

2

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4800/5200/5600/6000/6200/6400/6600/6800/7200/7600/7800/7900/7950/8000/8200 MHz

Motherboard form factor

ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

8200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

4

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

WiFi-AP antenna jack

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

PC health monitoring

FAN/Temperature/Voltage/Water cooling

Power source type

ATX

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

22110

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

1

ACPI version

5.0

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

Antenna included

Yes

12V power connector

Yes

Number of water pump connectors

2

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

ECC сompatibility

Non-ECC
