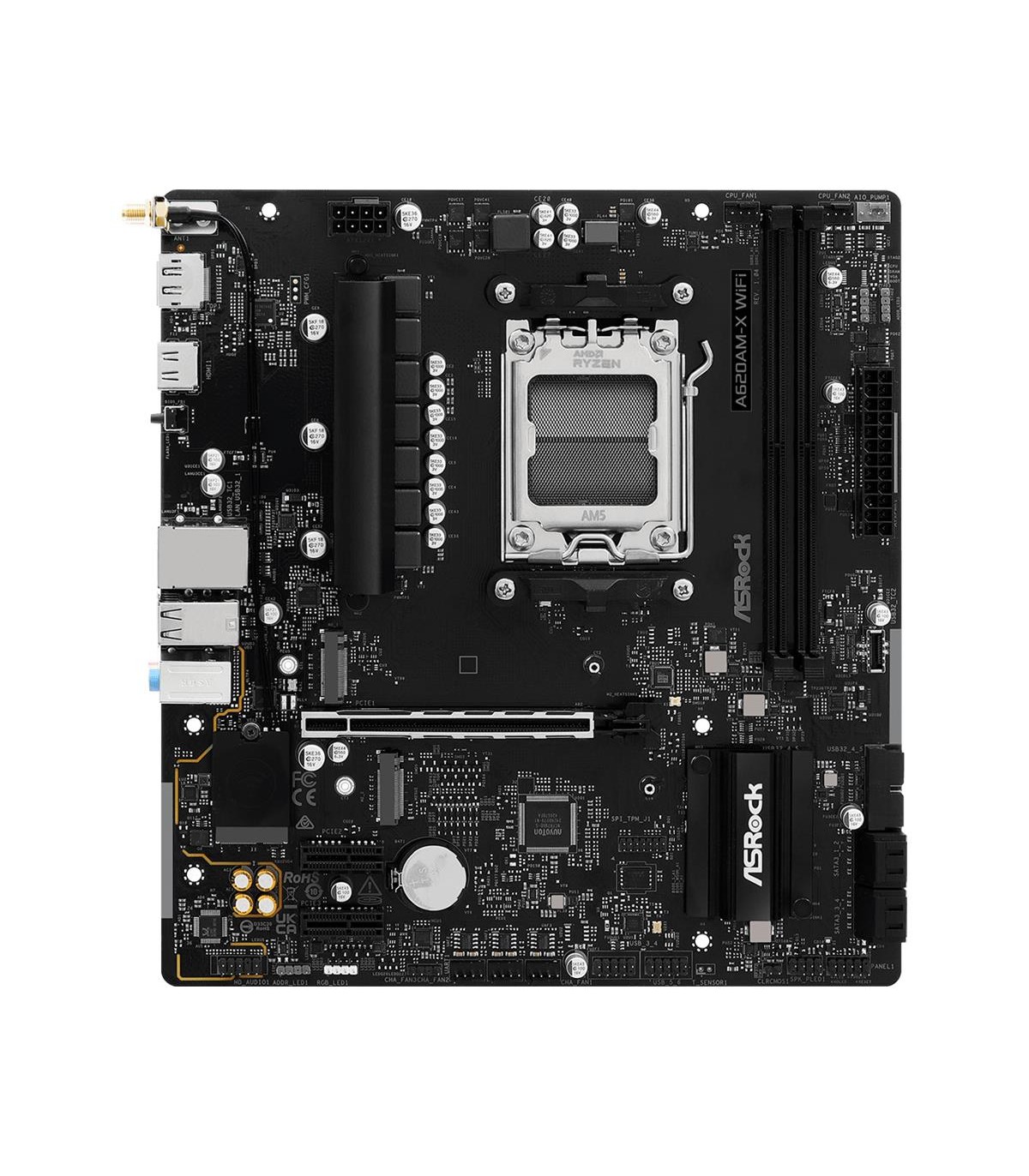

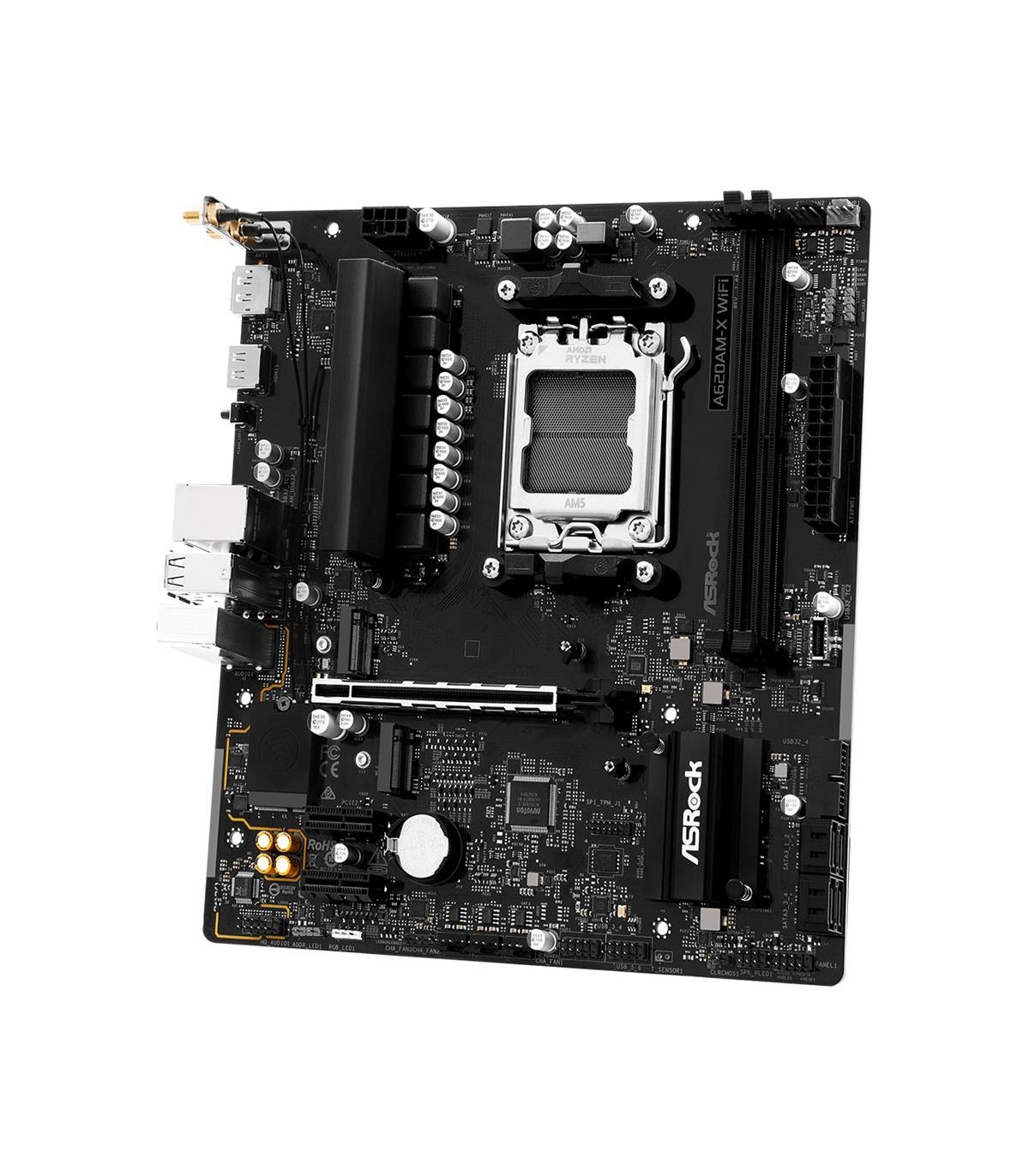

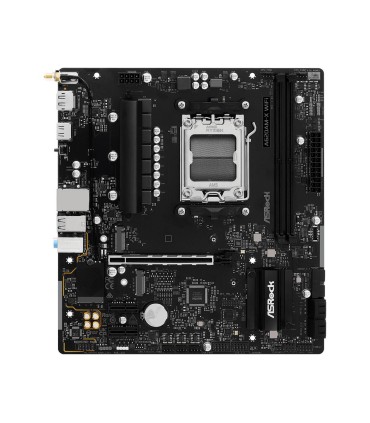

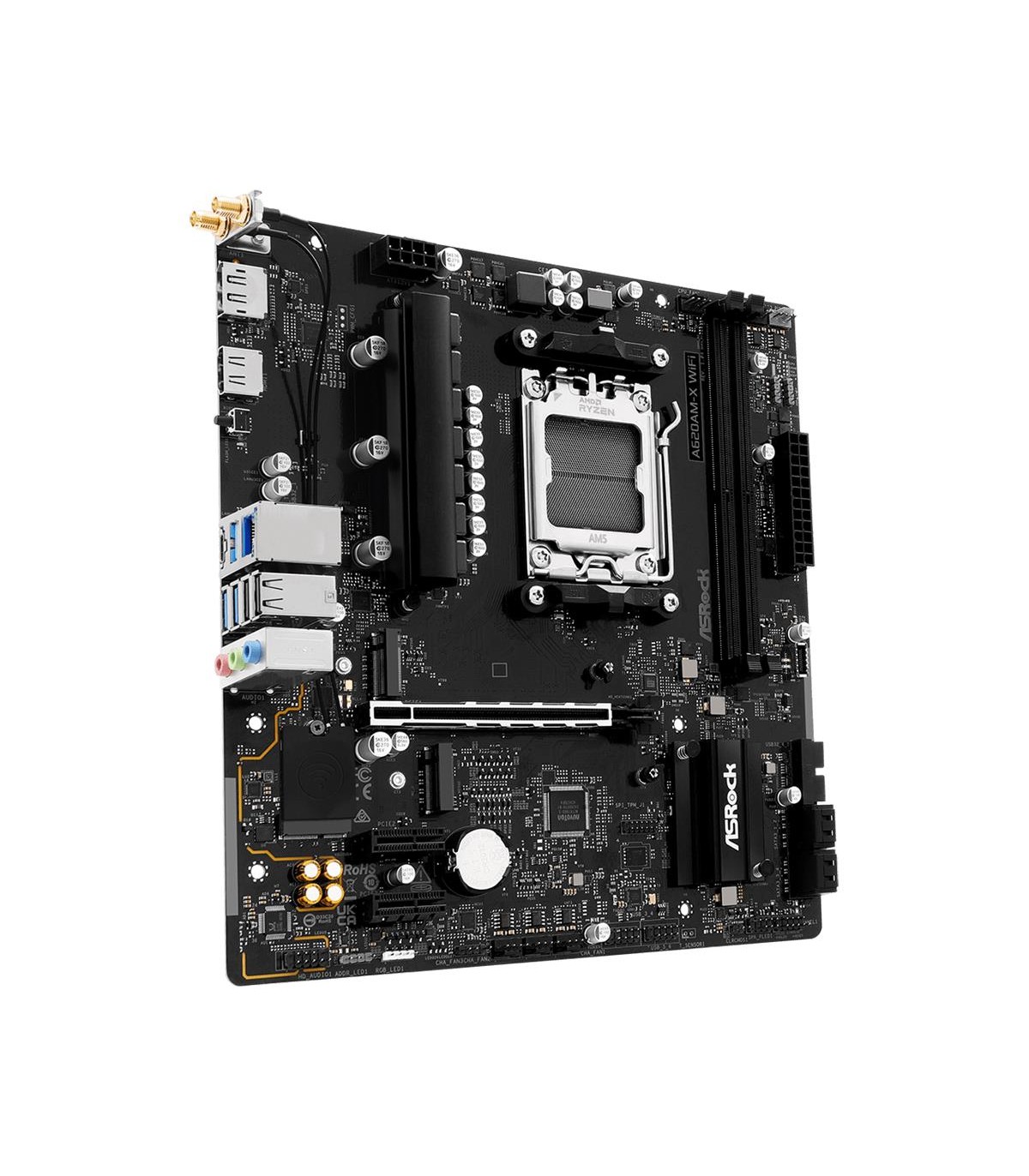

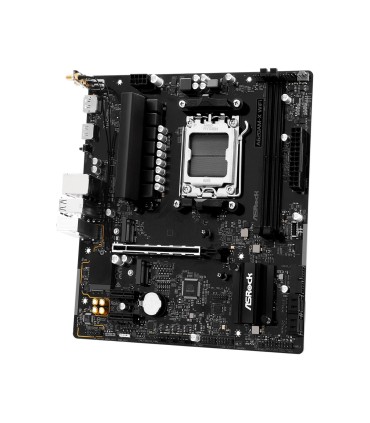

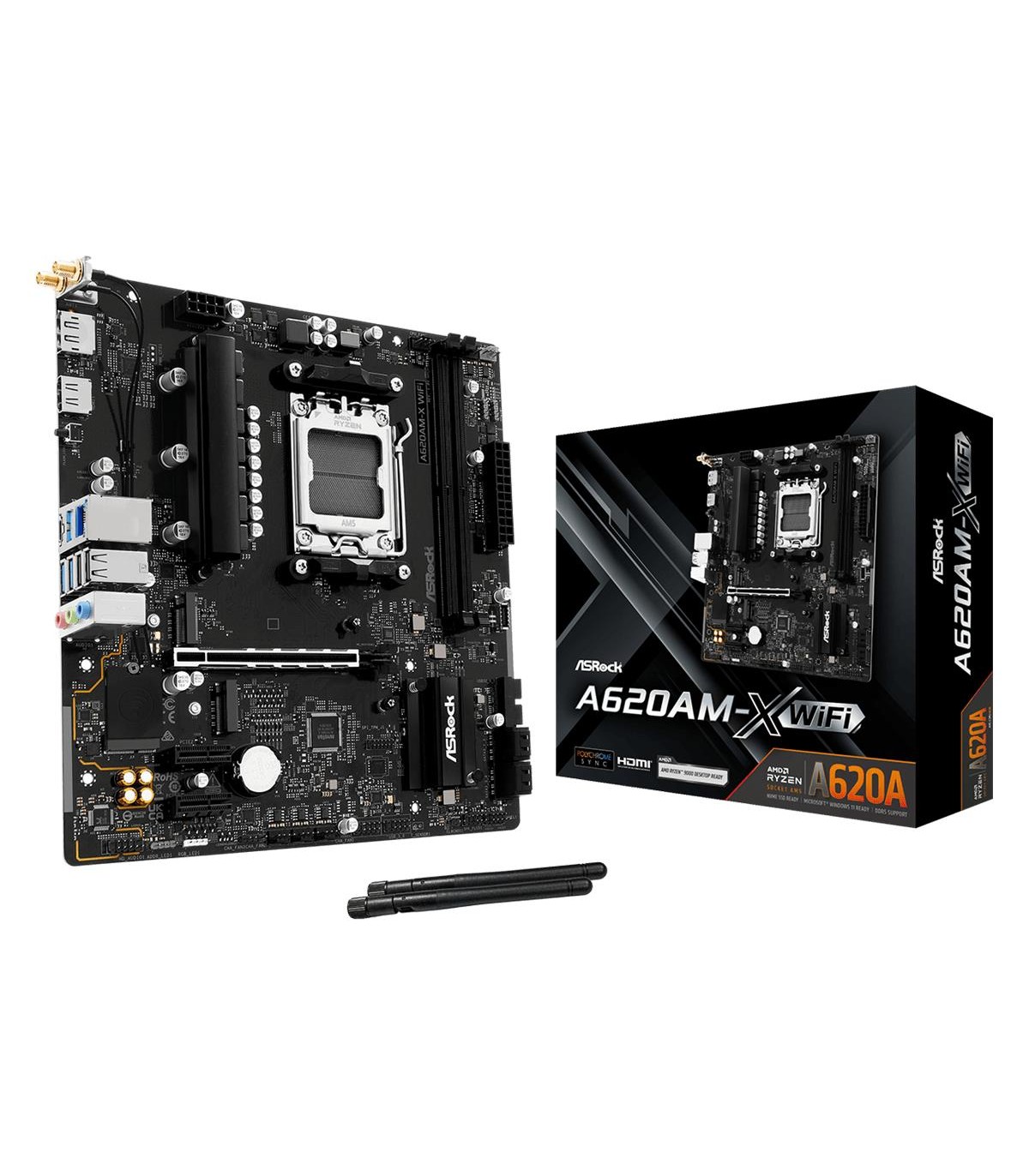

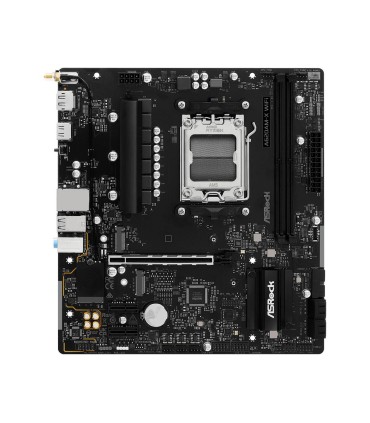

ASROCK Mainboard AMD A620 Socket AM5 micro ATX RAM DDR5-SDRAM 2xSlots Wi-Fi Yes Bluetooth Yes 1xNumber of M.2 (M) slots A620AM-

Сеть

Bluetooth

Yes

Другие свойства

Depth

226 mm

Width

244 mm

Unit Box Width

0.265

Unit Box Length

0.3

Unit Box Height

0.06

Category Code

MBA

Model

A620AM-X WIFI

Bluetooth version

5.0

Unit Calculated Volume

0.005702 cubm

Unit Calculated Weight

1.15 kg

Units per Shipping Box

10

Summary

Asrock A620AM-X WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory

DisplayPort version

1.4

DisplayPorts quantity

1

HDCP

Yes

HDCP version

2.3

HDMI ports quantity

1

Cables included

SATA

Wi-Fi

Yes

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

AMD

Maximum internal memory

128 GB

Memory channels

Dual-channel

On-board graphics card

Yes

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Audio chip

Realtek ALC897

Motherboard chipset

AMD A620A

LAN controller

Dragon RTL8125BG

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

Graphics card family

AMD

PCI Express x1 (Gen 3.x) slots

2

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor socket

Socket AM5

Unbuffered memory

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

3

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

4

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Ethernet interface type

2.5 Gigabit Ethernet

Motherboard chipset family

AMD

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Number of water pump connectors

1

Maximum number of SMP processors

1

ECC сompatibility

ECC & Non-ECC
