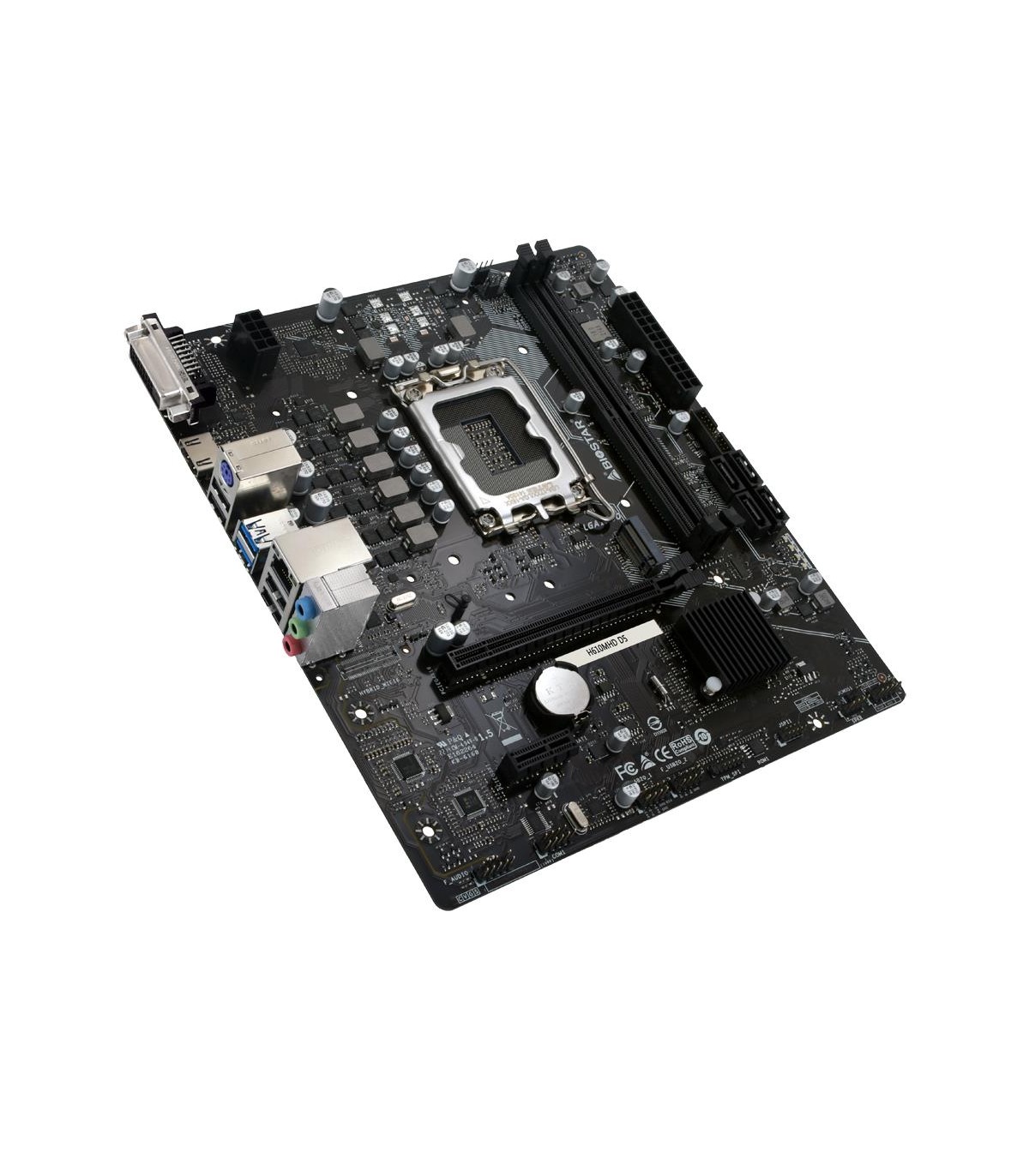

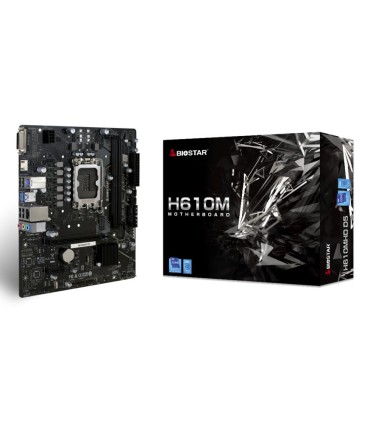

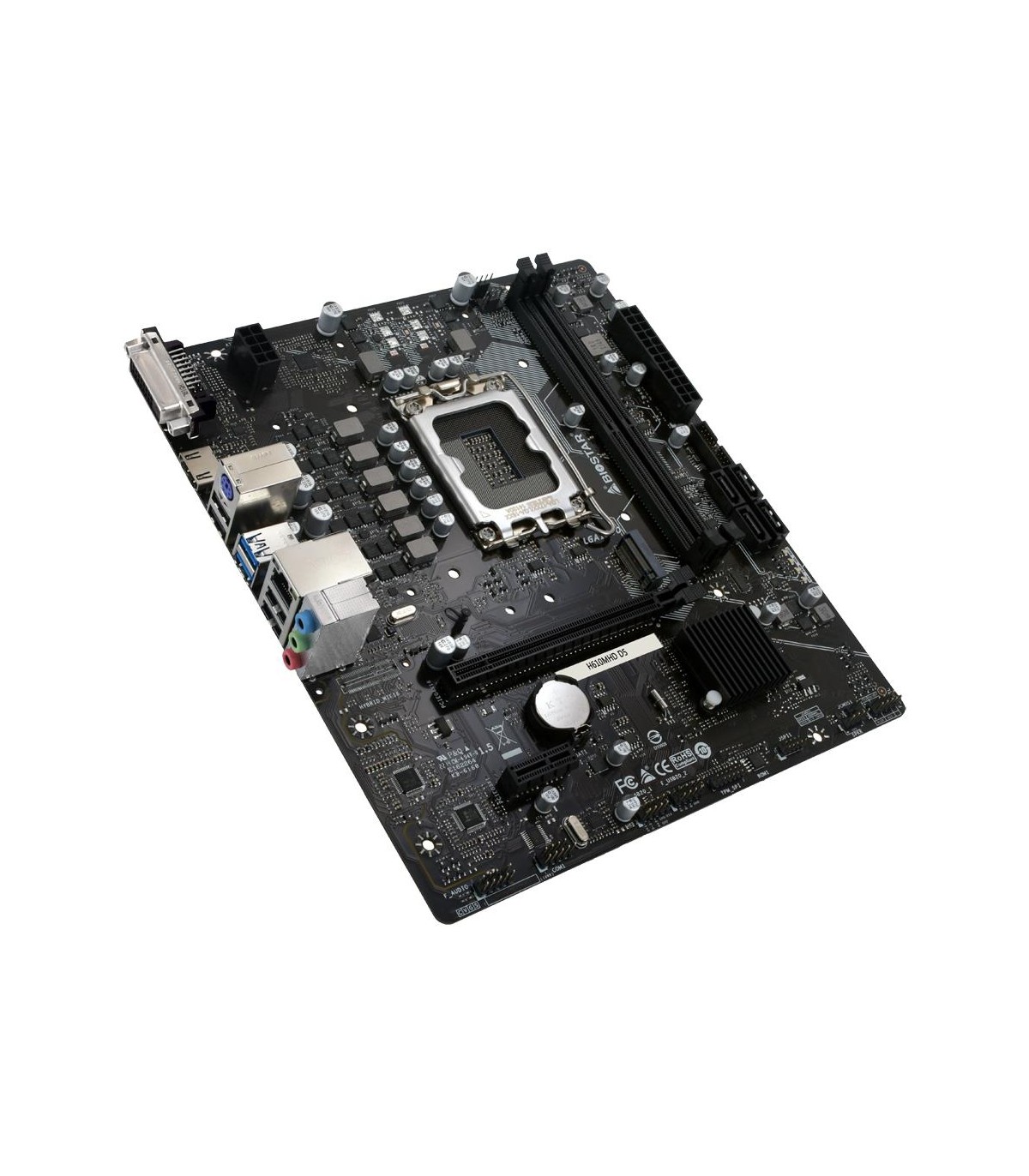

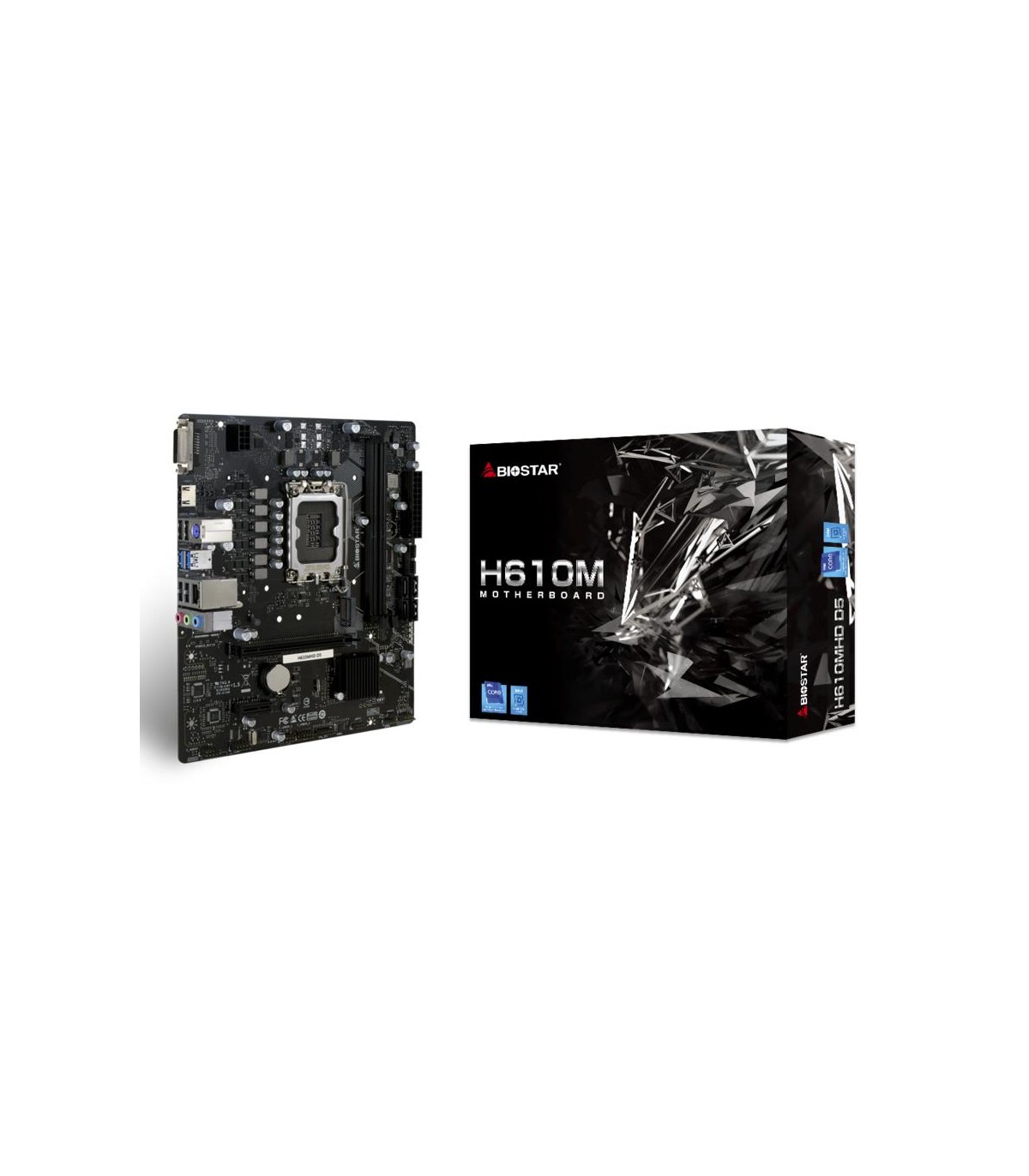

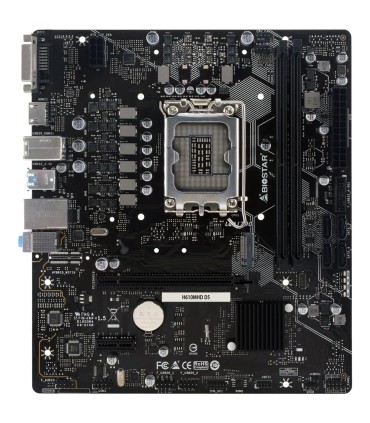

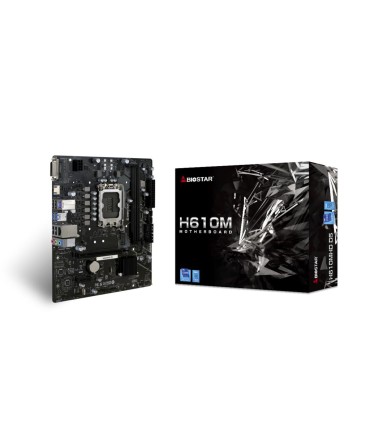

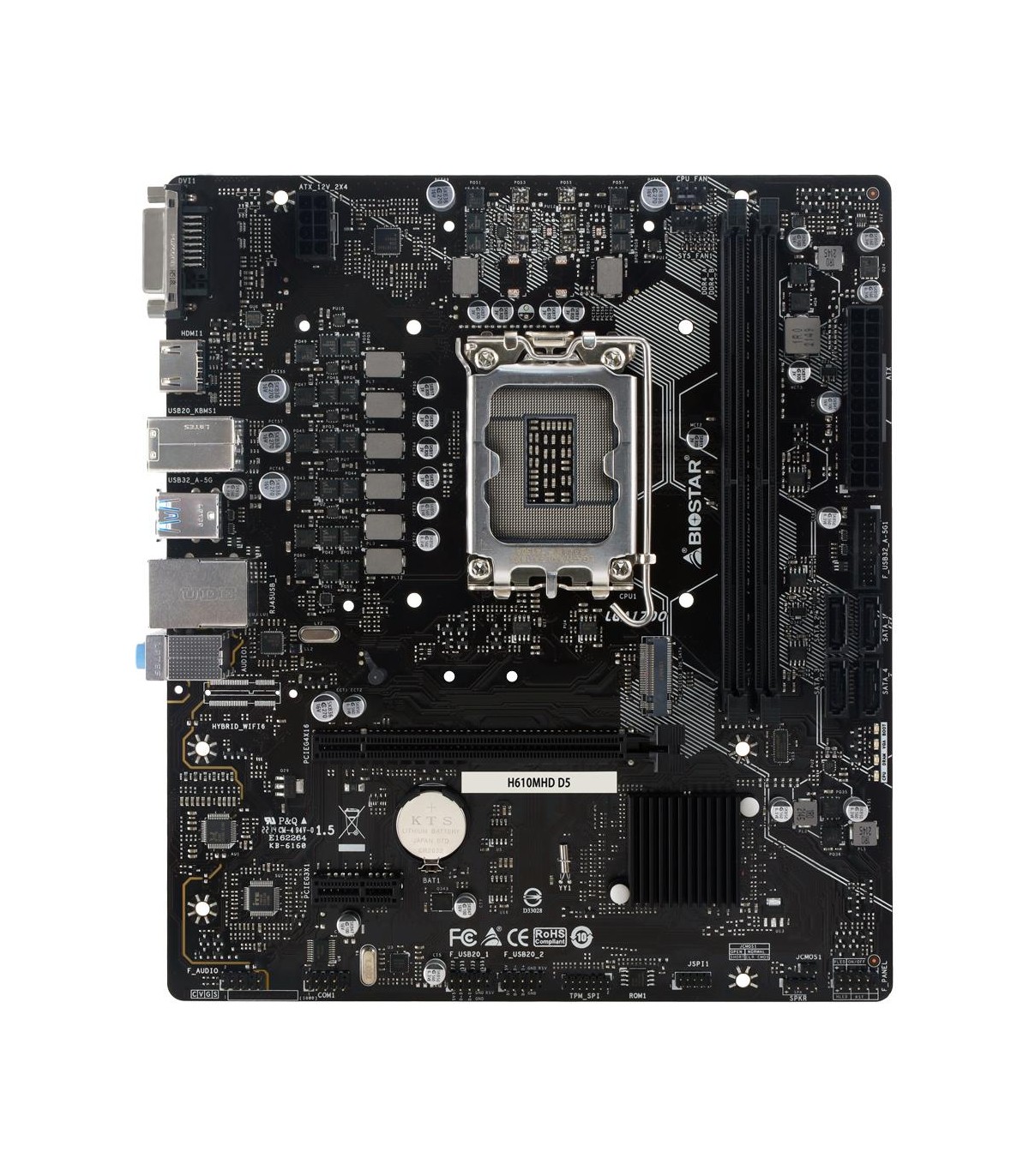

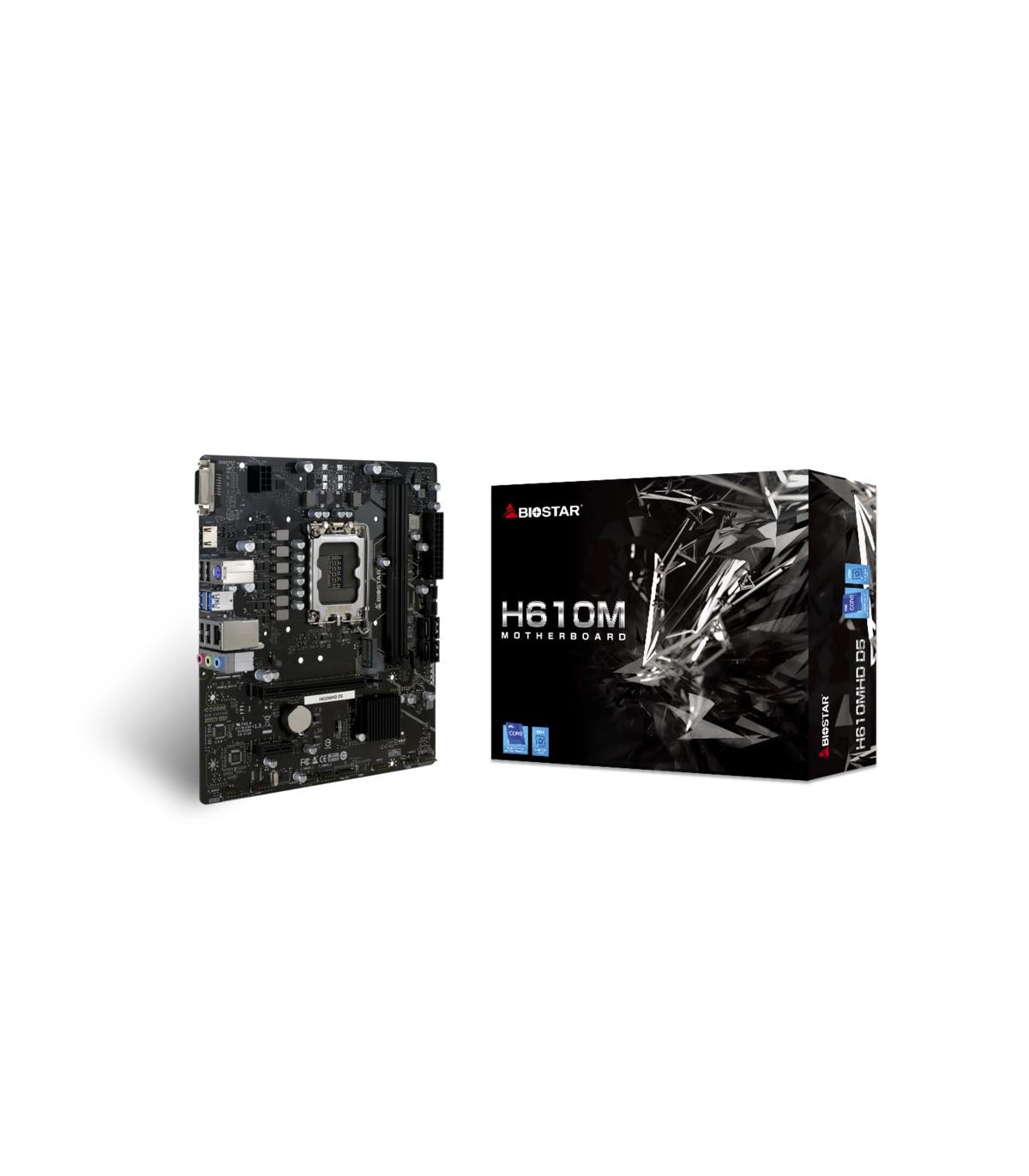

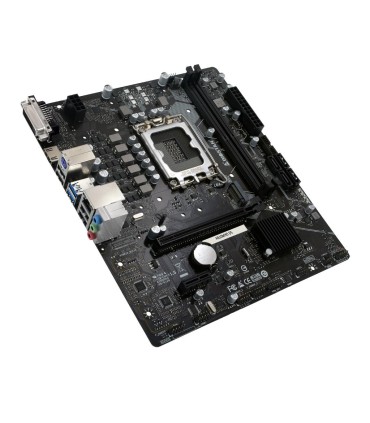

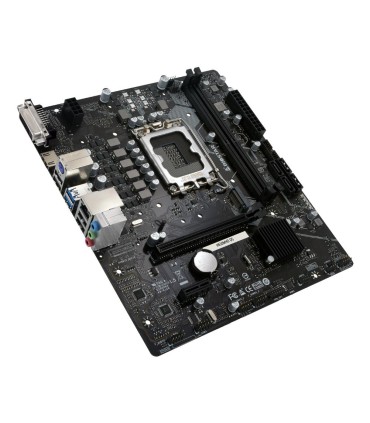

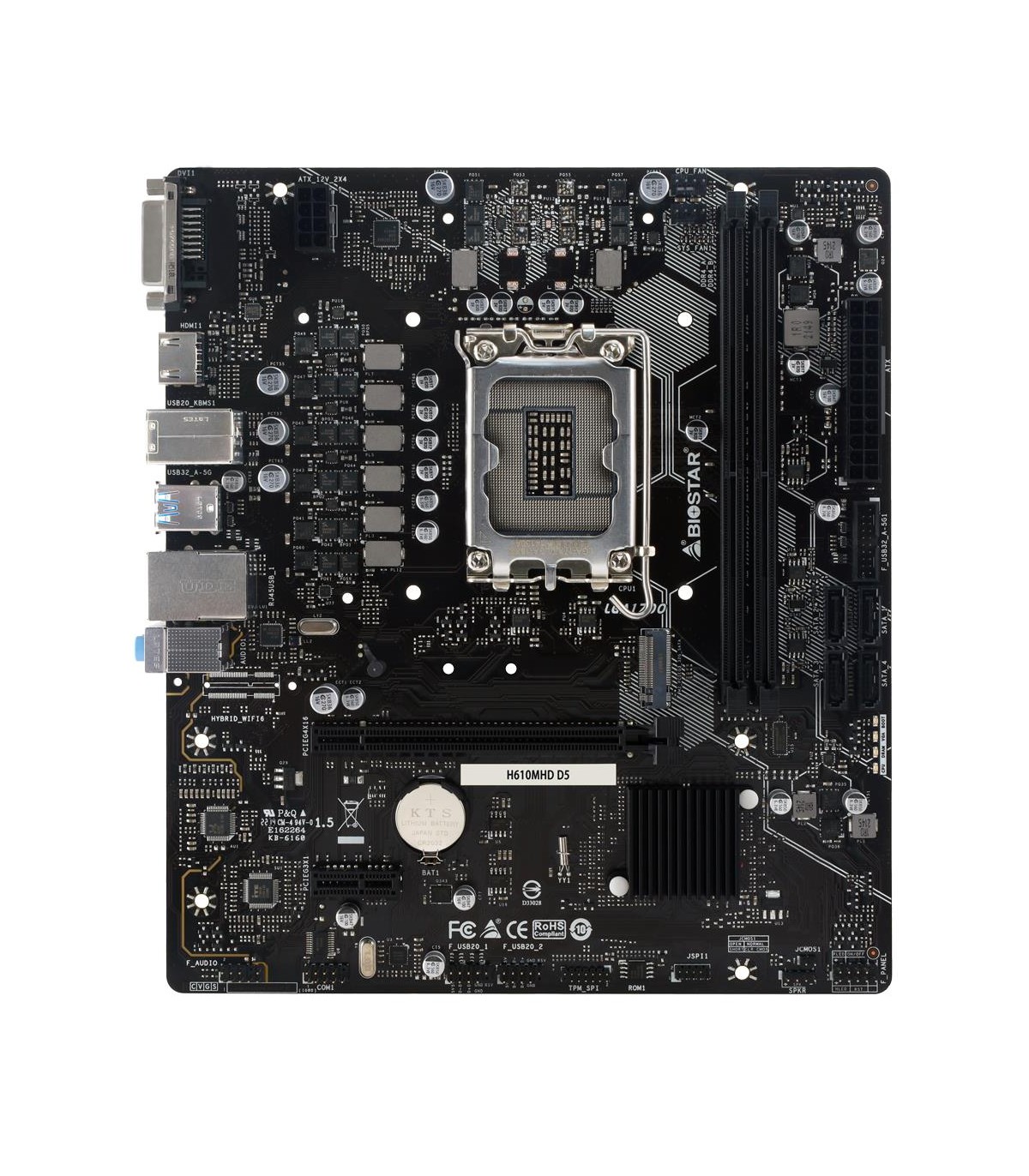

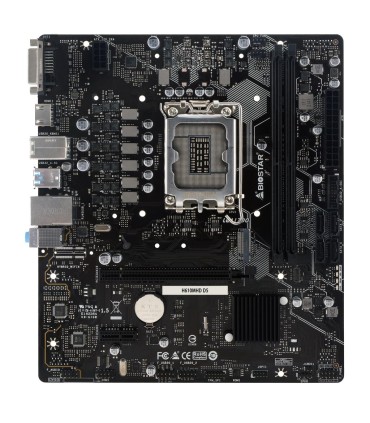

BIOSTAR Mainboard H610MHD D5 Intel H610 LGA 1700 micro ATX RAM DDR5-SDRAM 2xSlots H610MHDD5

Другие свойства

Depth

208 mm

Width

236 mm

Unit Box Width

0.06

Unit Box Length

0.27

Unit Box Height

0.22

Category Code

MBI

Model

H610MHD D5

Unit Calculated Volume

0.004256 cubm

Unit Calculated Weight

0.768 kg

Units per Shipping Box

20

Summary

Biostar H610MHD D5. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum in

Product colour

Black

HDCP

Yes

HDMI ports quantity

1

Cables included

SATA

Bundled software

BullGuard

Headphone outputs

3

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Parallel processing technology support

Not supported

DVI-D ports quantity

1

DirectX version

12.0

Drivers included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

5

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

128 GB

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Motherboard chipset

Intel H610

LAN controller

Intel I219V

Number of SATA III connectors

4

Audio output channels

7.1 channels

PS/2 ports quantity

1

USB connector type

USB Type-A

PCI Express x1 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celero

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

5600 MHz

Unbuffered memory

Yes

Supported storage drive interfaces

PCI Express 3.0,SATA III

CPU fan connector

Yes

Front panel connector

Yes

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Fast Ethernet/Gigabit Ethernet

Motherboard chipset family

Intel

PC health monitoring

FAN/Temperature/Voltage

1st M.2 highest PCI Express generation

3.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS type

UEFI

Clear CMOS jumper

Yes

Number of COM connectors

1

Audio connector

Yes

ECC сompatibility

Non-ECC
