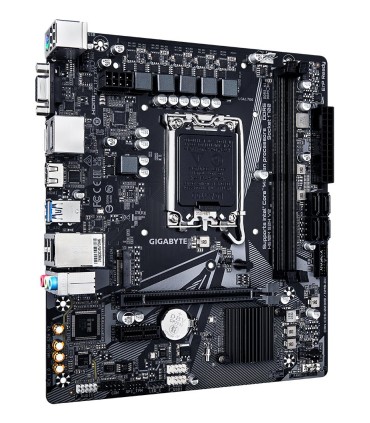

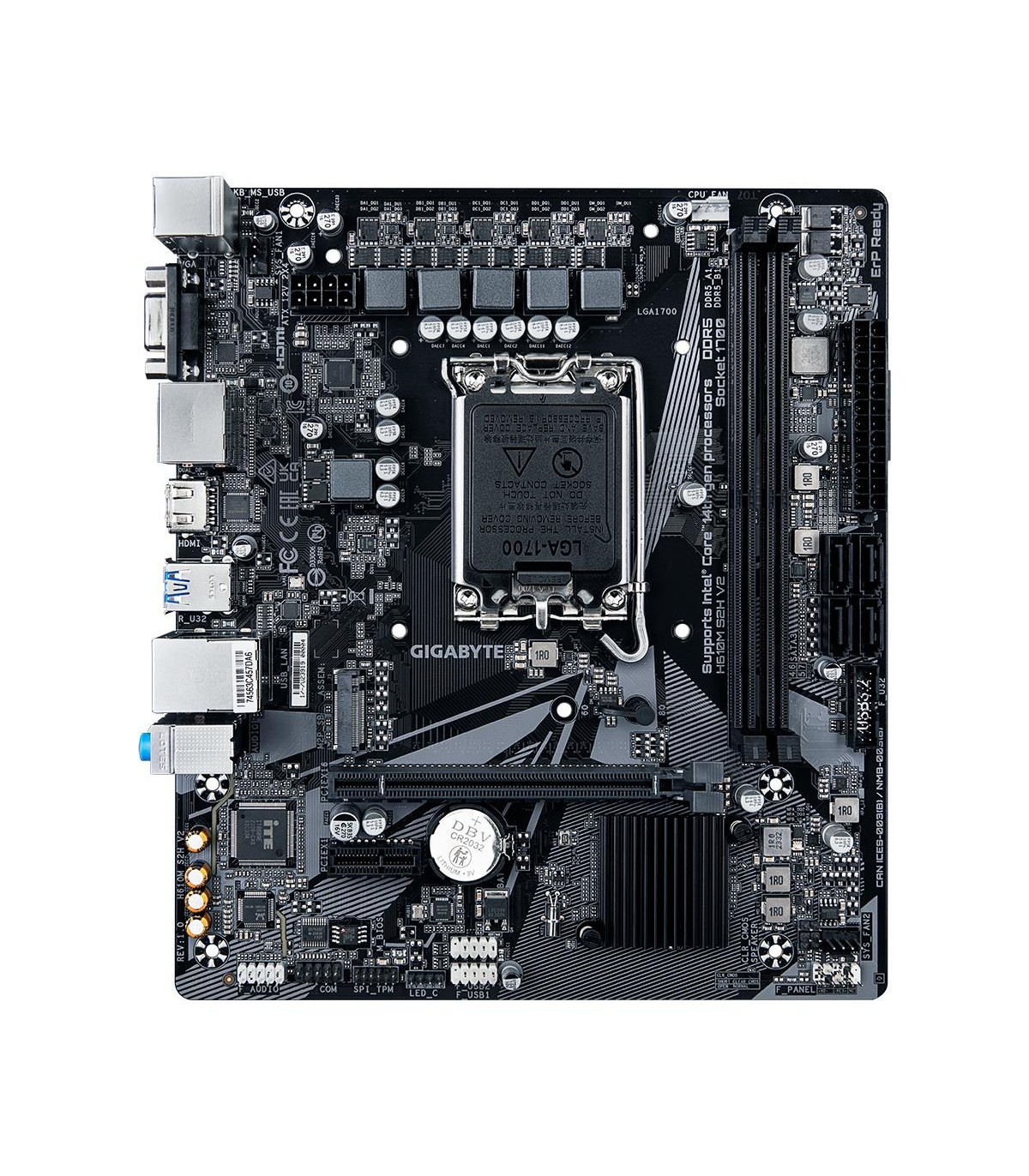

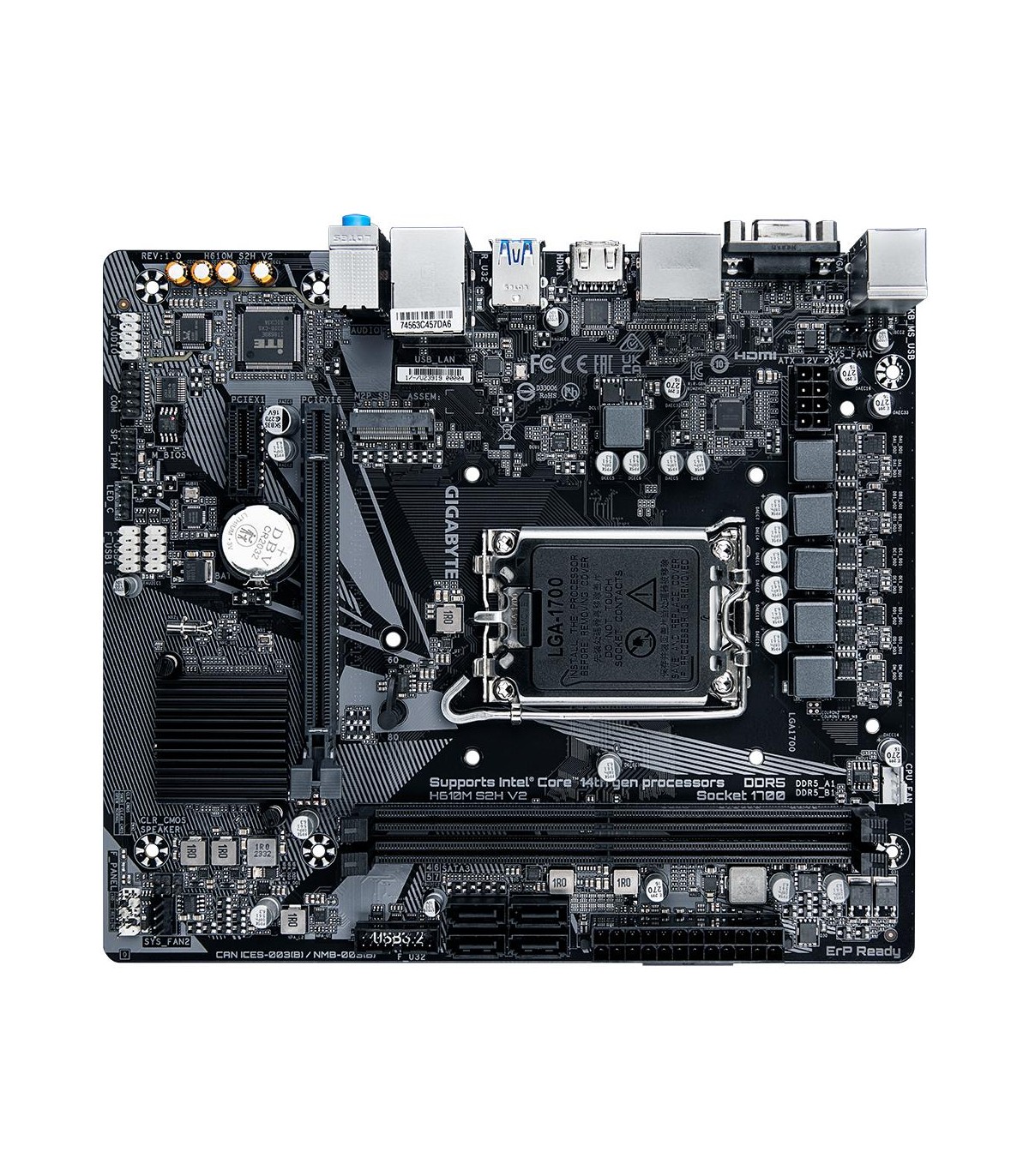

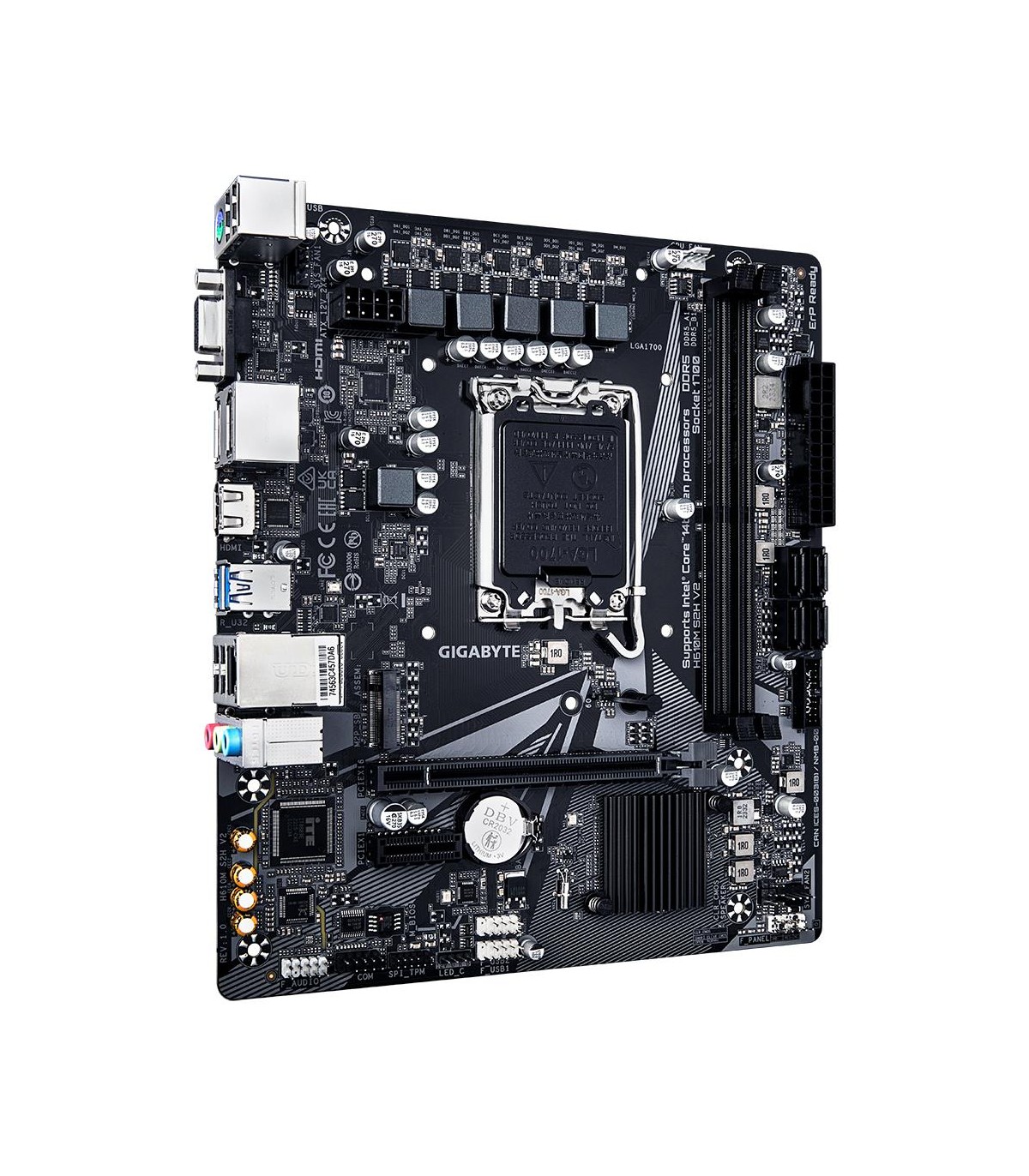

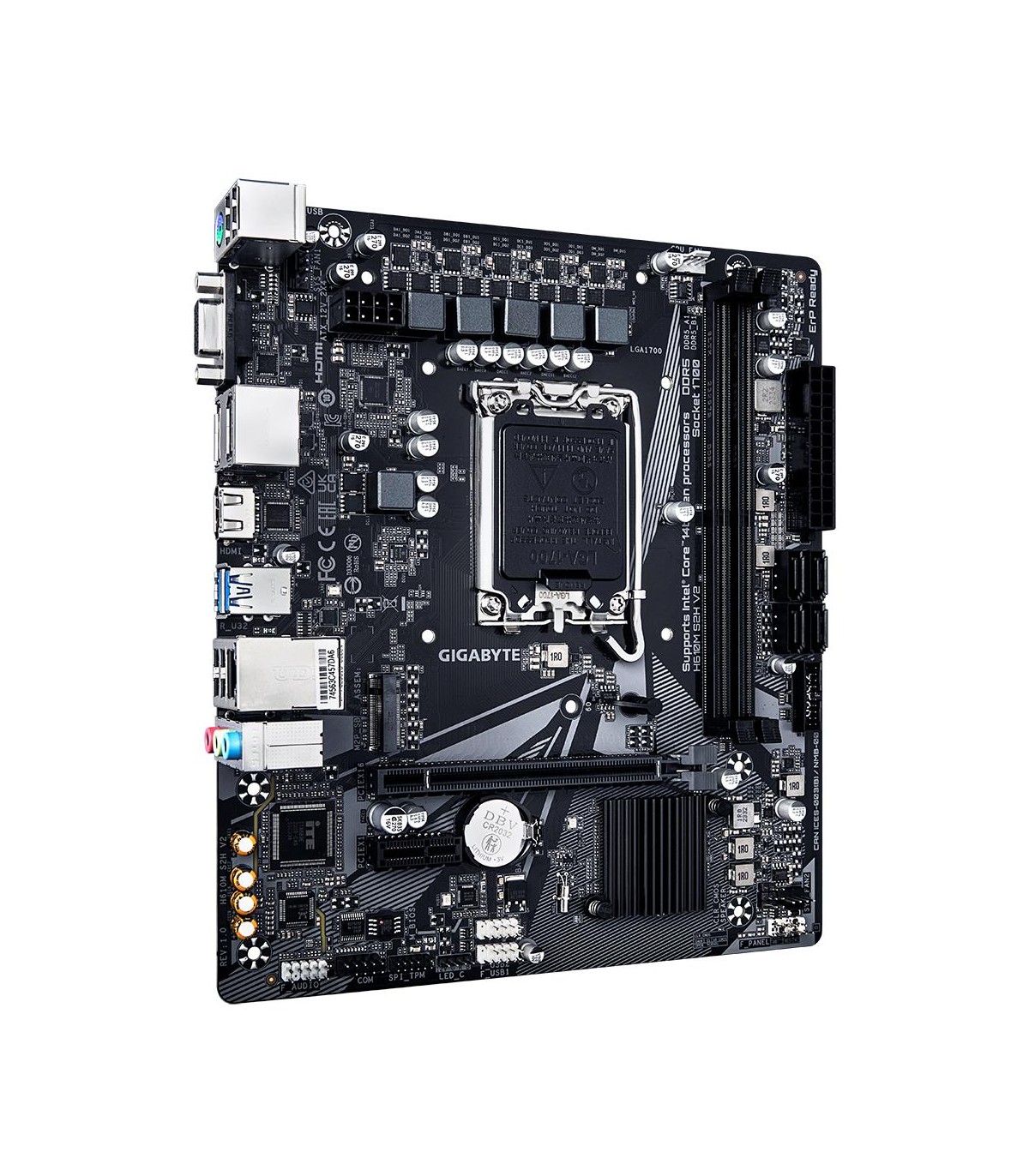

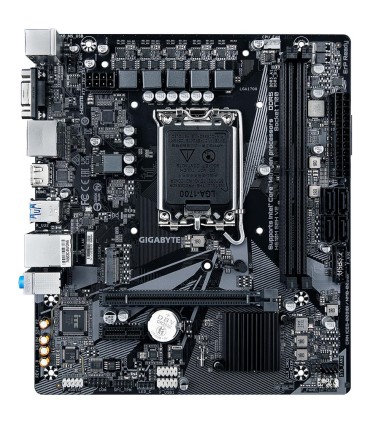

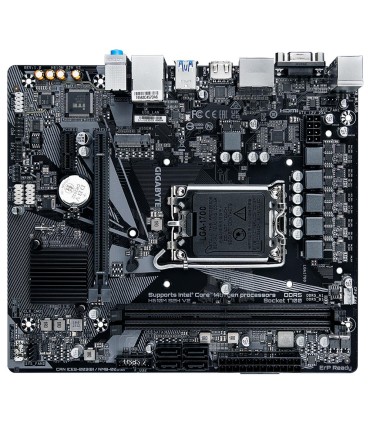

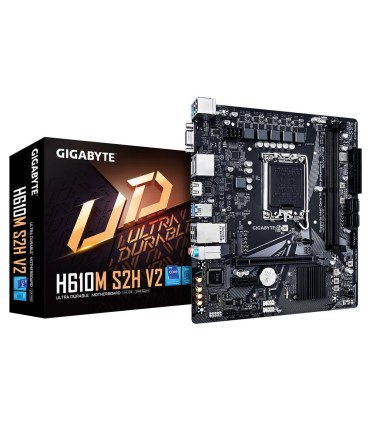

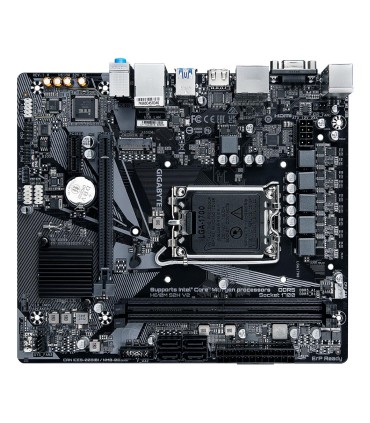

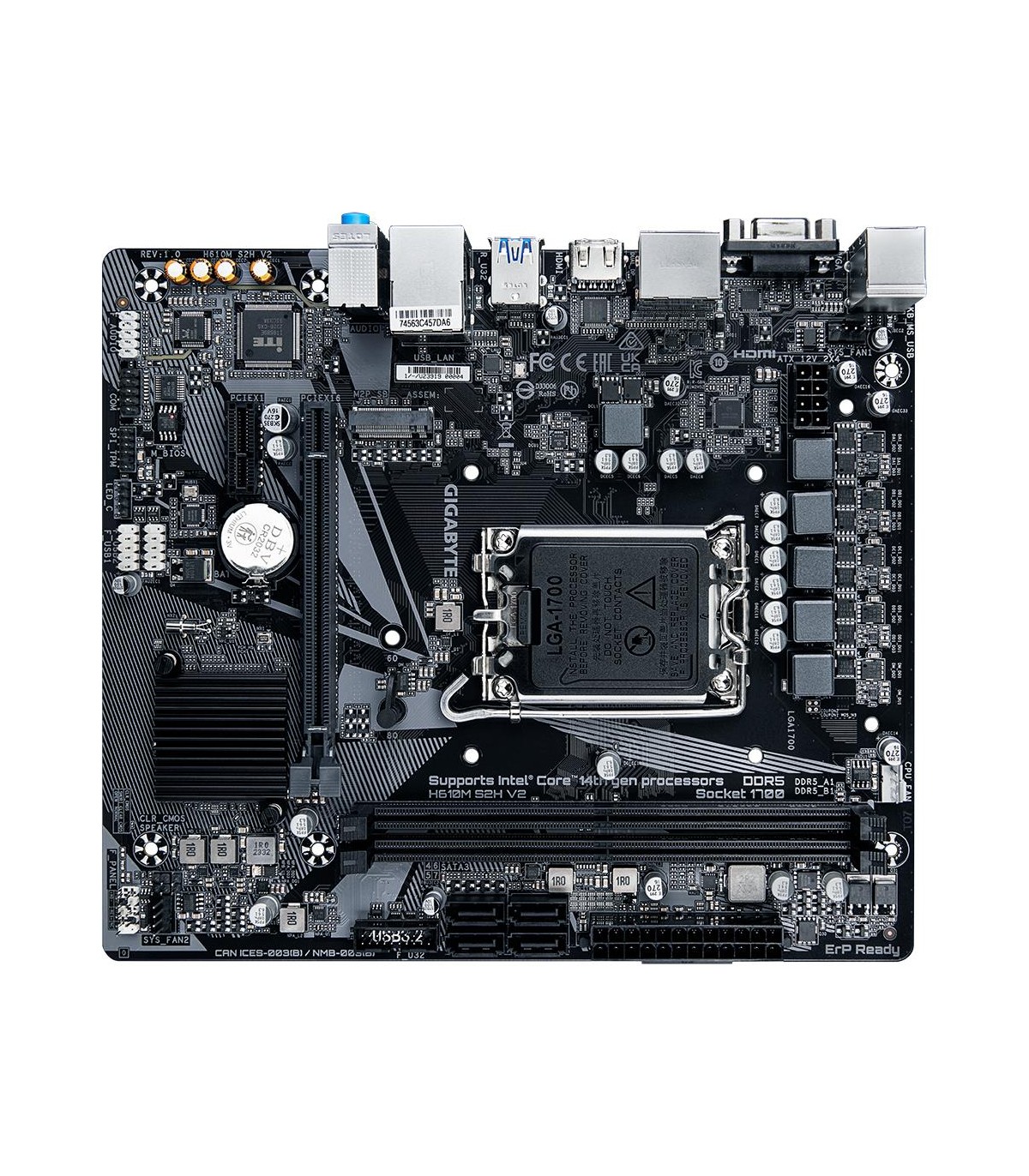

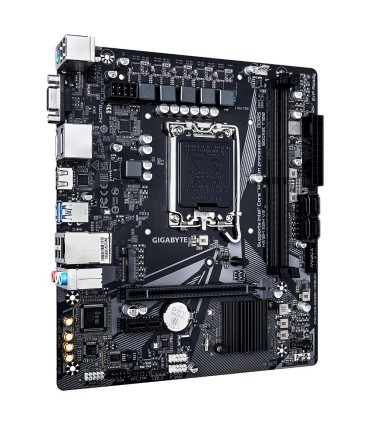

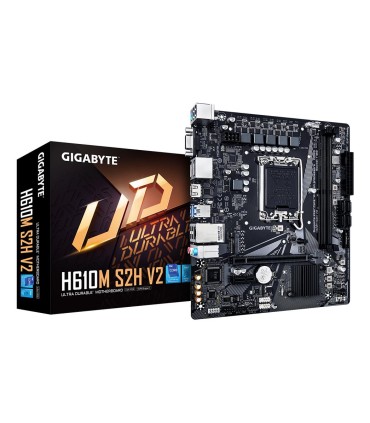

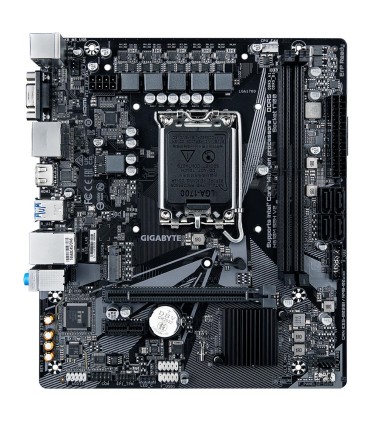

GIGABYTE Mainboard Intel H610 LGA1700 Micro-ATX Memory DDR5 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 1xM.2 1x1

Другие свойства

Depth

215 mm

Height

35 mm

Width

230 mm

Unit Box Width

0.235

Unit Box Length

0.265

Unit Box Height

0.055

Category Code

MBI

Model

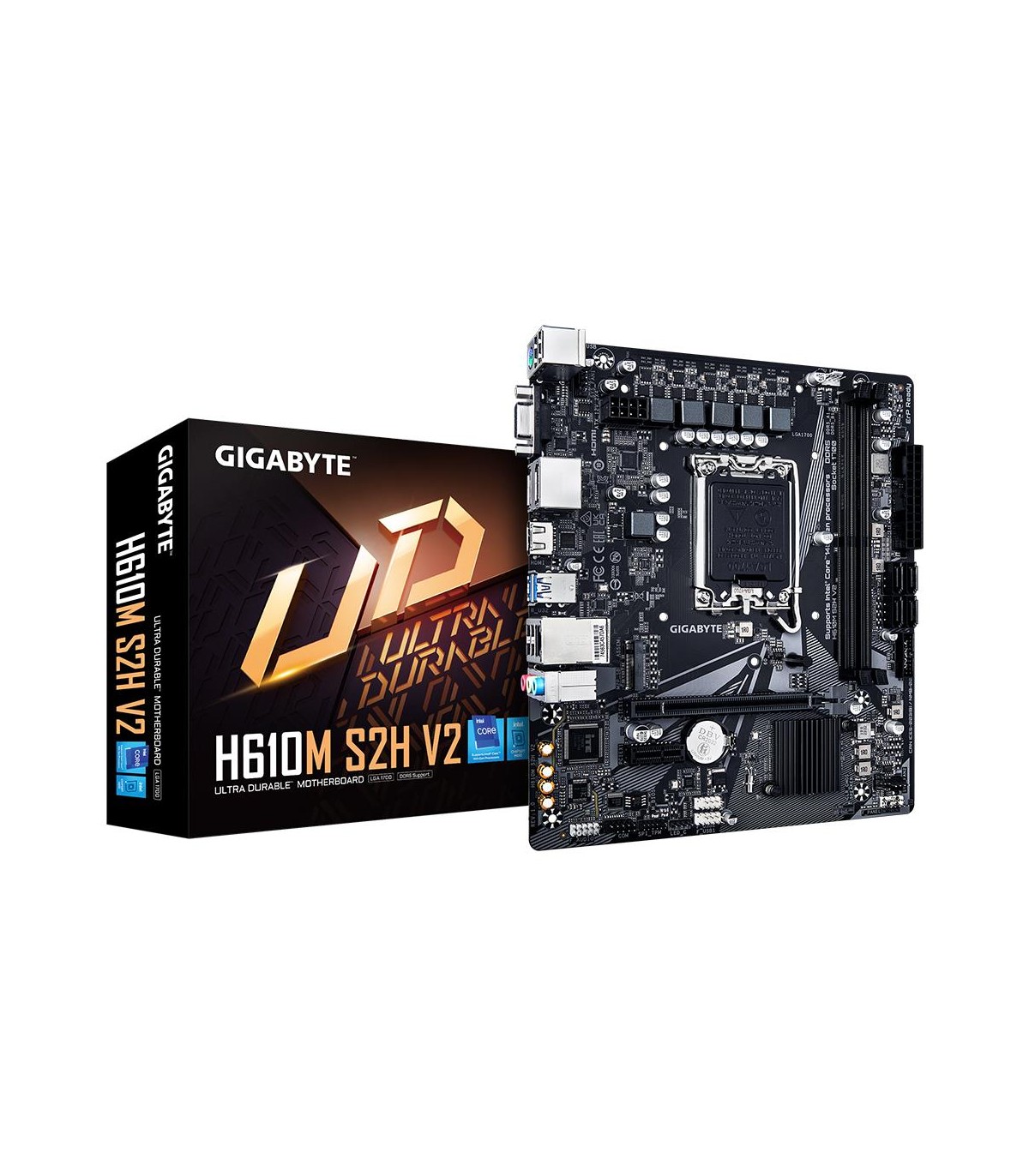

H610M S2H V2

Battery weight

3 g

Unit Calculated Volume

0.004113 cubm

Unit Calculated Weight

0.787 kg

Units per Shipping Box

10

Summary

GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel®

Product colour

Black

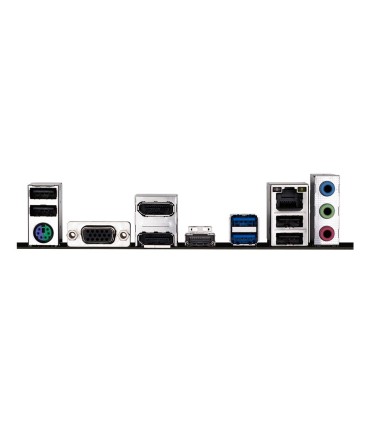

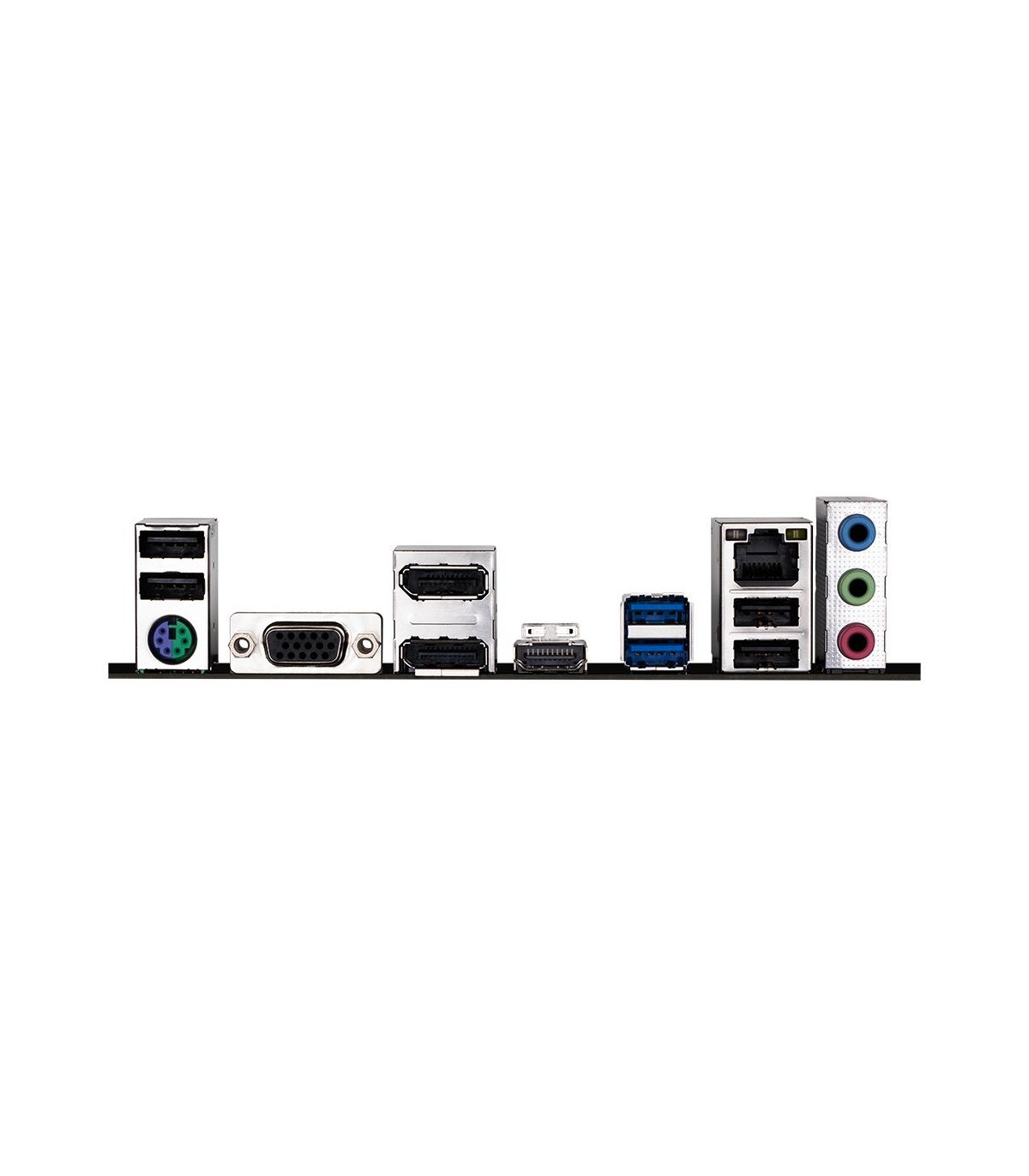

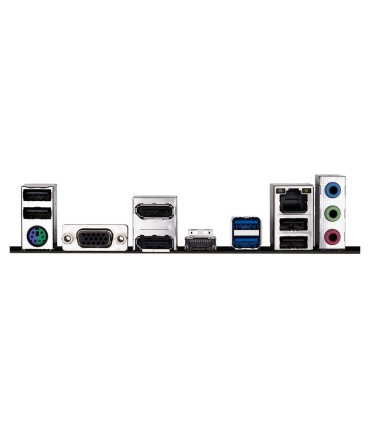

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

Package depth

235 mm

Package height

52 mm

Package weight

690 g

Package width

265 mm

Cables included

SATA

VGA (D-Sub) ports quantity

1

Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Country of origin

China

Headphone outputs

1

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Maximum resolution

4096 x 2304 pixels

DVI-D ports quantity

1

Cooling type

Active

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of storage drives supported

1

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

96 GB

Memory channels

Dual-channel

On-board graphics card

Yes

On-board graphics card model

Intel® HD Graphics

Audio chip

Realtek ALC897

Motherboard chipset

Intel H610 Express

Number of SATA III connectors

4

PCI Express x1 slots

1

PCI Express x16 slots

1

Audio output channels

7.1 channels

PS/2 ports quantity

1

Graphics card

HD Graphics

Graphics card family

Intel

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4400/4800/5200/5600 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

5600 MHz

Unbuffered memory

Yes

Supported storage drive interfaces

M.2,SATA

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

Intel

PC health monitoring

Fan/LED/Temperature/Voltage/Water cooling

Power source type

ATX

Number of M.2 (M) slots

1

ACPI version

5.0

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

12V power connector

Yes

Serial port headers

1

Clear CMOS button

Yes

Maximum number of SMP processors

1

Number of COM connectors

1

Maximum internal memory supported by processor

96 GB

Supported memory module capacities

12GB/1GB/2GB/32GB/48GB/4GB/8GB

ECC сompatibility

ECC & Non-ECC

Supported DIMM module capacities

16GB/8GB
