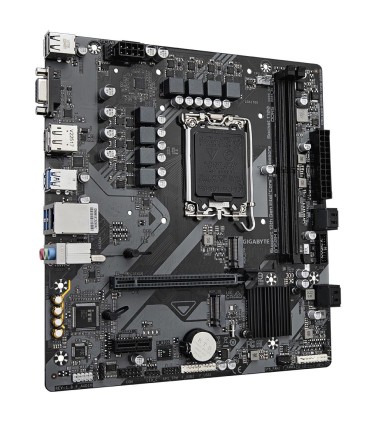

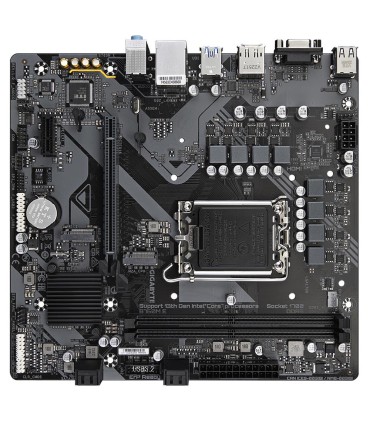

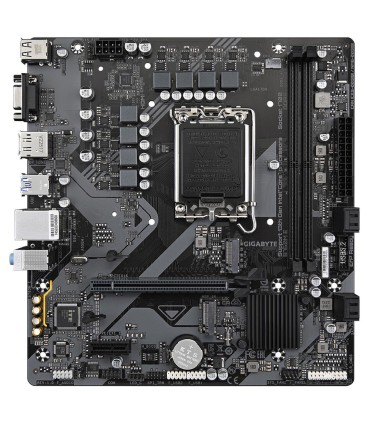

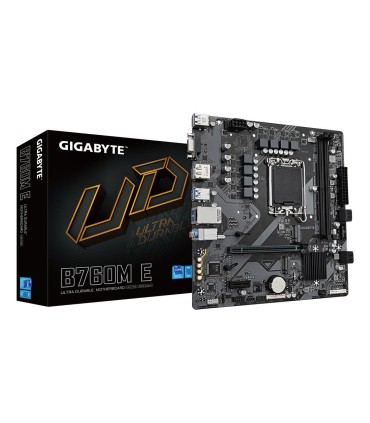

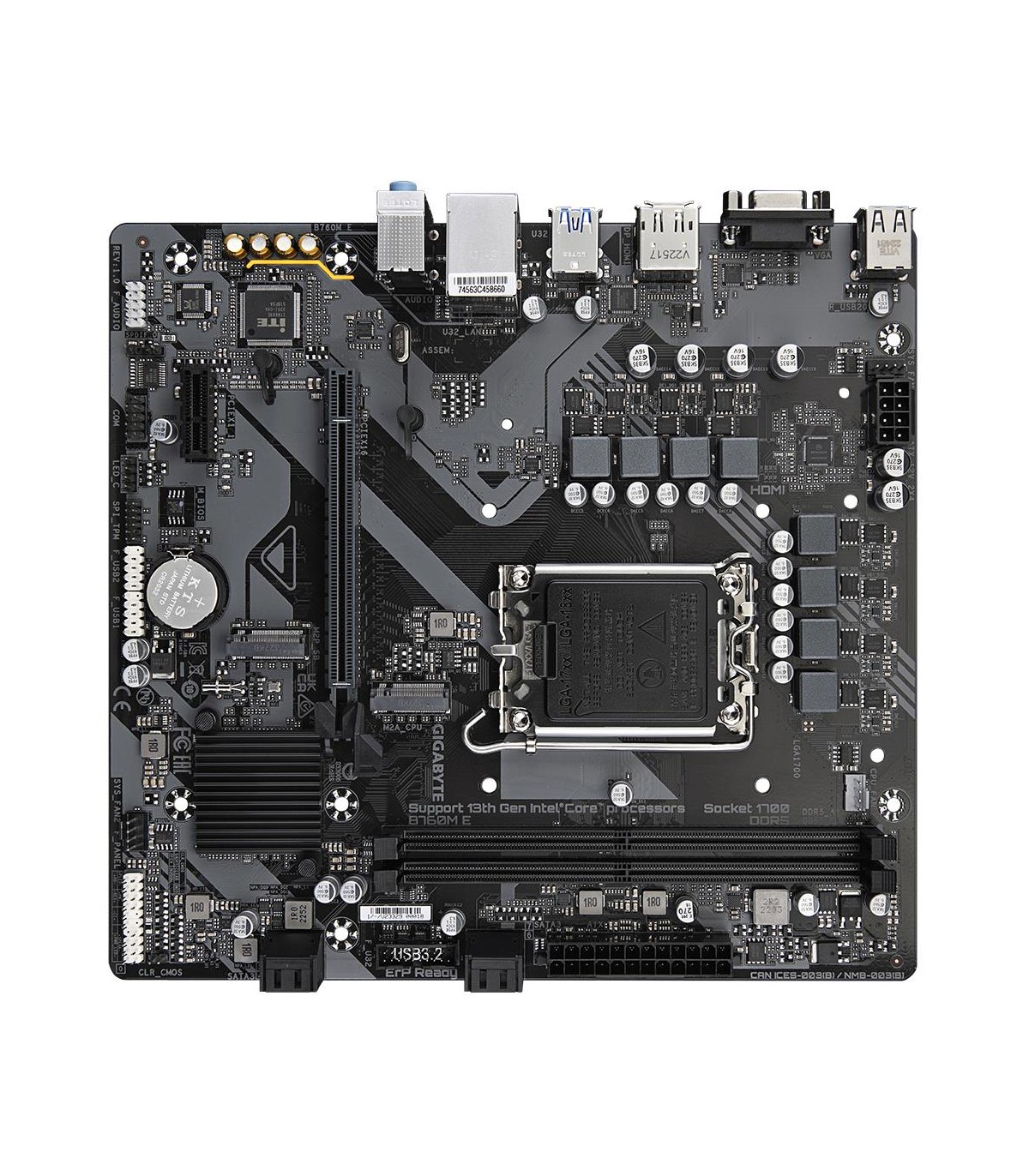

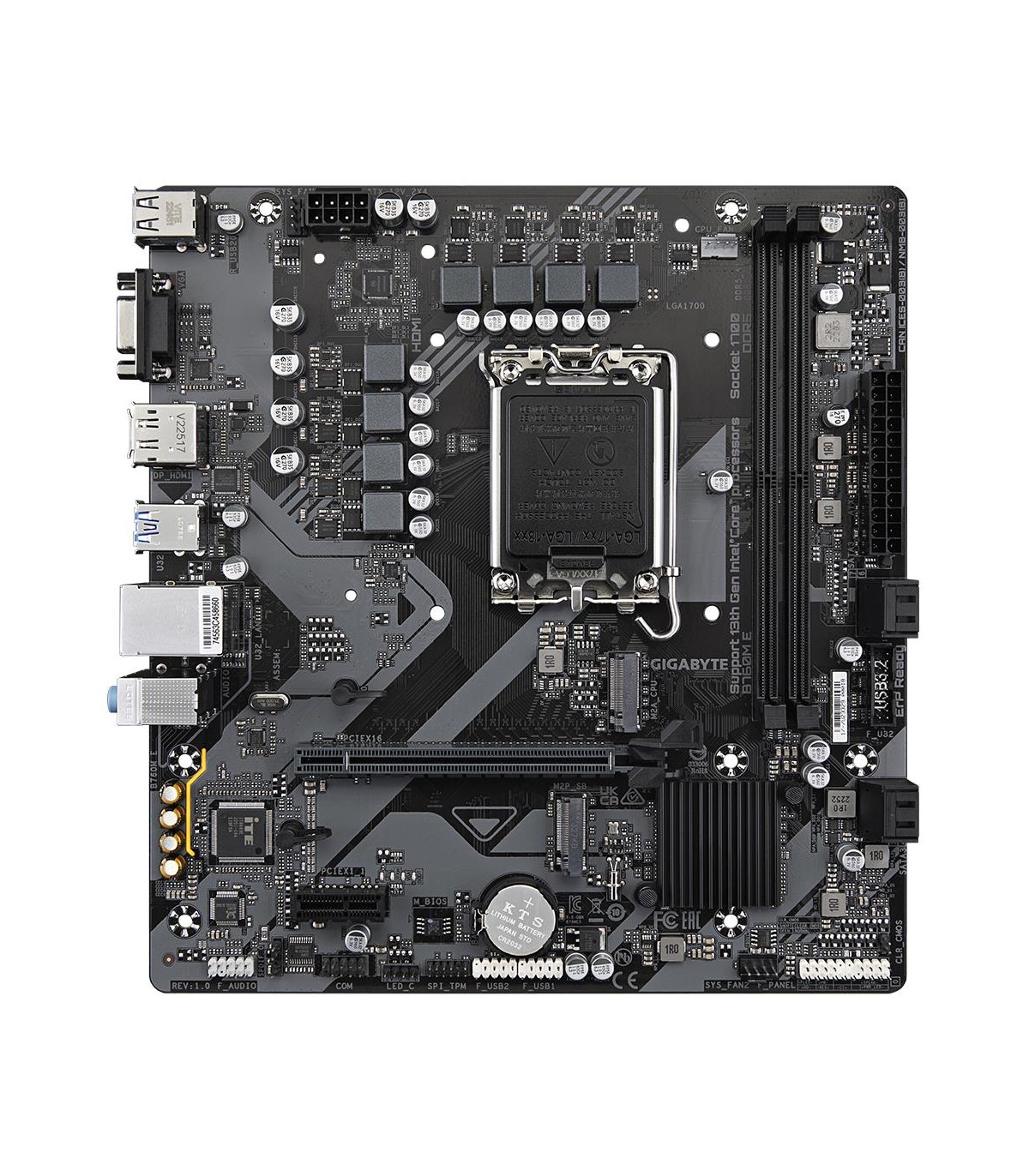

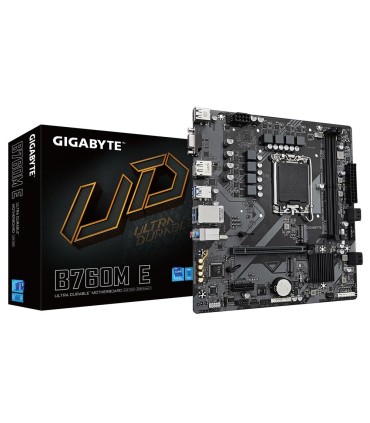

GIGABYTE Mainboard Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 2 B760ME1.0

Другие свойства

Depth

215 mm

Height

35 mm

Width

230 mm

Unit Box Width

0.265

Unit Box Length

0.27

Unit Box Height

0.055

Category Code

MBI

Model

B760M E 1.0

Battery weight

3 g

Unit Calculated Volume

0.004628 cubm

Unit Calculated Weight

0.85 kg

Units per Shipping Box

10

Summary

GIGABYTE B760M E Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 7200MHz DDR5 (OC), 2xPCIe 4.0 M.2, 1 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron

Product colour

Dark brown

DisplayPort version

1.2

DisplayPorts quantity

1

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Package depth

265 mm

Package height

54 mm

Package weight

900 g

Package width

265 mm

Screws included

Yes

VGA (D-Sub) ports quantity

1

Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Country of origin

China

Headphone outputs

1

Wi-Fi

No

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Microphone in

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Warranty period

3 year(s)

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

Cooling type

Passive

Products per shipping (inner) case

1 pc(s)

Battery type

CR2032

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Batteries included

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Number of storage drives supported

6

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

EPS power connector (8-pin)

Yes

Processor manufacturer

Intel

Maximum internal memory

128 GB

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Motherboard chipset

Intel B760

LAN controller

Realtek RTL8111H

Number of SATA III connectors

4

Line-in

Yes

Audio output channels

7.1 channels

PCI Express x1 (Gen 3.x) slots

1

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Supported storage drive types

HDD & SSD

Supported memory clock speeds

4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz

Motherboard form factor

Micro ATX

Component for

PC

Compatible processor series

Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celero

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Maximum internal memory per slot

64 GB

Supported memory clock speed (max)

7200 MHz

Unbuffered memory

Yes

RAID levels

0/1/10/5

RAID support

Yes

Supported storage drive interfaces

M.2,SATA III

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

1

RGB LED pin header

Yes

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Ethernet interface type

Gigabit Ethernet

Motherboard chipset family

Intel

PC health monitoring

FAN/Temperature/Voltage/Water cooling

Power source type

ATX

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

ACPI version

5.0

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Number of battery cells

1

12V power connector

Yes

Serial port headers

1

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

S/PDIF out connector

Yes

ECC сompatibility

ECC & Non-ECC
