1439199
Tehniline kirjeldus
- Korpuse materjal
- SGCC
Muud funktsioonid
- Depth
- 285 mm
- Height
- 44 mm
- Width
- 442.4 mm
- Unit Box Width
- 0.12
- Unit Box Length
- 0.52
- Unit Box Height
- 0.39
- Category Code
- SWI
- Model
- USW-PRO-XG-10-POE
- Form Factor
- 1U
- Switch type
- Managed
- Switching capacity
- 240 Gbit/s
- Forwarding rate
- 179 Mpps
- Power source
- AC/DC
- Unit Calculated Volume
- 0.02894 cubm
- Unit Calculated Weight
- 6.25 kg
- Units per Shipping Box
- 2
- Summary

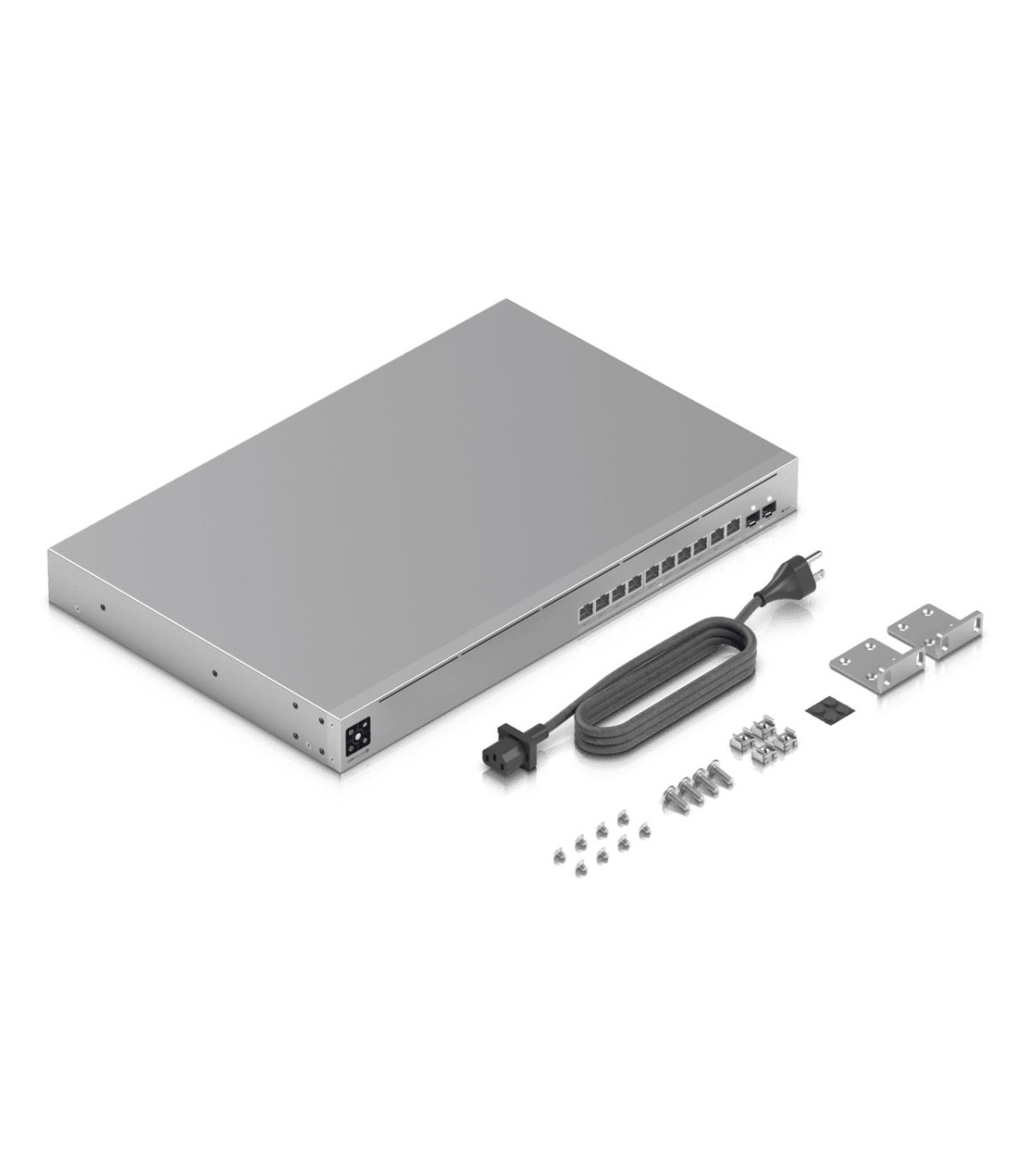

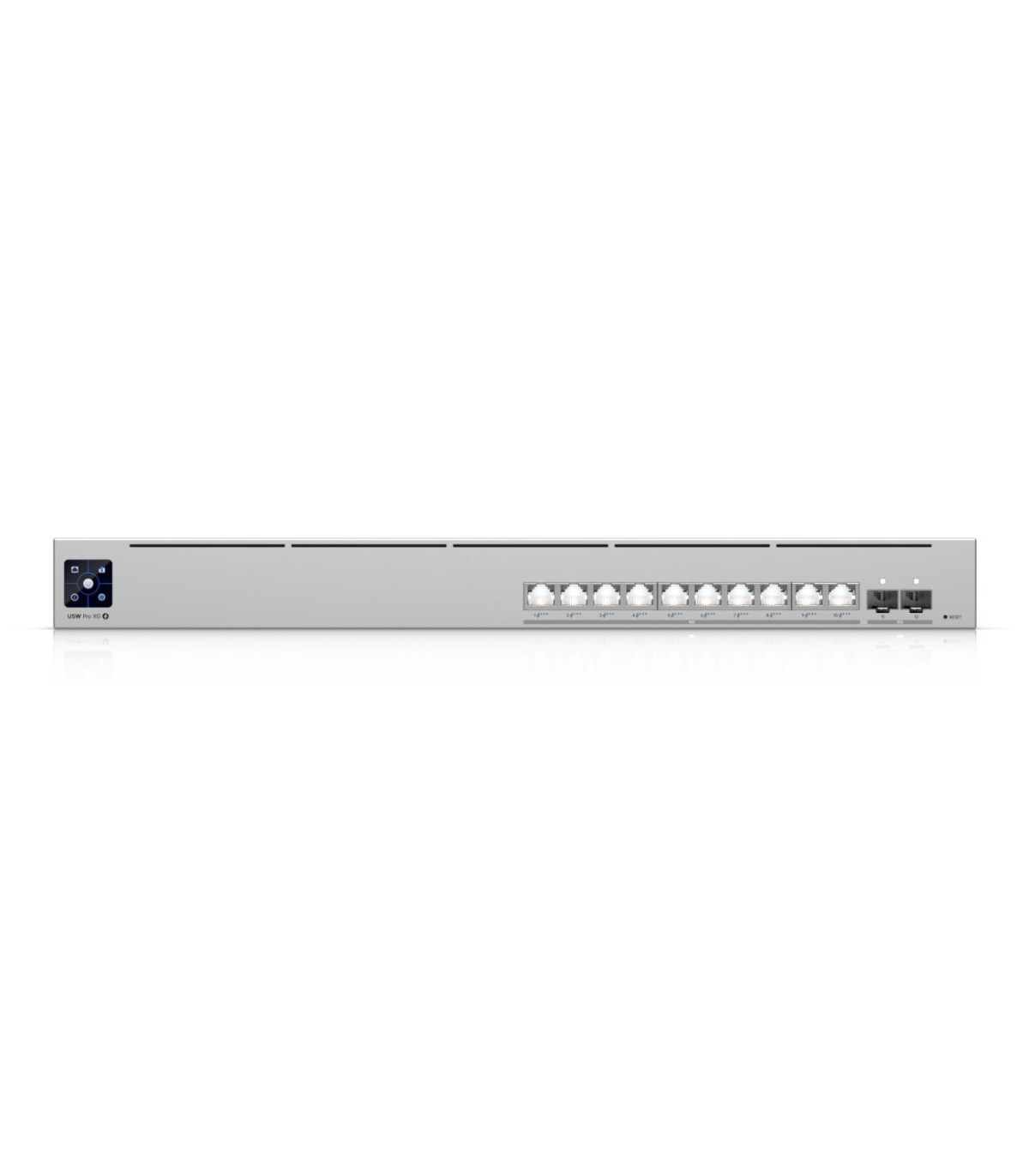

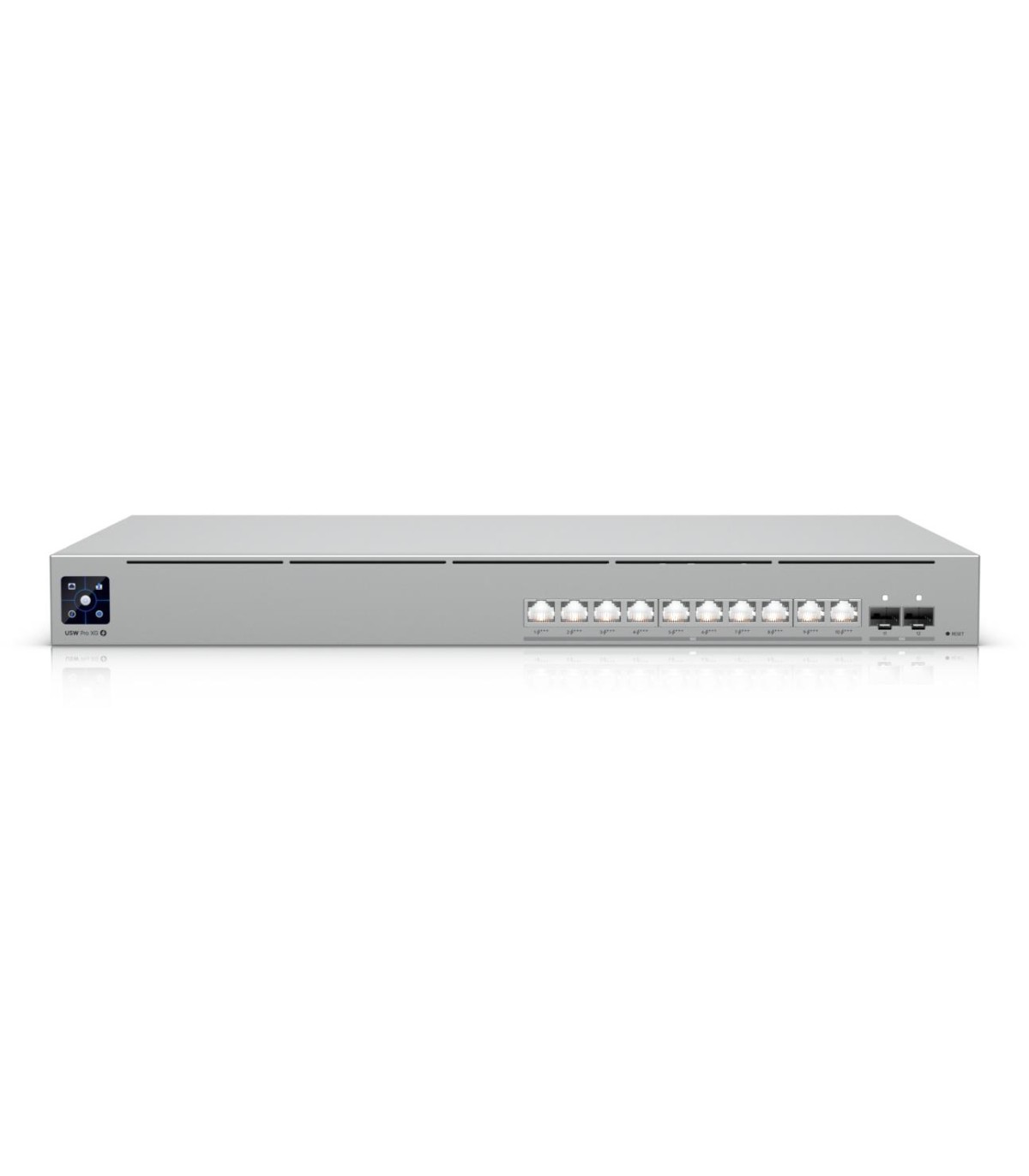

- Ubiquiti UniFi Pro XG 10 PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 32000 entries, Switching capacity: 240
- Product colour
- Grey
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Cables included
- Power
- Power consumption (max)
- 520 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 40 °C
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
- Weight
- 4600 g
- Manual
- Yes
- LED indicators
- System
- Reset button
- Yes
- Power supply included
- Yes
- Display type
- LCM
- Jumbo frames support
- Yes
- Power connector
- AC/DC
- Rack mounting
- Yes
- 10G support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 10
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- Power over Ethernet (PoE)
- Yes
- MAC address table
- 32000 entries
- Flow control support
- Yes
- Packet buffer memory
- 2 MB
- Power over Ethernet (PoE) power per port
- 15.4 W
- Total Power over Ethernet (PoE) budget
- 400 W
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Yes
- Port mirroring
- Yes
- IGMP snooping
- Yes
- Loop protection
- Yes
- Broadcast storm control
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Interface-based VLAN/Voice VLAN
- Number of VLANs
- 1000
- Stackable
- Yes
- Rack mount kit
- Yes
- Throughput
- 120 Gbit/s
- DHCP features
- DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping
- Multicast support
- Yes
- Rate limiting
- Yes
- SFP+ module slots quantity
- 2
- 10G Ethernet (copper) ports quantity
- 10
- Redundant power supply (RPS) support
- Yes
- Static route
- Yes
- IPv4 routes
- 12000
- Power over Ethernet (PoE) type supported
- PoE++ (4PPoE)
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 10
- Backlight display
- Yes
Eriviited
- EAN
- 810177160137
