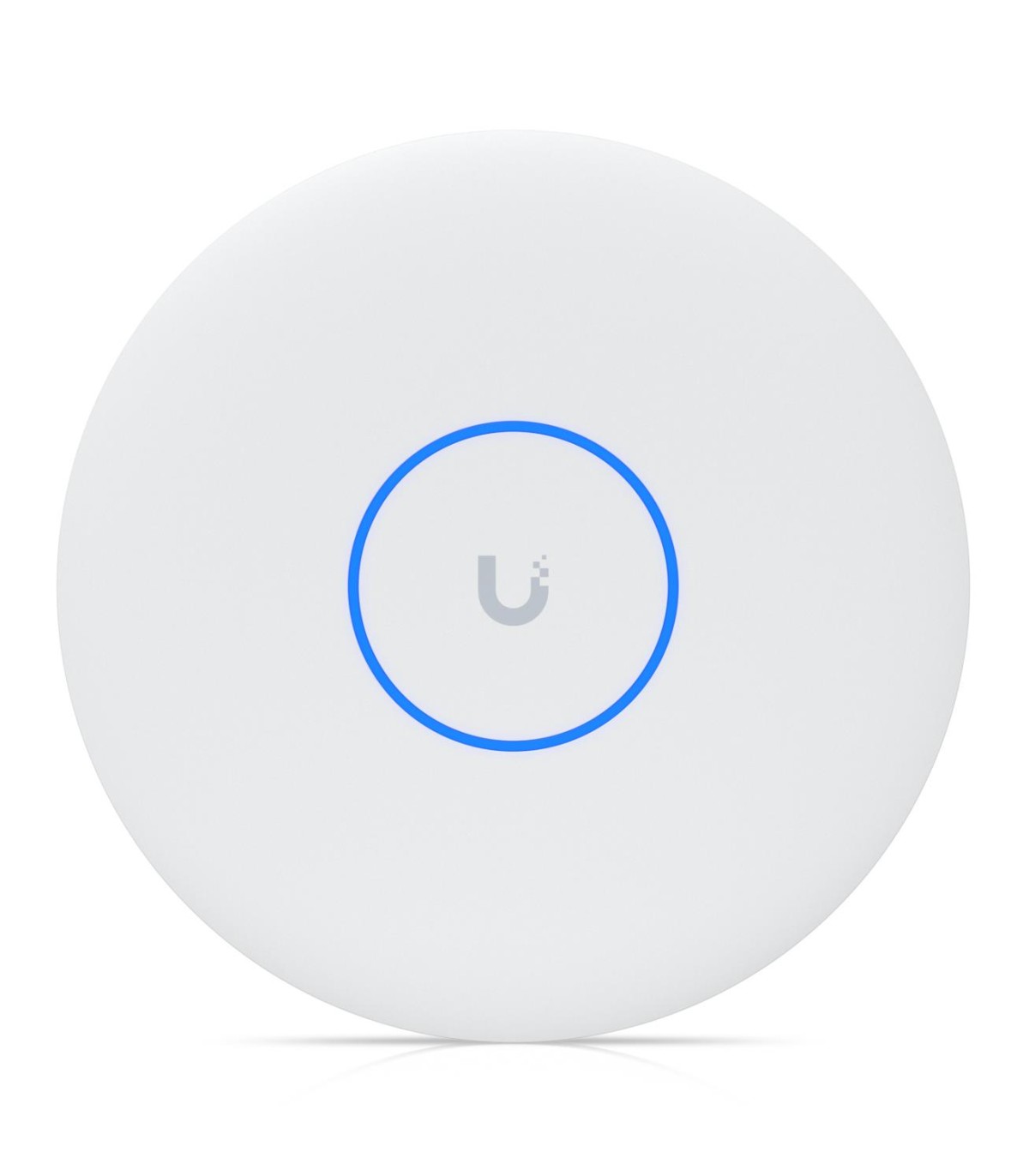

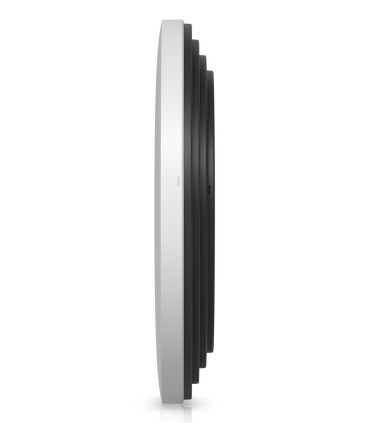

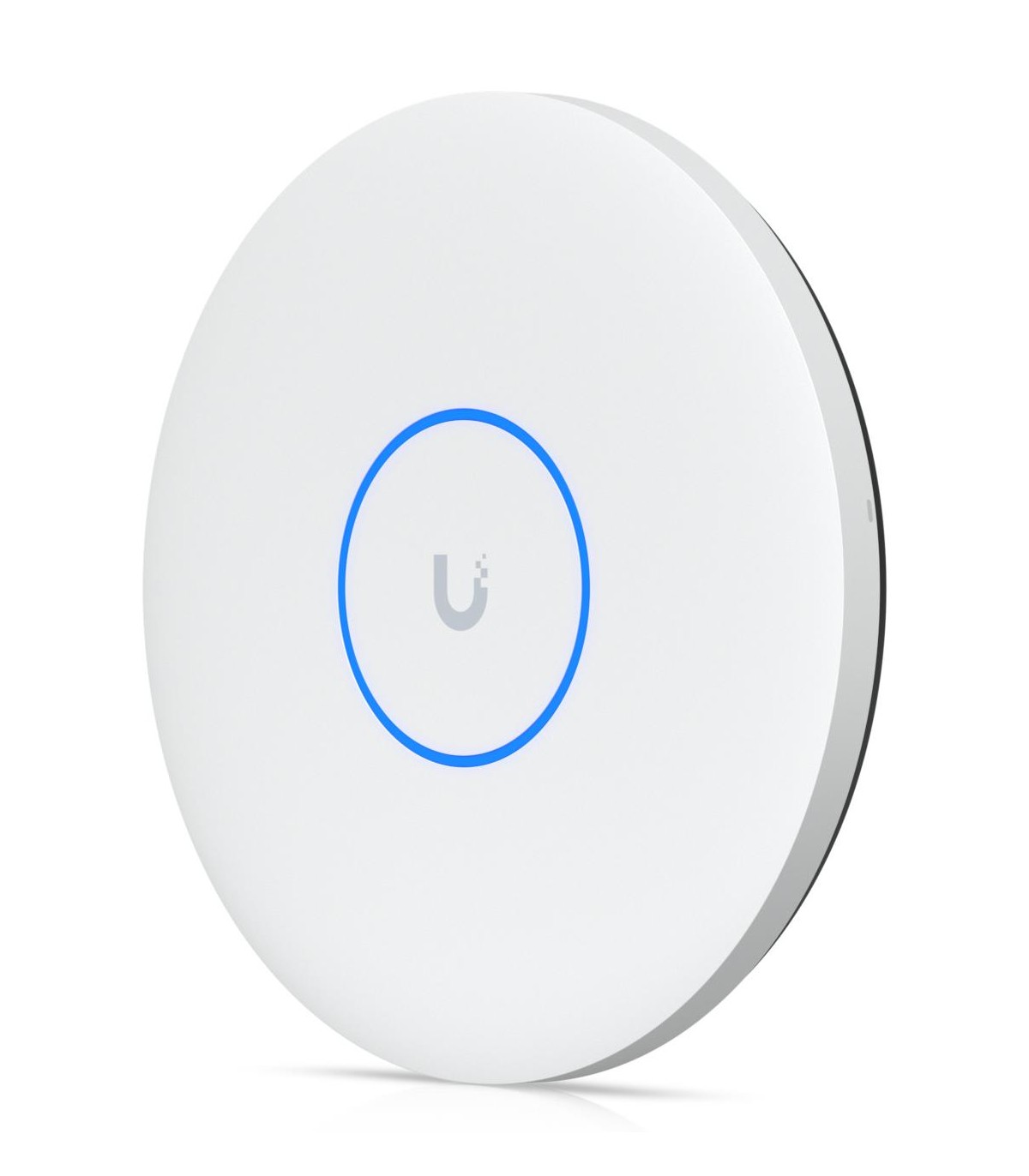

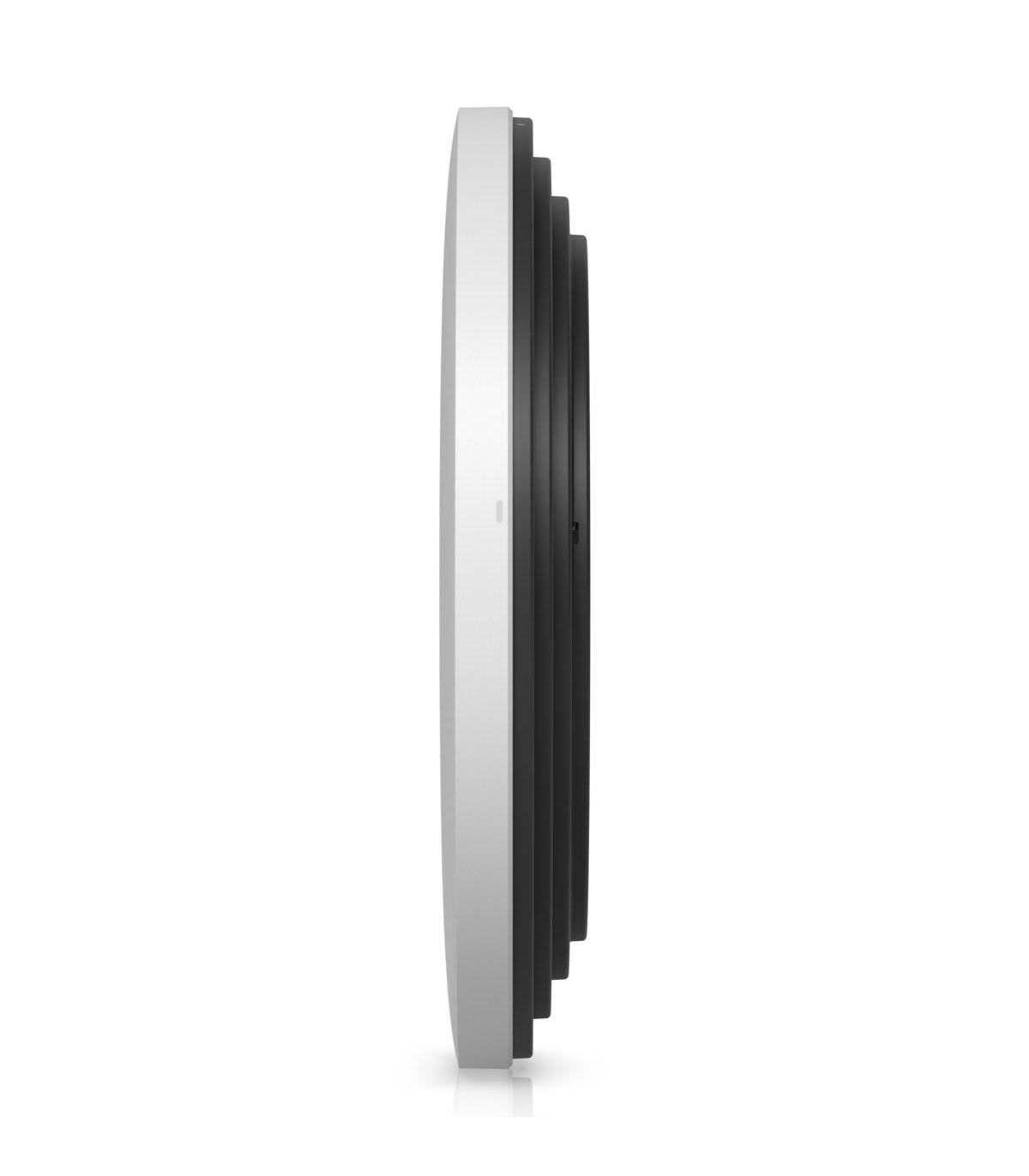

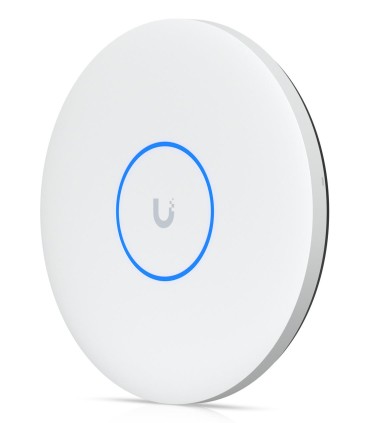

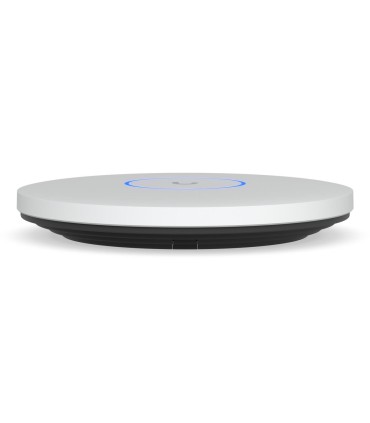

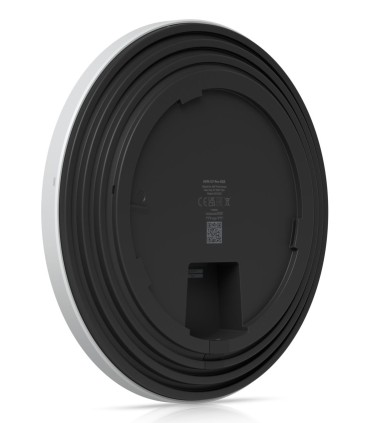

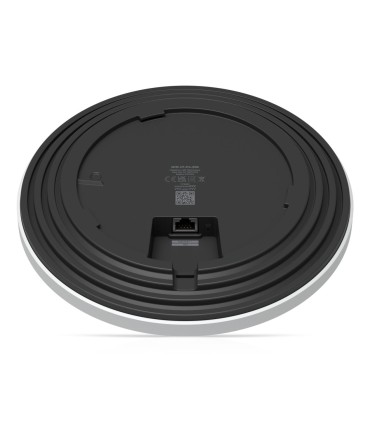

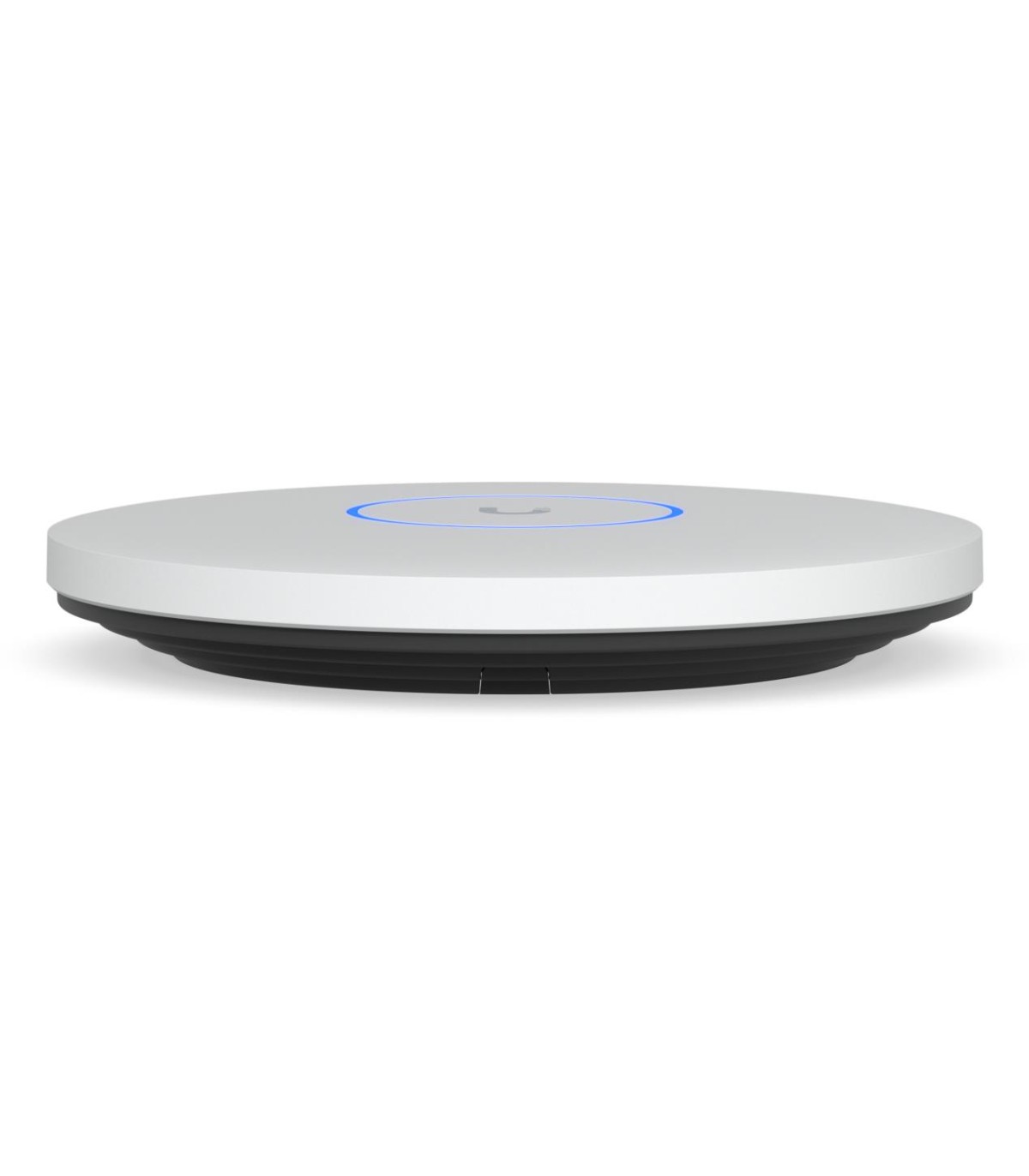

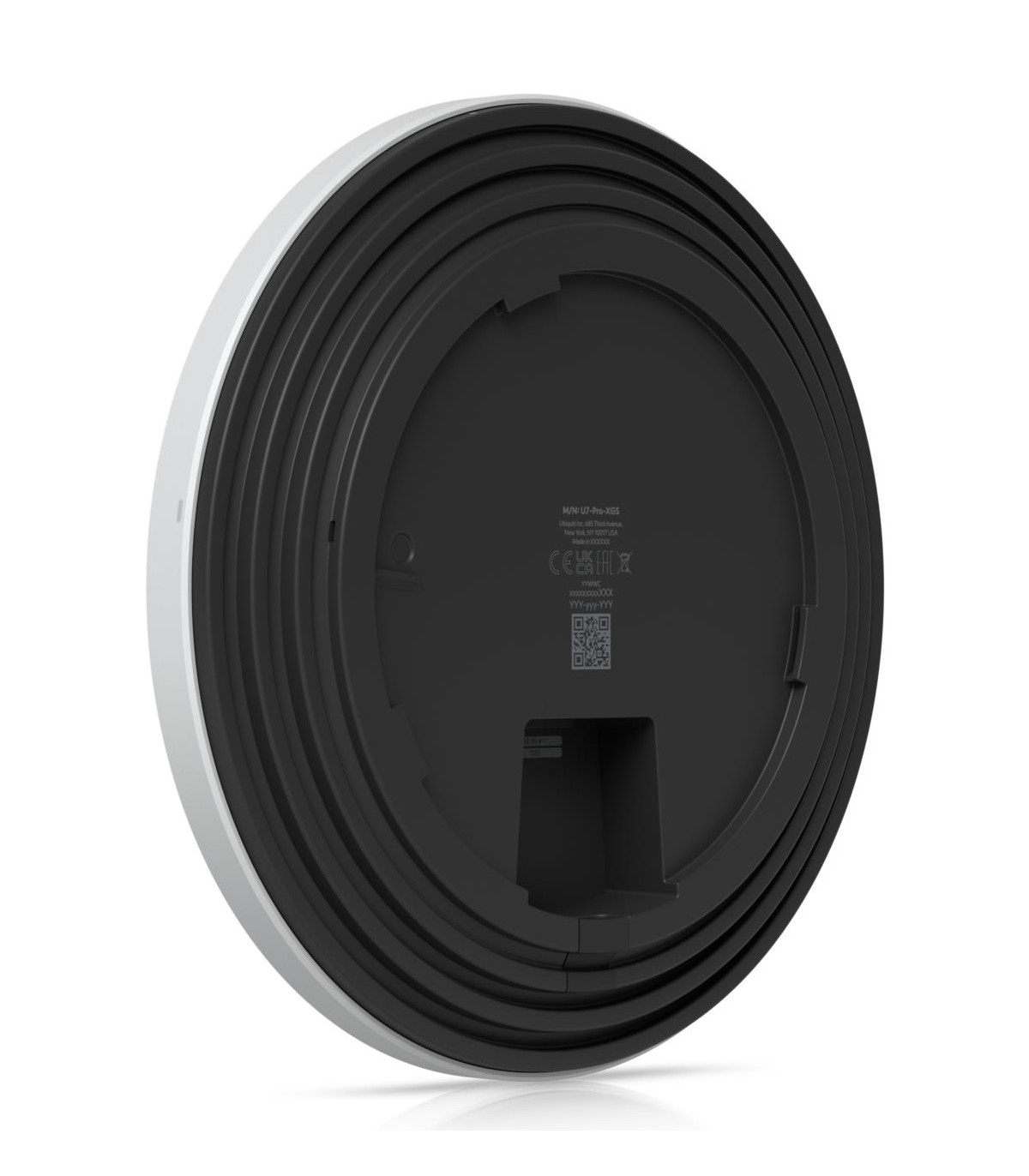

UBIQUITI WRL ACCESS POINT/U7-PRO-XGS

Tehniline kirjeldus

Korpuse materjal

Metal,Polycarbonate (PC)

Muud funktsioonid

Depth

32.5 mm

Height

215 mm

Width

215 mm

Unit Box Width

0.08

Unit Box Length

0.255

Unit Box Height

0.26

Category Code

WAP

Model name

U7 Pro XGS

Model

U7-PRO-XGS

Antenna Type

Internal

Unit Calculated Volume

0.009707 cubm

Unit Calculated Weight

1.5 kg

Units per Shipping Box

6

Summary

Ubiquiti U7 Pro XGS. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 8600 Mbit/s. Security algorithms: PPSK. Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 29 W

Product colour

White

Power consumption (max)

29 W

Operating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

-30 - 40 °C

Compliance certificates

CE/Federal Communications Commission (FCC)/Industry Canada (IC)

Weight

800 g

LED indicators

Status

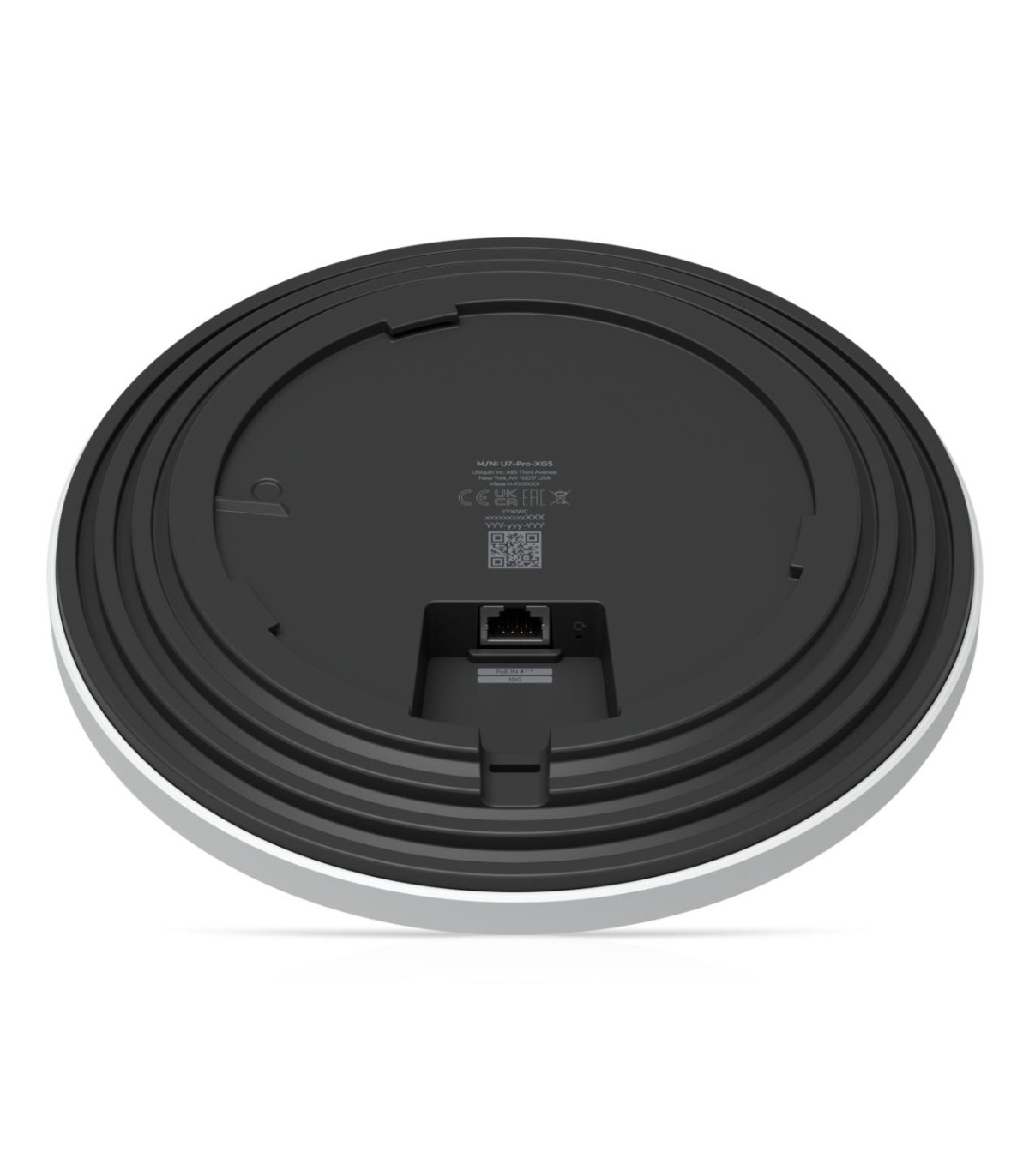

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

1000/10000/2500/5000 Mbit/s

Quantity per pack

1 pc(s)

Frequency band

2.4, 5, 6 GHz

Reset button

Yes

MIMO

Yes

Security algorithms

PPSK

MIMO type

Multi User MIMO

Maximum data transfer rate

8600 Mbit/s

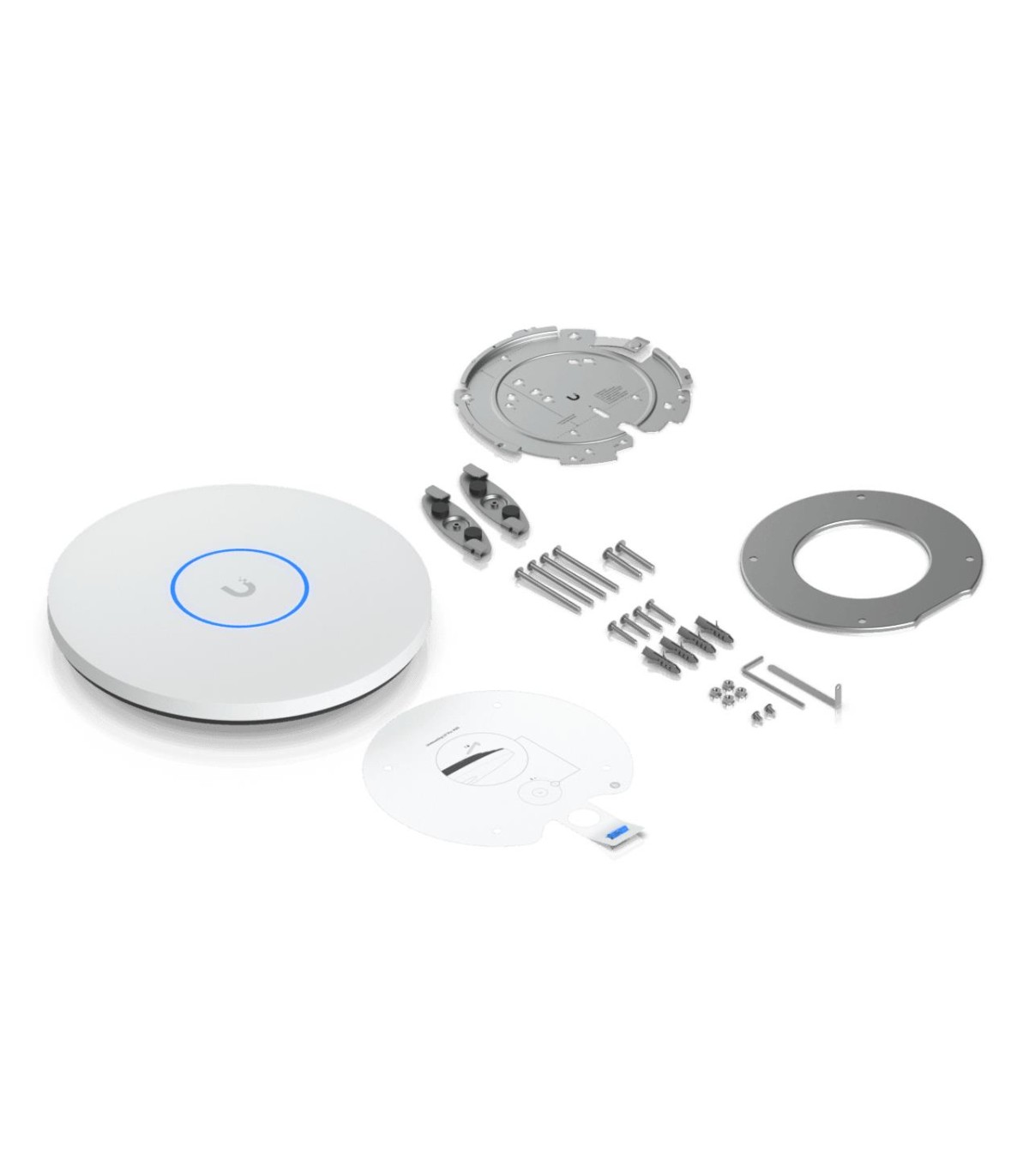

Mounting kit

Yes

Networking standards

IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v

Power over Ethernet (PoE)

Yes

VLAN support

Yes

Rate limiting

Yes

Power over Ethernet (PoE) type supported

PoE++ (4PPoE)

Maximum Tx power (2.4 GHz)

23 dBmW

Maximum Tx power (5 GHz)

29 dBmW

Antenna gain level (max)

6 dBi

2.4 GHz

Yes

5 GHz

Yes

6 GHz

Yes

Band steering

Yes

Fit AP mode features

Hotspot 2.0

Maximum data transfer rate (2.4 GHz)

688 Mbit/s

Maximum data transfer rate (5 GHz)

8600 Mbit/s

Number of users

500 user(s)

Placement

Ceiling,Wall

Spatial streams

8

Coverage area

160 m²

Fast roaming

Yes

Wireless meshing

Yes

Access point management

Wi-Fi schedule

Maximum data transfer rate (6 GHz)

5800 Mbit/s

Maximum Tx power (6 GHz)

24 dBmW
