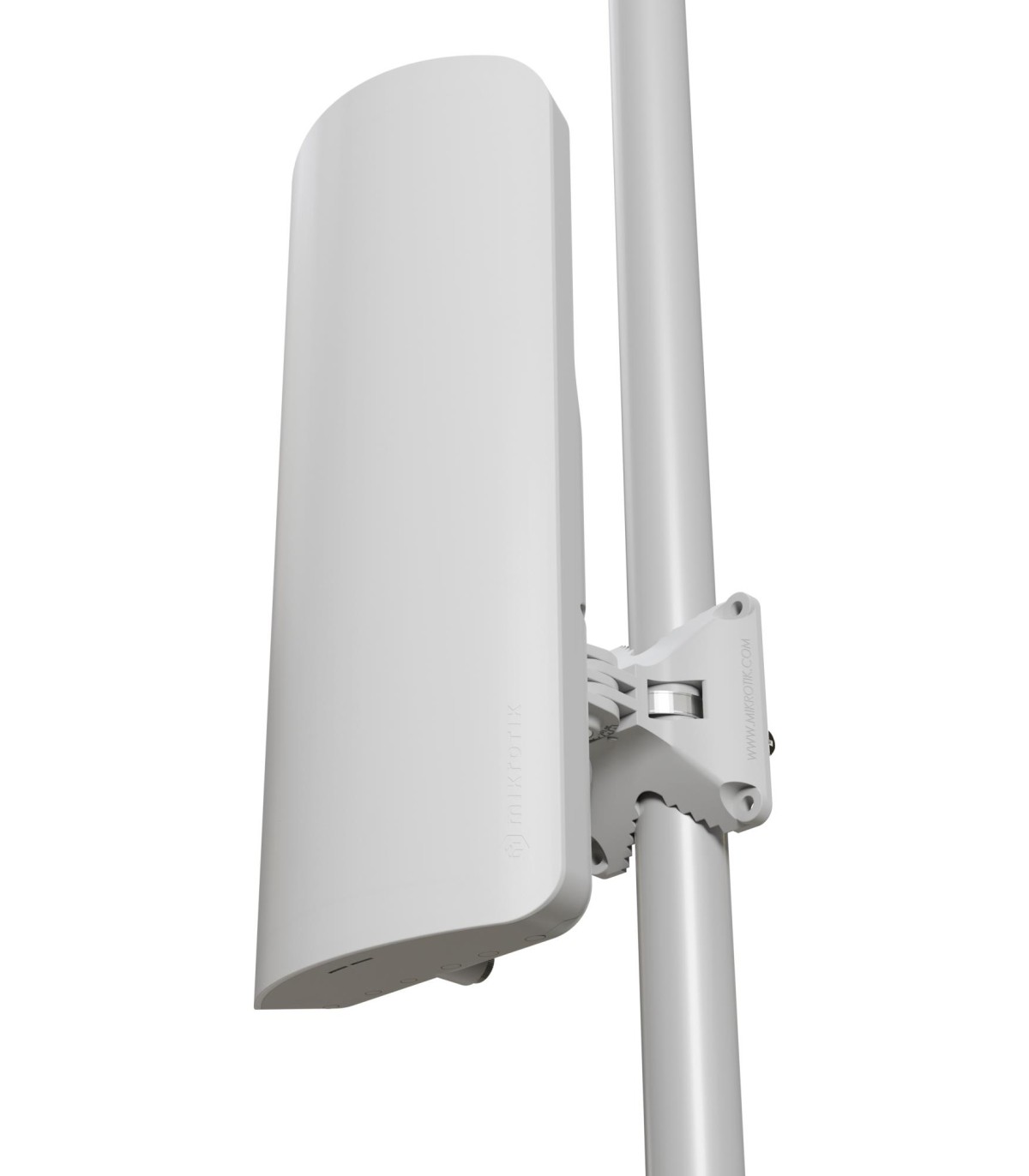

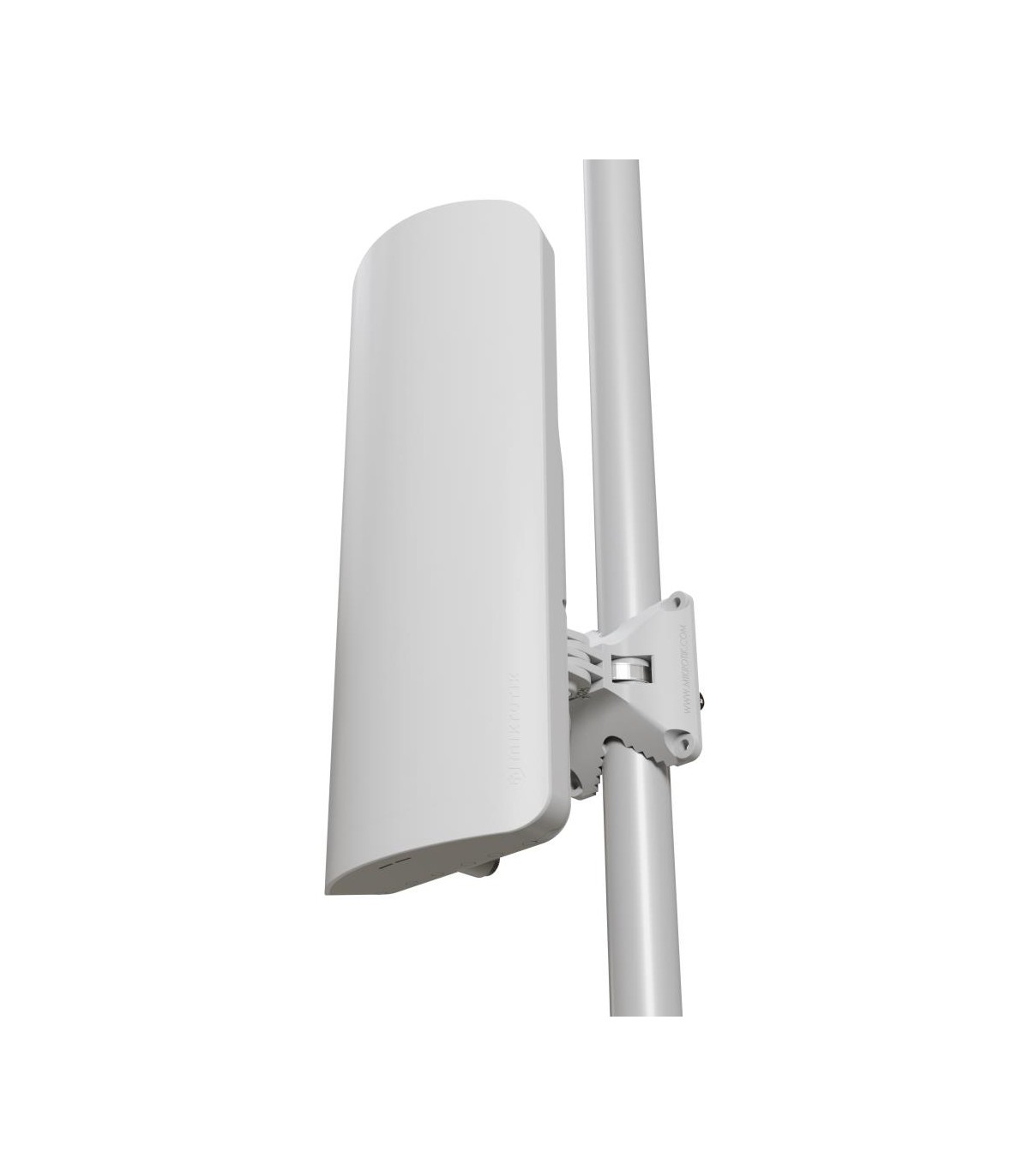

MIKROTIK Access Point 1xLAN ports L22UGS-5HAXD2HAXD-15S

Võimsus

AC adapter included

Yes

Muud funktsioonid

Unit Box Width

0.085

Unit Box Length

0.52

Unit Box Height

0.15

Category Code

WAP

Model name

mANTBox ax 15s

Chipset

QCN-6102, IPQ-5010

Model

L22UGS-5HAXD2HAXD-15S

Antenna Type

Sector antenna

Unit Calculated Volume

0.00663 cubm

Unit Calculated Weight

1.96 kg

Units per Shipping Box

1

Summary

Mikrotik mANTBox ax 15s. 2.4 GHz, 5 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 21 W

Product colour

White

Certification

CE, FCC, IC, EAC, ROHS

Power consumption (max)

21 W

Operating temperature (T-T)

-40 - 70 °C

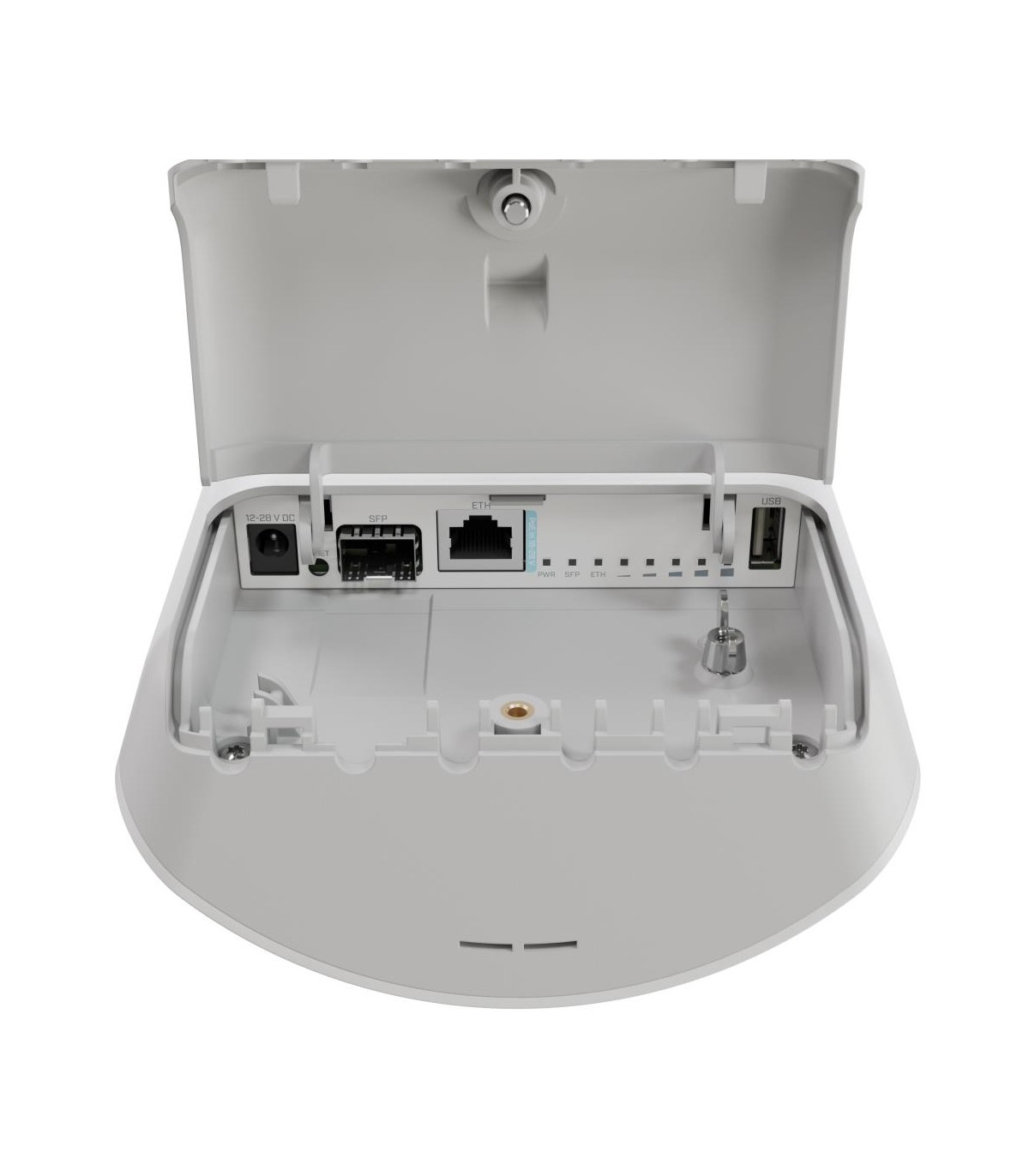

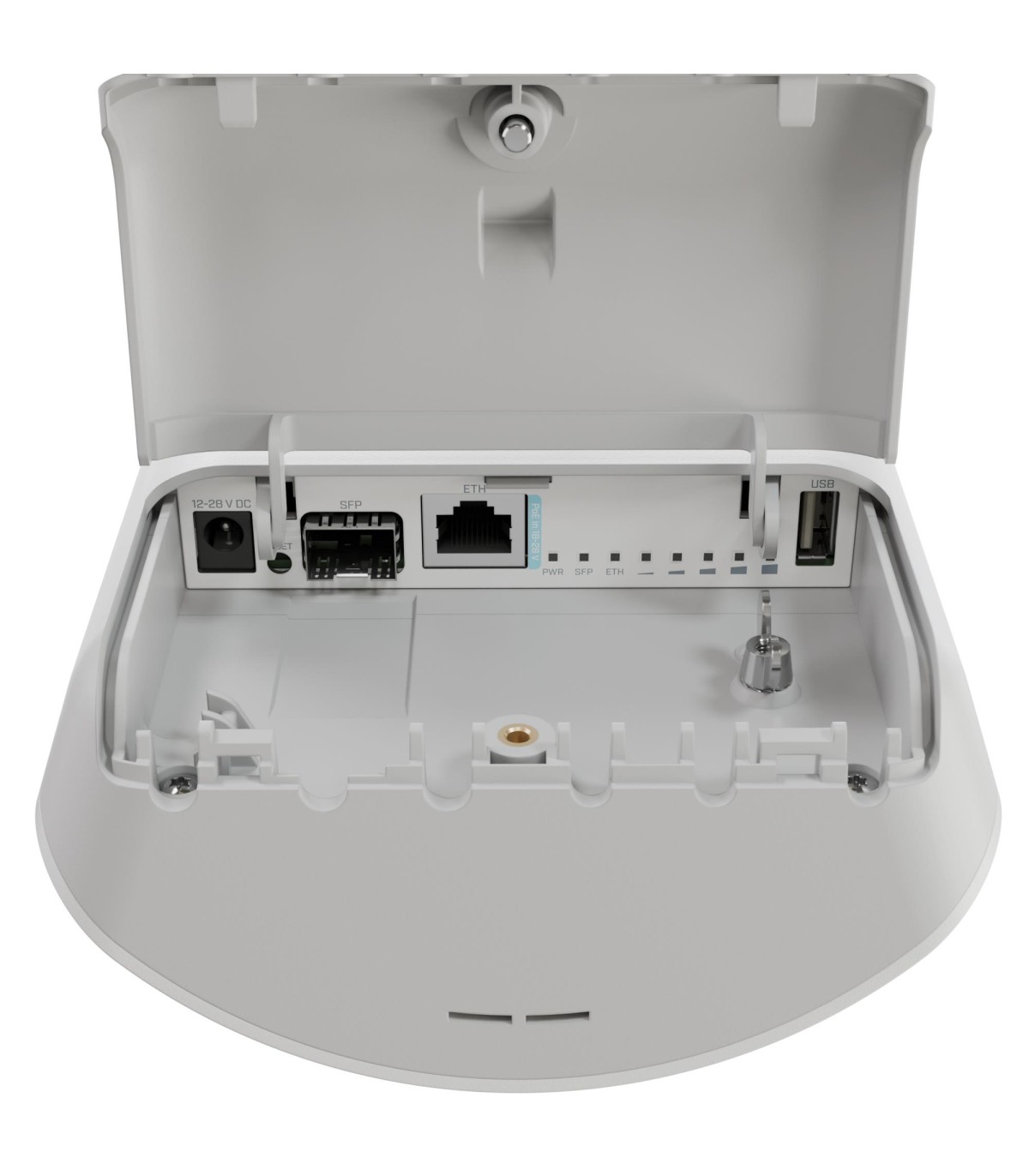

Ethernet LAN (RJ-45) ports

1

Operating system installed

RouterOS

Ethernet LAN data rates

10/100/1000 Mbit/s

Compatible operating systems

RouterOS v7

Processor frequency

800 MHz

Packaging content

24V 1.2A power adapterGigabit PoE injectorHose clamp 1QMPK-41 fastening set

USB 2.0 ports quantity

1

Internal memory

126 MB

USB connector type

USB Type-A

Built-in processor

Yes

Mounting kit

Yes

Networking standards

IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n

Flash memory

256 MB

Power over Ethernet (PoE)

Yes

Antenna gain level (max)

15 dBi

2.4 GHz

Yes

5 GHz

Yes

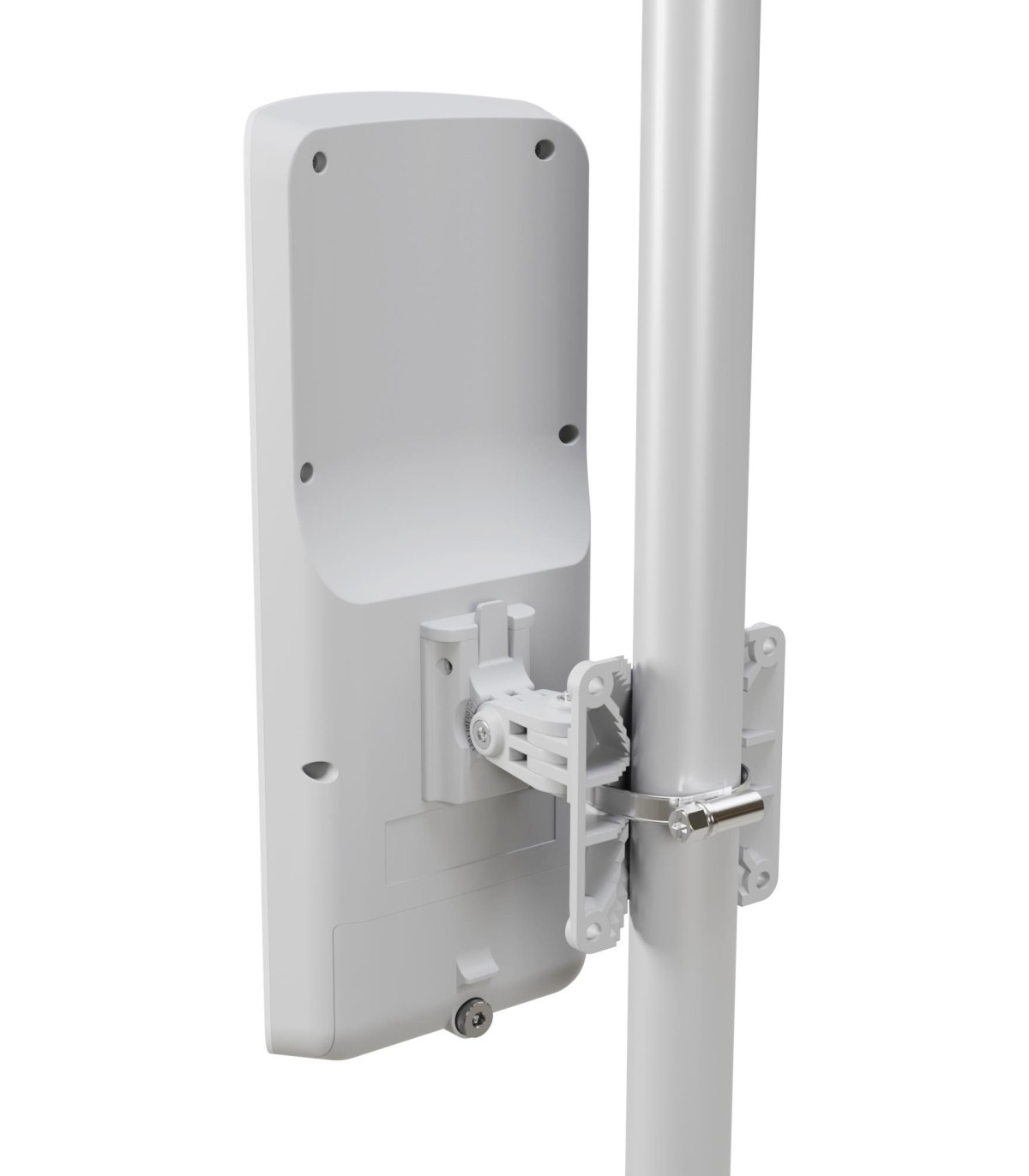

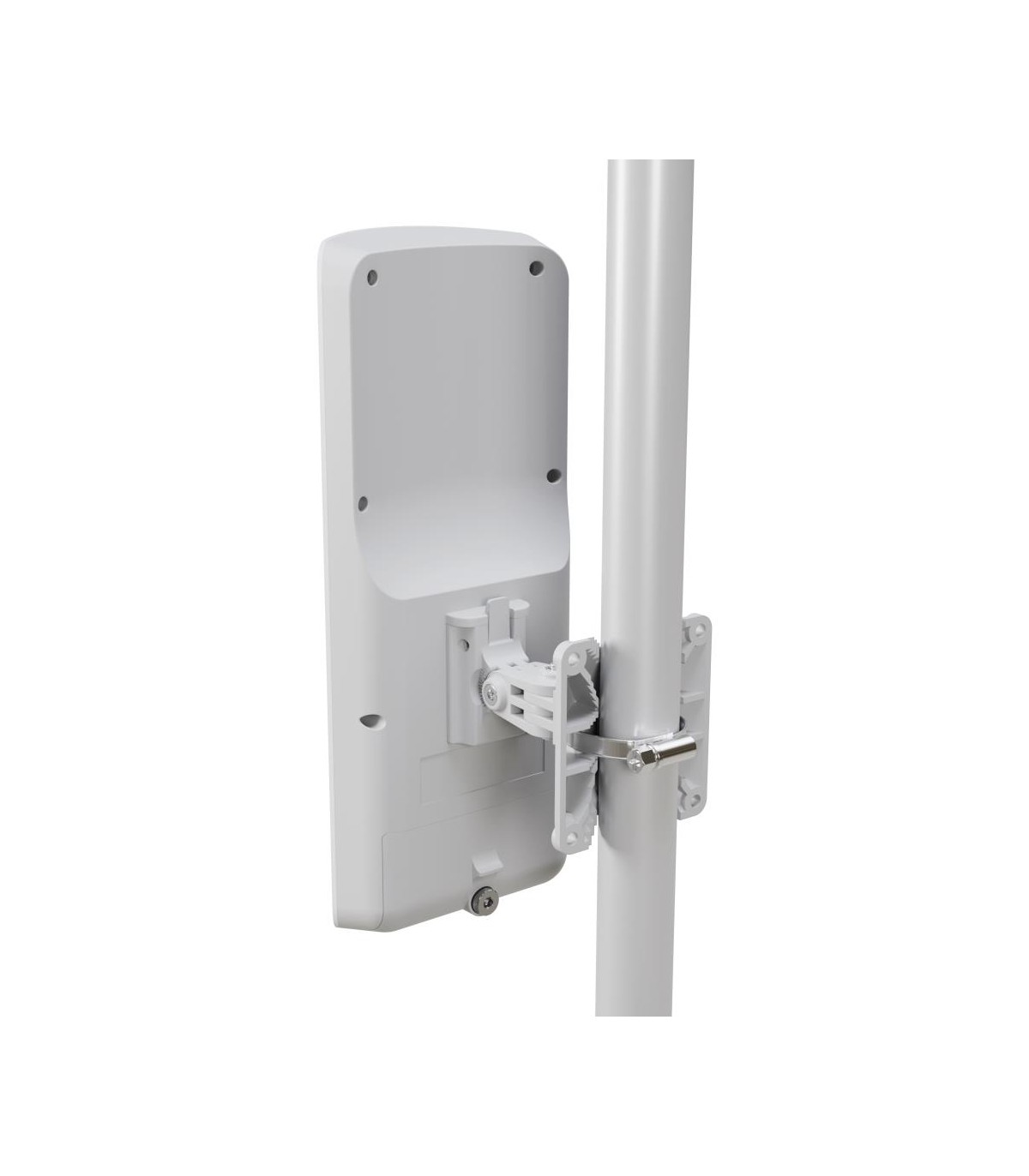

Placement

Pole,Wall

PoE adapter included

Yes

Polarization

Dual polarization
