1305336
Muud funktsioonid
- Depth
- 140 mm
- Height
- 86 mm
- Width
- 150 mm
- Unit Box Width
- 0.21
- Unit Box Length
- 0.255
- Unit Box Height
- 0.12
- Category Code
- PSU
- Model name
- P450B
- Efficiency
- 85 %
- Number of fans
- 1 fan(s)
- Unit Calculated Volume
- 0.008395 cubm
- Unit Calculated Weight
- 2.09 kg
- Units per Shipping Box
- 10
- Summary

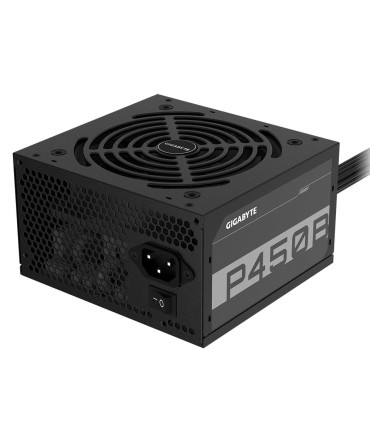

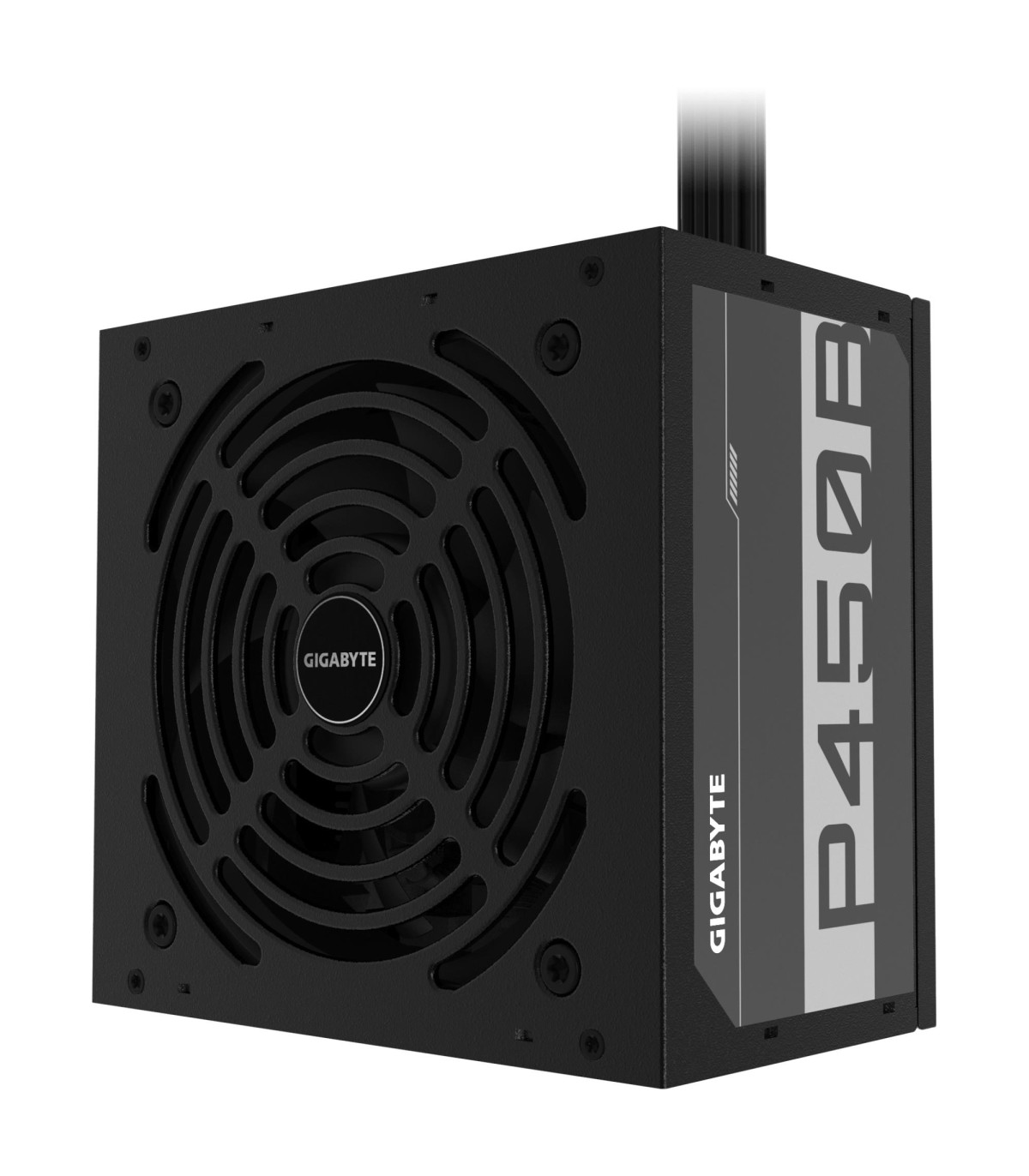

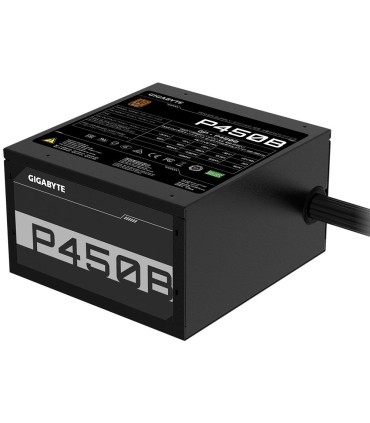

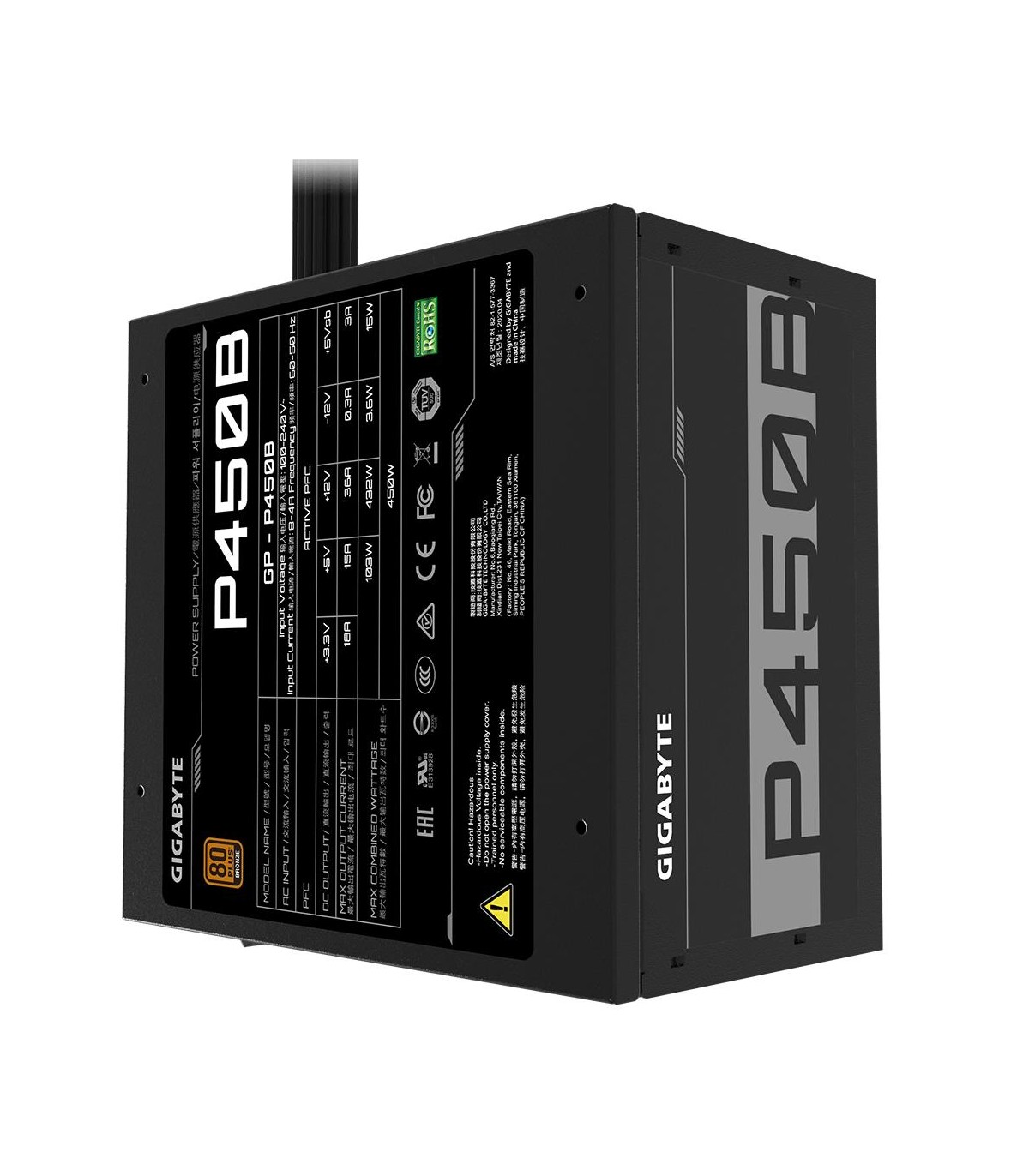

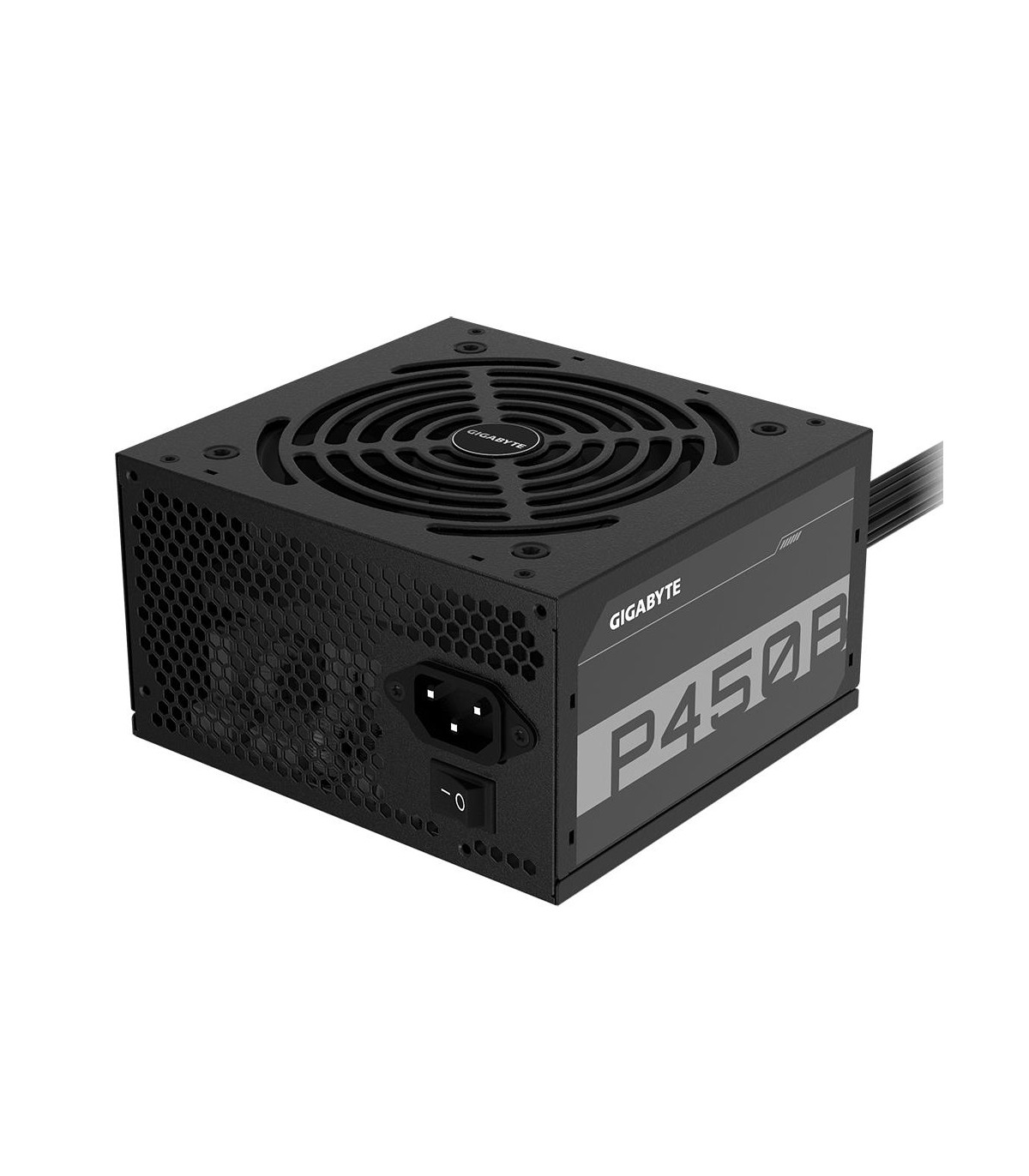

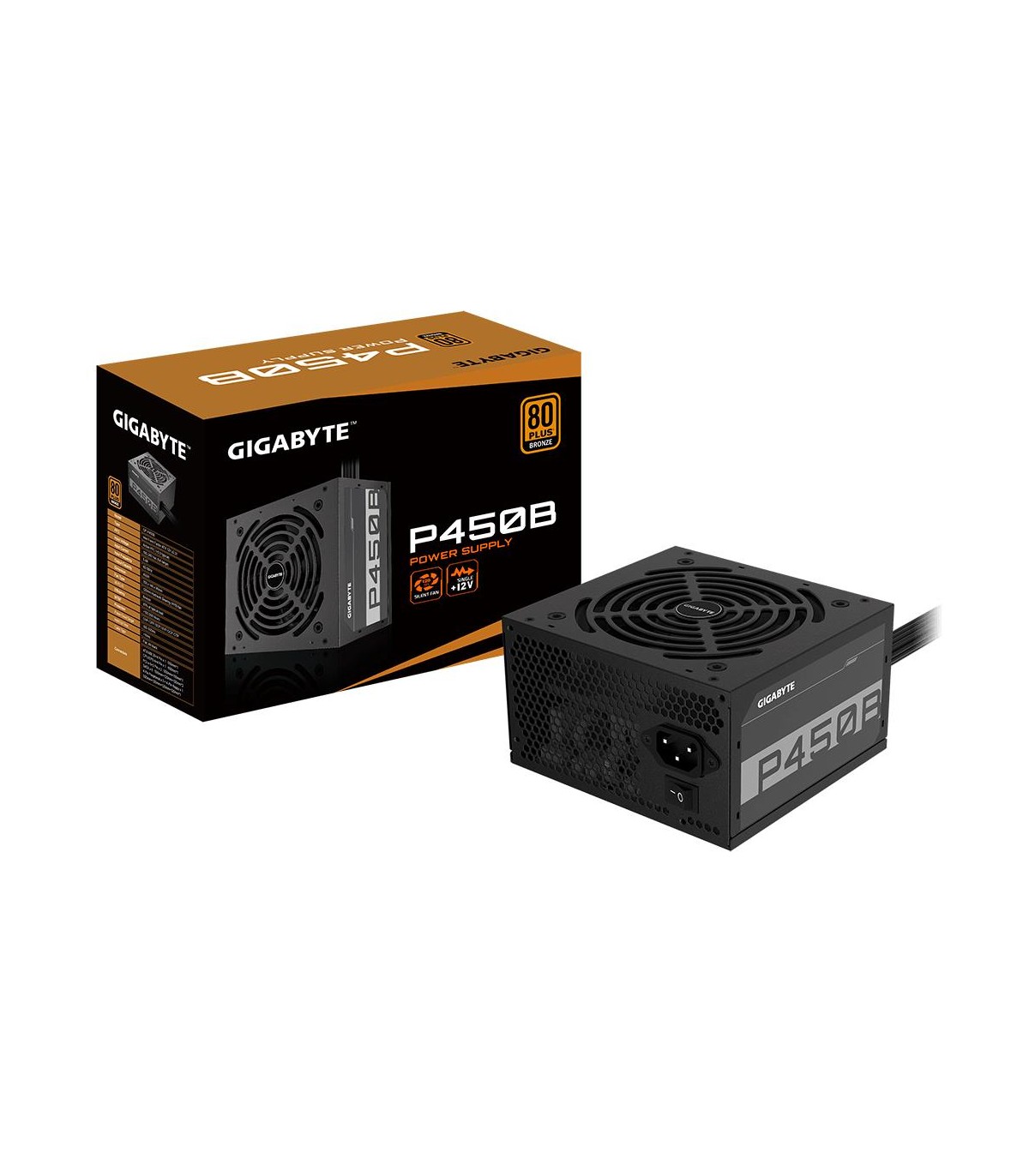

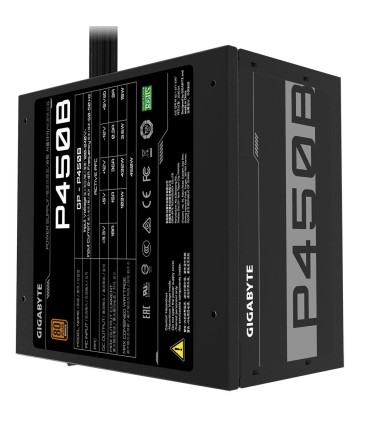

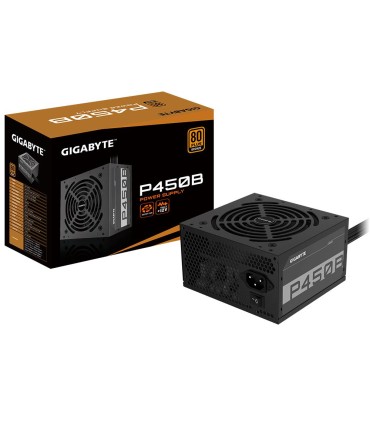

- GIGABYTE P450B. Total power: 450 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form
- Product colour
- Black
- AC input frequency
- 50 - 60 Hz
- AC input voltage
- 100 - 240 V
- Input current
- 8 - 4 A
- Harmonized System (HS) code
- 84733020
- Mean time between failures (MTBF)
- 100000 h
- Cooling type
- Active
- Fan diameter
- 120 mm
- Purpose
- PC
- On/off switch
- Yes
- Combined power (+12V)
- 432 W
- Combined power (+3.3V)
- 103 W
- Combined power (+5V)
- 103 W
- Max output current (+12V)
- 36 A
- Max output current (+3.3V)
- 18 A
- Max output current (+5V)
- 15 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- Total power
- 450 W
- ATX power connector (20+4 pin)
- Yes
- Cabling type
- Non-Modular
- CPU power cable length
- 600 mm
- Motherboard power cable length
- 550 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express connector
- Yes
- PCI Express power cable length
- 550 mm
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power connectors (4-pin)
- 3
- ATX version
- 2.31
- Bearing technology
- HDB
- Power supply unit (PSU) form factor
- ATX
- Fan location
- Top
- Power factor
- 0.9
- 80 PLUS certification
- 80 PLUS Bronze
- CPU power connector (4+4 pin)
- Yes
- SATA power cable length
- 500 mm
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Floppy disk drive connector
- Yes
- Floppy drive power connector
- 1
- Peripheral (Molex) power cable length
- 500 mm
- Hold time
- 16 ms
Eriviited
- EAN
- 4719331551612
