BE QUIET Power Supply Pure Power 12 750 Watts Peak Power 820 Watts Efficiency 80 PLUS GOLD PFC Active MTBF 100000 hours BP026EU

Muud funktsioonid

Depth

160 mm

Height

86 mm

Width

150 mm

Unit Box Width

0.1

Unit Box Length

0.29

Unit Box Height

0.205

Category Code

PSU

Model name

Pure Power 12

Efficiency

92.6 %

Fan speed

0 - 1800 RPM

Number of fans

1 fan(s)

Unit Calculated Volume

0.008568 cubm

Unit Calculated Weight

3.14 kg

Units per Shipping Box

6

Summary

be quiet! Pure Power 13 M | 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power suppl

Product colour

Black

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Package depth

320 mm

Package height

133 mm

Package weight

3200 g

Package width

210 mm

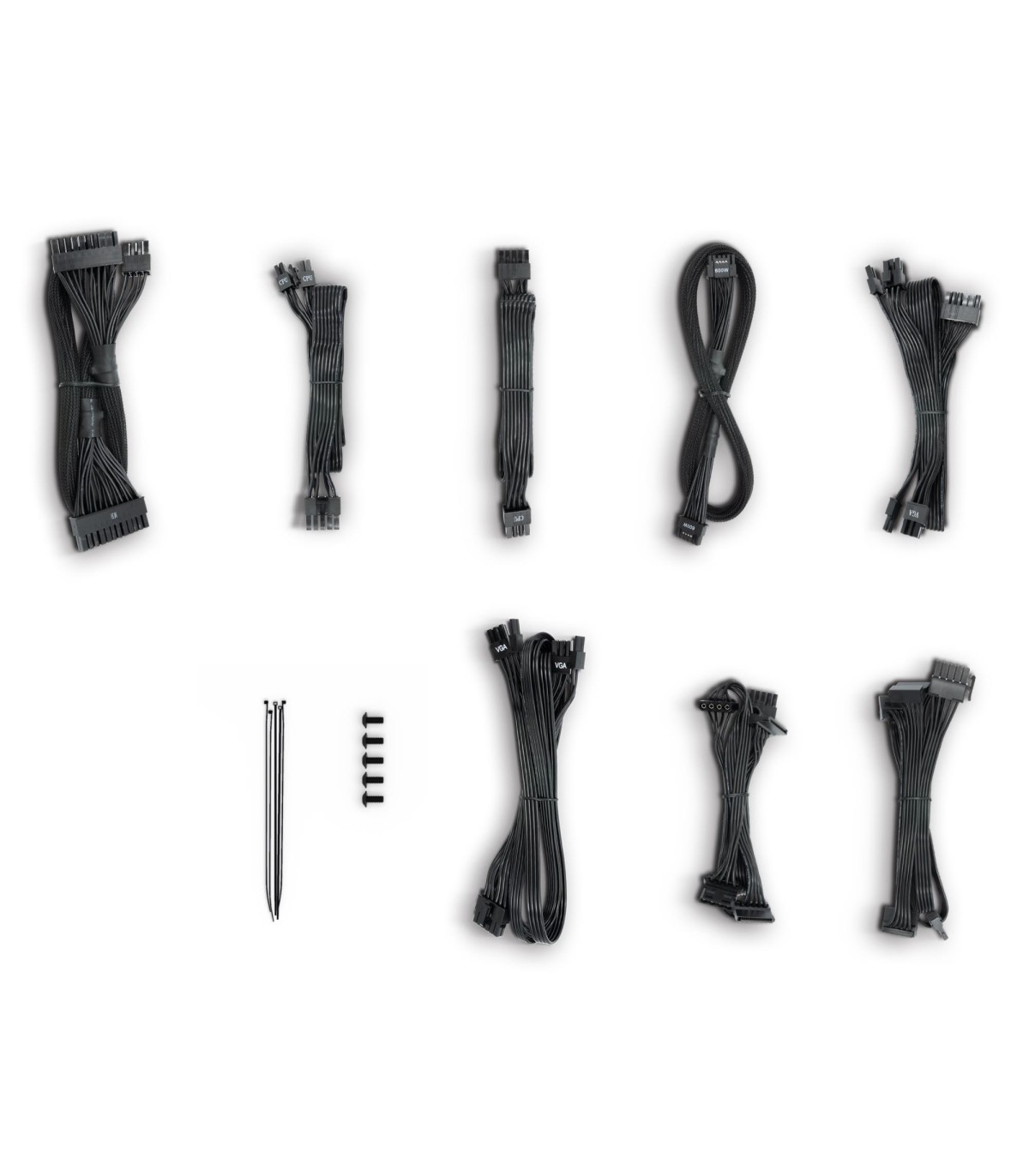

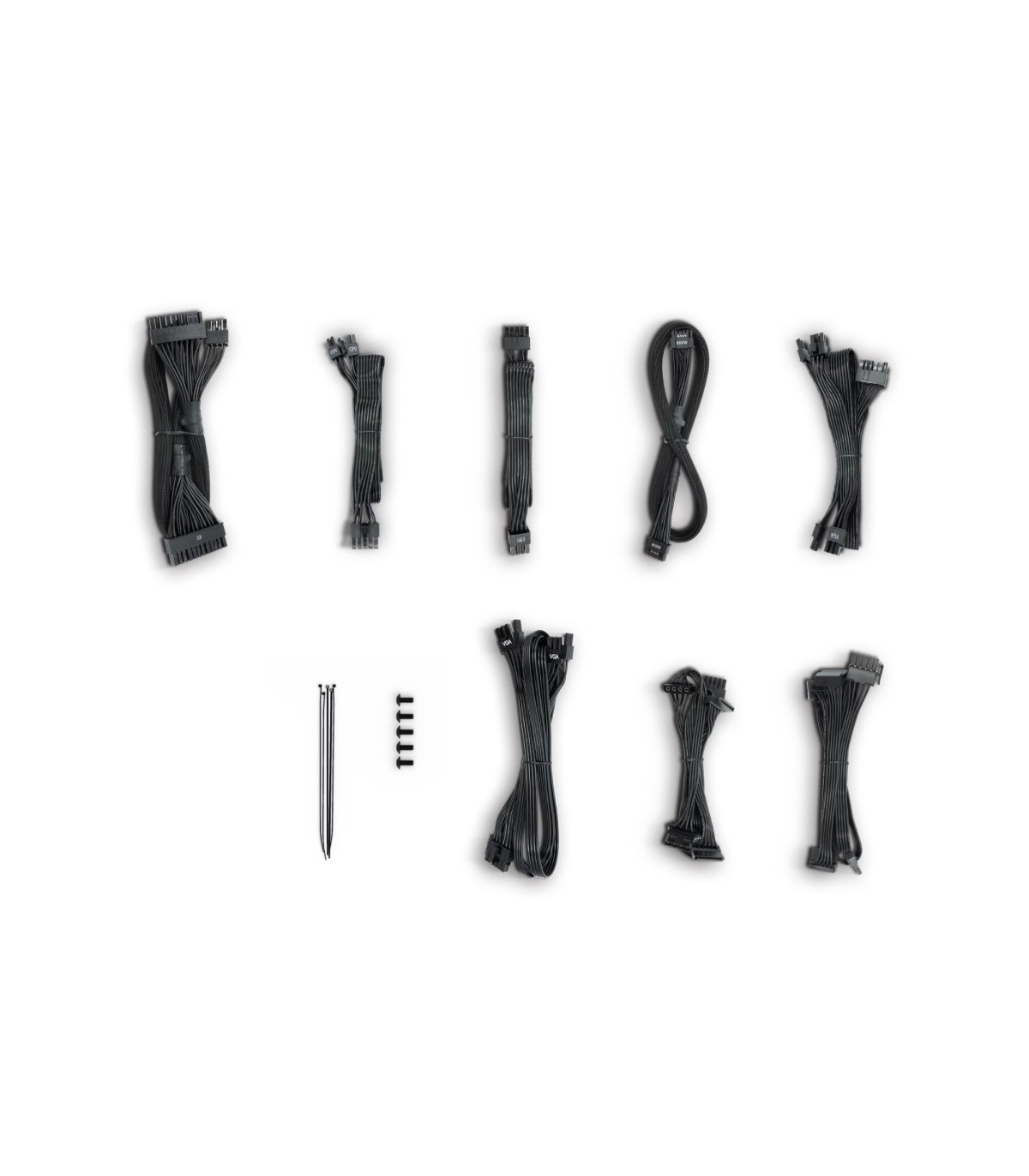

Cables included

AC,CPU,PCIe,Peripheral (Molex),SATA

Screws included

Yes

Sustainability certificates

ENERGY STAR/ErP

Operating temperature (T-T)

0 - 40 °C

Compliance certificates

BSMI/CB/CCC/CE/cTUVus/Federal Communications Commission (FCC)/IRAM/RCM/RoHS/TÜV mark/UKCA/WEEE

Weight

2460 g

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Products per shipping (inner) case

6 pc(s)

Fan diameter

120 mm

Purpose

PC

On/off switch

Yes

Combined power (+12V)

750 W

Combined power (+3.3V)

120 W

Combined power (+5V)

120 W

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

Power Factor Correction (PFC) type

Active

Power protection features

Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage

Total power

750 W

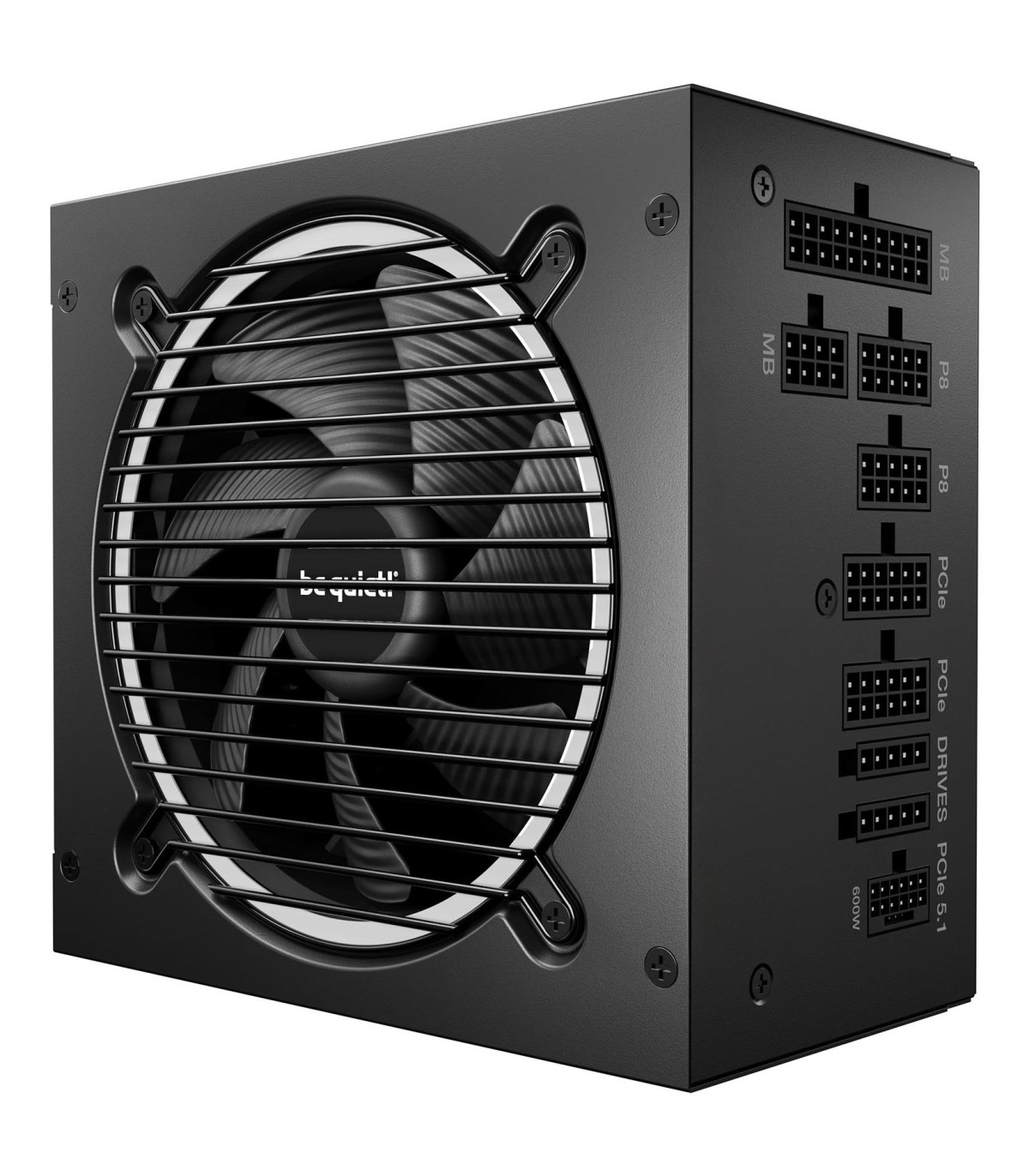

Cabling type

Fully-Modular

CPU P4 connector (4-pin)

2

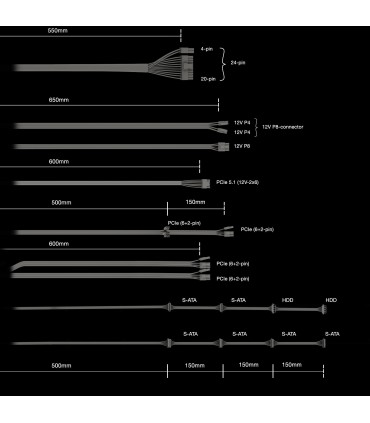

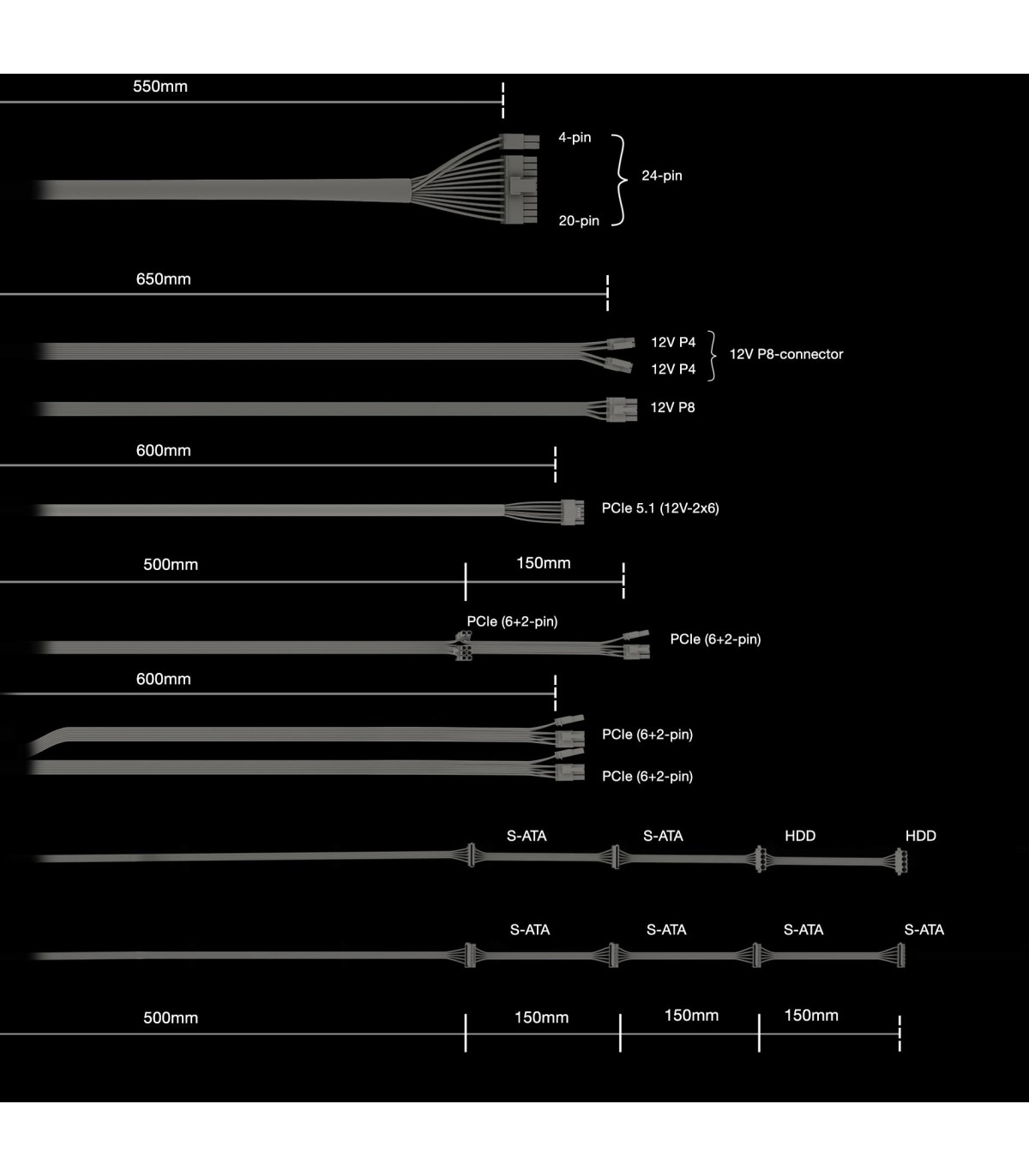

CPU power cable length

650 mm

Motherboard power cable length

550 mm

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

4

Peripheral (Molex) power connectors (4-pin)

2

ATX version

3.1

Bearing technology

Rifle

Power supply unit (PSU) form factor

ATX

Power factor

0.98

80 PLUS certification

80 PLUS Gold

CPU power connector (4+4 pin)

Yes

EPS power connector (8-pin)

Yes

SATA power cable length

500/650/800/950 mm

PCI Express power connectors (12-pin)

1

EPS version

2.92

Combined power (+5Vsb)

15 W

Combined power (-12V)

3.6 W

Max output current (+12V1)

62.5 A

Peripheral (Molex) power cable length

800/950 mm

Hold time

28.62 ms

Maximum input current (@110V)

10 A

Maximum input current (@220V)

5 A

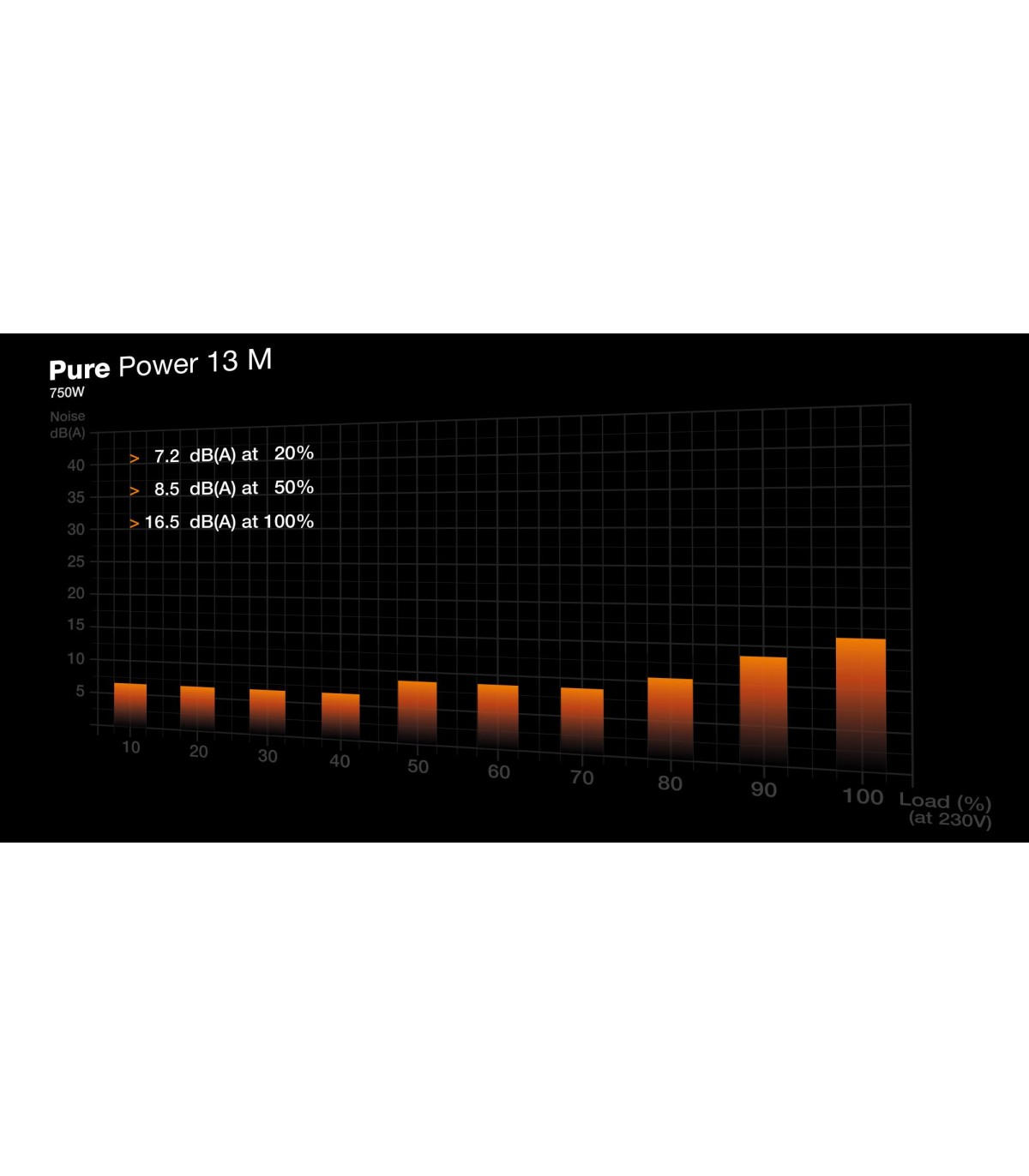

Noise level

20.8 dB

Number of +12V rail(s)

1

Peak power

820 W

Shipping (inner) case gross weight

21500 g

Shipping (inner) case height

233 mm

Shipping (inner) case length

580 mm

Shipping (inner) case width

325 mm

Cable ties included

Yes
