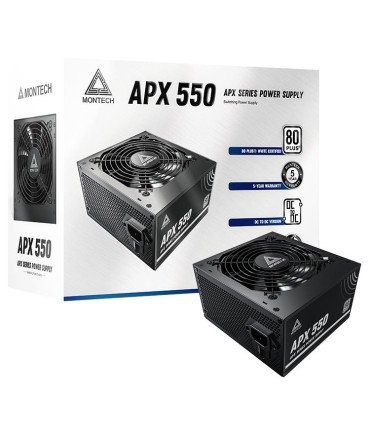

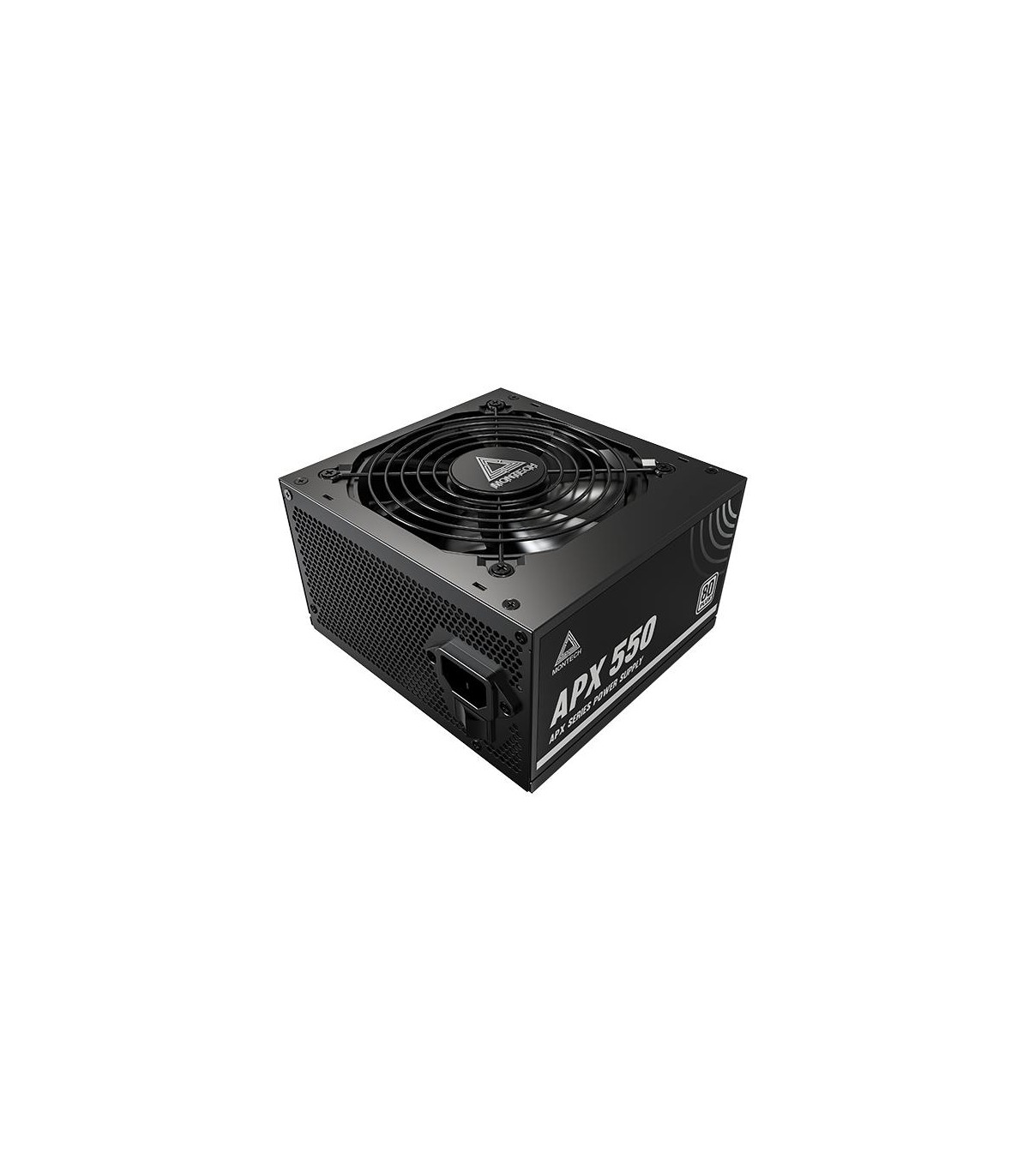

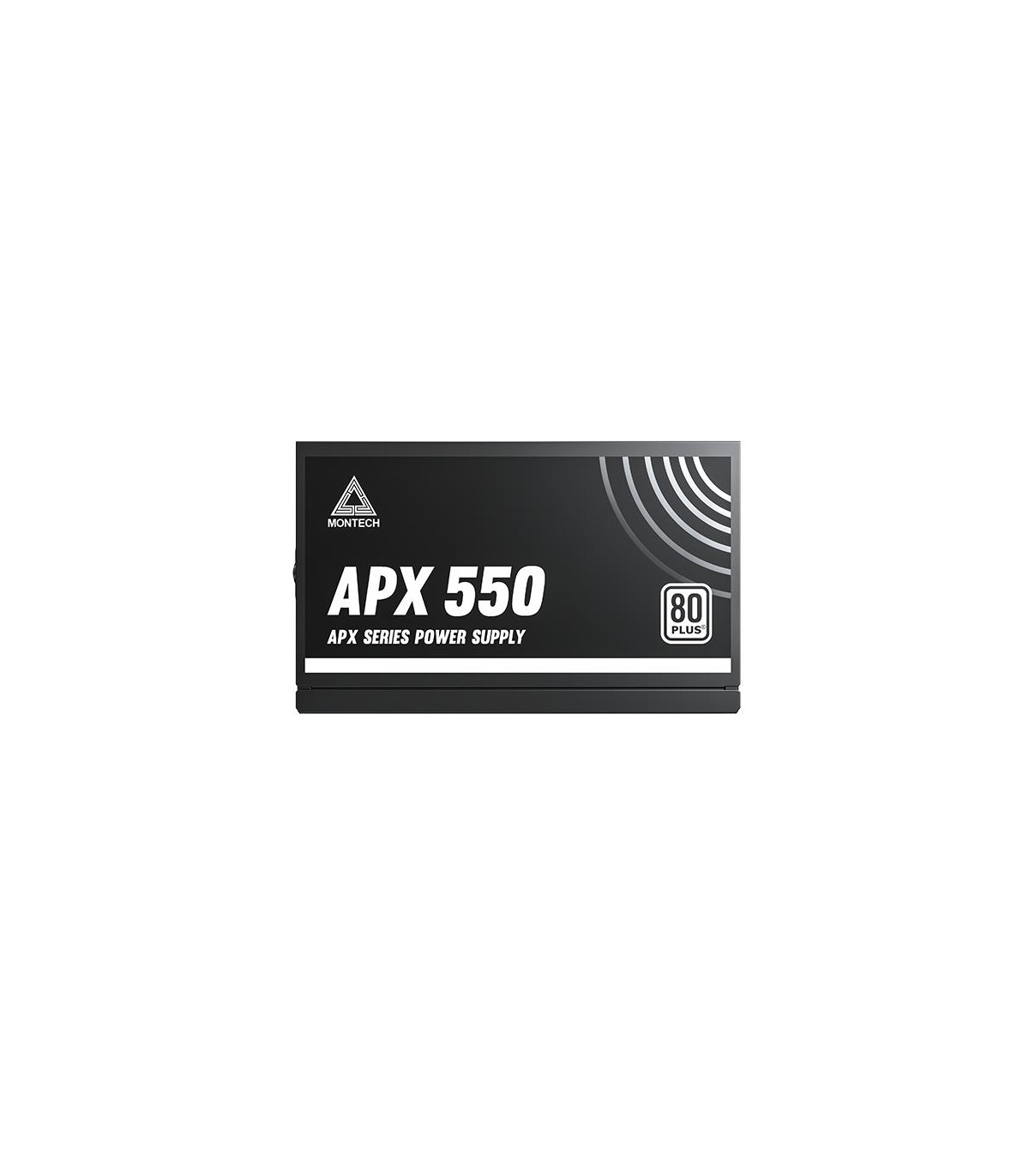

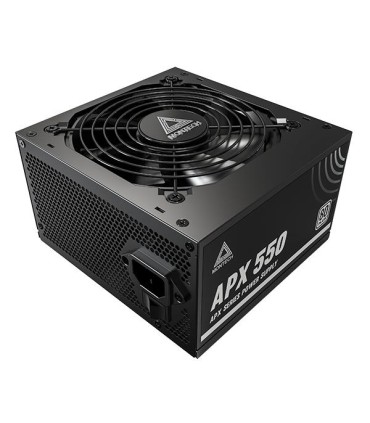

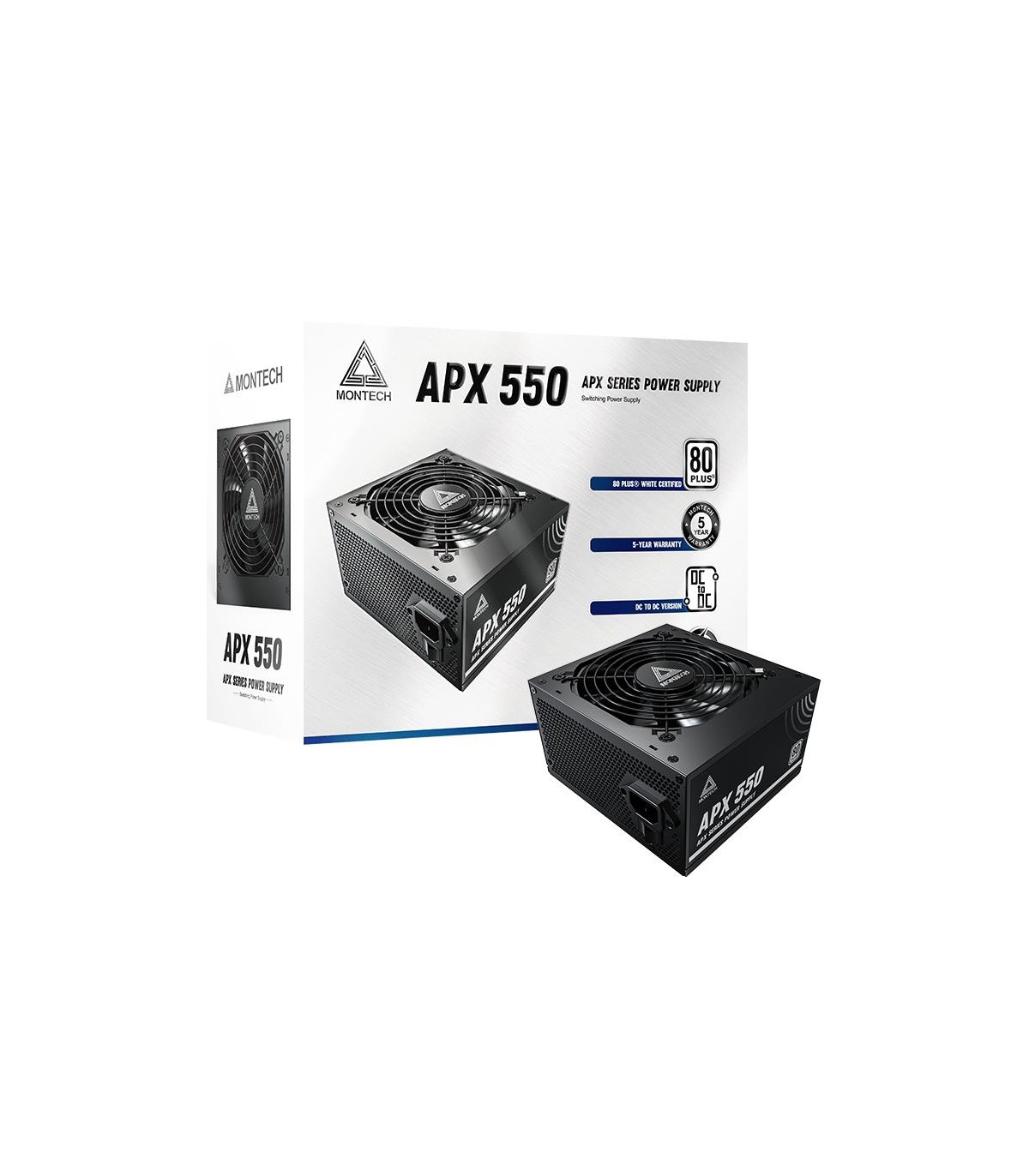

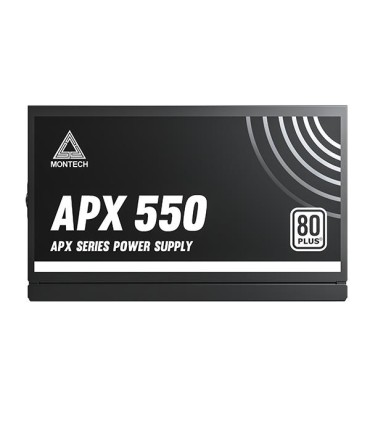

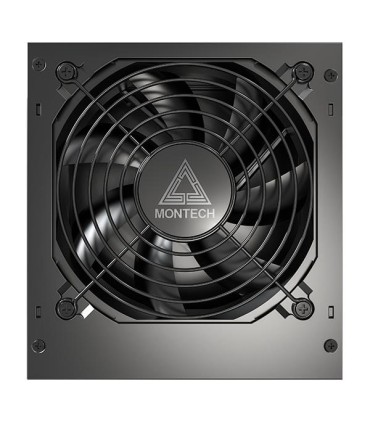

MONTECH Power Supply APX 550W 550 W APX550

Muud funktsioonid

Depth

140 mm

Height

86 mm

Width

150 mm

Unit Box Width

0.2

Unit Box Length

0.25

Unit Box Height

0.095

Category Code

PSU

Model name

APX 550W

Number of fans

1 fan(s)

Unit Calculated Volume

0.00475 cubm

Unit Calculated Weight

1.82 kg

Units per Shipping Box

1

Summary

Montech APX550. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black,

Product colour

Black

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Input current

12 A

Operating temperature (T-T)

0 - 40 °C

Compliance certificates

CB/CE/cTUVus/EAC/Federal Communications Commission (FCC)/RCM/RoHS/UKCA

Cooling type

Active

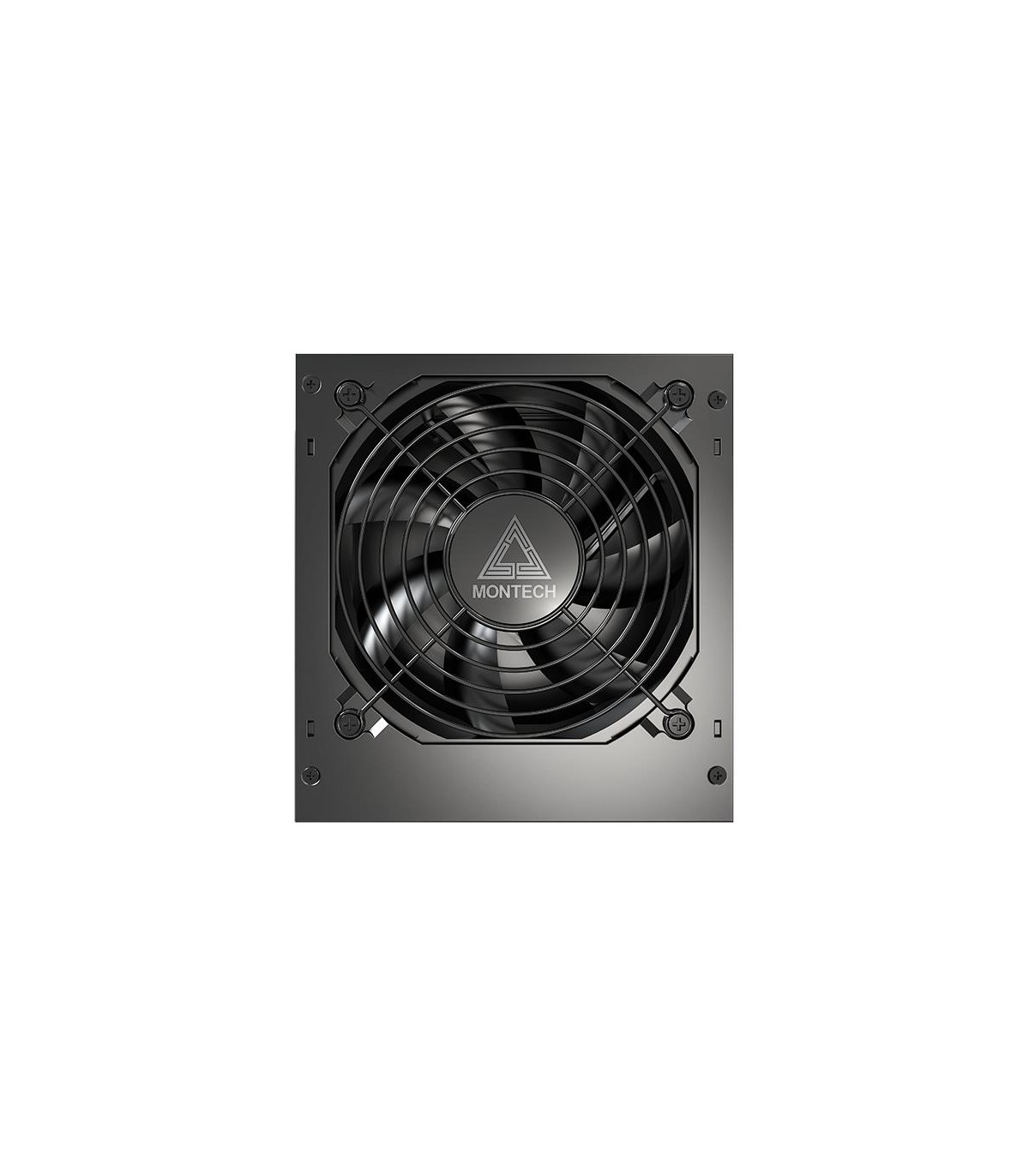

Fan diameter

120 mm

Purpose

PC

On/off switch

Yes

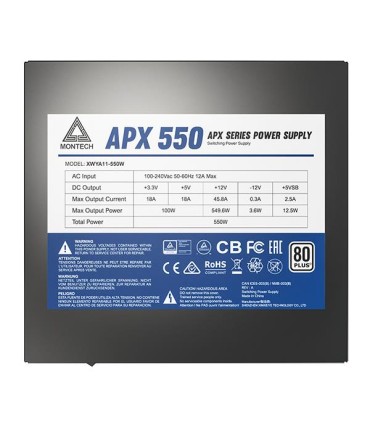

Combined power (+12V)

549.6 W

Combined power (+3.3V)

100 W

Combined power (+5V)

100 W

Max output current (+12V)

45.8 A

Max output current (+3.3V)

18 A

Max output current (+5V)

18 A

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

Power protection features

Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

Total power

550 W

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

6

PCI Express power connectors (6+2 pin)

2

Peripheral (Molex) power connectors (4-pin)

3

Bearing technology

HDB

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS White

CPU power connector (4+4 pin)

Yes

Combined power (+5Vsb)

12.5 W

Combined power (-12V)

3.6 W
