1426130
Muud funktsioonid
- Depth
- 150 mm
- Height
- 86 mm
- Width
- 140 mm
- Unit Box Width
- 0.226
- Unit Box Length
- 0.255
- Unit Box Height
- 0.118
- Category Code
- PSU
- Model name
- GP-P550SS ICE
- Efficiency
- 90 %
- Number of fans
- 1 fan(s)
- Unit Calculated Volume
- 0.007502 cubm
- Unit Calculated Weight
- 2.19 kg
- Units per Shipping Box
- 5
- Summary

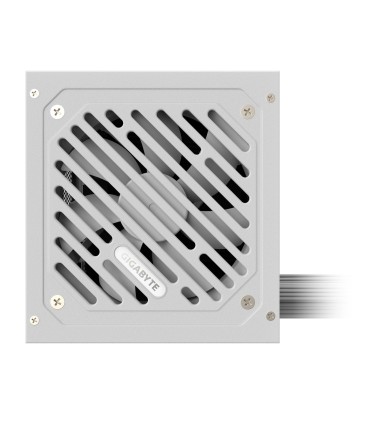

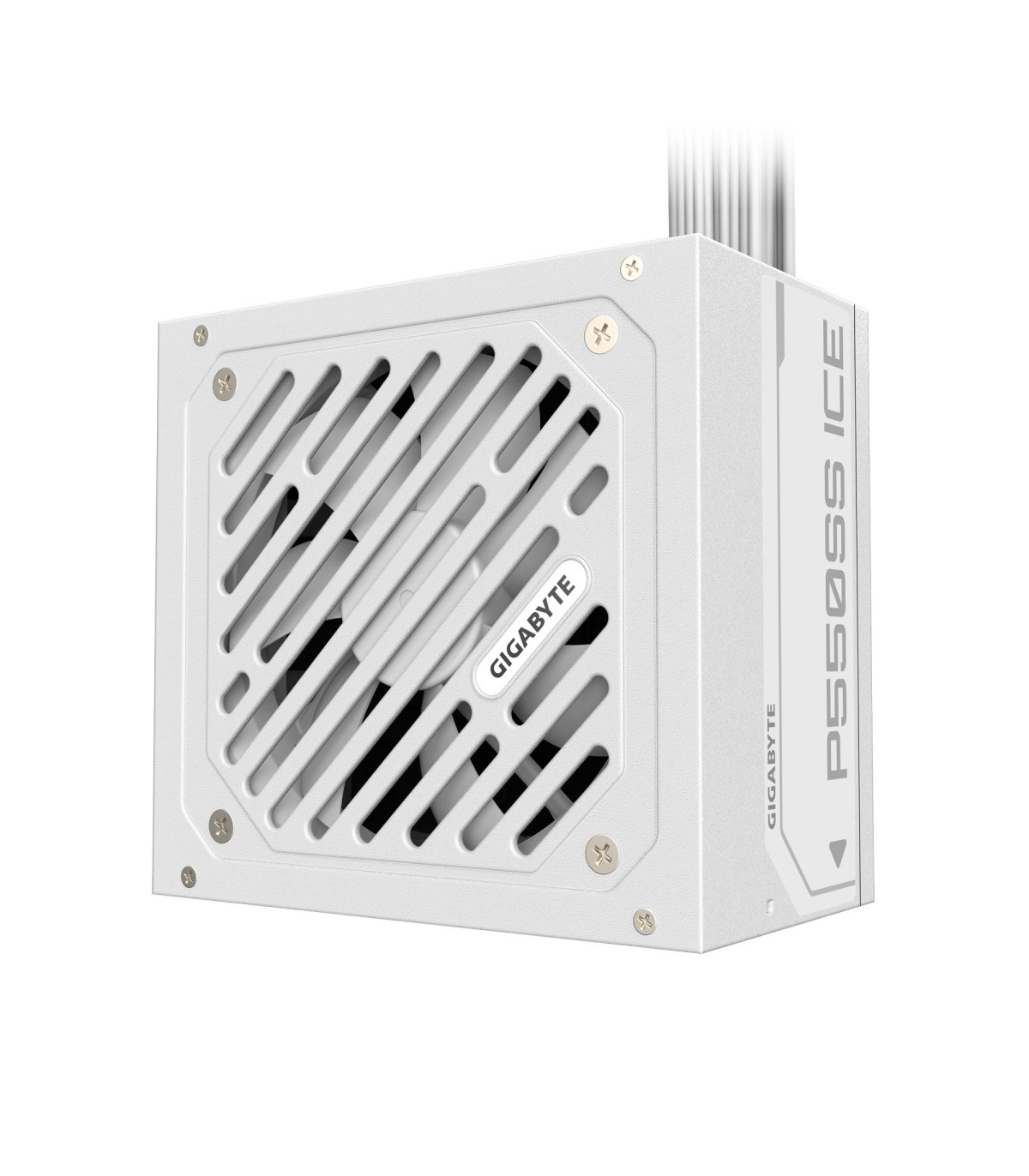

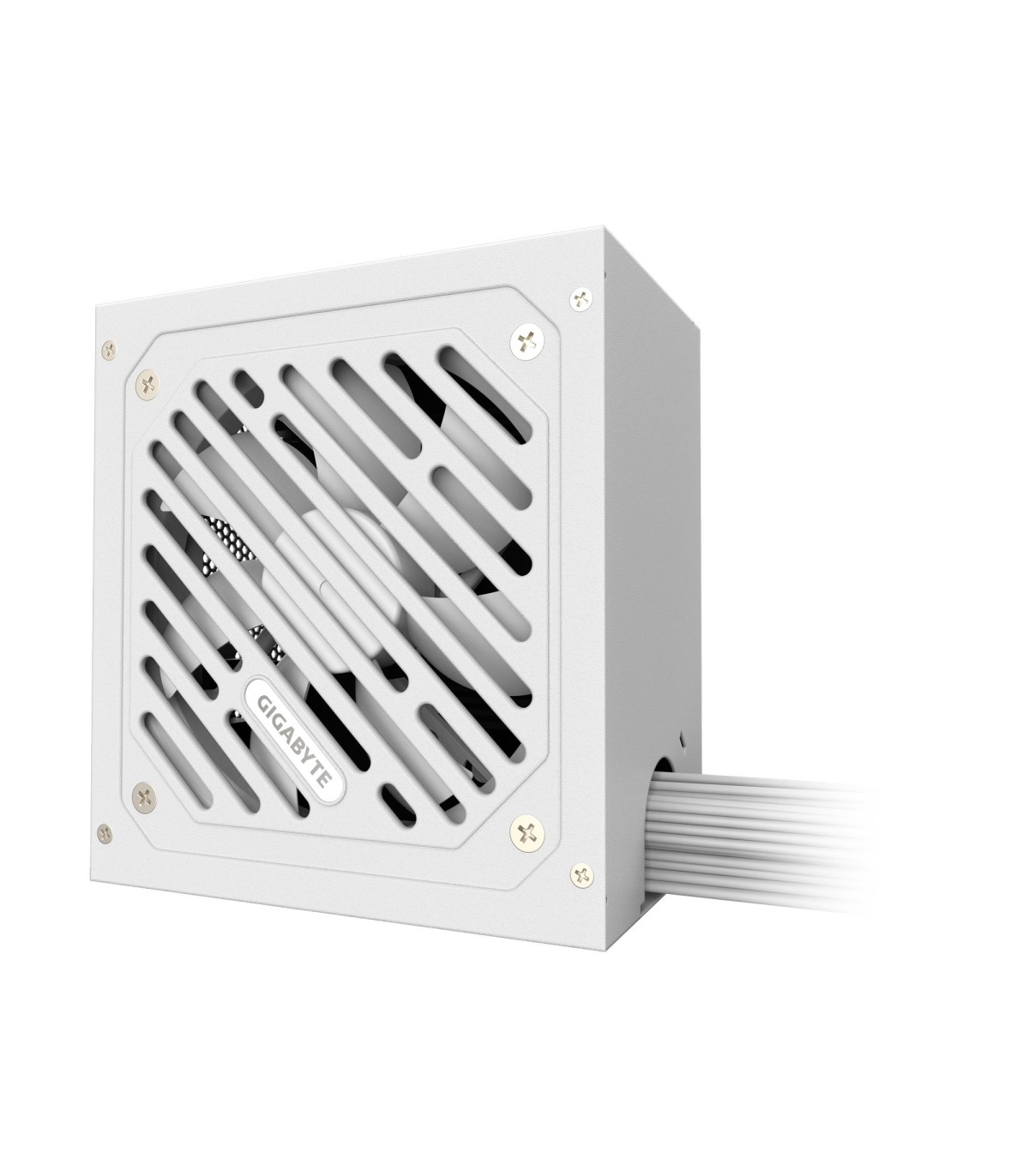

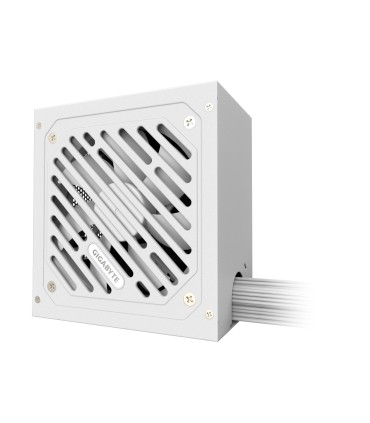

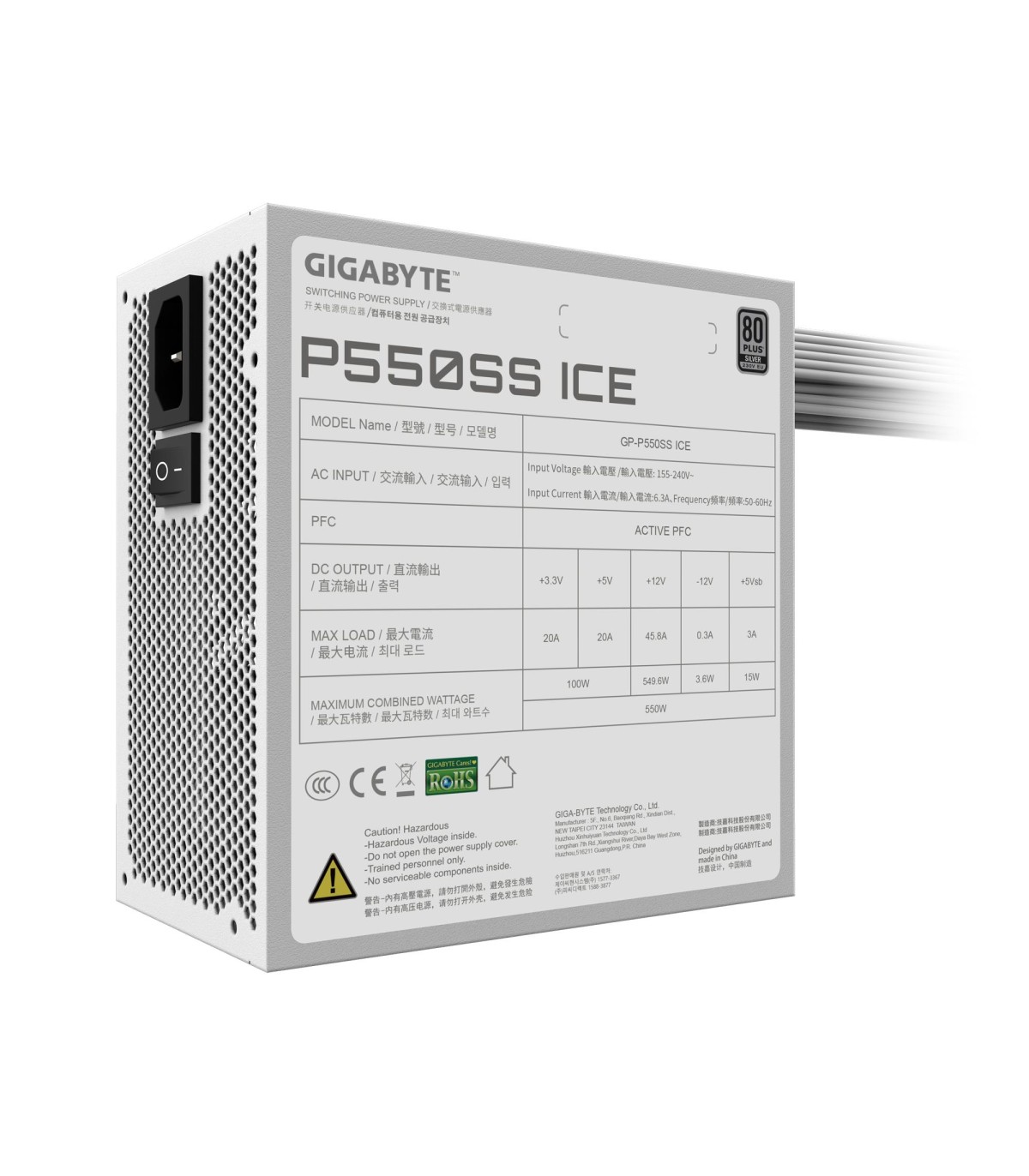

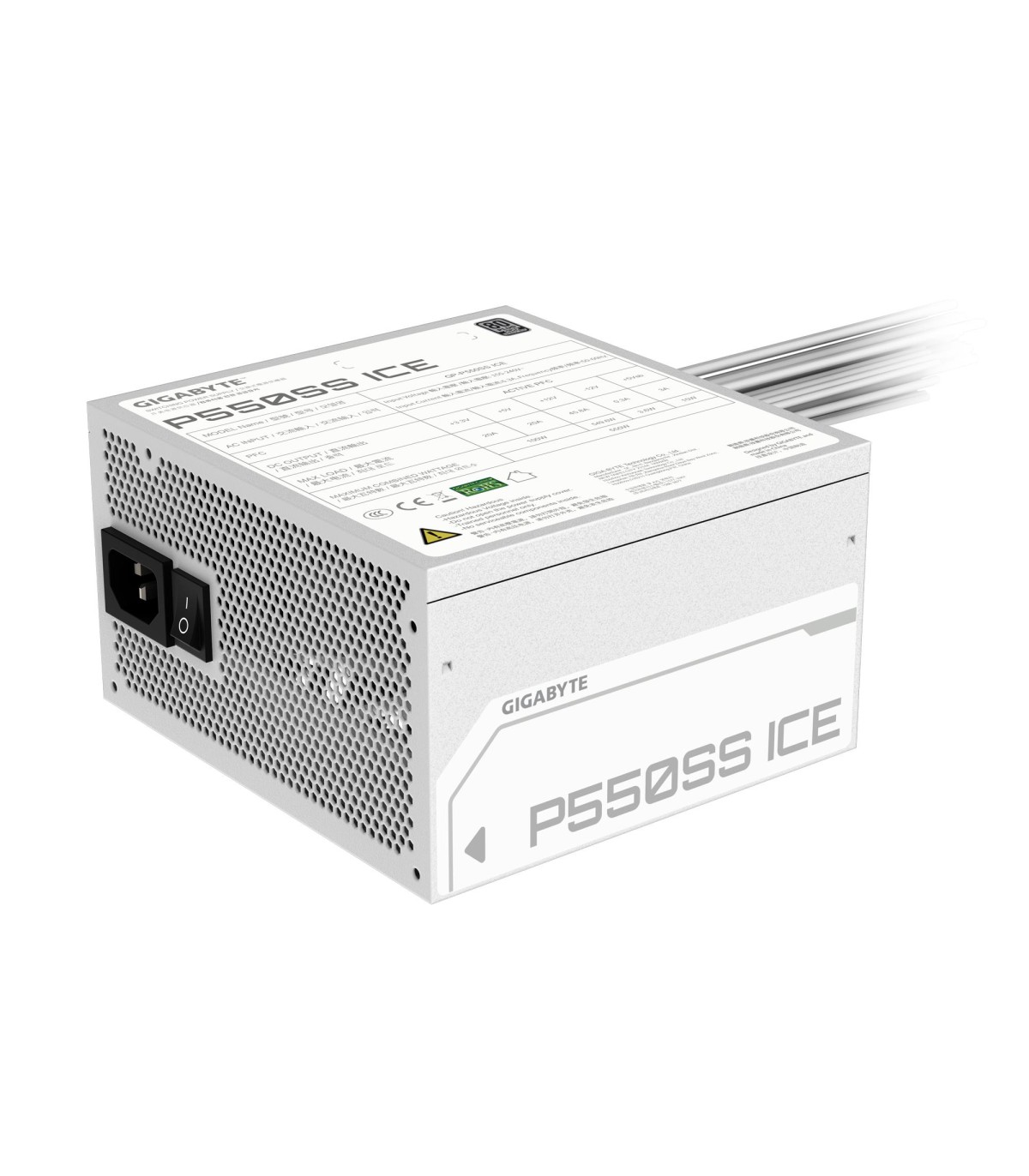

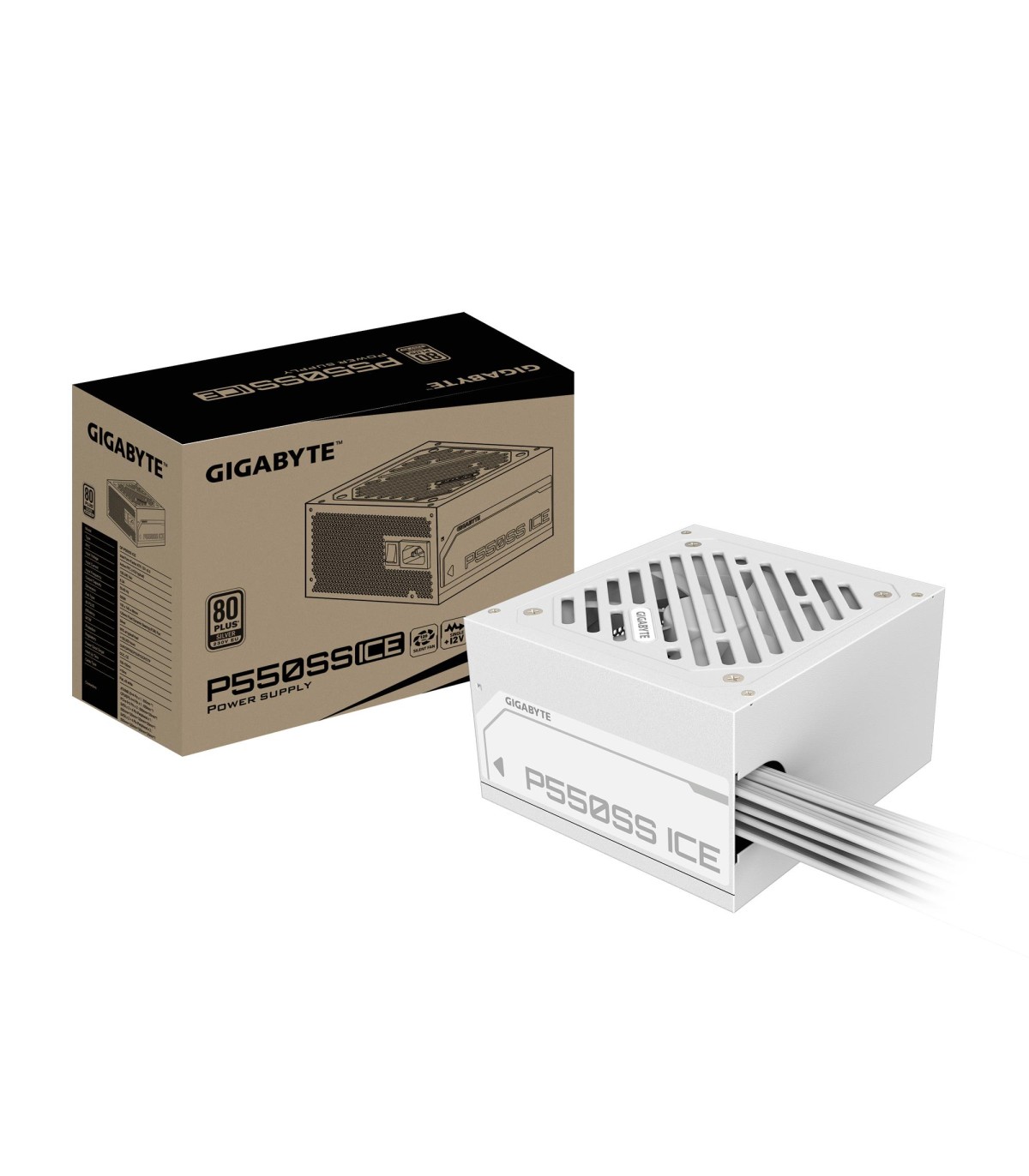

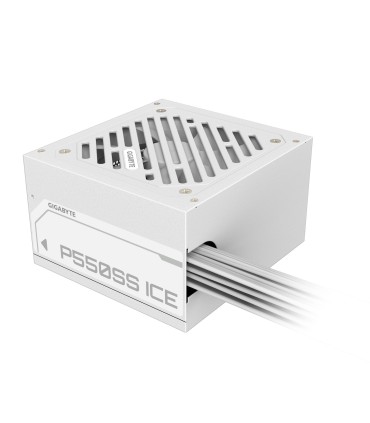

- GIGABYTE P550SS ICE Power Supply - PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length:
- Product colour
- White
- AC input frequency
- 50/60 Hz
- AC input voltage
- 155-240 V
- Package depth
- 206 mm
- Package height
- 117 mm
- Package type
- Box
- Package weight
- 2110 g
- Package width
- 254 mm
- Input current
- 6.3 A
- Weight
- 1950 g
- Mean time between failures (MTBF)
- 100000 h
- Warranty period
- 3 year(s)
- Cooling type
- Active
- Fan diameter
- 120 mm
- Purpose
- PC
- On/off switch
- Yes
- Combined power (+12V)
- 549.6 W
- Combined power (+3.3V)
- 100 W
- Combined power (+5V)
- 100 W
- Max output current (+12V)
- 45.8 A
- Max output current (+3.3V)
- 20 A
- Max output current (+5V)
- 20 A
- Max output current (+5Vsb)
- 3 A
- Max output current (-12V)
- 0.3 A
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- Total power
- 550 W
- ATX power connector (20+4 pin)
- Yes
- Cabling type
- Non-Modular
- Motherboard power cable length
- 600 mm
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 5
- PCI Express connector
- Yes
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power connectors (4-pin)
- 4
- ATX version
- 3.1
- Bearing technology
- Ball bearing
- Power supply unit (PSU) form factor
- ATX
- Fan location
- Top
- 80 PLUS certification
- 80 PLUS Silver
- CPU power connector (4+4 pin)
- Yes
- Combined power (+5Vsb)
- 15 W
- Combined power (-12V)
- 3.6 W
- Floppy disk drive connector
- Yes
- Floppy drive power connector
- 2
- Hold time
- 16 ms
- Power Good signal delay range
- 100 - 150 ms
