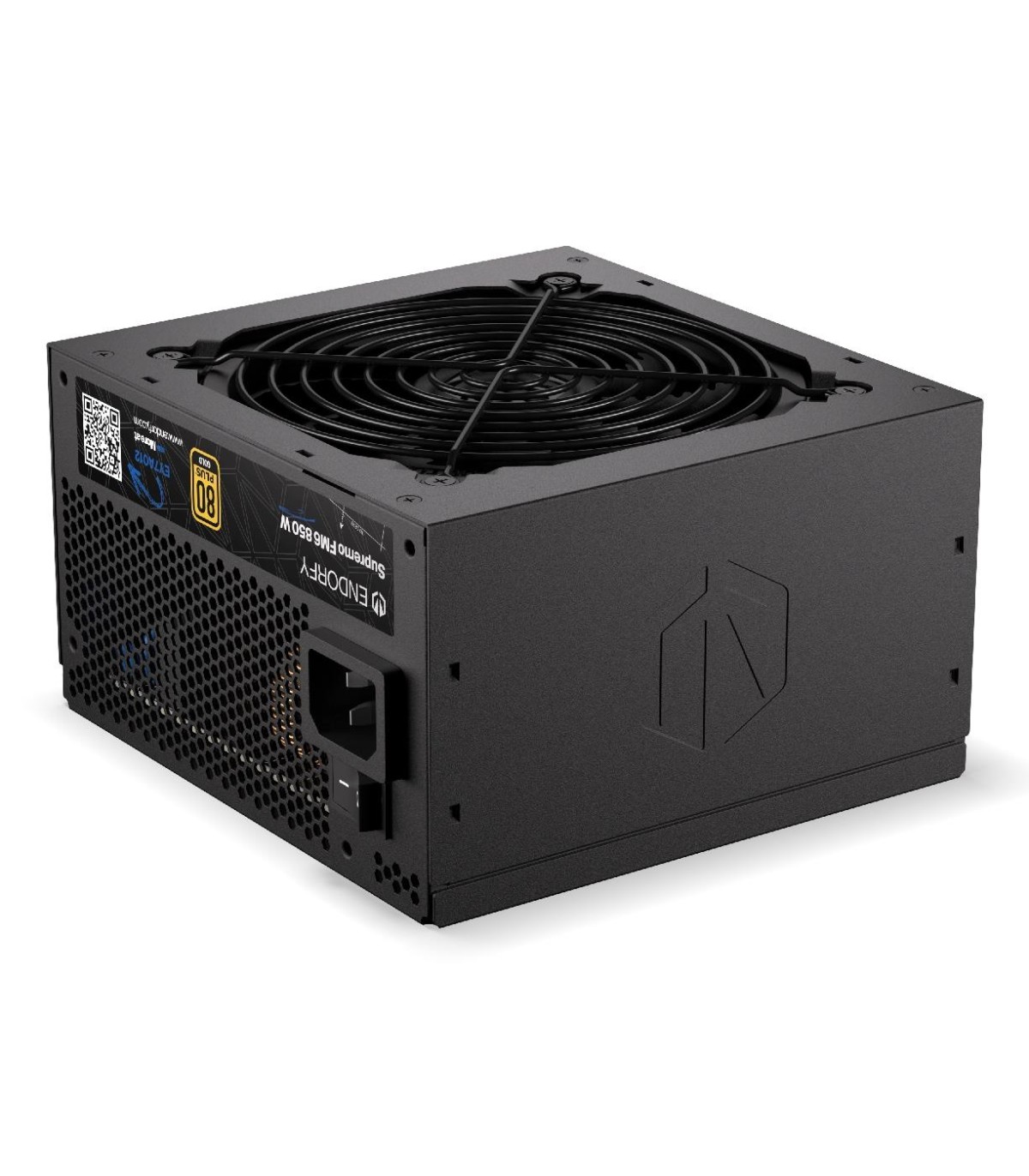

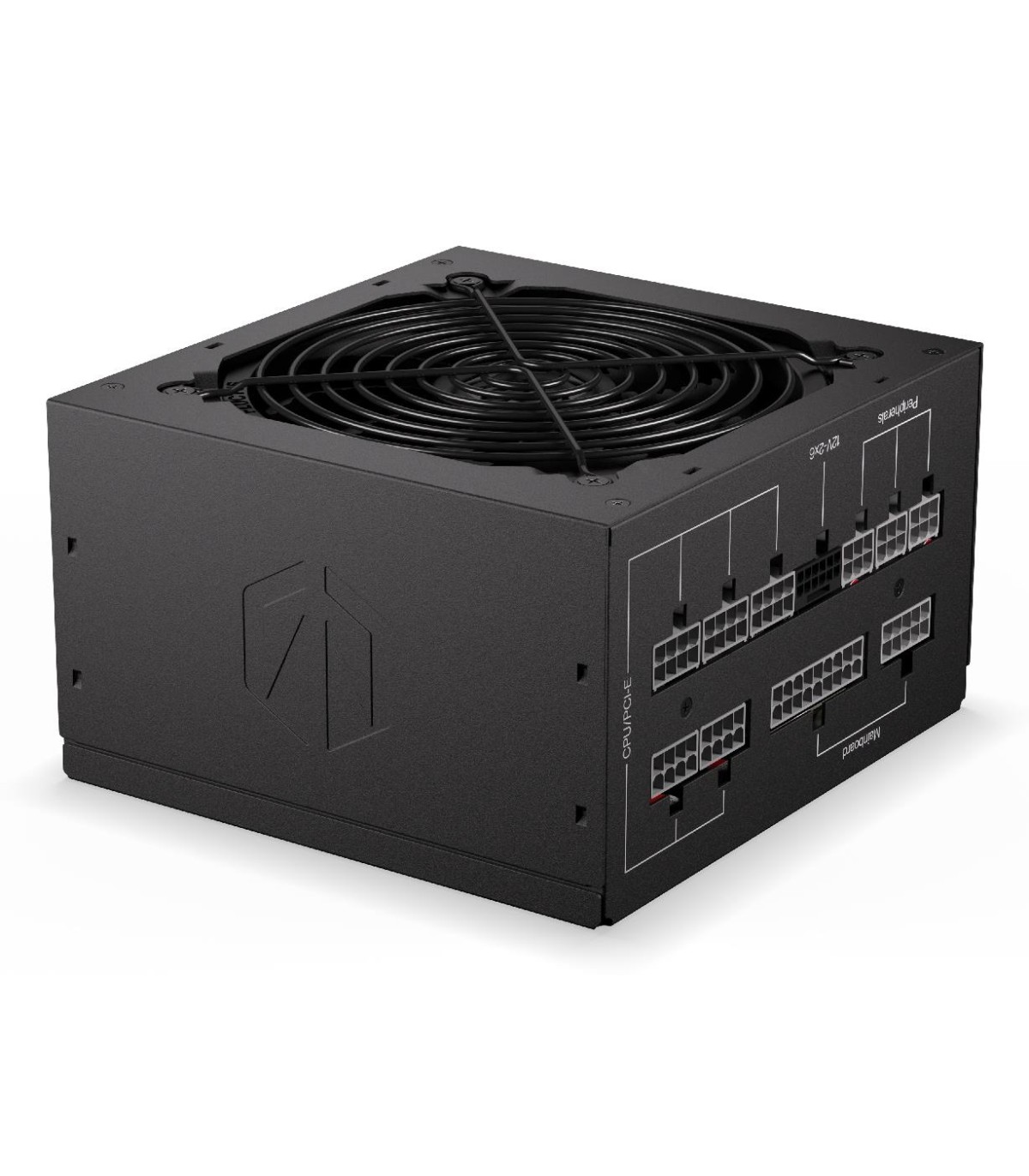

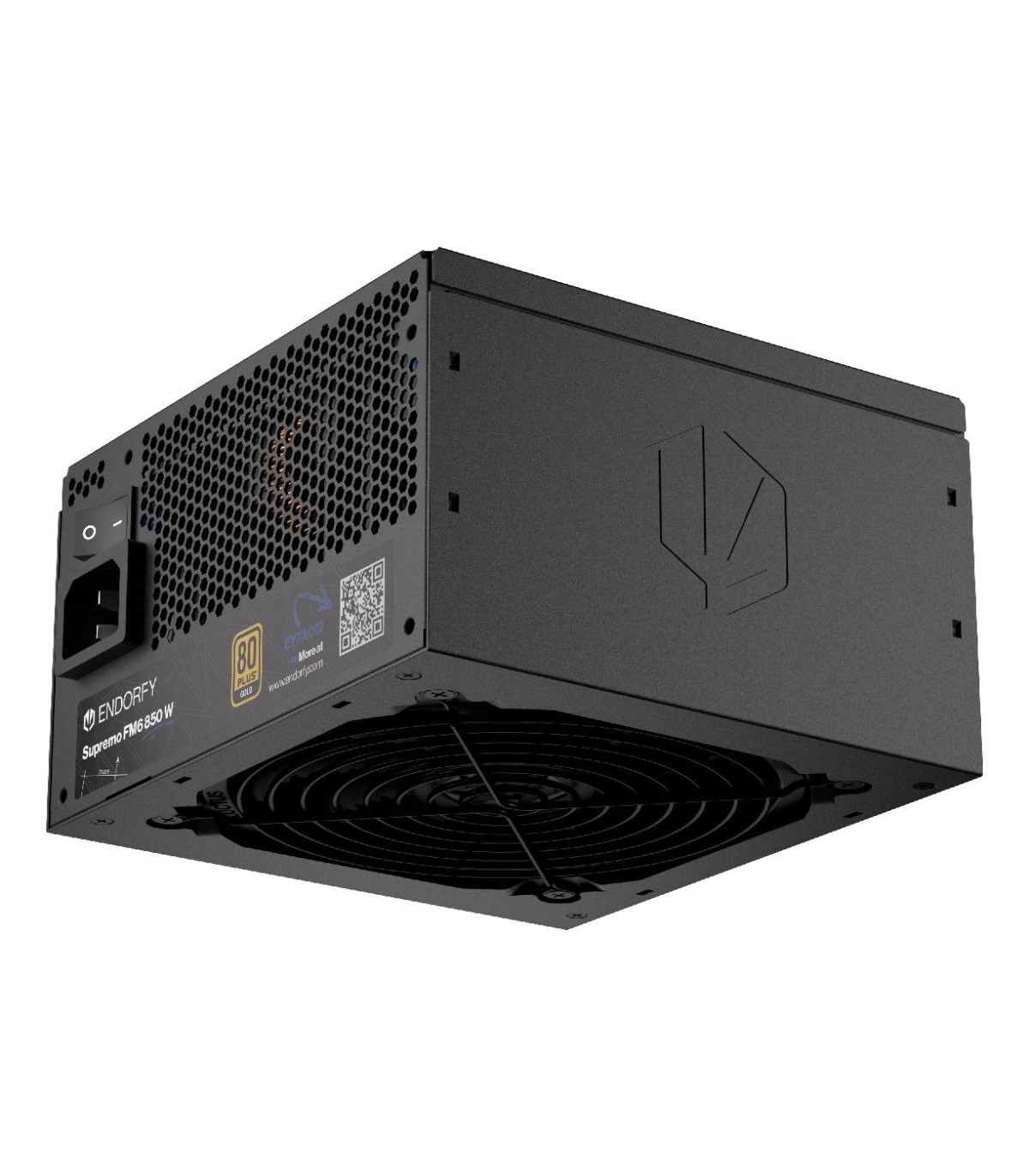

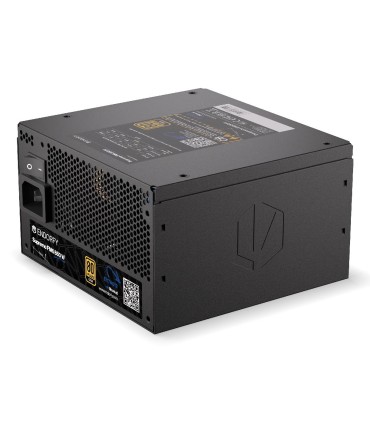

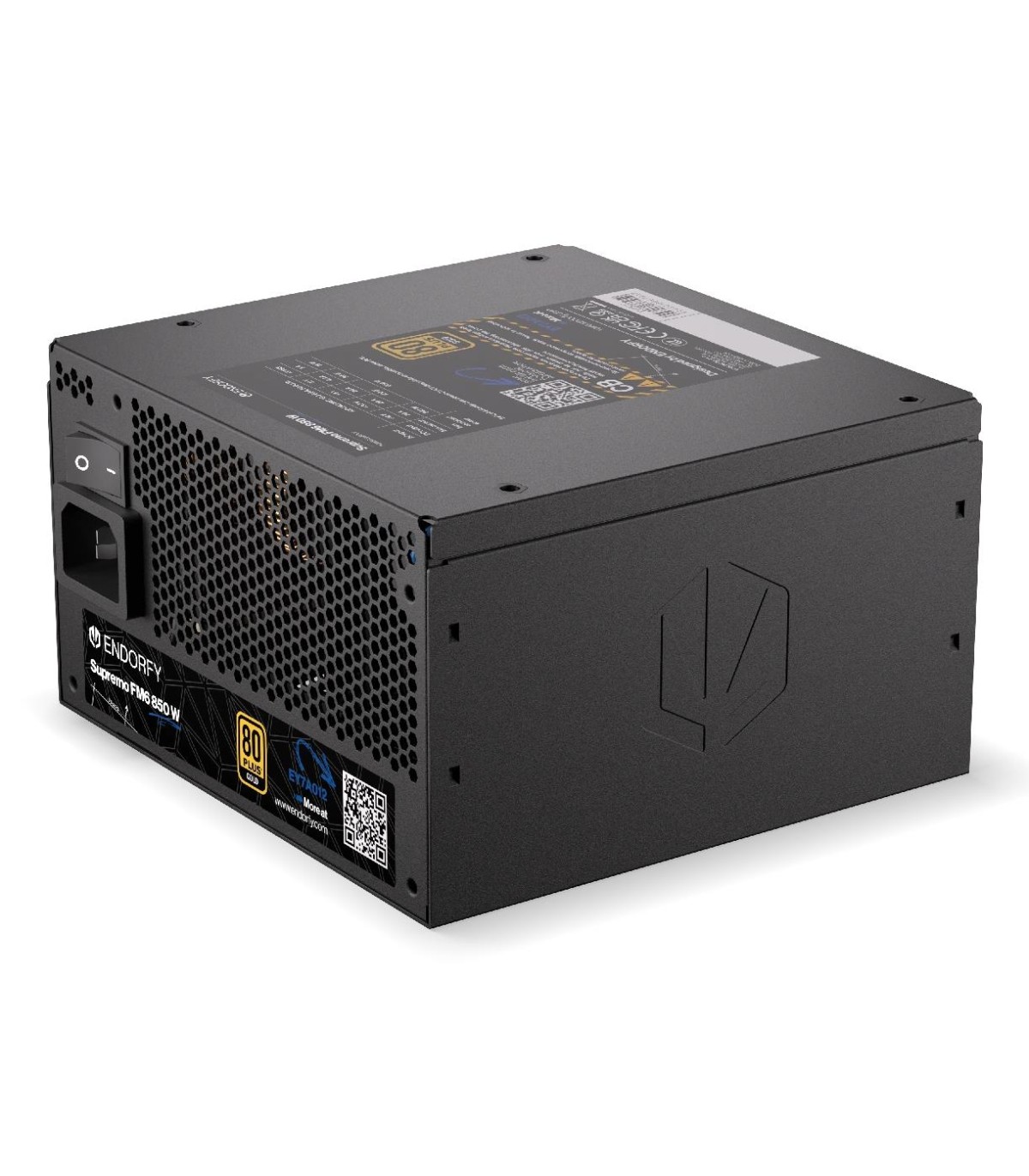

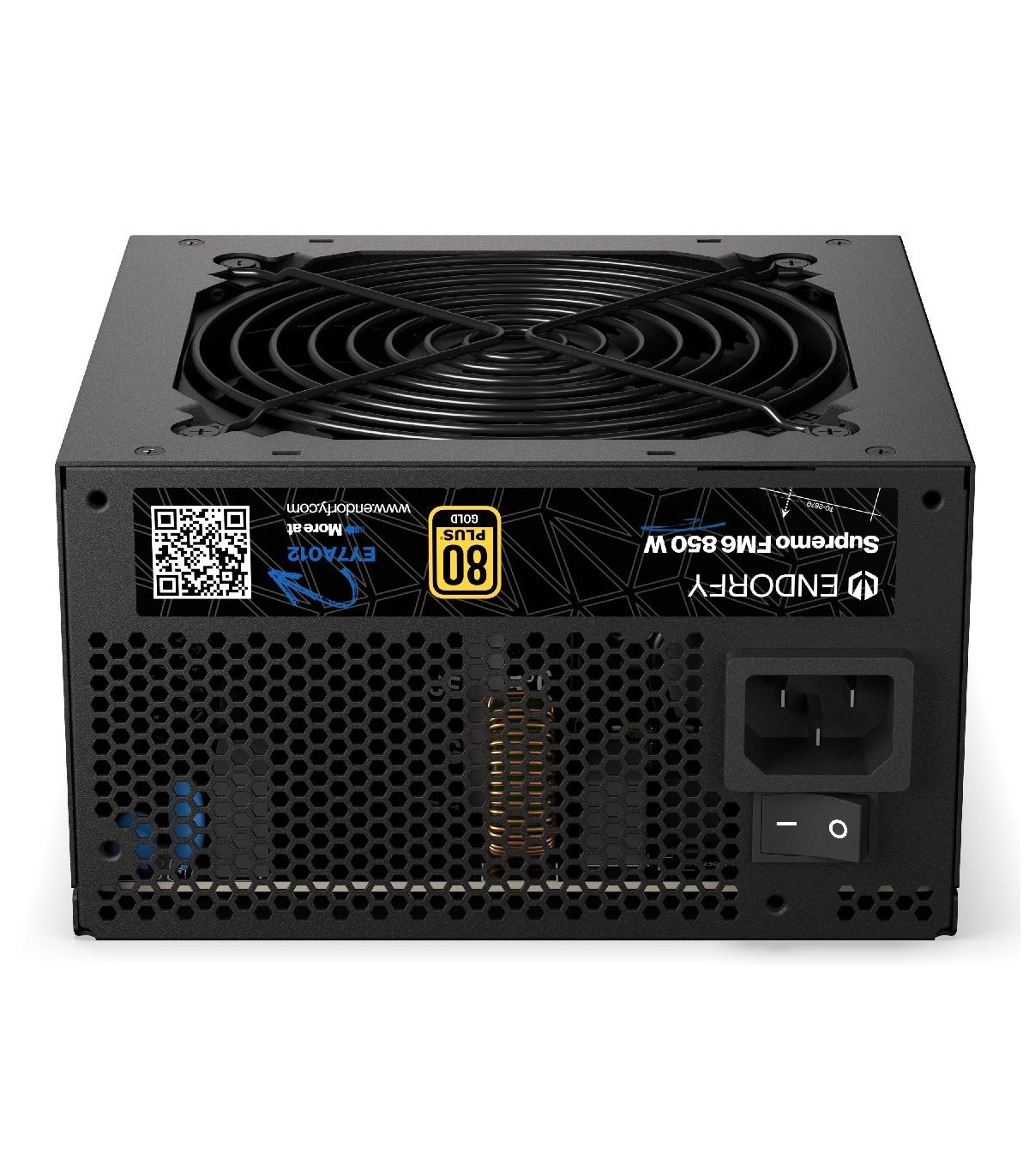

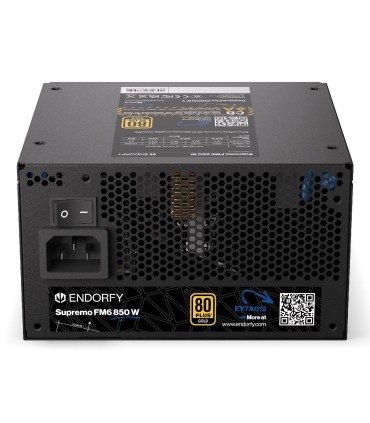

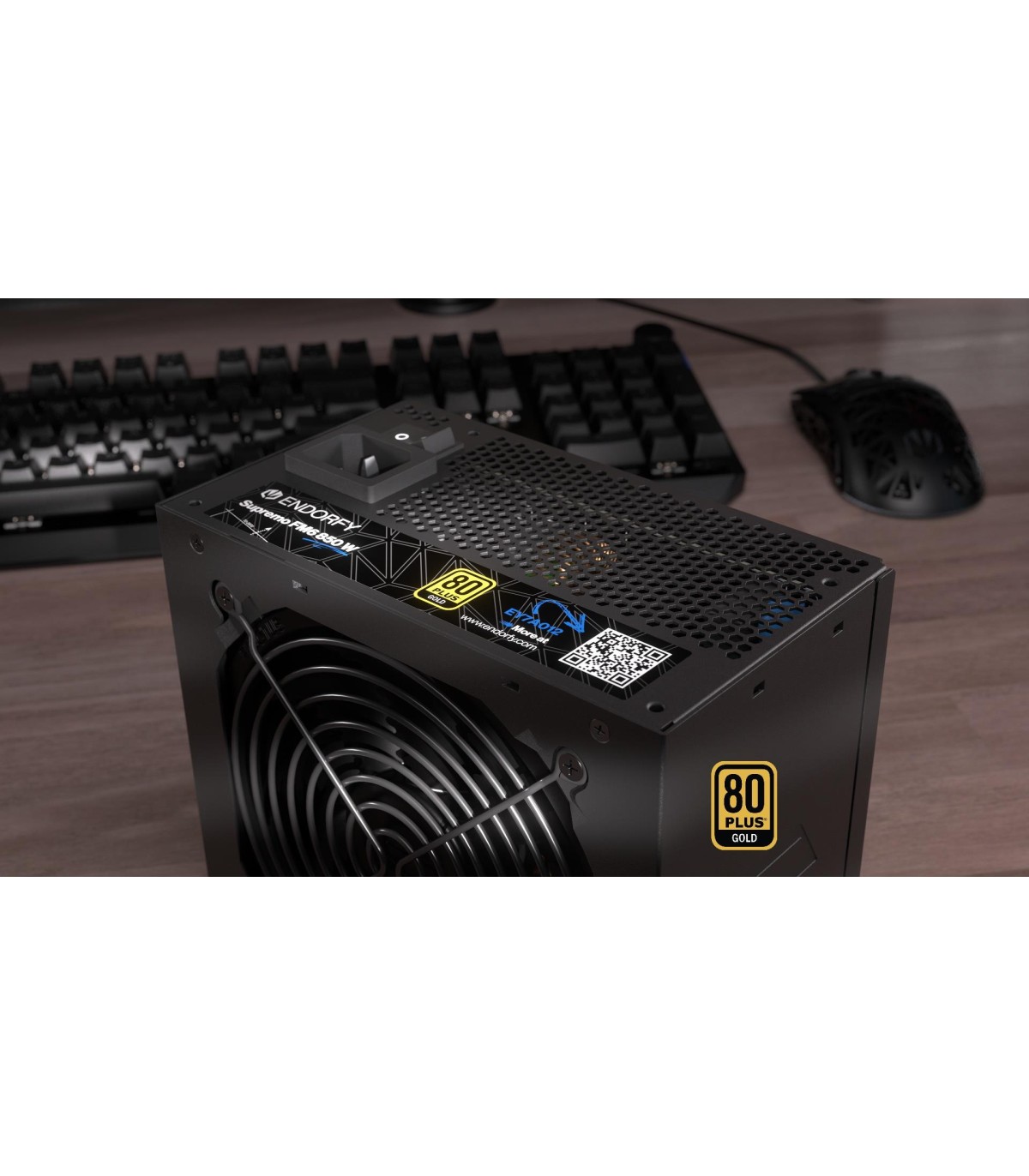

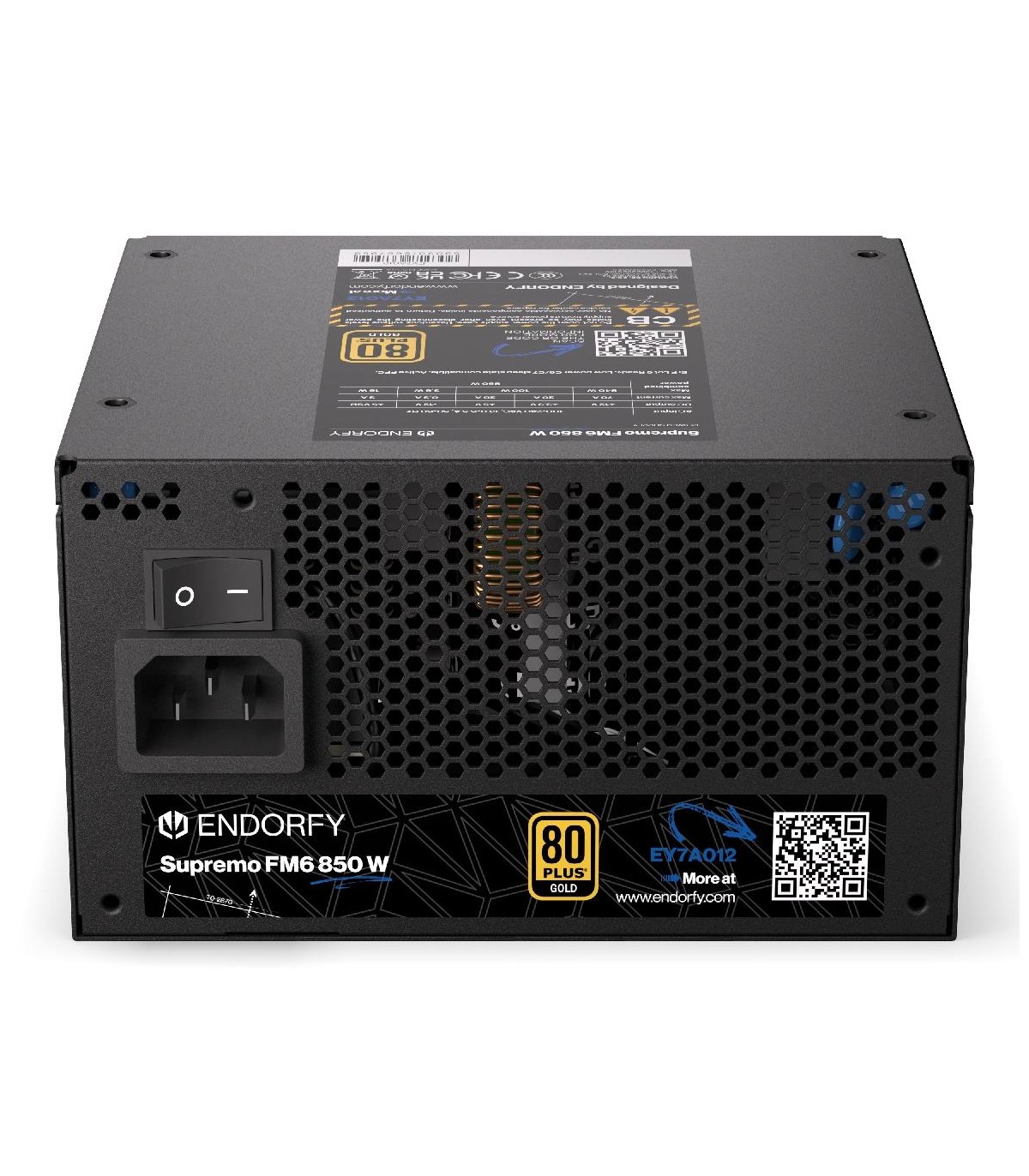

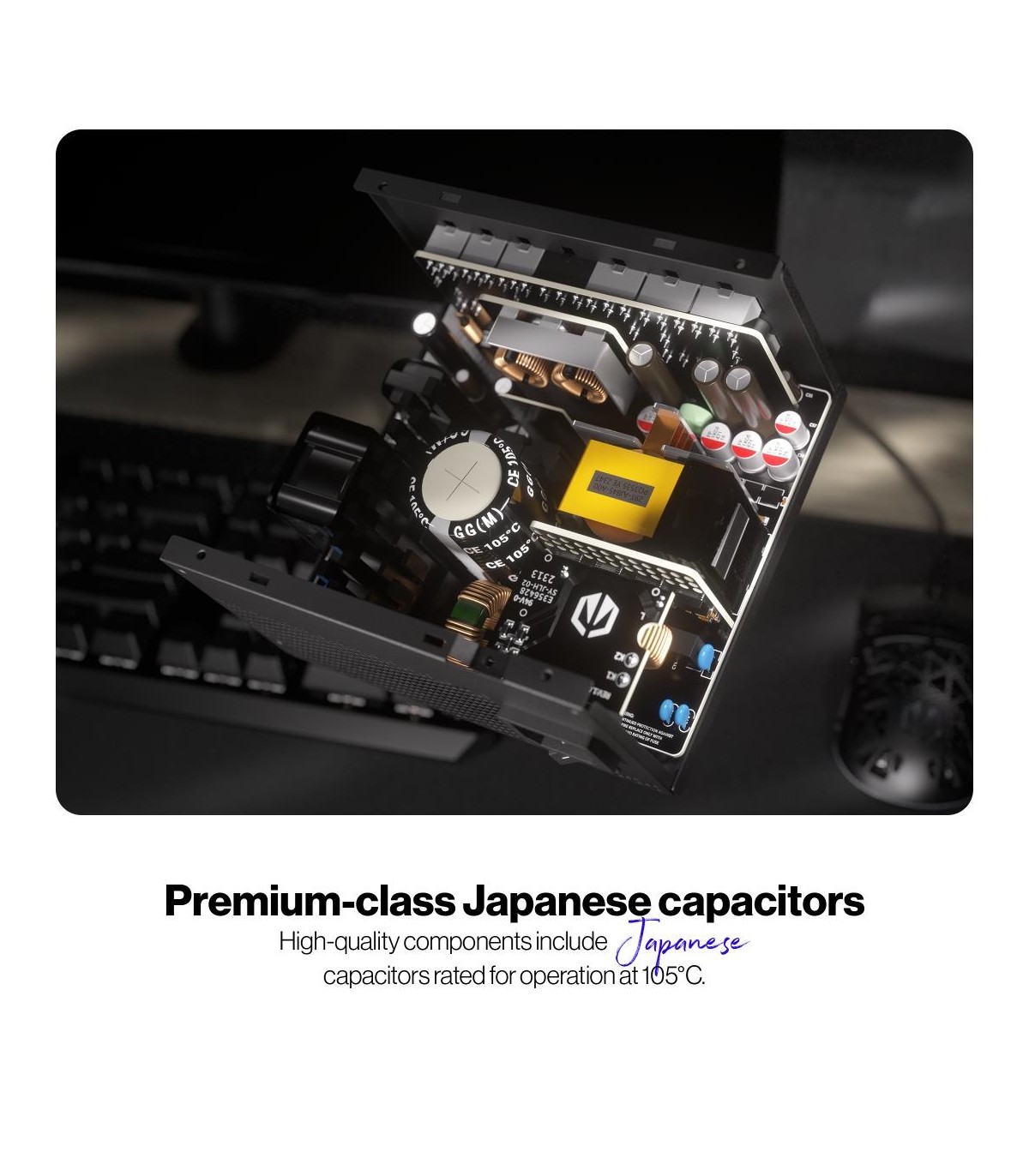

ENDORFY Power Supply SUPREMO FM6 850 Watts Efficiency 80 PLUS GOLD MTBF 100000 hours EY7A012

Muud funktsioonid

Depth

150 mm

Height

87 mm

Width

140 mm

Unit Box Width

0.27

Unit Box Length

0.1

Unit Box Height

0.22

Category Code

PSU

Model name

SUPREMO FM6

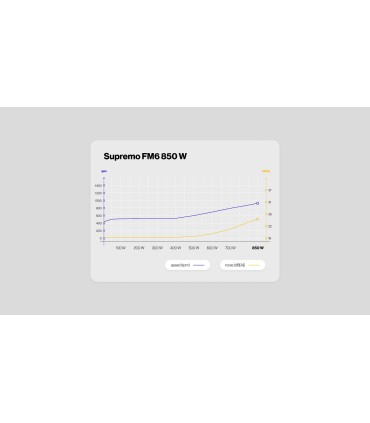

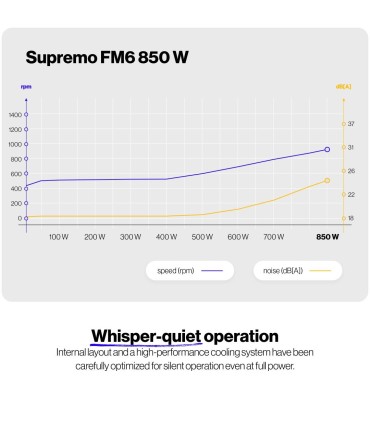

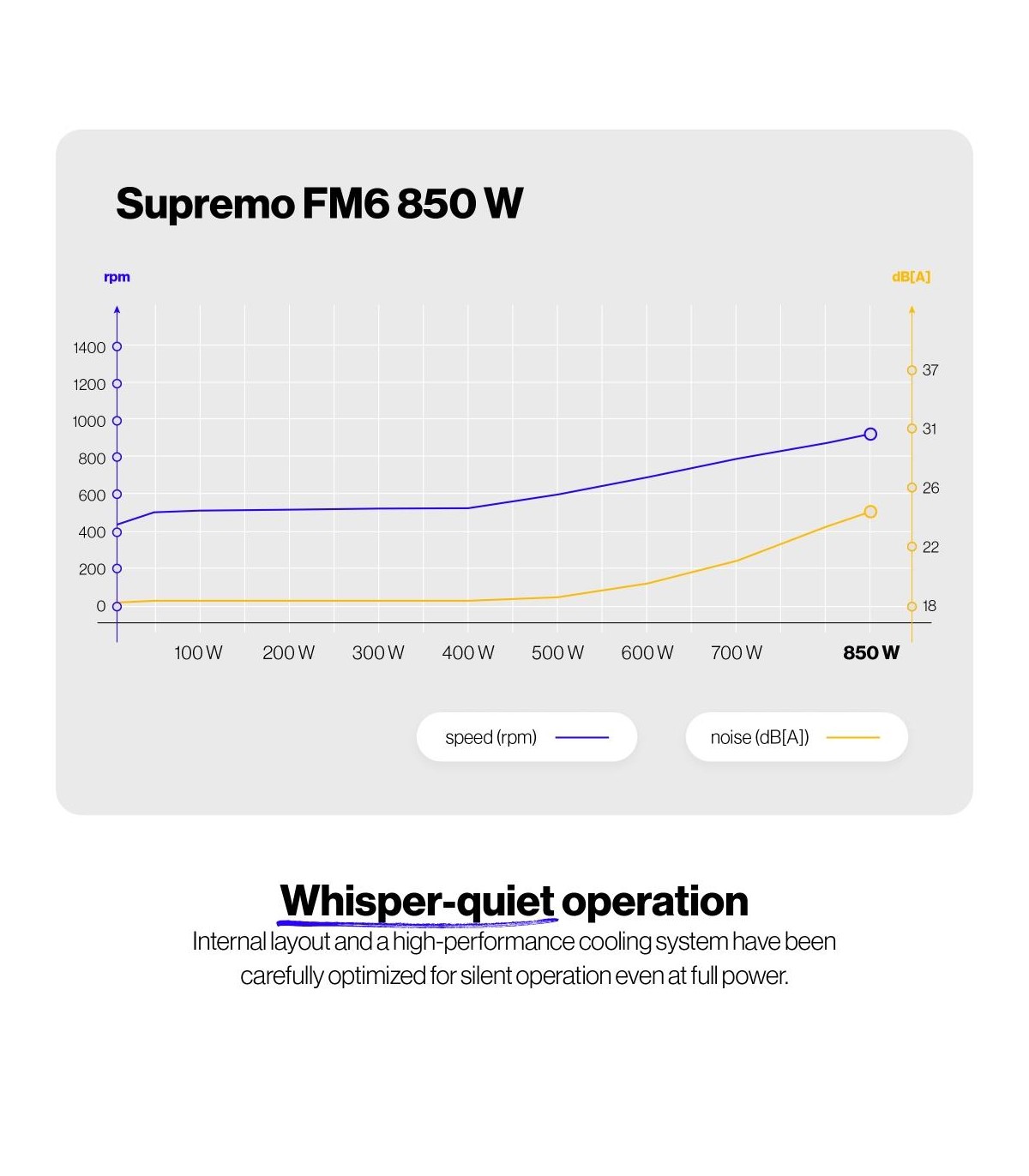

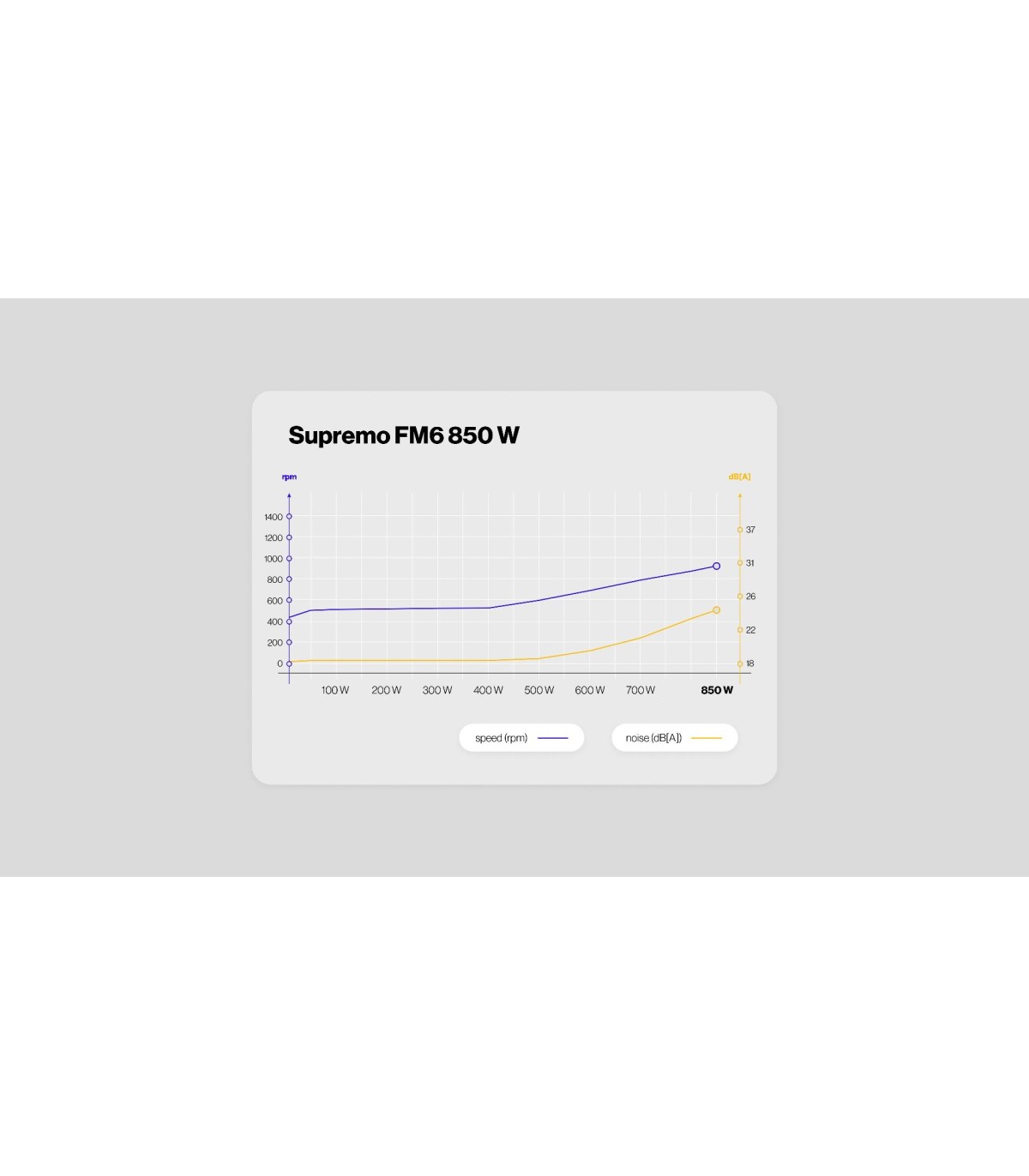

Fan speed

1260 - 1540 RPM

Number of fans

1 fan(s)

Unit Calculated Volume

0.00594 cubm

Unit Calculated Weight

2.72 kg

Units per Shipping Box

1

Summary

ENDORFY Supremo FM6 850 W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 560 mm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form fa

Product colour

Black

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Package depth

270 mm

Package height

95 mm

Package type

Box

Package weight

2740 g

Package width

220 mm

Cables included

AC

Input current

13 - 6.5 A

Compliance certificates

CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA

Country of origin

China

Weight

1460 g

Manual

Yes

Mean time between failures (MTBF)

100000 h

LED indicators

No

Doesn’t contain

Cadmium/Lead/Mercury

Warranty period

10 year(s)

Cooling type

Active

Illumination

No

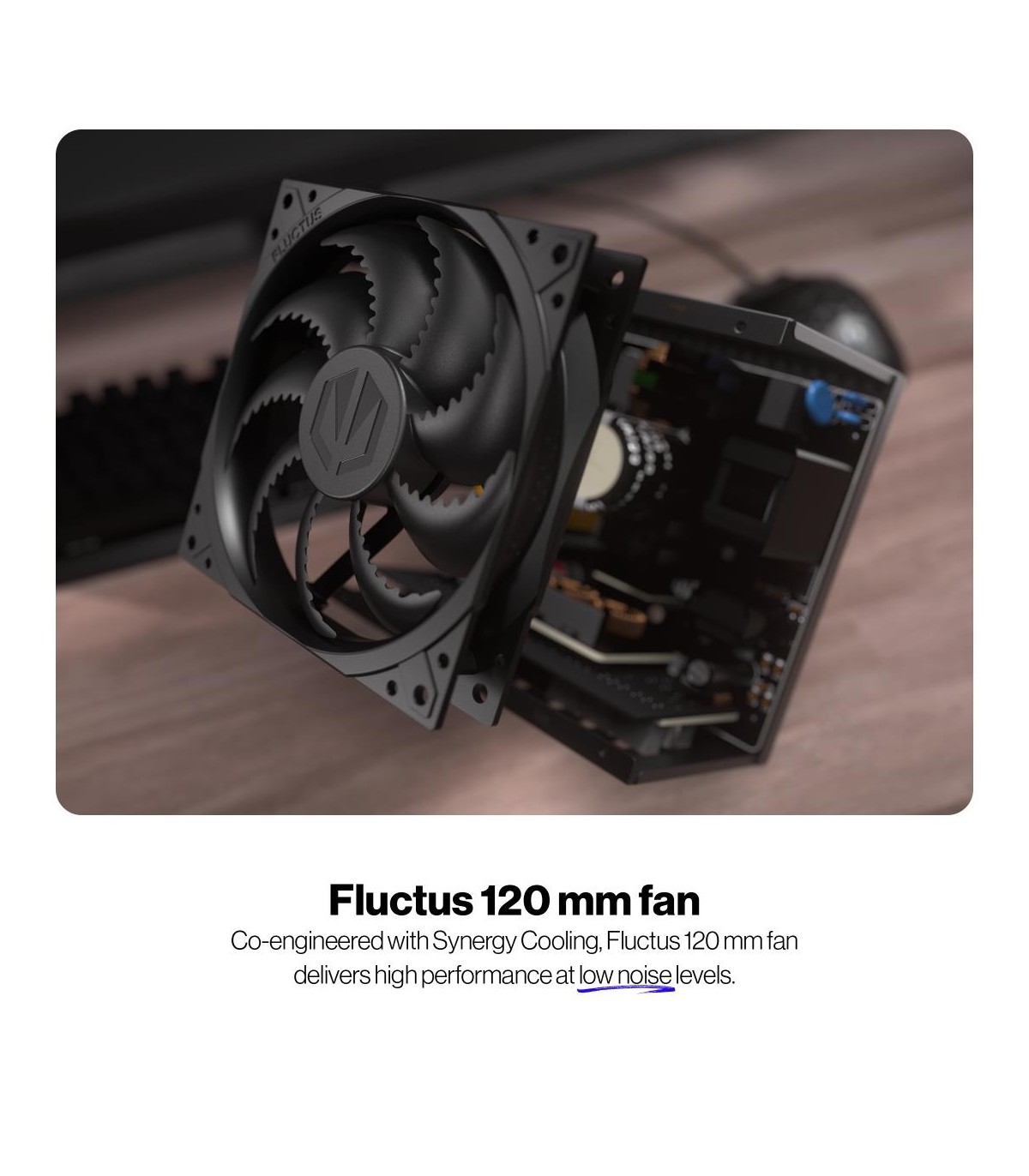

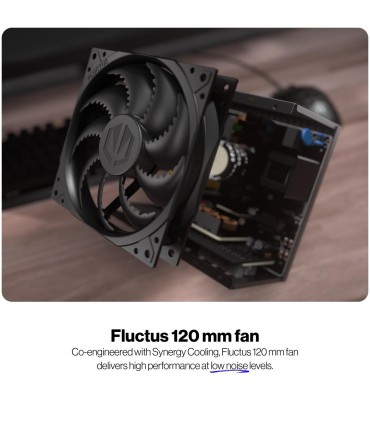

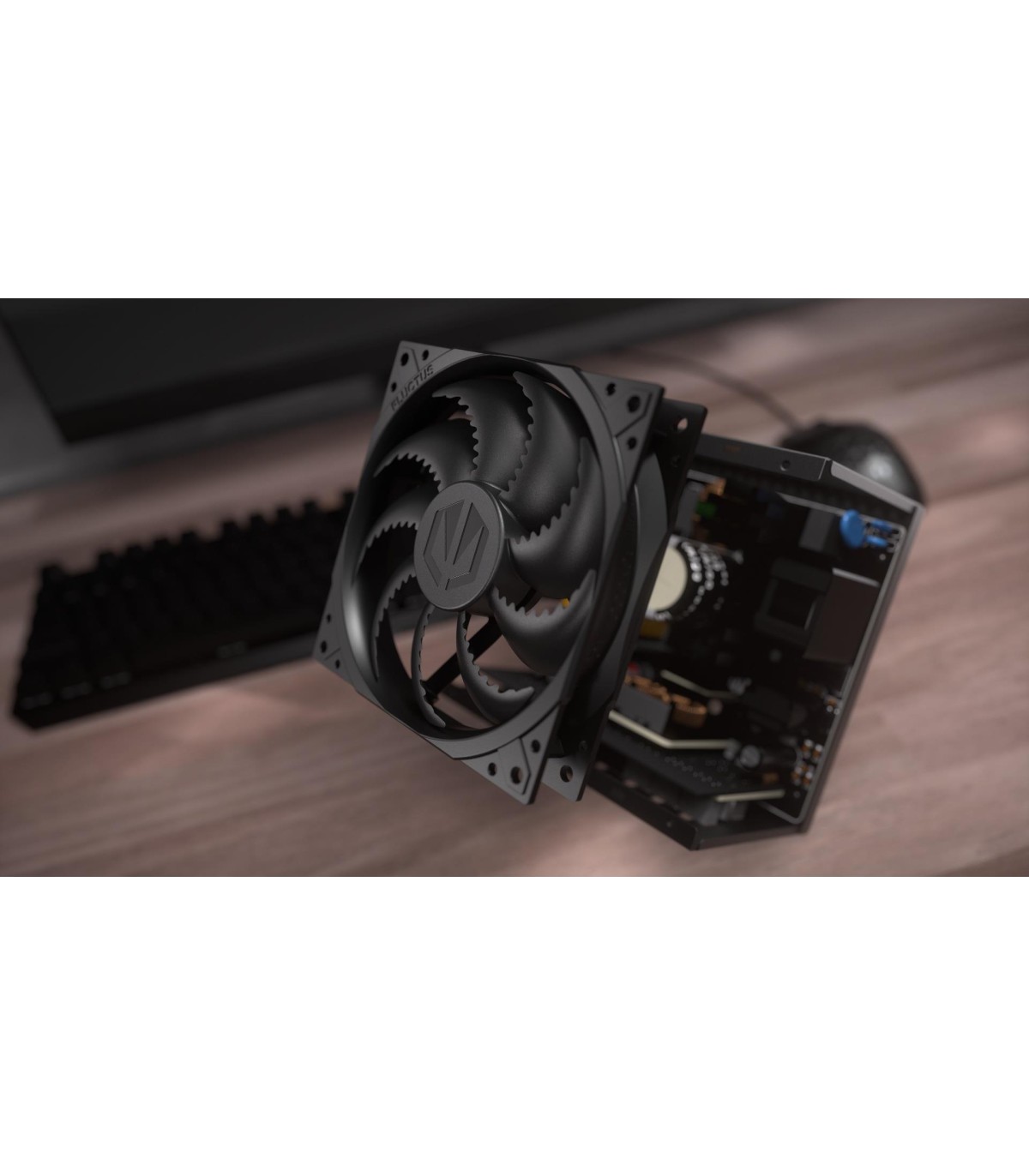

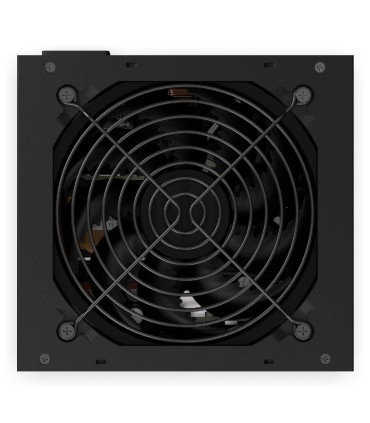

Fan diameter

120 mm

Purpose

PC

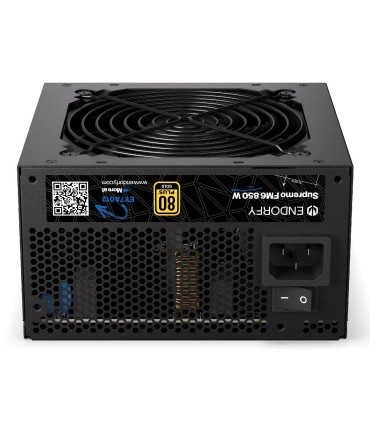

On/off switch

Yes

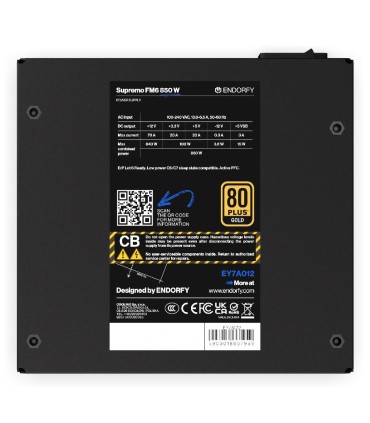

Combined power (+12V)

840 W

Combined power (+3.3V)

66 W

Combined power (+5V)

100 W

Max output current (+12V)

70 A

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

Power Factor Correction (PFC) type

Active

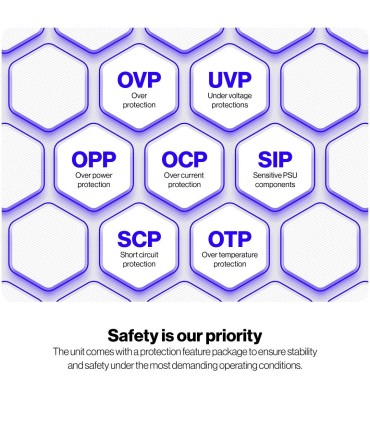

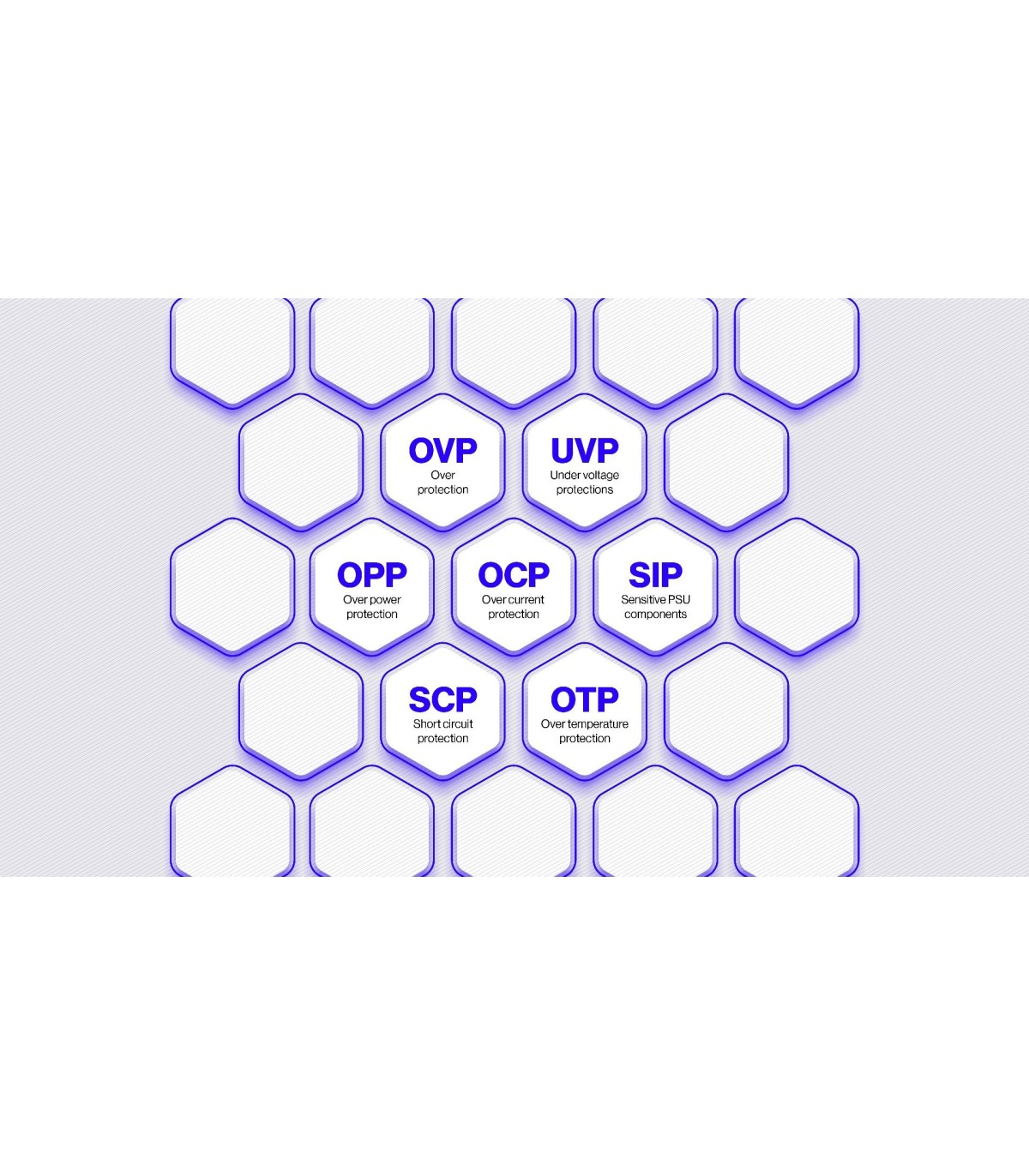

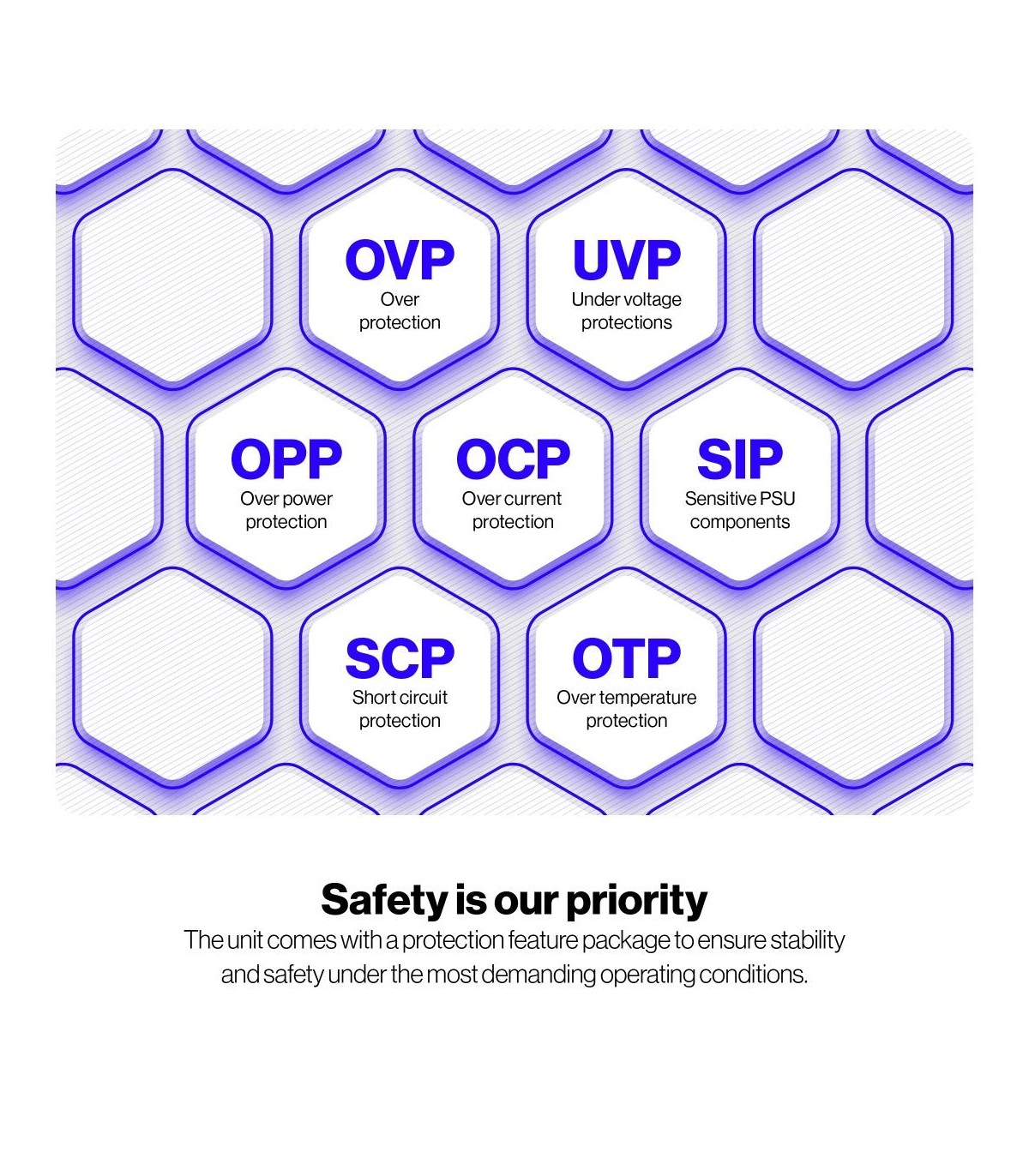

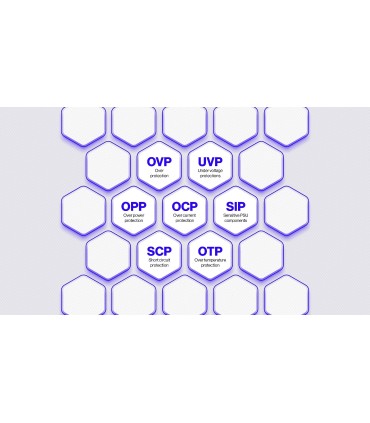

Power protection features

Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage

Total power

850 W

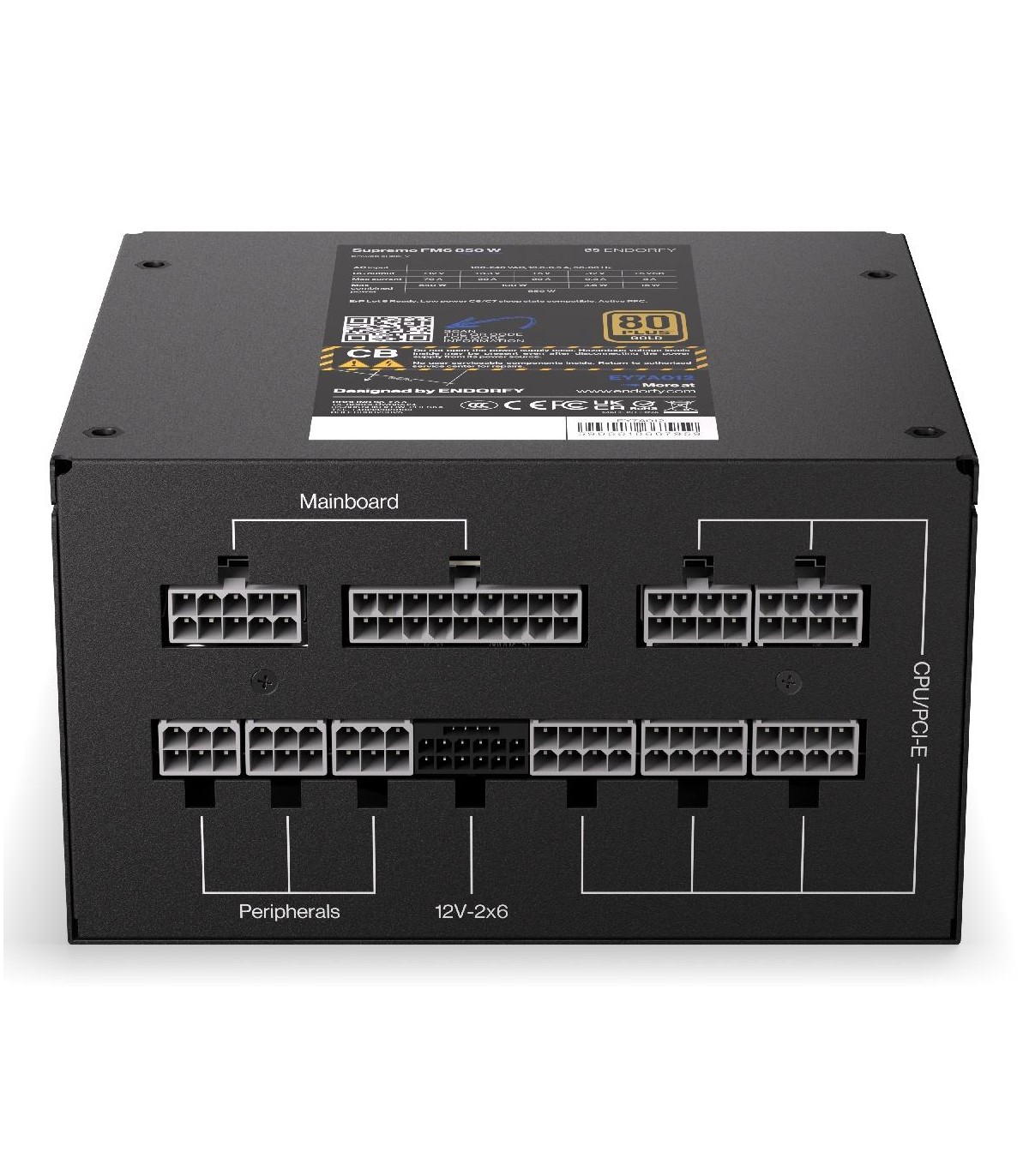

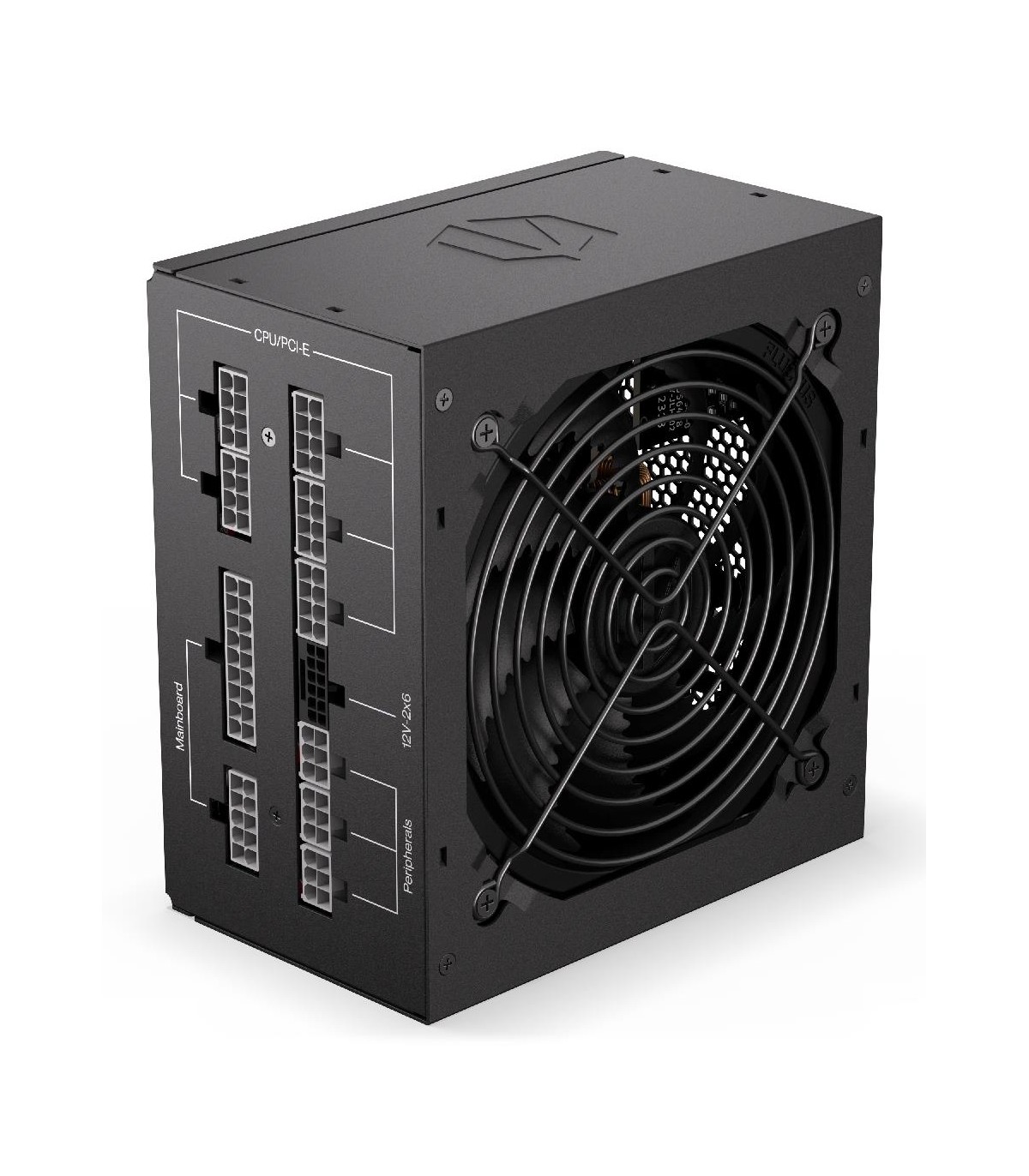

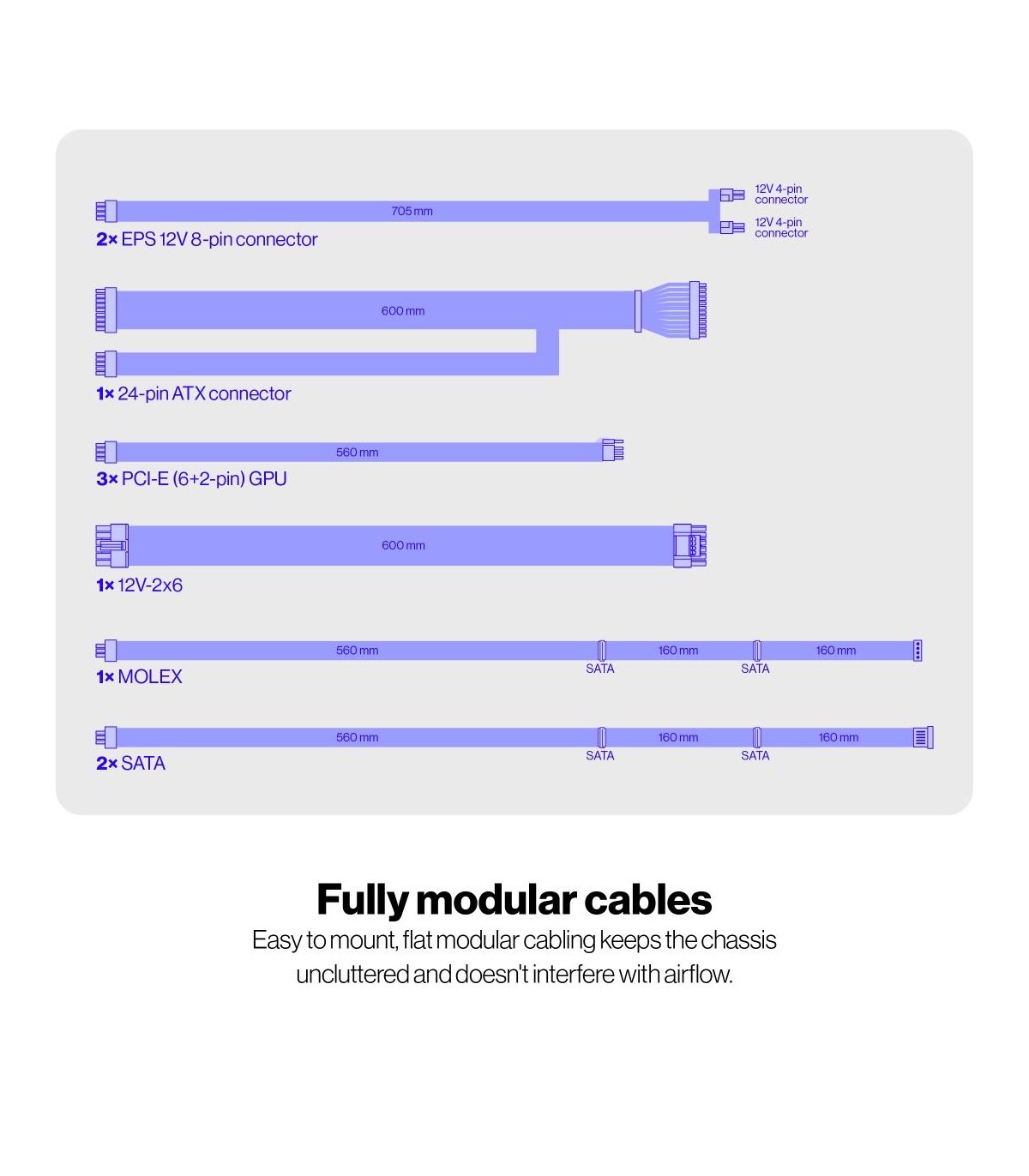

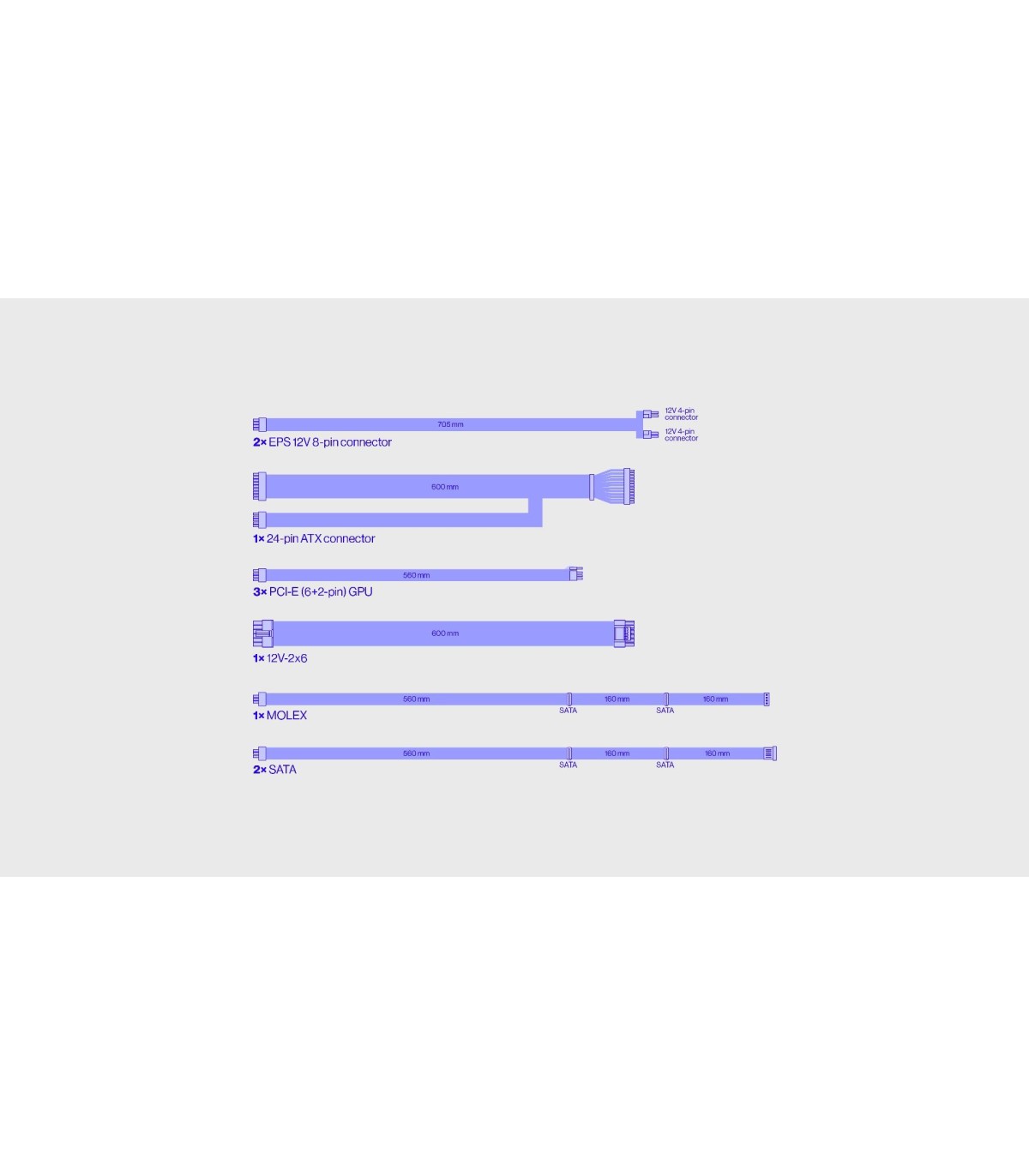

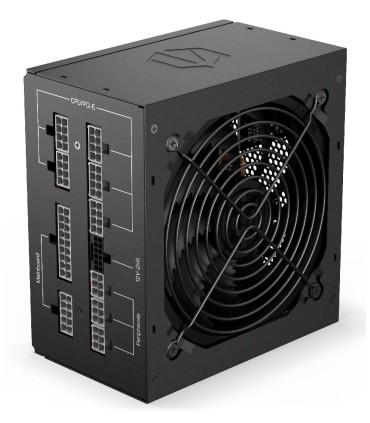

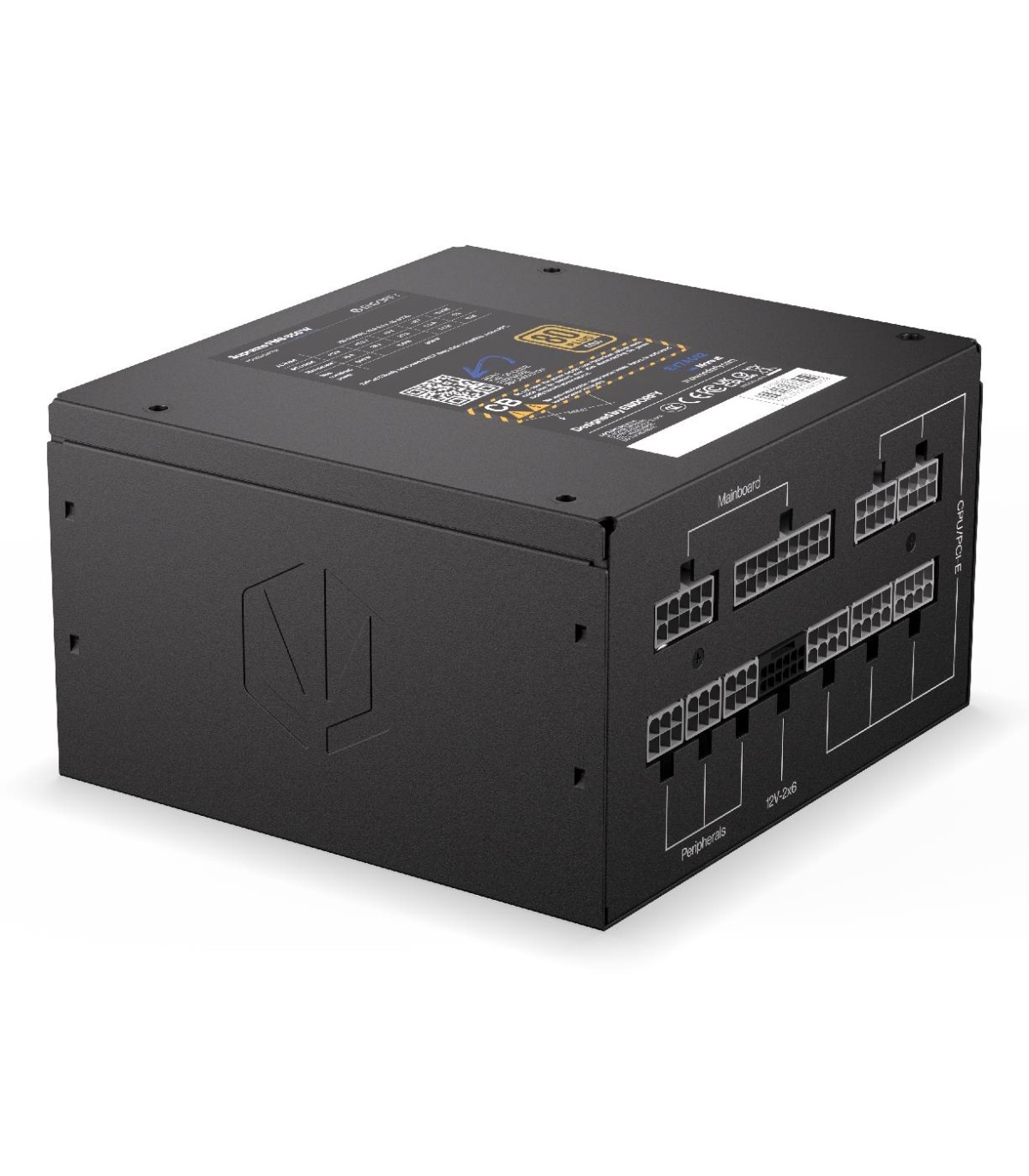

Cabling type

Fully-Modular

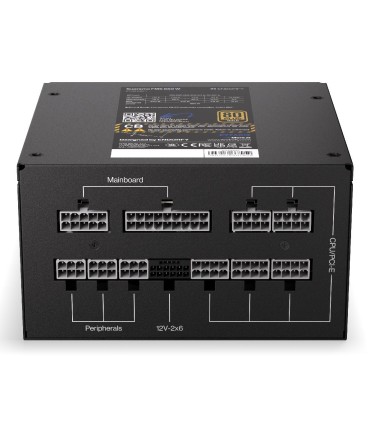

Motherboard power connector

24-pin ATX

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

3

Peripheral (Molex) power connectors (4-pin)

1

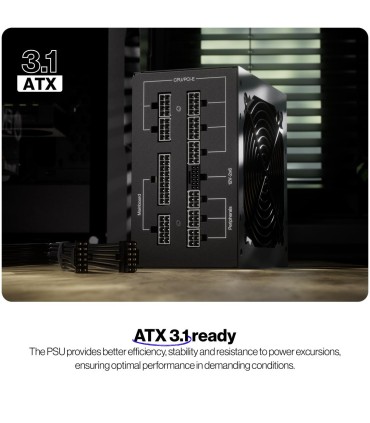

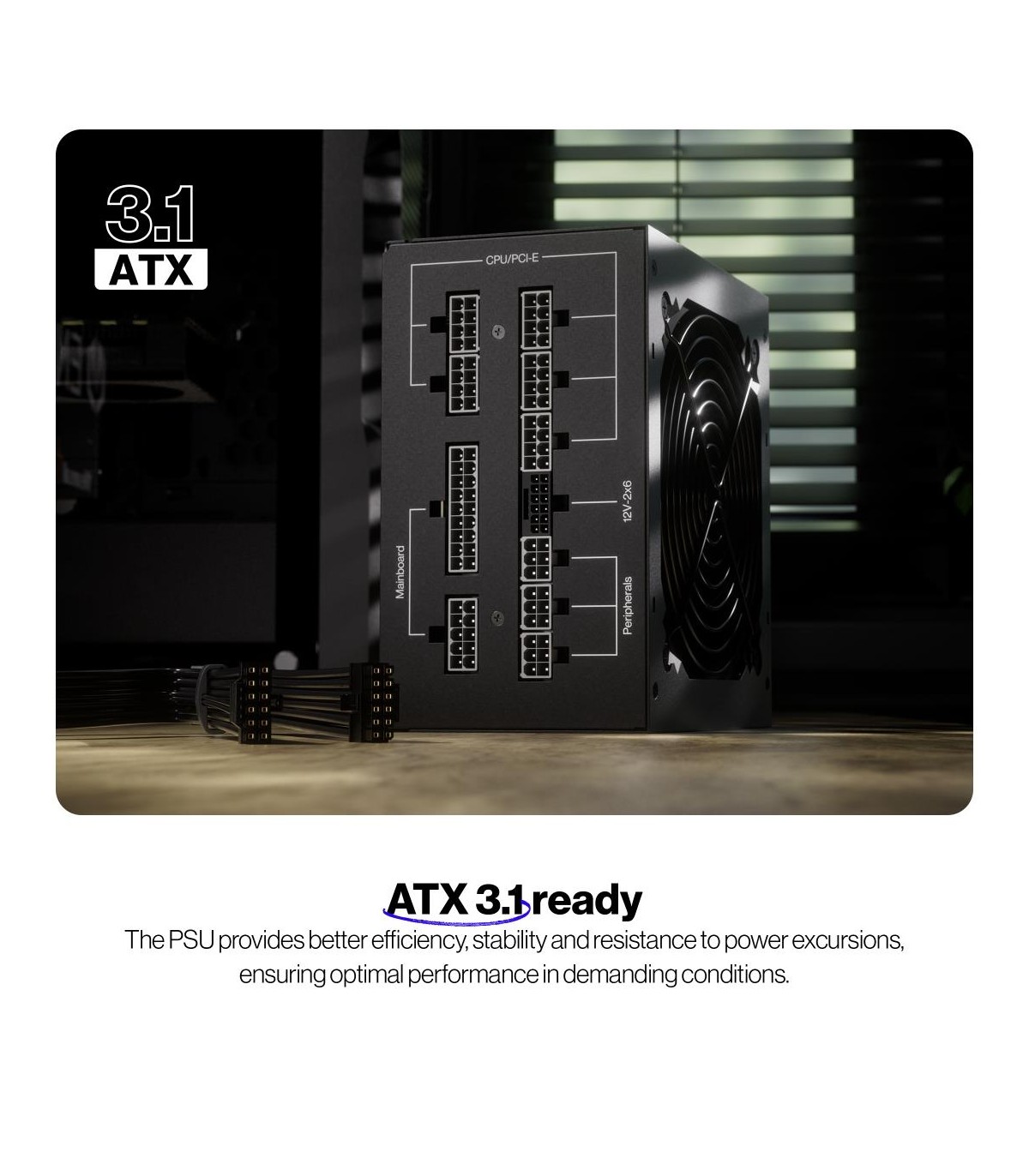

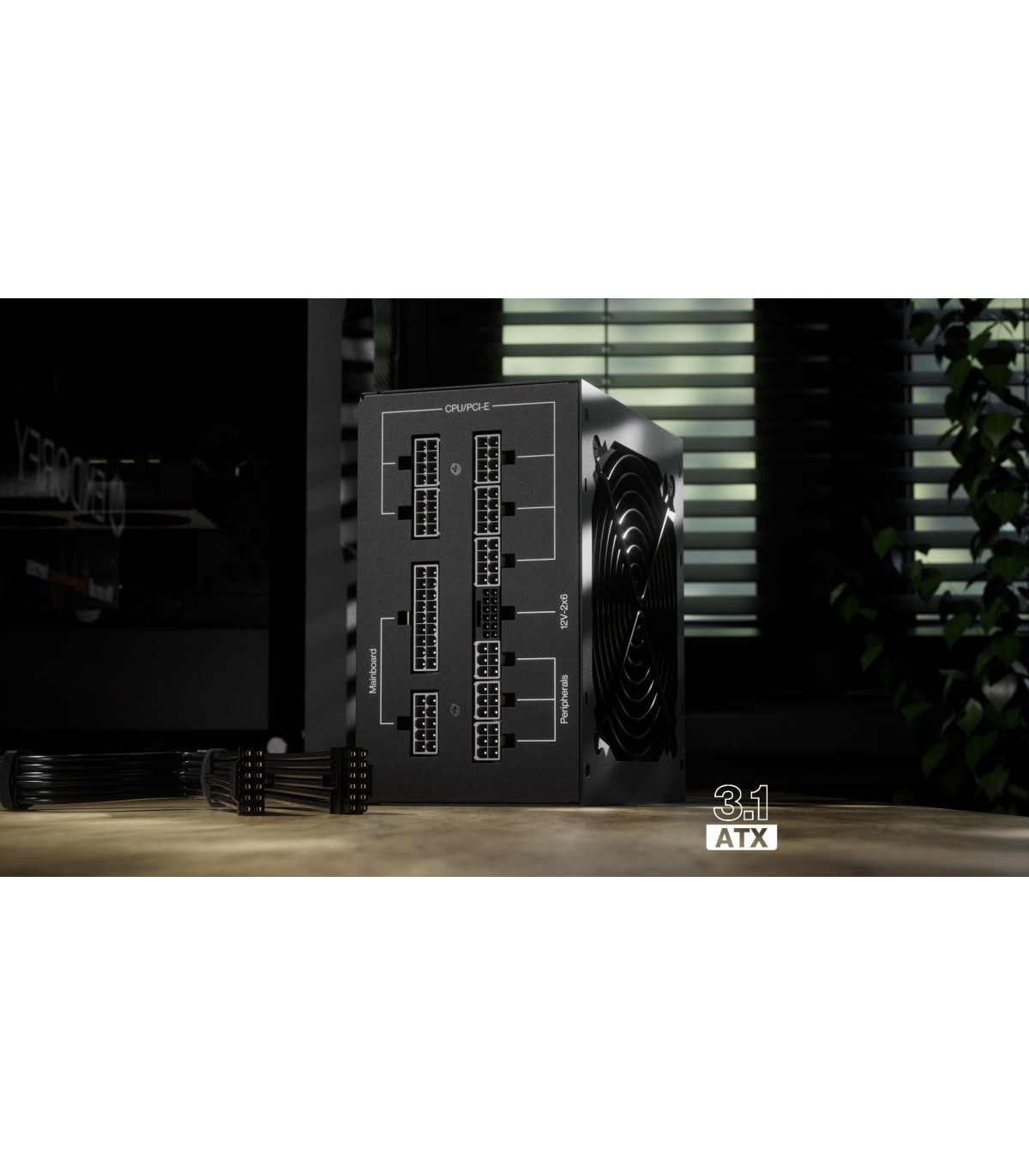

ATX version

3.1

Bearing technology

FDB

Power supply unit (PSU) form factor

ATX

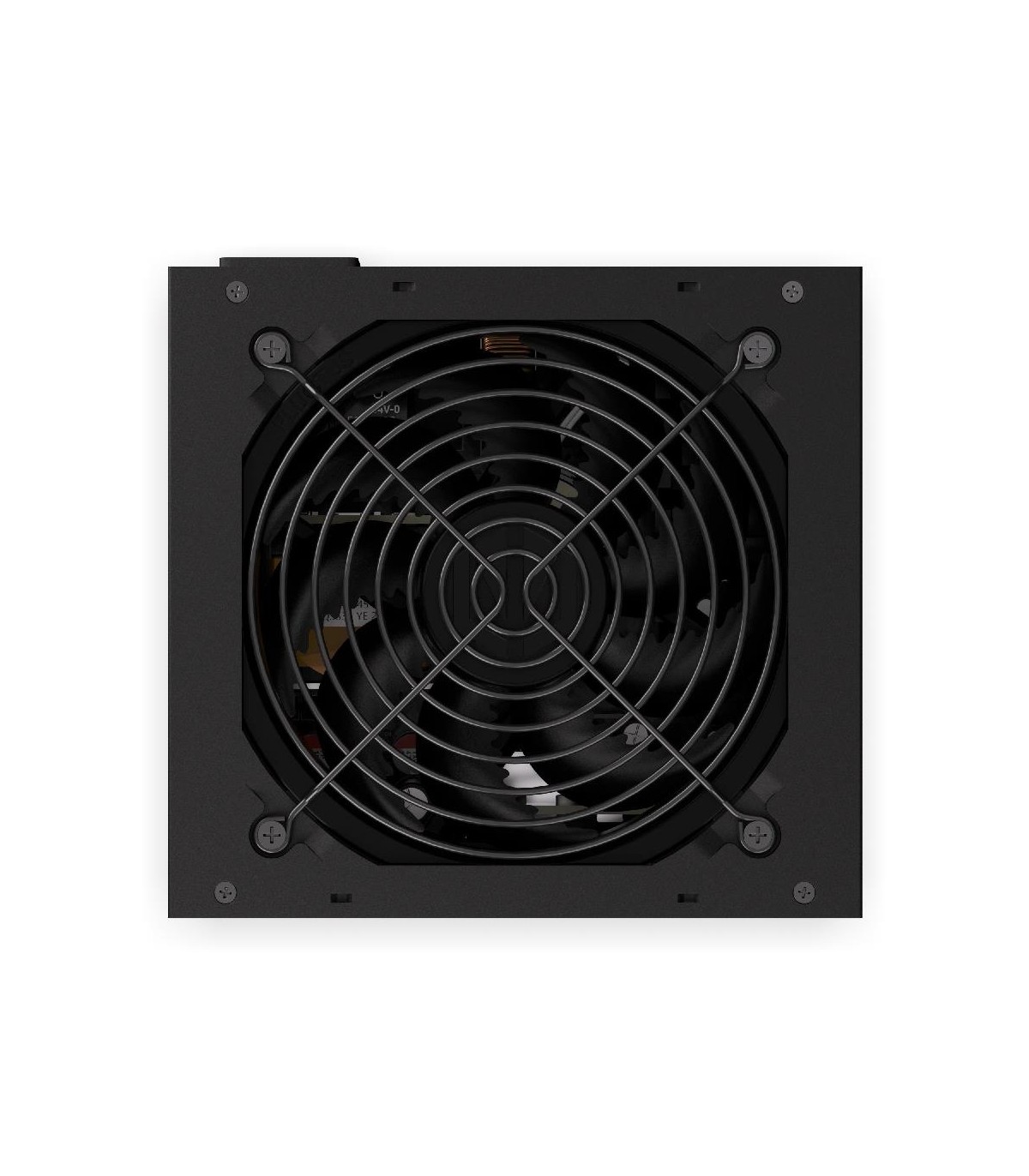

Fan location

Top

EPS power connector (4+4 pin)

Yes

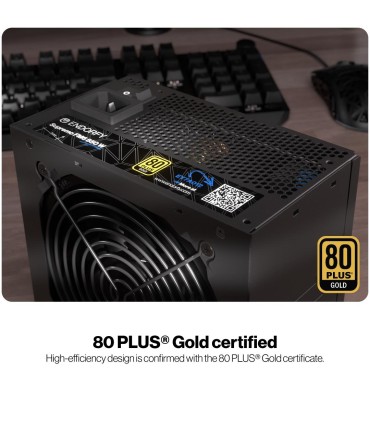

80 PLUS certification

80 PLUS Gold

SATA power cable length

560 mm

Combined power (+5Vsb)

15 W

Combined power (-12V)

3.6 W

PCI Express power connectors (12+4 pin)

1

On/off fan switch

No

Case or master carton dimensions (W x D x H)

600 x 235 x 290 mm

Case or master carton weight

17000 kg
