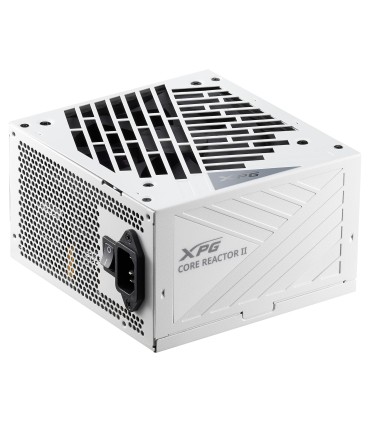

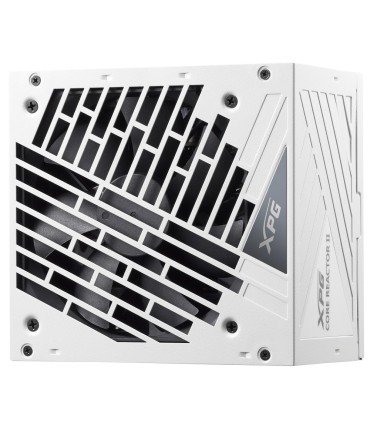

ADATA Power Supply XPG CORE REACTOR II 850 Watts Efficiency 80 PLUS GOLD COREREACTORII850G-WHCEU

Muud funktsioonid

Depth

150 mm

Height

86 mm

Width

140 mm

Unit Box Width

0.21

Unit Box Length

0.34

Unit Box Height

0.16

Category Code

PSU

Model name

XPG CORE REACTOR II

Number of fans

1 fan(s)

Unit Calculated Volume

0.01388 cubm

Unit Calculated Weight

3.67 kg

Units per Shipping Box

6

Summary

XPG COREREACTOR II 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS

Product colour

White

AC input frequency

47 - 63 Hz

AC input voltage

100 - 240 V

Package weight

3100 g

Input current

12 A

Certification

CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM

Weight

1596 g

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Fan diameter

120 mm

Purpose

PC

Max output current (+12V)

62.5 A

Max output current (+3.3V)

22 A

Max output current (+5V)

22 A

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

Power protection features

Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under voltage

Total power

850 W

Cabling type

Fully-Modular

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

6

Peripheral (Molex) power connectors (4-pin)

4

ATX version

3.0

Bearing technology

FDB

Power supply unit (PSU) form factor

ATX

Power factor

0.99

ATX Power connector (24-pin)

Yes

80 PLUS certification

80 PLUS Gold

ATX power connector (12+4 pin)

Yes

EPS power connector (8-pin)

Yes

EPS version

2.92
