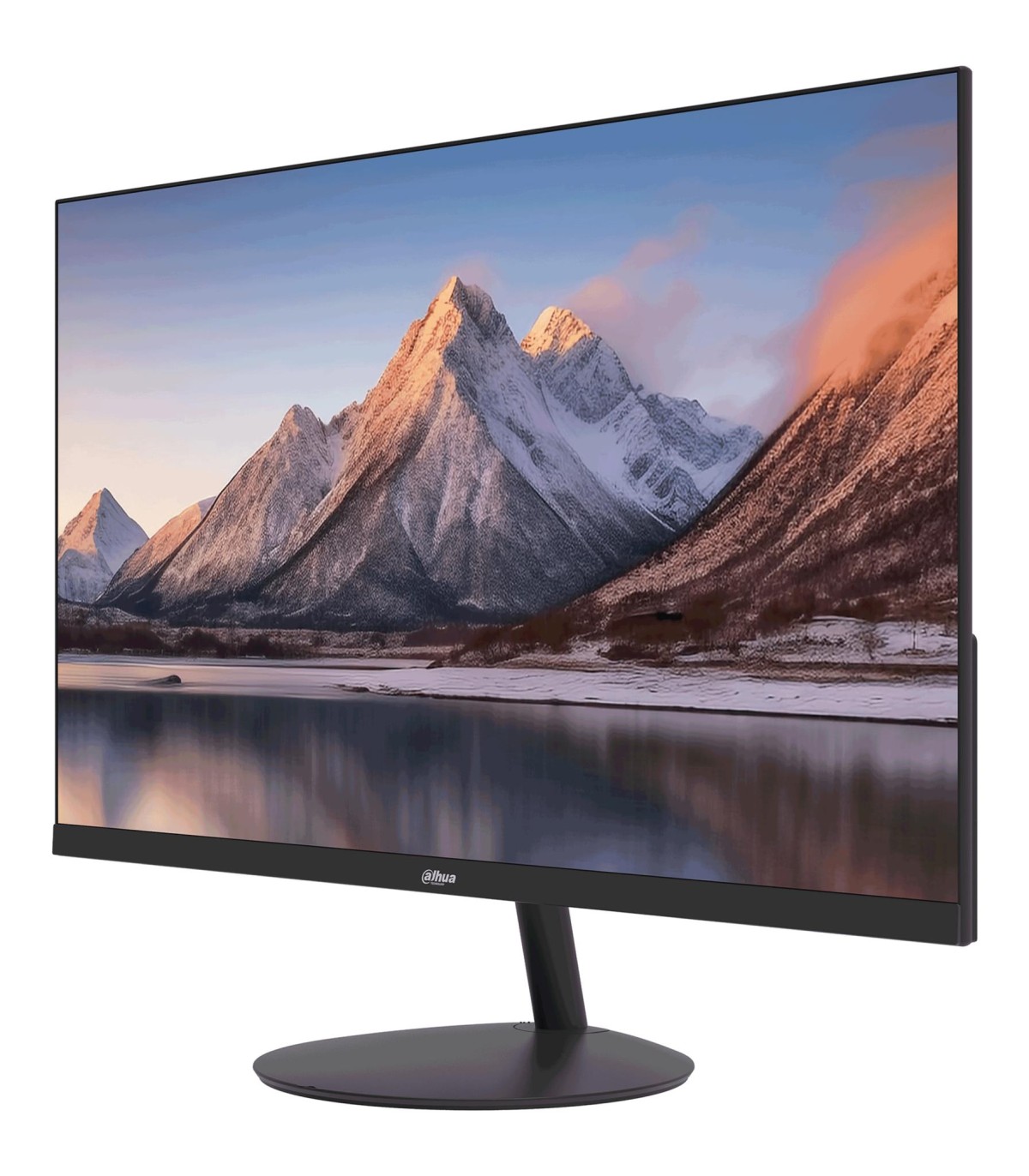

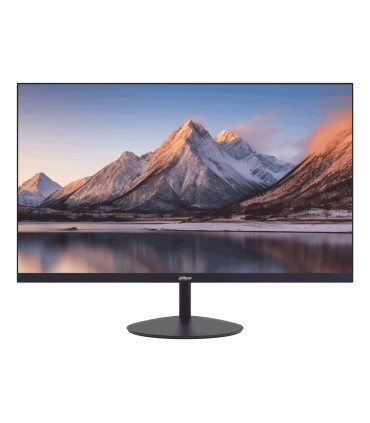

DAHUA LCD Monitor LM22-A200Y 21.45" Panel VA 1920x1080 16:9 100Hz 10 ms DHI-LM22-A200Y

Tehniline kirjeldus

Kõrguse reguleerimine

No

Energia

EPREL Registration Number

2139333

Liidesed

HDMI

Yes

Muud funktsioonid

Unit Box Width

0.1

Unit Box Length

0.6

Unit Box Height

0.37

Category Code

LC3

Model name

LM22-A200Y

Touchscreen

No

Model

DHI-LM22-A200Y

Panel type

VA

Response time

10 ms

Energy efficiency class

E

EPREL Version Number

1

Data Sheet (Link)

https://eprel.ec.europa.eu/api/product/2139333/fiches?language=EN

Display technology

LED

Power adapter included

Yes

Unit Calculated Volume

0.0222 cubm

Product Net Weight

2.05 kg

Unit Calculated Weight

3.06 kg

Summary

Dahua Technology LM22-A200Y. Display diagonal: 54.5 cm (21.4"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 10 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical:

Colour depth

8 bit

Colour gamut standard

NTSC

Contrast ratio (typical)

3000:1

Display brightness (typical)

250 cd/m²

Display diagonal

21.45 "

Display diagonal (metric)

56 cm

Display resolution

1920 x 1080 pixels

HD type

Full HD

LED backlight

Yes

Maximum refresh rate

100 Hz

Native aspect ratio

16:9

Screen shape

Flat

Viewing angle, horizontal

178 °

Viewing angle, vertical

178 °

Built-in camera

No

Built-in speaker(s)

No

Detachable stand

Yes

Product colour

Black

Built-in USB hub

No

HDMI ports quantity

1

HDMI version

1.4

Headphone out

No

Panel mounting interface

75 x 75 mm

Tilt adjustment

Yes

Tilt angle range

-5 - 15 °

VESA mounting

Yes

Energy consumption (SDR) per 1000 hours

15 kWh

Energy efficiency class (SDR)

E

Power consumption (standby)

0.5 W

Power consumption (typical)

16 W

Power supply type

External

Depth (without stand)

41.2 mm

Height (without stand)

284 mm

Weight (without stand)

2050 g

Width (without stand)

492.7 mm

Package depth

99 mm

Package height

366 mm

Package type

Box

Package weight

2860 g

Package width

598 mm

Stand included

Yes

Feet colour

Black

Front bezel colour

Black

VGA (D-Sub) ports quantity

1

Plug and Play

Yes

AC adapter output voltage

12 V

Energy efficiency scale

A to G

Power consumption (max)

16 W

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90 %

Compliance certificates

CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)

Backlight type

Edge LED

Wall mountable

Yes

Storage temperature (T-T)

-20 - 60 °C

Bezel width (bottom)

15.2 mm

Bezel width (side)

3.3 mm

Bezel width (top)

3.3 mm

Frameless design

Yes

Current rating

2 A

Mean time between failures (MTBF)

30000 h

NTSC coverage (typical)

72 %
